3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

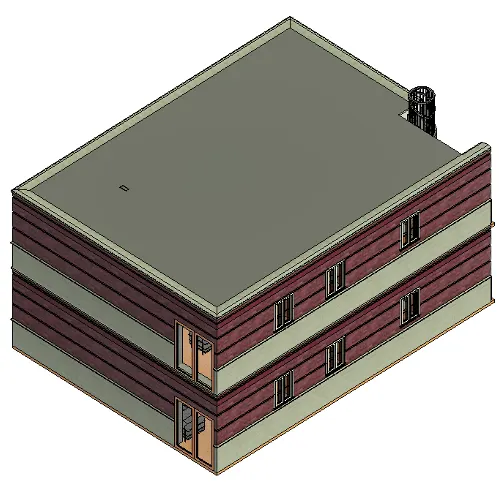

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

ans)

Aim: To proceed from the First Floor Level.Model a Ceiling from the architecture tab above the walls at the first-floor level.

Tools used:

• architecture tab
• ceiling
• pick line
• property browser

Procedure:

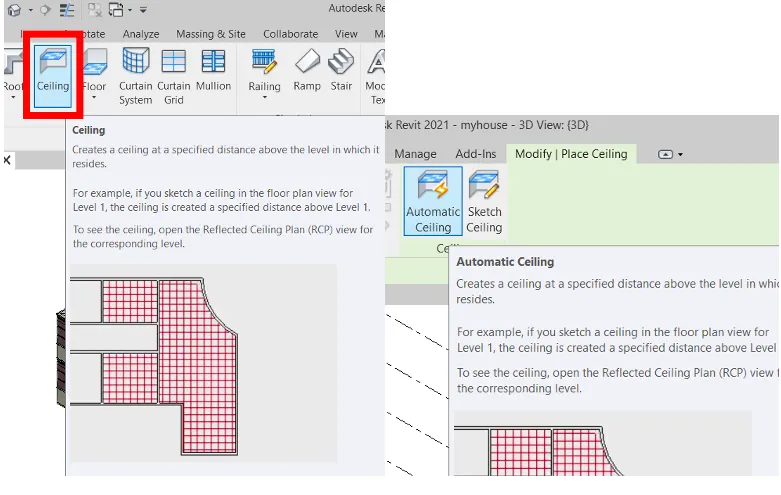

1)from the architecture tab select ceiling

2)then select sketch ceiling

3)from the draw section click on pick lines

4) select the desired lines upon which the ceiling is required.

5) after selecting the lines click on the tick mark ceiling will be applied

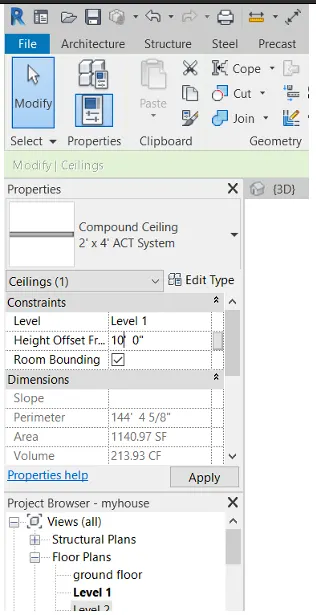

6) to adjust ceiling change the offset from property browser

Result: the ceiling was modeled from the architecture tab above the first floor successfully.

________________________________________________________________________________________________________________

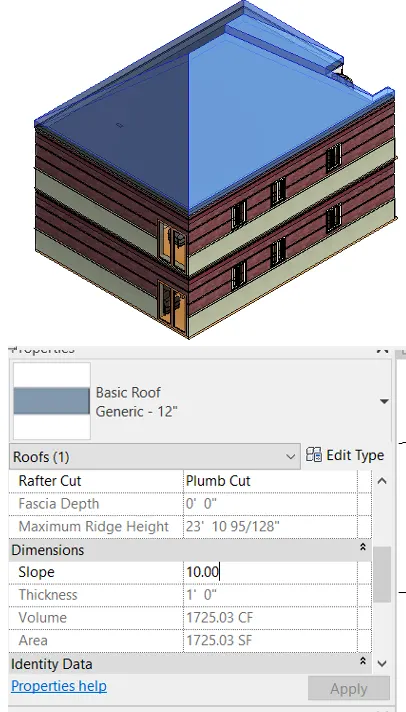

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

ans)

Aim: To model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

Tools used:

1. architecture tab
2. roof
3. pick line
4. property browser

Procedure:

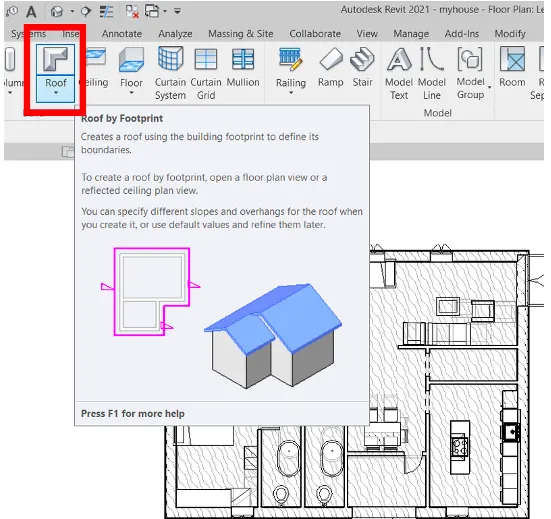

1)from the architecture tab select roof

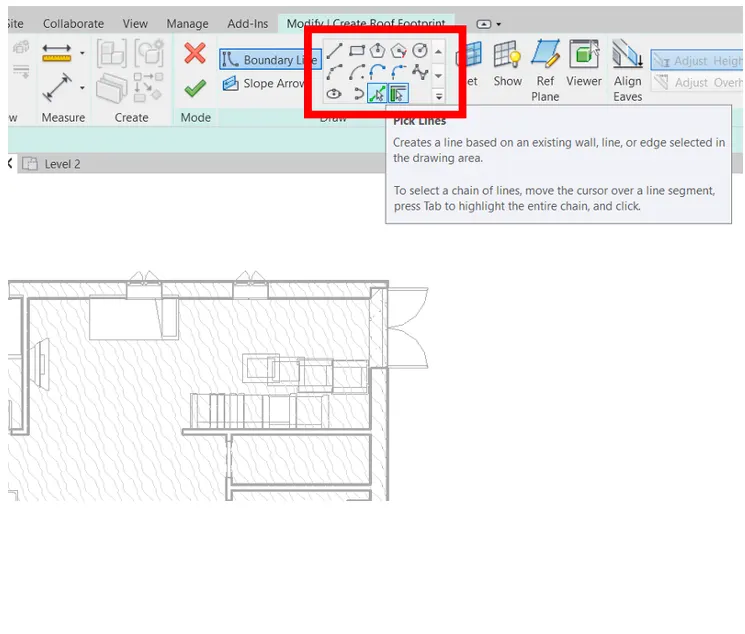

2)from the draw section click on pick lines

3) select the desired lines upon which the roof is required

4)from the properties browser change the slope to 10 degrees to change the slope of the roof.

Result: the desired roof of a 10-degree slope was applied to the project successfully.

________________________________________________________________________________________________________________________________

3) Using the file saved from week 2 to 4, create plan views for the ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

ans)

Aim: Create architectural and structural plan views

Tools used:

1. view
2. plan view

procedure:

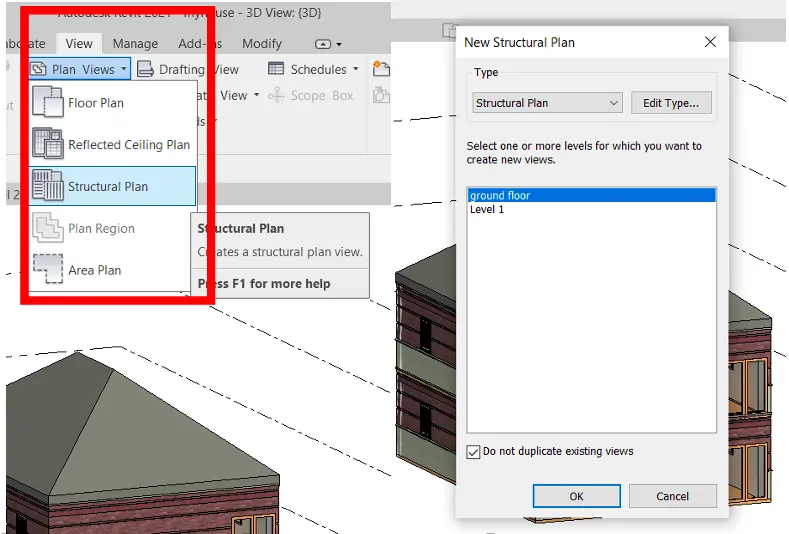

1)in the view tab select plan view

2)click on the structural plan and from the dialoh=g box opened click on the plan you need.

Result: Structural and architectural plans were created successfully.

________________________________________________________________________________________________________________________________

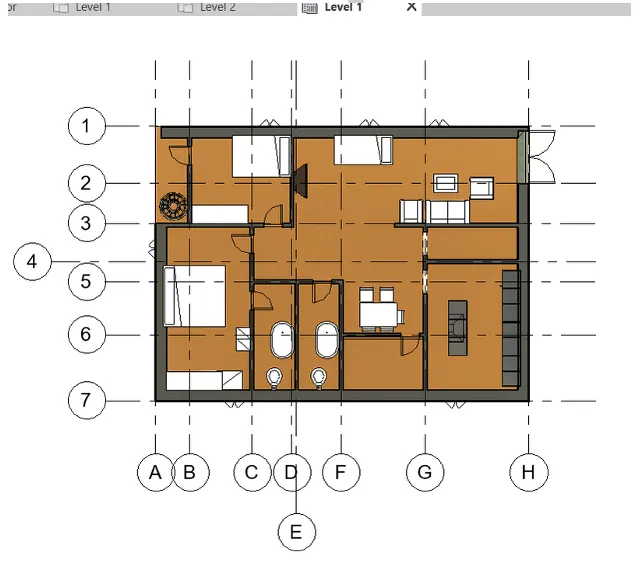

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

ans)

Aim: to use annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

Tools used:

1. annotate
2. grid
3. aligned
4. dimensions

Procedure:

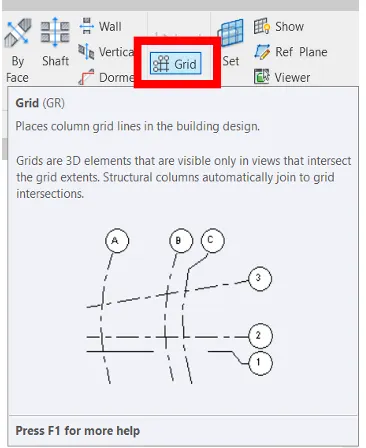

1)select the grid from the architecture menu

2)apply grids to the floor plan

3)from annotate toolbar select aligned tool and set the dimensions for walls and components

Result: The given task is completed successfully.

________________________________________________________________________________________________________________________________

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

ans)

Aim: To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Tools Used:

1. view tab
2. sheet

Procedure:

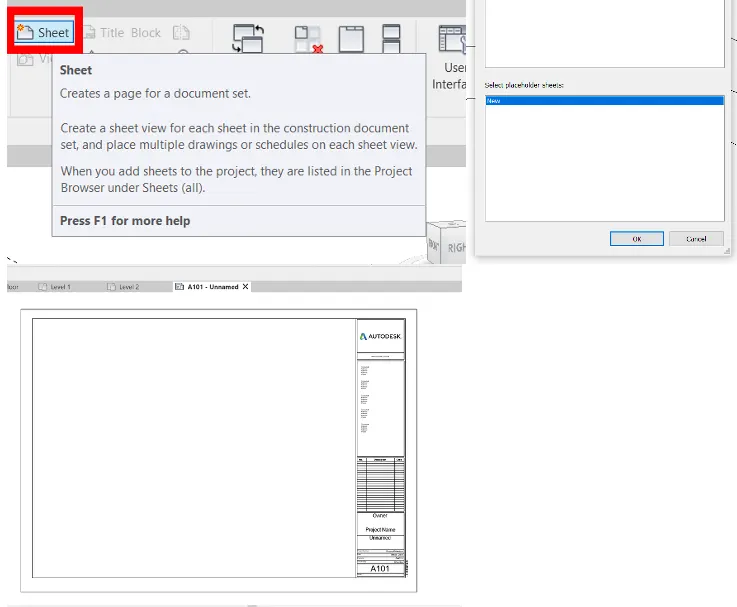

1)from the view tab from the sheet composition section click on the sheet

2)in the dialog box opened select the sheet and click ok. if need more sheet options click on load and insert them.

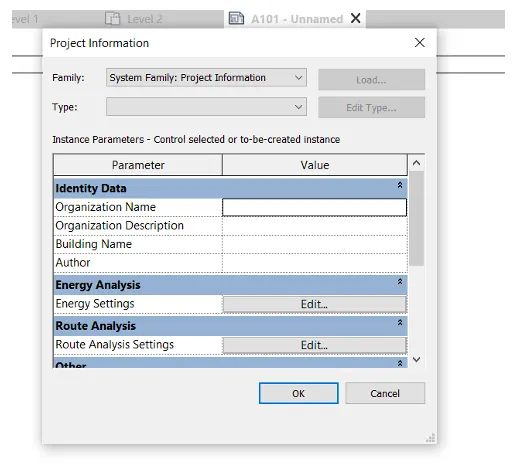

3)edit the information on the sheet or change the information in the project information. The details will be updated automatically.

Result: the sheet was created from the view tab and parameters on the sheet were adjusted successfully.

________________________________________________________________________________________________________________________________

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

ans)

Aim: To use the elevation tab to create the elevation views, looking at your building from East, North, South, and West

Tools used:

• view tab
• elevation

procedure:

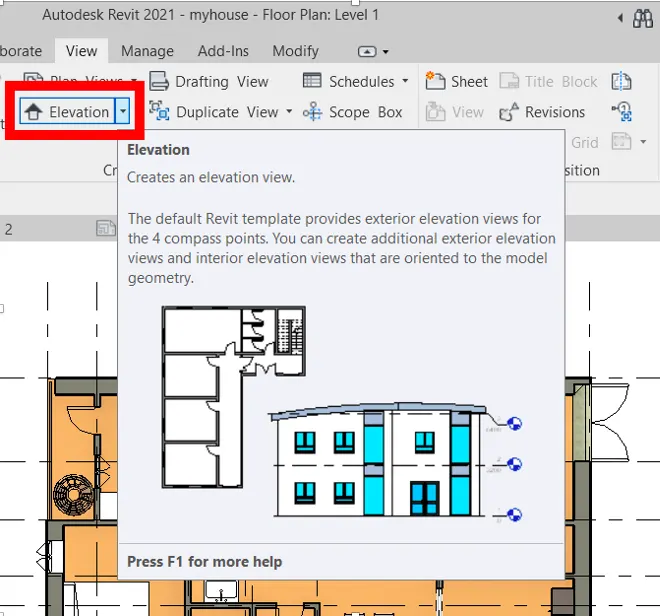

1)from the view tab select elevation

2) place them at East, North, South, and West to the drawing

3) name them accordingly from the project browser

Result: elevation views were made for the project successfully.

________________________________________________________________________________________________________________________________

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

ans)

Aim: To produce section cut through each room either cutting across longitudinally or in a transverse direction

Tools used:

1. view
2. section

procedure:

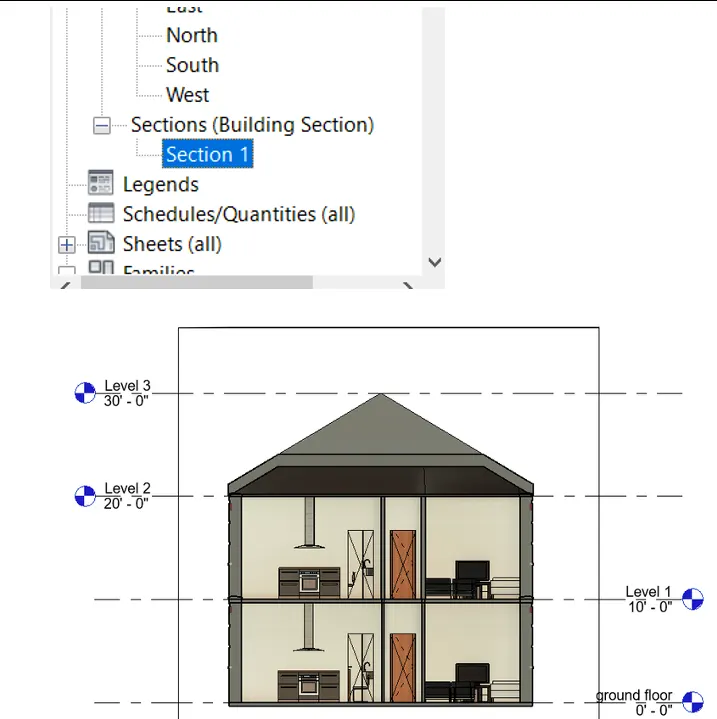

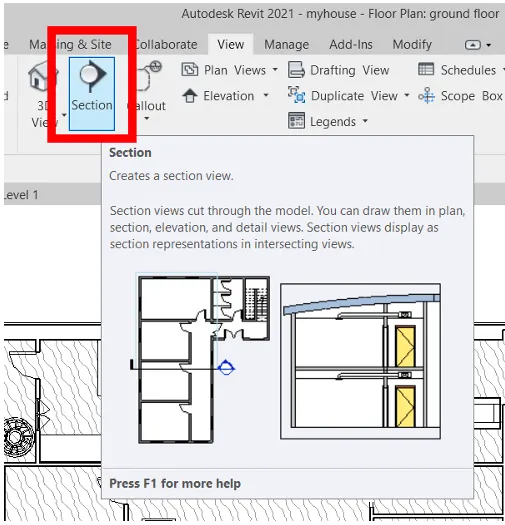

1) from the view tab select section

2)cut the floor plan longitudinal or transverse as the desired section is required

3)in the projet browser new section division is created

4) click on that to open the section view

Result: section view was created successfully.

_____________________________________________________________________________________________

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

ans)

Aim: To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Tools used:

1. properties browser
2. project browser

procedure:

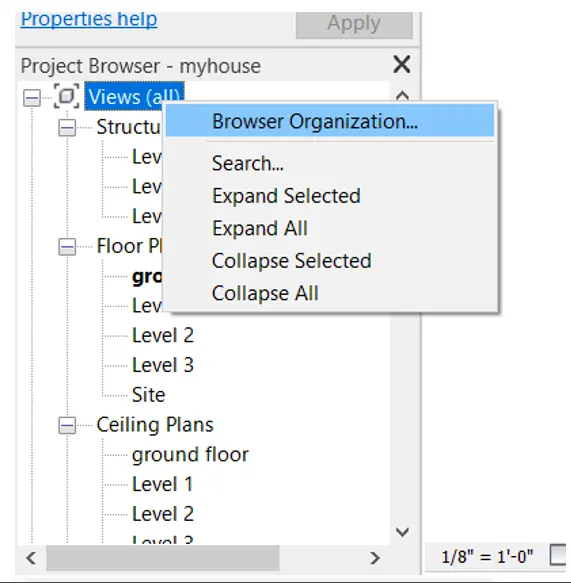

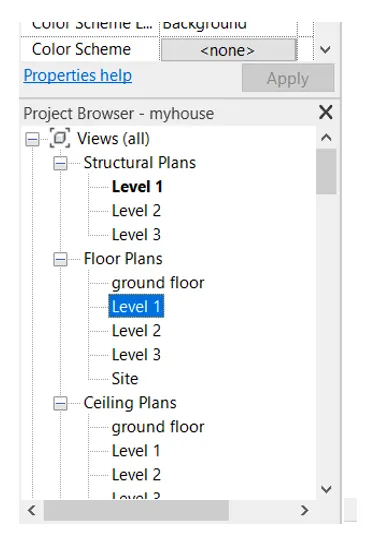

1)right-click on a view (all) and choose browser organization

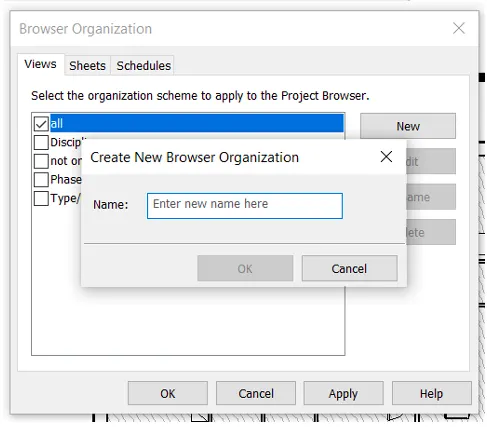

2)from the dialog box opened click on new and set a new browser organization as design and documentation

3)click on apply and ok

4) again click on a view(all) from the project browser

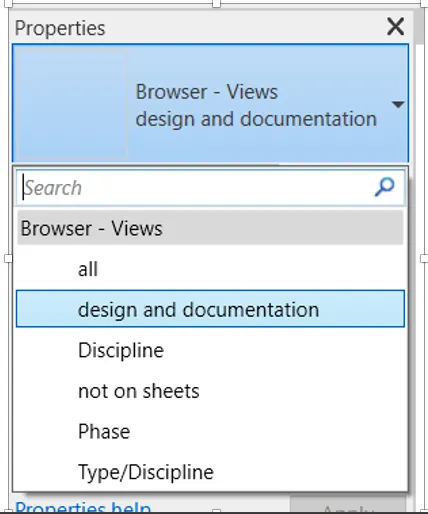

5) now from properties change the organization to design and documentation

Result: Task has been completed successfully.

________________________________________________________________________________________________________________________________

9) Using the sheet template produced create multiple sheets as follows

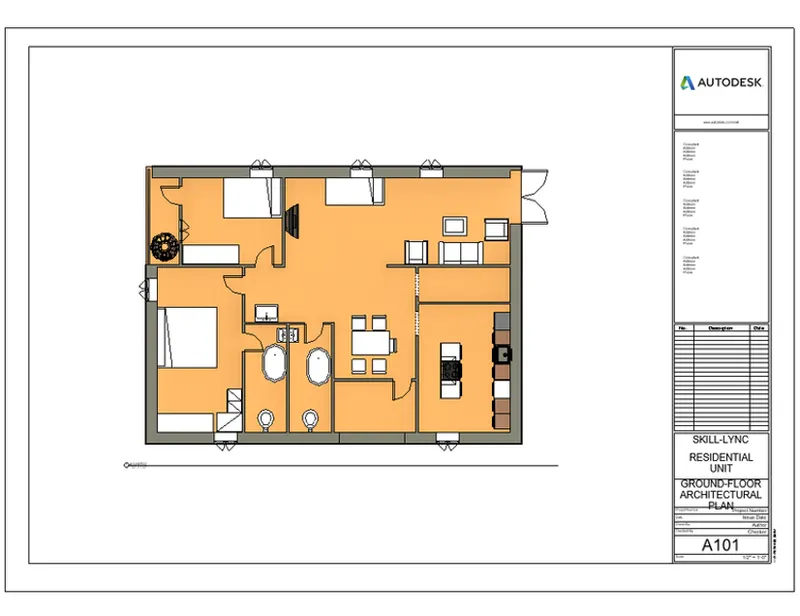

a. A 101 – Ground Floor Architecture Plan

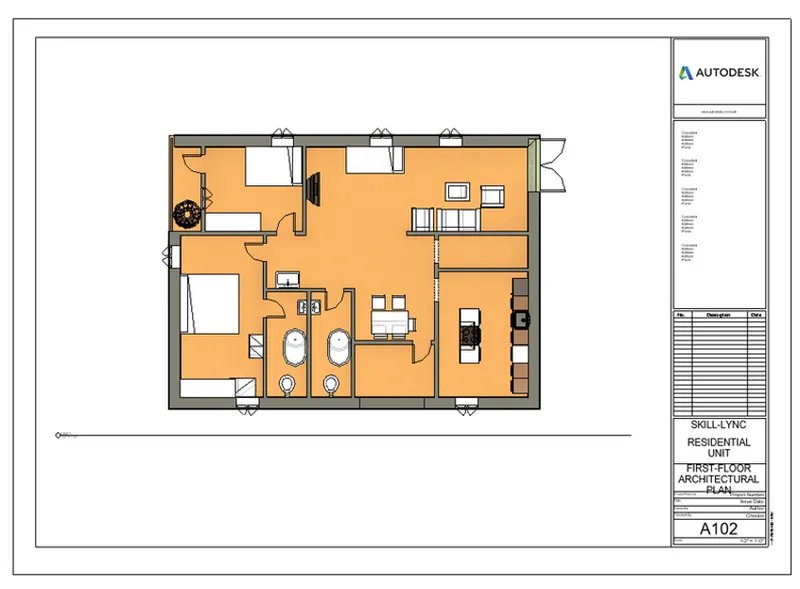

b. A 102- First Floor Architecture Plan

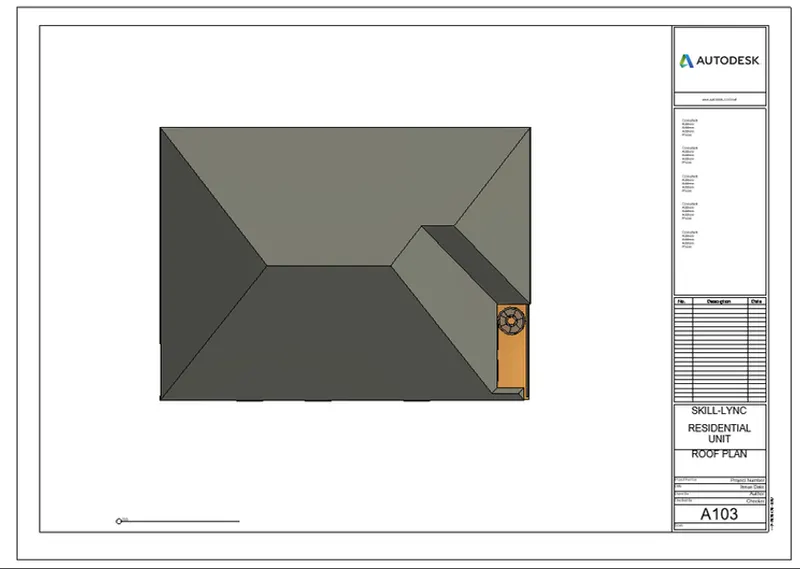

c. A 103- Roof Plan

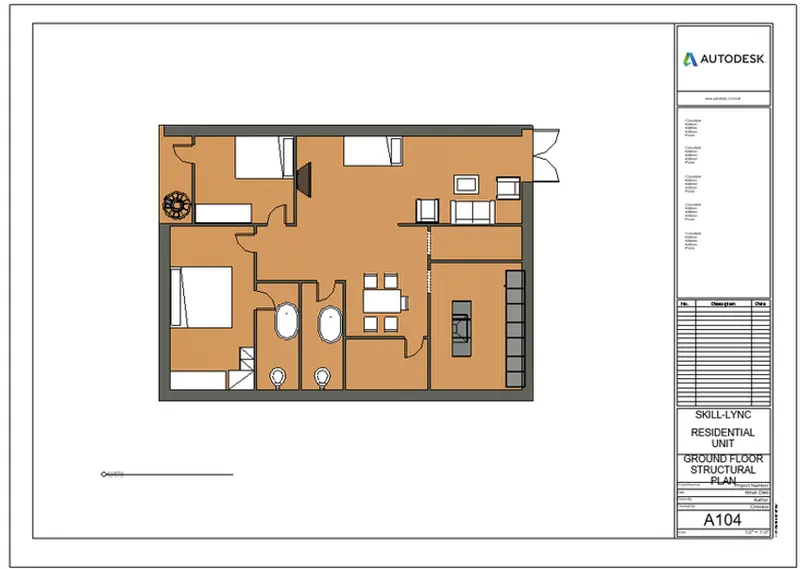

d. S 101- Ground Floor Structural Plan

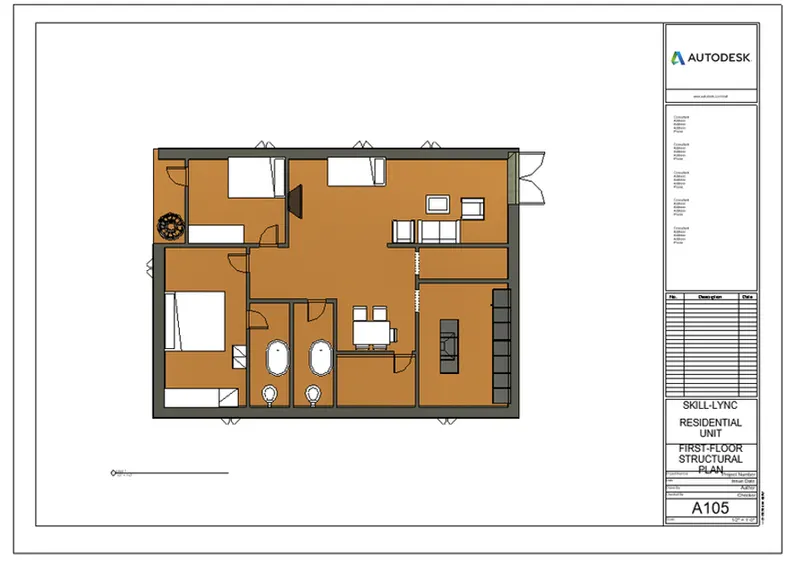

e. S 102 – First Floor Structural Plan

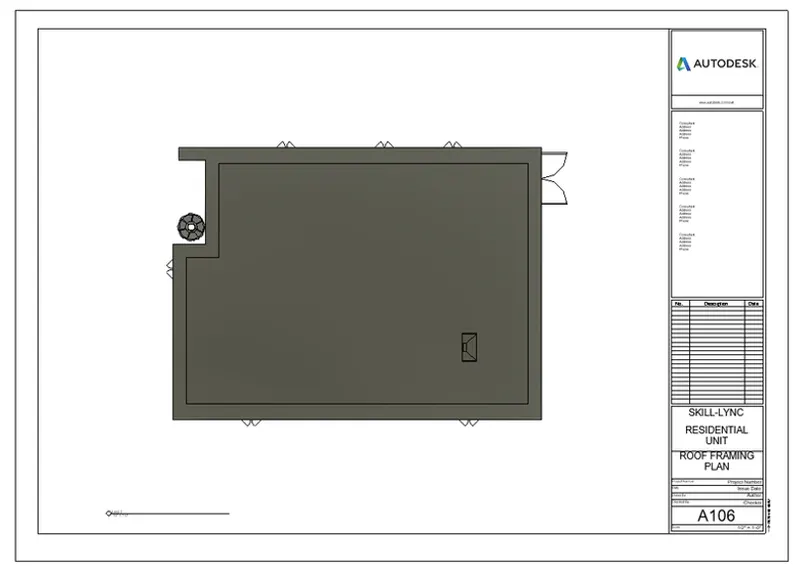

f. S 103- Roof Framing Plan

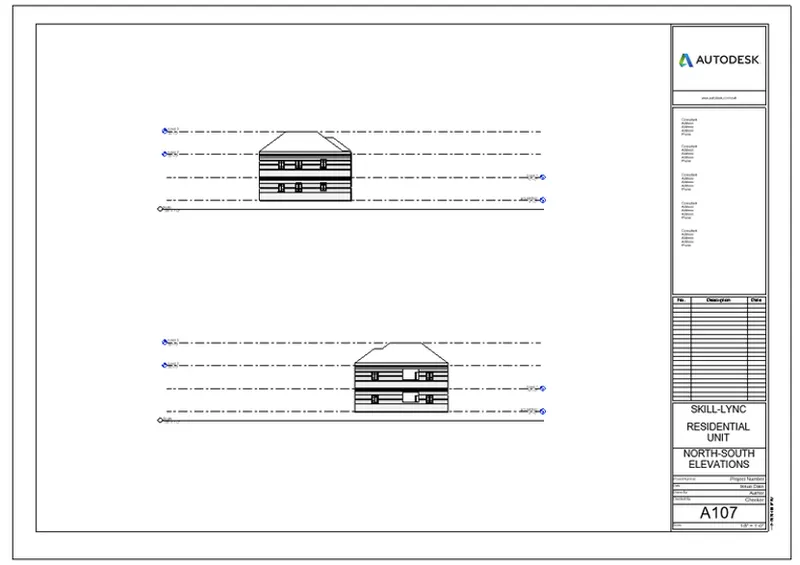

g. A-201 – North South Elevations

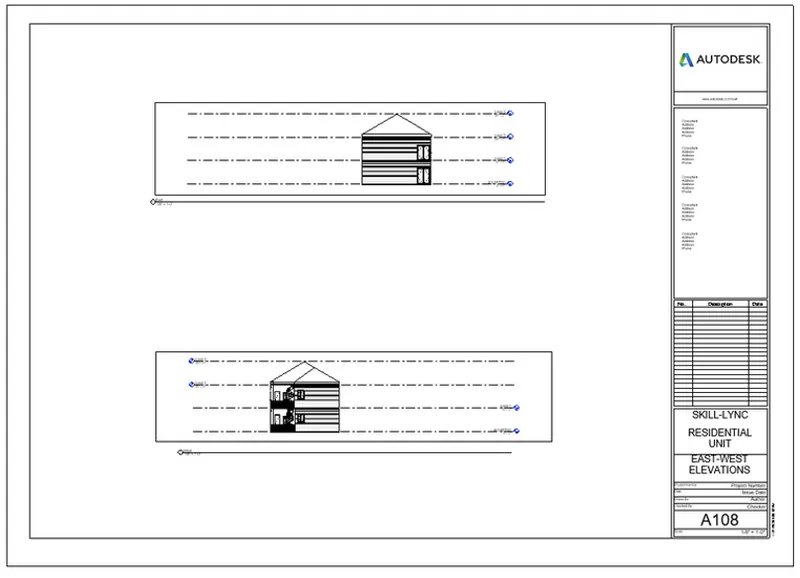

h. A-202- East West Elevations

ans)

a)

b)

c)

d)

e)

f)

g)

h)

________________________________________________________________________________________________________________________________

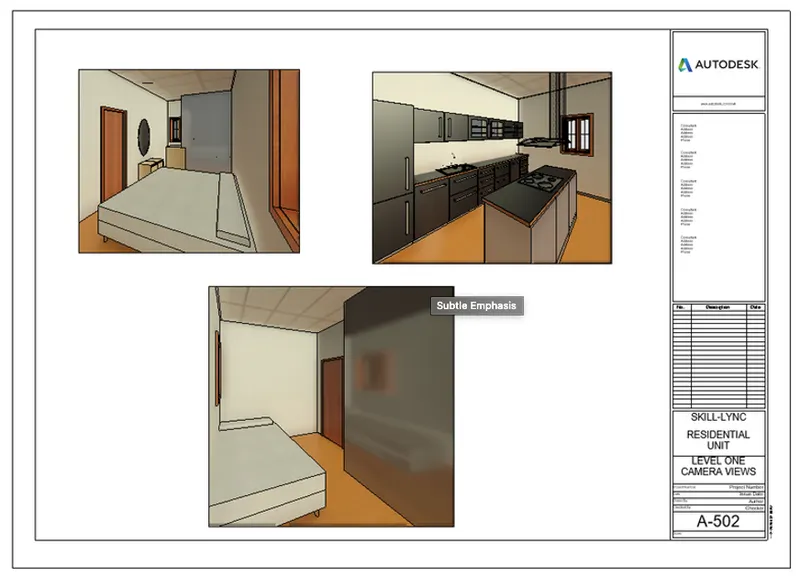

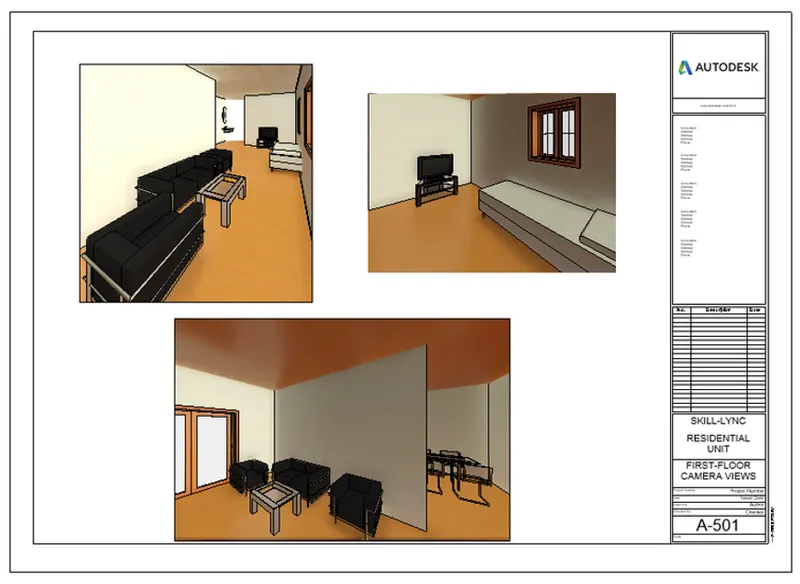

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom ). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

ans)
