3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

QUESTION 1:-

Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

ANSWER:

AIM: To model a Ceiling from the architecture tab above the walls at the first-floor level.

INTRODUCTION:

• A ceiling is an overhead interior surface that covers the upper limits of a room. It is not generally considered a structural element, but a finished surface concealing the underside of the roof structure or the floor of a story above.
• The creation of Ceilings within Revit is a very similar process to that of Floors and Roofs- ie you can let Revit do most of the work and "gress" where you want the boundaries to be.Or you can enter Sketch Mode and literally sketch out the boundary of the ceiling yourself.
• The main thing to remember is to be in the Connect Ceiling Plan View before you start. Revit will let you place Ceilings in Floor Plan
• In this Revit Architecture tutorial, I am going to show you how to create Ceiling elements both “Automatically” and by means of the “sketch method”.

TYPES OF DRAWING:

1. Creating Ceilings automatically
2. Creating Ceilings by Sketch
3. Aligning Suspended Ceiling Grids

Just like Floors and Roofs, Revit Ceilings consist of 3D model geometry and non-graphical parametric data. They are created by use of the dedicated Ceiling tool. There are 2 methods of creating Ceilings- each with their own pros and cons, which I will explain at the end of the tutorial. To make this tutorial a little more realistic, I have created a simple building to which we can add some Ceiling elements

PROCEDURE:

STEP-1:

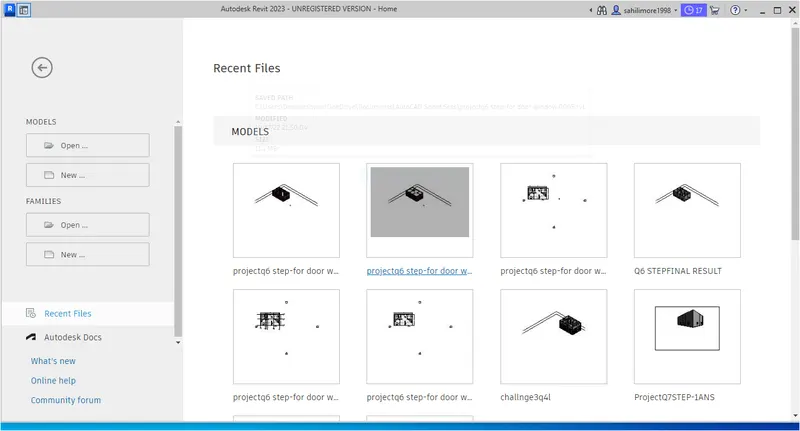

1. Opening Revit Software
2. Opening Week 3 Project
3. From recent projects Open 'My Home Architectural'

STEP-2:

1. First we open the revit sofware, and select the ceiling option from the architecture toolbar.

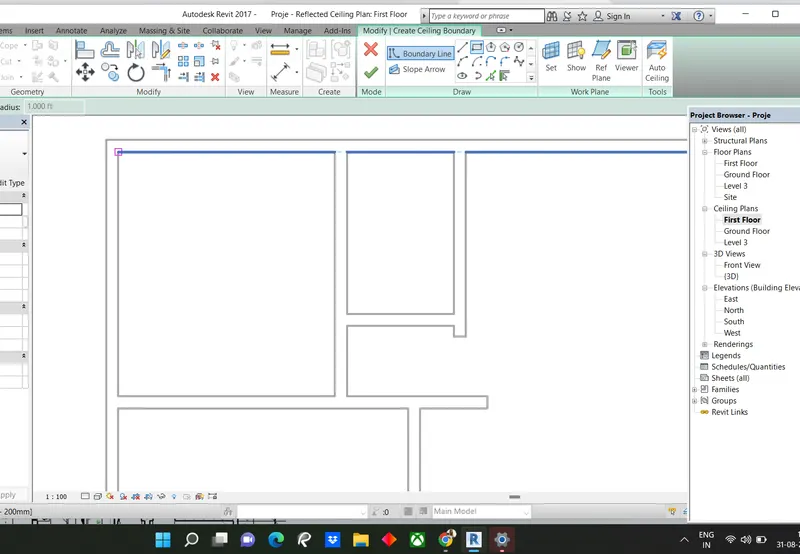

STEP-3: Creating a ceiling

1. From the project, browser click and open the first-floor plan view

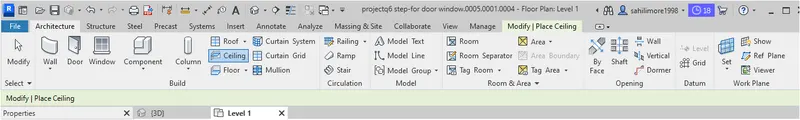

2. Go to Architectural Tab
3. Click on Ceiling to model the ceiling for the first floor
4. Select the type as 2'X4' ACT System

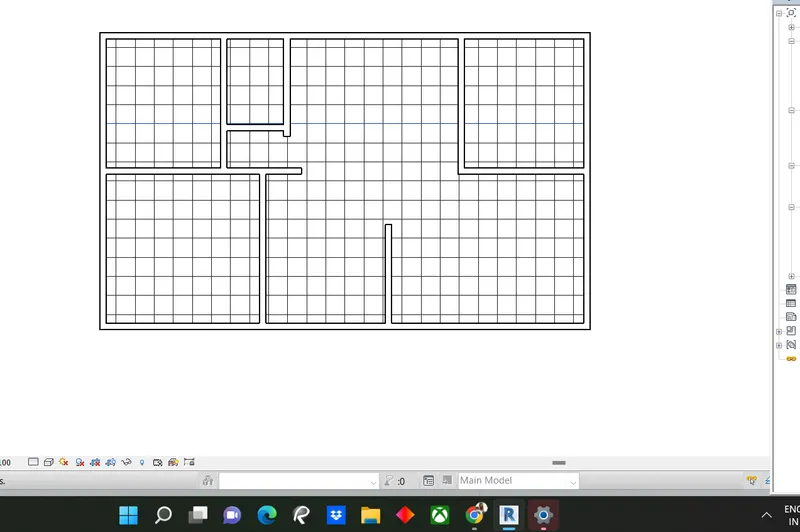

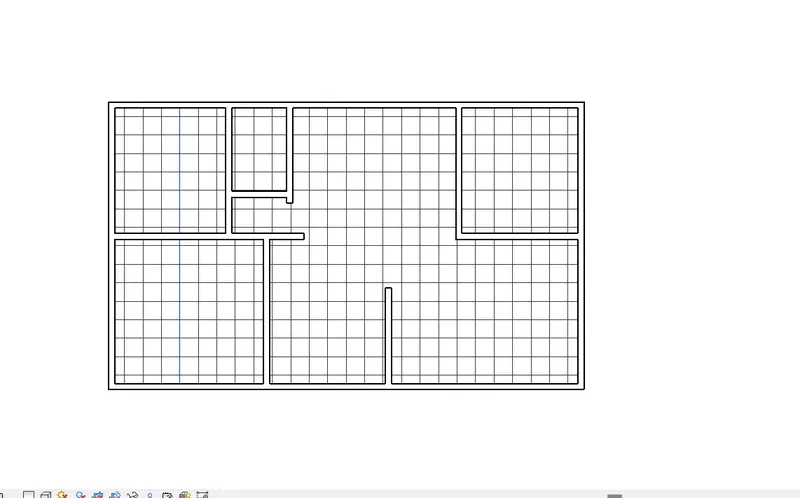

5. Select the required area of the ceiling as shown below

1. Ceiling is created at required area.

RESULT:

• The height offset of the ceiling is changed from the properties of the ceiling. The result after placing the ceiling over the first floor is shown below.

QUESTION :-2

Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

ANSWER:

AIM: To Model a Roof to the first-floor ceiling

INTRODUCTION:

• A roof is a top covering of a building, including all materials and constructions necessary to support it on the walls of the building or uprights, protecting against rain, snow, sunlight, extremes of temperature, and wind. A roof is part of the building envelope.
• Roof, covering of the top of a building, serving to protect against rain snow, sunlight wind, and extremes of temperature
• Roofs have been constructed in a wide variety of forms flat, pitched, vaulted, domed, or in combinations as dictated by technical. economic, or aesthetic considerationsThe earliest roofs constructed by man were probably thatched roofs that were made of straw.
• leaves, branches, or reeds; they were usually set at a slope, or pitch, so that rainfall could drain off them.
• Conical thatched roofs are a good example of this type and are still widely used in the rural areas of Africa and elsewhere
• Thicker branches and timbers eventually came to be used to span a roof, with clay or some other relatively impermeable substance pressed into the interstices between them.
• Gabled and flat roofs were possible with these materials. With the invention of brick and cut stone for building, the basic roof formo of the dome and vault appeared.

PROCEDURE:

STEP-1:

1. OPEN Revit Software
2. Opening Week 3 Project
3. From recent projects Open 'My Home Architectural'

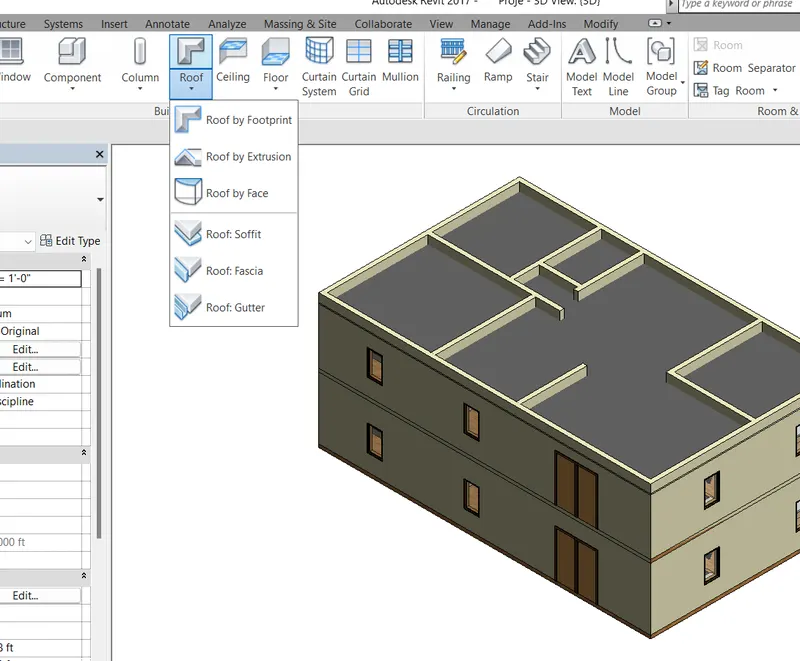

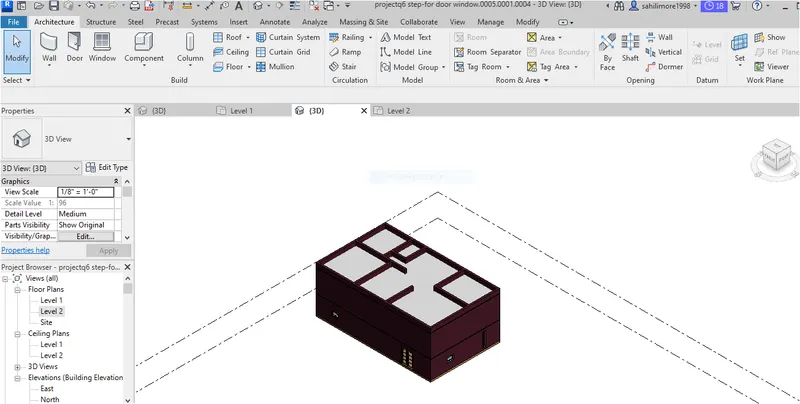

STEP-2: Creating Roof over the first floor

1. Open First Floor Plan in the Project Browser
2. From the project browser click and open the first-floor plan view
3. Go to Architectural Tab
4. Click on the Roof tab to model the roof for the first floor

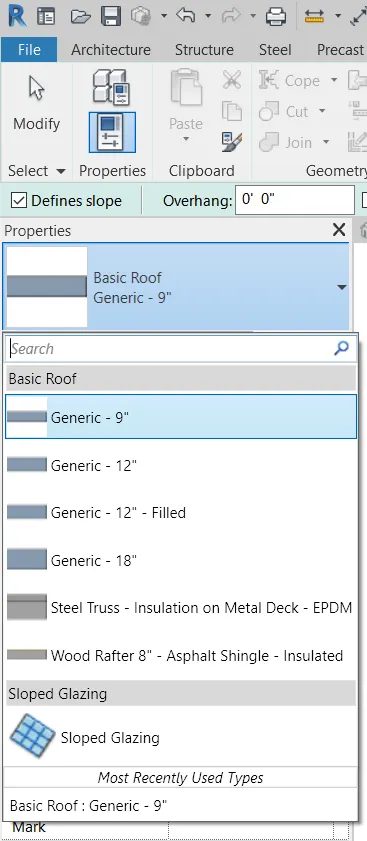

1. Select the type as 'Generic 9" Roof'

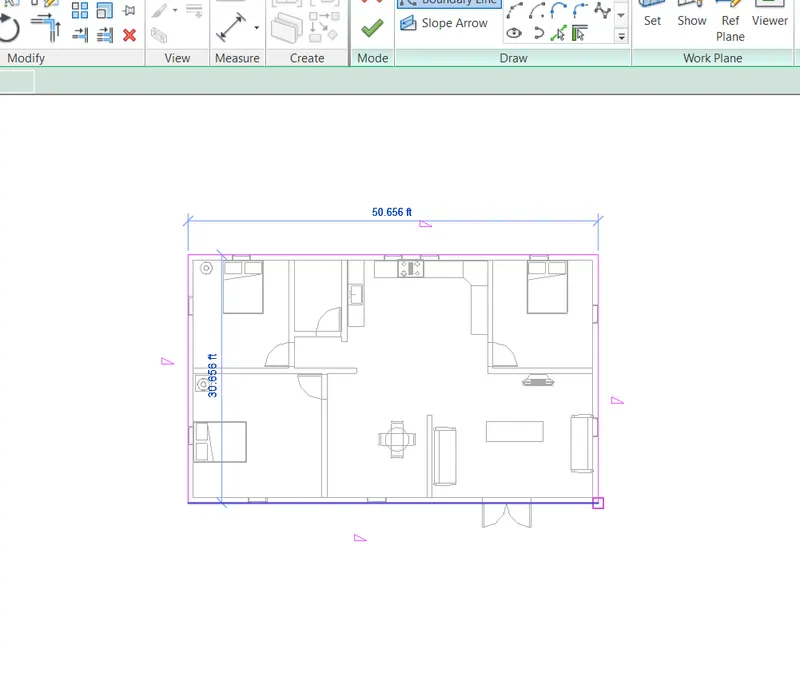

1. Select the required area of the roof as shown below

1. I have change color of walls

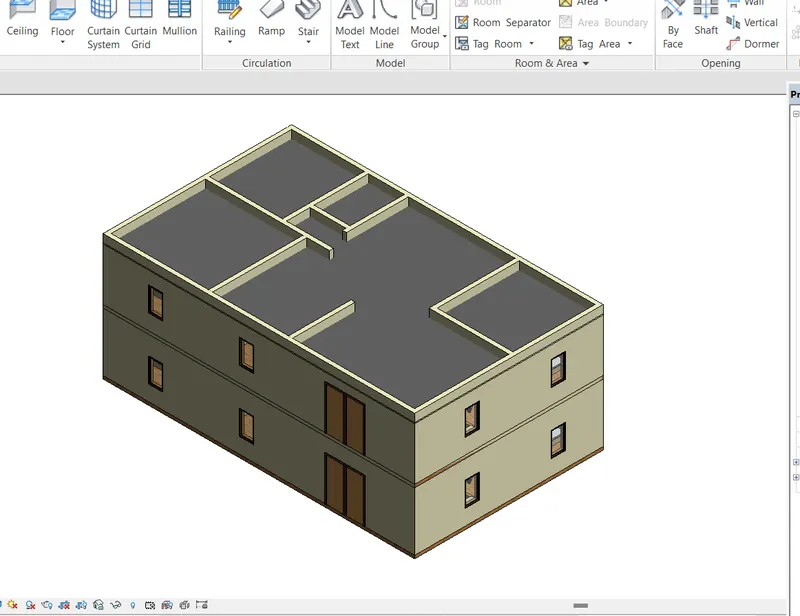

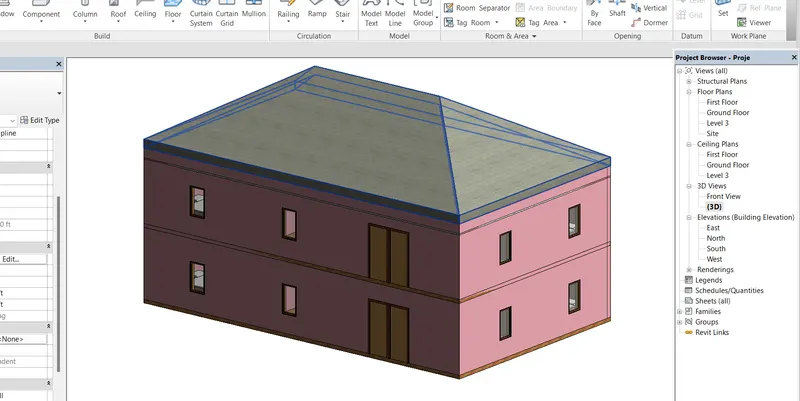

RESULT:

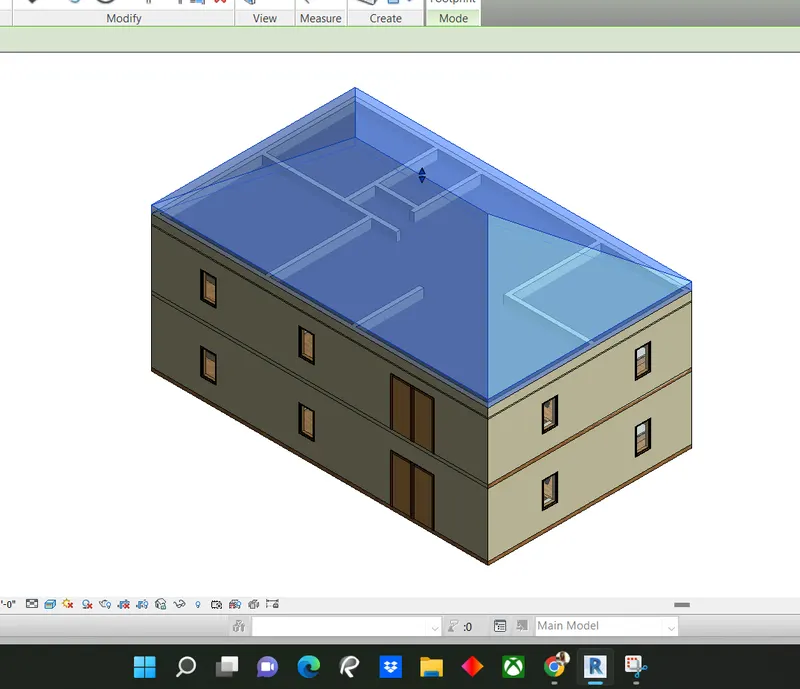

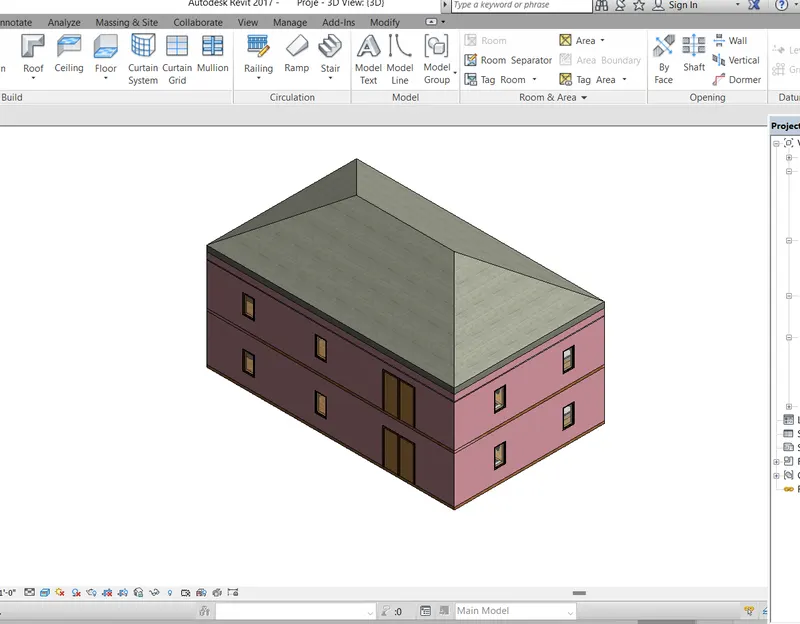

• The base level is set to Roof Level. The roof after creation is as follows.

QUESTION:- 3

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

ANSWER:

AIM: To Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

INTRODUCTION:

• The structural plan view is the default view when you start a new project using a structural template.. Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types

• The floor plan view is the default view in a new architectural project. - Most projects include at least one floor plan.

• Floor plan views are created automatically as you add new levels to your project.

PROCEDURE:

STEP-1:

1. Open Revit Software
2. Open project
3. From recent projects Open 'My Home Architectural'

STEP-2: Creating Architectural Plan

1. Go to Properties browser and open Floor Plans as required
2. Click on Ground Floor Plan to open 2D layout Floor plan of ground floor
3. The architectural plan of the ground floor consists of walls, stairs, windows, doors
4. Components of kitchen, living room, bedroom, toilet, storeroom.

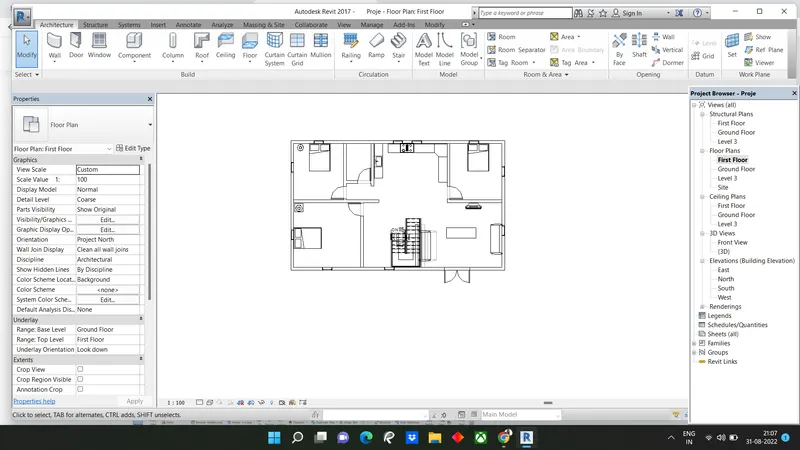

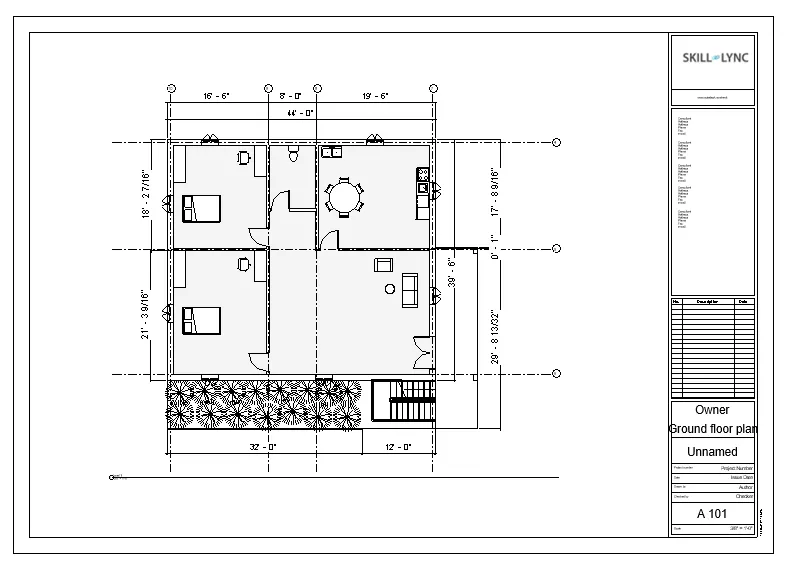

5. Ground Floor Plan is shown below

A). Architecture plan must have walls, floors, and all the components placed within the building

1. Open the new sheet and set the unit
2. set the levels
3. In the above tool bar pick the view option
4. And taken the plan views in right side

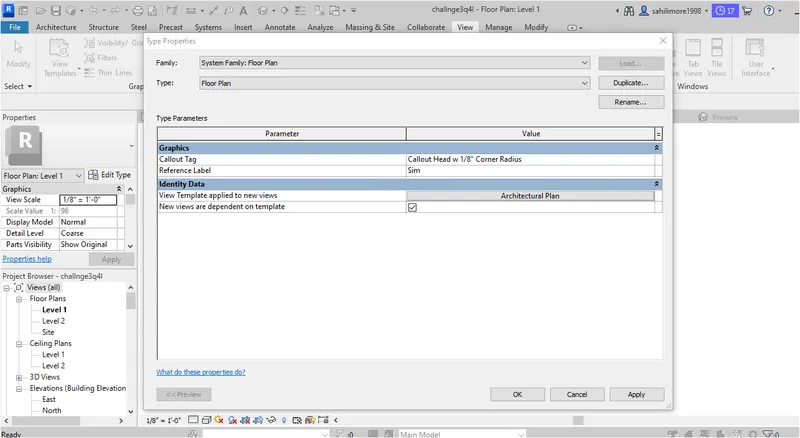

1. In the plan views they have some option just pick the floor plan
2. And click the edit option, set the architecture
3. And click ok, to view the architecture plan on screen

B). Structure plan must have details of only walls, floors, and columns:

1. Same like as above option
2. Open the new sheet and set the unit
3. set the levels
4. In the above tool bar pick the view option
5. And taken the plan views in right side

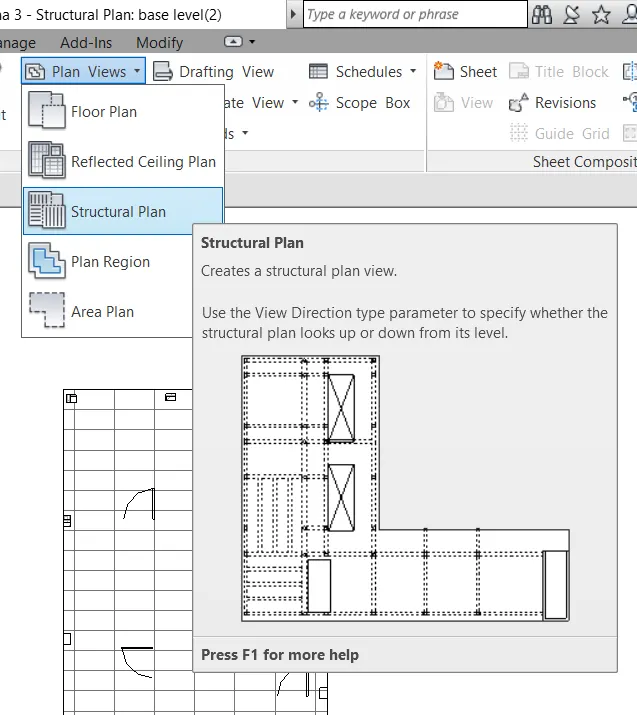

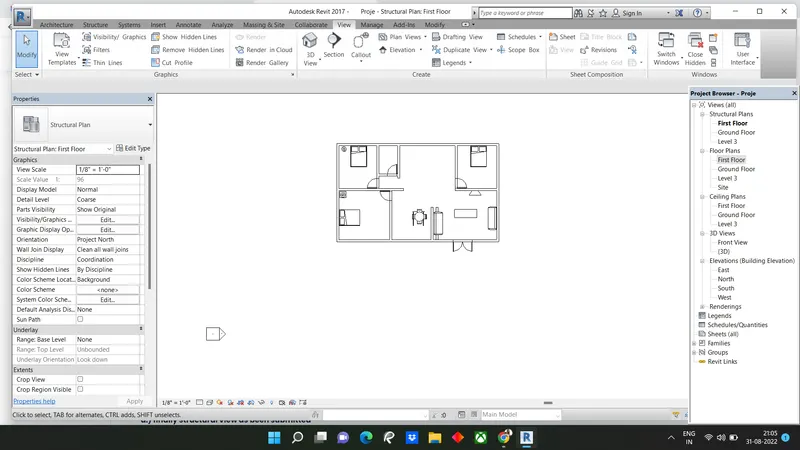

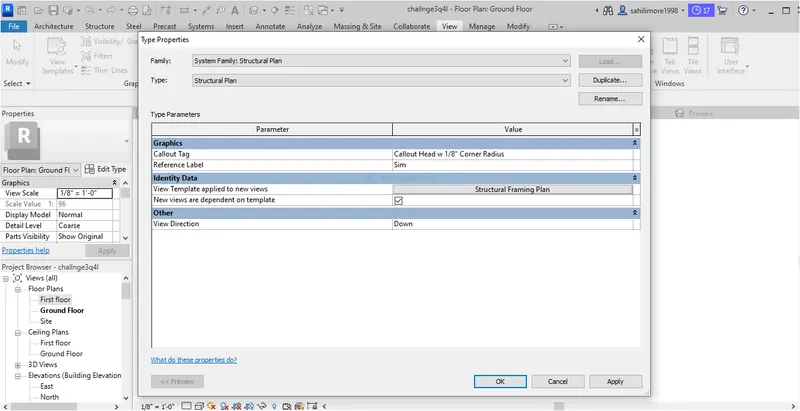

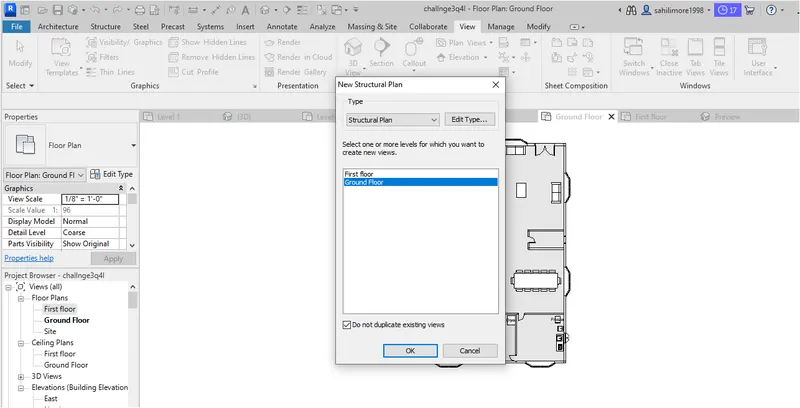

1. In the plan views they have some option just pick the structural plan
2. Automatically it can show the structural view in the plan

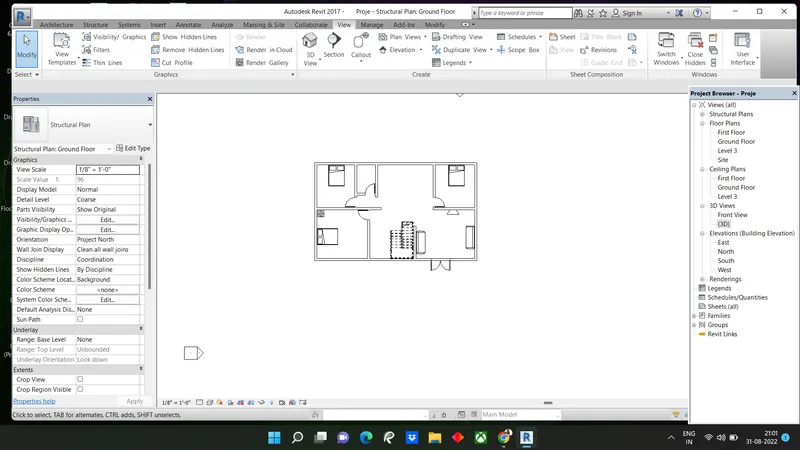

Structural Plan of Ground Floor

RESULT:

• The Architectural and structural plan

QUESTION:-4

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

ANSWER:

AIM: To Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

INTRODUCTION:

• The structural plan view is the default view when you start a new project using a structural template.
• Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
• The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
• Floor plan views are created automatically as you add new levels to your project.

PROCEDURE:

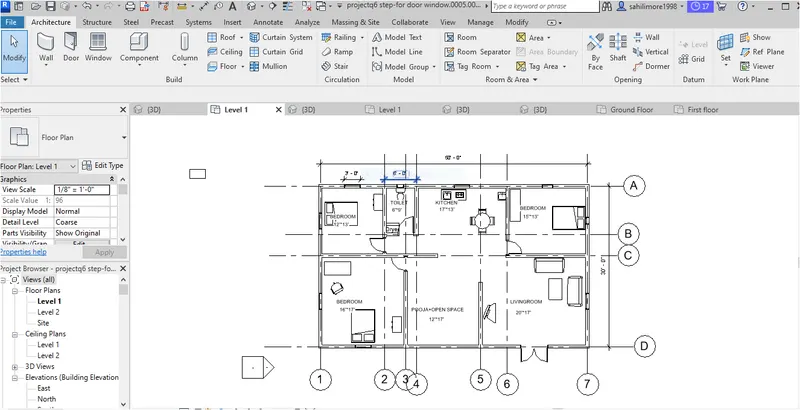

STEP-1: Creating Grids

1. Go to Architectural Tab
2. Click on GRIDS on the right corner
3. Draw the grids as shown below
4. Horizontal Grids are name - A, B, C, D
5. Vertical Grids are named - 1, 2, 3, 4

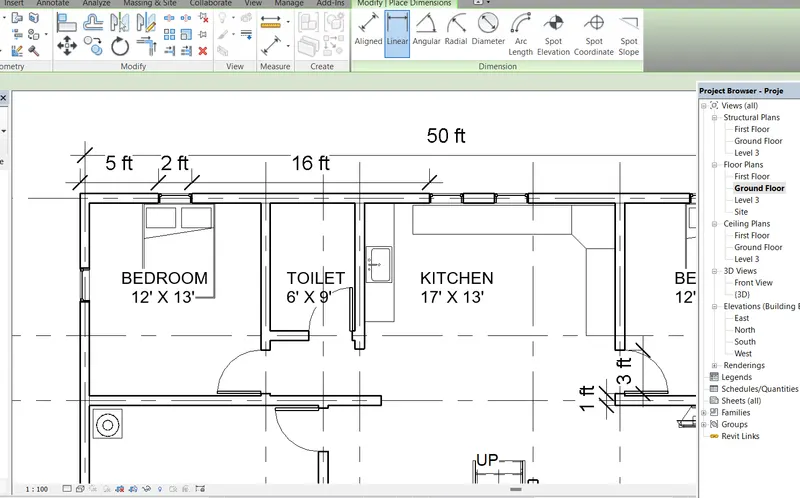

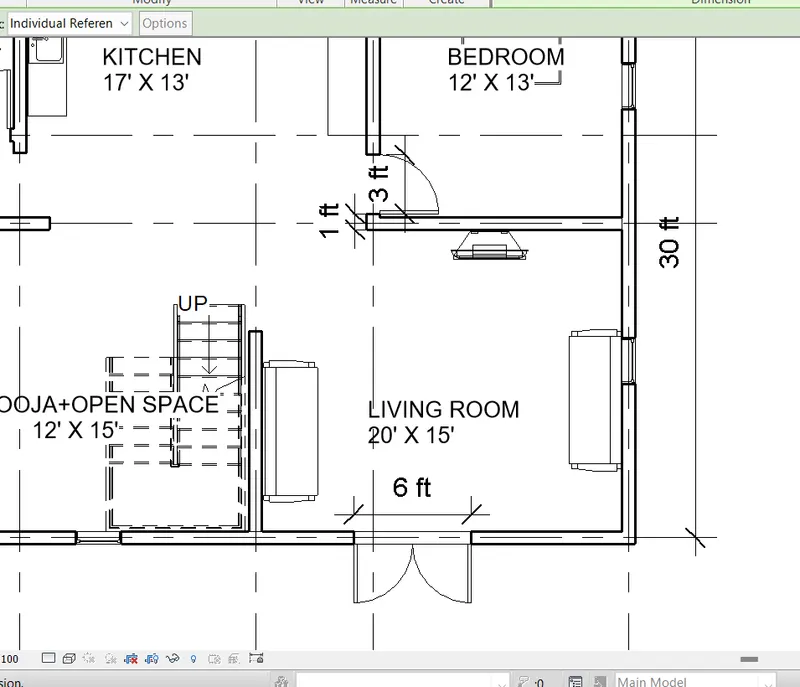

STEP-2: Architectural Annotations

1. Annotations are created for components concerning the grid line created as shown below.
2. In the below figure annotations for doors and windows in the NE are shown

STEP-3: Structural Annotations

1. Annotations are created for wall center lines concerning the gridline created as shown below.
2. In the below figure annotations of the wall, centerlines are shown below

RESULT:

• The Below figures show both Architectural Annotations and Structural Annotations of the project given

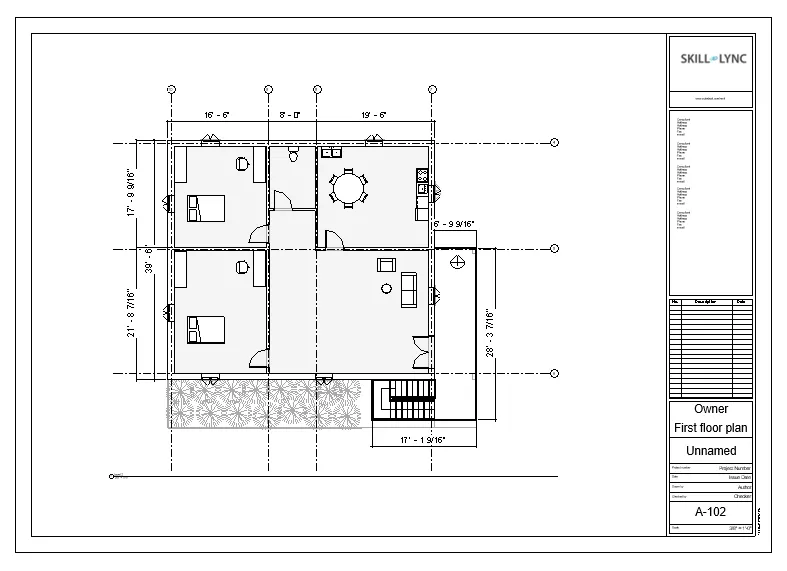

1). Architectural Annotations: Show distance for Architectural components of the residential house with respect to the grid lines

2). Structural Annotations: Show distance for Structural components of the residential house with respect to the grid lines

QUESTION:-5

Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

ANSWER:

AIM: To create a sheet template and adjust the parameters

INTRODUCTION:

• In Revit, you create a sheet view for each sheet in the construction document set. You can then place multiple drawings or schedules on each sheet view.
• In Revit, you create a sheet view for each sheet in the construction document set. You can then place multiple drawings or schedules on each sheet view.
• About Sheets in Project Templates. Create views on a project template before you start building the model to streamline the project documentation process.
• A construction document set (also called a drawing set or a sheet set) consists of several sheets. Topics in this section. About Sheets. In Revit, you create a sheet view for each sheet in the construction document set.
• You can then place multiple drawings or schedules on each sheet view.

Add sheet :

• Open the project.
• Click View tab Sheet Composition panel (Sheet).
• Select a title block, as follows: In the New Sheet dialog, select a title block from the list. ...
• Enter information in the title block of the sheet.
• Add views to the sheet.
• Change the default number and name that Revit assigned to the sheet.

PROCEDURE:

STEP-1:

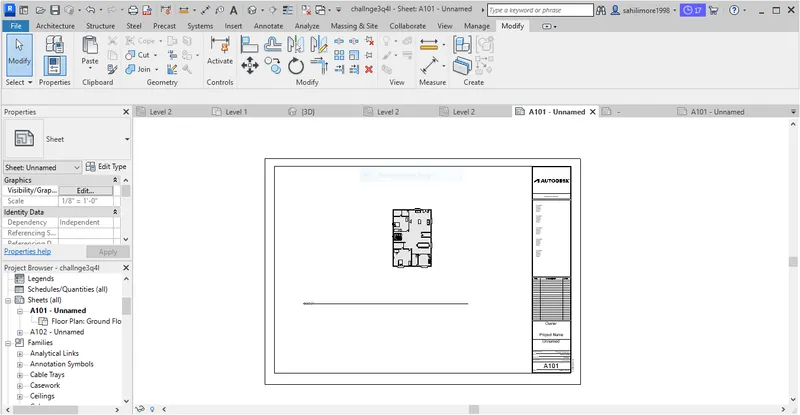

1. Opening Project and Sheet Layout
2. Open the Project " My Home Architectural"

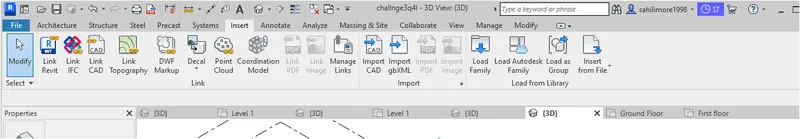

3. Go to Insret tab

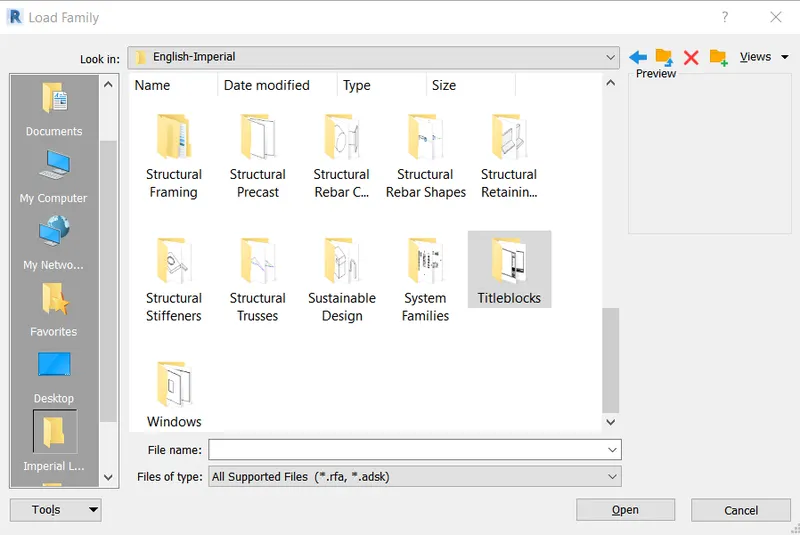

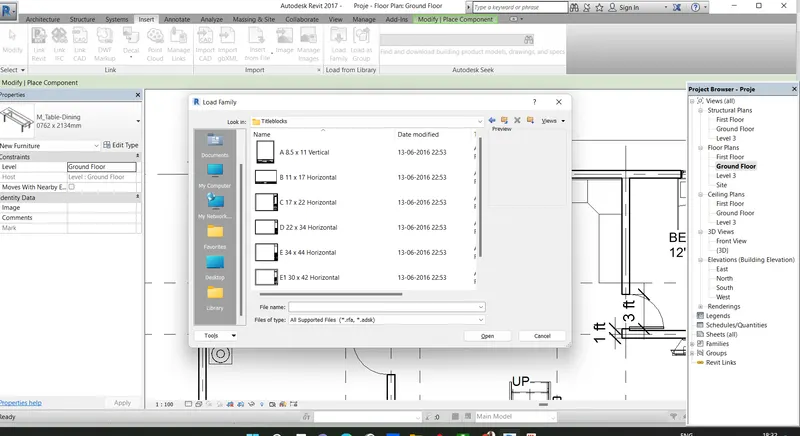

4. Click on Load Family

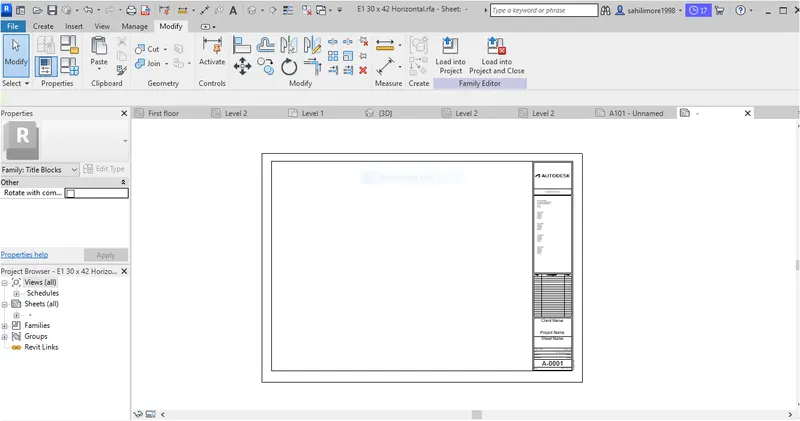

1. Click on title block

1. Select any template as needed

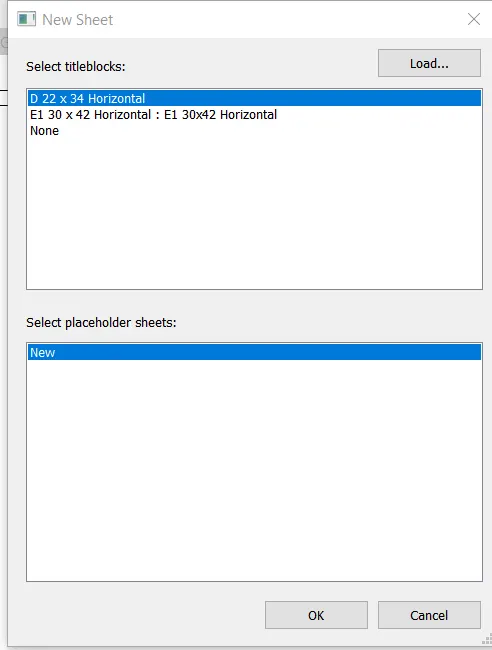

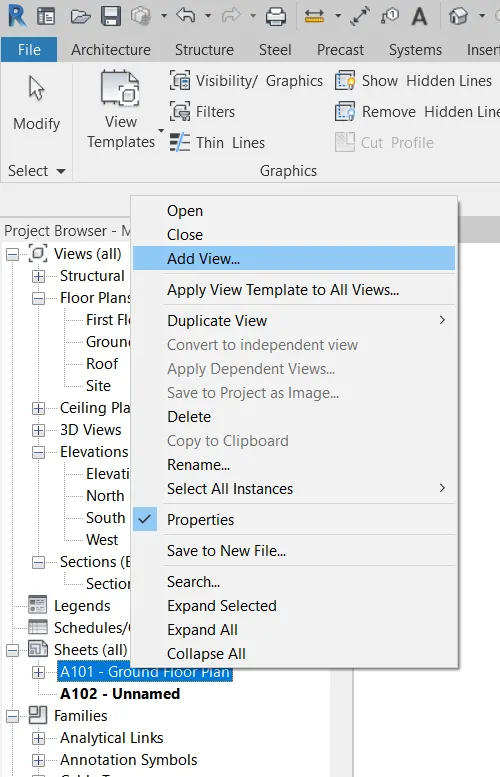

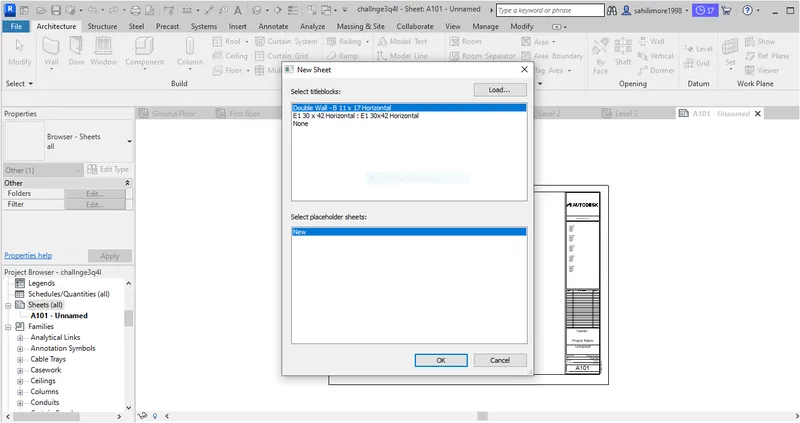

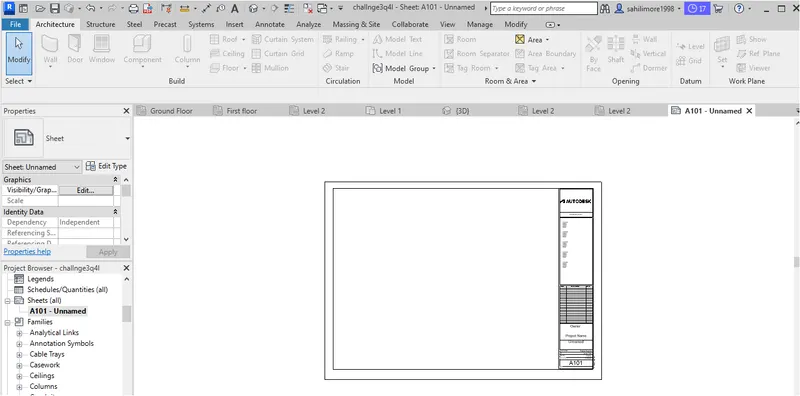

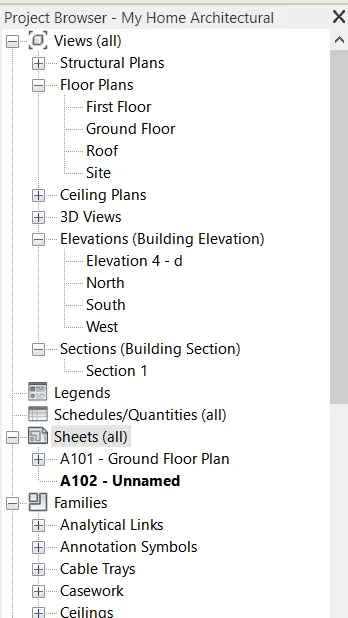

1. Go to Project browser and right click on sheet
2. Click on Add new sheet
3. Select the template D22X34 Horizontal

1. Click ok

STEP-2: Changing Parameters

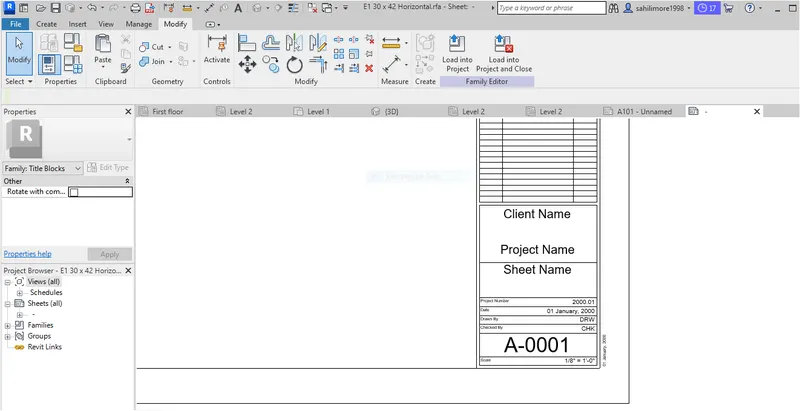

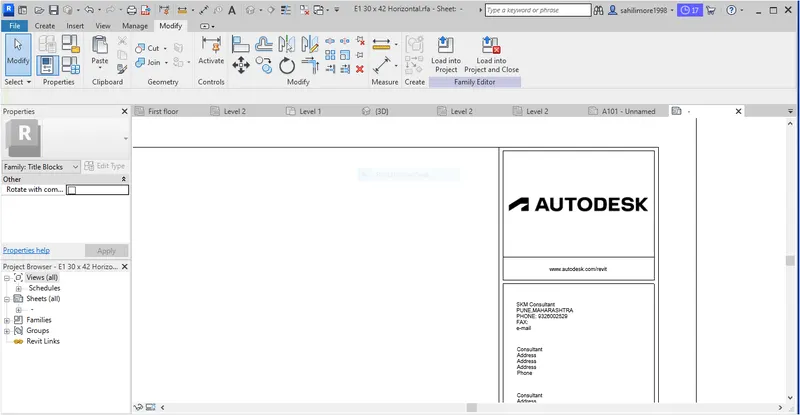

1. Parameters such as Name of project. consultants Involved are changed/ edited as per our project

RESULT:

• The title block after changing / editing all parameter is as follows

QUESTION:- 6

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

ANSWER:

AIM: To create elevation views for the project

INTRODUCTION:

• The elevation view is a side view of the structure.
• Aim explains that an elevation is not only a side view, but is also a side view from the outside of the structure.
• This view can convey information that includes vertical dimensions, elevations, locations of doors and windows, and outside finishes.

PROCEDURE:

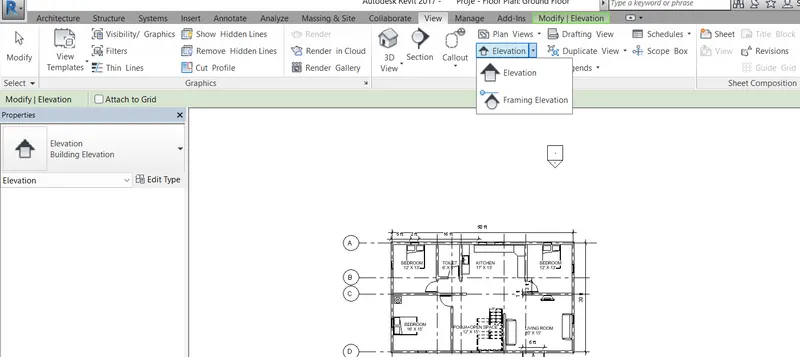

STEP-1: Creating Views

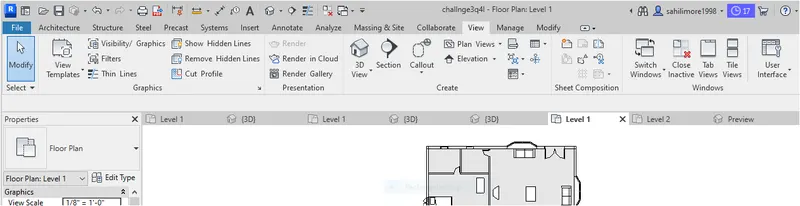

1. Go to the View tab
2. Click on 'elevation'

STEP-2: Creating Elevation Points

1. Go to Floor Plan view in Project Browser
2. Place the elevation marker point in the specified location/direction(i.e. East) as follows

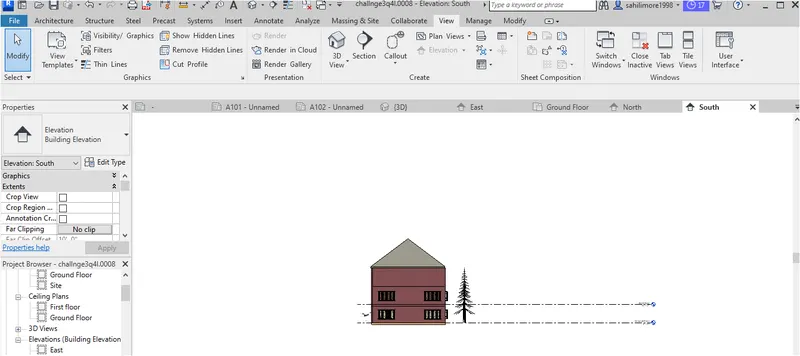

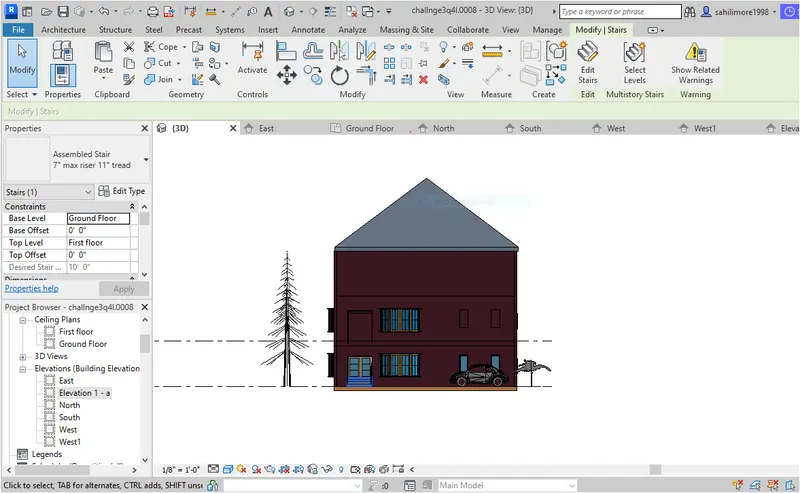

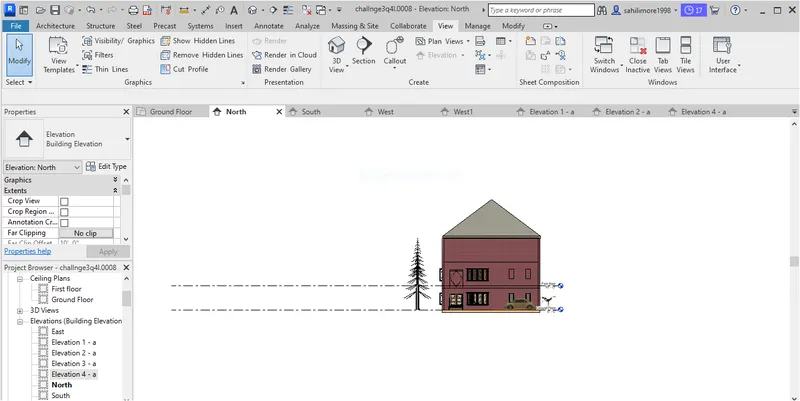

STEP-3: Opening Elevation View

1. Go to Project browser
2. Click on + of 'elevation' to see all the elevation view and click on the one view to open it

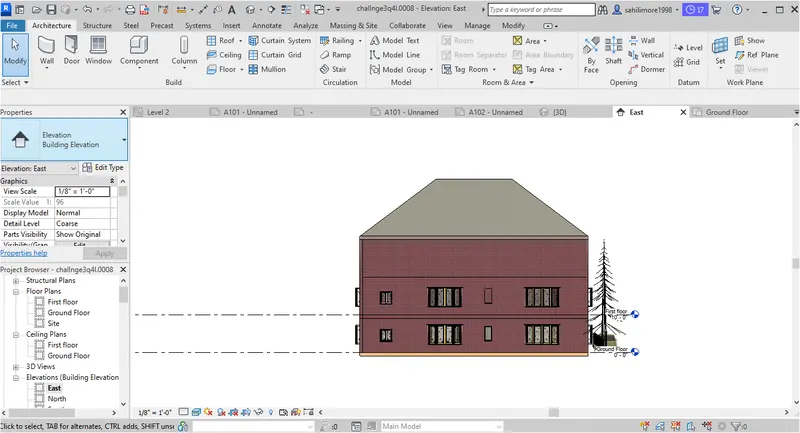

A)-EAST VIIEW:

B)- NORTH VIEW:

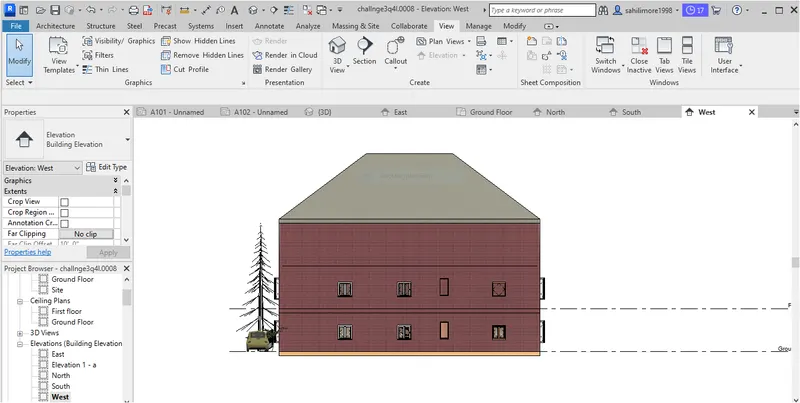

C)- WEST VIEW:

D)-SOUTH VIEW:

RESULT:

A)-EAST VIIEW:

B)- NORTH VIEW:

C)- WEST VIEW:

D)-SOUTH VIEW:

QUESTION:-7

Produce section cut through each room either cutting across longitudinally or in a transverse direction.

ANSWER

AIM: To create a Section cut through view

INTRODUCTION:

• A section view provides architects and contractors another way of understanding how construction will stand up, as it reveals details of the construction of walls and the thickness and height of beams and other supports.
• While a floor plan allows for a view of how the walls stand in relation to each other, a section shows where the wall meets the floor and the distance that separates one floor from another.

PROCEDURE:

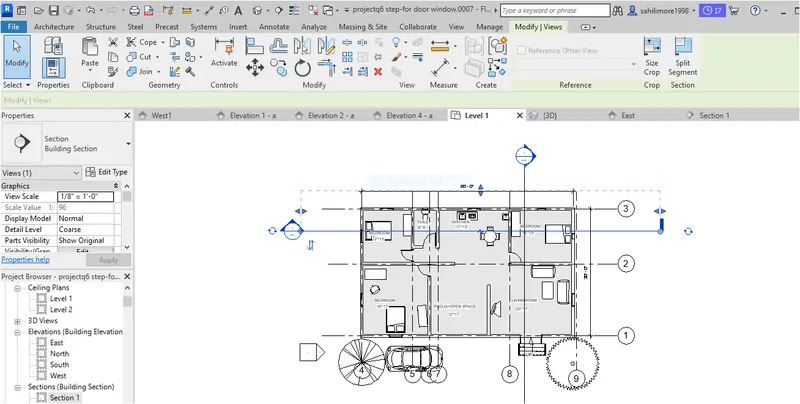

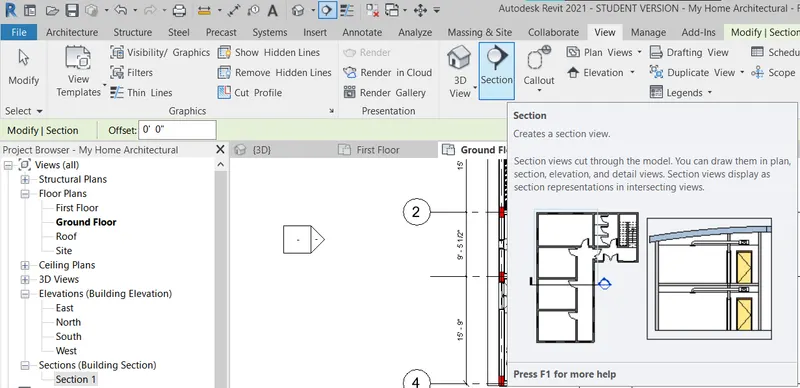

STEP 1: Creating Section Line

1. Go to View Tab
2. Click on 'Section'

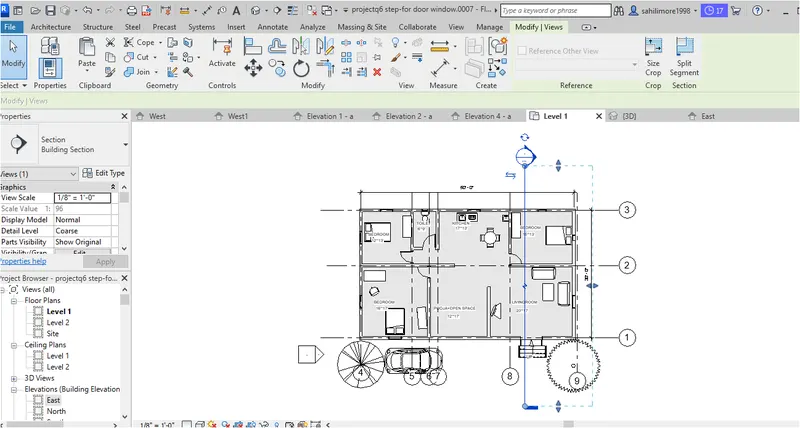

STEP 2: Drawing Section Line

1. Place the curse on the one side of the section line location
2. Draw the vertical line to click the second point on another end

STEP-3:

1. First we click on the section option from the view toolbar, as shown below.

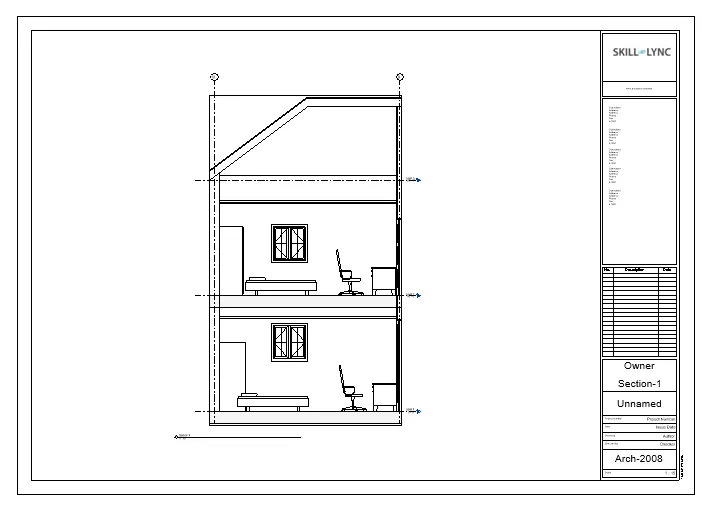

2. Next we produce the section view of the bed room & living room as shown in the below figure.

STEP-4:

• Next we produce the section view of the KITCHEN ROOM TOILET ROOM & 2 BEDROOM as shown in the below figure.

RESULT:

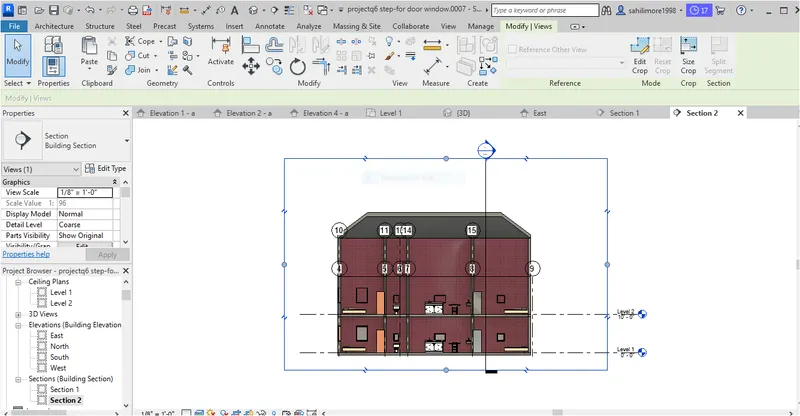

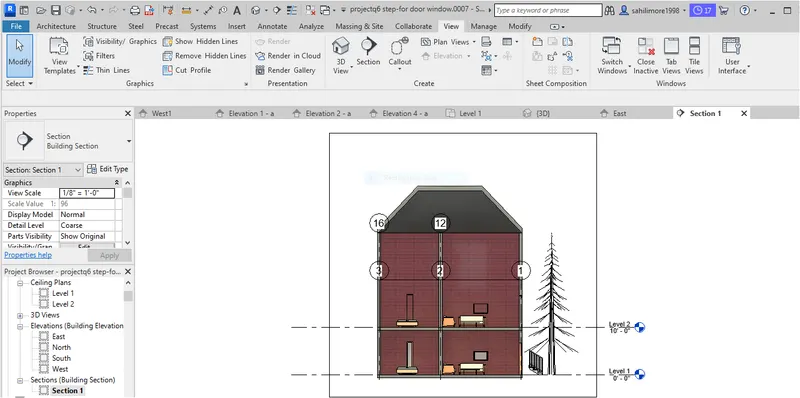

• The Resultant section view of the Section line created is as follows

QUESTION:- 8

Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

ANSWER

AIM: To classify different Views

INTRODUCTION:

• The structural plan view is the default view when you start a new project using a structural template.
• Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
• The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
• Floor plan views are created automatically as you add new levels to your project.
• Sectional views reveal hidden details in a mechanical drawing.
• These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
• Sectional views are used in engineering and architectural drawings.
• They help civil engineers, architects, and airplane designers communicate their ideas to their peers.
• An elevation is a view of a building seen from one side, a flat representation of one view.
• This is the most common view used to describe the external appearance of a building.
• Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.

PROCEDURE:-

STEP:-1

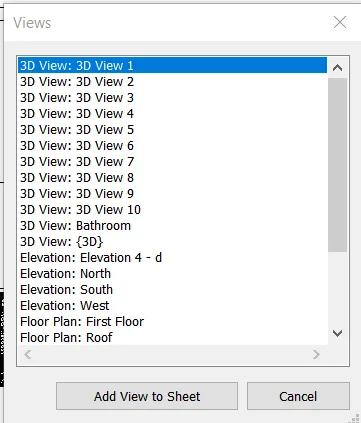

1. First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as shown below.
2. Next we insert these plans one by one in the sheets separately.

STEP:-2

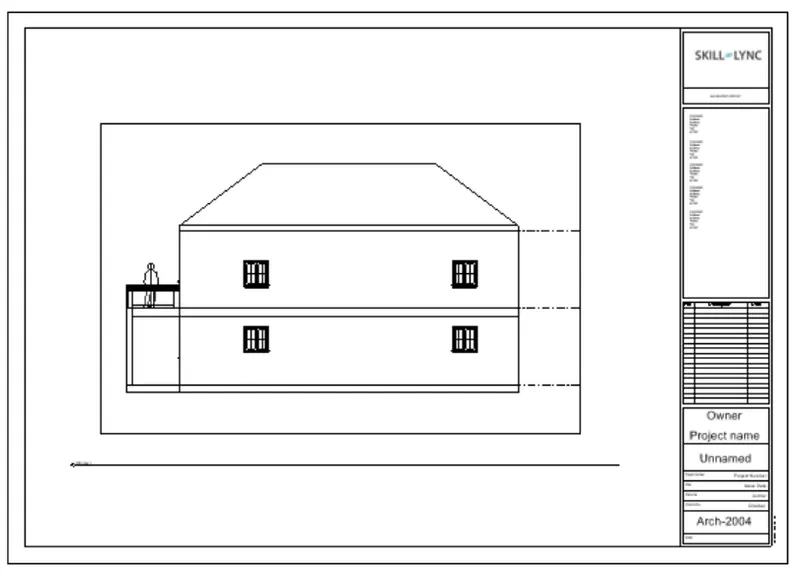

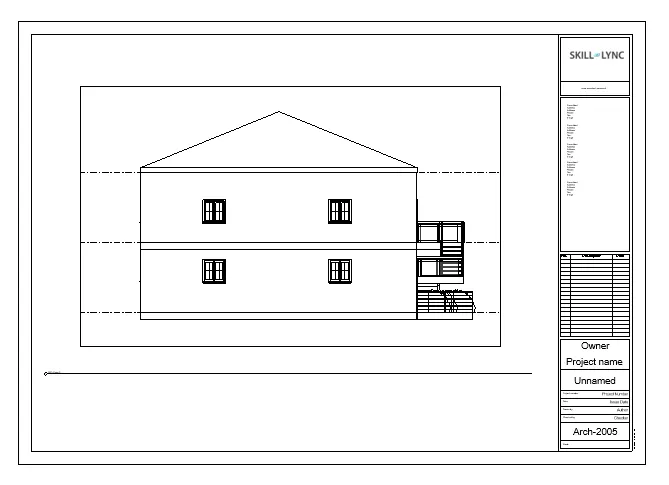

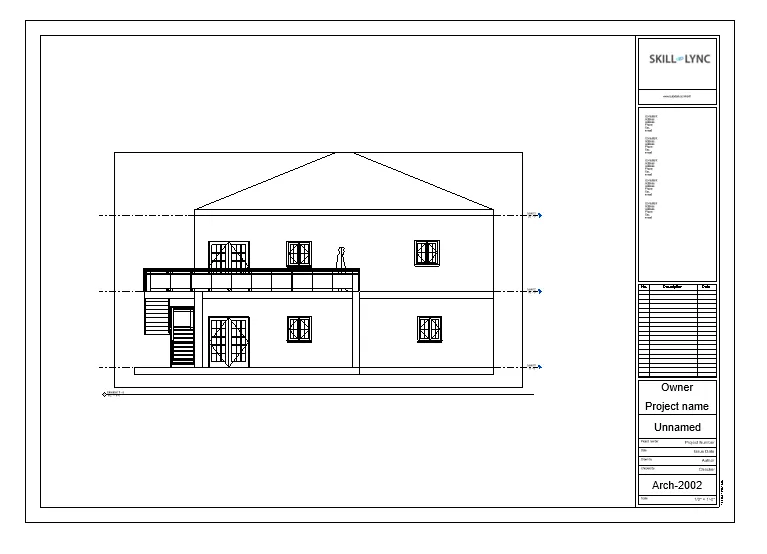

1. First we insert the front elevation in the sheet template, as shown in the below figure.

STEP:-3

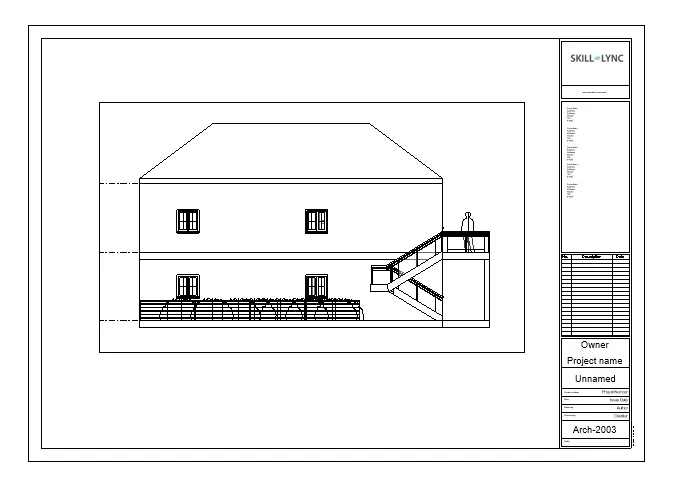

1. Next we insert the left side elevation in the sheet template, as shown in the below figure.

STEP:-4

1. Next we insert the right side elevation in the sheet template, as shown in the below figure.

STEP:-5

1. Next we insert the back side elevation in the sheet template, as shown in the below figure.

STEP:-6

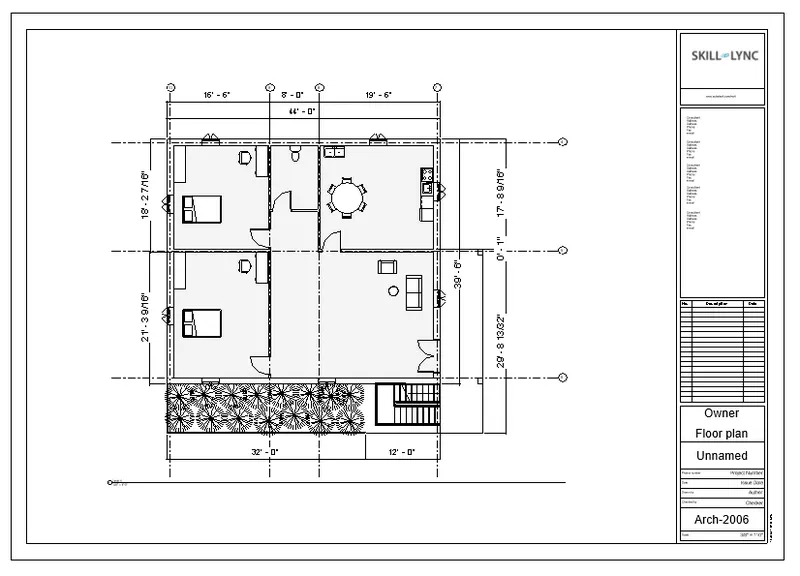

1. Next we insert the ground floor plan in the sheet template, as shown in the below figure.

STEP:-7

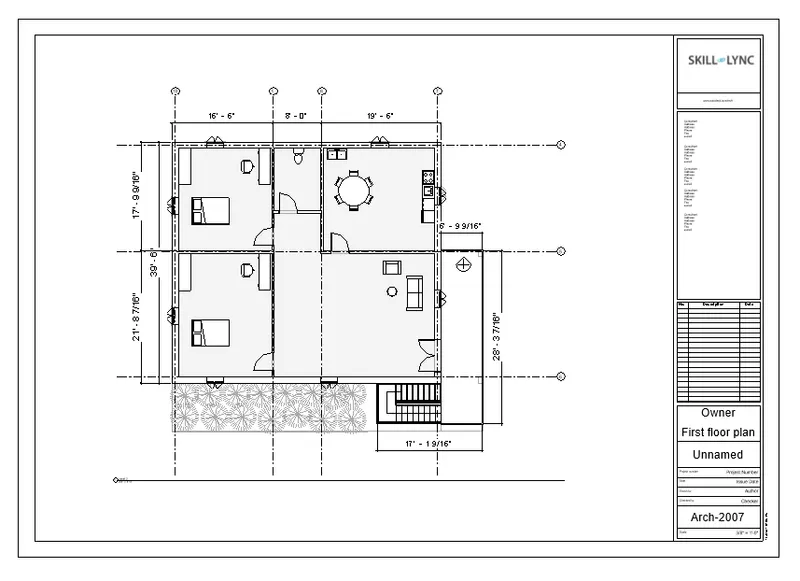

1. Next we insert the first floor plan in the sheet template, as shown in the below figure.

STEP:-8

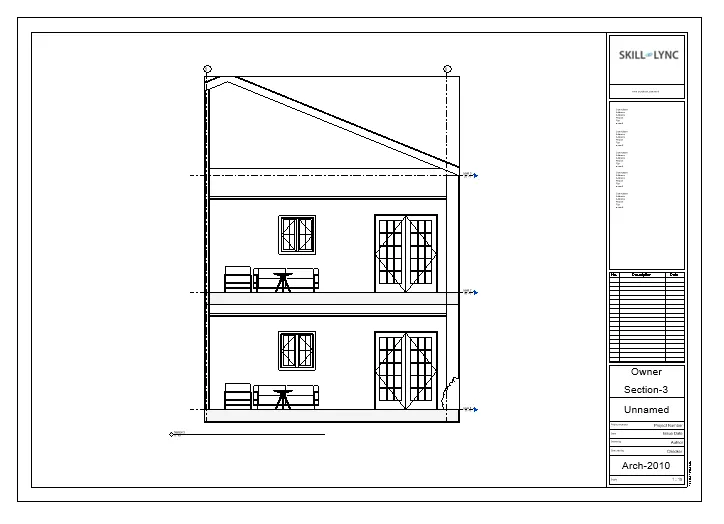

1. Next we insert the section-1 in the sheet template, as shown in the below figure.

STEP:-9

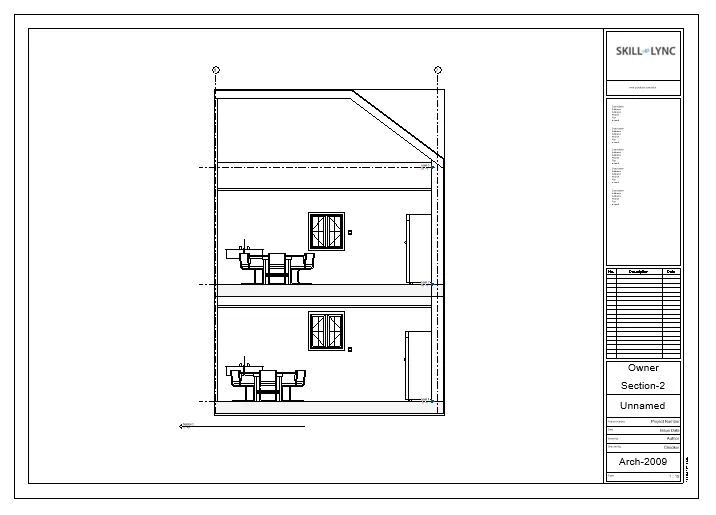

1. Next we insert the section-2 in the sheet template, as shown in the below figure.

STEP:-10

1. Next we insert the section-1 in the sheet template, as shown in the below figure.

RESULT:-

• Views, Plan Views, Section Views, and Elevation views are classified to Design category using Properties browser.

QUESTION:-9

Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

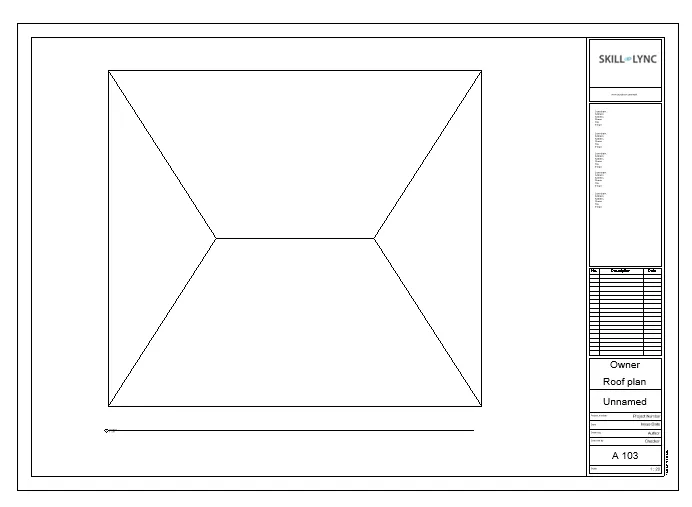

c. A 103- Roof Plan

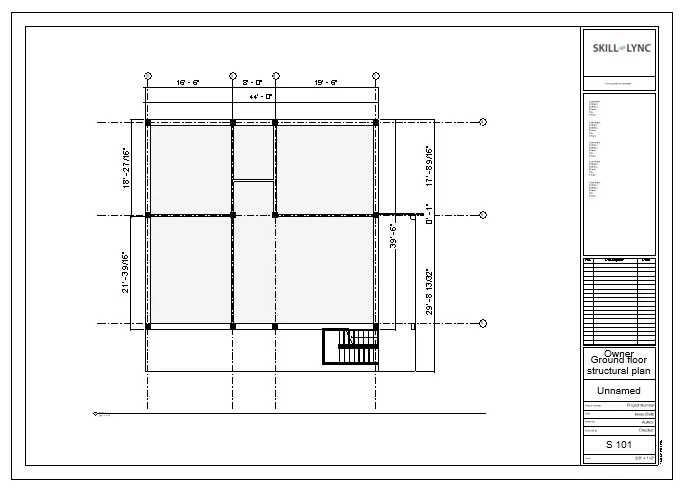

d. S 101- Ground Floor Structural Plan

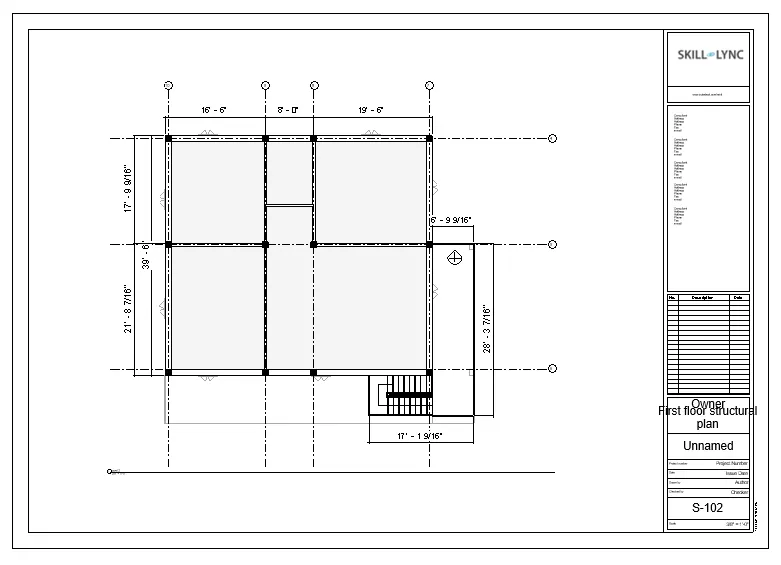

e. S 102- First Floor Structural Plan

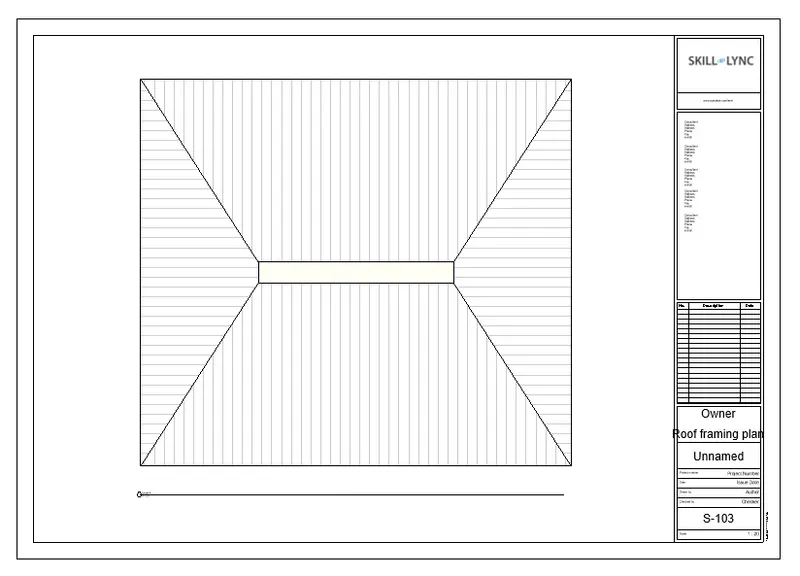

f. S 103- Roof Framing Plan

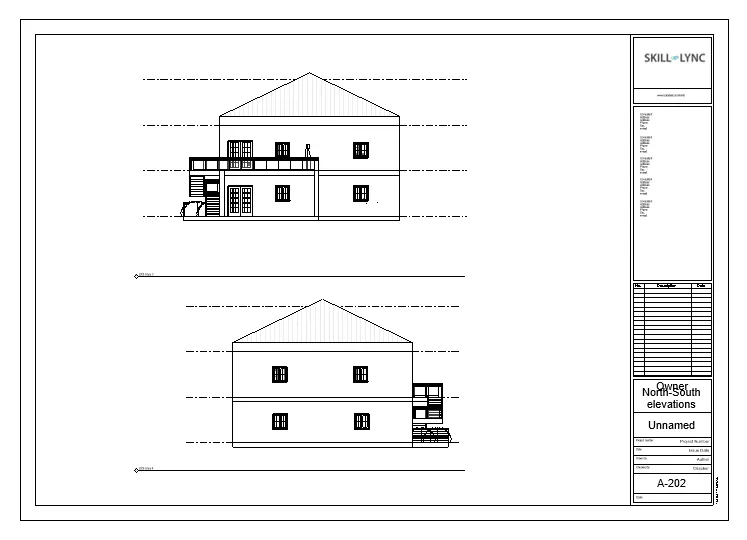

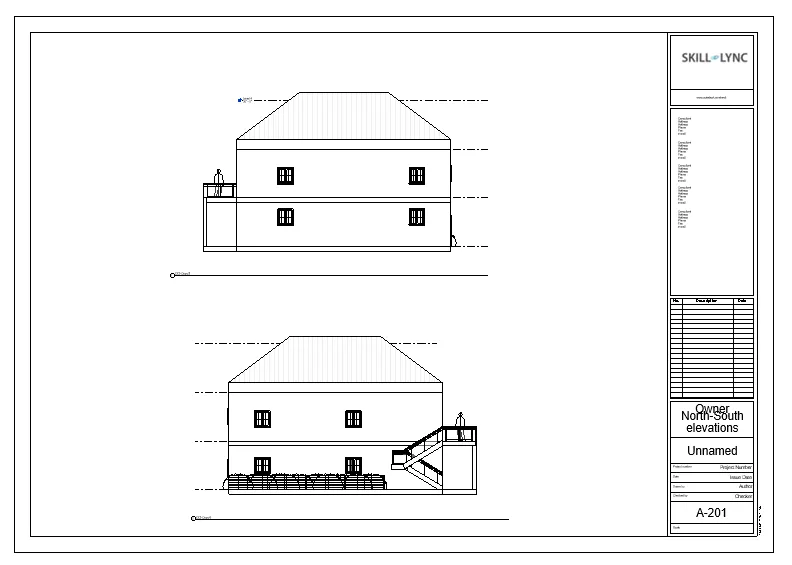

g. A-201- North-South Elevations
h. A-202- East-West Elevations

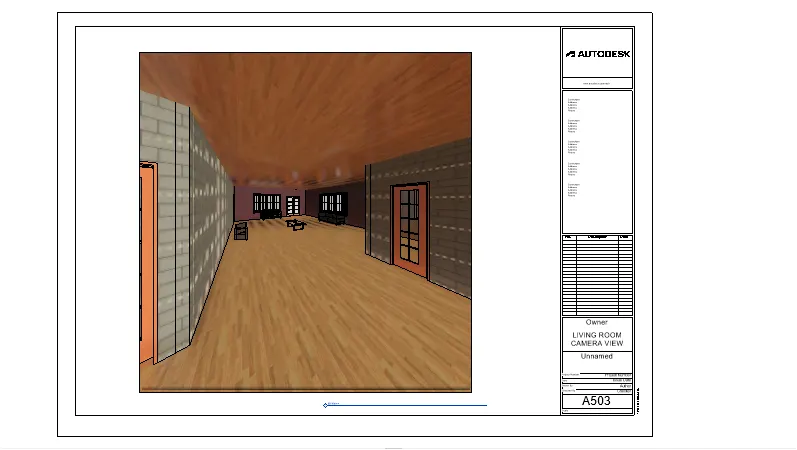

Add additional sheets based on the sections created in your Revit file.

ANSWER:

AIM: To Create multiple sheets for different views

INTRODUCTION:

• Create views on a project template before you start building the model to streamline the project documentation process.
• When creating a project template, you can include sheets in the template. Start with a blank project file, and create the standard views and levels that each project should include.
• Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets using the desired title blocks.
• Add views to the sheets, using the desired viewport templates and view title types.
• Then save the empty project as a project template.
• When you create a project using this project template, all of the views and sheets are already created and listed in the Project Browser.
• As you start to draw the building model in the project views, the views on the sheets update automatically.
• This technique streamlines the project documentation process and maintains organizational standards.

PROCEDURE:-

STEP 1:Opening Sheet Template

1. Go to Project Browser
2. Click on Sheets(All)
3. Right Click to add a new sheet or
4. Click on + to open previously produced sheets

STEP 2: Adding Views to template

1. Go to Project Browser
2. Click on Sheets(All)
3. Right Click to add a new sheet or
4. Click on + to open previously produced sheets
5. Right-click on the sheet to add a view to the sheet as shown below

STEP:-3

1. First we produce the Ground floor architectural plan in the sheet template A-101, as shown in the below figure.

STEP:-4

1. Next we produce the First floor architectural plan in the sheet template A-102, as shown in the below figure.

STEP:-5

1. Next we produce the Roof plan in the sheet template A-103, as shown in the below figure

STEP:-6

• Next we produce the Ground floor structural plan in the sheet template S-101, as shown in the below figure

STEP:-7

• Next we produce the First floor structural plan in the sheet template S-102, as shown in the below figure

STEP:-8

• Next we produce the Roof framing plan in the sheet template S-103, as shown in the below figure

STEP:-9

• Next we produce the North and south elevation views in the sheet template A-201, as shown in the below figure

STEP:-10

• Next we produce the East and West elevation views in the sheet template A-202, as shown in the below figure

RESULT:

• All the sheet templates created with their respective views are shown below.

a) A 101- GROUND FLOOR ARCHITECTURAL PLAN.

b) A 102- FIRST FLOOR ARCHITECTURAL PLAN

c) A 103- ROOF PLAN

d) S-101 GROUND FLOOR STRUCTURAL PLAN.

e) S-102 FIRST FLOOR STRUCTURAL PLAN

f) S-103 ROOF FRAMING PLAN

g) A-201-NORTH - SOUTH ELEVATIONS.

h) A-202-EAST AND WEST ELEVATIONS.

QUESTION:-10

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

ANSWER

AIM:- To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

INTRODUCTION:-

• Camera Views are really useful in Revit.
• They allow us to view what we would actually see if we were standing at any given location in our design.
• This can be invaluable for both understanding and communicating the nature of a space before we go to the expensive lengths of actually constructing it for real.

PROCEDURE:

Step 1: Creating 3D Cam View

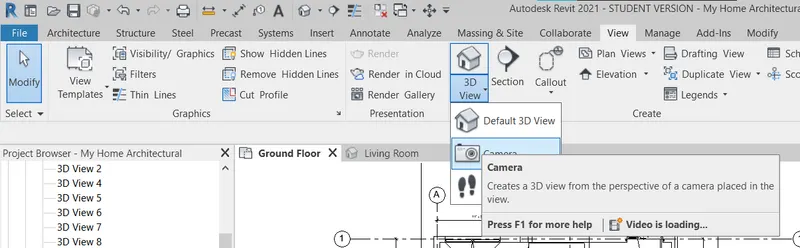

1. Go to View Tab
2. Click on 3D view and click on Camera

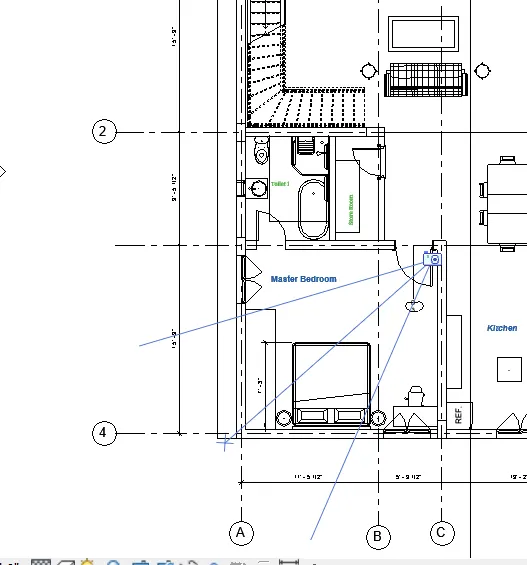

1. Set the Point for the camera on the required location and give the direction to the camera as shown in figure

STEP 2: Adding Views to template

1. Go to Project Browser
2. Click on Sheets(All)
3. Right Click to add a new sheet or
4. Click on + to open previously produced sheets
5. Right-click on the sheet to add a view to the sheet as shown below

STEP:-3

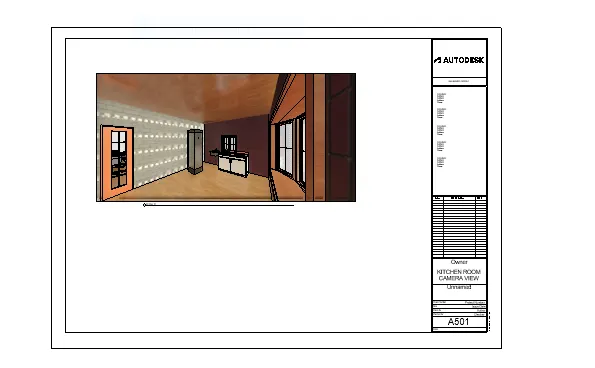

1. First we take the sheet and name it as A-501.
2. Next go to the floor plan and place the camara in the Kitchen room, and the camera view of kitchen room will be shown below.

STEP:-4

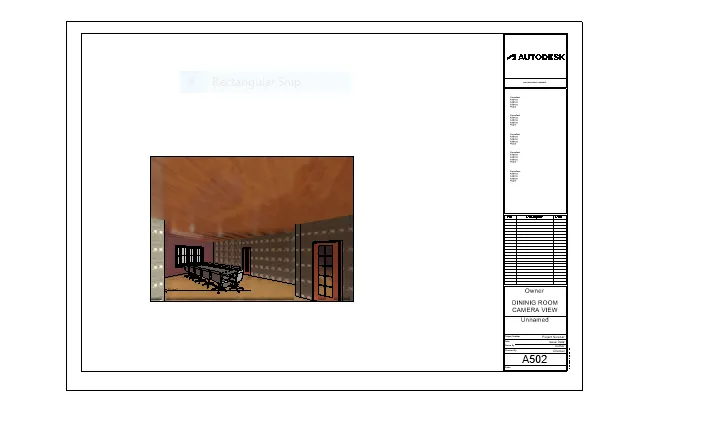

1. Next we take the sheet and name it as A-502.
2. Next go to the floor plan and place the camara in the DININIG room, and the camera view of DININIG room will be shown below.

STEP:-5

1. Next we take the sheet and name it as A-503.
2. Next go to the floor plan and place the camara in the Living room, and the camera view of Living room will be shown below.

STEP:-6

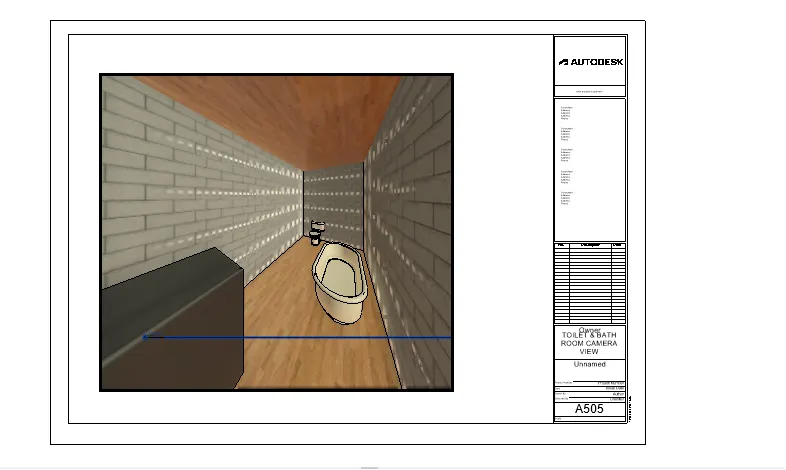

1. Next we take the sheet and name it as A-505.
2. Next go to the floor plan and place the camara in the TOILET room, and the camera view of TOILET room will be shown below.

STEP:-7

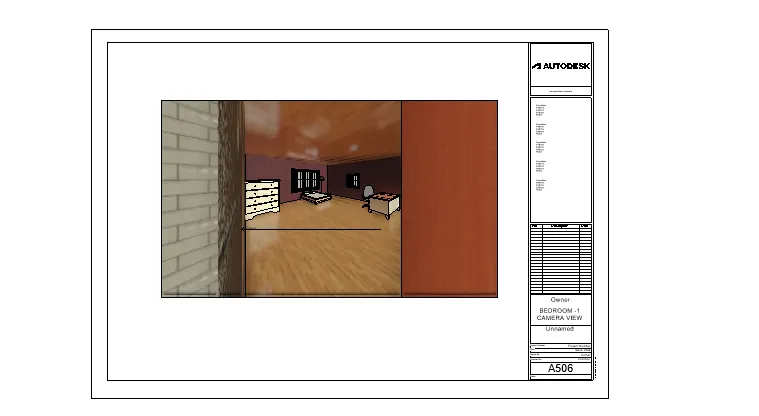

1. Next we take the sheet and name it as A-506.
2. Next go to the floor plan and place the camara in the bed room, and the camera view of bed room will be shown below.

STEP:-8

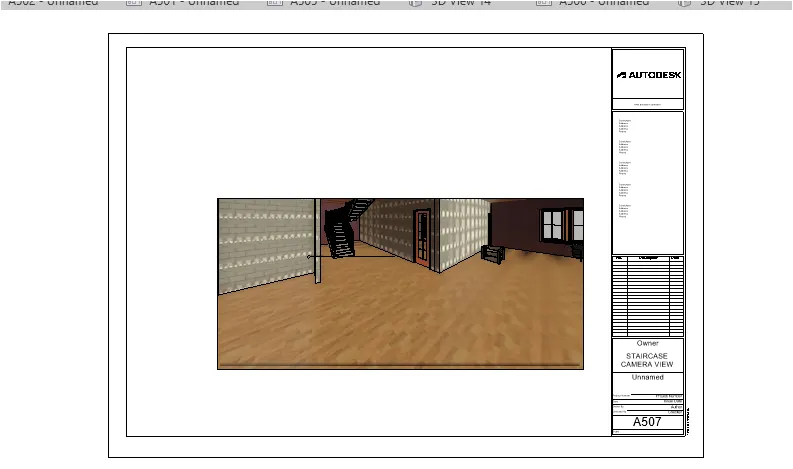

1. Next we take the sheet and name it as A-507.
2. Next go to the floor plan and place the camara in the STAIR CASE room, and the camera view of STAIR CASE room will be shown below.

STEP:-9

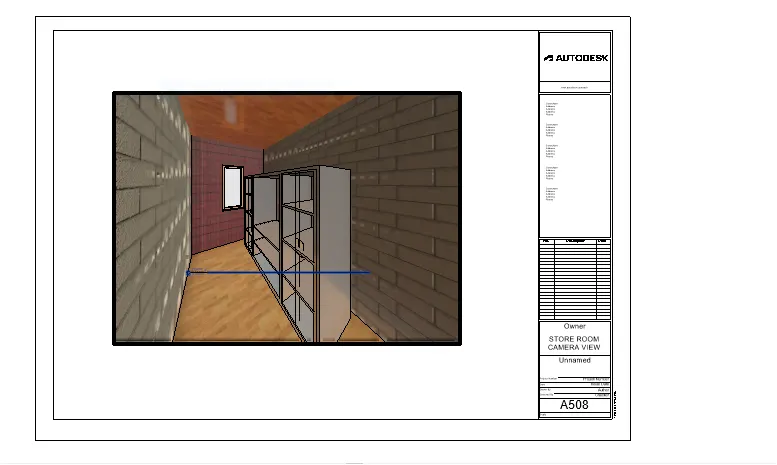

1. Next we take the sheet and name it as A-508.
2. Next go to the floor plan and place the camara in the STORE Room, and the camera view of STORE room will be shown below.

RESULT:-

• Created a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.
