3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

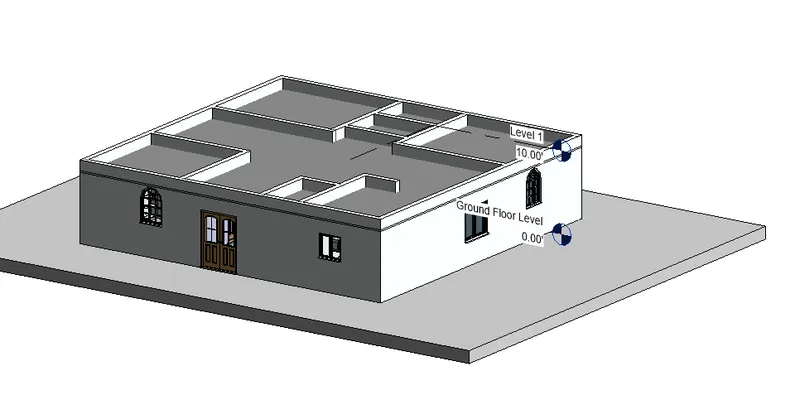

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

To Model a ceiling, follow these steps:

1. Open the Revit
2. Click On the Architecture
3. Then, click on the Ceiling Icon and select the Sketch Line
4. Now, Use the Pick Line option to create Boundary Line for Ceiling.
5. Then, click on the Green Tick Option, for finally creating the ceiling.

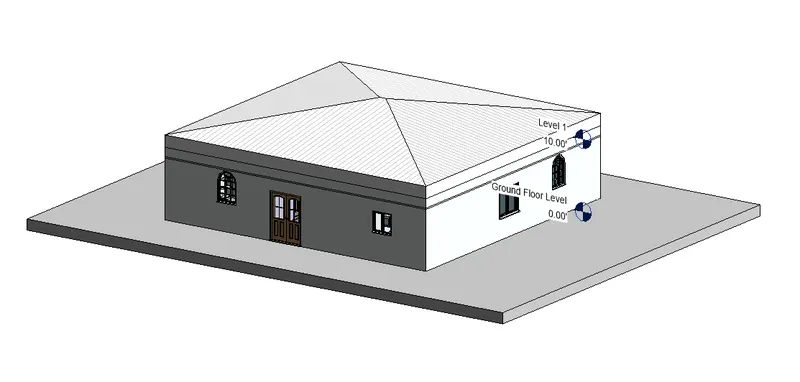

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

For Model a roof Follow these Steps:

1. Click on the Architecture
2. Then click on the Roof Icon and Select Roof by Footprint
3. Now, Use the Pick Line option to create Boundary Line forRoof.
4. Then, click on the Green Tick Option, for finally creating the Roof

Now we have to adjust the Roof slope to 10 degrees

1. Select the
2. Now, In the Property browser click on the
3. Then Rewrite The slope to 10 Degrees

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

We have to create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

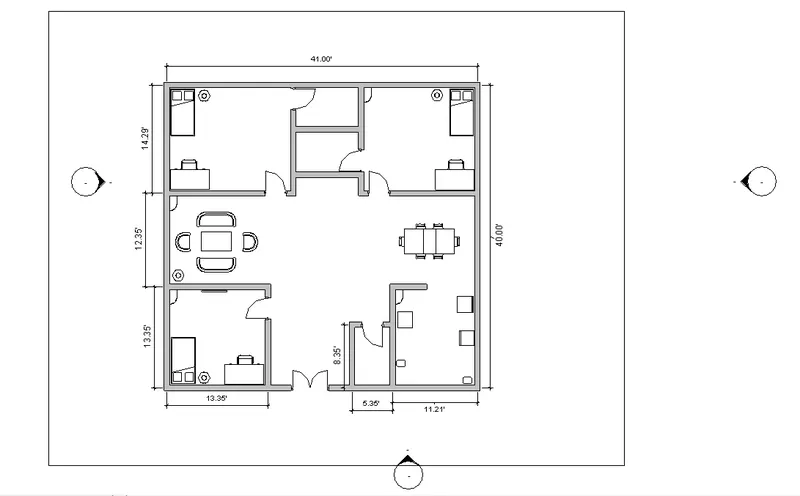

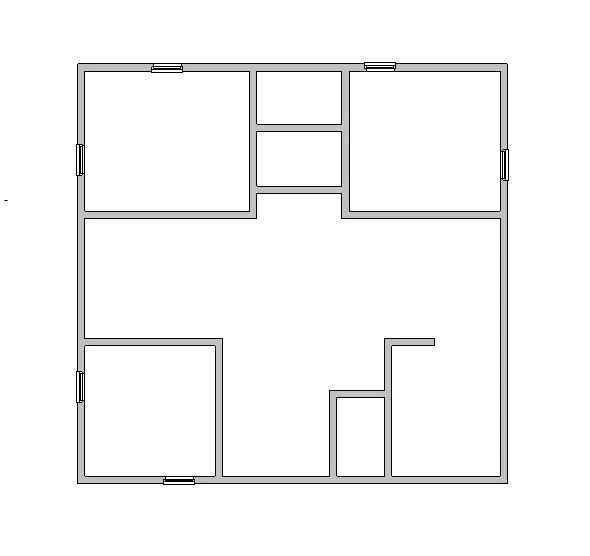

1. Architecture plan must have walls, floors, and all the components placed within the building

For this,

1. Right click on the View tab
2. Then Click On the Plan view Icon
3. By right clicking on Plan view A Dialogue Box will appear
4. Then click On Apply and then Ok
5. So, The Architecture Plan Will be Created.

Structure plan must have details of only walls, floors, and columns

1. Right click on the view tab.
2. Then Click On the Plan view Icon and then Structural Plan.
3. By right clicking on A Structural Plan Dialogue Box will appear.
4. Then click On Apply and then
5. So, The Structural Plan Will be Created.

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

1. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

Using the Aligned Dimension Icon Annotate the Architecture Plan.

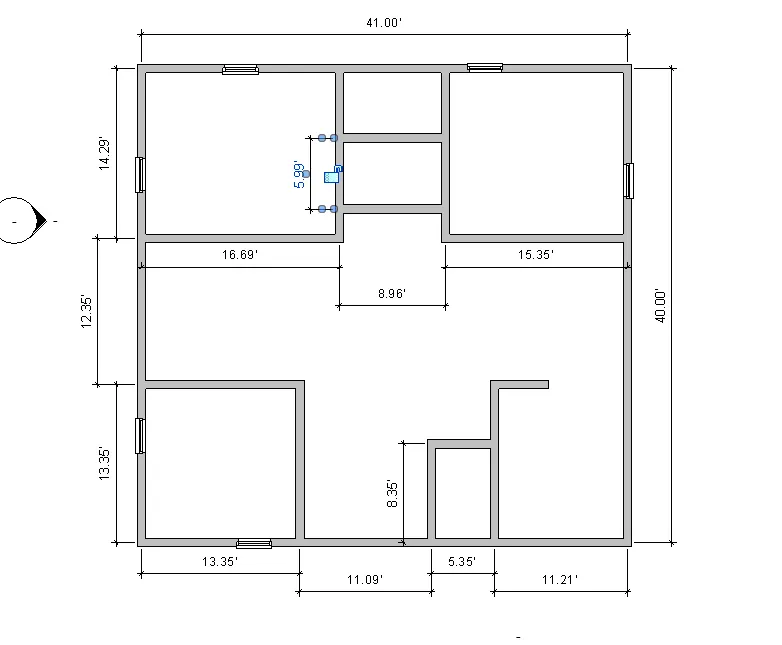

1. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Using the Aligned Dimension Icon Annotate the Structural Plan.

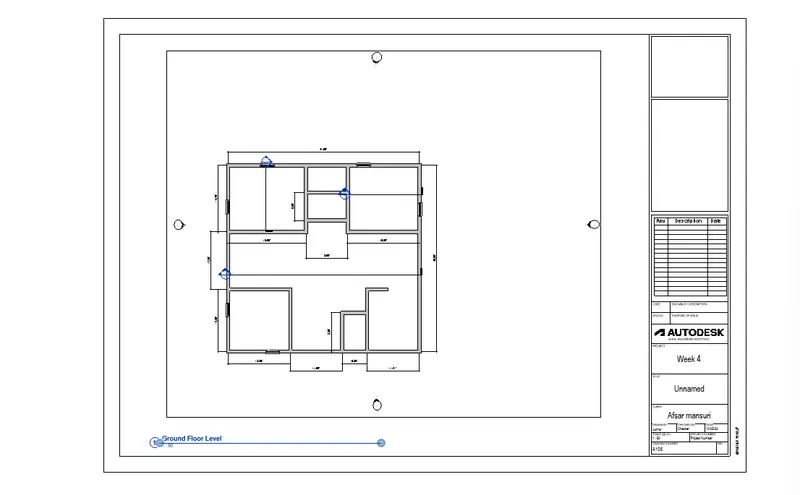

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

To Create a sheet template;

1. Click On the View Tab.
2. Then Click on the Sheet Icon a Dialogue Box will appear.
3. Now Select the A1 Metric Sheet.
4. Now Rename the Parameters as Required.
5. Now Select the plan and Put it into the sheet by using Drag and Drop

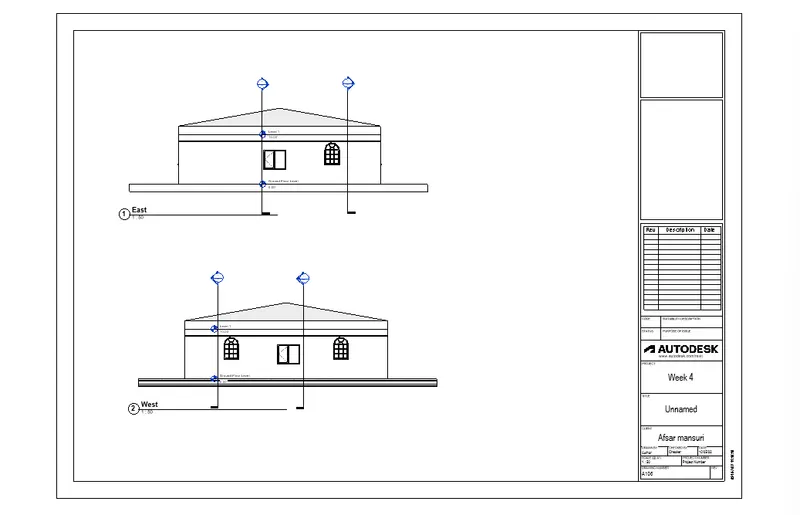

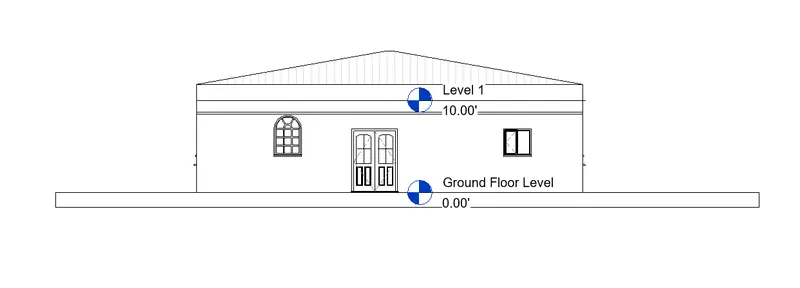

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

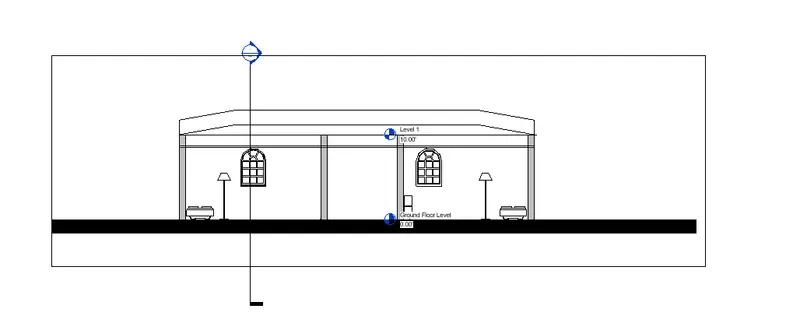

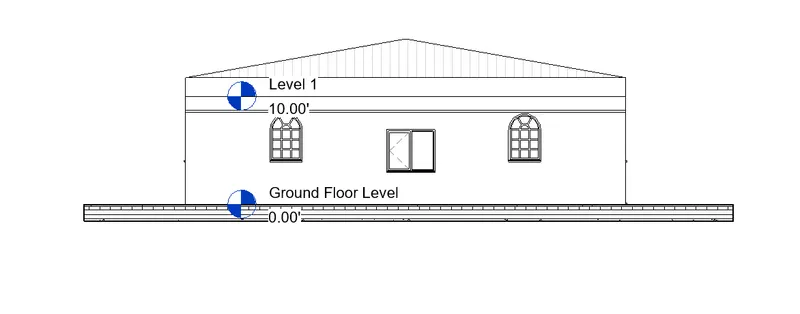

To create the elevation views, looking at your building from East, North, South, and West:

1. Click on the View Tab
2. Select the Elevation Icon
3. Then Create the elevation from East.

1. Then Create the elevation from West.

1. Then Create the elevation from North.

1. Then Create the elevation from South.

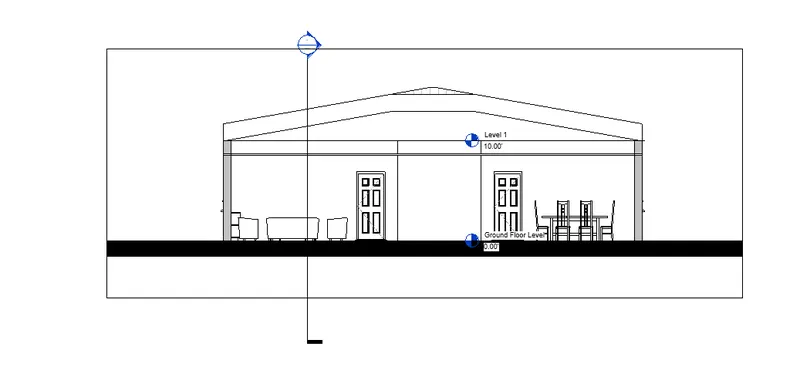

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

1. Click on the View Tab.
2. Select the Section Icon.

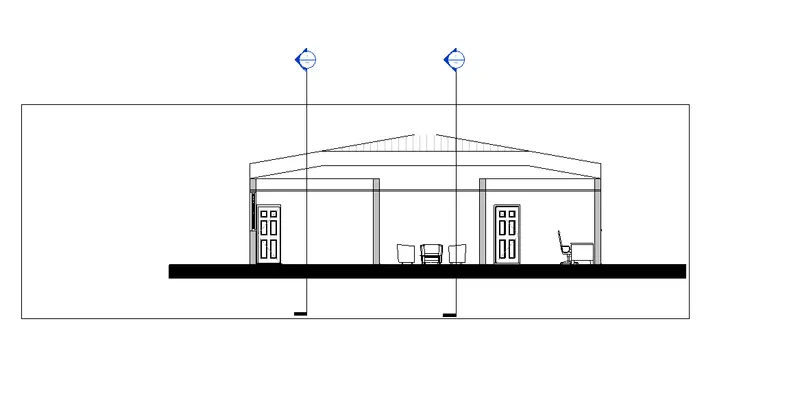

3. Now create the section for bedroom Longitudinally.

4.Now create the section for hall Transverse Direction.

5.Now create the section for MasterRoom in Transverse Direction.

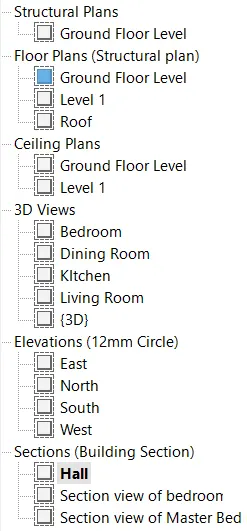

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

9) Using the sheet template produced create multiple sheets as follows

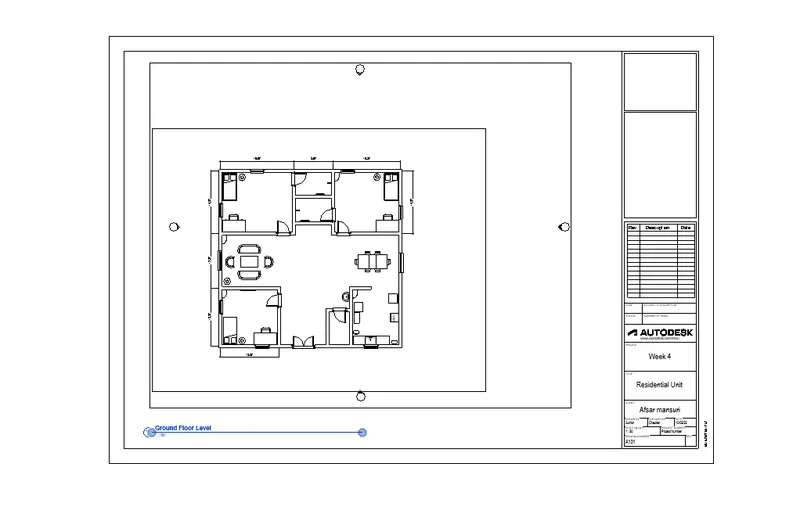

a. A 101- Ground Floor Architecture Plan

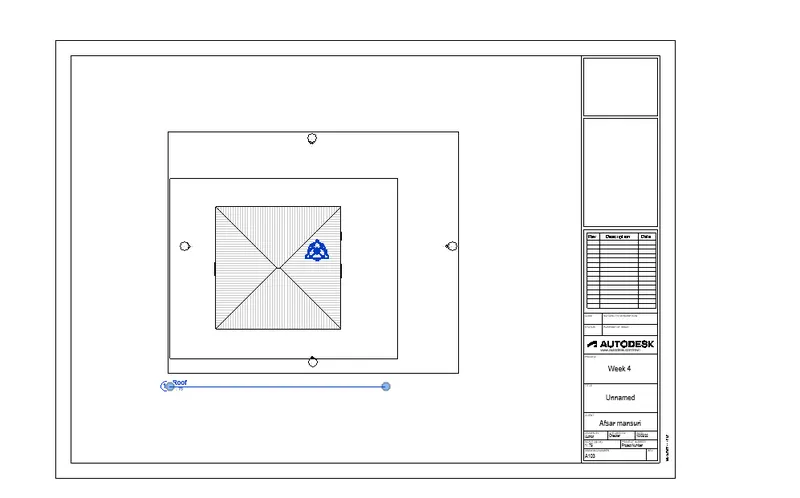

b. A 103- Roof Plan

c. S 101- Ground Floor Structural Plan

d. S 103- Roof Framing Plan

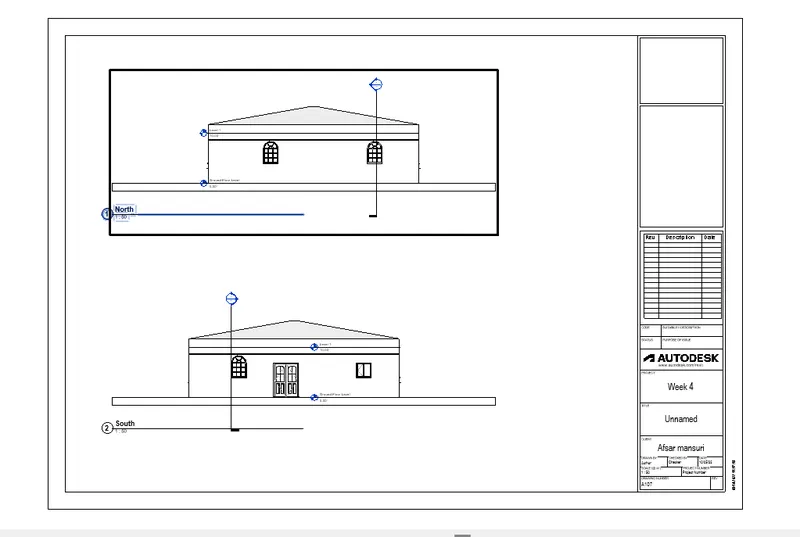

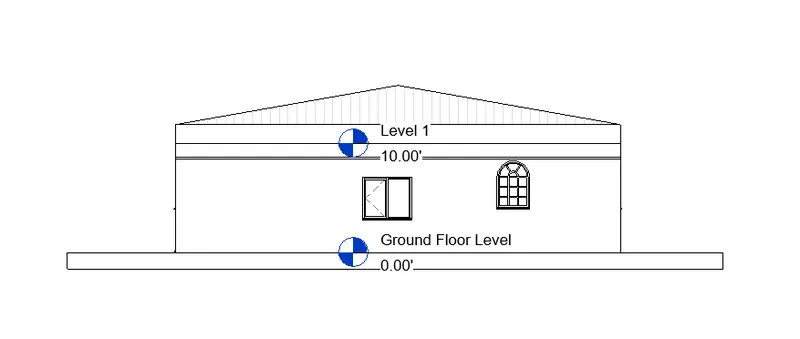

e. A-201- North-South Elevations

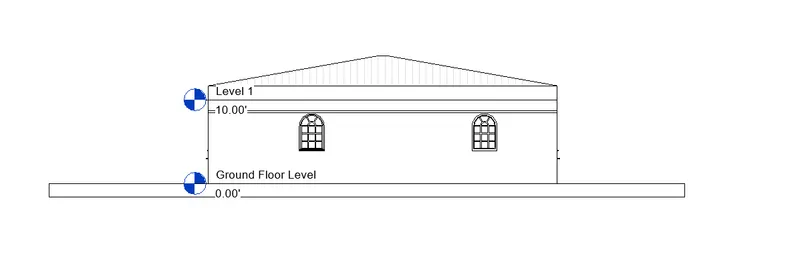

f. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

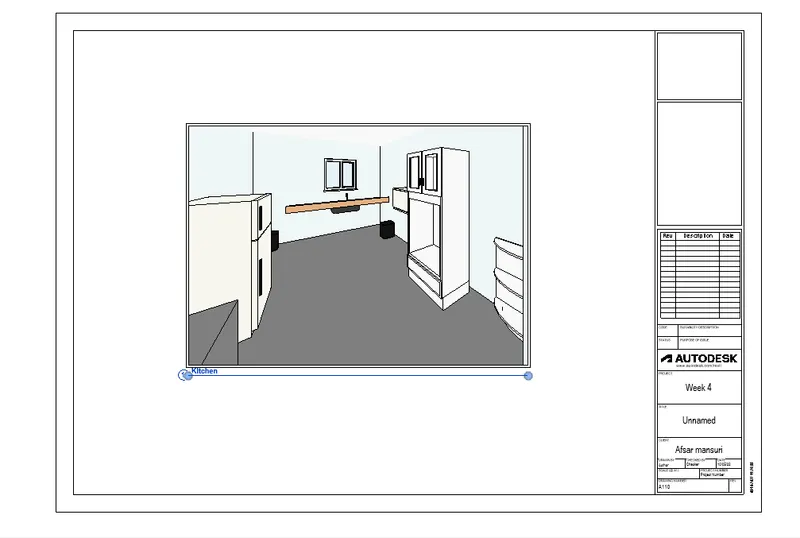

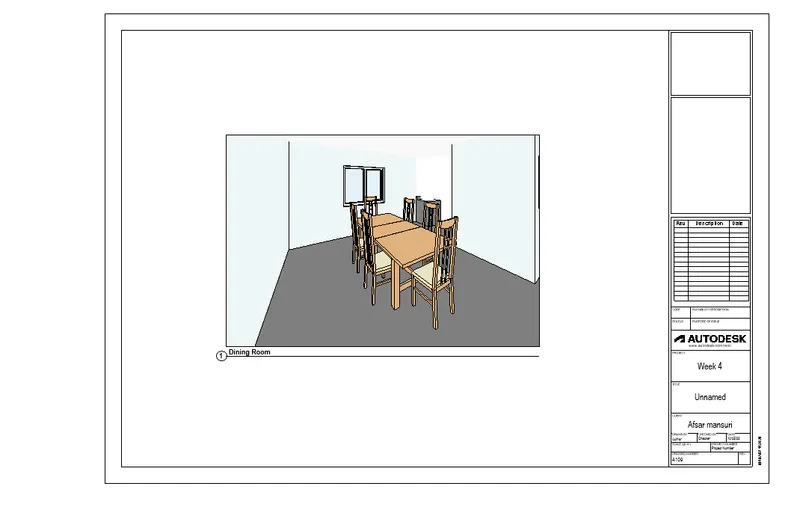

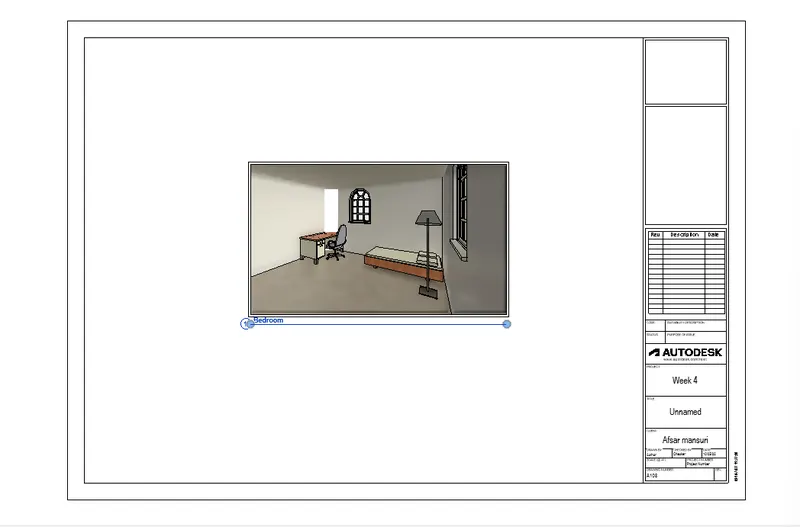

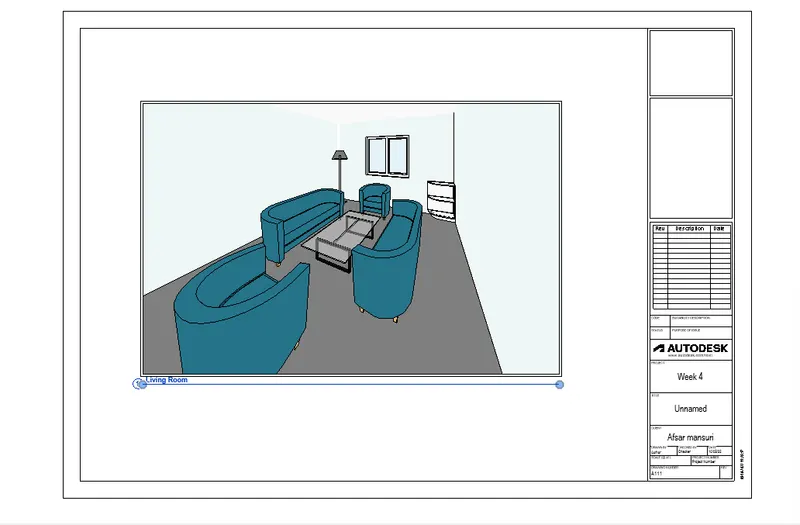

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

For creating camera view we have to follow these steps:

1. Click on the view tab
2. Then, click on the Camera
3. Then specify the location and direction of the view
