3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM : IN THIS CHALLENGE WE ARE ALL ABOUT TO DO IS CREATING DIFFERENT VIEWS AND DRAFTINGS OF THOSE VIEWS IN SHEET.

INTRODUCTION : NEW COMMANDS ARE PRACTISED SUCH AS :

1. CREATING CIELING
2. GIVING SLOPE TO CEILING
3. CREATE FLOOR PLAN AND GIVE DIMENSION
4. CREATION PLAN FOR ARCHITECTURE AND STRUCTURAL PERSPECTIVE
5. 3D VIEW OF BUILDINGS
6. CREATE SHEET AND INSERT THE PLANS IN THEM
7. ADD 3D VIEWS IN SHEET

RESULTS :

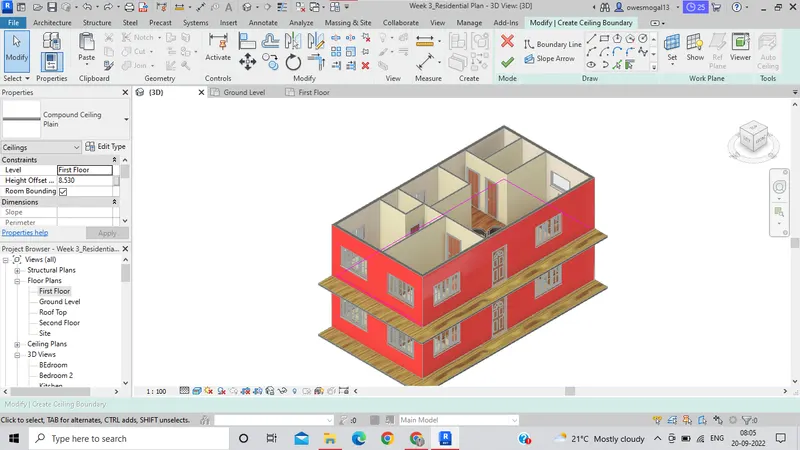

1. CREATING CEILINGS

STEPS : ARCHITECTURE SECTION > CEILING > PICK A LINE > EXTERIOR WALLS > CLICK FINISH IN RIBBON

• VIEW BEFORE CEILING

• AFTER CREATING CEILING

---------------------------------------------------------------------------------------------------------------------------------------

2. CREATING ROOF

STEPS : ARCHITECTURE SECTION > ROOF COMMAND > PICK A LINE > SELECTION EXTERIOR WALL > CLICK FINISH

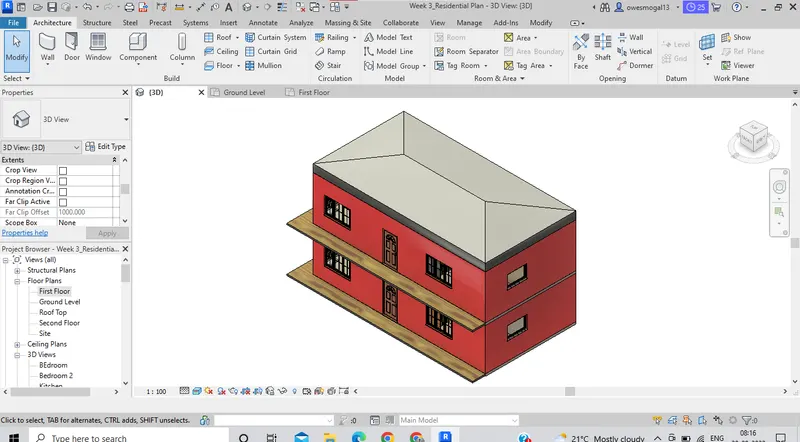

• BEFORE ROOF

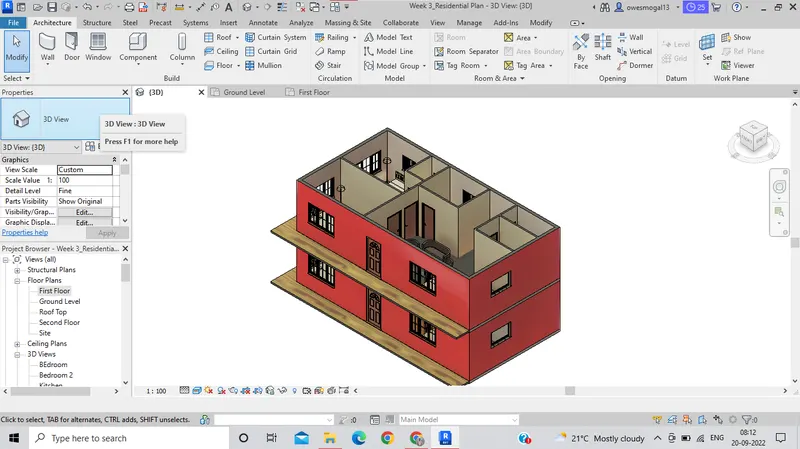

• AFTER ADDING ROOF

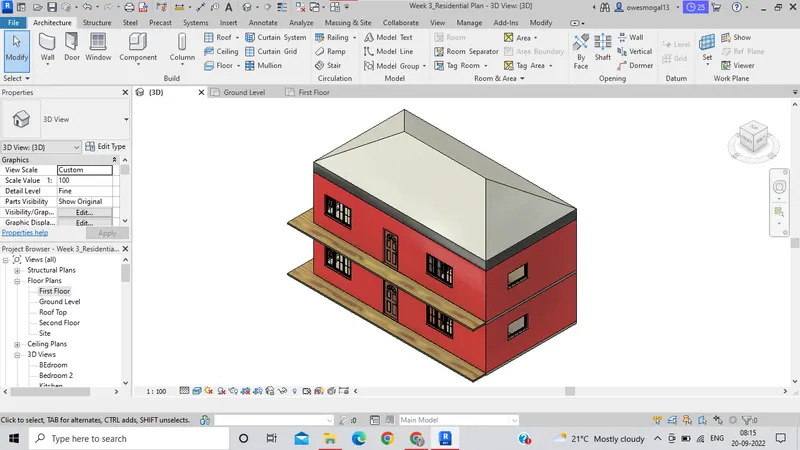

• THE SLOPE WASGIVEN TO THE ROOF FROM PROPERTIES BROWSER , BELOW YOU CAN SEE IMAGE OF BUILDING AFTER GIVEN SLOPE

--------------------------------------------------------------------------------------------------------------------------------

3. CREATING ARCHITECTURE PLAN & STRUCTURE PLAN

STEPS : VIEW SECTION > CREATE SECTION > PLAN VIEW > SELECT THE ARCHITECTURE PLAN/STRUCTURAL OR

WE CAN OPEN THE PLAN FROM PROPERTIES BROWSER >VIEW > FLOOR PLAN/STRUCTURAL PLAN > SELECT REQUIRED FLOOR PLAN

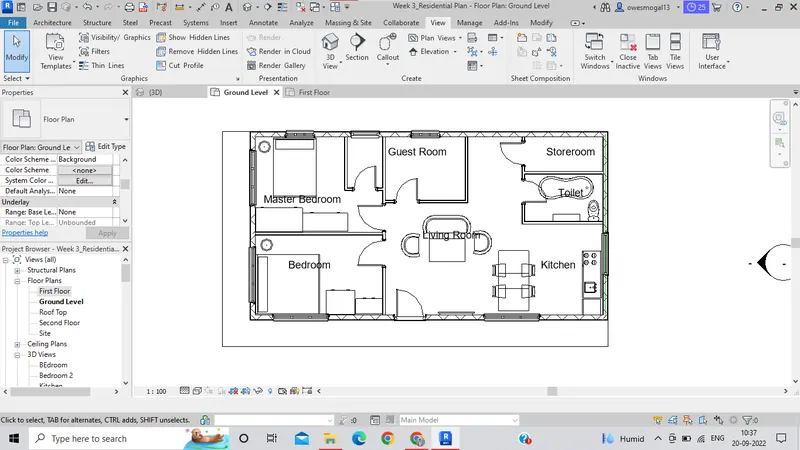

• GROUND FLOOR ARCHITECTURE PLAN

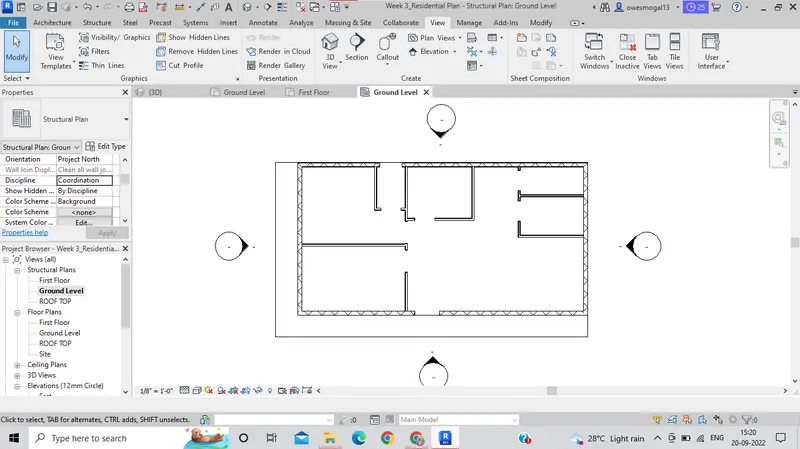

• STRUCTURAL PLAN OF GROUND FLOOR

IN BELOW AS CAN SEE THEIR ARE NO COLUMNS OR BEAM ASO ONLY WALLS ARE DIPLAYED

• The difference between architectural plan and structural plan is visility of respective elements in it

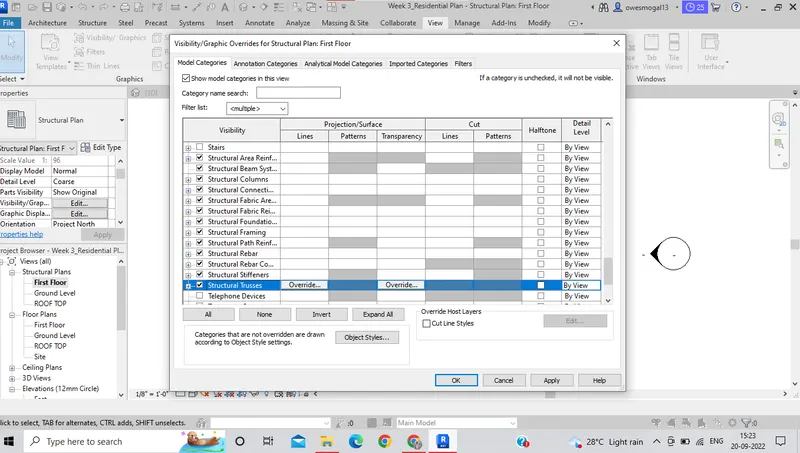

• This Visibilty can be controled by Going in View section > graphics section, select Visibility/Graphics ,as e can see in below image

----------------------------------------------------------------------------------------------------------------------------------

4. ANNOTATIONS TO ARCHITECTURE PLAN AND STRUCTURAL PLAN

STEPS : ANNOTATION SECTION > DIM LINEAR COMMAND > SELECT EDGES

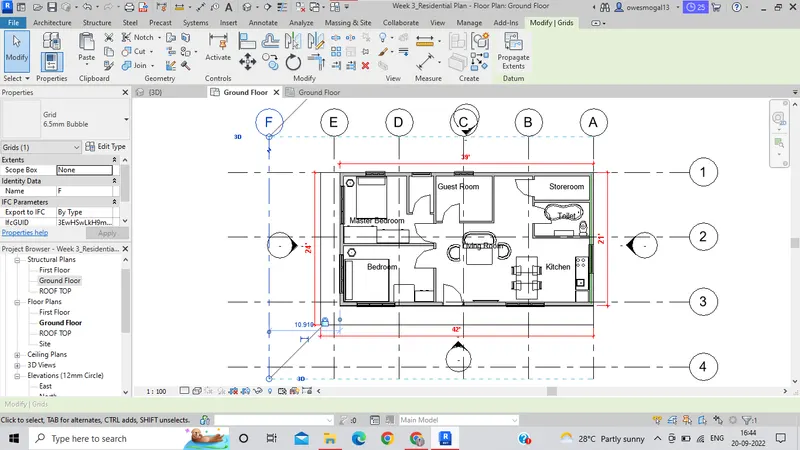

• ARCHUTECTURAL PLAN DIMENSIONS TO EXTERIOR WALLS ARE GIVEN IN BELOW IMAGE W.R.T GRIDS

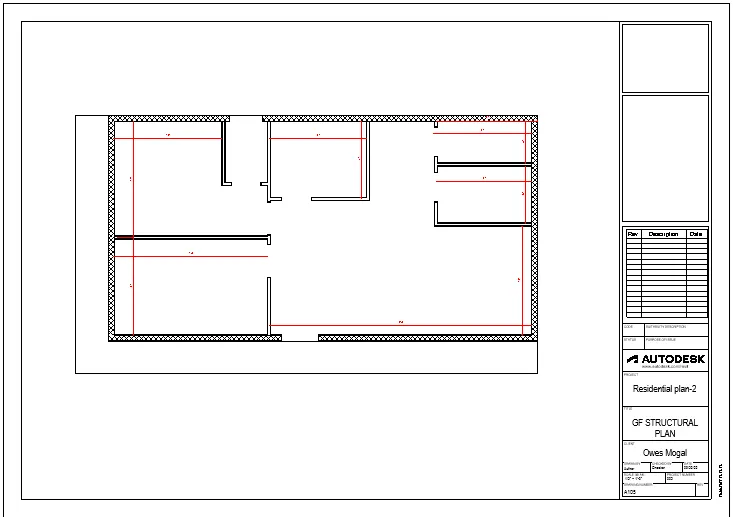

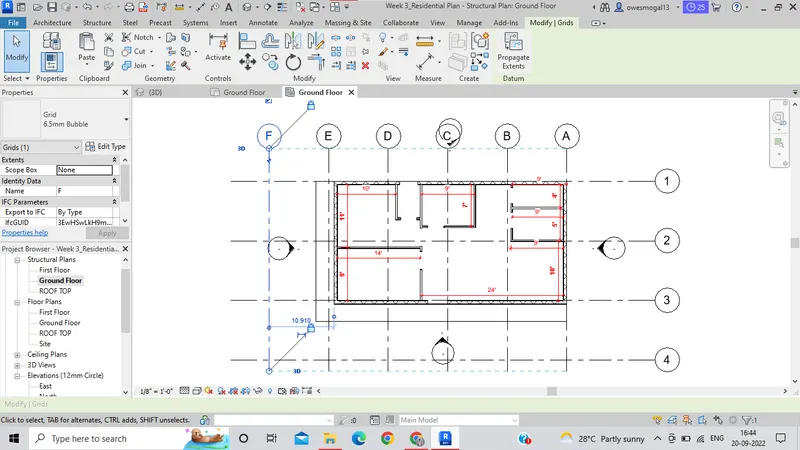

• STRUCTURTAL DIMENSION ARE GIVEN TO EXTERIOR AND INTERIOR WALL OF EVERY ROOM

----------------------------------------------------------------------------------------------------------------------------

5. CREATING SHEET TEMPLATE

STEPS : VIEW SECTION > SHEET COMPOSITION > SELECT SHEET COMMAND

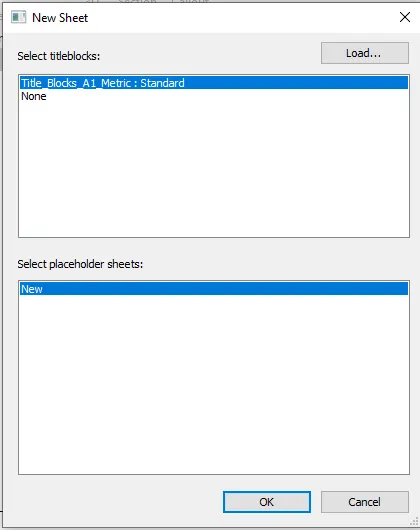

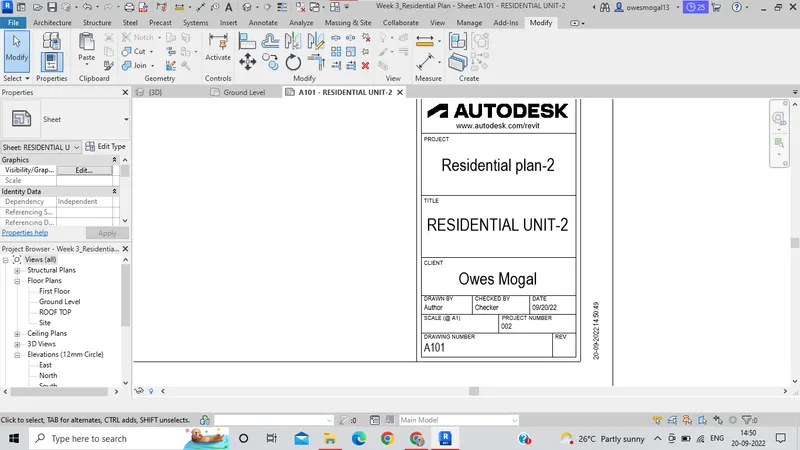

• AFETR SELECT SHEET COMMAND DIALOG BOX WILL APPEAR AS SHOWN IN IMAGE BELOW , SELECT THE SIZE OF SHEET TEMPLATE

• INPUT THE INFORMATION BY DOUBLE CLICKING ON IT OR CAN BE EDITED FROM PROJECT INFORMATION COMMAND

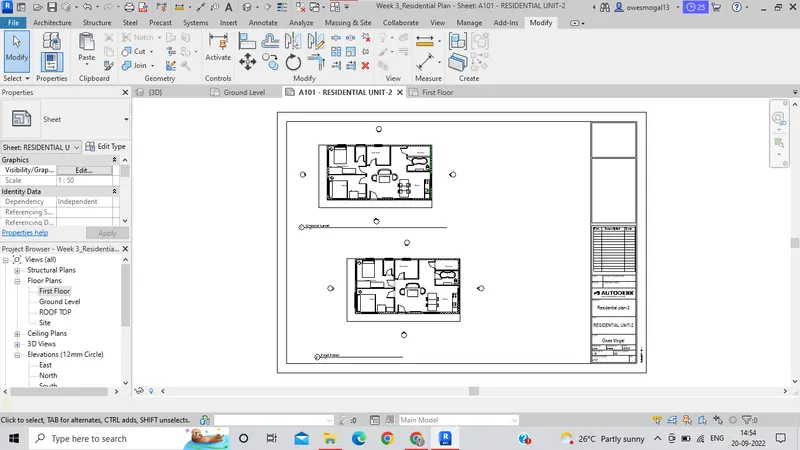

• DRAG THE REQUIRED PLAN FROM PROPERTIES BROWSER TO SHEET , CAN ALSO BE SCALED AS PER REQUIREMENT FROM PROPERTIES BROWSER

-----------------------------------------------------------------------------------------------------------------------------------

6. CREATING ELEVATIONAL VIEWS

ELEVATIONS CAN BE ACCESSED FROM PROPERTIES BROWSER ACCORDING TO DRIECTIONS

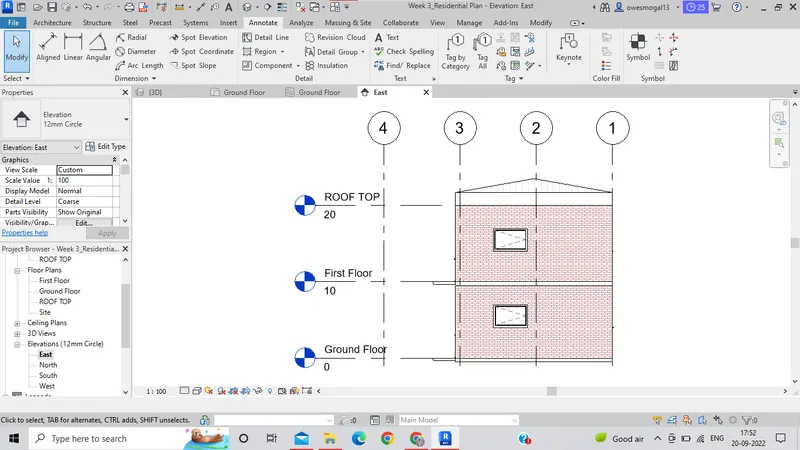

• EAST

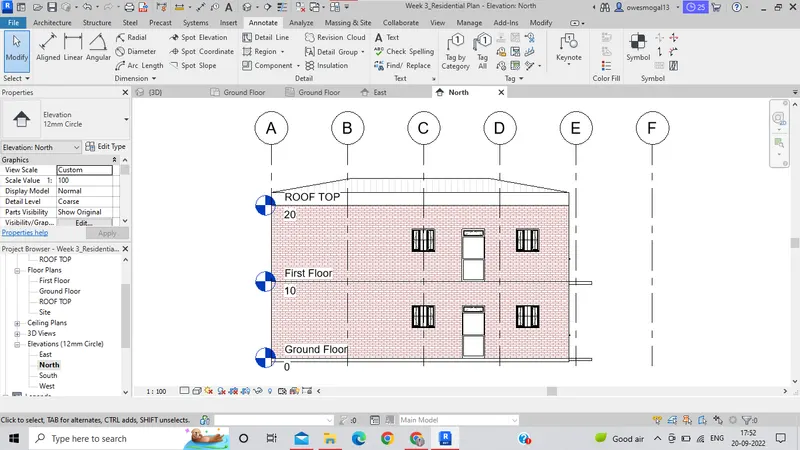

• NORTH

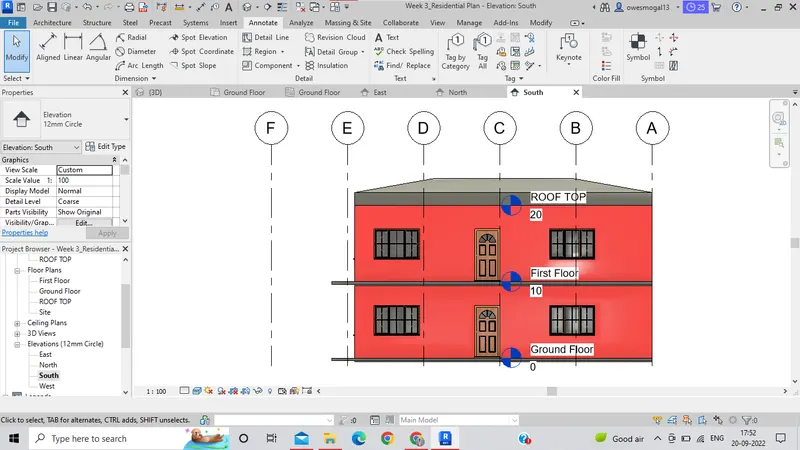

• SOUTH

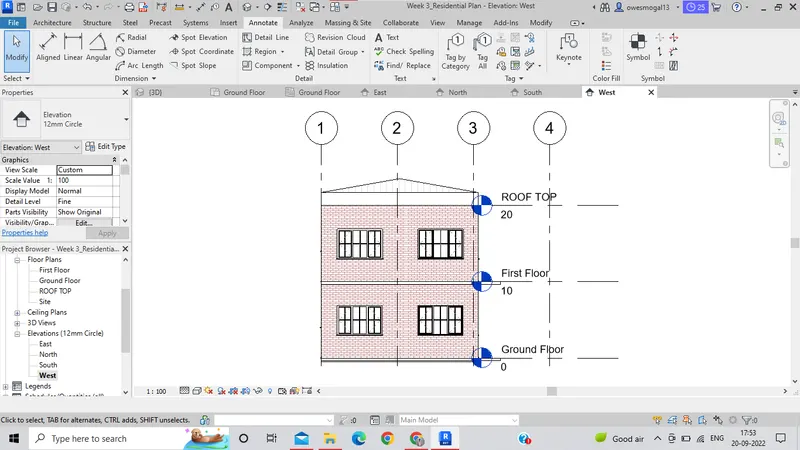

• WEST

-----------------------------------------------------------------------------------------------------------------------------------

7. CREATING SECTIONAL VIEWS

STEPS : VIEWS SECTION > CREATE SECTION CLICK SECTION > DRAW THE LINE THROUH FLOOR PLAN

SECTION IS CREATED AND CAN BE ACCESSED FROM PROPERTIES BROWSER

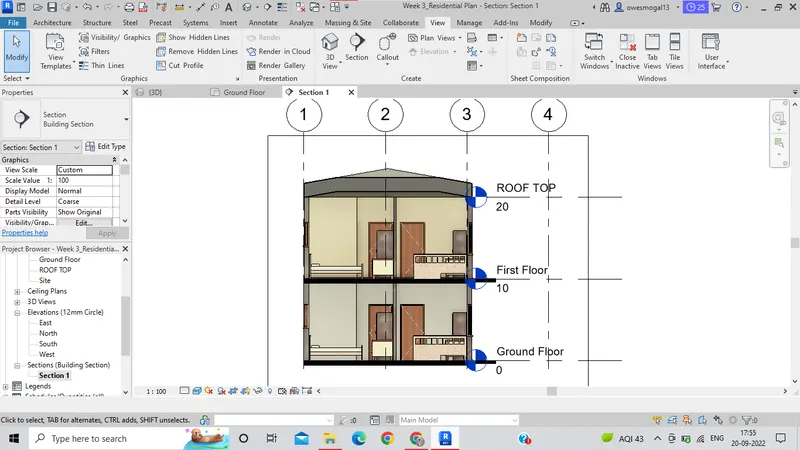

• SECTION-1

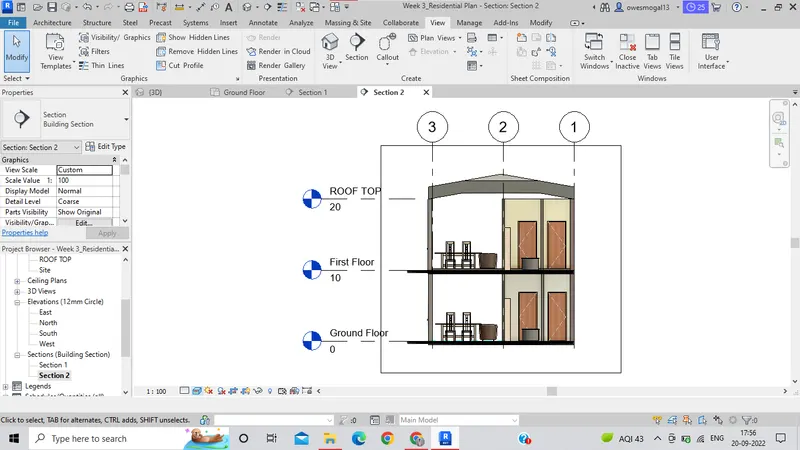

• SECTION-2

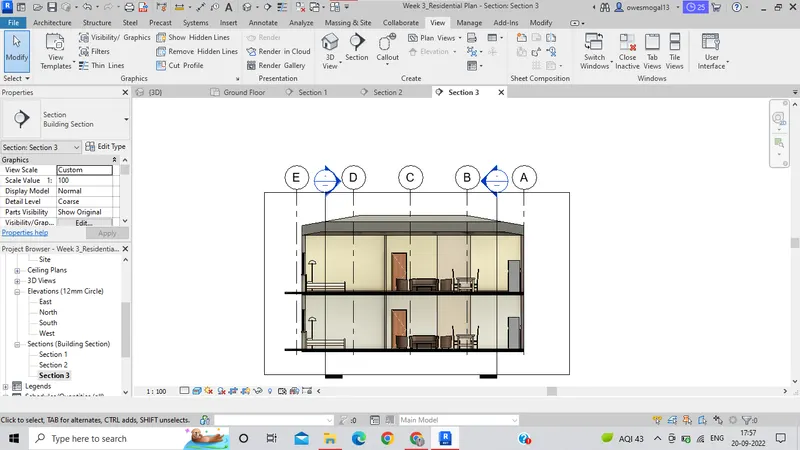

• SECTION-3

--------------------------------------------------------------------------------------------------------------------------------

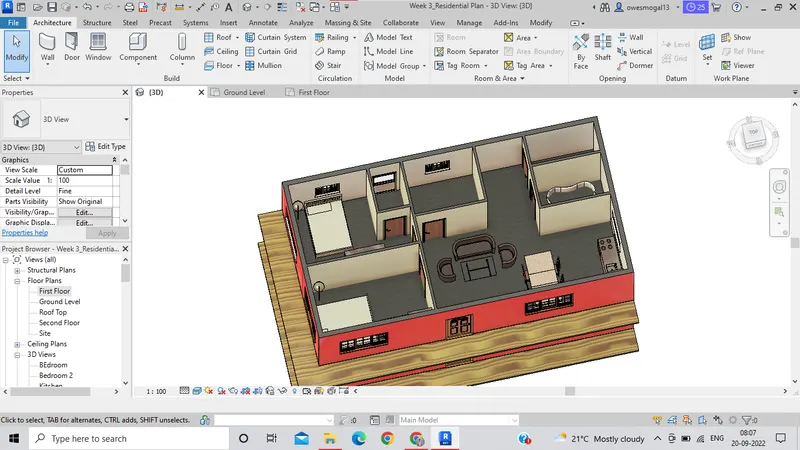

8. VIEWS OF RESIDENTIAL BUILDING.

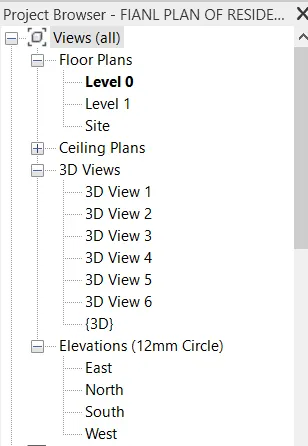

• Go to the property browser in the left of the screen.
• Different views are available in the section of Project browser.
• Click on any of the view created.
• To open the Project Browser, click View tab Windows panel User Interface drop-down Project Browser, or right-click anywhere in the application window and click Browsers Project Browse.

-----------------------------------------------------------------------------------------------------------------------

9. CREATING SHEETS WITH DIFFERENT PLAN :

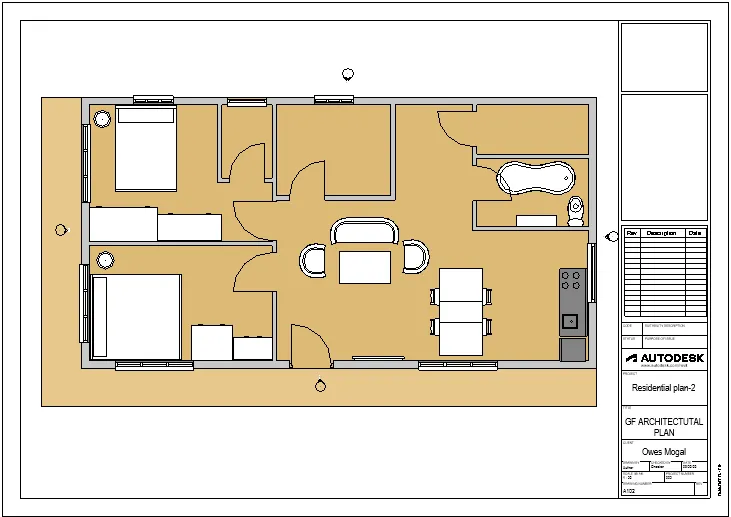

• a. A 101-GROUND FLOOR ARCHITECTURAL PLAN

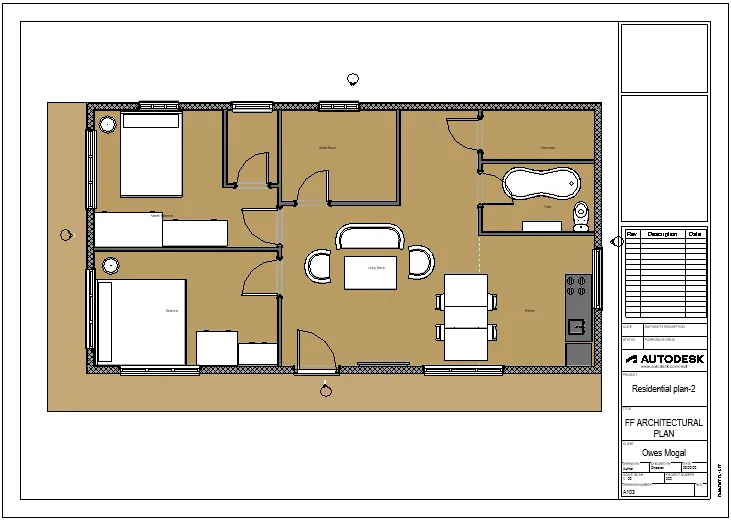

• b. FIRST FLOOR ARCHITECTURAL PLAN

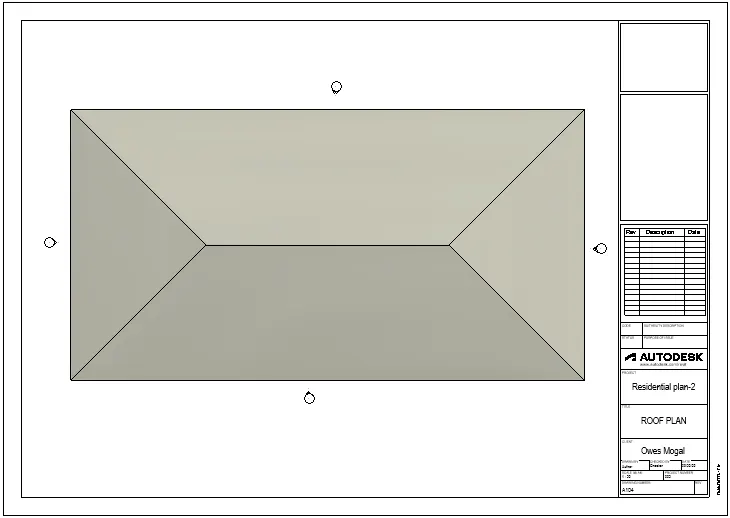

• c. A 103- ROOF PLAN

• d. S 101- Ground Floor Structural Plan
• e. S 102- First Floor Structural Plan

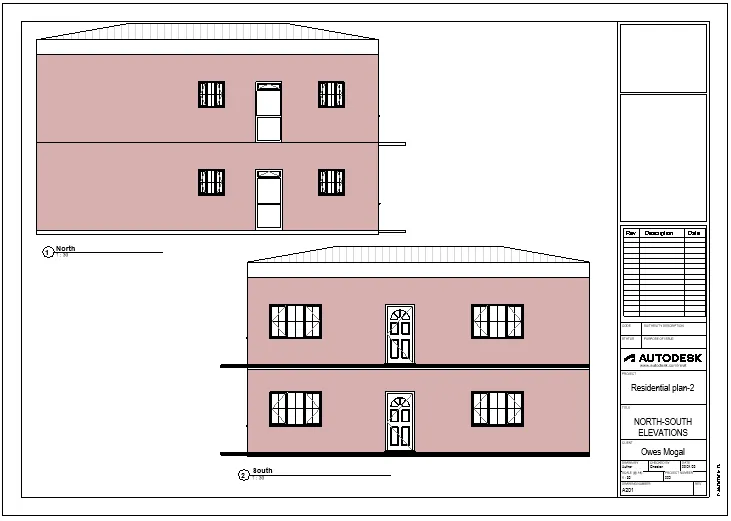

• g. A-201- North-South Elevations

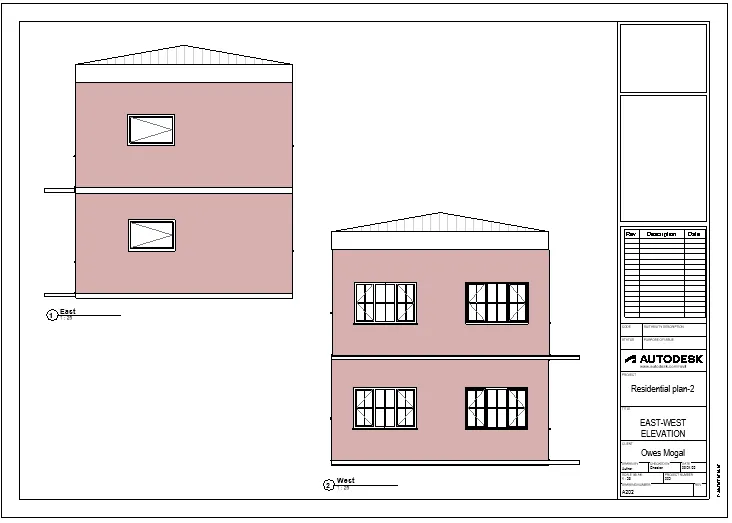

• h. A-202- East-West Elevations

------------------------------------------------------------------------------------------------------------------------------

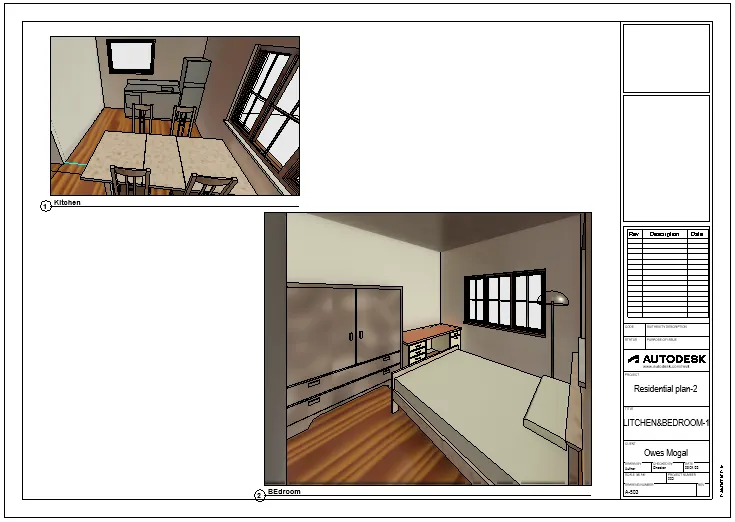

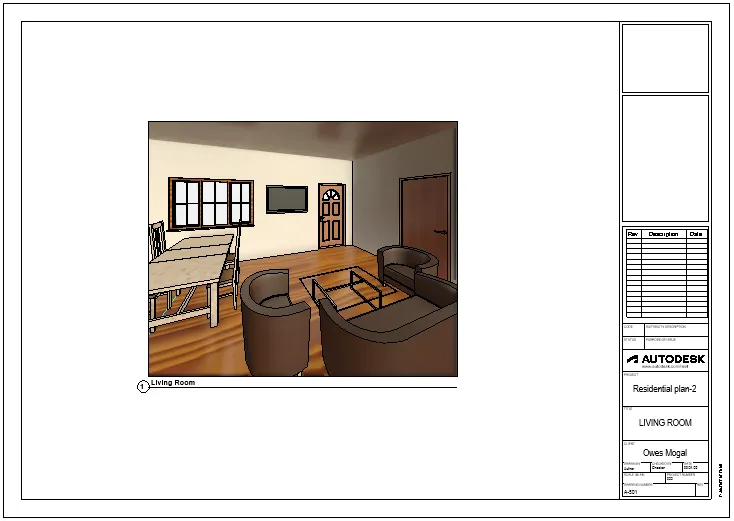

10. ADDING 3D VIEWS IN SHEET

• A-501

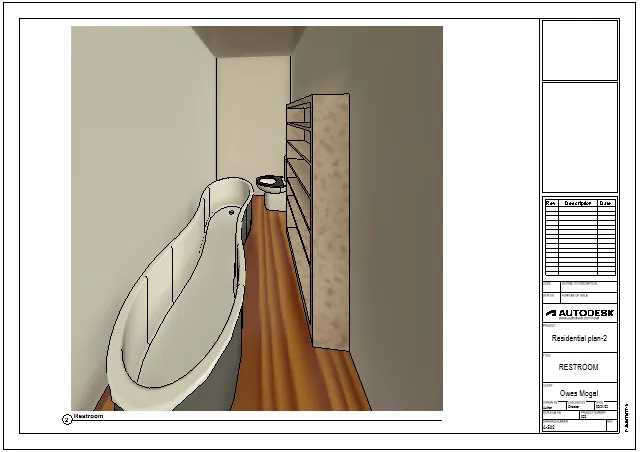

• A-502

• A-503

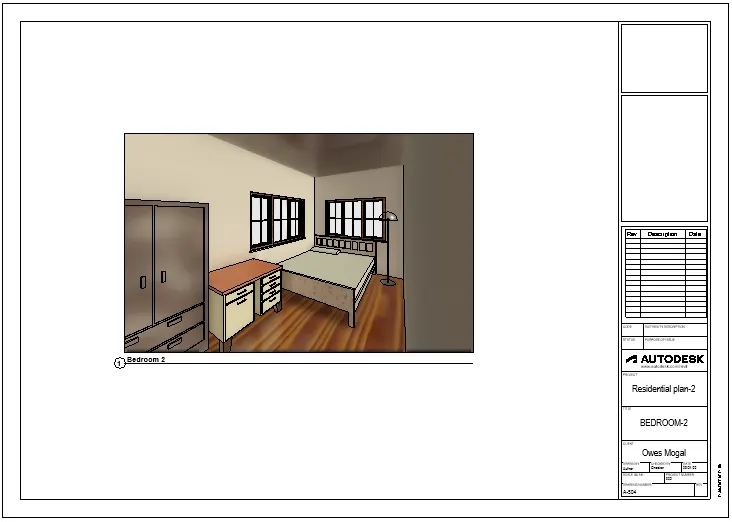

• A-504

-------------------------------------------------------------------------------------------------------------------------------
