3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

CHALLENGE WEEK 4

Question: -1

Aim: -

To based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

Procedure: -

Step :- 1

Open Existing saved project from week 3

Click on architect

Select ceiling

Choose automatic ceiling & Sketch ceiling

Then go choose pick line option

Select the corner to wall

After completion of selection

Click ok

To see the effect go to 3D view.

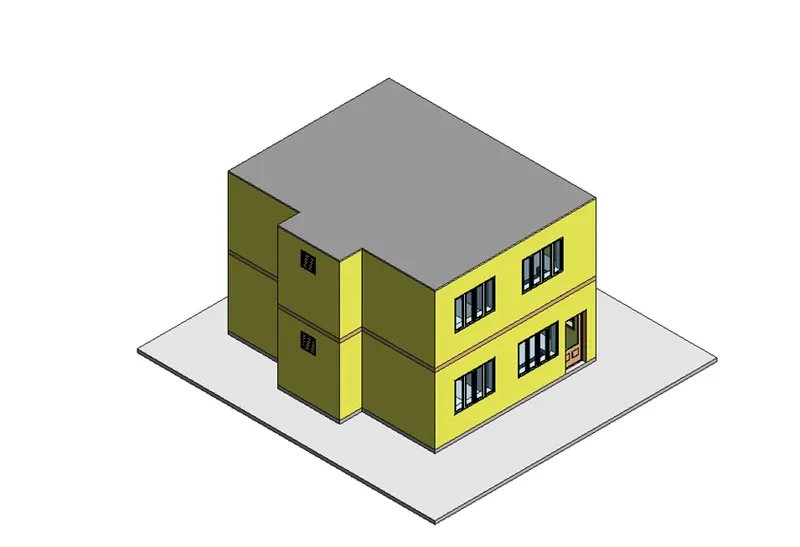

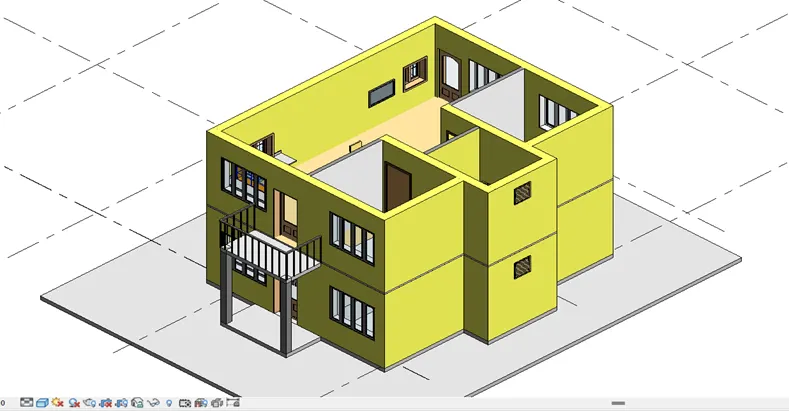

Fig 1.1 (Showing ceiling inserted)

Result: - I have created ceiling at first floor level with the help of architecture tab successfully.

Question: -2

Aim: -

To model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

Procedure: -

Step: - 1

Go to architecture tab

Click on Roof then drag down then select Roof by footprint

Then select the lines to place roof

Then click on tick mark

Now go to edit option to maintain slope

Adjust 10 degree slope

Then click on apply

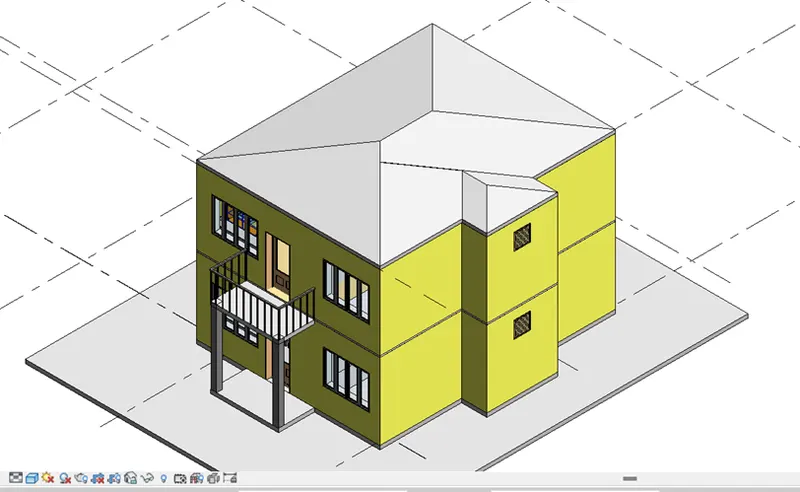

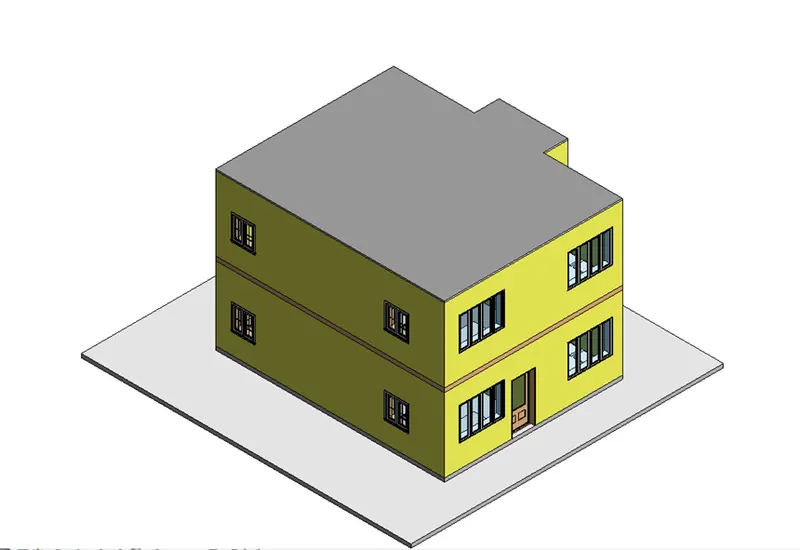

Fig 2.1- Roof Created

Result: - I have successfully created roof with the help of adjustment toolbar and slope maintained 10 degrees slope.

Question: -3

Aim: -

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

1. Architecture plan must have walls, floors, and all the components placed within the building
   b. Structure plan must have details of only walls, floors, and columns

Procedure: -

Step: -1

1. Architecture plan must have walls, floors, and all the components placed within the building

Open Existing model

Now got to View menu

Click on plan view, drag down then select floor plan

Then go to edit type

Click ok.

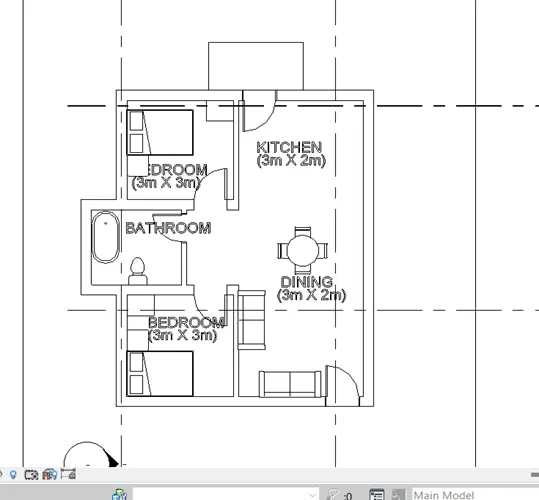

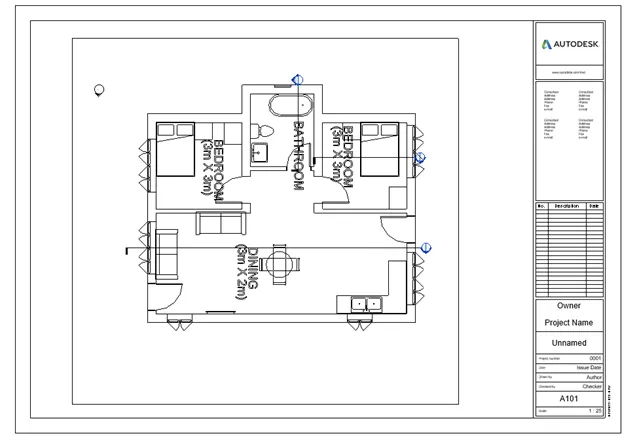

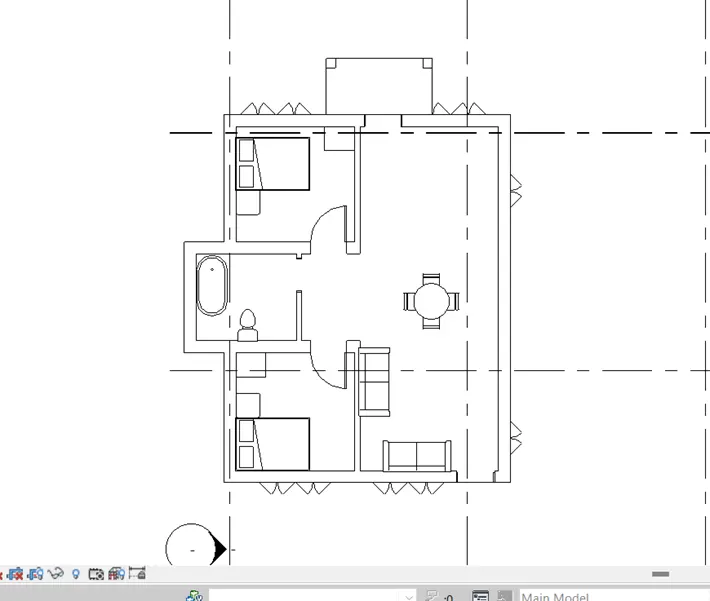

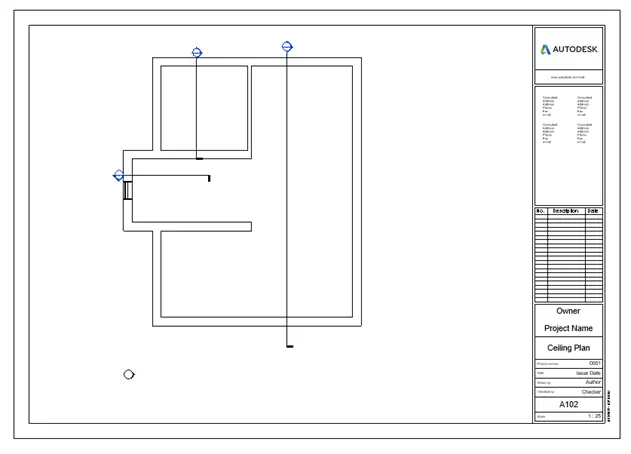

Fig 3.1 Architecture plan

1. Structure plan must have details of only walls, floors, and columns.

Open Existing model

Now got to View menu

Click on Structural plan,

Select the floor

Then click ok

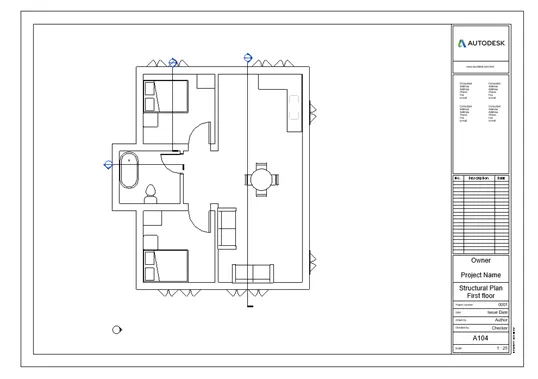

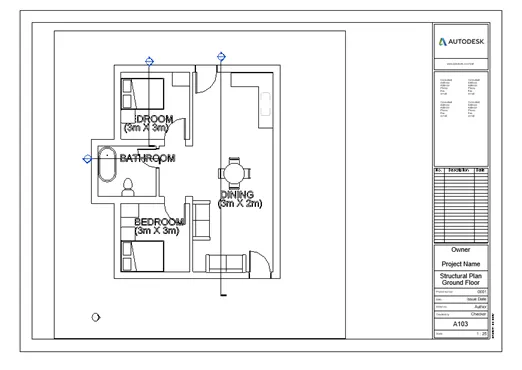

Fig 3.12 Structural Plan

Result: - Architectural plan and structural plan created successfully.

Question: -4

Aim: -

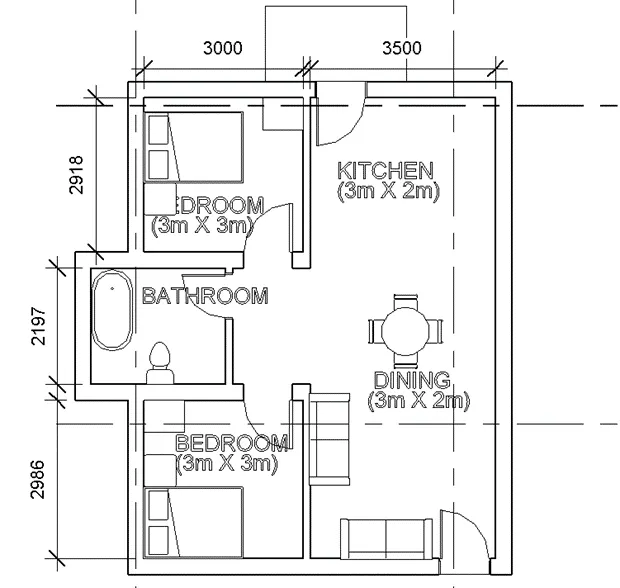

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

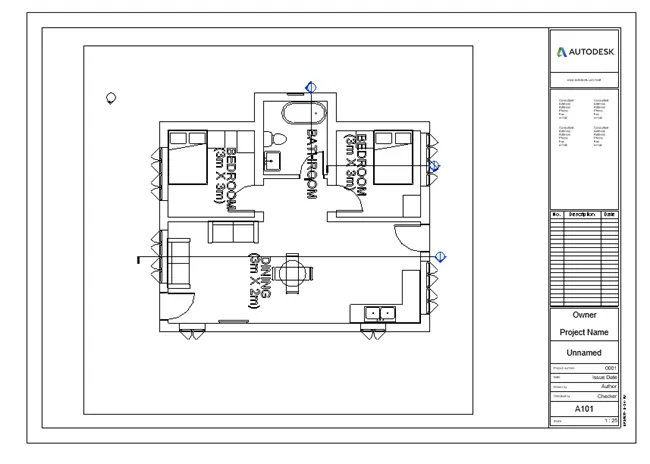

1. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

Procedure: -

1. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

Steps: -

Go to annotate tab

Select the dimension tool

Select the room to check dimension

Click ok

1. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.

Steps: -

Go to annotate tab

Select the dimension tool

Select the room to check dimension

Then click ok

Result: - Successfully dimension inserted in plan.

Question: -5

Aim: -

To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Procedure: -

Open existing model

Go to view tab

Click on sheet

Now select the sheet and size

Click on ok

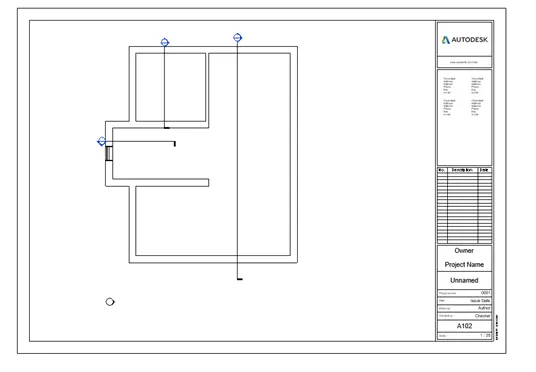

You can see sheet inserted

Result: - Successfully sheet created and floor plan inserted.

Question: -6

Aim: -

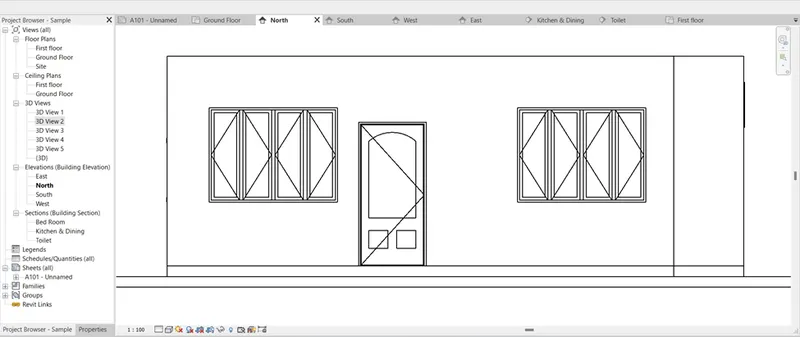

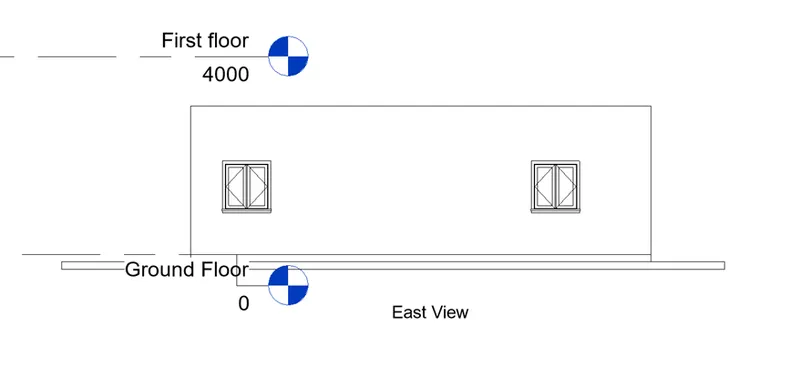

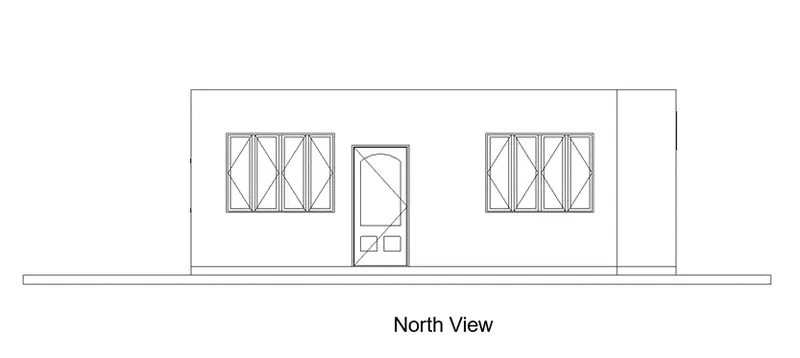

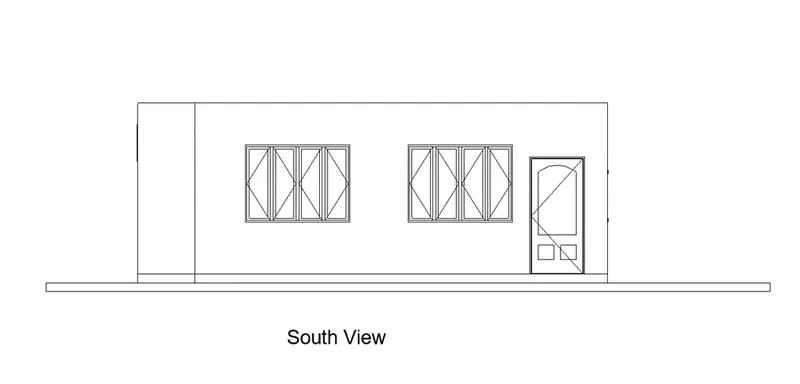

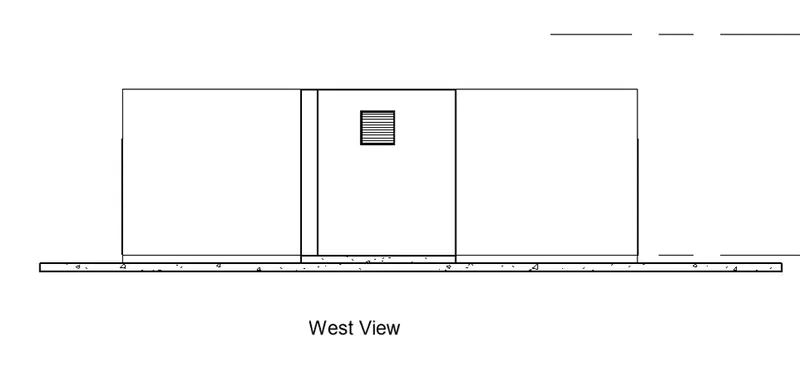

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Procedure: -

Open Existing model

Go to floor plan

Go to view

Then select elevation

Select east, west, north, south face to view elevation.

Result :- Using elevation tab elevation view created.

Question: -7

Aim: -

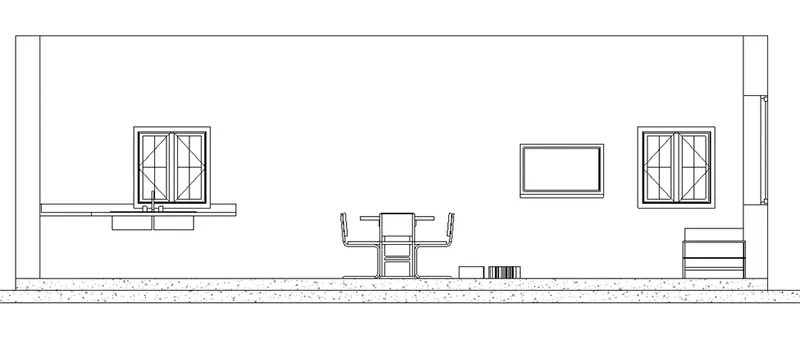

To Produce section cut through each room either cutting across longitudinally or in a transverse direction.

Procedure: -

Go to View

Select section

Go to plan view

Select the room

To see sectional view

Select on sectional view from properties

Click on section.

Result: - Sectional view created.

Question: -8

Aim: -

To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

Procedure

Result: - Screenshot attached for plan sectional and elevation.

Question: -9

Aim: -

Using the sheet template produced create multiple sheets as follows

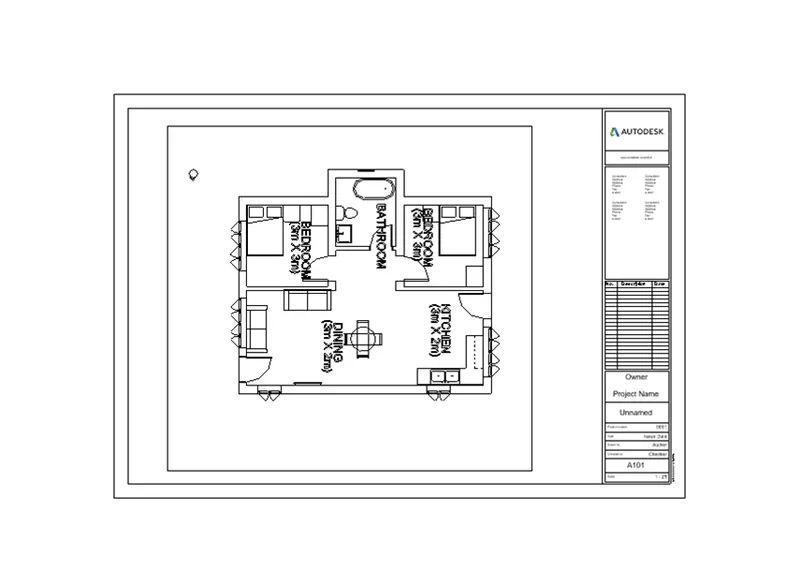

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

Procedure: -

1. A 101- Ground Floor Architecture Plan
2. A 102- First Floor Architecture Plan

1. A 103- Roof Plan

2. S 101- Ground Floor Structural Plan

1. S 102- First Floor Structural Plan

1. S 103- Roof Framing Plan
2. A-201- North-South Elevations

1. A-202- East-West Elevations

Result :- Using sheet templet views added to the sheet.

Question: -10

Aim: -

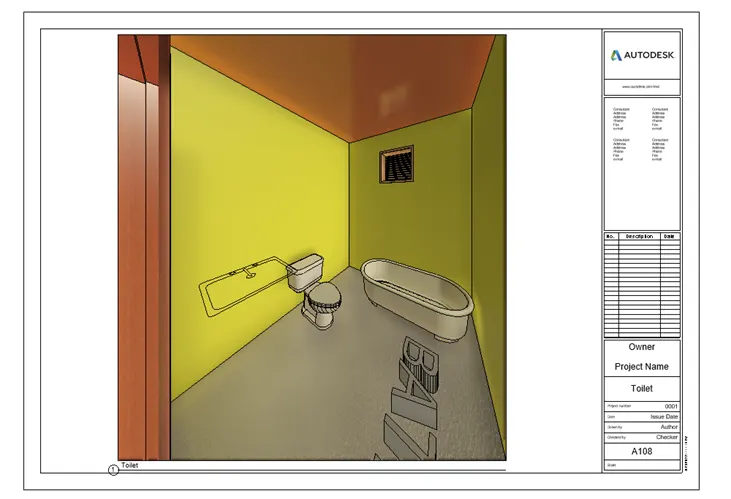

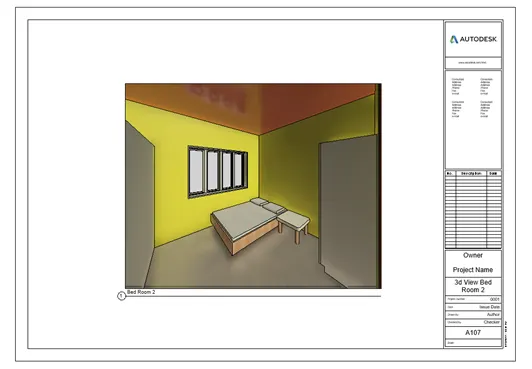

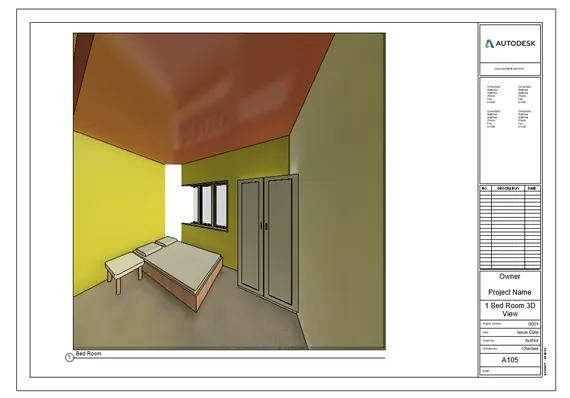

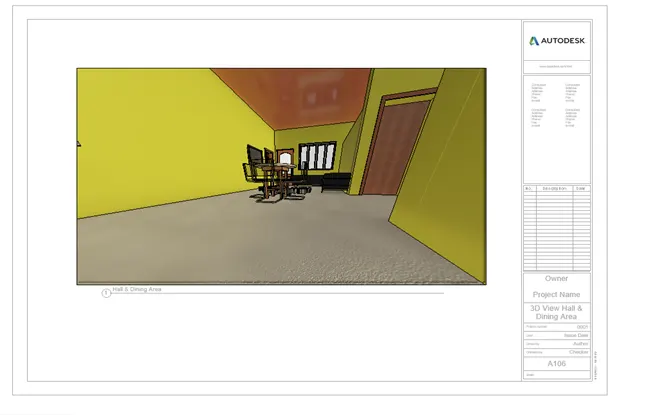

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Procedure: -

Result: - Camera placed at each room and 3D views added to the sheet
