3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM:

3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT.

1). Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

AIM: - To Model a ceiling from the architecture tab above the walls at the first-floor level.

Introduction:

• The creation of ceiling within Revit is a very similar process to that of floors and roofs, you can let Revit do most of the work and guess where you want the boundaries to be, or you can enter sketch mode and literally sketch out the boundary of the ceiling yourself.
• The main thing to remember is to be in the correct ceiling plan view before you start, Revit will let you place ceiling in floor plan views but I would not advise this as you cannot readily see what you have created.

Procedure: -

Step: -1.

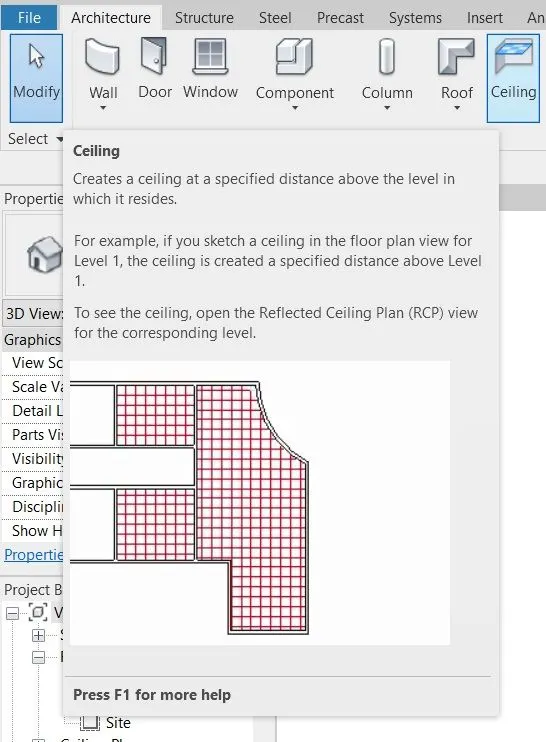

• First, we open the Revit software and select the ceiling option from the architecture toolbar.

Step: -2.

• After selecting the ceiling option, then select each room one by one
• Then the ceiling will be created, as shown below.

Step: -3.

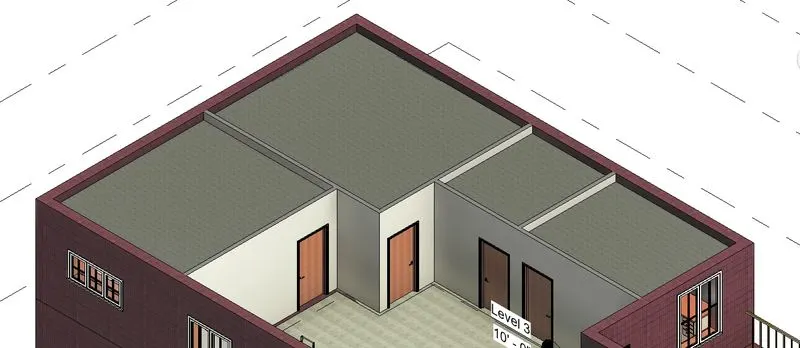

• Her we can see the ceiling in 3D view as shown below.

RESULT:

The Ceiling has been modeled successfully from the architecture tab above the walls at the first-floor level.

2). Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

AIM: - To model a roof above the ceiling by selecting the footprints of the ceiling.

Introduction:

• Roof, covering of the top of a building serving to protect against rain, snow, sunlight, wind and extremes of temperature.
• Conical thatched roofs are a good example of this type and are still widely used in the rural areas of Africa and elsewhere.
• Thicker branches and timbers eventually came to be used to span a roof with clay or some other relatively impermeable substance pressed into the interstice’s b/w them.
• Gabled and flat roofs were possible with these materials with the invention of brick and cut stone for building the basic roof forms of the dome and vault appeared.

Procedure:

Step: -1.

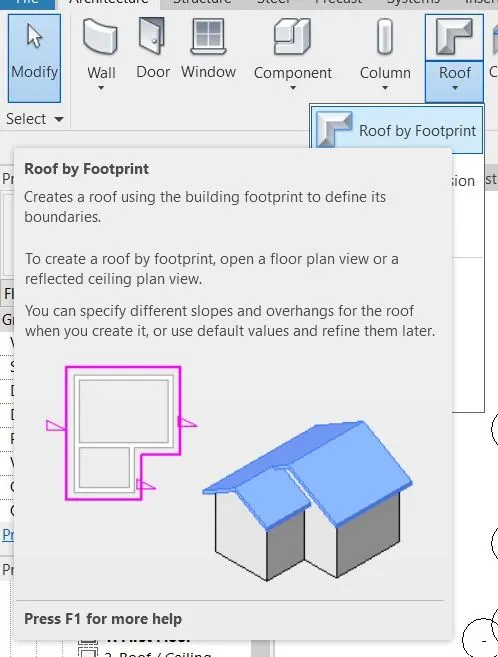

• Open the architecture toolbar, and select the roof by footprint options as shown below.

Step: -2.

• Next, we select the roof and adjust the roof to 10 degrees by selecting it, as shown below.

Step-3.

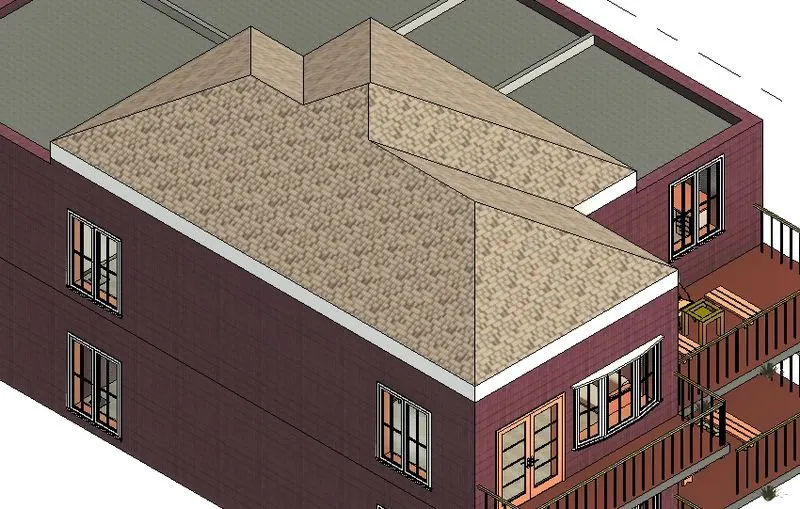

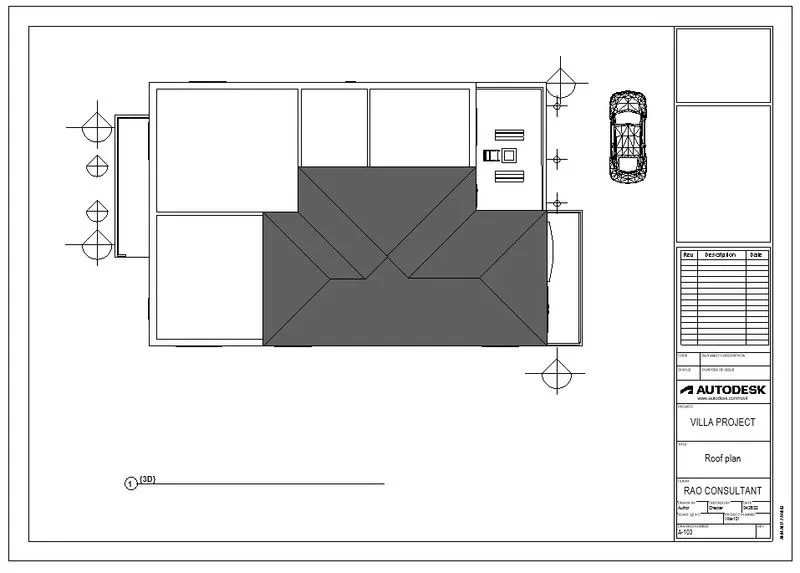

• The roof has been created, as shown below.

RESLUT:

The Roof has been created successfully to the model in the Revit in detailed manner.

3). Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

1. Architecture plan must have walls, floors, and all the components placed within the building
   b. Structure plan must have details of only walls, floors, and columns

AIM: - To create plan views for ground floor level and first floor level including all the walls, floors and components., And separate them to architecture and structural plans.

Introduction:

• The structural plan view is the default view when you start a new project using a structural template.
• Most projects include at least one structural plan, new structural plan view are created automatically as you add new levels to your project, you can create multiple structural plan view types.
• The floor plan view is the default view in a new architectural project.
• Most projects include at least one floor plan.
• Floor plan views are created automatically as you add new levels to yor project.

Procedure:

Step: -1.

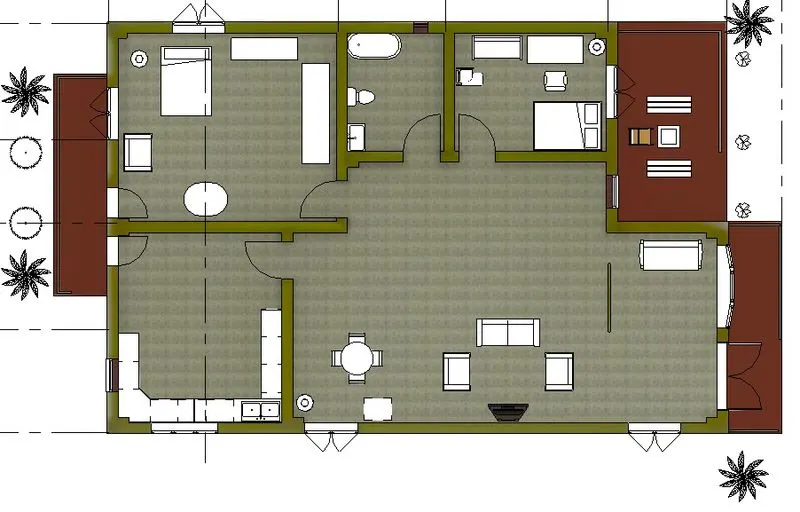

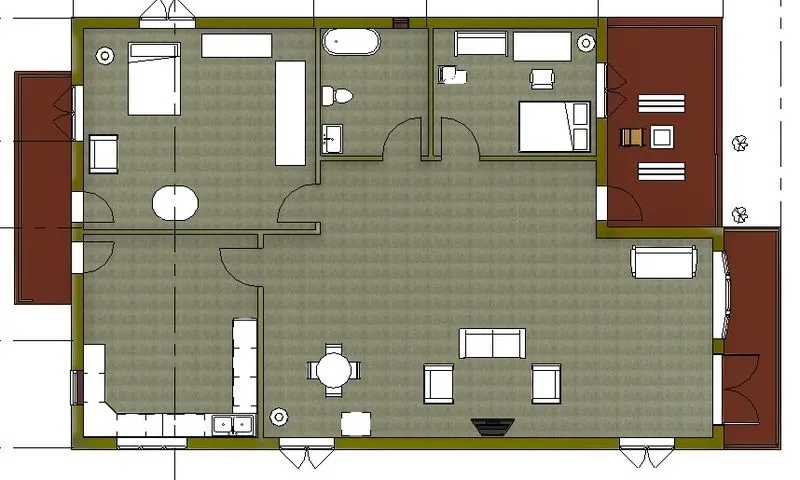

• First, we draw the architectural plans of first floor and second floor, as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

Step: -2.

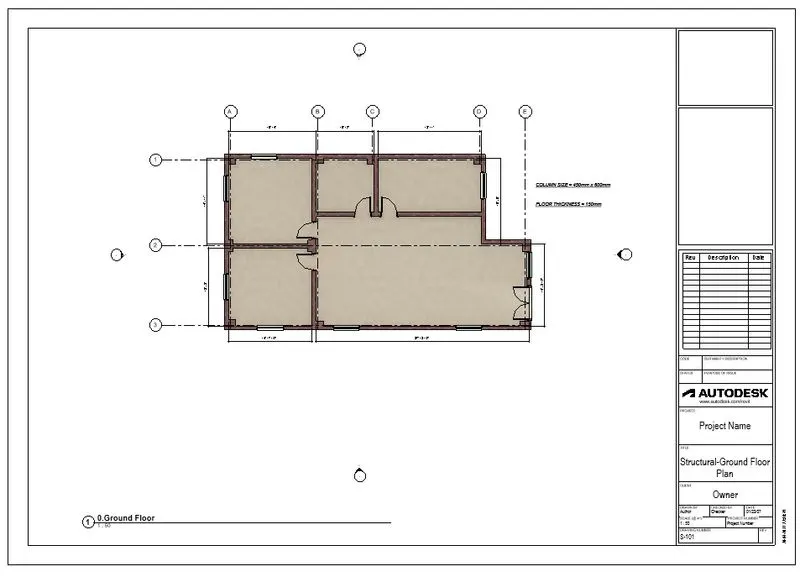

• Next, we draw the structural plans of the first floor and second floor, as shown below.

Step: -3.

• Finally, the elements are aligned to the different level, as shown below.

RESULT:

Created plan views for ground floor level and first floor level including all the walls, floors and components, and separated them to architecture and structural plans.

4). Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

1. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
2. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM: -To add dimensions to all the floors with reference to the longitudinal and transverse grids created in the project file.

Introduction:

• The structural plan view is the default view when you start a new project using a structural template.
• Most projects include at least one structural plan, New structural plan view is created automatically as you add new levels to your project, you can create multiple structural plan view types.
• The floor plan view is the default view in a new architectural project, most projects include at least one floor plan.
• Floor plan views are created automatically as you add new levels to your project.

Procedure:

Step: -1.

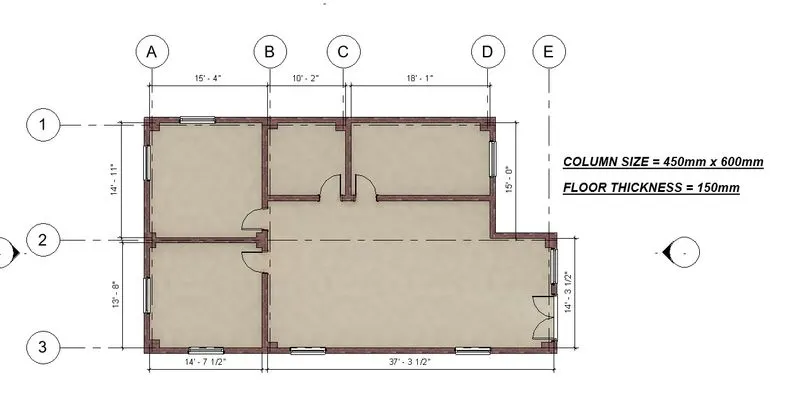

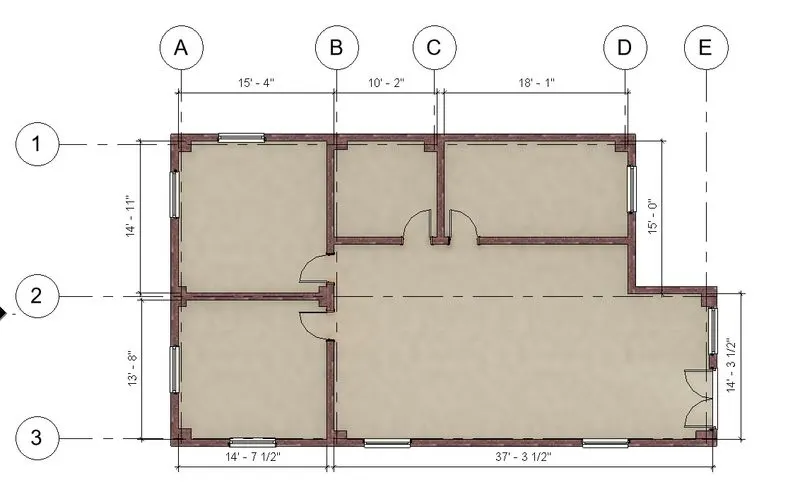

• Here we draw the longitudinal and transverse grids to the architectural floor plans as shown below.
• Add the dimensions to the architectural plans as shown below.

Step: -2.

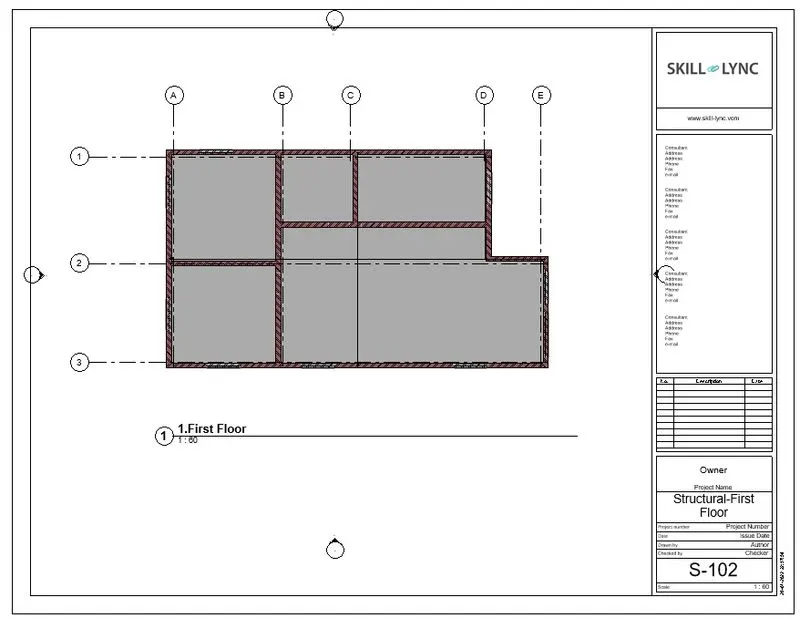

• Next, we draw the longitudinal and transverse grids to the structural floor plans as shown below.
• Add the dimensions to the structural plans as shown below.

RESULT:

The dimensions are added to the structural floor plans and the architectural floor plans.

And the longitudinal and transverse grids are also created in the project file.

5). Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

AIM: - TO create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

INTRODUCTION:

• Create views on a project template before you start building the model to streamline the project documentation process.
• When creating a project template, you can include sheets in the template start with a blank projects file and create the standard views and level that each project should include.
• Leave the views empty but assign standard names to team. To create a standard set of construction documents, create sheets using the desired title blocks.
• Add views to the sheets using the desired viewport templates and view title types.
• Then save the empty project as s project template.
• When you create a project as a project template.
• When you create a project as a project template.
• When you create a project using this project template, all of the views and sheets are already and listed in the project browser.
• As you start to draw the building model in the project views, the views on the sheets update automatically.
• This technique streamlines the project documentation process and maintains organizational standards.

PROCEDURE:

Step: -1.

• First, we click on the sheet option from the view toolbar as shown below.
• After clicking he sheet, the new tab will be visible on the screen.

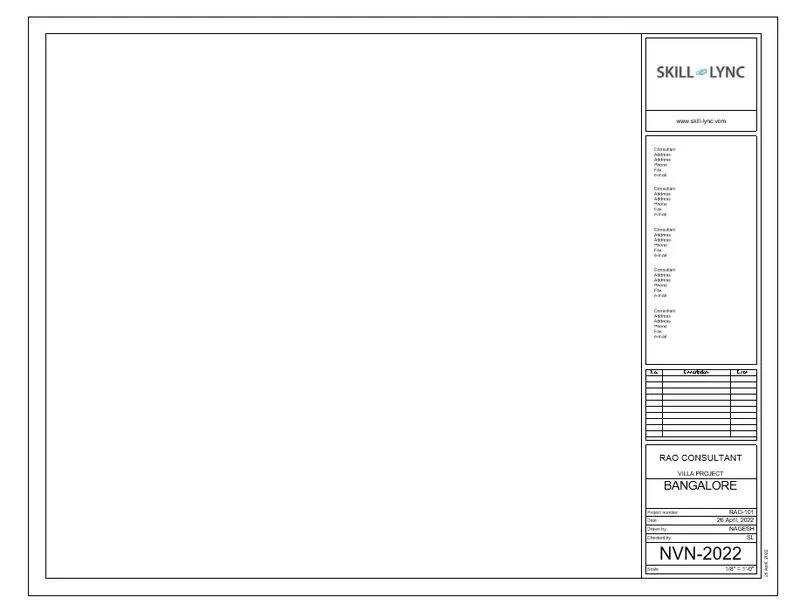

• In that new tab we select the A1 metric, then the sheet template will be displayed.

Step: -2.

• In the sheet template we insert the first-floor plan and second floor plan separately as shown below.
• Next edit the project name and the sheet number as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

RESULT:

Created a sheet template from the view tab and adjusted the parameter on the sheet for adding appropriate views.

6). Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

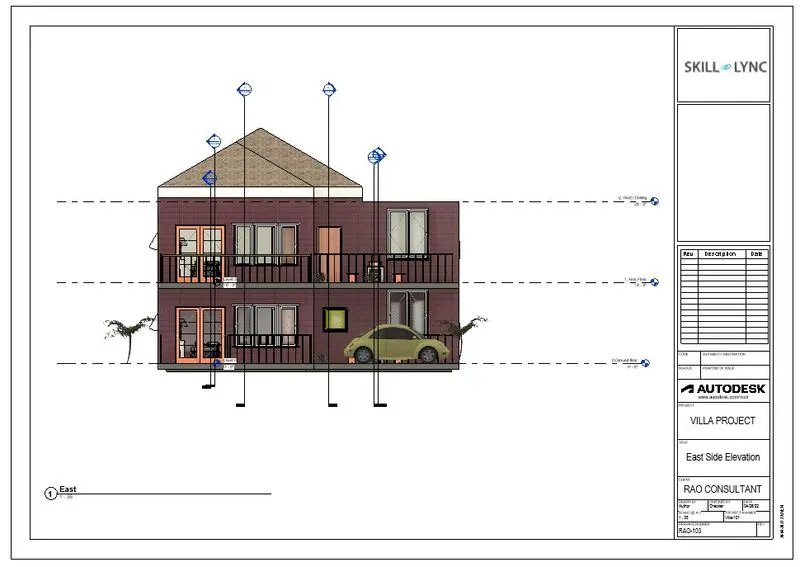

AIM: - To create the elevation views of a building seen from East, North, South and West using the elevation tab.

Introduction:

• AN elevation is a view of a building seen from one side, a flat representation of one view.
• This is the most common view used to describe the external appearance of a building.
• Each elevation is labeled in relation to the compass direction it faces. E.g. looking towards the north you would be seeing the southern elevation of the building.

Procedure:

Step: -1.

• First, we click on the elevation option from the view toolbar.

Step: -2.

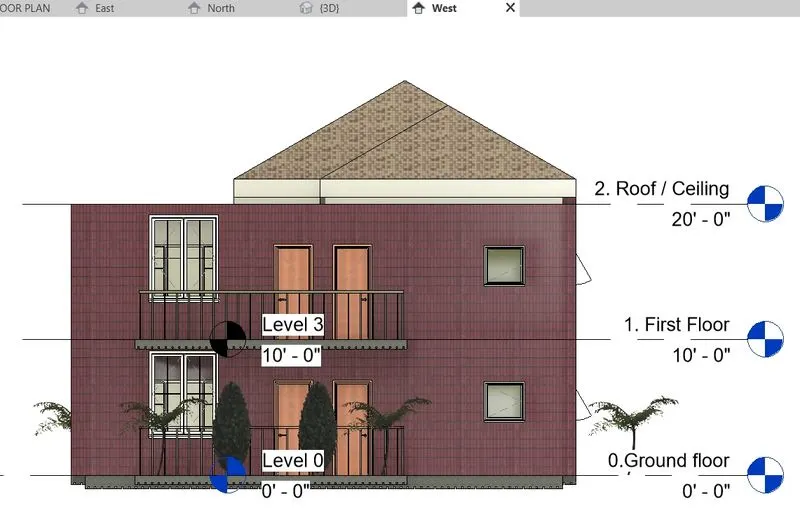

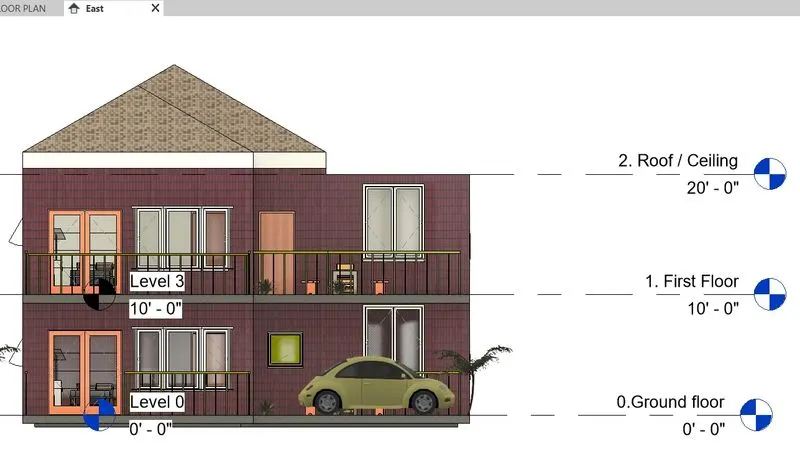

• Next, he elevation from the East will be visible, as shown below.

Step: -3.

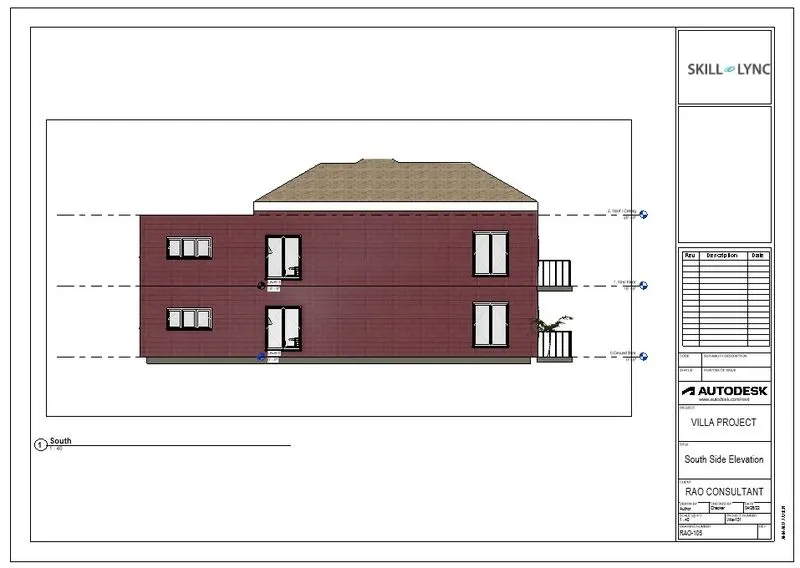

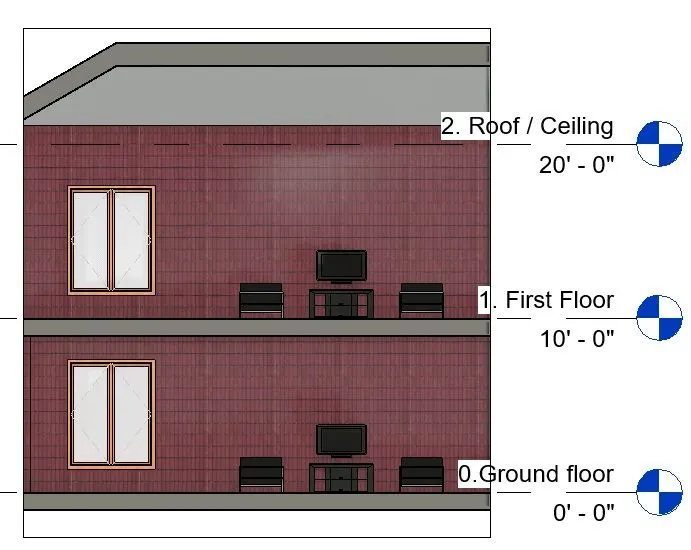

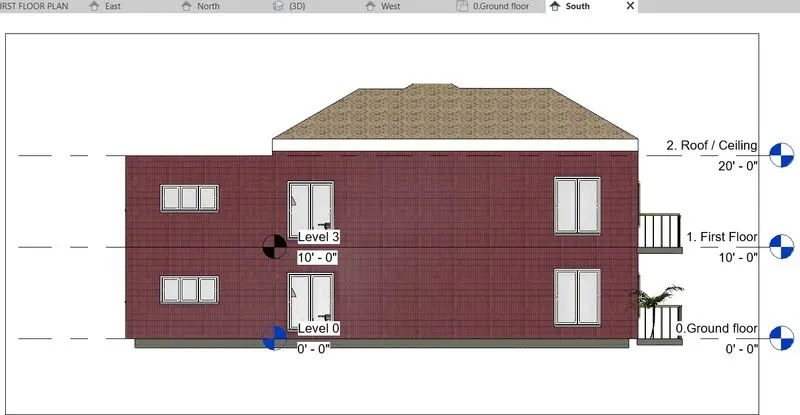

• Next the elevation from the south will be visible on the screen, as shown below.

Step: -4.

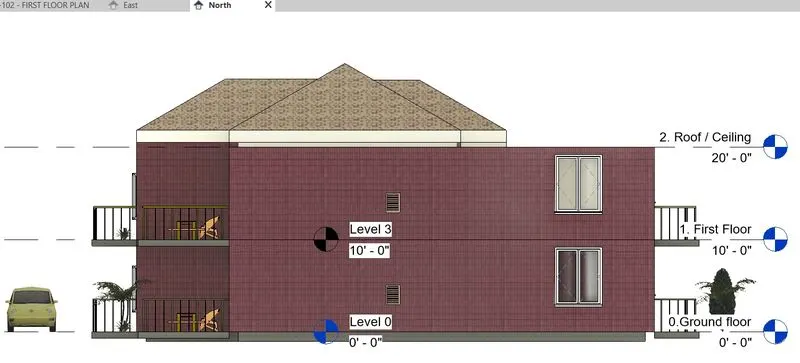

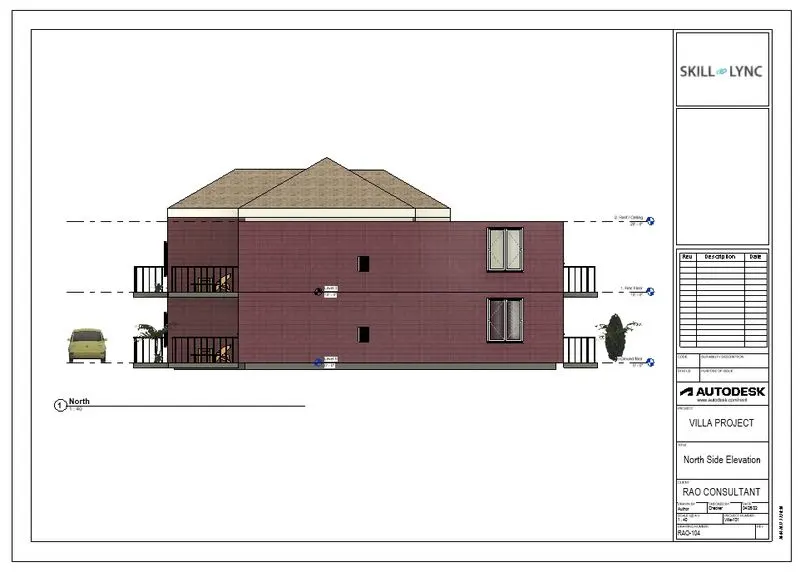

• Next the elevation from the North will be visible on the screen, as shown below.

Step: -5.

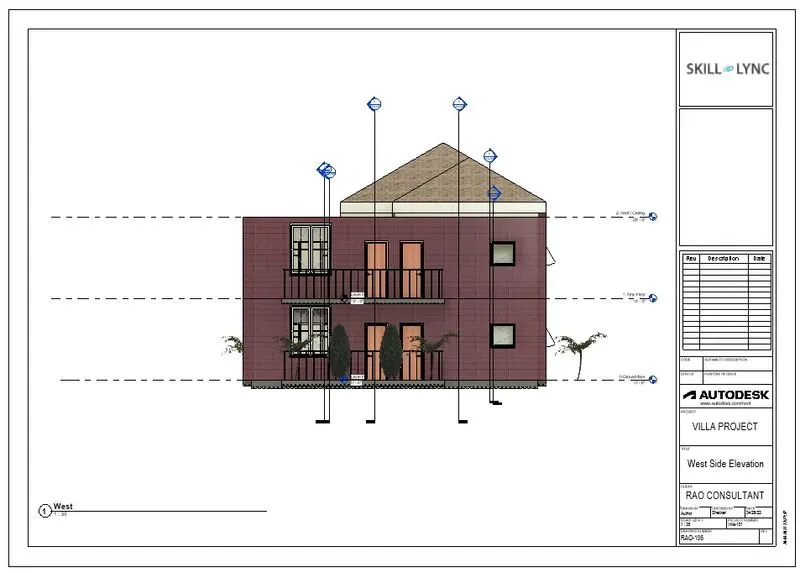

• Next the elevation from the West will be visible on the screen, as shown below.

RESULT:

The Elevation views are created, looking at building from East, North, South and West.

7). Produce section cut through each room either cutting across longitudinally or in a transverse direction.

AIM: - To produce section cut through each room either cutting across longitudinally or in a transverse direction.

Introduction: -

• Sectional views reveal hidden details in a mechanical drawing.
• These views assume that a cutting plane has removed portions of the object represented by the drawing displaying the appropriate section of the interior.
• Sectional views are used in engineering and airplane architectural drawings.
• They help civil engineers, architects and airplane designers communicate their ideas ti their peers.

Procedure: -

Step: -1.

• First, we click on the selection option from the view toolbar, as shown below.

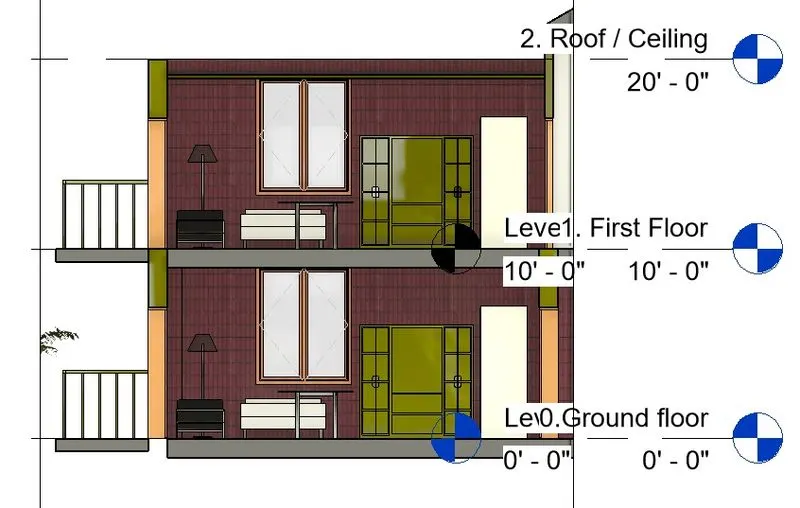

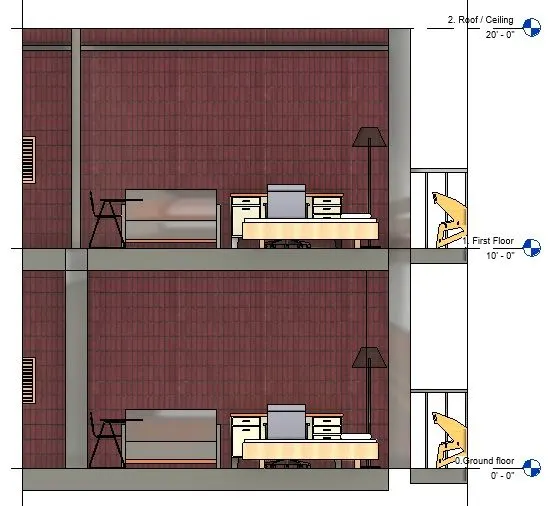

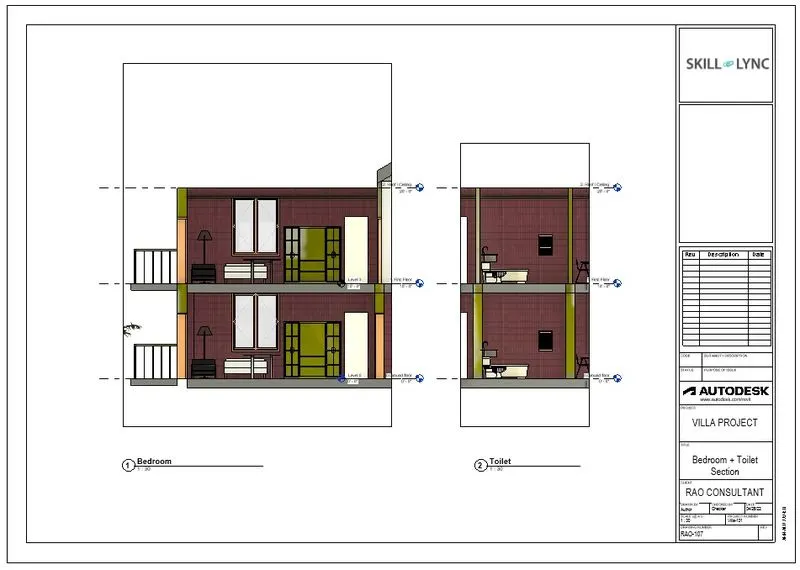

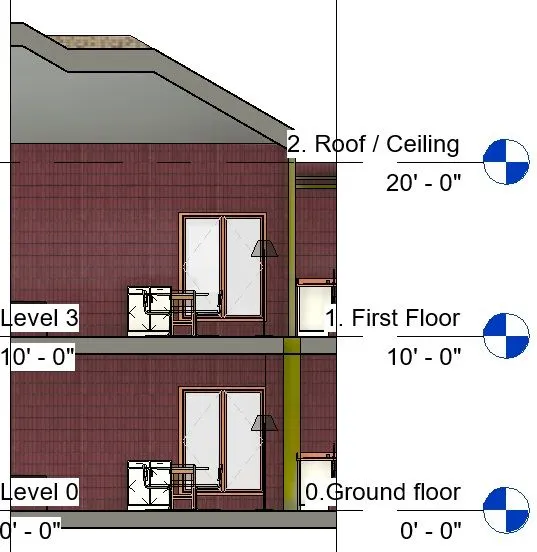

• Next, we produce the section view of the bed room as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.

Step: -2.

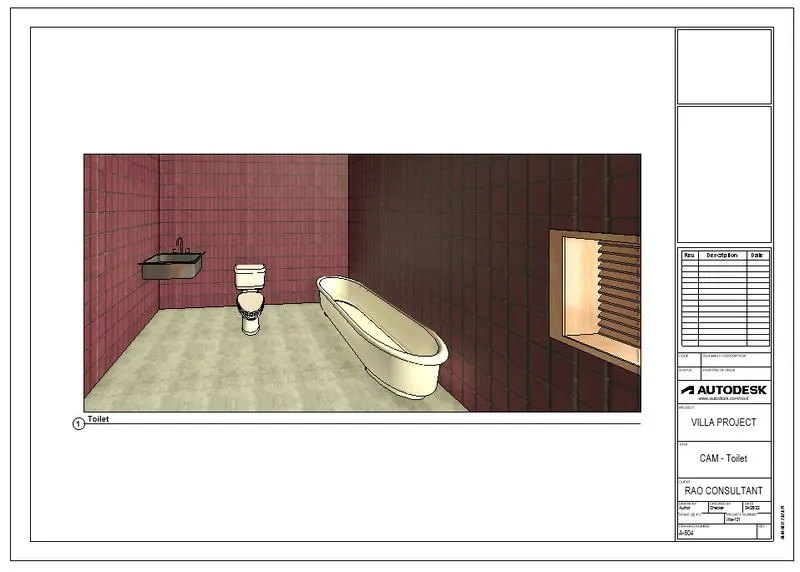

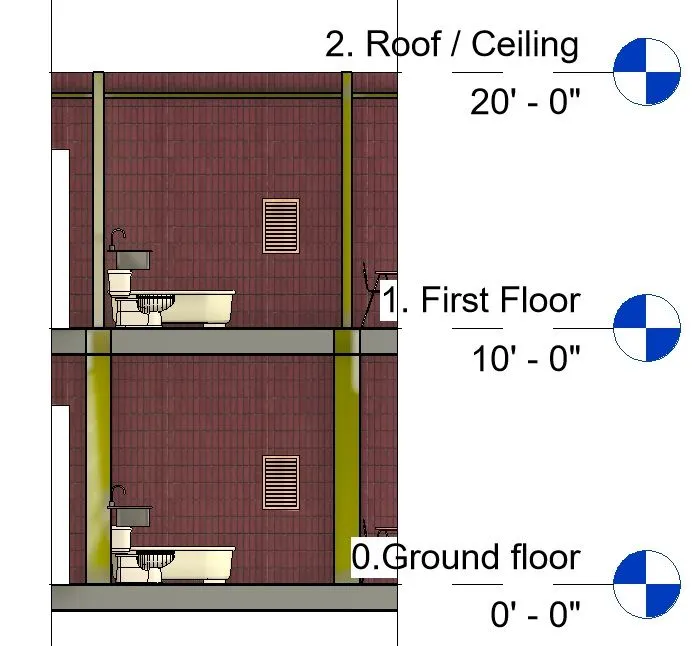

• Next, we produce the section view of the Toilet room as shown below.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

Step: -3.

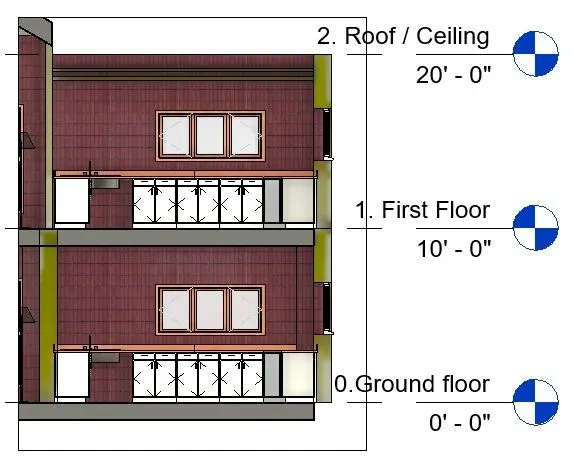

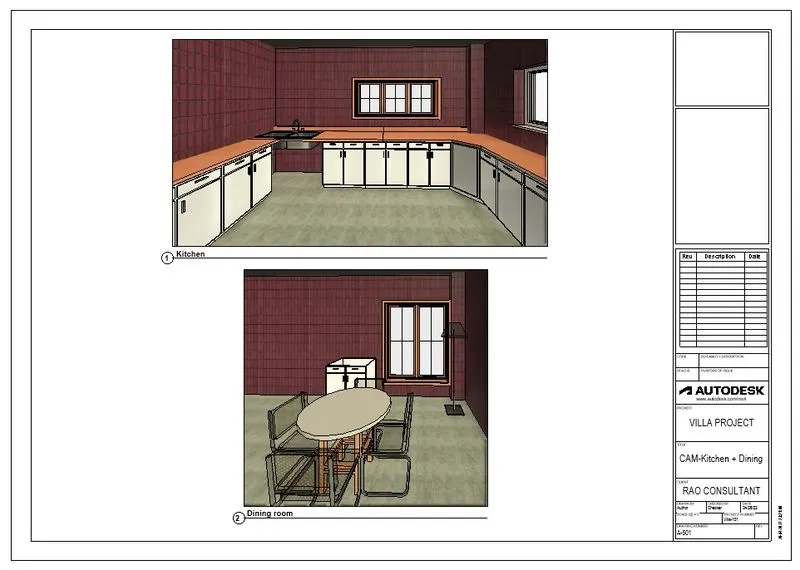

• Next, we produce the section view of the kitchen room as shown below.
• The components in Kitchen room placed are kitchen slab, sink, Draws.

Step: -4.

• Next, we produce the section view of the Living room as shown below.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.

Step: -5.

• Next, we produce the section view of the Study room as shown below.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.

Step: -6.

• Next, we produce the section view of the Bed room as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.

Step: -7.

• Next, we produce the section view of the Dining room as shown below.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.

RESULT:

Created the section views of a model in the Revit in detailed manner.

8). Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

AIM: - To classify the views, plan views, section views and elevation views to either design or documentation category using properties browser.

Procedure: -

Step: -1.

• First, we open the project browser, the views, plan views, section views and elevation views are visible in that project browser as shown below.
• Next, we insert these plans one by one in the sheets separately.

Step: -2.

• First, we insert the front elevation in the sheet template, as shown below.

Step: -3.

• Next, we insert the left elevation in the sheet template, as shown below.

Step: -4.

• Next, we insert the right-side elevation in the sheet template, as shown below.

Step: -5.

• Next, we insert the back side elevation in the sheet template, as shown below.

Step: -6.

• Next, we insert the ground floor plan in the sheet template, as shown below.

Step: -7.

• Next, we insert the first-floor plan in the sheet template, as shown below.

Step: -8.

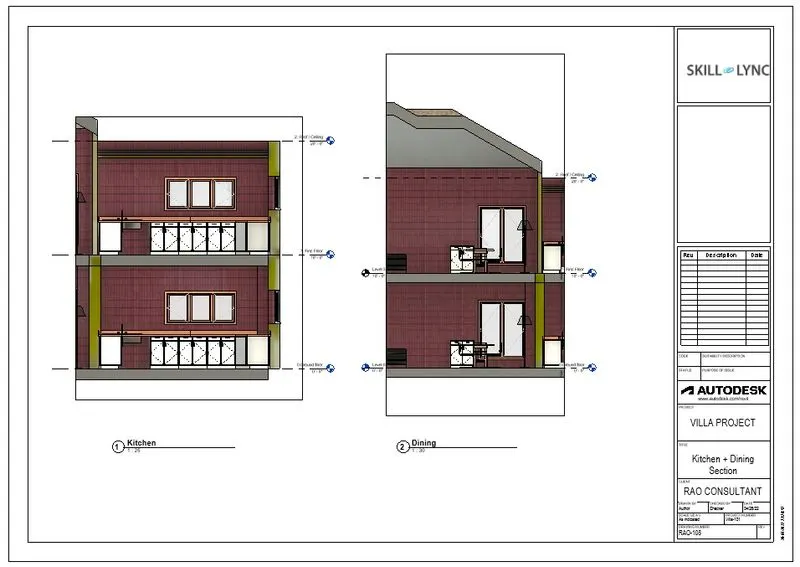

• Next, we insert the Sections in the sheet template, as shown below.
• The Sections are Kitchen + Dining room.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.

Step: -9.

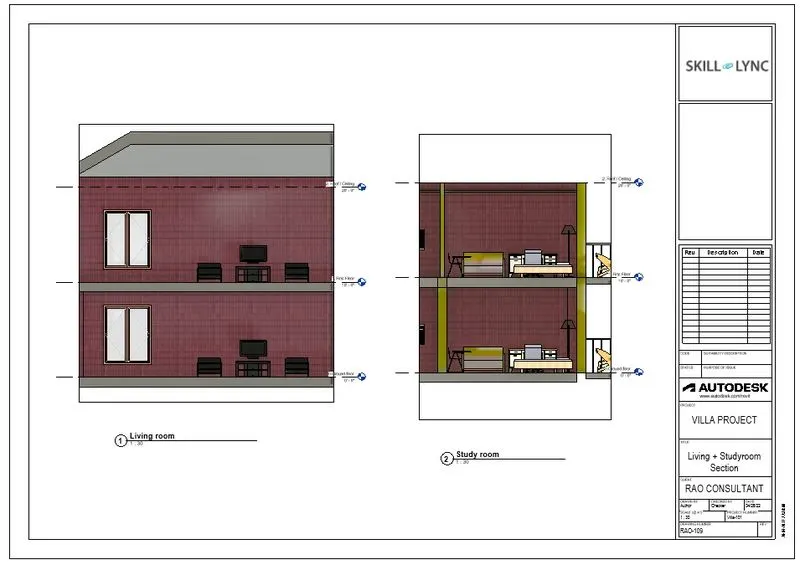

• Next, we insert the Sections in the sheet template, as shown below.
• The Sections are Living + Study room.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.

Step: - 10.

• Next, we insert the Sections in the sheet template, as shown below.
• The Section are Toilet + Bedroom.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.

RESULT:

Views plan views, section views, and elevation views are classified to design category using properties browser.

9). Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan

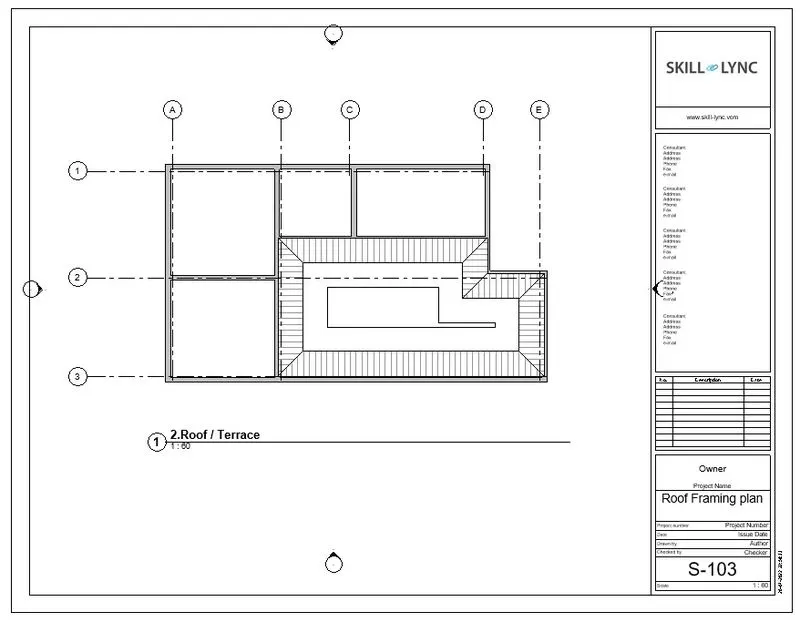

f. S 103- Roof Framing Plan

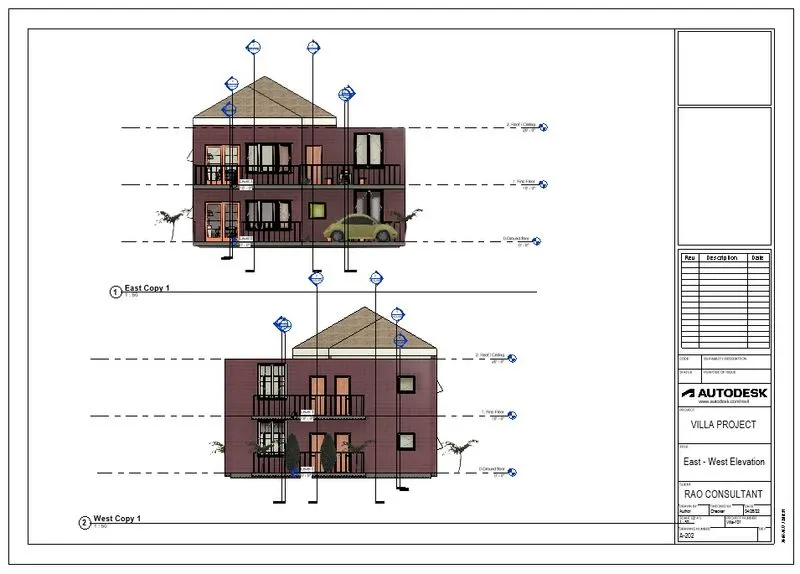

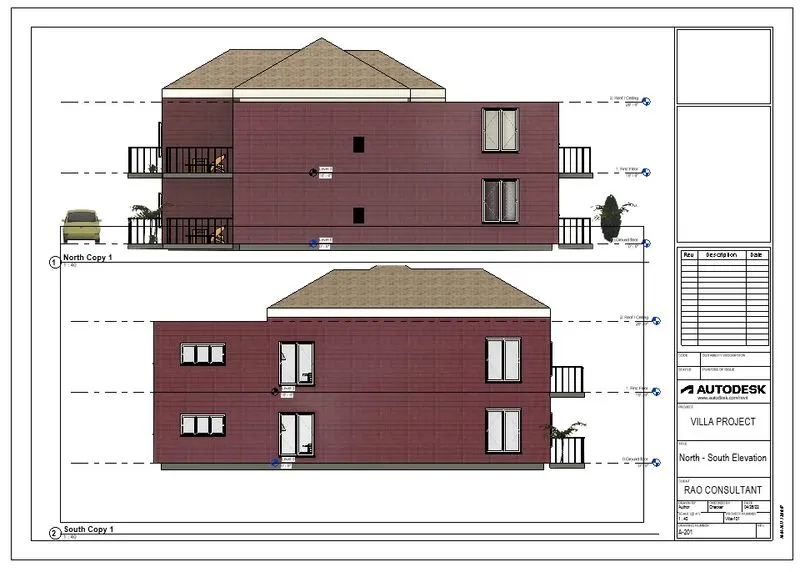

g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM: - To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.

Procedure:

Step: -1.

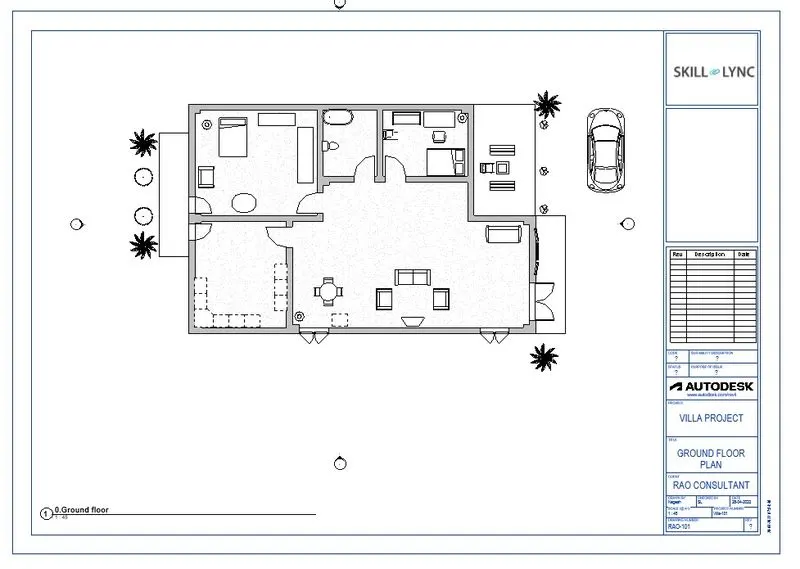

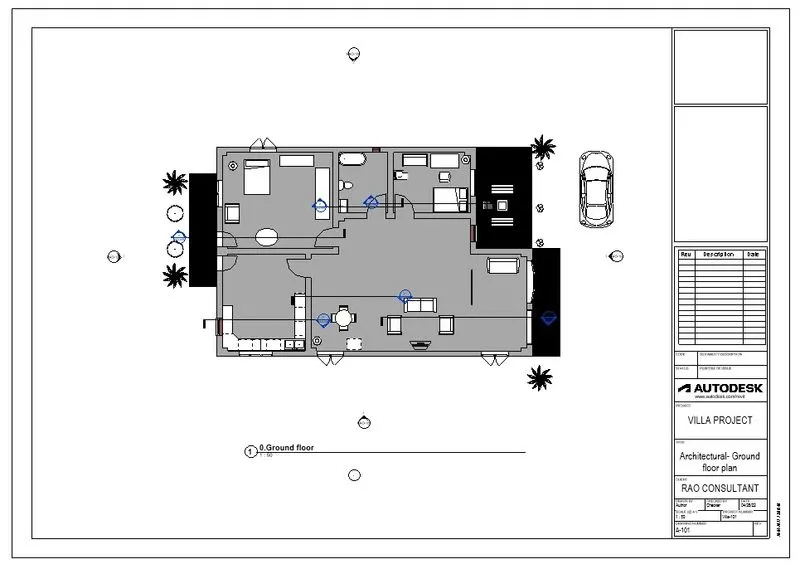

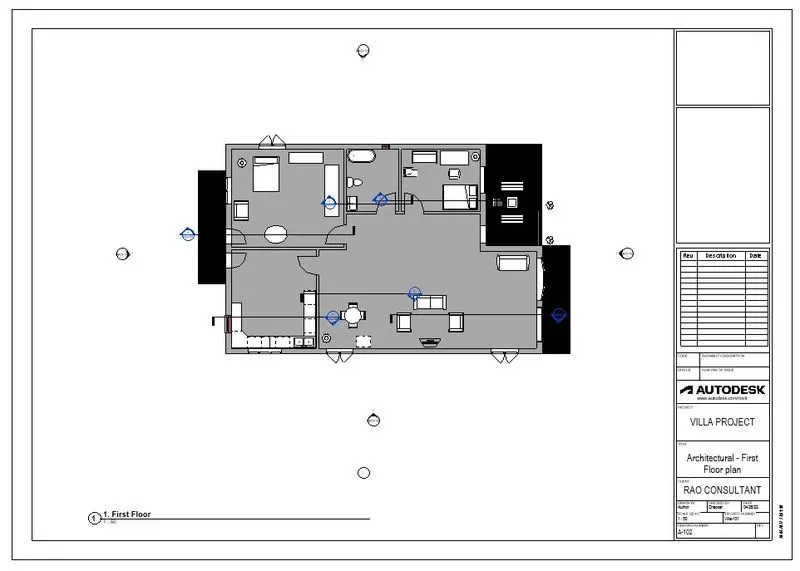

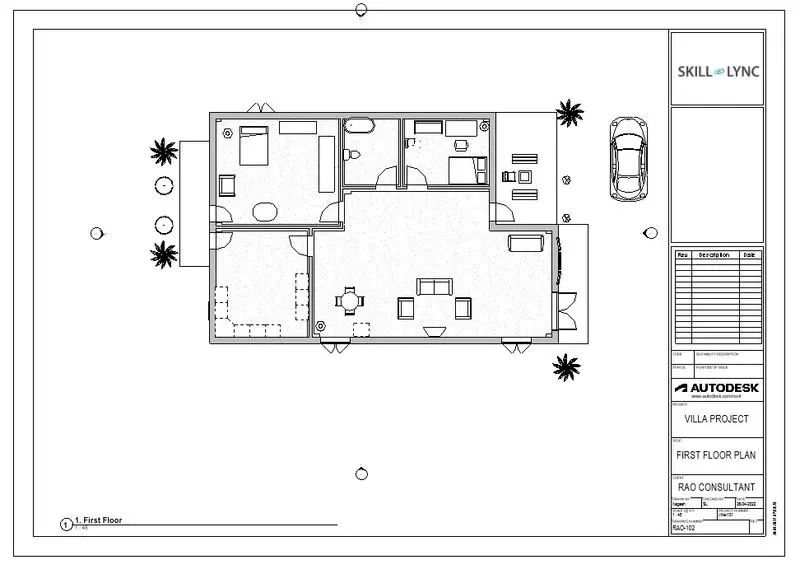

• First, we produce the ground floor architectural plan in the sheet template A-101, as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

Step: -2.

• Next, we produce the First-floor architectural plan in the sheet template A-102, as shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

Step: -3.

• Next, we produce the Roof plan in the sheet template A-103, as shown below.

Step: -4.

• Next, we produce the Ground floor structural plan in the sheet template S-101, as shown below.

Step: -5.

• Next, we produce the First-floor structural plan in the sheet template S-102, as shown below.

Step: -6.

• Next, we produce the Roof framing plan in the sheet template S-103, as shown below.

Step: -7.

• Next, we produce the North and South elevation views in the sheet template A-201, as shown below.

Step: -8.

• Next, we produce the East and West elevation views in the sheet template A-202, as shown below.

RESULT:

Created them multiple sheets and produced the drawings in the sheets, from the given list.

10). Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM: - To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

Introduction:

• Camera views are really useful in Revit.
• They allow us to view what we would actually see if we were standing at any given location in our design.
• This can be invaluable for both understanding and communicating the nature of a space before we go to the expensive lengths of actually it for real.

Procedure:

Step: -1.

• First, we take sheet and name it as A-501.

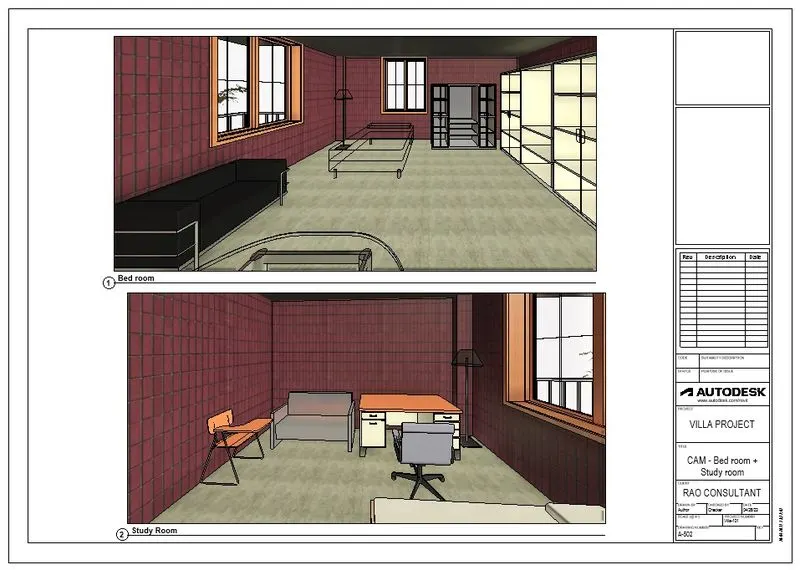

• Next go to the floor plan and place the camera in the bedroom + Study room, and the camera view of bedroom and study room will be shown below.
• The components in Bedroom placed are 1 Bed, 1 Couch, 1 floor lamp, 1 Wardrobe, 1 Table.
• The components in Study room placed are 1 study table, 1 sofa, 1 floor lamp, 1 Chair.

Step: -2.

• Next, we take the sheet and name it as A-502.
• Next go to the floor plan and place the camera in the Kitchen room + Dining room, and the camera view of kitchen room and Dining room will be shown below.
• The components in Kitchen room placed are kitchen slab, sink, Draws.
• The components in Dining room placed are dining table, chairs, floor lamp, draws.

Step: -3.

• Next, we take the sheet and name it as A-503.

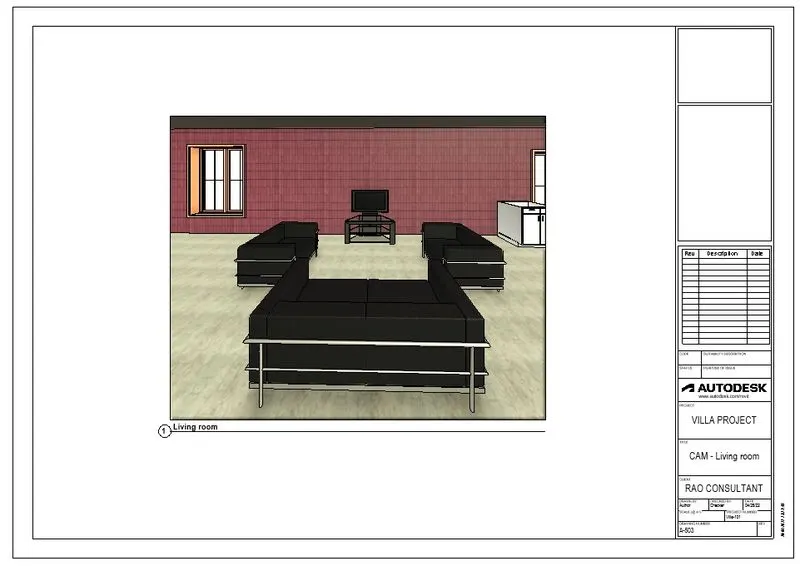

• Next go to the floor plan and place the camera in the Living room, and the camera view of living room will be shown below.
• The components in living room placed are 3 Couch, 1 TV, 1 TV stand, 1 floor lamp.

Step: -4.

• Next, we take the sheet and name it as A-503.
• Next go to the floor plan and place the camera in the Toilet, and the camera view of Toilet will be shown below.
• The components in toilet placed are 1 hand wash sink, 1 Urinals, 1 Bathtub.

RESLUT:

Created a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.
