3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

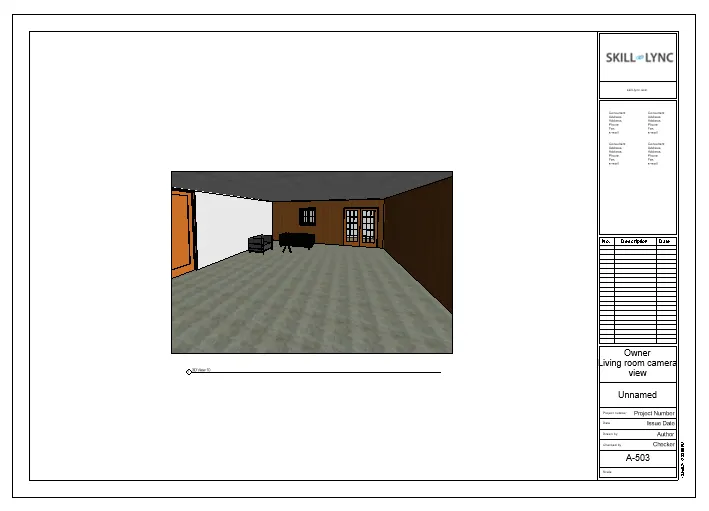

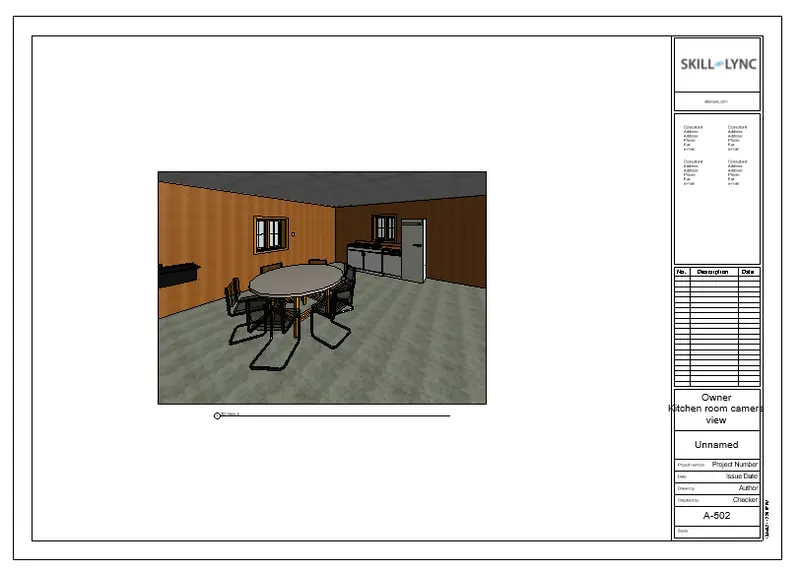

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Qus1. ) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

Answer :-

    AIM :- 4

• To model a Ceiling from the architecture tab above the wall's at the first-floor level.

    INTRODUCTION :-

• You can let Revit do the majority of the work and let it "guess" where you want the boundaries to be, or you can enter "Sketch Mode" and actually sketch out the boundary of the ceiling. Creating ceilings in Revit is very similar to creating floors and roofs.
• The most important thing to keep in mind is to begin in the Correct Ceiling Plan View. Although Revit "will" allow you to do so, I would not recommend it because it makes it difficult to see the results of your work.

    PROCEDURE :-

    Step:-1

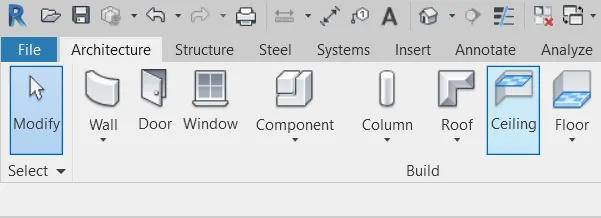

• First we open the revit sofware, and select the ceiling option from the architecture toolbar.



    Step:-2

• After selecting the ceiling option, then select the each room one by one.
• Then the ceiling will be created, as shown in the below figure.



    Step:-3

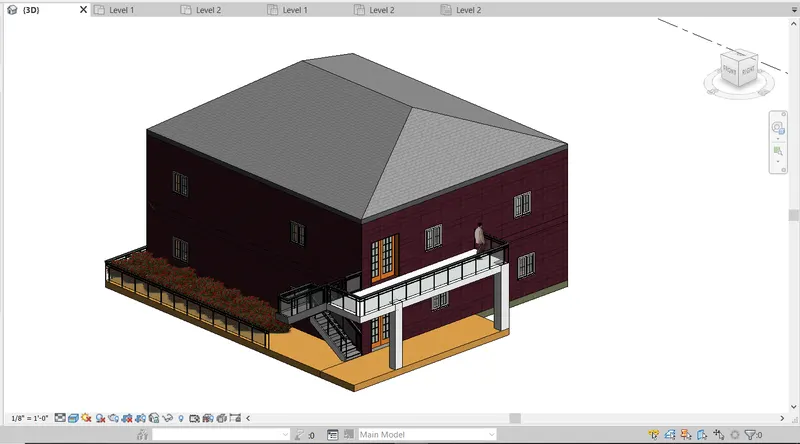

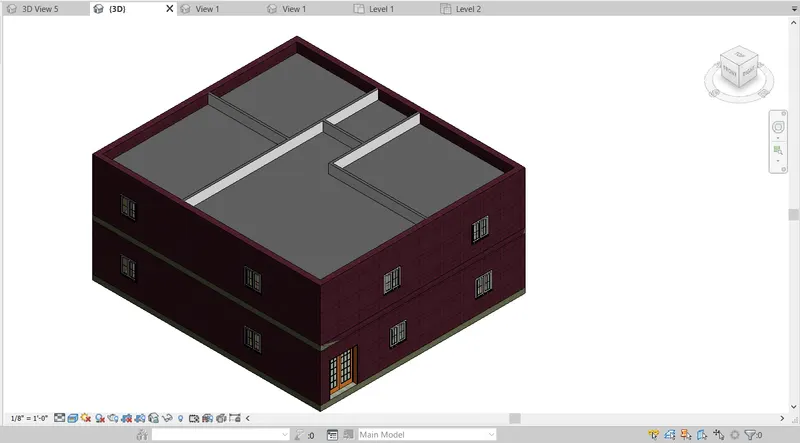

• Here we can the ceiling in the three dimensional view as shown in the below figure.



    RESULT :-

• The ceiling has been modeled successfully from the architecture tab above the walls at the first-floor level.



Qus 2. ) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

Answer :-

    AIM :-

• To model a roof above the ceiling by selecting the footprints of the ceiling.

    INTRODUCTION :-

• Roof, covering of the top of a building, serving to protect against rain, snow, sunlignt wind, and extremes of temperature.
• Roof  have been built in a wide range of shapes, including flat, pitched, vaulted, domed, or combinations thereof, depending on technical, economical, or aesthetic requirements.The earliest roofs built by humans were probably thatched roofs made of straw, leaves, branches, or reeds. These roofs were typically pitched at an angle to allow rainwater to drain off them.
• A good illustration of this kind is the conical thatched roof, which is still commonly found in rural Africa and other places.Over time,
• thicker branches and timbers were used to span roofs, and the spaces between them were filled with clay or another material that was relatively impermeable.
• These materials allowed for the construction of flat and gabled roofs. The basic roof shapes of the dome and vault first emerged with the invention of brick and cut stone for construction.

    PROCEDURE :-

    Step:-1

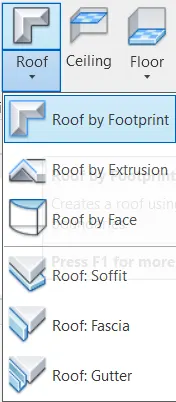

• Open the architecture toolbar, and select the Roof by Footprint option as shown in the below figure.



    Step:-2

• Next we select the roof and adjust the roof to 10 degrees by selecting it, as shown in the figure.



    Step:-3

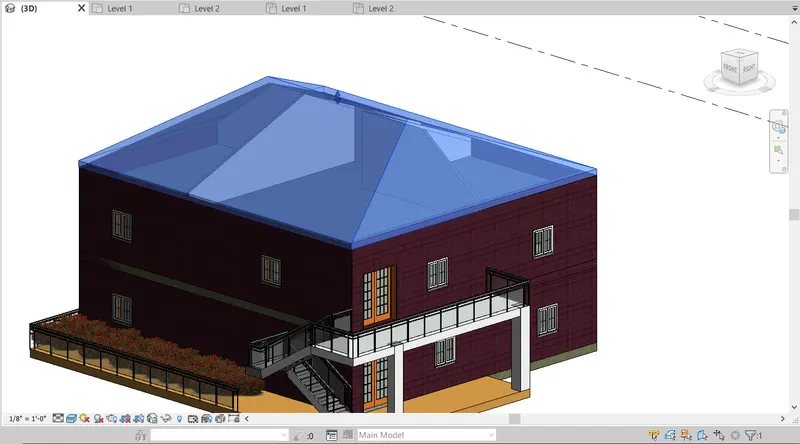

• The roof has been created, as shown below.



    RESULT :-

• The roof has been created successfully to the model in the revit in detailed manner.



Qus 3. ) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

1. Architecture plan must have walls, floors, and all the components placed within the building
2. Structure plan must have details of only walls, floors, and columns

Answer :-

    AIM :-

• To create plan views for ground floor level and first-floor level including all the walls, floors, and components.
• And to Separate them to architecture and structural plans.

    INTRODUCTION:-

• When you begin a new project using a structural template, the default view is the structural plan view.
• The majority of projects have at least one structural plan. As you add levels to your project, new structural plan views are automatically generated. Different types of structural plan view can be created.
• A new architectural project's default view is the floor plan view.
• The majority of projects have at least one floor plan.
• Floor plan views are created automatically as you add new levels to your project.

    PROCEDURE:-

    Step:-1

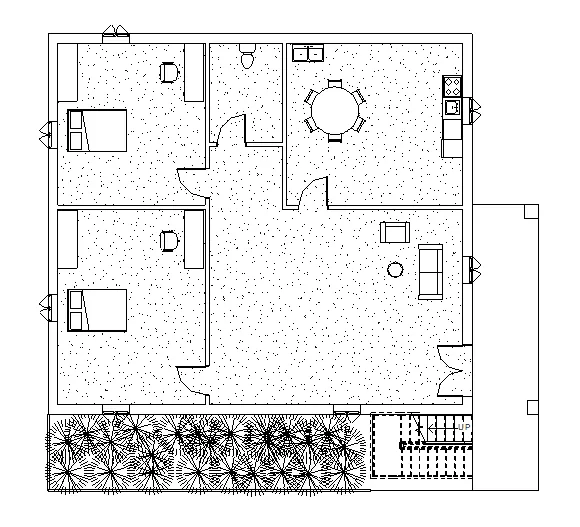

• First we draw the architectural palns of first floor and second floor as shown below.



    Step:-2

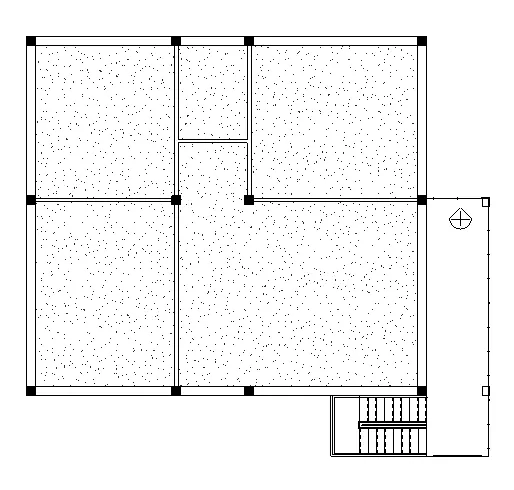

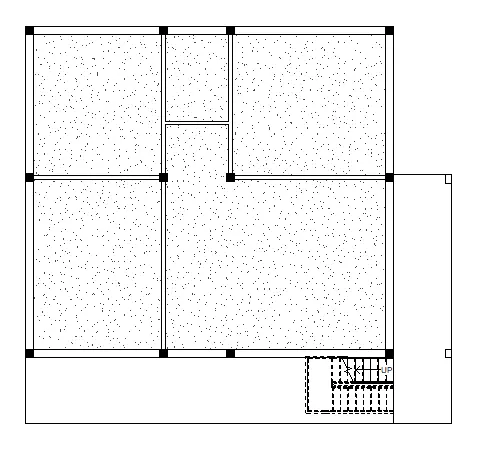

• Next we draw the structural palns of the first floor and second floor as shown below.



    RESULT :-

• Created plan views for ground floor level and first-floor level including all the walls, floors, and components.
• And separated them to architecture and structural plans.





Qus 4. ) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

1. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
2. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Answer :-

    AIM :- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

    INTRODUCTION :-

• When you begin a new project using a structural template, the default view is the structural plan view.
• The majority of projects have at least one structural plan.
• As you add levels to your project, new structural plan views are automatically generated.
• Different types of structural plan view can be created.
• A new architectural project's default view is the floor plan view.
• The majority of projects have at least one floor plan.
• The creation of floor plan views is automatic as you add new levels to your project.

    PROCEDURE :-

    Step:-1

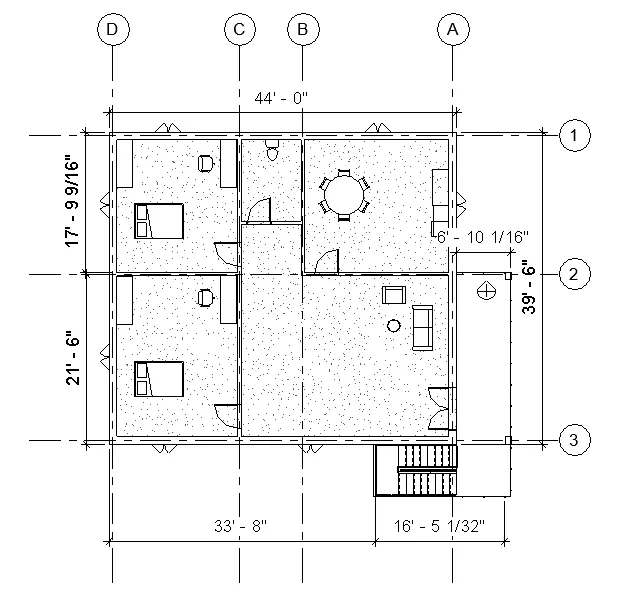

• Here we drawn the longitudinal and transverse grids to the architectural floor plans as shown below.

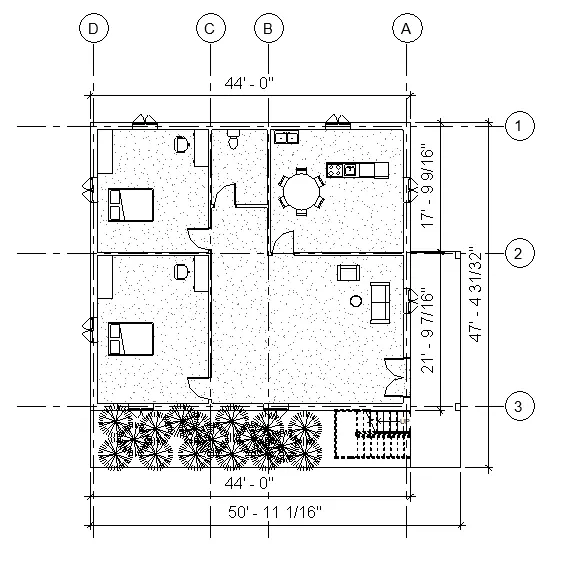

• And add the dimensions to the architectural plans as shown below.



    Step:-2

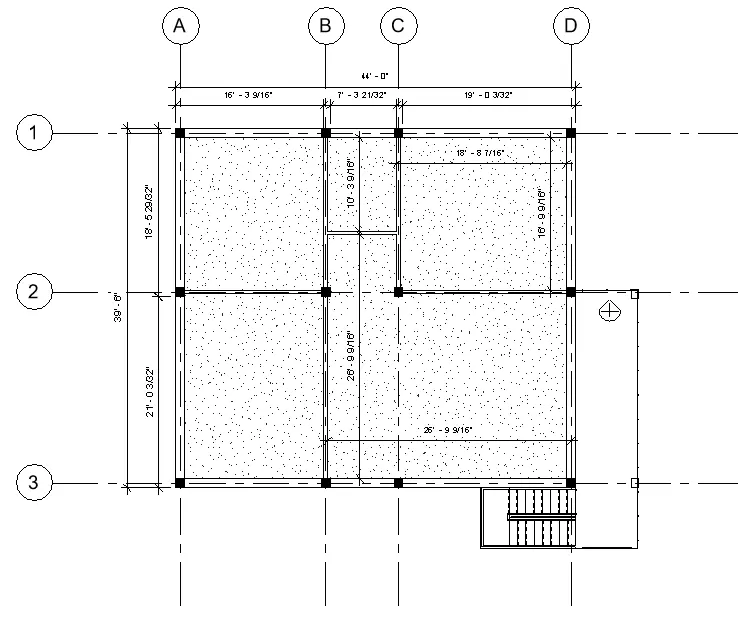

• Next we draw the longitudinal and transverse grids to the Structural floor plans as shown below.

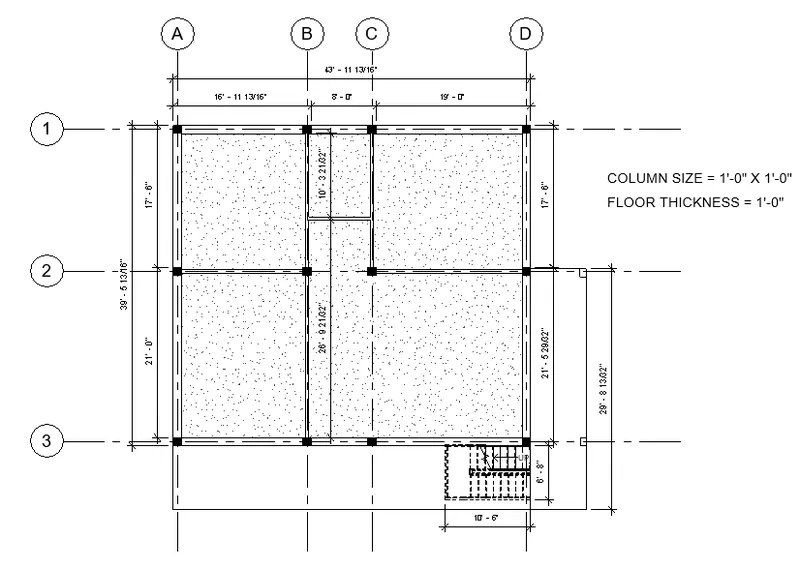

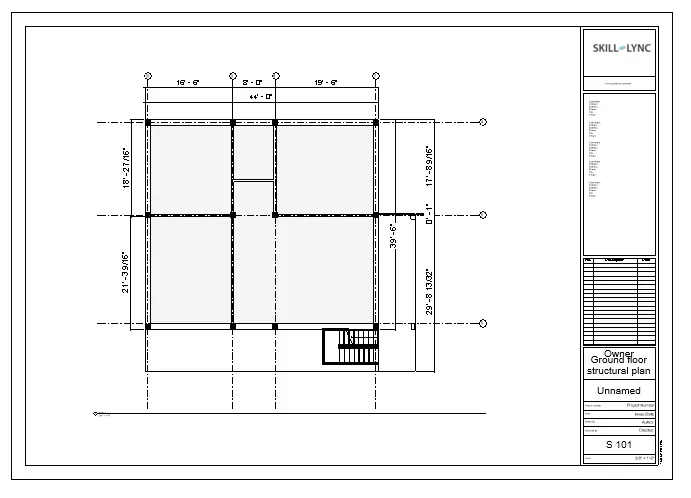

• And add the dimensions to the Structural plans as shown below.



   RESULT :-

• The structural floor plans and architectural floor plans both include the dimensions.
• The project file also creates the longitudinal and transverse grids.





Qus 5. ) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

Answer :-

    AIM :-

• To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

    INTRODUCTION :-

• To speed up the project documentation process, create views on a project template before you begin building the model.
• You can include sheets in a project template when creating one. Create the standard views and levels that each project should have starting with a blank project file.
• Leave the views blank but give them common names. Create sheets using the desired title blocks to create a standard set of construction documents.
• Add views to the sheets, using the desired viewport templates and view title types.
• Then save the empty project as a project template.
• When you create a project using this project template, all of the views and sheets are already created and listed in the Project Browser.
• As you start to draw the building model in the project views, the views on the sheets update automatically.
• This technique streamlines the project documentation process and maintains organizational standards.

    PROCEDURE :-

    Step:-1

• First we click on the sheet option from the view toolbar, as shown below.
• After clicking the sheet, Thhe new tab will be visible on the screen.

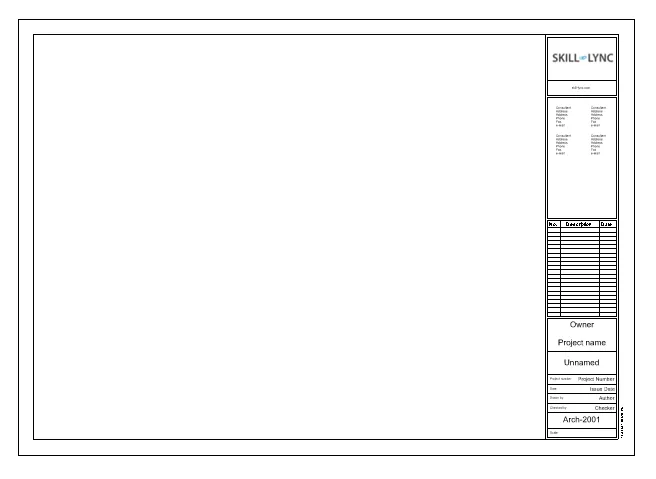

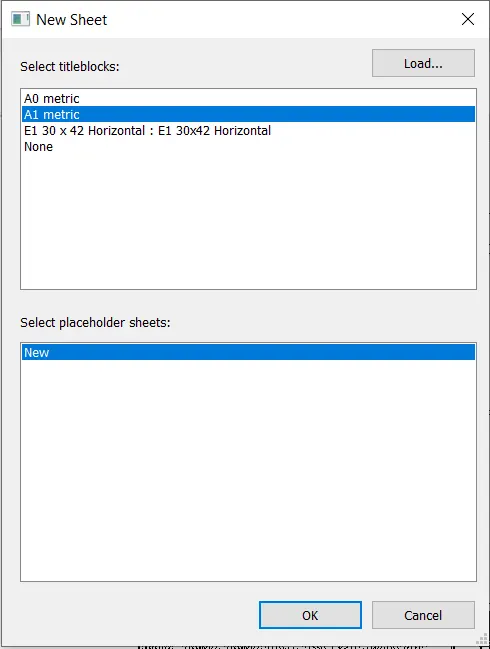

• In that new tab we select the A1 metric, then the sheet template will be displayed.







    Step:-2

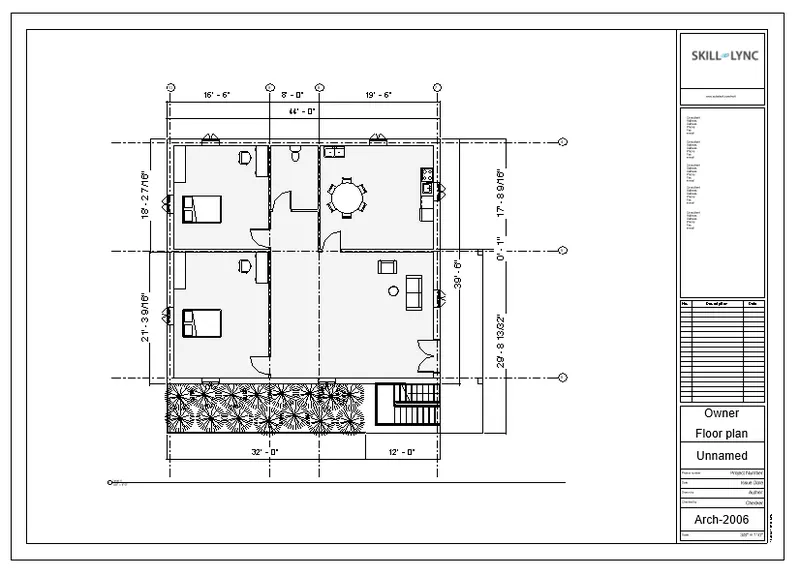

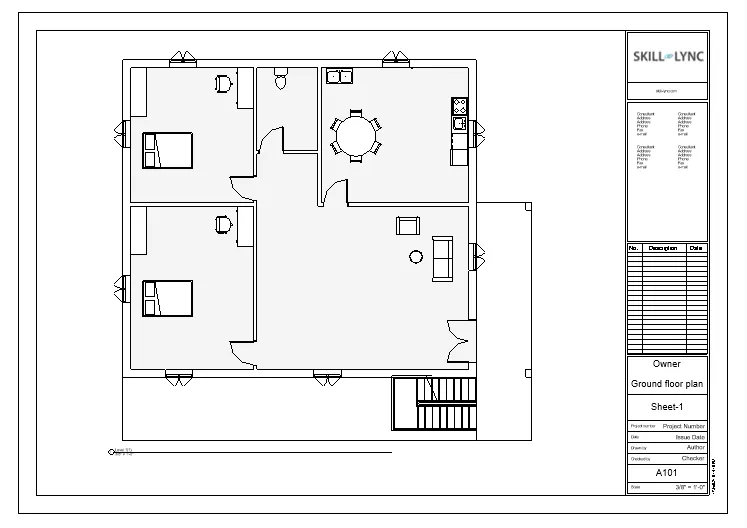

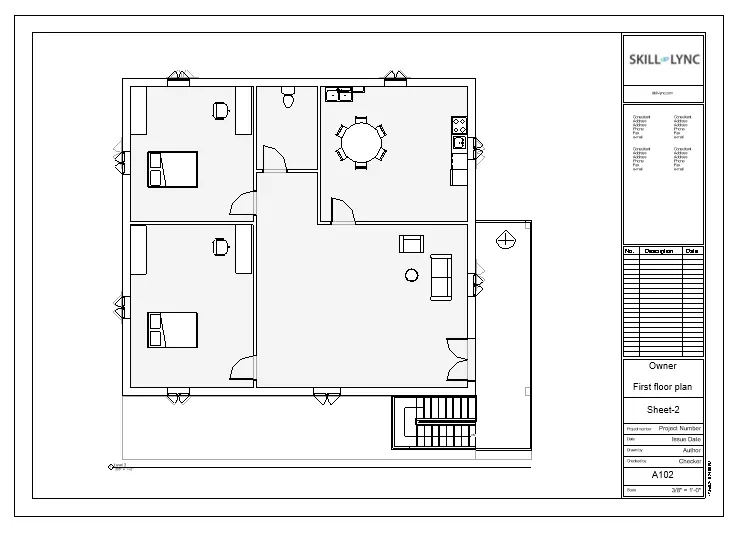

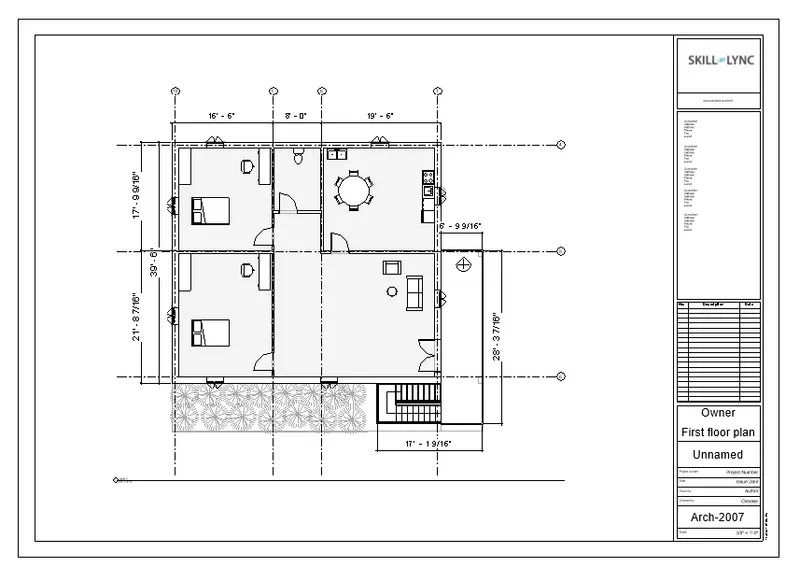

• As shown below, we separately insert the first floor plan and second floor plan into the sheet template.
• Then, make the necessary edits to the Project name and sheet number as seen in the figures below.





    RESULT :-

• Created a sheet template from the view tab and adjusted the parameters on the sheet for adding appropriate views.



Qus 6. ) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

Answer :-

    AIM :-

• To create the elevation views, looking at your building from East, North, South, and West using the elevation tab.

    INTRODUCTION :-

• An elevation is a flat representation of one view of a building as seen from one side.
• The view that is most frequently used to describe a building's exterior is this one.
  Each elevation of the building is labeled according to the compass direction it faces;
• for example, if you were to look north, you would see the southern elevation of the structure.

    PROCEDURE :-

    Step:-1

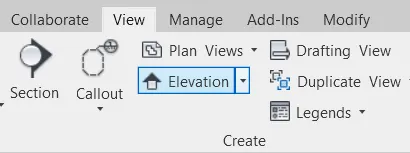

• First we click on the elevation option from the view toolbar, as shown below.



    Step:-2

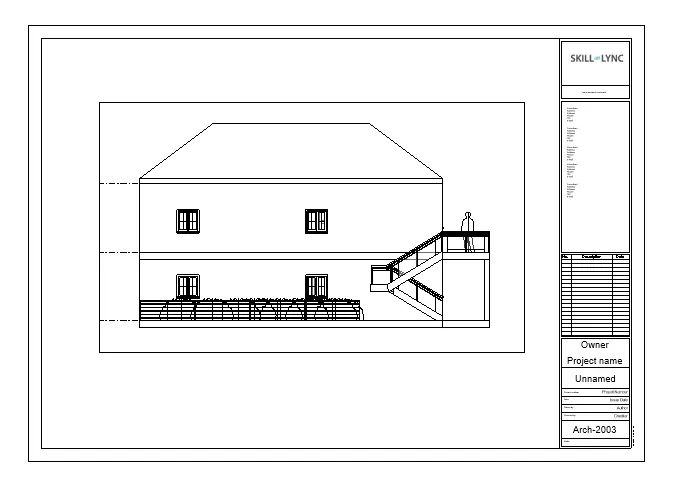

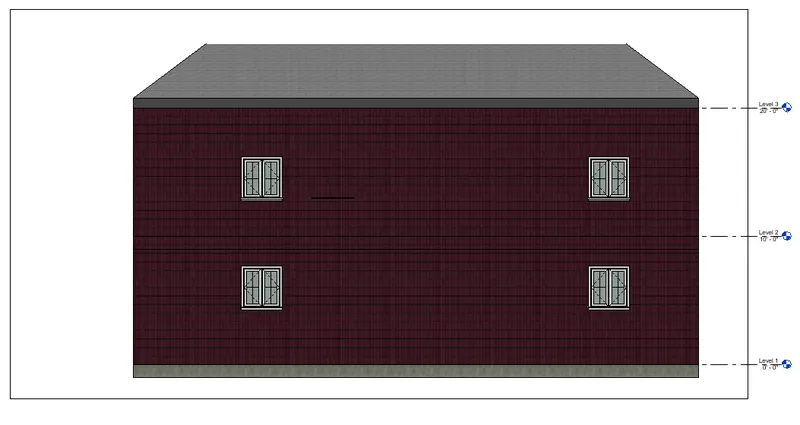

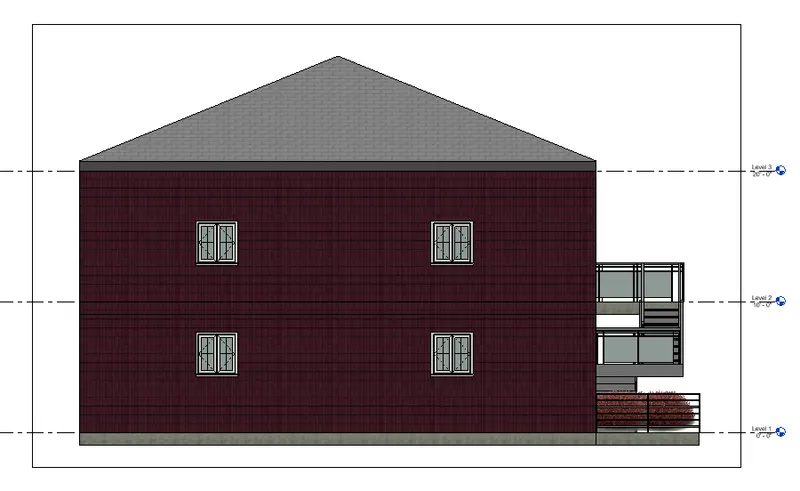

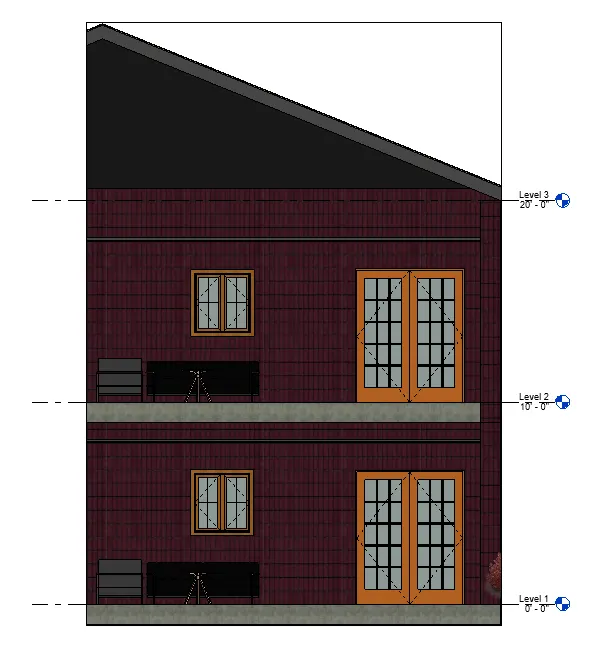

• Next the elevation from the east will be visible, as shown below.



    Step:-3

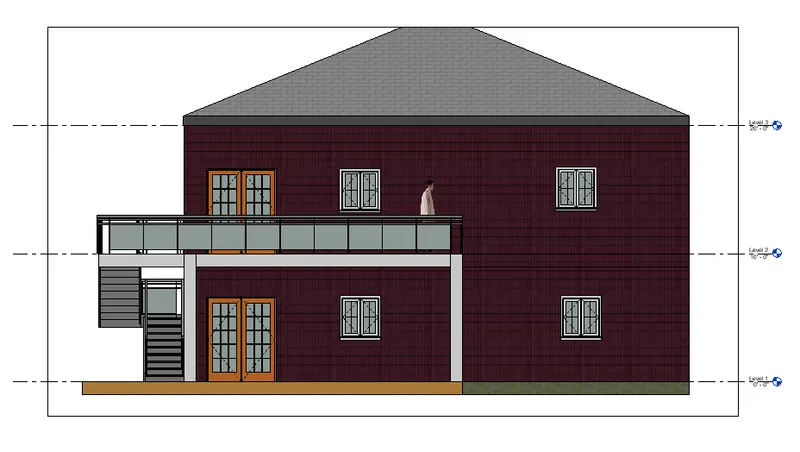

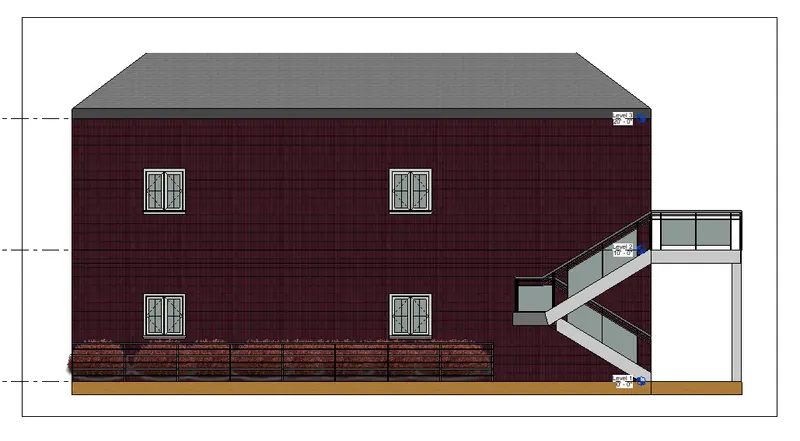

• Next the elevation from the south will be visible on the screen, as shown below.



    Step:-4

• Next the elevation from the North will be visible on the screen, as shown below.



    Step:-5

• Next the elevation from the West will be visible on the screen, as shown below.



Qus 7. ) Produce section cut through each room either cutting across longitudinally or in a transverse direction.

Answer :-

    AIM :-

• To produce section cut through each room either cutting across longitudinally or in a transverse direction.

    INTRODUCTION :-

• They help civil engineers, architects, and airplane designers communicate their ideas to their peers.A mechanical drawing's hidden details are revealed by sectional views.
• These views presuppose that a cutting plane has cut away specific sections of the object depicted in the drawing, revealing the relevant interior area.
• Architectural and engineering drawings frequently employ sectional views.
• They support the communication of ideas among their peers by civil engineers, architects, and aircraft designers.

    PROCEDURE :-

    Step:-1

• First we click on the section option from the view toolbar, as shown below.

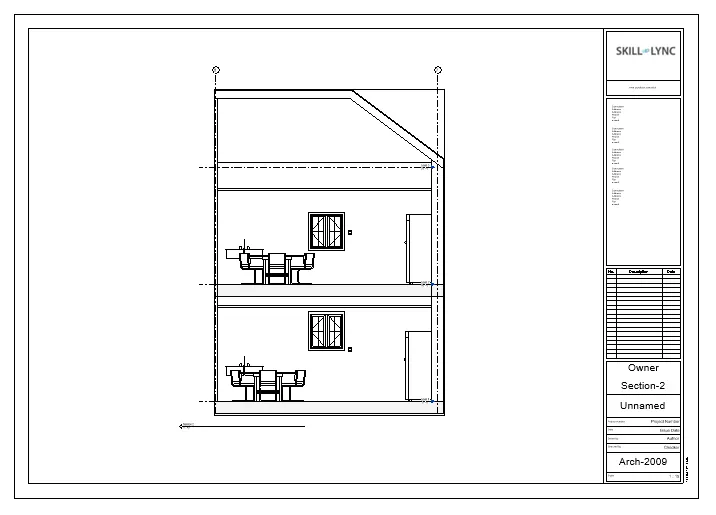

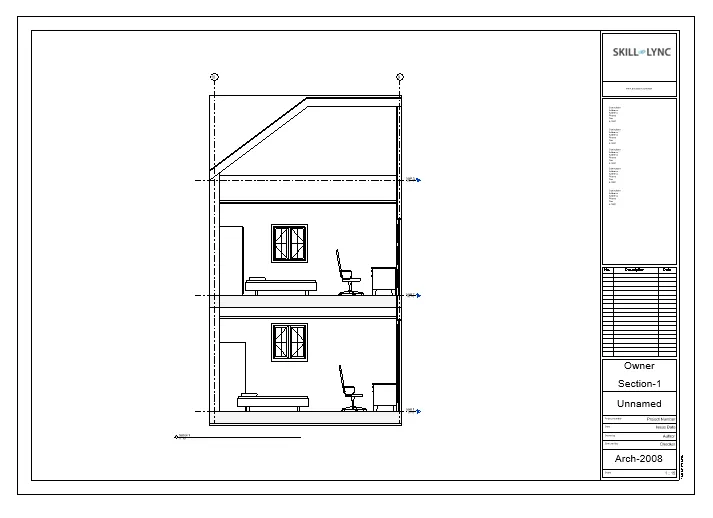

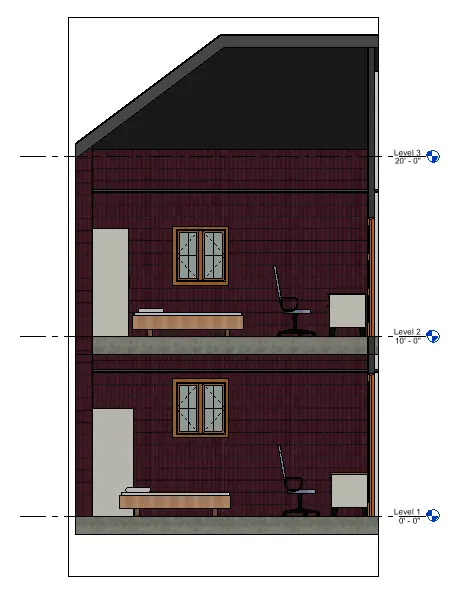

• Next we produce the section view of the bed room as shown in the below figure.



    Step:-2

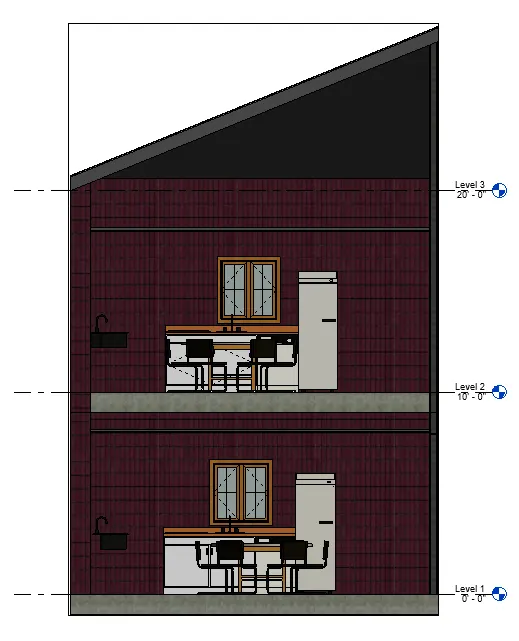

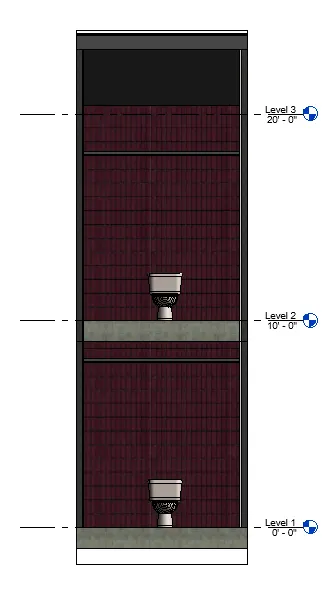

• Next we produce the section view of the Toilet room as shown in the below figure.



    Step:-3

• Next we produce the section view of the kitchen room as shown in the below figure.



    Step:-4

• Next we produce the section view of the Living room as shown in the below figure.



    RESULT :-

• Created the section views of a model in the revit in detailed manner.





Qus 8. ) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

Answer :-

    AIM :- To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

    INTRODUCTION :-

• The structural plan view is the default view when you start a new project using a structural template.
• Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
• The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
• Floor plan views are created automatically as you add new levels to your project.
• Sectional views reveal hidden details in a mechanical drawing.
• These views presuppose that a cutting plane has cut away specific sections of the object depicted in the drawing, revealing the relevant interior area.
• Architectural and engineering drawings frequently employ sectional views.
  They support the communication of ideas among their peers by civil engineers, architects, and aircraft designers.
• An elevation is a flat representation of one view of a building as seen from one side.
• The view that is most frequently used to describe a building's exterior is this one.
• Each elevation of the building is labeled according to the compass direction it faces;
• for example, if you were to look north, you would see the southern elevation of the structure.

    PROCEDURE :-

    Step:-1

• First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as shown below.
• Next we insert these plans one by one in the sheets separately.



    Step:-2

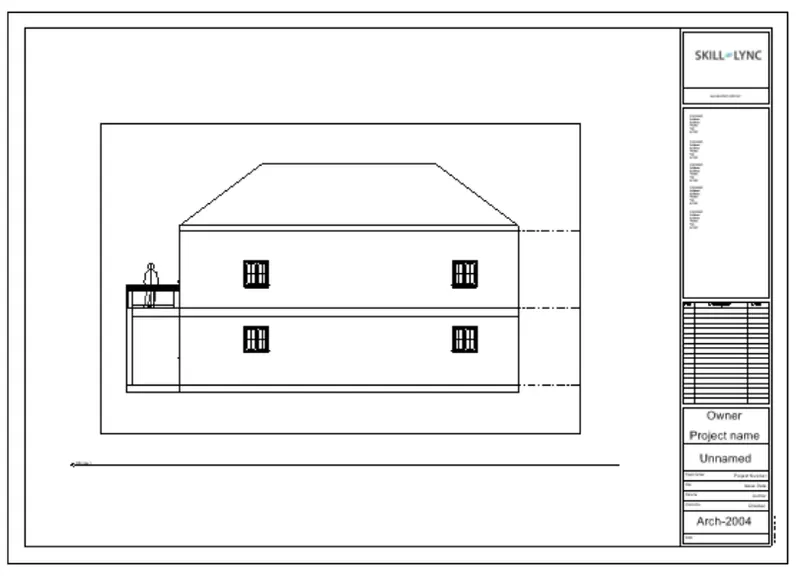

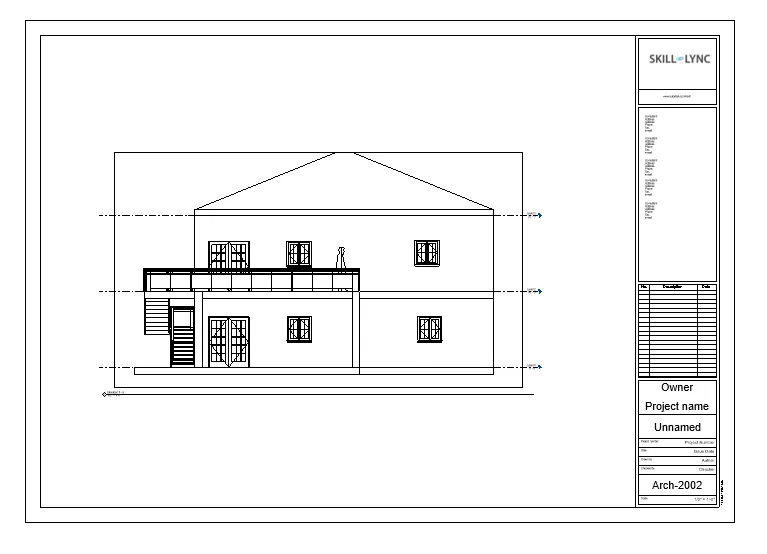

• First we insert the front elevation in the sheet template, as shown in the below figure.



    Step:-3

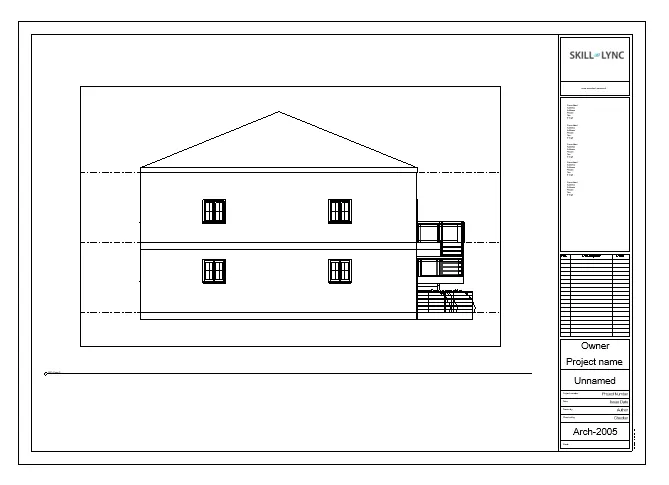

• Next we insert the left side elevation in the sheet template, as shown in the below figure.



    Step:-4

• Next we insert the right side elevation in the sheet template, as shown in the below figure.



    Step:-5

• Next we insert the back side elevation in the sheet template, as shown in the below figure.



    Step:-6

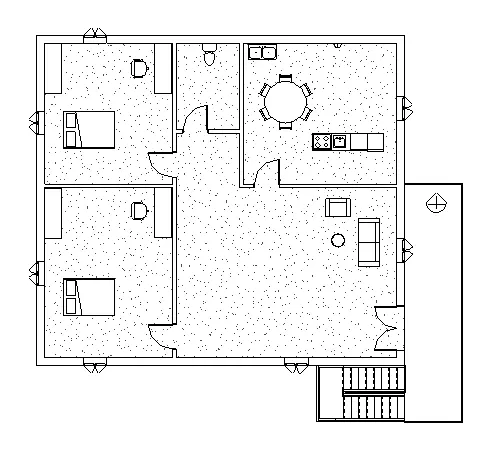

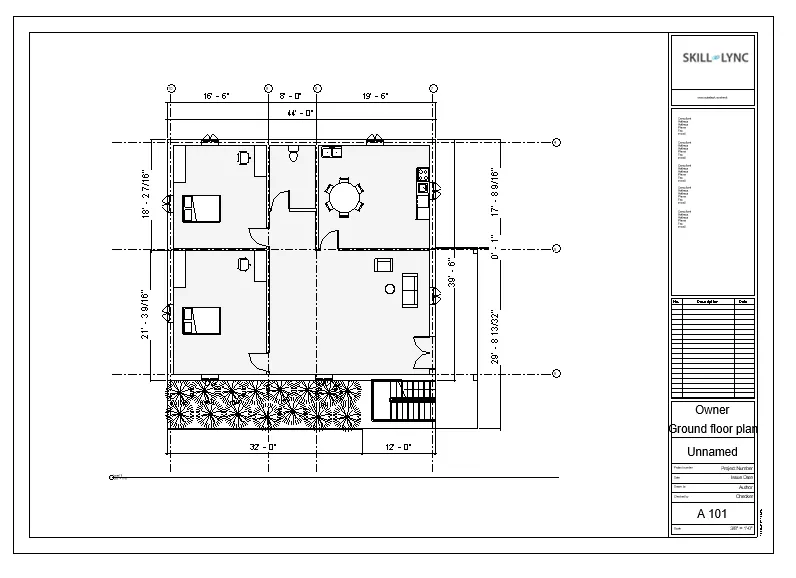

• Next we insert the ground floor plan in the sheet template, as shown in the below figure.



    Step:-7

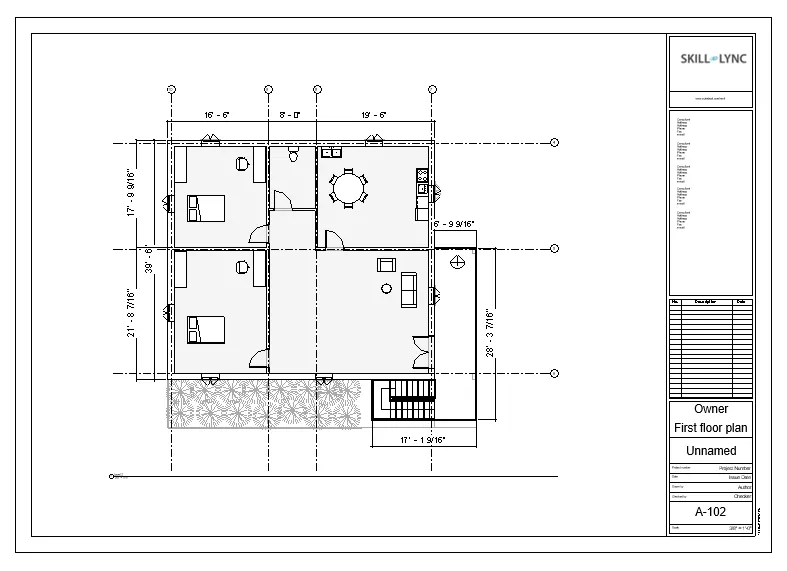

• Next we insert the first floor plan in the sheet template, as shown in the below figure.



    Step:-8

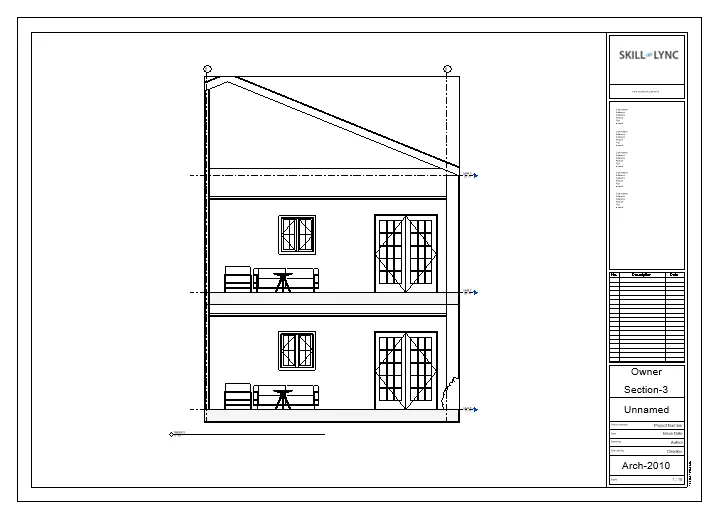

• Next we insert the section-1 in the sheet template, as shown in the below figure.



    Step:-9

• Next we insert the section-2 in the sheet template, as shown in the below figure.



    Step:-10

• Next we insert the section-1 in the sheet template, as shown in the below figure.



    RESULT :-

•  Views, Plan Views, Section Views, and Elevation views are classified to Design category using Properties browser.

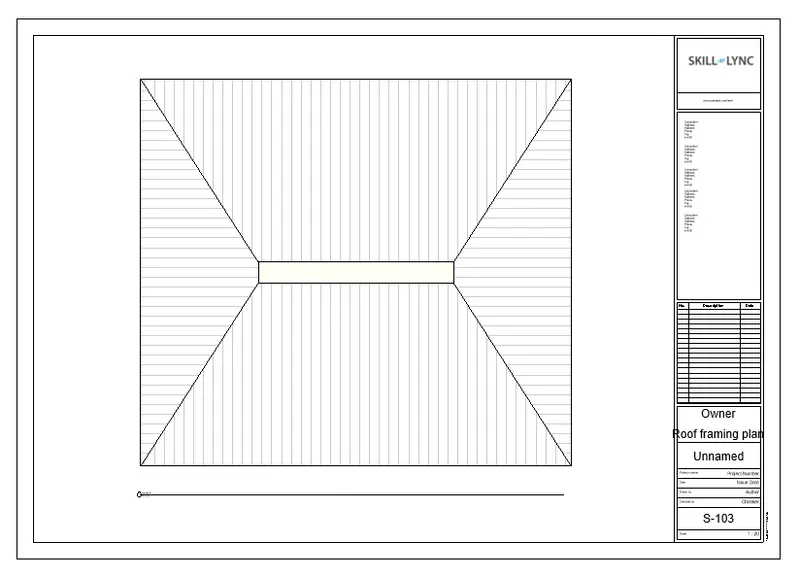

Qus 9.) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

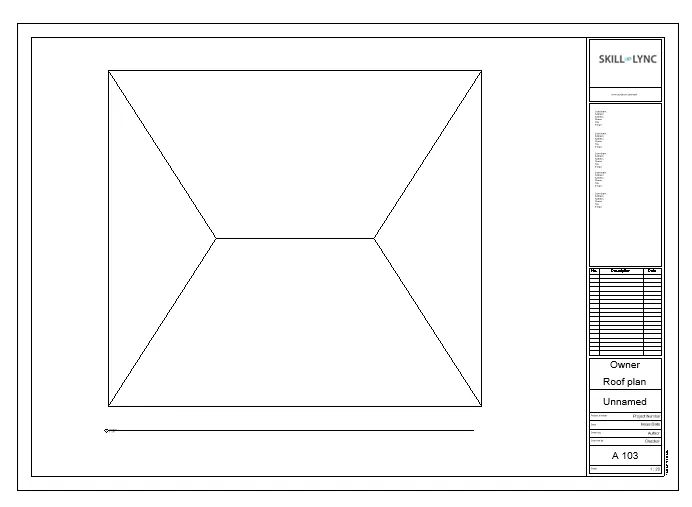

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

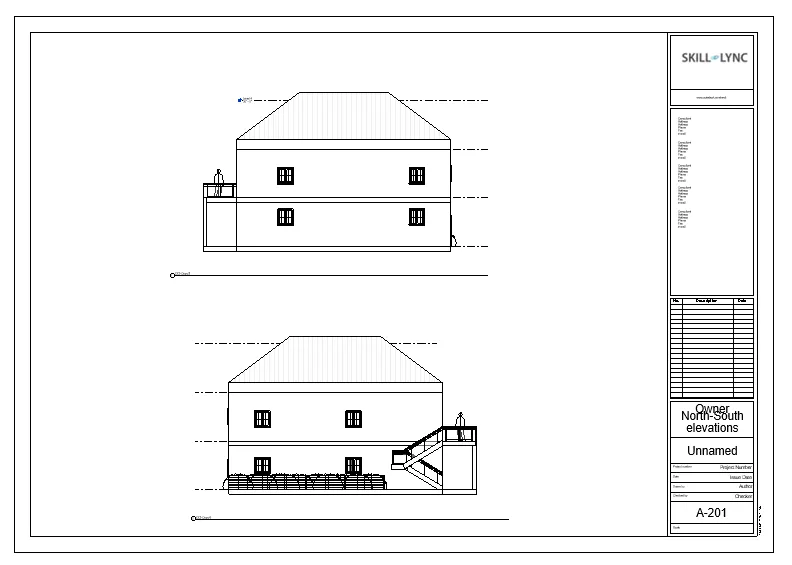

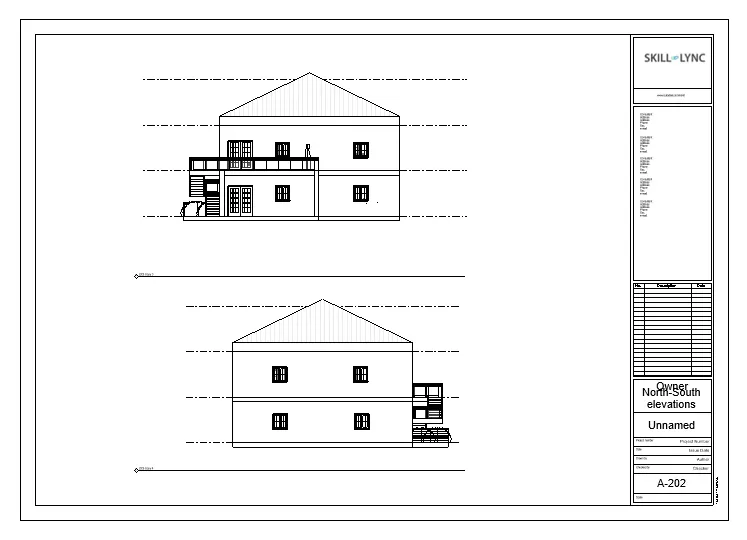

g. A-201- North-South Elevations
h. A-202- East-West Elevations

• Add additional sheets based on the sections created in your Revit file

Answer :-

    AIM :-

• To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.

    INTRODUCTION :-

• Create views on a project template before you start building the model to streamline the project documentation process.
• When creating a project template, you can include sheets in the template.
• Start with a blank project file, and create the standard views and levels that each project should include.
• Leave the views blank but give them common names.
• Create sheets using the desired title blocks to create a standard set of construction documents.
  Utilizing the preferred viewport templates and view title types, add views to the sheets.
• Save the blank project as a project template after that.
• All of the views and sheets are created and available in the Project Browser when you create a project using this project template.
• The project views automatically update as you begin to draw the building model, causing the views on the sheets to change.
• By using this method, organizational standards are upheld and the project documentation process is streamlined.

    PROCEDURE :-

    Step:-1

• First we produce the Ground floor architectural plan in the sheet template A-101, as shown in the below figure.



    Step:-2

• Next we produce the First floor architectural plan in the sheet template A-102, as shown in the below figure.



    Step:-3

• Next we produce the Roof plan in the sheet template A-103, as shown in the below figure



    Step:-4

• Next we produce the Ground floor structural plan in the sheet template S-101, as shown in the below figure



    Step:-5

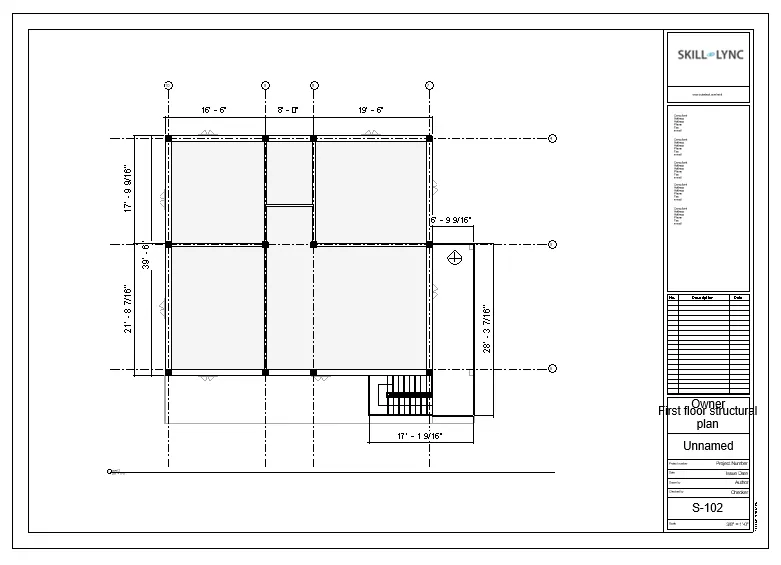

• Next we produce the First floor structural plan in the sheet template S-102, as shown in the below figure



    Step:-6

• Next we produce the Roof framing plan in the sheet template S-103, as shown in the below figure



    Step:-7

• Next we produce the North and south elevation views in the sheet template A-201, as shown in the below figure



   Step:-8

• Next we produce the East and West elevation views in the sheet template A-202, as shown in the below figure



    RESULT :-

• Created the multiple sheets and produced the drawings in the sheets, from the given drawing list.









Qus 10. ) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Answer :-

    AIM :-

• To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

    INTRODUCTION :-

• In Revit, camera views are very helpful.
• They enable us to see the actual view that we would have if we were standing in any particular place within our design.
• Before we go to the expensive lengths of actually constructing the space for real, this can be extremely helpful for both understanding and communicating the nature of a space.

    PROCEDURE :-

    Step:-1

• First we take the sheet and name it as A-501.

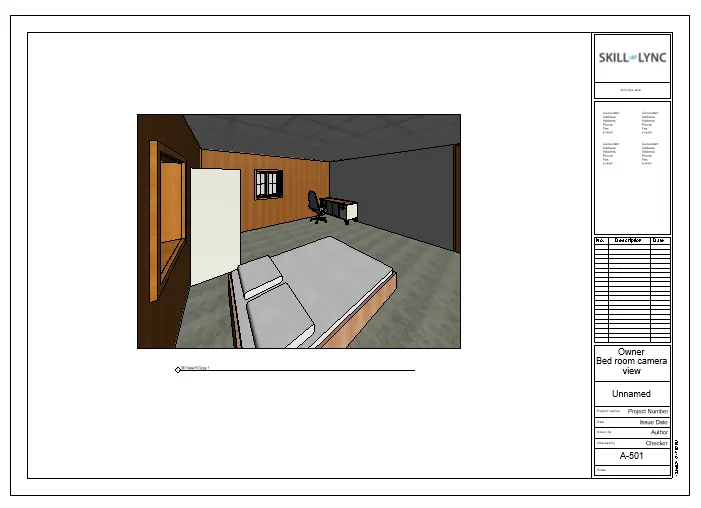

• Next go to the floor plan and place the camara in the bed room, and the camera view of bed room will be shown below.



    Step:-2

• Next we take the sheet and name it as A-502.
• Place the camera in the kitchen room on the floor plan after that, and the camera view of the kitchen room will be displayed below.



    Step:-3

• Next we take the sheet and name it as A-503.
• Next go to the floor plan and place the camara in the Living room, and the camera view of Living room will be shown below.



    RESULT :-

• Created a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.





.
