Challenge

3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM 3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

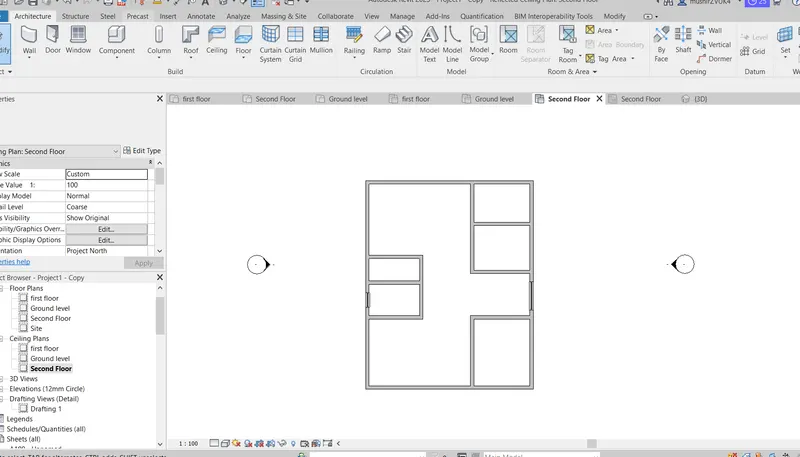

  • First go to project browser and secect ceilling plans and select desired floor plan.

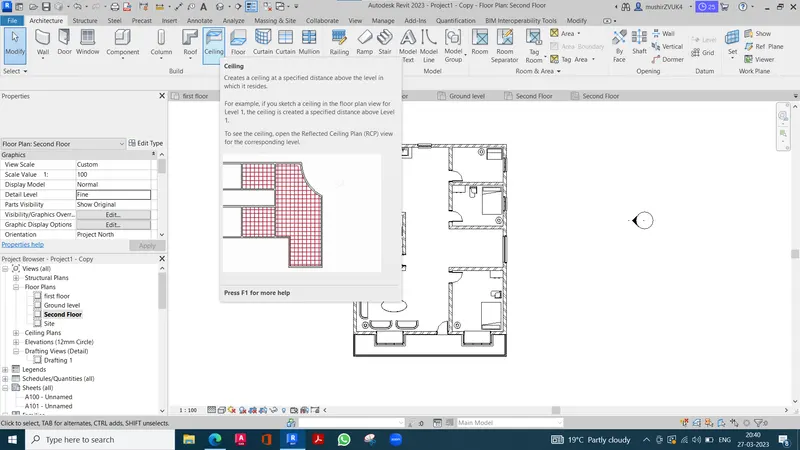

  • To Model ceilling first go to Architectural tab and then go to Build panel and click Ceilling.
  • choose Automatic ceilling or sketch mode, and draw ceilling.

Result

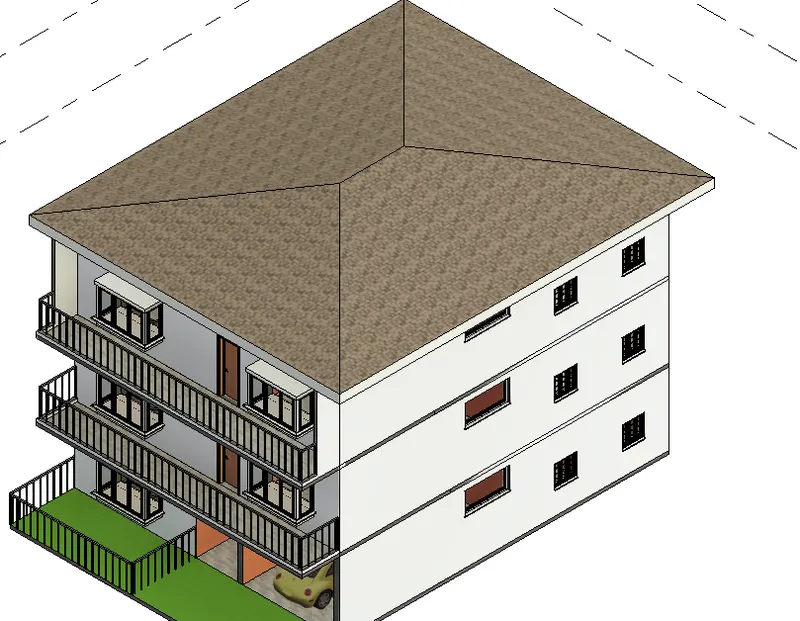

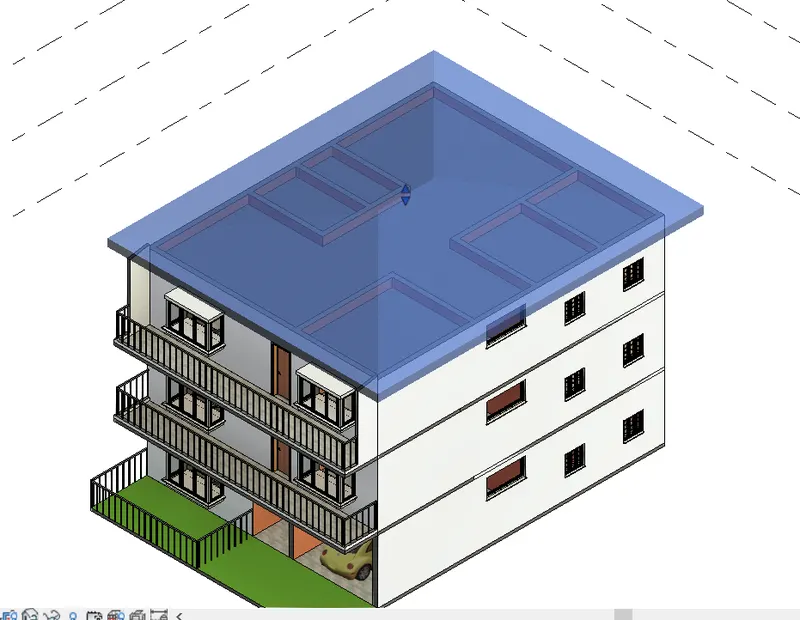

AIM Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

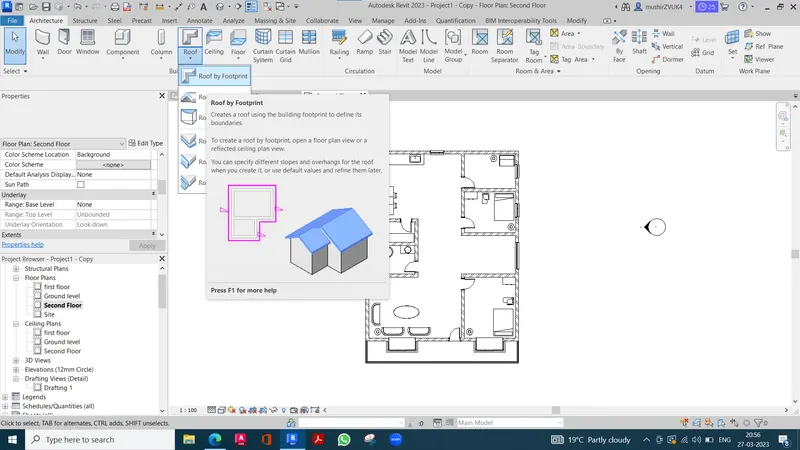

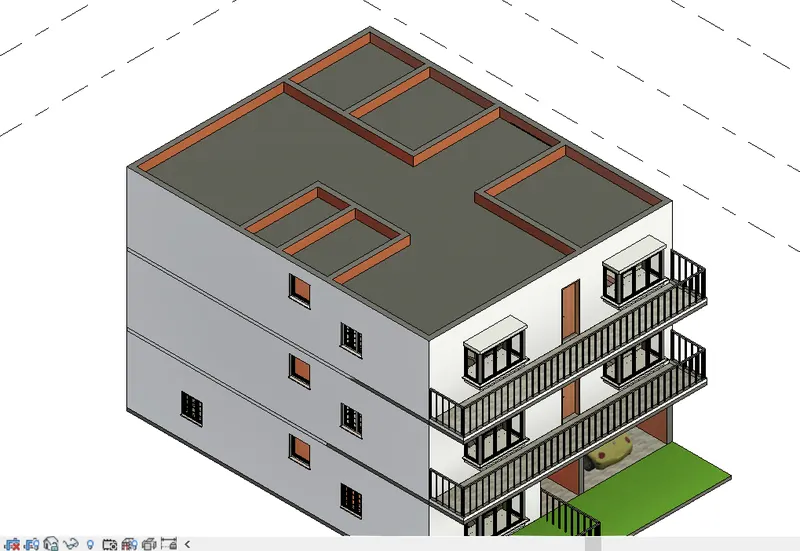

  • To model roof go to architecture tab then choose Roof in build panel and then select Roof by footprint.
  • Draw roof accordingly.
  • To choose Slope of roof either use Option Bar on in Propertties Browser

Result

AIM Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

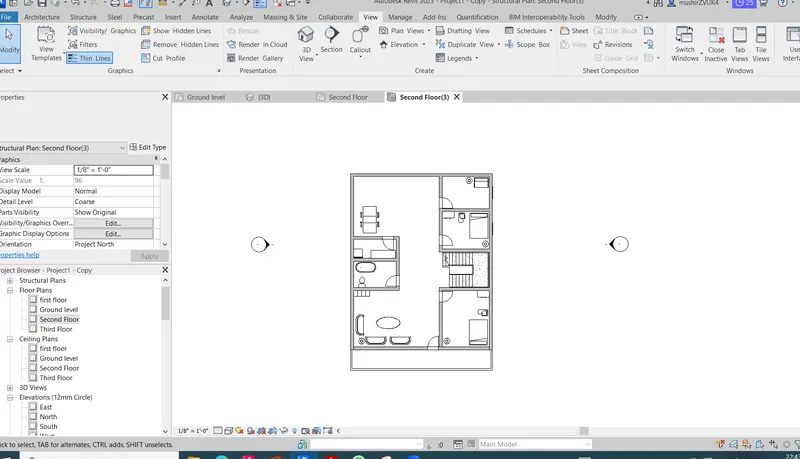

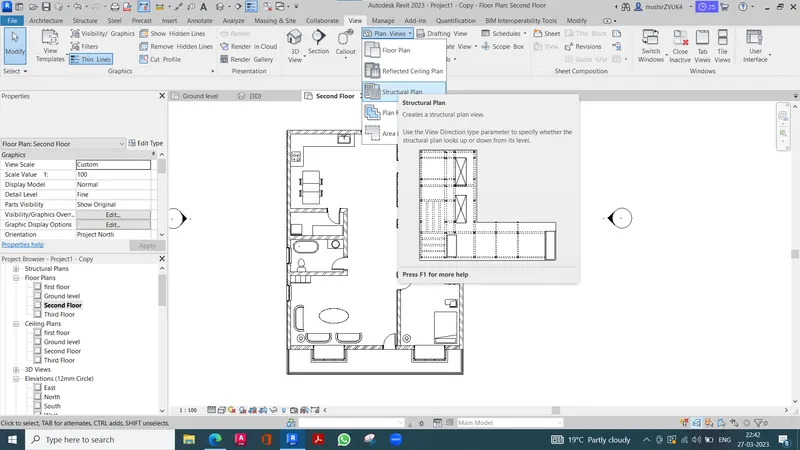

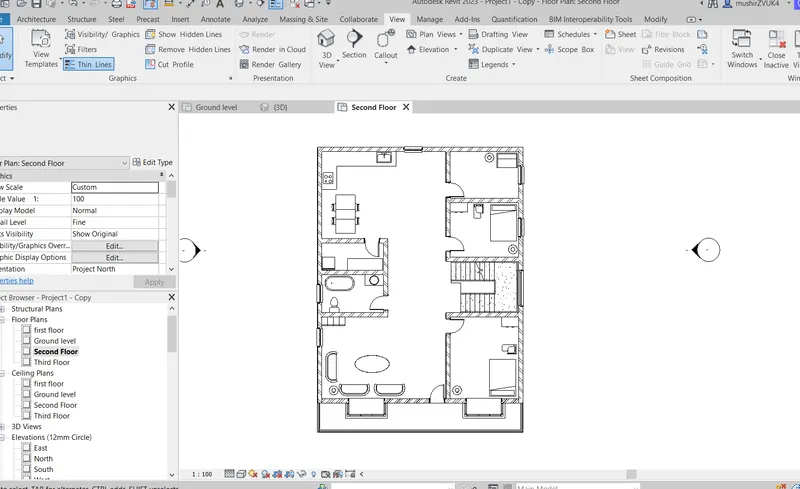

  • First of all go to view tab and select Plan View in Create Panel.
  • Now select appropriate Plan either Floor plan or structural plan.

AIM

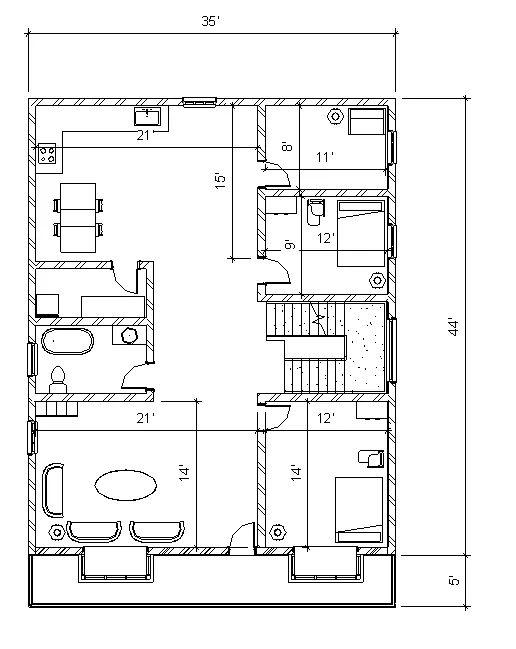

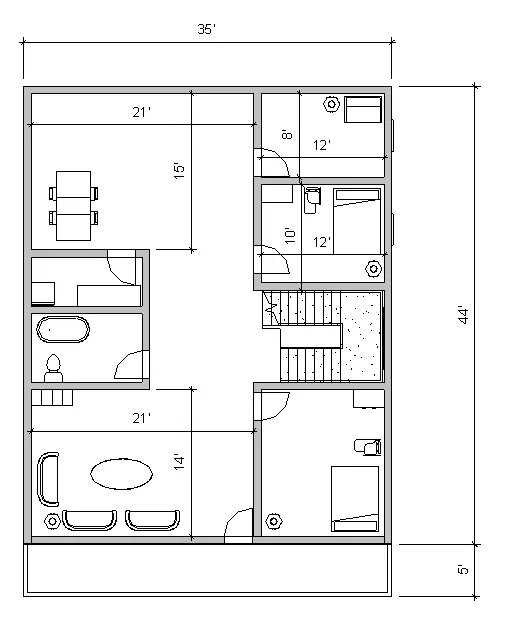

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Introduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

  • To annotate go to Annotate tab then select Linear or Aligned Dimension in Dimension Panel.
  • Now give dimensions accordingly.

Results

AIM

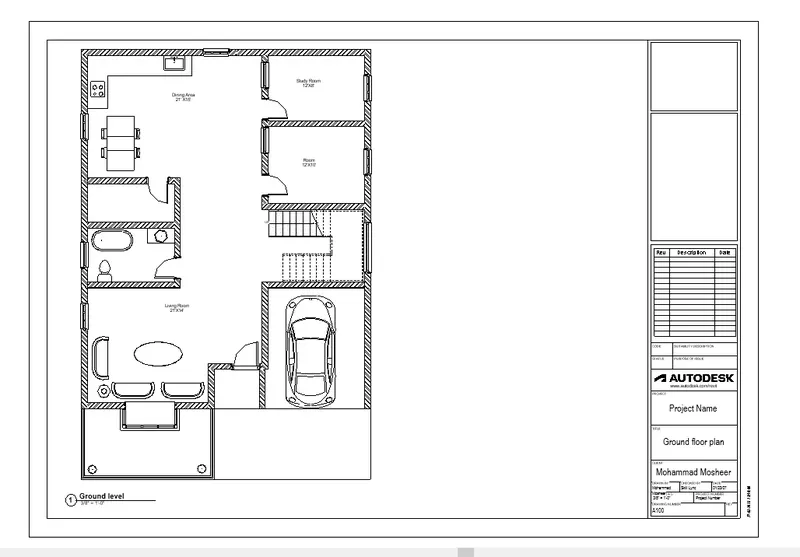

Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

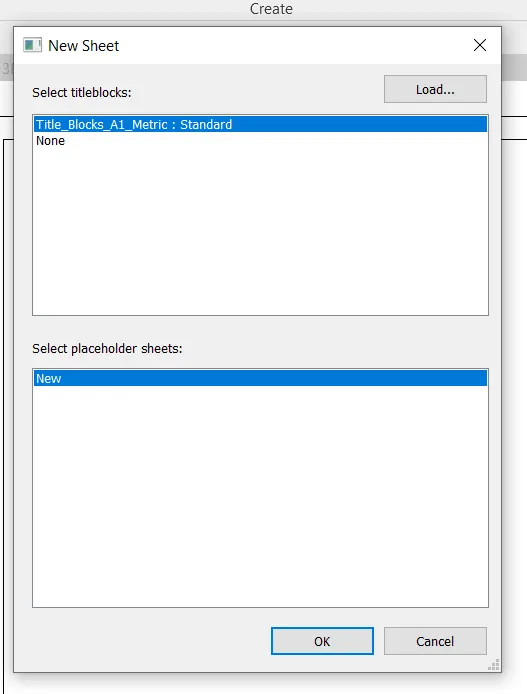

  • To create sheet go to View Tab then click on Sheet in Sheet Composition Panel.
  • Now Select Apropriate Title Box and click ok.
  • Now Adjust the parameters on the sheet, and add Appropriate views.

Results

AIM

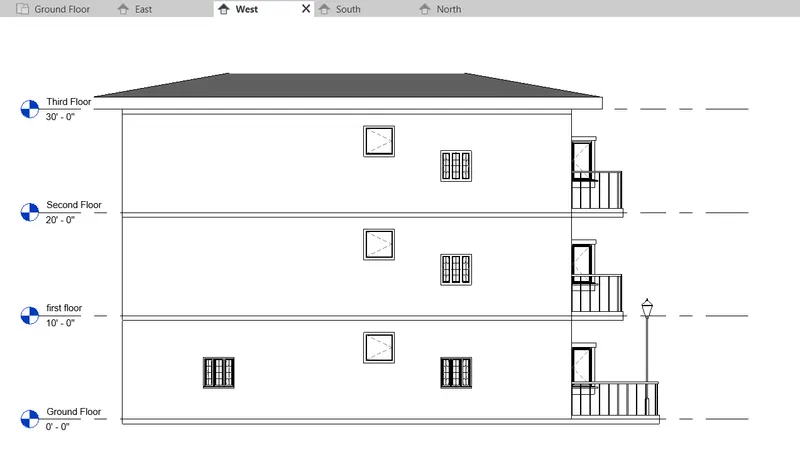

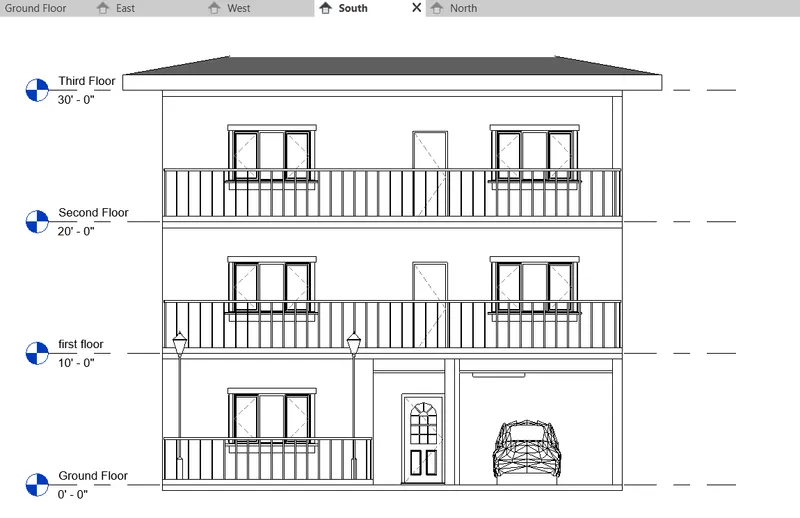

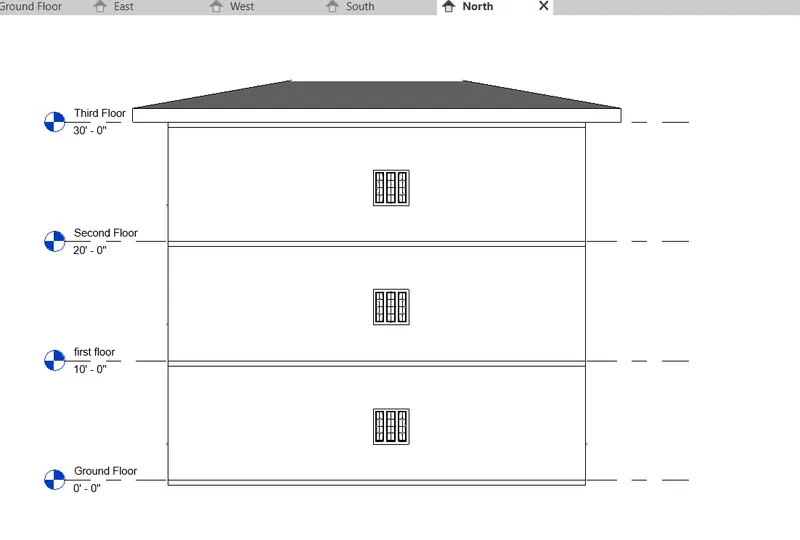

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

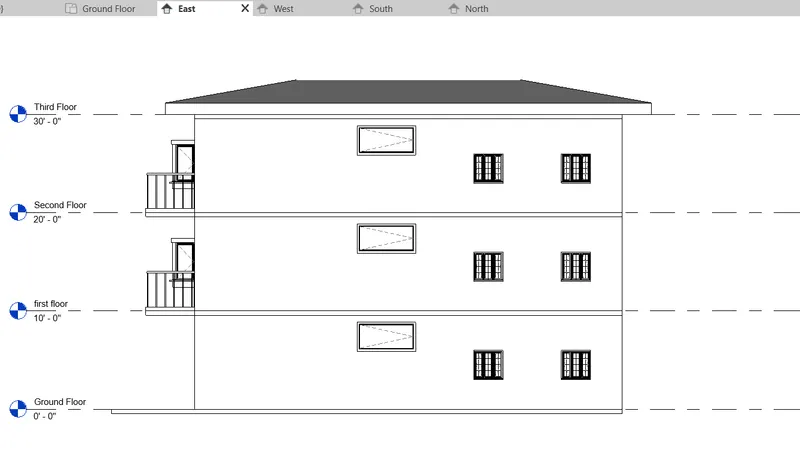

  • To ceate elevations go to View tab then click on Elevation on Create Panel and create Elevations viz. East, West, North and South.

Results

AIM

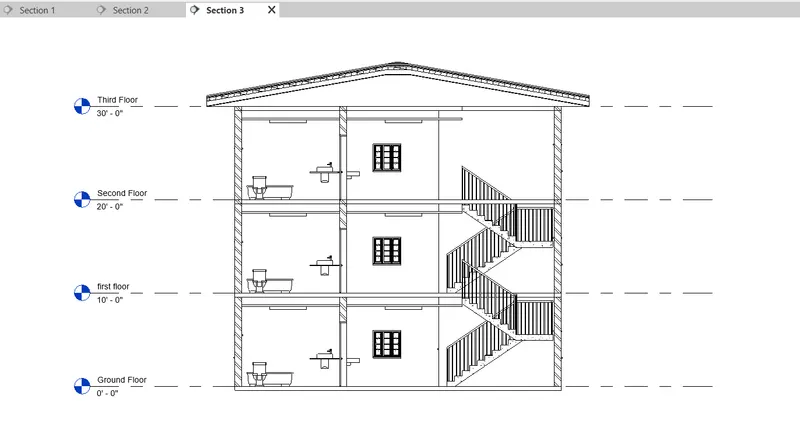

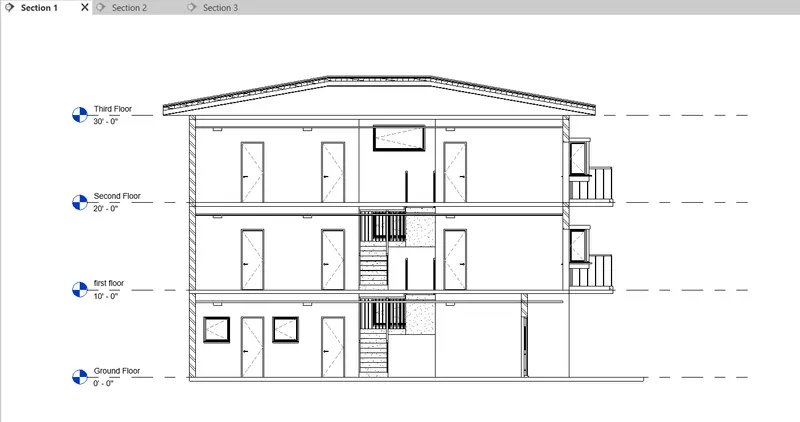

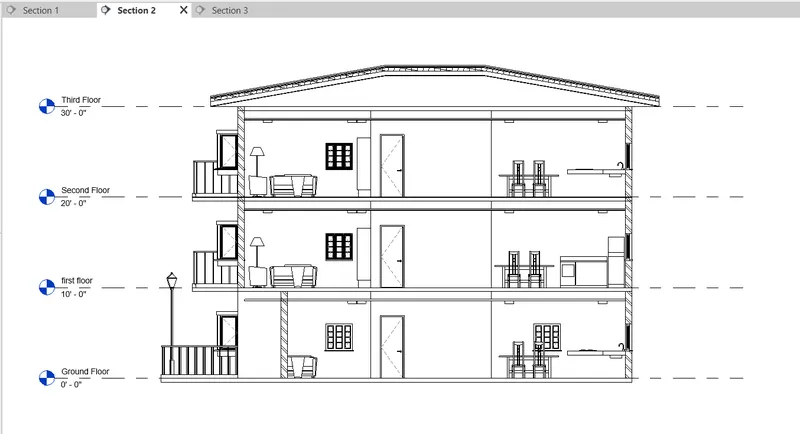

Produce section cut through each room either cutting across longitudinally or in a transverse direction

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

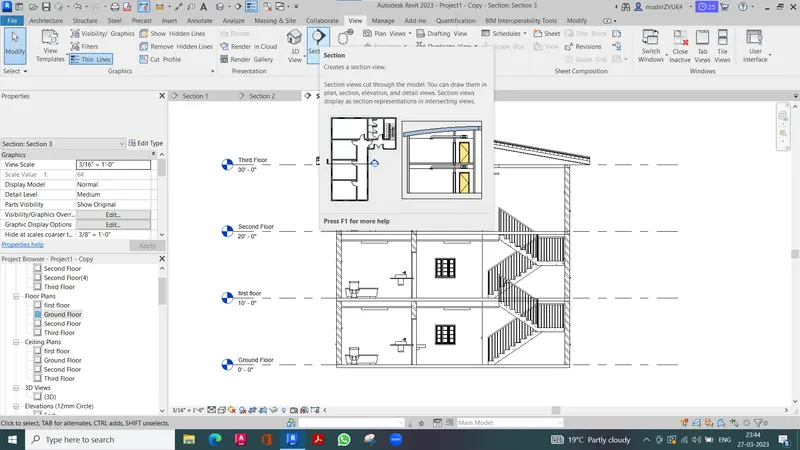

  • To create sections go to View tab then select Section tool on Create panel.
  • Draw section longitudinal and transverse.
  • To view sections go to Project browser and click on Elevations.

Results

AIM

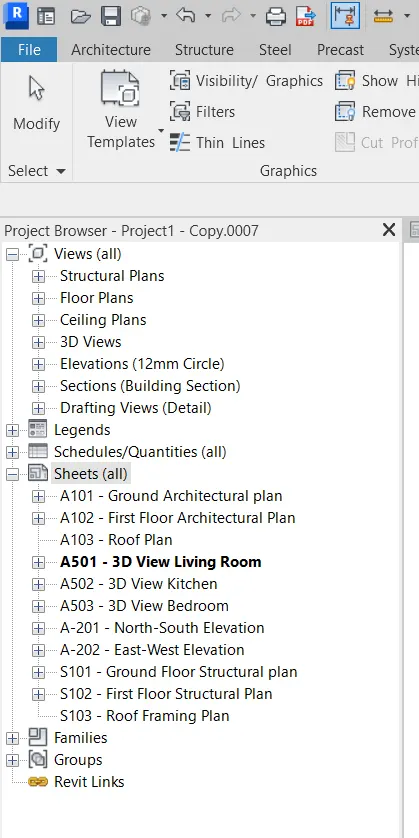

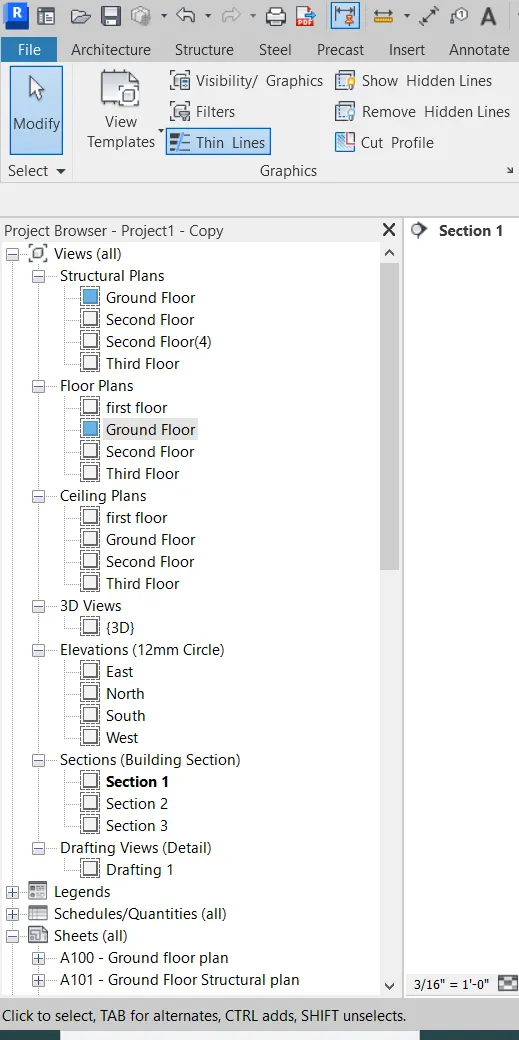

Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

  • Different Views can be seen in Project Browser.

Results

AIM

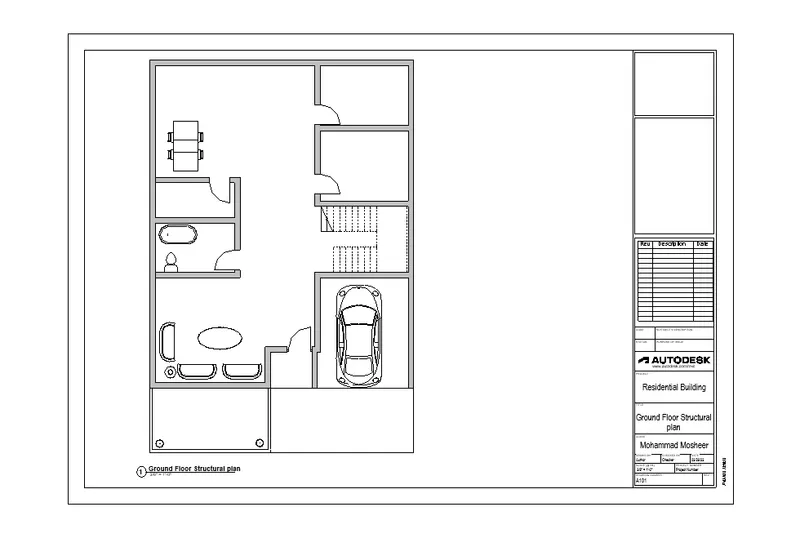

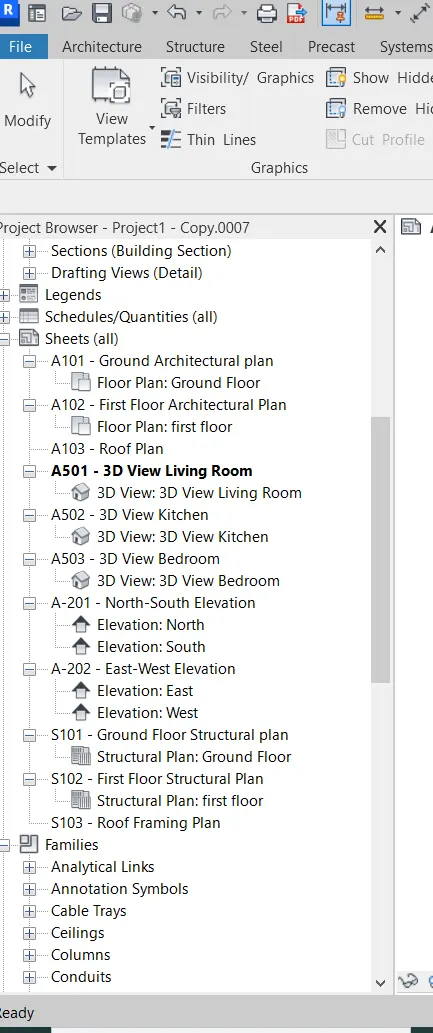

Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

  • To create sheet go to View Tab then click on Sheet in Sheet Composition Panel.
  • Now Select Apropriate Title Box and click ok.
  • Now Adjust the parameters on the sheet, and add Appropriate views.

Results

AIM

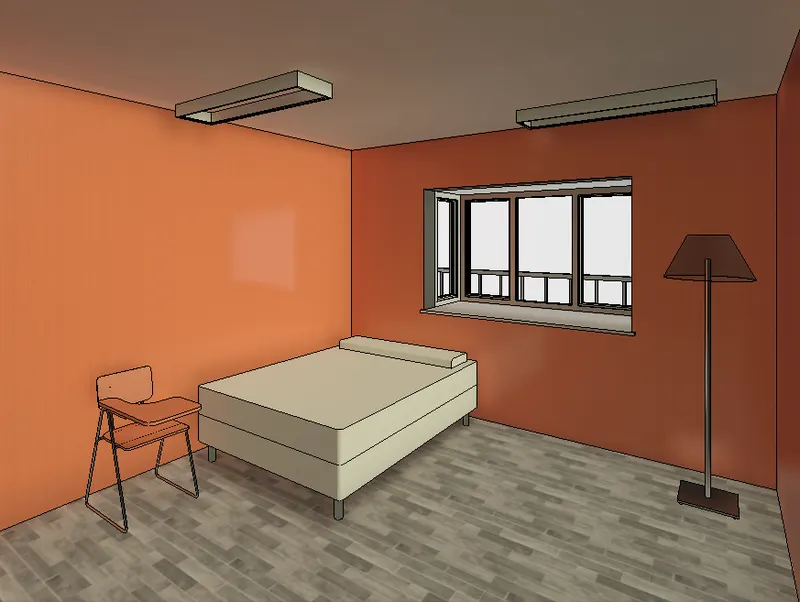

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Int roduction Above AIM is achieved using Autodesk Revit and screenshots are attached.

Procedure

  • To create camera view go to View tab then in Create panel select 3D view and then Camera.
  • In my case i created Views for Living Room, Bed Room and Kithen.
  • Place camera accordingly in desired direction or in desired place.
  • Now go to created View and adjust the view.s

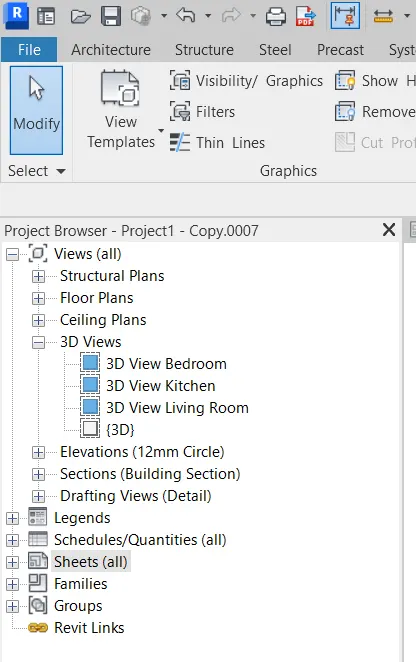

  • Created Views can be seen in Project Browser in 3D views.
  • To create sheet go to View Tab then click on Sheet in Sheet Composition Panel.
  • Now Select Apropriate Title Box and click ok.
  • Now Adjust the parameters on the sheet, and add Appropriate views.

Results
