3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Ans.1

AIM : To model a ceiling to the previously created project with the help of architectural tab above the walls at first floor level.

TOOLS USED : Architecture tab, ceiling, sketch ceiling,pick lines, properties.

PROCEDURE:-

• First we open the revit sofware, and select the ceiling option from the architecture toolbar
• After selecting the ceiling option, then select the each room one by one.
• Then the ceiling will be created.

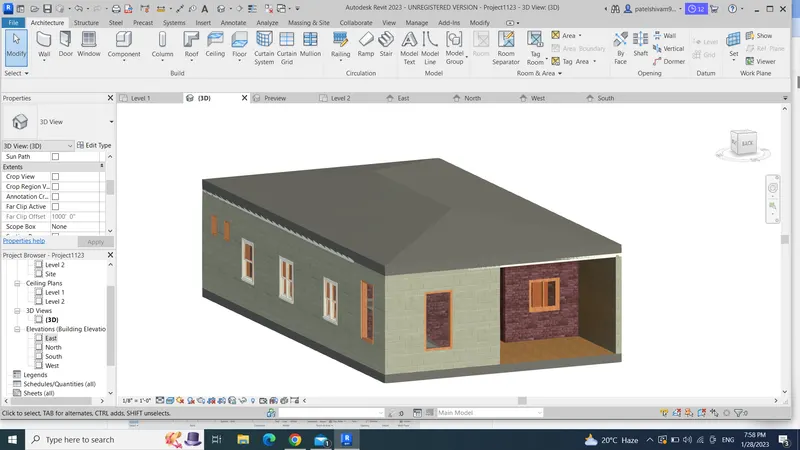

• Here we can the ceiling in the three dimensional view as shown in the below figure.

Ans.2

AIM : To model aroof above the ceiling by selecting the footprints of ceiling and using adjustment tool bars appearing on screen adjust the roof slope to 10 degrees.

TOOLS USED : Architecture tab, roof, pick lines, properties, slope.

PROCEDURE :

1. In the architecture tab, click on roof by footprint in roof dropdown.

2. Set the boundary for roof using pick lines option, click on finish edit option.

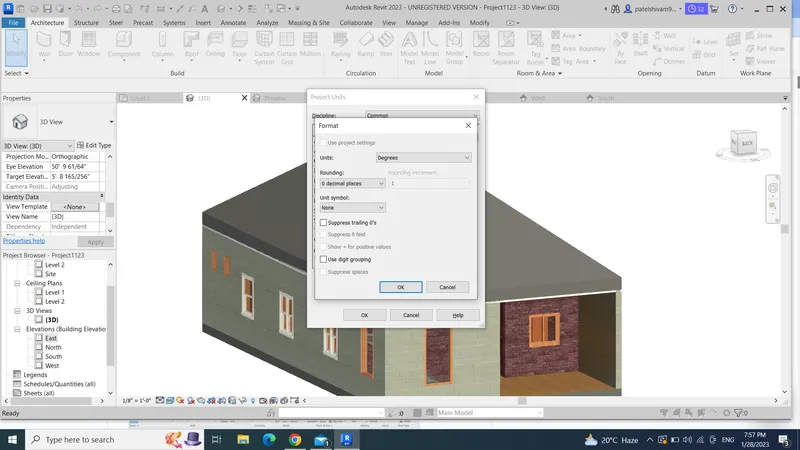

3. In the properties of roofs, change the slope to 10 degrees and click apply.

AIM : To create plan view for ground floor level and first floor level including all the walls, floors and components.

TOOLS REQUIRED : Property browser, floor plans.

PROCEDURE:

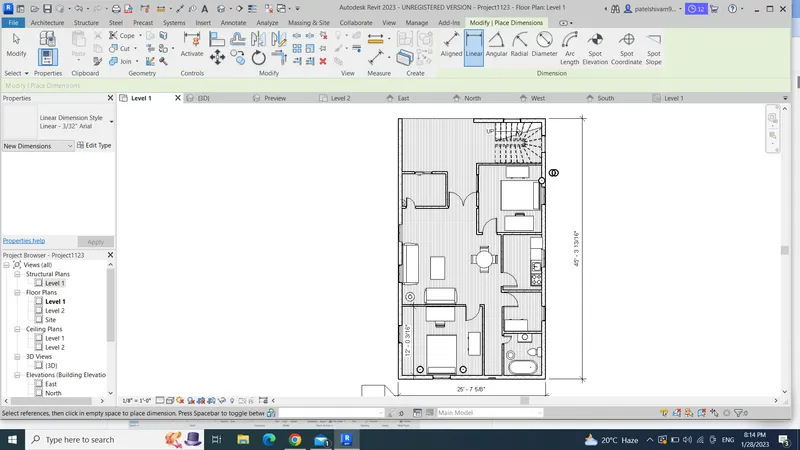

1. In the project browser we get plan views in left side, they are architectural plan views.

In the view tab, click on structural plan view in plan view drop down to create structural plan view.

ARCHITECTURE VIEW :

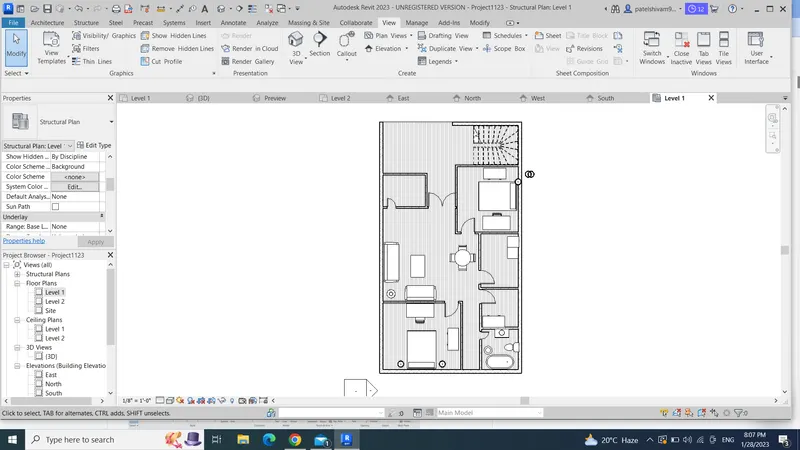

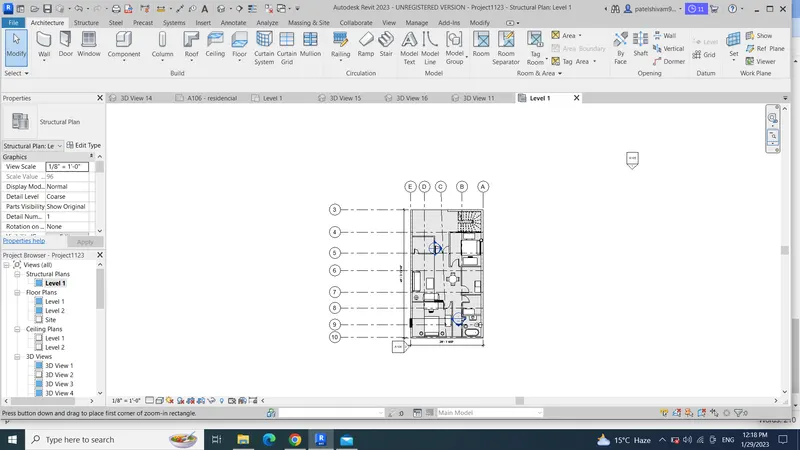

STRUCTURAL PLAN VIEW:

ANS 4

AIM: Add dimensions to walls and floors with reference to longitudinal and transverse grids created in project file.

TOOLS USED : Architectural, Grids, Annotate, aligned.

PROCEDURE :

1. In the architectural tab click on grid tool and start drawing grids from left to right and top to bottom.

Ans.5

AIM : To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

TOOLS USED : View, sheets, project browser.

PROCEDURE:-

• First we click on the sheet option from the view toolbar, as shown below.
• After clicking the sheet, Thhe new tab will be visible on the screen.
• In that new tab we select the A1 metric, then the sheet template will be displayed.
• In the sheet template we insert the first floor plan as shown below.
• Next edit the Project name and the sheet number as shown in the below figures.

Ans .6

AIM : To use the elevation tab create the elevation views, looking at your building from East, North, South and West

TOOLS USED : view, elevation, project browser

PROCEDURE:-

Step:-1

• First we click on the elevation option from the view toolbar, as shown below.

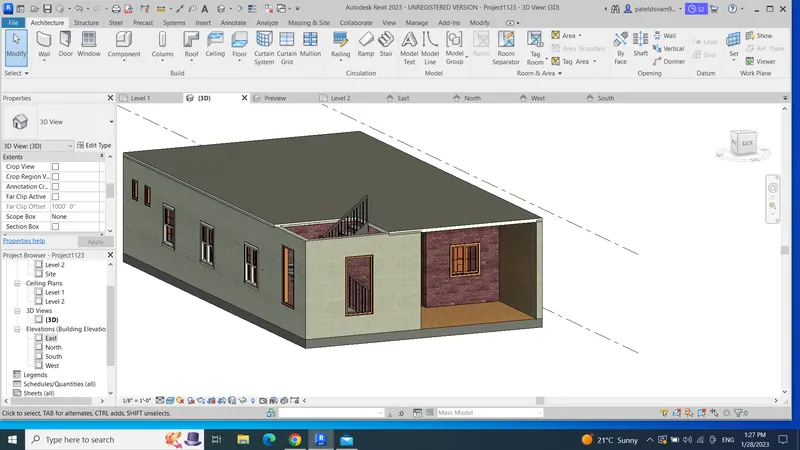

3D VIEW

Step:-2

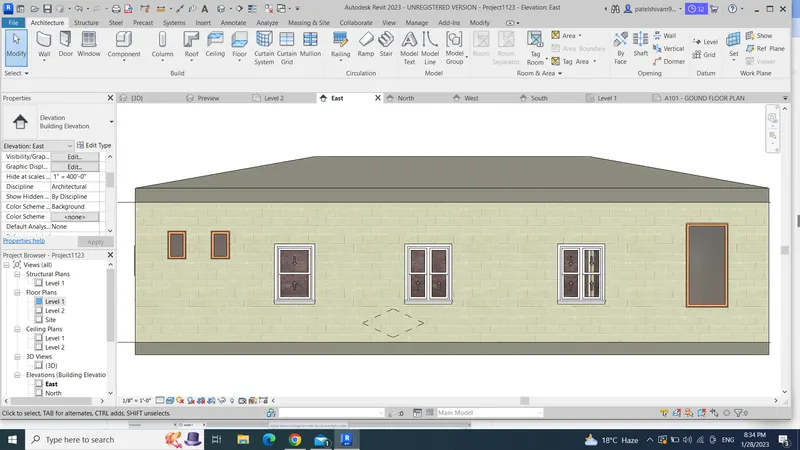

• Next the elevation from the east will be visible, as shown below.

East view

Step:-4

• Next the elevation from the North will be visible on the screen, as shown below.

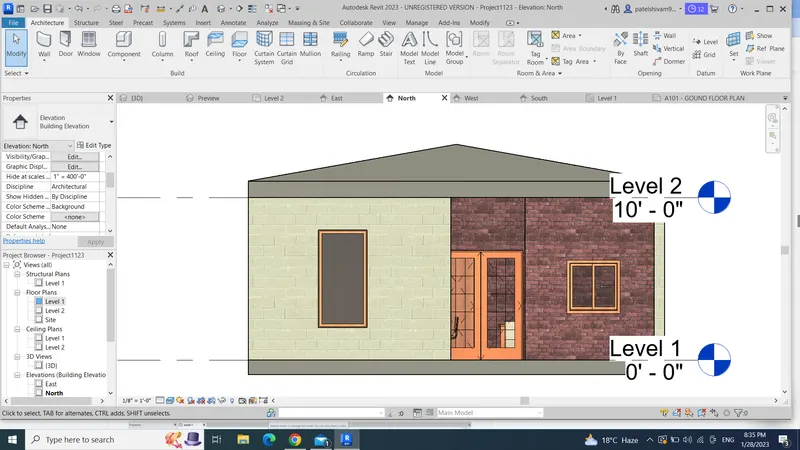

North view

Step:-5

• Next the elevation from the West will be visible on the screen, as shown below.

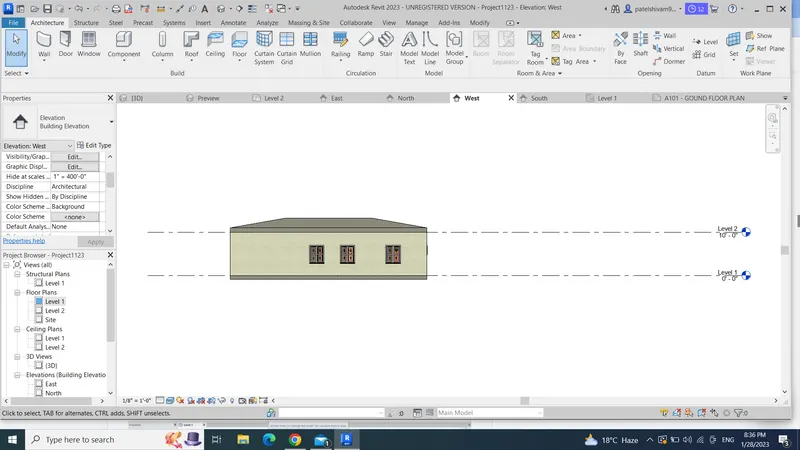

WEST VIEW

Step:-3

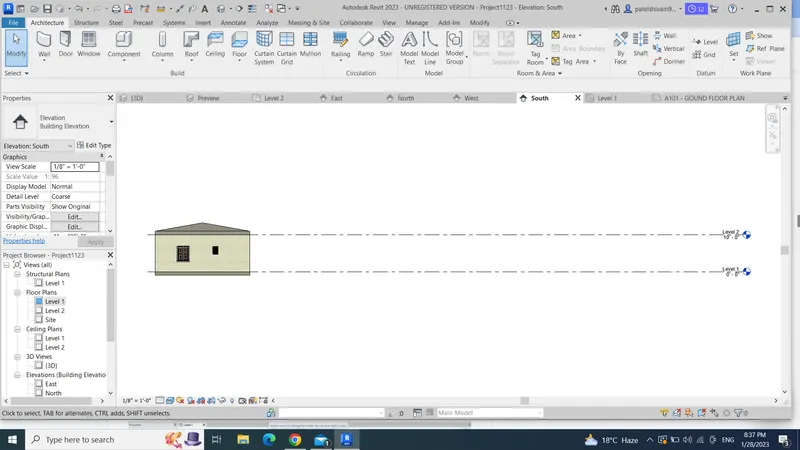

• Next the elevation from the south will be visible on the screen, as shown below.

SOUTH VIEW

Ans .7

AIM : Toproduce section cut through each room either cutting across longitudinally or in a transverse direction.

TOOLS USED : View, section, property browser.

PROCEDURE:-

Step:-1

• First we click on the section option from the view toolbar, as shown below.

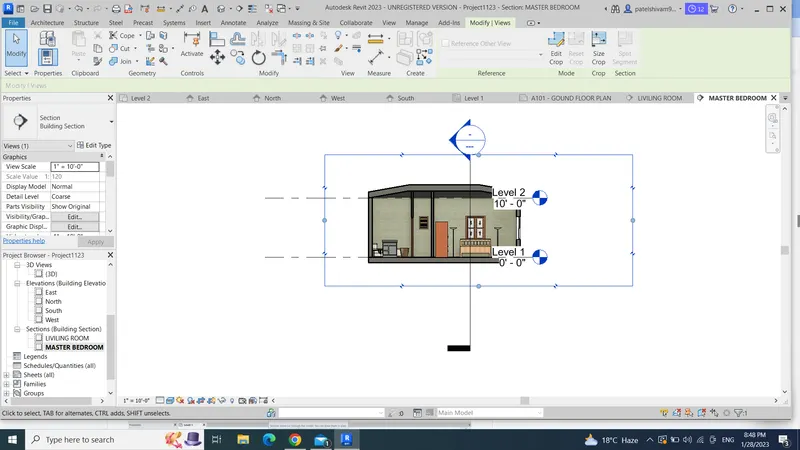

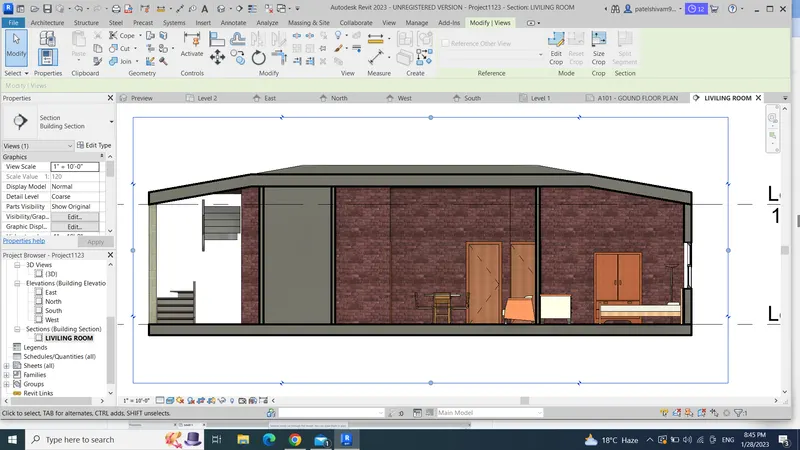

• Next we produce the section view of the bed room as shown in the below figure.
• And cut longitudinal and traversal view

Longitudinal View

Traversal View

Ans.8

VIEW : it is nothing but the way we see an object i different direction.

PLAN VIEW : The plan view is nothing but looking at a object from the top and this view helps us to draw or plan the rooms inside a building.

SECTIONAL VIEW : It is the view we get when a buliding or an object is cut along a line and viewed from one of the sides. This helps us to understand how it looks when it is cut from there.

ELEVATION VIEW : It is the view obtained when we look at something from side, it shows how tall the object is and how it looks from sides.

In the property browser of revit software we have all these views , using whhich we can clearly design and document a project properly and clearly.

Ans.9

AIM : To create sheet template and create multiple sheets as mentioned.

TOOLS USED : View, sheet, properties, graphics,insert, image.

PROCEDURE:-

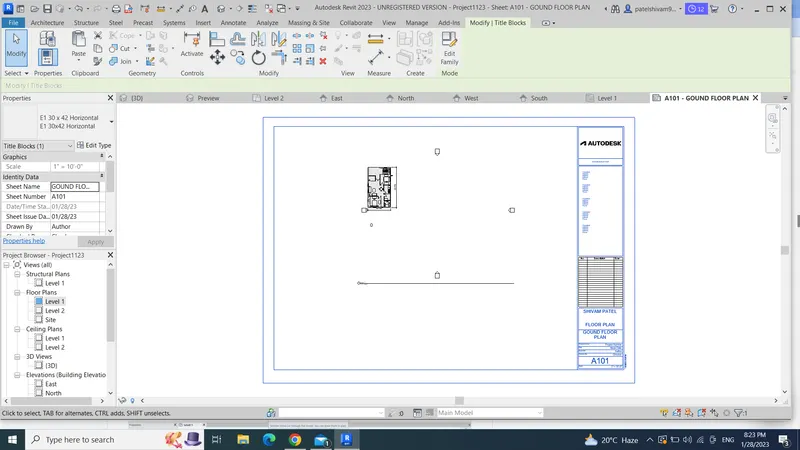

• First we produce the Ground floor architectural plan in the sheet template A-101, as shown in the below figure.
• A 101- Ground Floor Architecture Plan

Next we produce the First floor architectural plan in the sheet template A-102, as shown in the below figure.

b. A 102- First Floor Architecture Plan

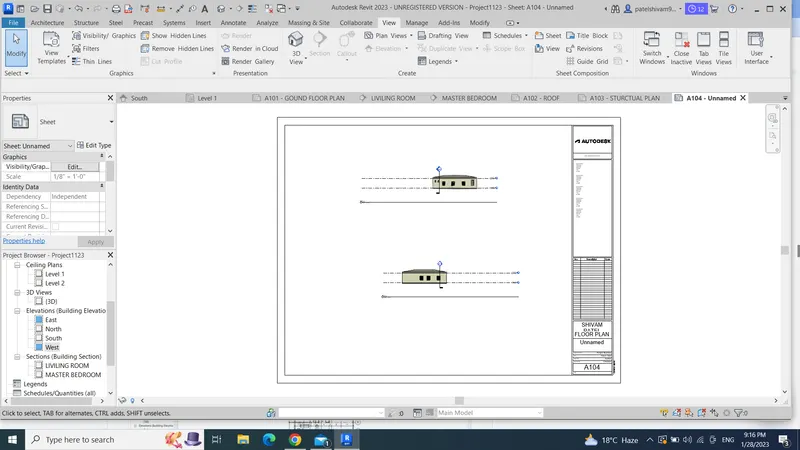

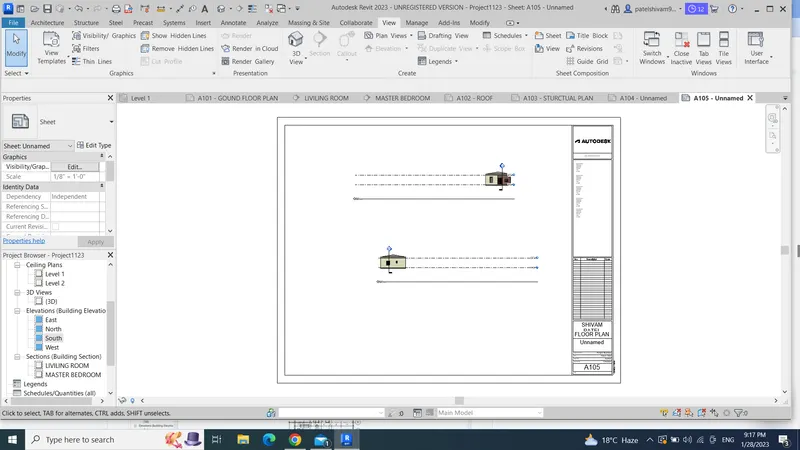

A-104- North-South Elevations

h. A-105- East-West Elevation

Ans.10

AIM : To create camera views and create sheets naming A 501 , 502 ETC.

TOOLS USED : View tab, 3d view, camera view.

PROCEDURE :

1. in the 3D View of view tab, cluick on camera view ans set it as required to see the camera view.

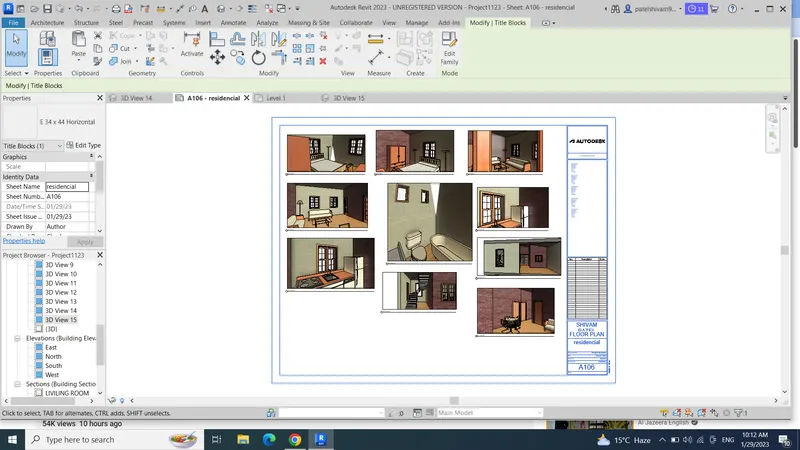

2.In the same way as we did above create new sheets and paste the camera views in the sheets.
