Project 1 _Creating an Architectural plan for the provided plot size and develop relevant basic structural drawings

SShivam Patel2 Dec 2022

Aim: To draft the floor plan of the house in a 60’x20’ East facing and draft its Elevation, Section and layout of Column, Beam and Footing using AutoCAD

General Information: The Plot size for the Construction of the residential floor plan has 60'x20' where the plot is East facing and has a Total Area of 1200 sq feet

Since the width of the plot is too small, we are unable to provide the setback distance, so the Total Builtup Area of 1006.6 sq feet

Procedure:

  • Open Autocad
  • Selecting the Imperial system
  • Command UN(units) and selecting Engineering with precision of 0’-0.0”
  • Command LIMITS and having a limit of (0’,0’) in the lower left corner and (10000’,10000’) in the upper right corner
  • Command ZOOM and select All

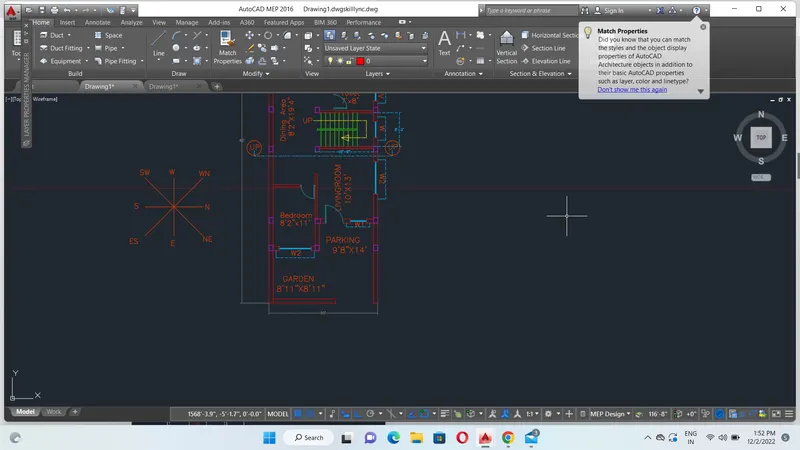

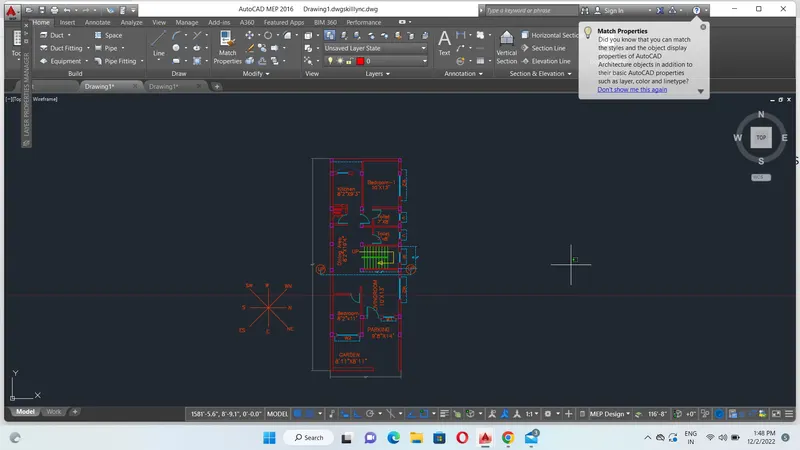

    GROUND FLOOR PLAN :

    COMMAND USED :

    • XLINE COMMAND: XLINE HORIZONTAL AND VERTICAL ARE USED TO START THE DRAWING INITIALLY.
    • LINE COMMAND: LINE IS USED TO DRAW THE LINE IN THE WINDOWS, DOORS, VETIALTORS, STAIRCASE AND LINES AT REQUIRED SPACES.
    • OFFSET COMMAND: OFFSET IS USED TO OFFSET THE EXTERNAL WALL TO 9" AND THE INTERNAL WALL TO 4.5".
    • OFFSET IS USED TO OFFSET THE OPEN TERRACE TO 7'-7.5" VERTICAL.
    • OFFSET IS USED TO OFFSET THE LIVING ROOM / HOME THEATRE TO 10' HORIZONTAL AND 13' VERTICAL.
    • OFFSET IS USED TO OFFSET THE STAIRCASE TO 7' HORIZONTAL AND 8' VERTICAL.
    • OFFSET IS USED TO OFFSET THE BEDROOM 1 TO 10' HORIZONTAL AND 13' VERTICAL.
    • OFFSET IS USED TO OFFSET THE COMMON TOILET / BATHROOM TO 7' HORIZONTAL AND 8'VERTICAL.
    • OFFSET IS USED TO OFFSET THE BEDROOM 2 TO 8.2 ' HORIZONTAL AND 11' VERTICAL.
    • OFFSET IS USED TO OFFSET THE COMMON TOILET TO 7' HORIZONTAL AND 8' VERTICAL.
    • OFFSET IS USED TO OFFSET THE DINING ROOM TO 8.2' HORIZONTAL AND 19'2" VERTICAL
    • OFFSET IS USED TO OFFSET THE DIFFERENT LINES TO A SPECIFIED OFFSETTING DISTANCE.
    • PLINE: PLINE IS USED TO DRAW THE CHEJJAS ABOVE THE WINDOWS AND VENTILATORS.
    • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.
    • ARC: ARC IS USED TO DRAW THE DOORS WITH START, CENTER AND END.
    • LINE TYPE: LINE TYPE IS TO CHANGE THE CONTINUOUS LINE TO THE DASH LINE AND CHANGE THE SCALE TO 10.
    • ANNOTATE TAB : IN ANNOTATE TAB ----> MODIFY DIMENSION STYLE ----> TEXT AND STYLE .
    • CHANGING THE STYLE FROM ISO25 TO SWIS 721 ---> SET CURRENT -----> APPLY .
    • TEXT: TEXT IS USED TO WRITE THE DIMENSION AND NAMES OF THE DIFFERENT ROOMS.
    • ERASE: ERASE IS USED TO ERASE THE UNWANTED LINES WHICH CAN NOT BE TRIMMED USING TRIM COMMAND

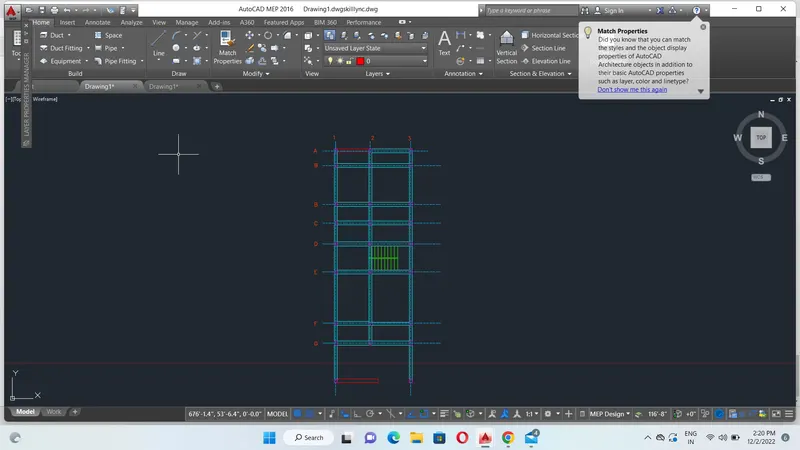

LAYOUT OF COLUMN :

  • PLINE: PLINE IS USED TO DRAW THE COLUMN OF SIZE 9"X12" WITH APPROPRIATE ORIENTATION.
  • LINE: THE LINE IS USED TO DRAW THE HORIZONTAL AND VERTICAL LINES TO THE COLUMN CENTRE.
  • LINE TYPE: LINE TYPE IS TO CHANGE THE CONTINUOUS LINE TO A DASH LINE AND CHANGE THE SCALE TO 10.
  • TRIM: TRIMIS USED TO TRIM UNWANTED LINES.
  • ANNOTATE TAB:IN ANNOTATE TAB ---> MODIFY DIMENSION STYLE ----> TEXT AND STYLE.
  • TEXT: TEXT IS USED TO WRITE THE NUMBER OF COLUMNS.
  • DIMILINEAR: DIMILENAR HAS USED TO DIMENSION THE CENTRE-TO-CENTRE DISTANCE OF THE COLUMN.
  • LEADER STYLE: LEADER STYLE IS USED TO LEAD THE VERTICAL LINES AS 1 TO 4
  • MLEADER USED TO LEAD THE HORIZONTAL LINE AS A, B, C, D, E, F, and G.
  • HATCH: HATCH IS USED TO HATCH THE FOUNDATION TO ANSI137 FOR 9" X12".
  • ERASE: ERASE IS USED TO ERASE THE UNWANTED LINES WHICH CANNOT BE TRIMMED USING TRIM COMMAND.

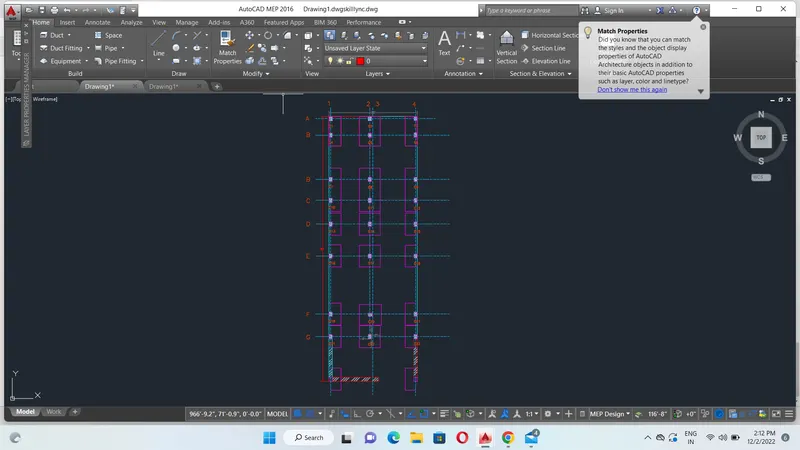

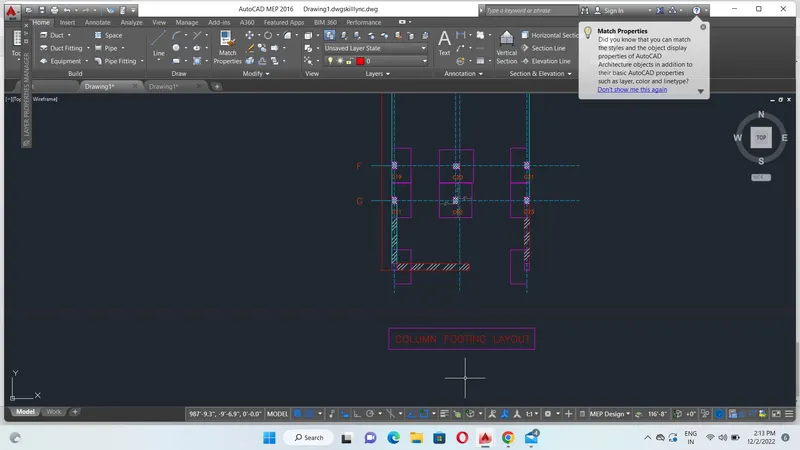

LAYOUT OF FOOTING :

  • PLINE: PLINE IS USED TO DRAW THE COLUMN OF SIZE 9"X12" WITH APPROPRIATE ORIENTATION.
  • LINE: THE LINE IS USED TO DRAW THE HORIZONTAL AND VERTICAL LINES TO THE COLUMN CENTRE.
  • OFFSET: OFFSET IS USED TO OFFSET THE FOOTING DIMENSION 2'.
  • LINE TYPE: LINE TYPE IS TO CHANGE THE CONTINUOUS LINE TO A LONG DASH- SHORT DASH LINE AND CHANGE THE SCALE TO 10.
  • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.
  • ANNOTATE TAB :IN ANNOTATE TAB -----> MODIFY DIMENSION STYLE -----> TEXT AND STYLE .
  • CHANGING THE STYLE FROM ISO125 TO SWIS 721 ---> SET CURRENT ---> APPLY.
  • DIMILINEAR: DIMILINEAR HAS USED TO DIMENSION THE CENTER DISTANCE OF THE COLUMN.
  • CENTER-TO-CENTER DISTANCE OF THE COLUMN.
  • LEADER: LEADER IS USED TO LEAD THE HORIZONTAL LINES AS 1 TO 5.
  • LEADER IS USED TO LEADER THE VERTICAL LINES AS A, B, C, D, E, F, and G.
  • HATCH: HATCH IS USED TO HATCH THE FOUNDATION TO ANSI137 FOR 9"X12" AND.
  • ERASE: ERASE IS USED TO ERASE THE UNWANTED LINES WHICH CANNOT BE TRIMMED USING TRIM COMMAND.

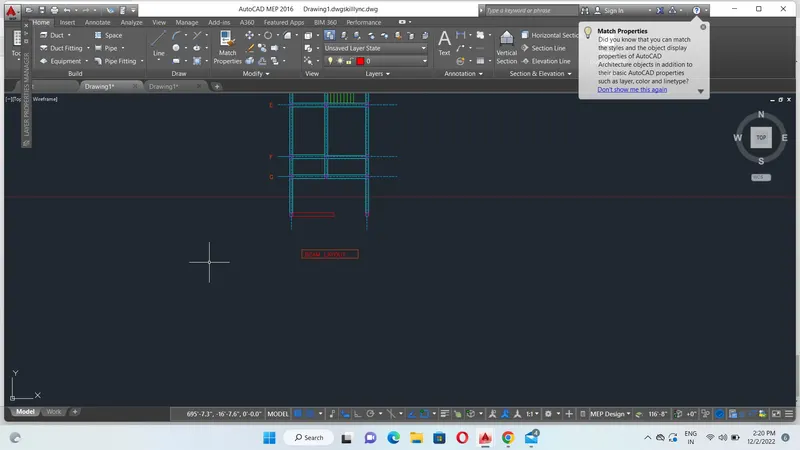

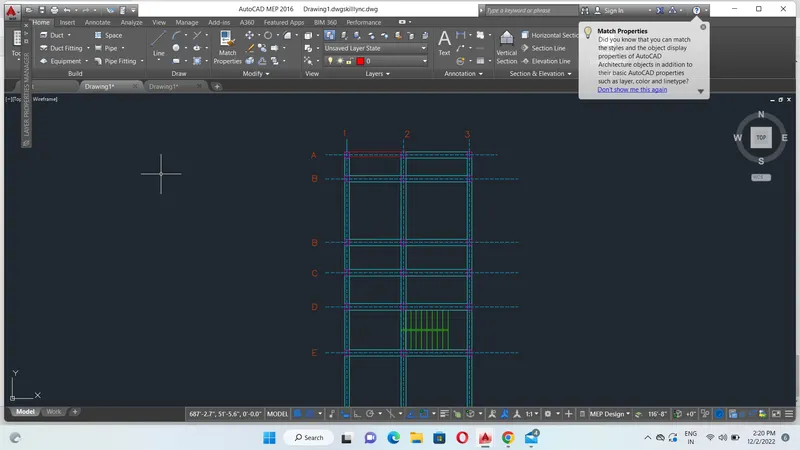

LAYOUT OF BEAM :

  • PLINE: PLINE IS USED TO DRAW THE COLUMN OF SIZE 9"X12" WITH APPROPRIATE ORIENTATION.
  • LINE: THE LINE IS USED TO DRAW THE HORIZONTAL AND VERTICAL LINES TO THE COLUMN CENTRE.
  • LINE IS USED TO DRAW THE LINES OF A BEAM OF SIZE 9'X9'.
  • LINE TYPE: LINE TYPE IS TO CHANGE THE CONTINUOUS LINE TO A LONG DASH -SHORT DASH LINE AND CHANGE THE SCALE TO 10.
  • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.
  • ANNOTATE TAB : IN ANNOTATTE TAB ---> MODIFY DIMENSION STYLE -----> TEXT AND STYLE .
  • CHANGING THE STYLE FROM ISO125 TO SWIS721 ---> SET CUURENT -----> APPLY .
  • DIMILINEAR: DIMILINEAR HAS USED TO DIMENSION THE CENTER-TO-CENTER DISTANCE OF THE COLUMN.
  • MLEADERSTYLE : MLEADERSTYLE ----> CONTENT----> MLEADER TYPE -----> BLOCK ----> SOURCEBLOCK ----> CIRCLE .
  • LEADER: MILEADER HAS USED TO LEAD THE HORIZONTAL LINE AS 1 TO 4.
  • LEADER IS USED TO LEADER THE VERTICAL LINES AS A, B, C, D, E, F, and G.
  • ERASE: ERASE IS USED TO ERASE THE UNWANTED LINES WHICH CANNOT BE TRIMMED USING TRIM COMMAND.

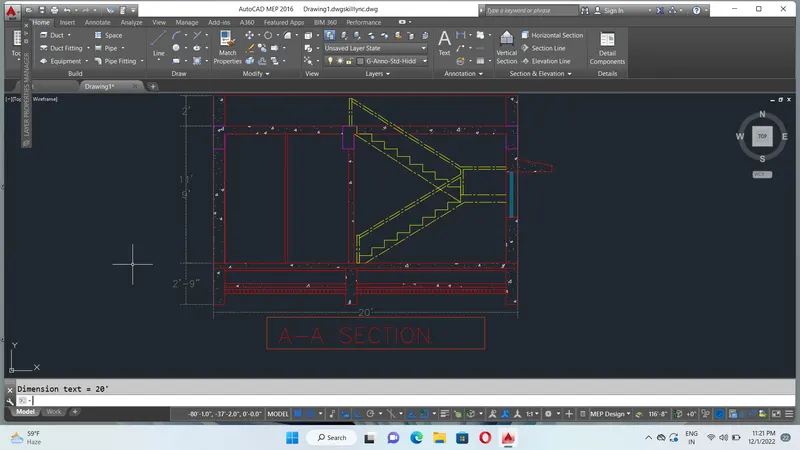

SECTION A-A

COMMAND USED :

  • XLINE: XLINE HORIZONTAL AND VERTICAL ARE USED TO START THE DRAWING INITIALLY.
  • LINE: LINE IS USED TO DRAW THE LINE IN THE WINDOW, DOORS, VENTILATORS, STAIRCASE AND LINES AT REQUIRED SPACES.
  • OFFSET: OFFSET IS USED TO OFFSET THE FLOOR PLAN HEIGHT OF 11'.
  • OFFSET IS USED TO TO OFFSET THE GL LINE TO 2'.
  • PLINE: PLINE IS USED TO DRAW THE CHEJJAS ABOVE THE WINDOWS AND VENTILATORS.
  • PLINE IS USED TO DRAW THE STAIRCASE OF THE BUILDING.
  • HATCH: HATCH IS USED TO HATCH THE COLUMN AND SLAB TO AR-C0NC.
  • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.

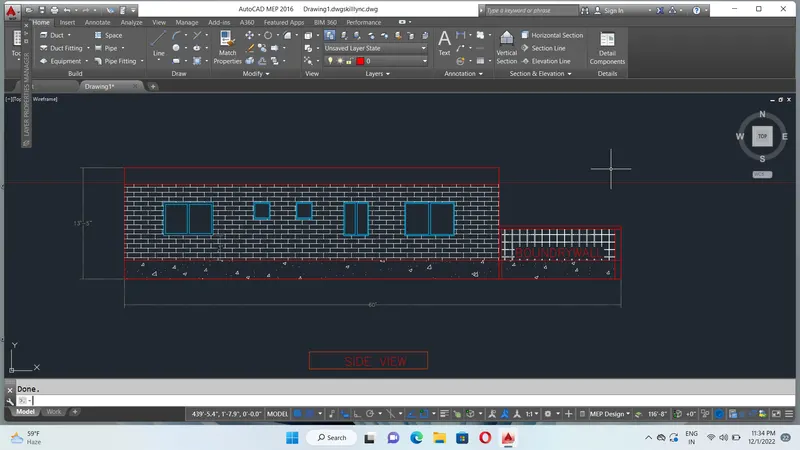

LEFT SIDE ELEVATION :

COMMAND USED:

  • XLINE: XLINE HORIZONTAL AND VERTICAL ARE USED TO START THE DRAWING INITIALLY.
  • LINE: LINE IS USED TO DRAW THE LINE IN THE WINDOW, DOORS, VENTILATOR, AND LINES AT REQUIRED SPACES.
  • OFFSET: OFFSET IS USED TO OFFSET THE FLOOR HEIGHT TO 11'.
  • OFFSET IS USED TO OFFSET THE PARAPET WALL TO 3'.
  • OFFSET IS USED TO OFFSET THE GL LINE TO 2'.
  • PLINE: PLINE IS USED TO DRAW THE CHEJJAS ABOVE THE WINDOWS AND VENTILATORS.
  • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.
  • HATCH: HATCH IS USED TO HATCH THE COLUMN AND SLAB TO AR-C0NC FOR WALL AR-BRSTD FOR BOUNDARY WALL CAST-IN-PLATE.

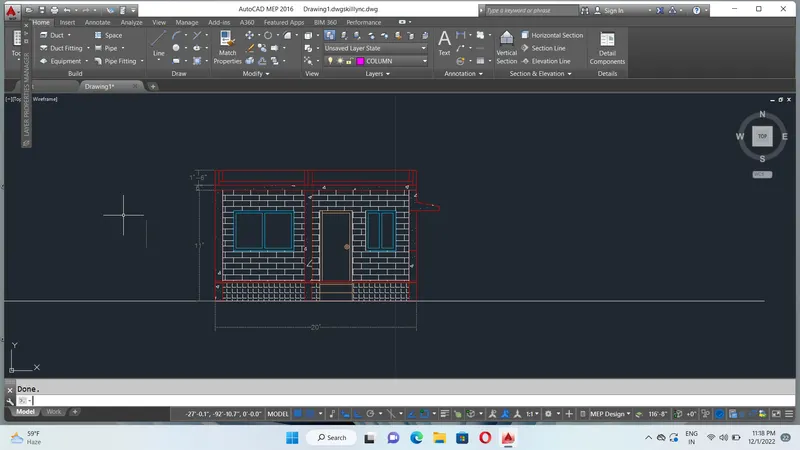

FRONT ELEVATION :

COMMAND USED:

  • XLINE: XLINE HORIZONTAL AND VERTICAL ARE USED TO START THE DRAWING INITIALLY.
  • LINE: LINE IS USED TO DRAW THE LINE IN THE WINDOW, DOORS, VENTILATOR, AND LINES AT REQUIRED SPACES.
  • OFFSET: OFFSET IS USED TO OFFSET THE FLOOR HEIGHT TO 11'.
  • OFFSET IS USED TO OFFSET THE PARAPET WALL TO 3'.
  • OFFSET IS USED TO OFFSET THE GL LINE TO 2'.
  • PLINE: PLINE IS USED TO DRAW THE CHEJJAS ABOVE THE WINDOWS AND VENTILATORS.
  • TRIM: TRIM IS USED TO TRIM THE UNWANTED LINES.
  • HATCH: HATCH IS USED TO HATCH THE COLUMN AND SLAB TO AR-C0NC FOR WALL BRICK-STR FOR PLINTH ANGLE.
