3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

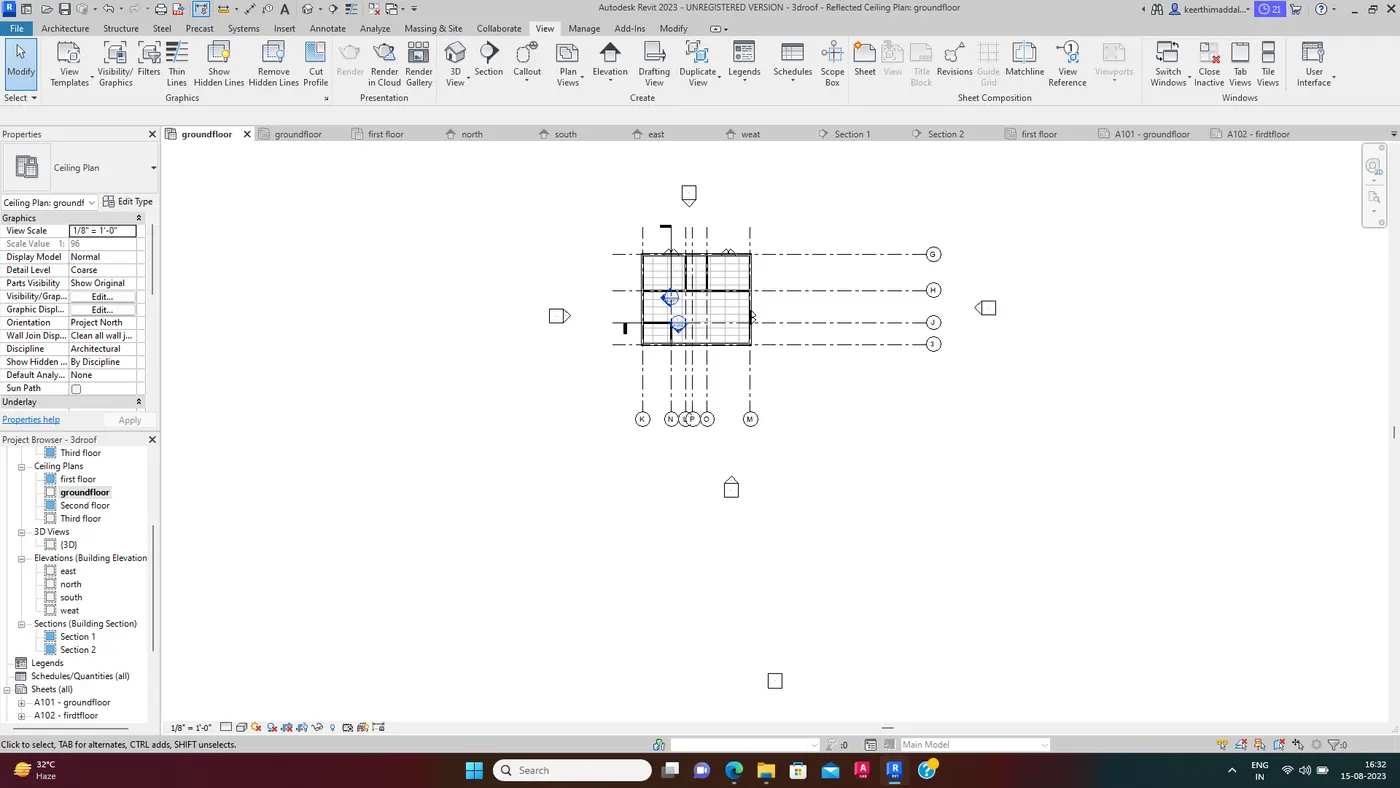

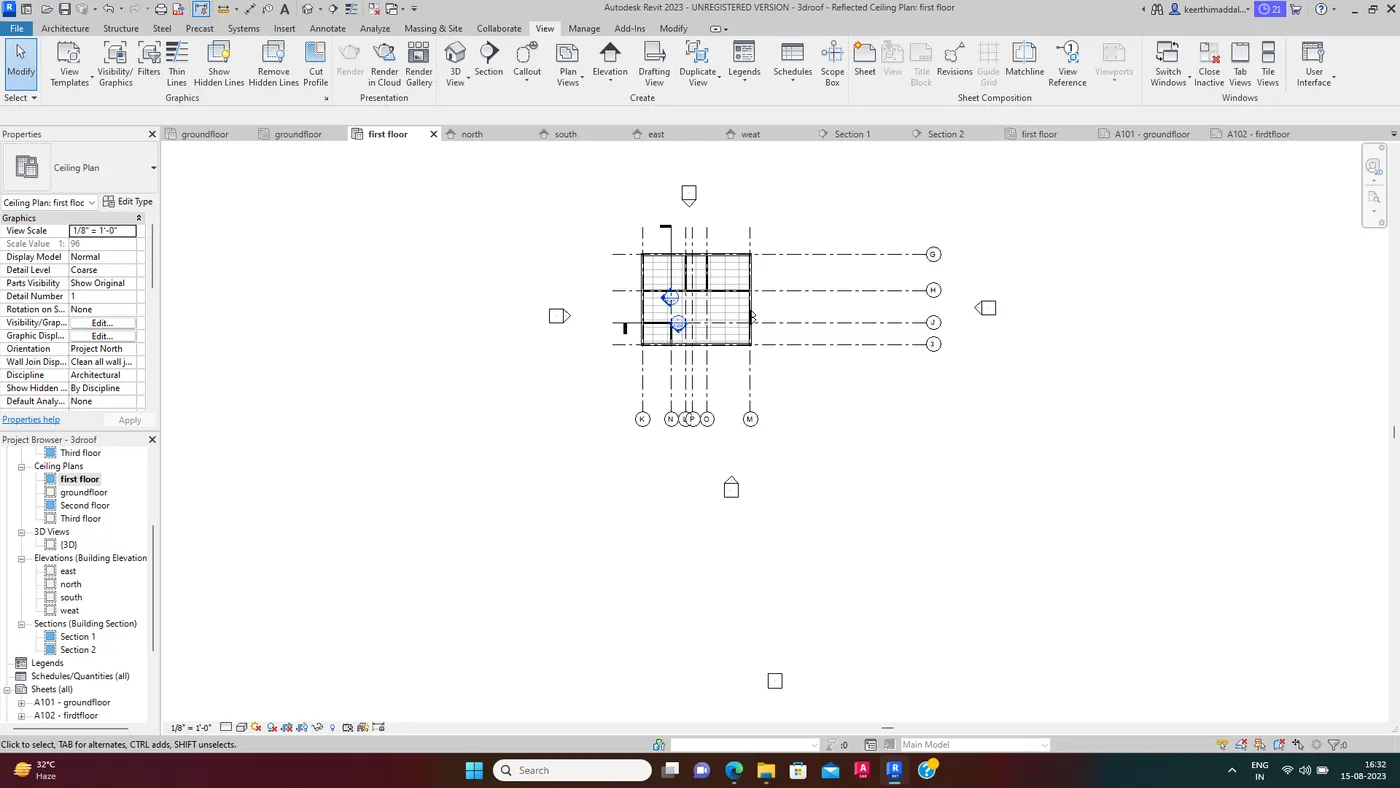

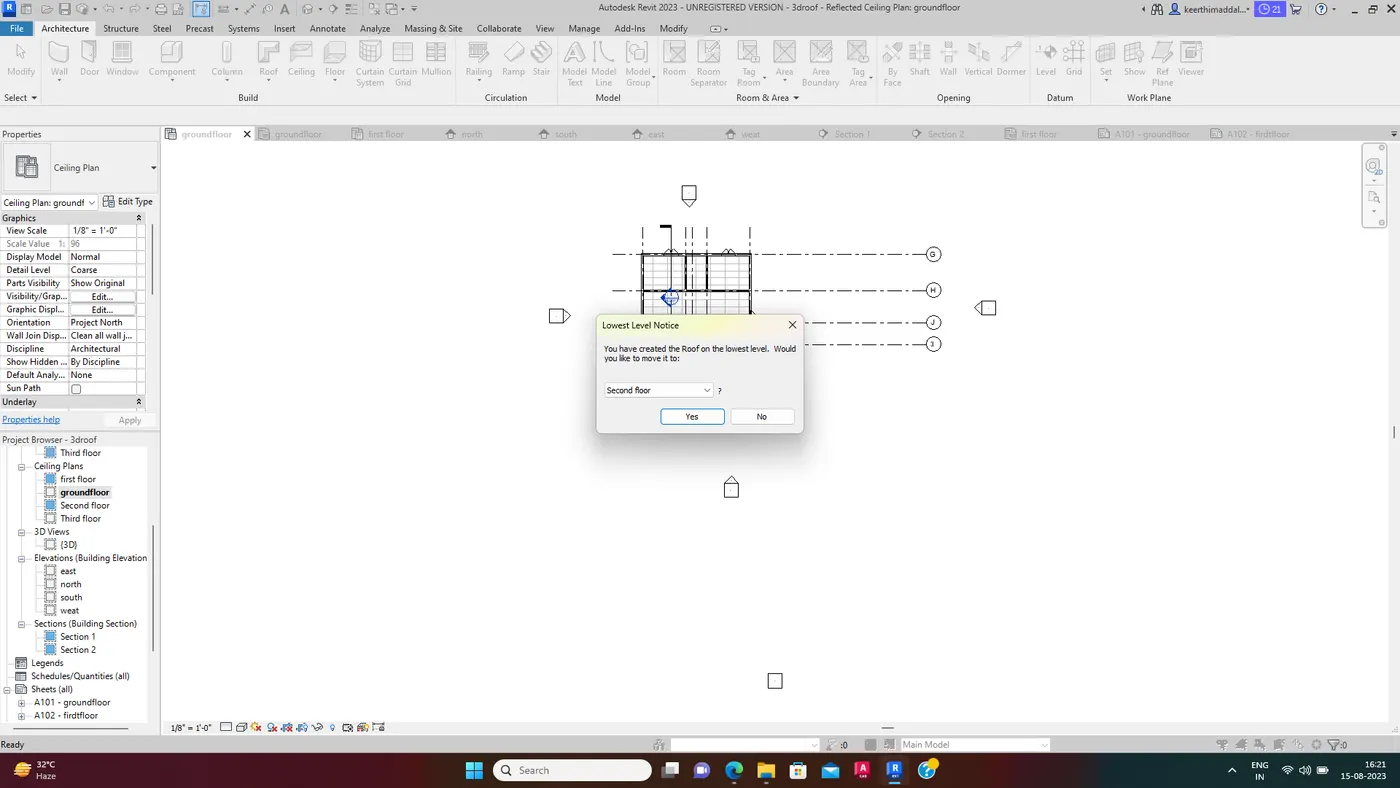

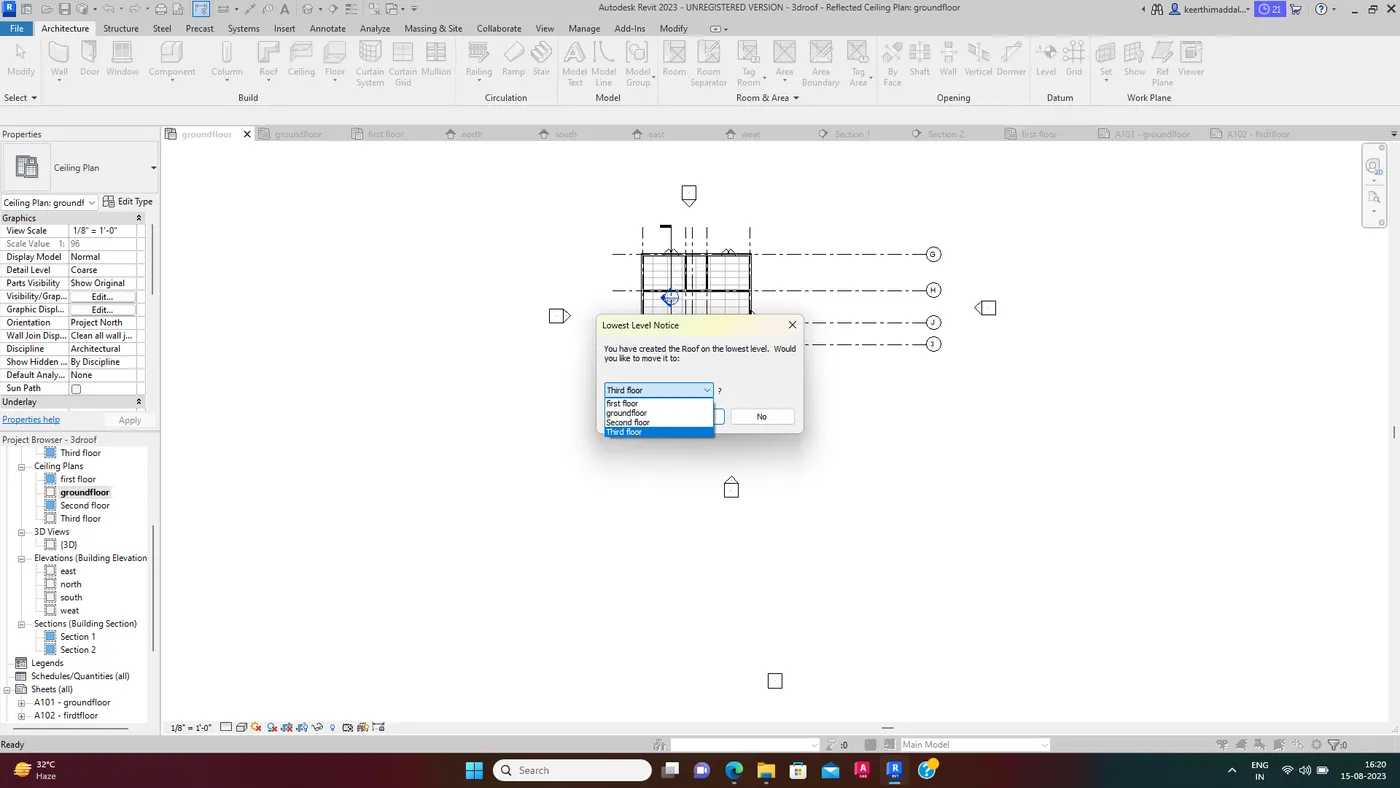

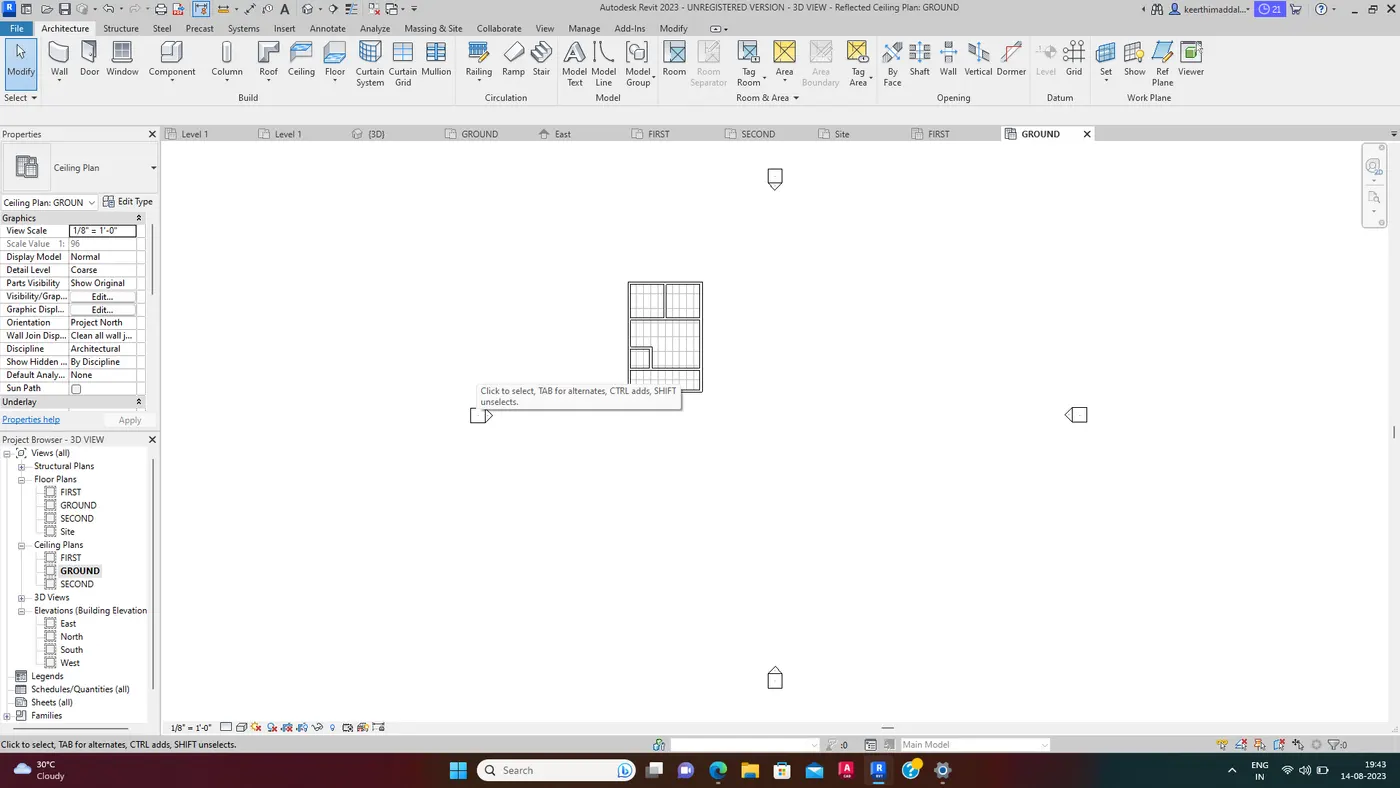

First open the plan and goto archchiteture tab selet cealing on ribbon tab and selace walls you wabnt and draw a ceeling as shown in screenshot below.

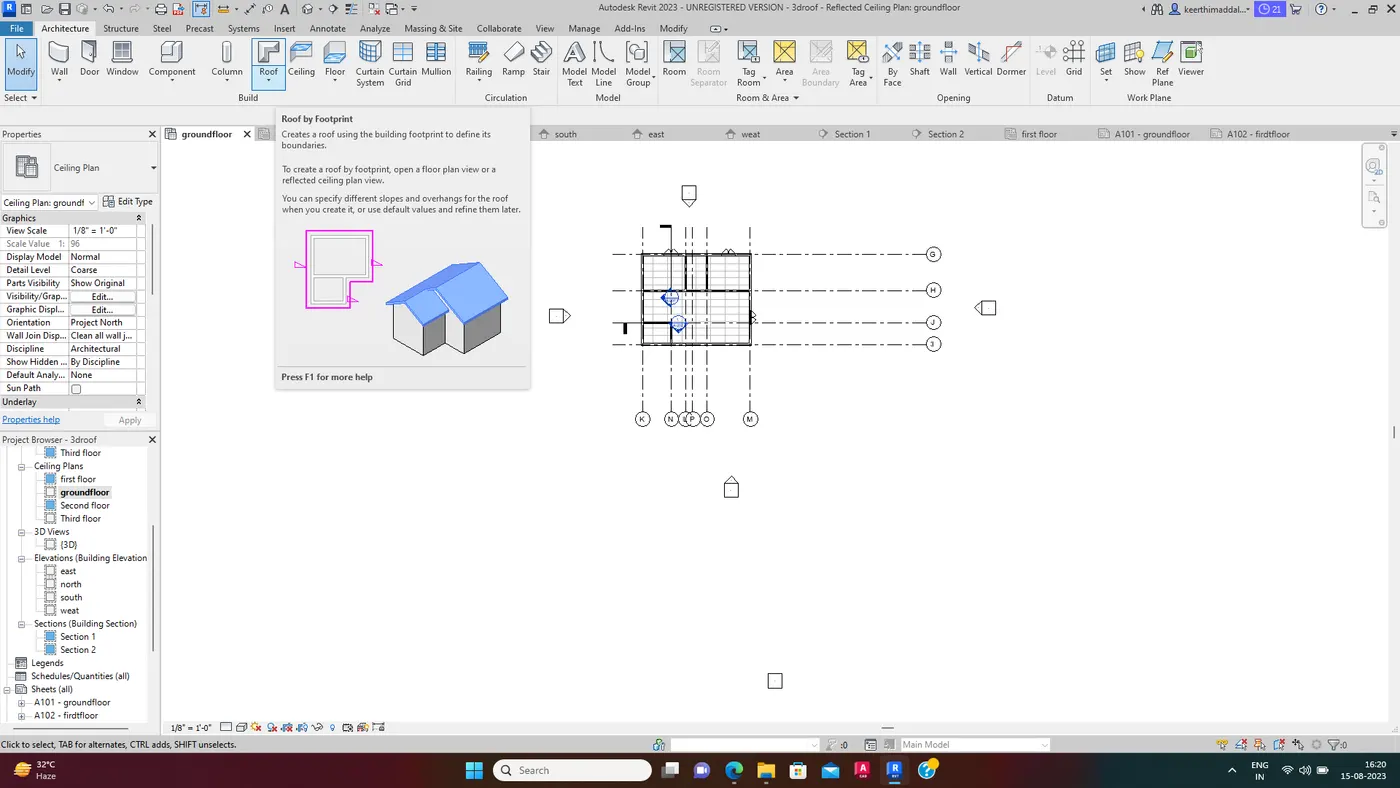

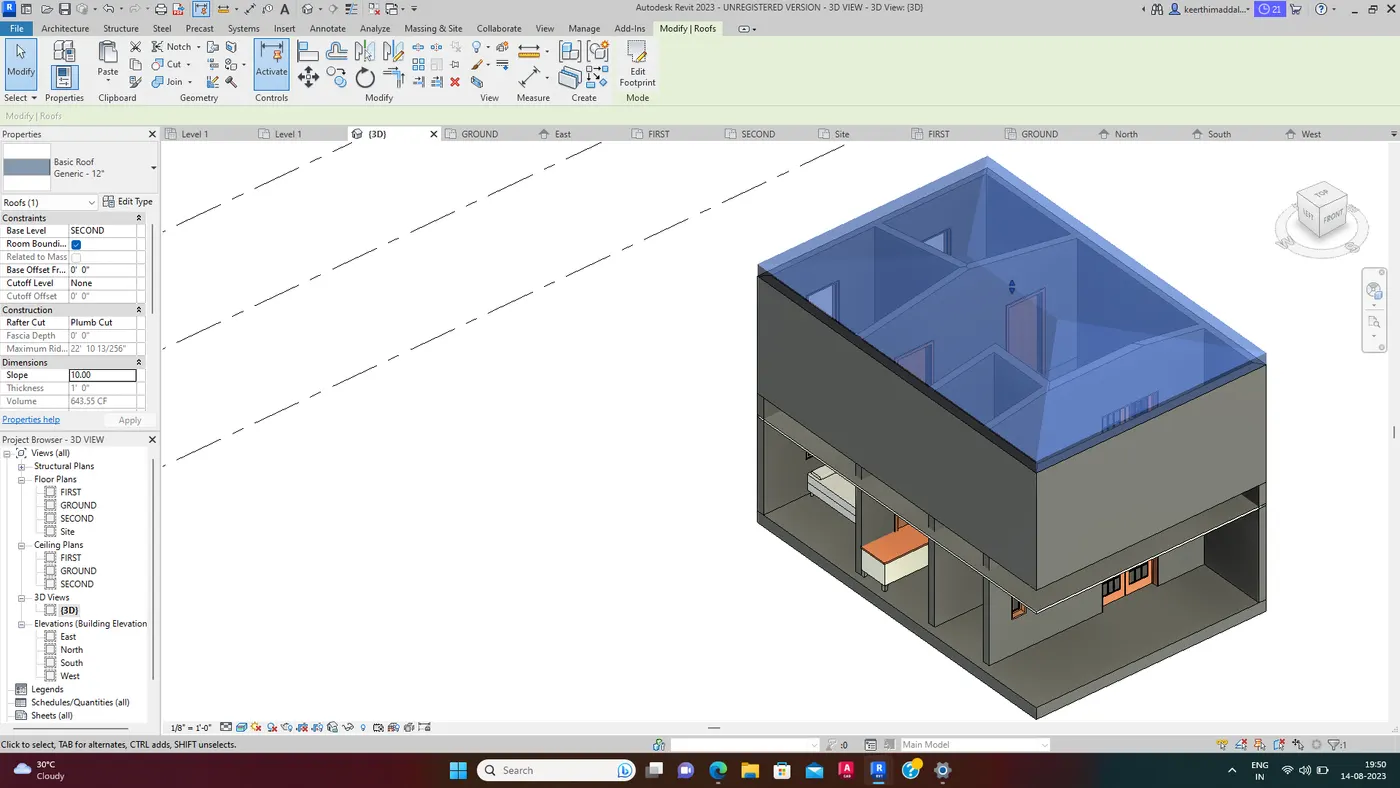

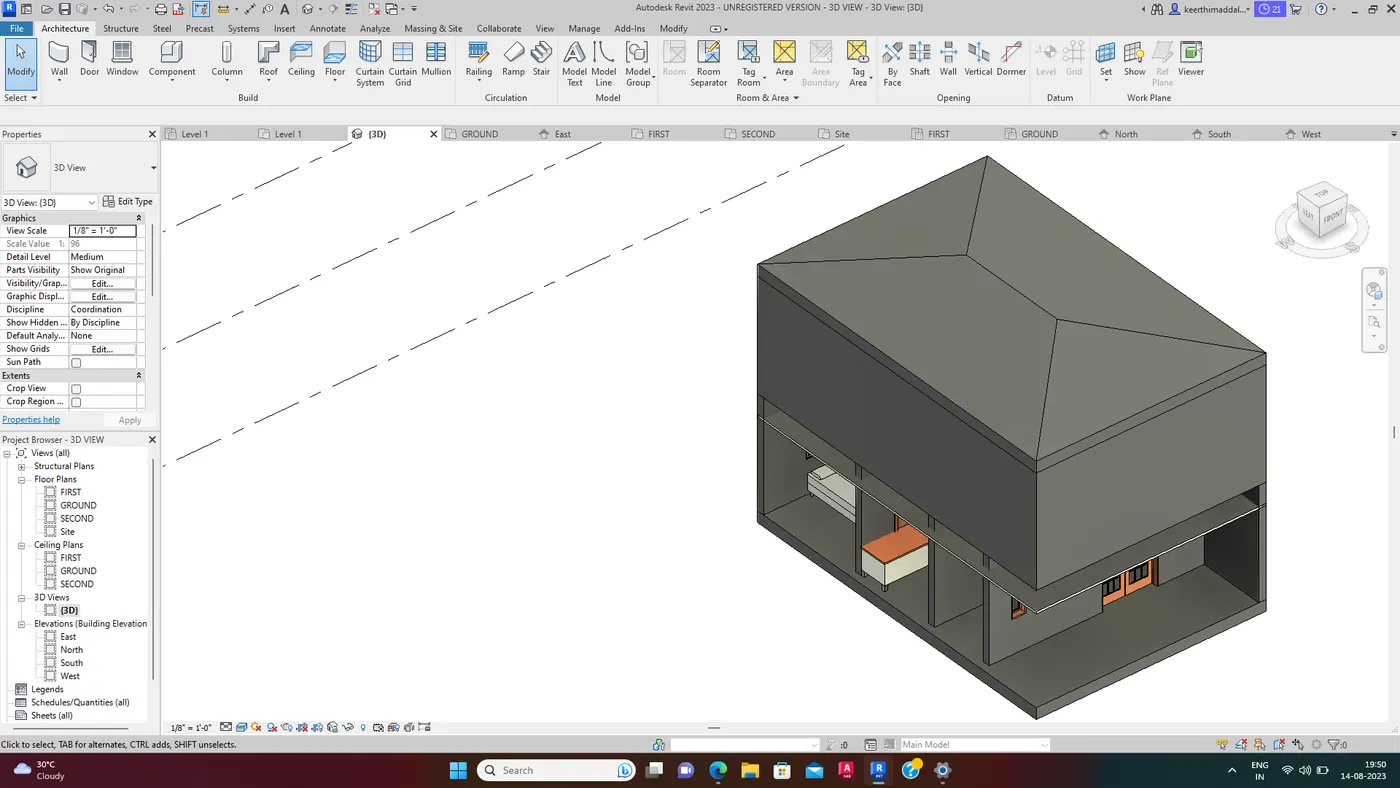

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
ans:
Goto ribbon tab and click on roof and drag down wards select roof by foot print and draw asyou want as shown in screenshot below.
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
Ans:

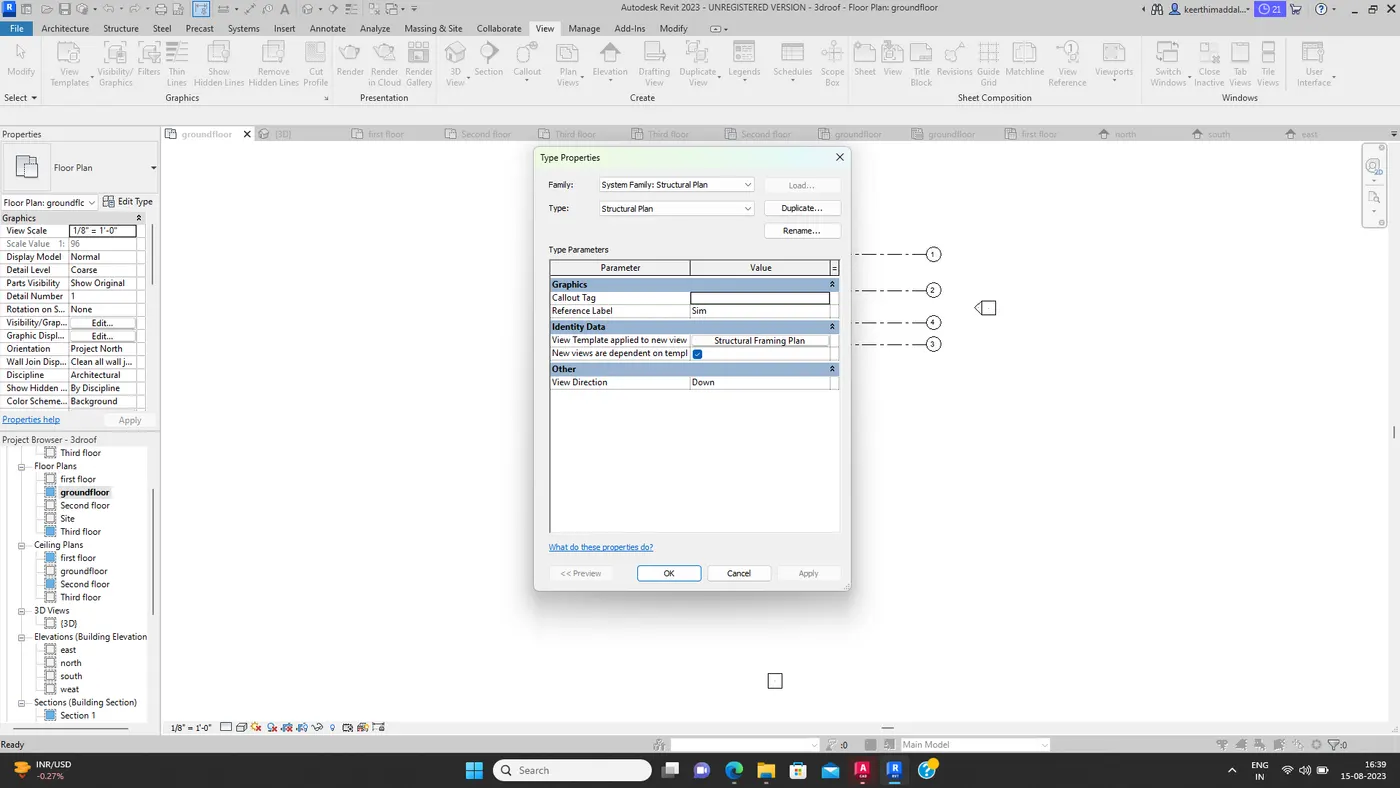

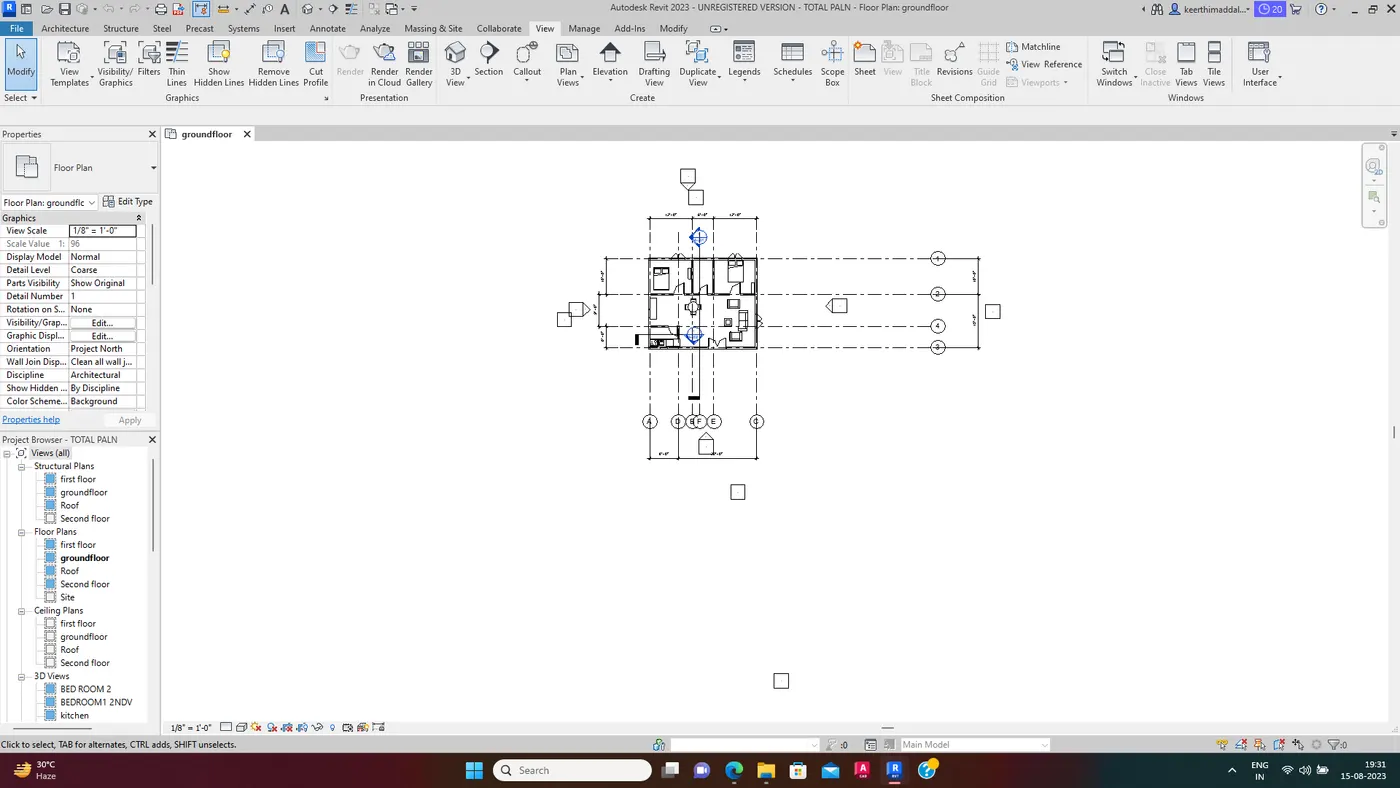

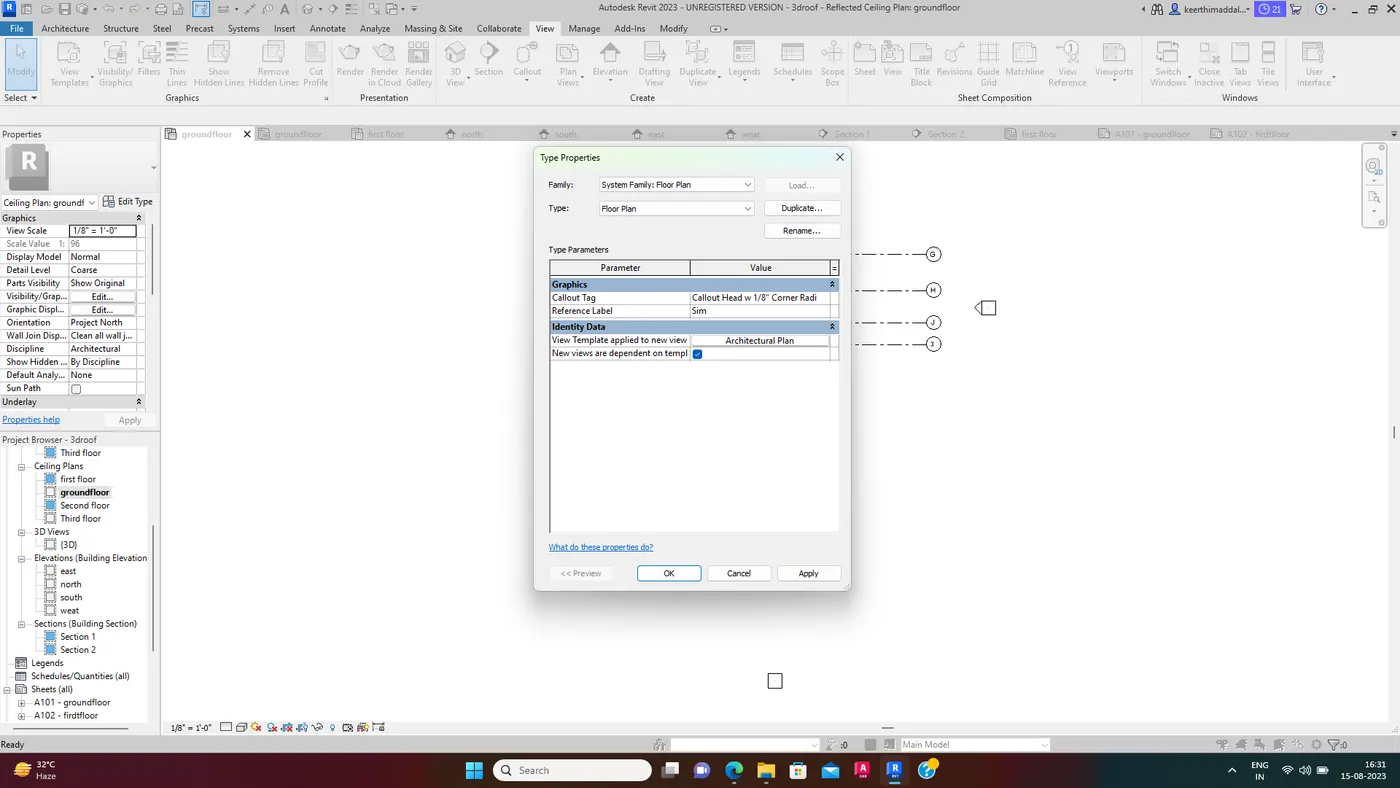

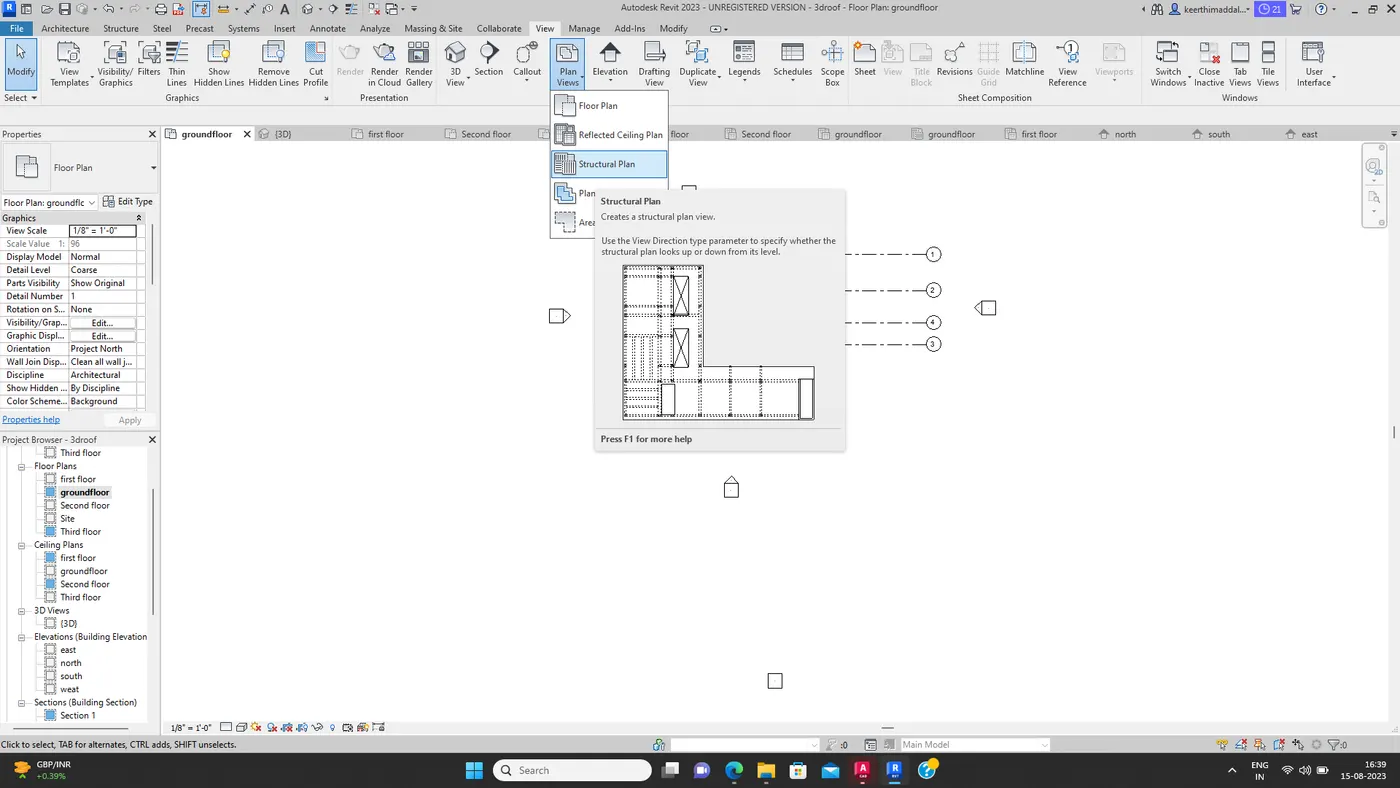

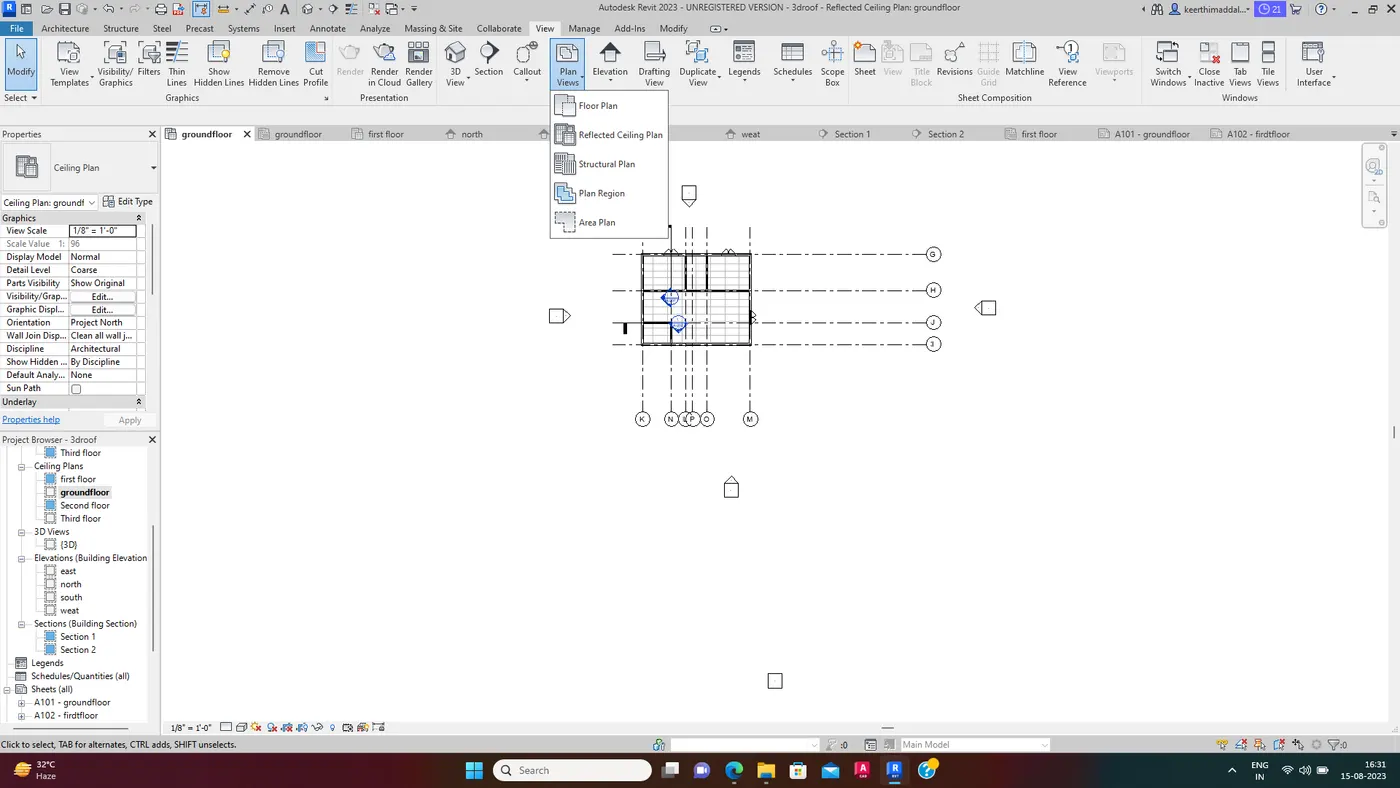

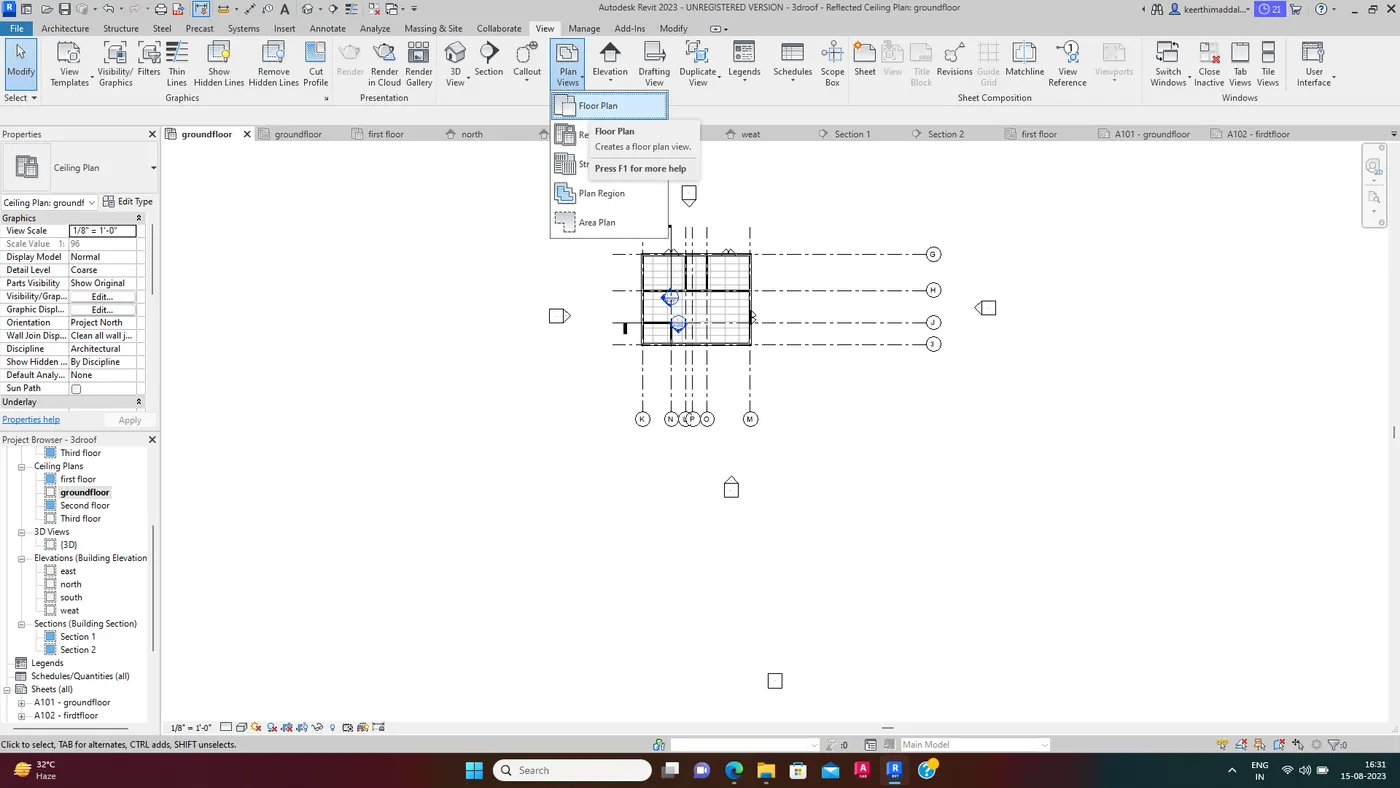

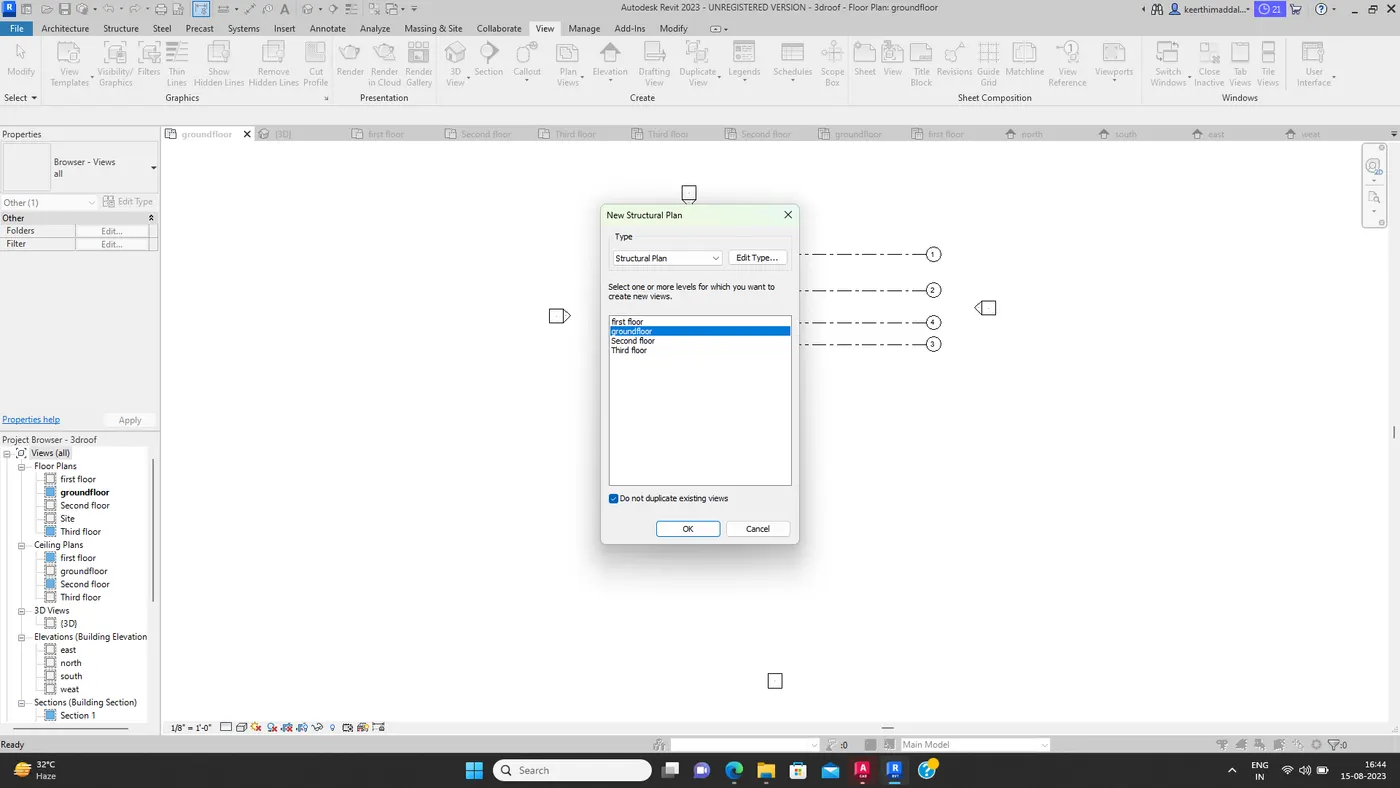

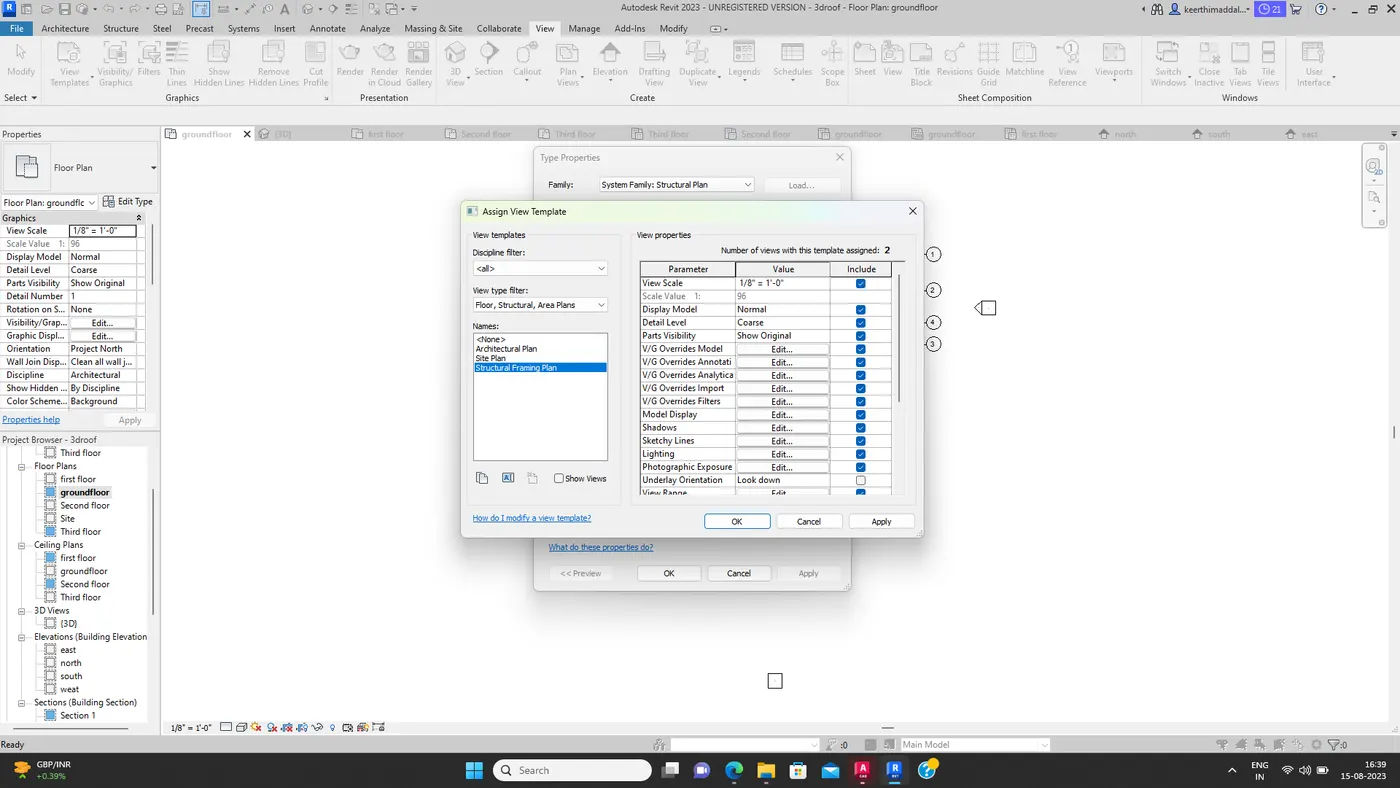

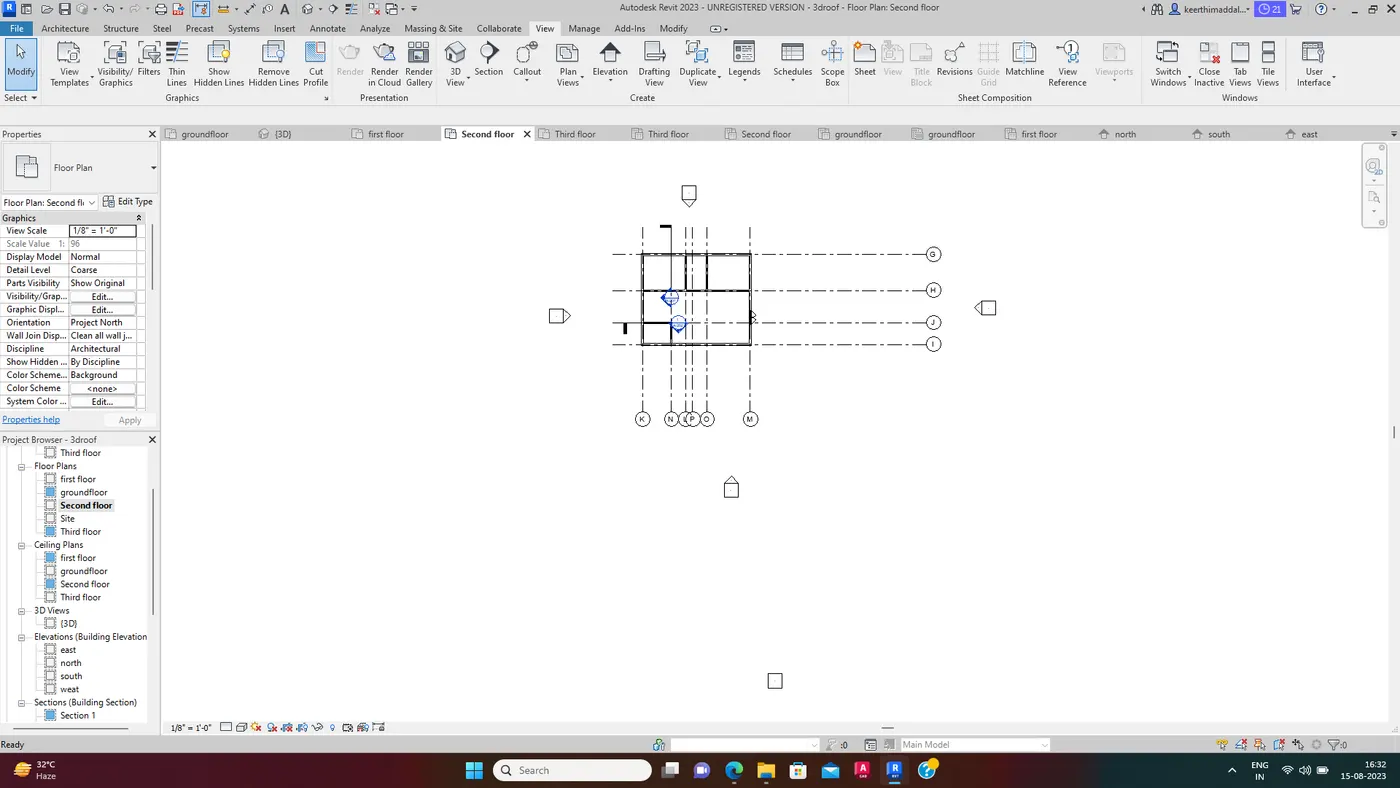

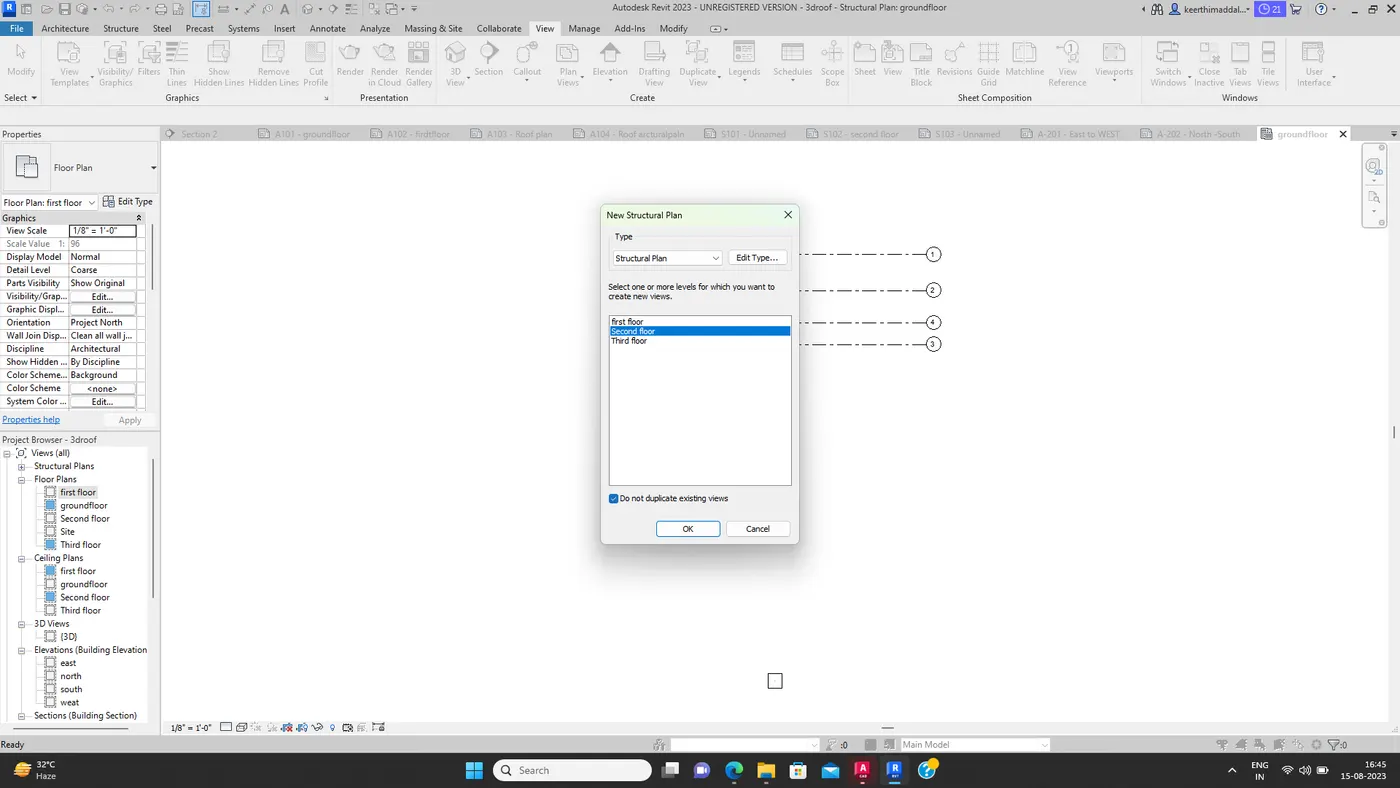

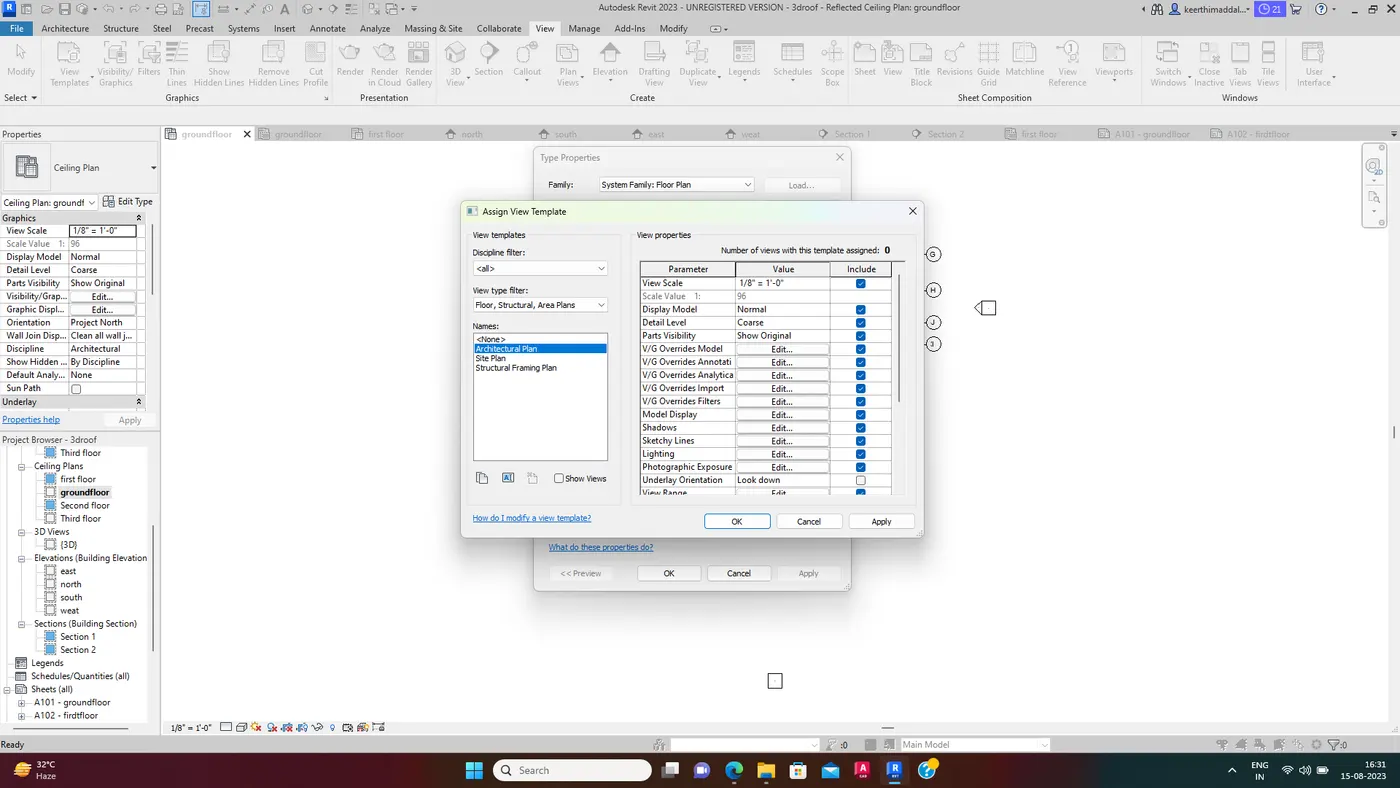

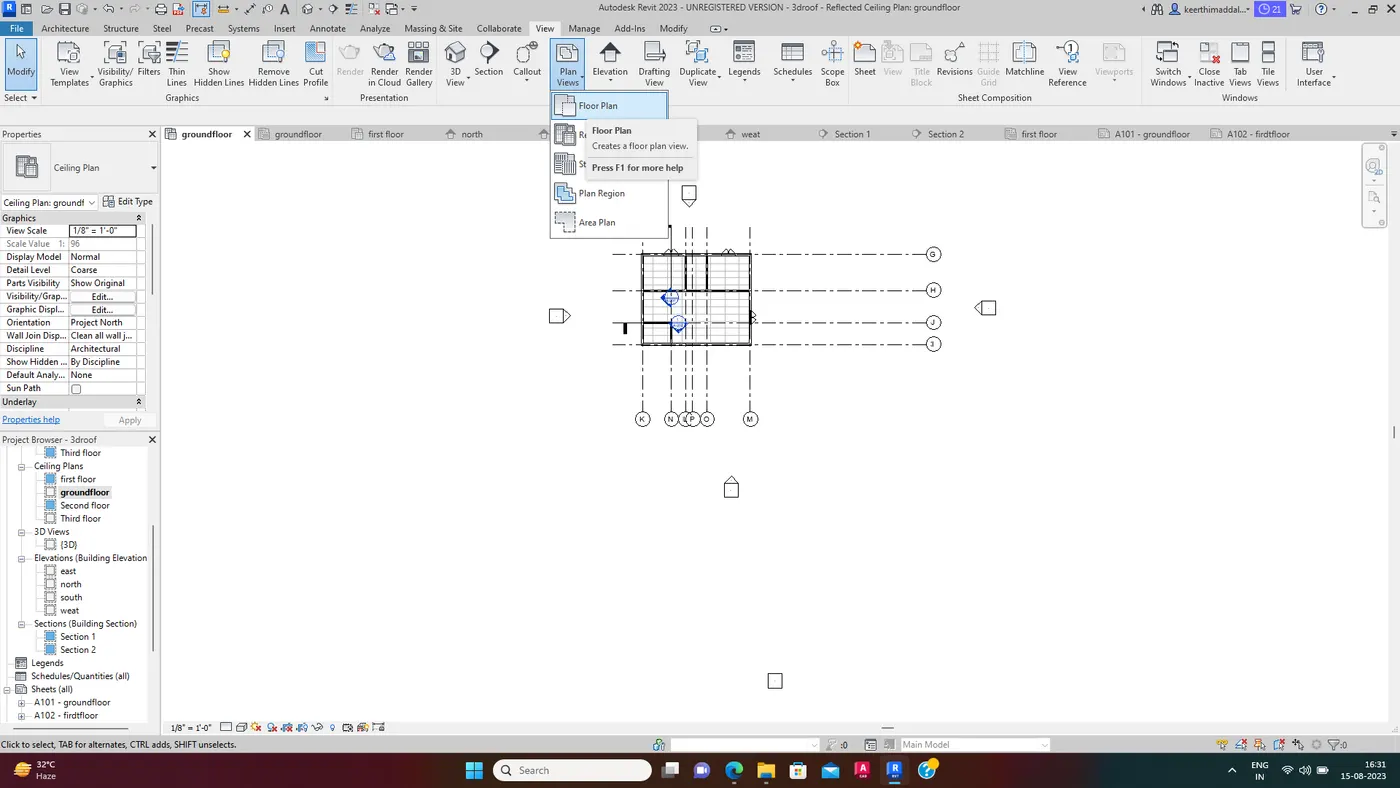

Goto view tab and select plan vieae drag it down select archetureplan and strutural plan as shown in screen shots.

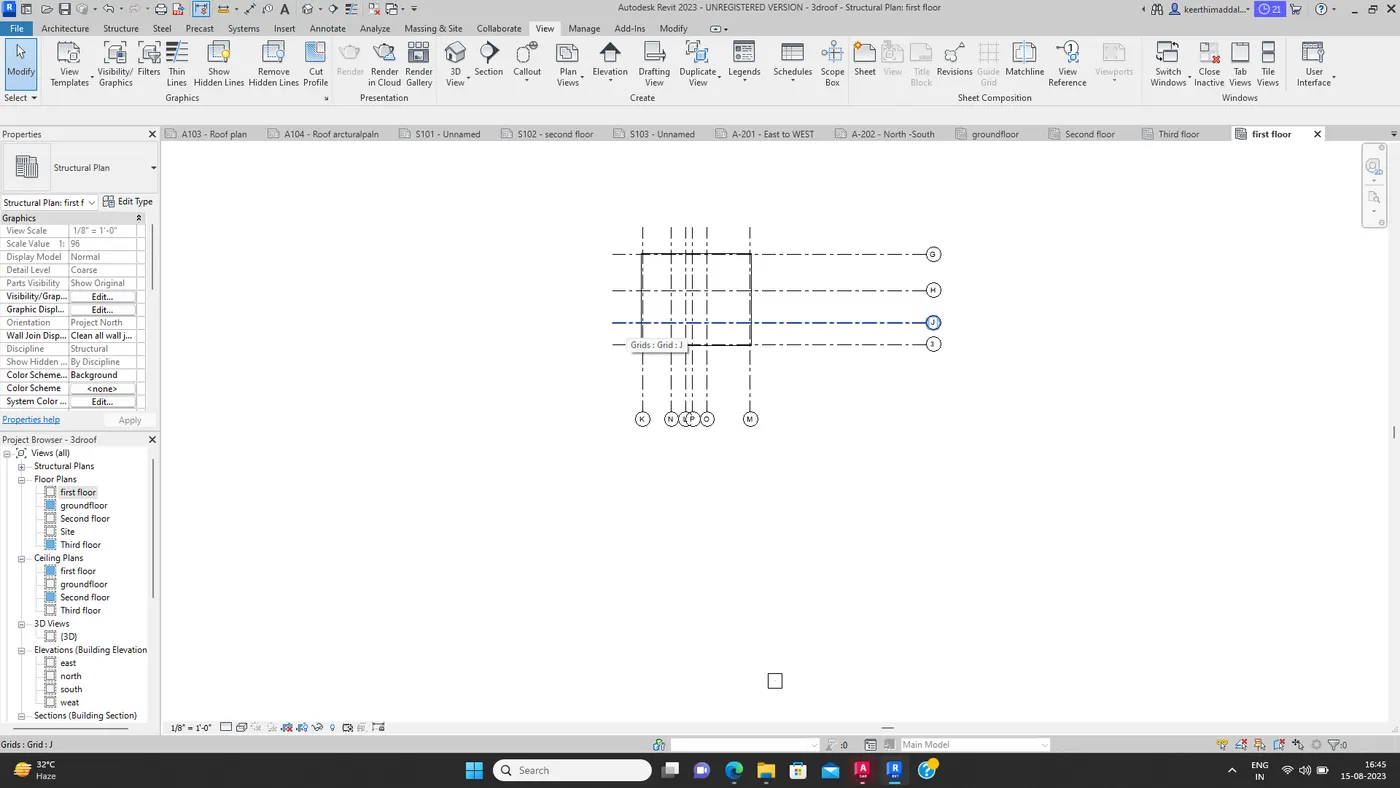

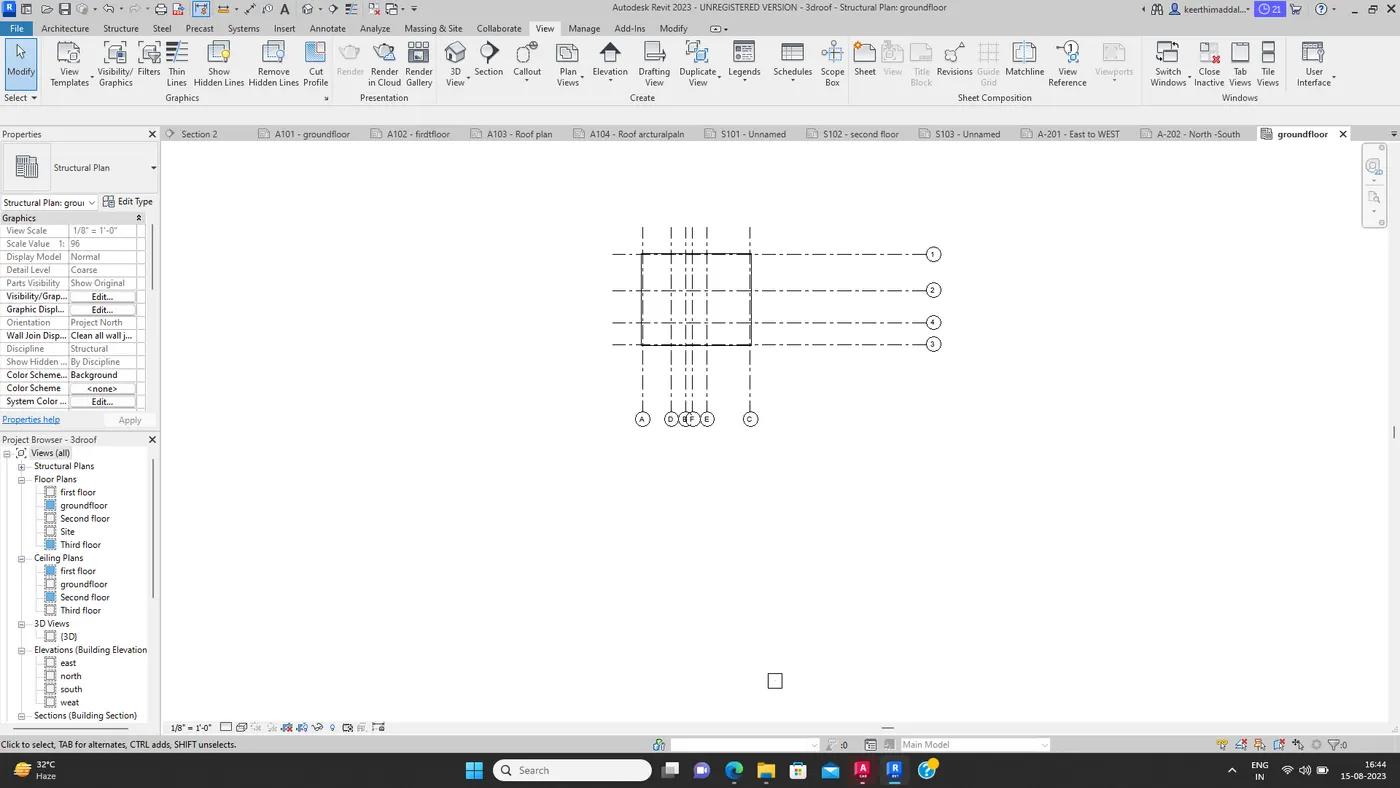

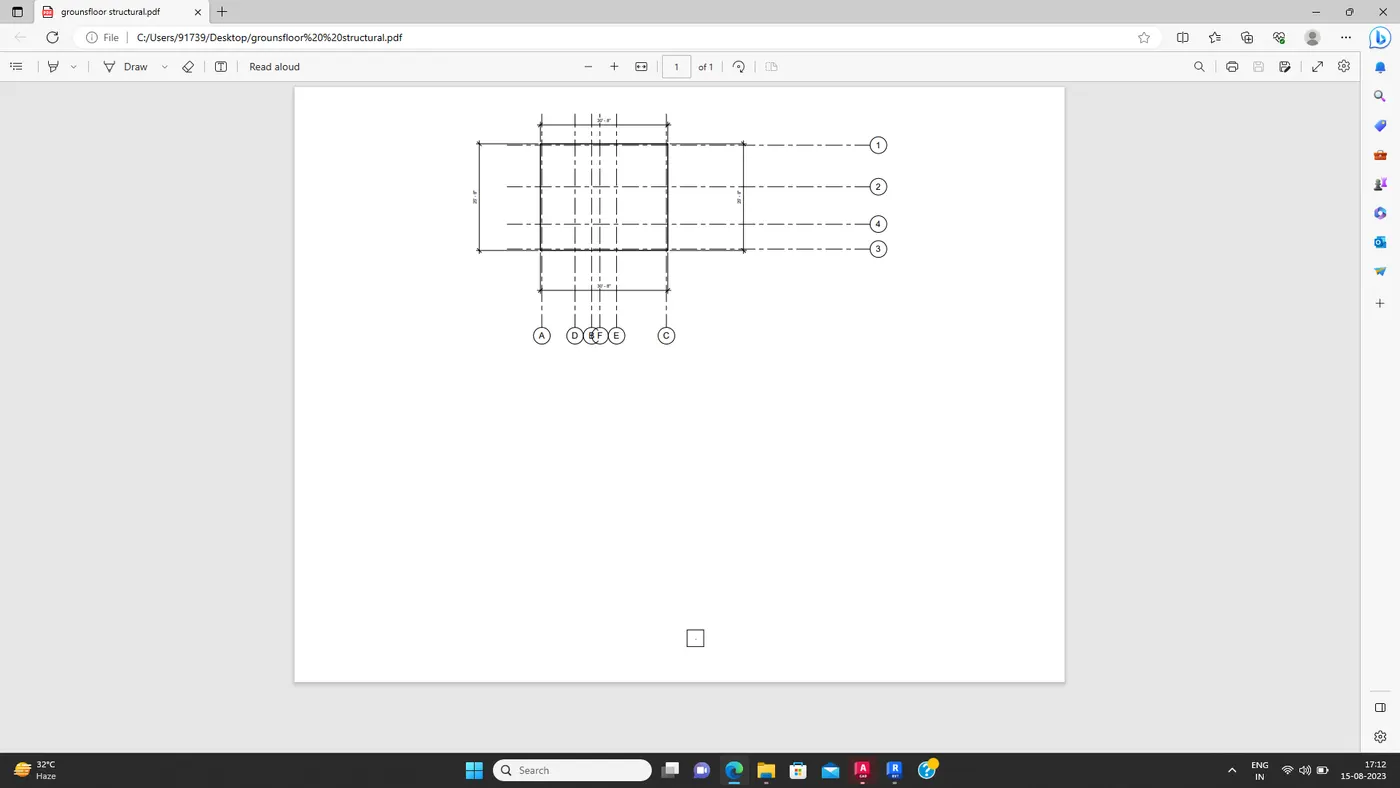

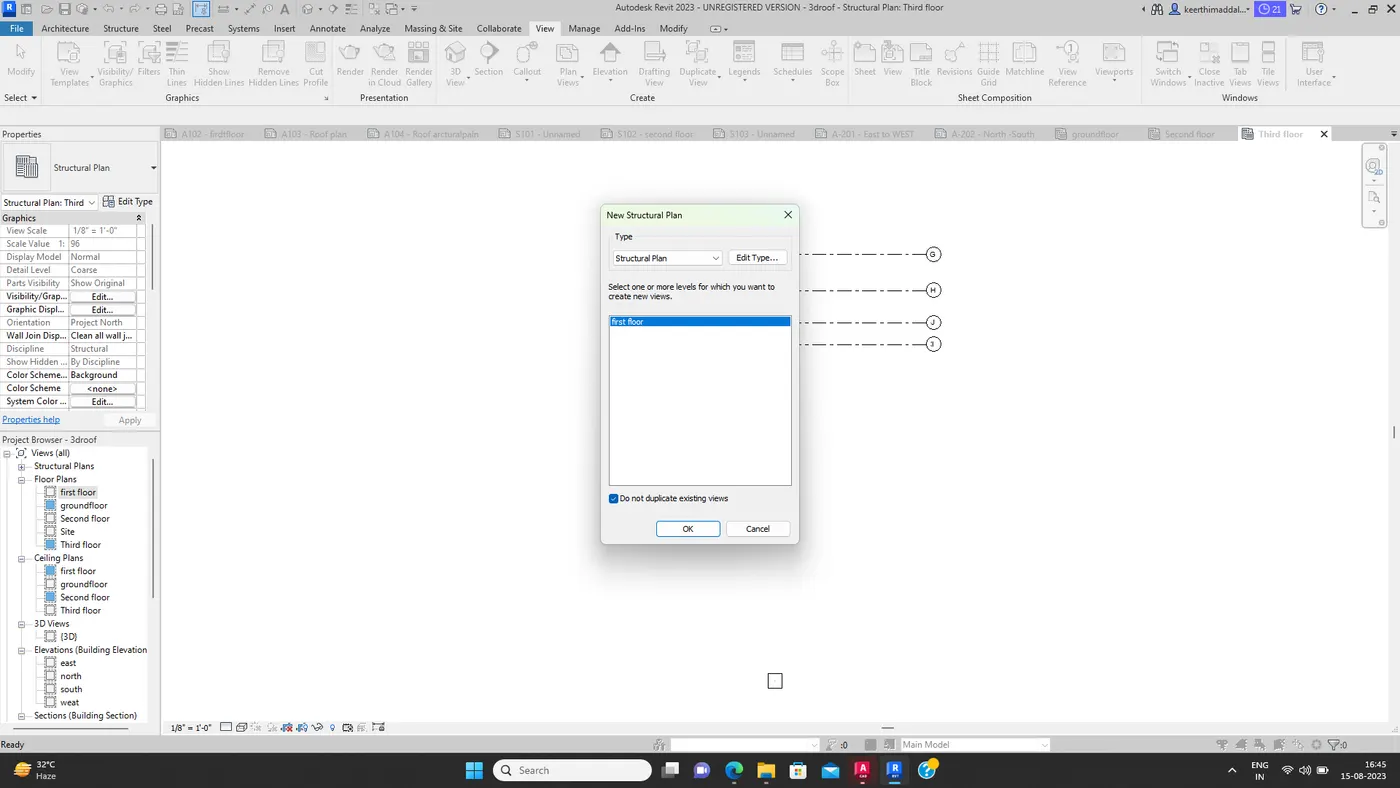

Strutural plans
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

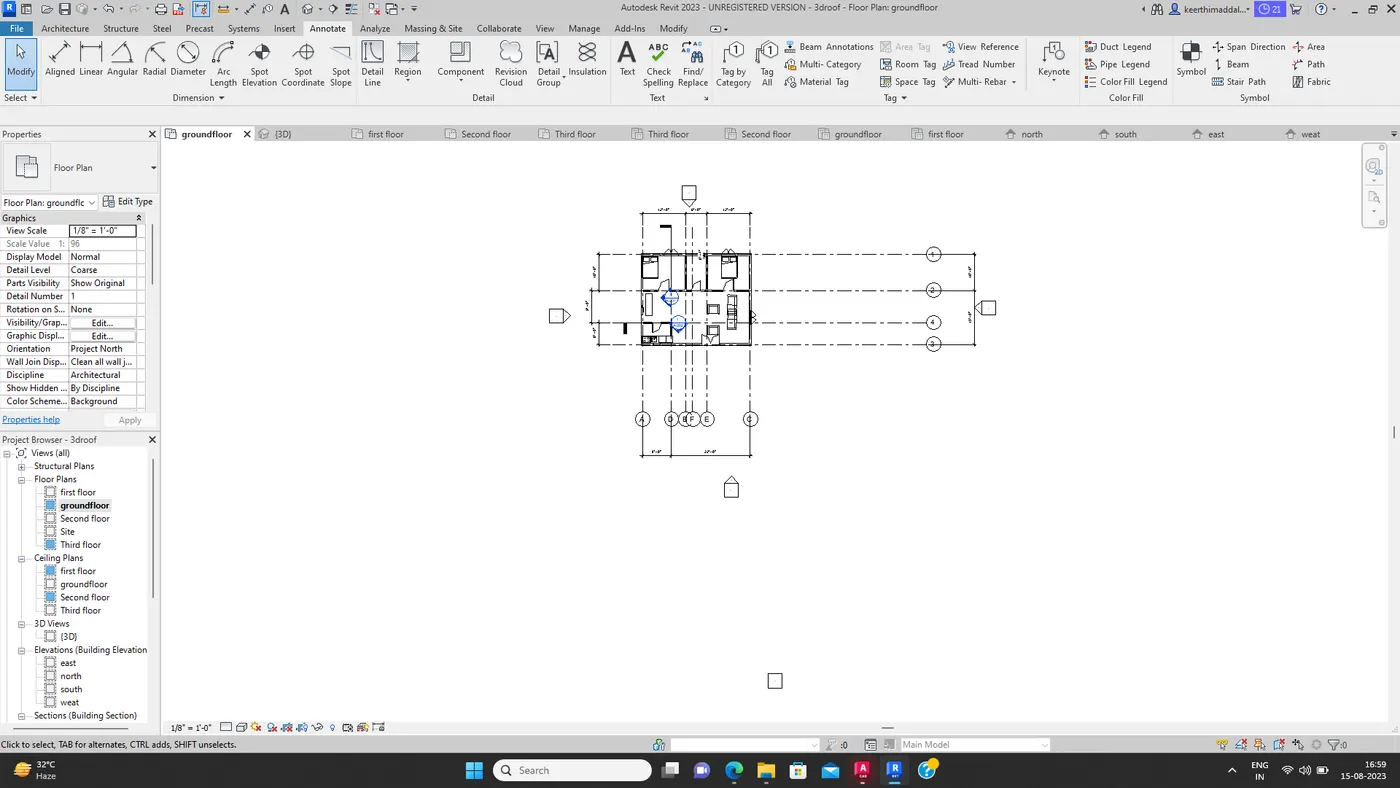

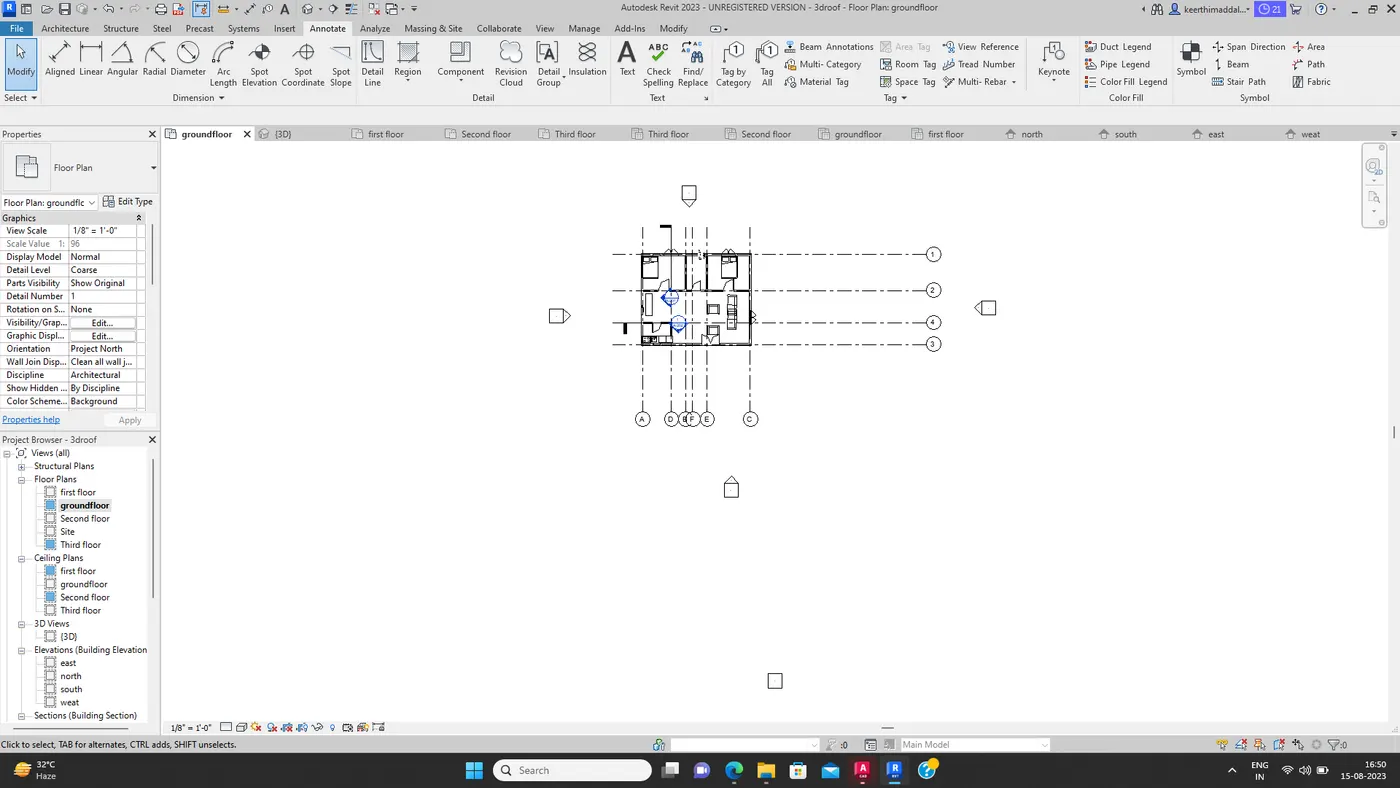

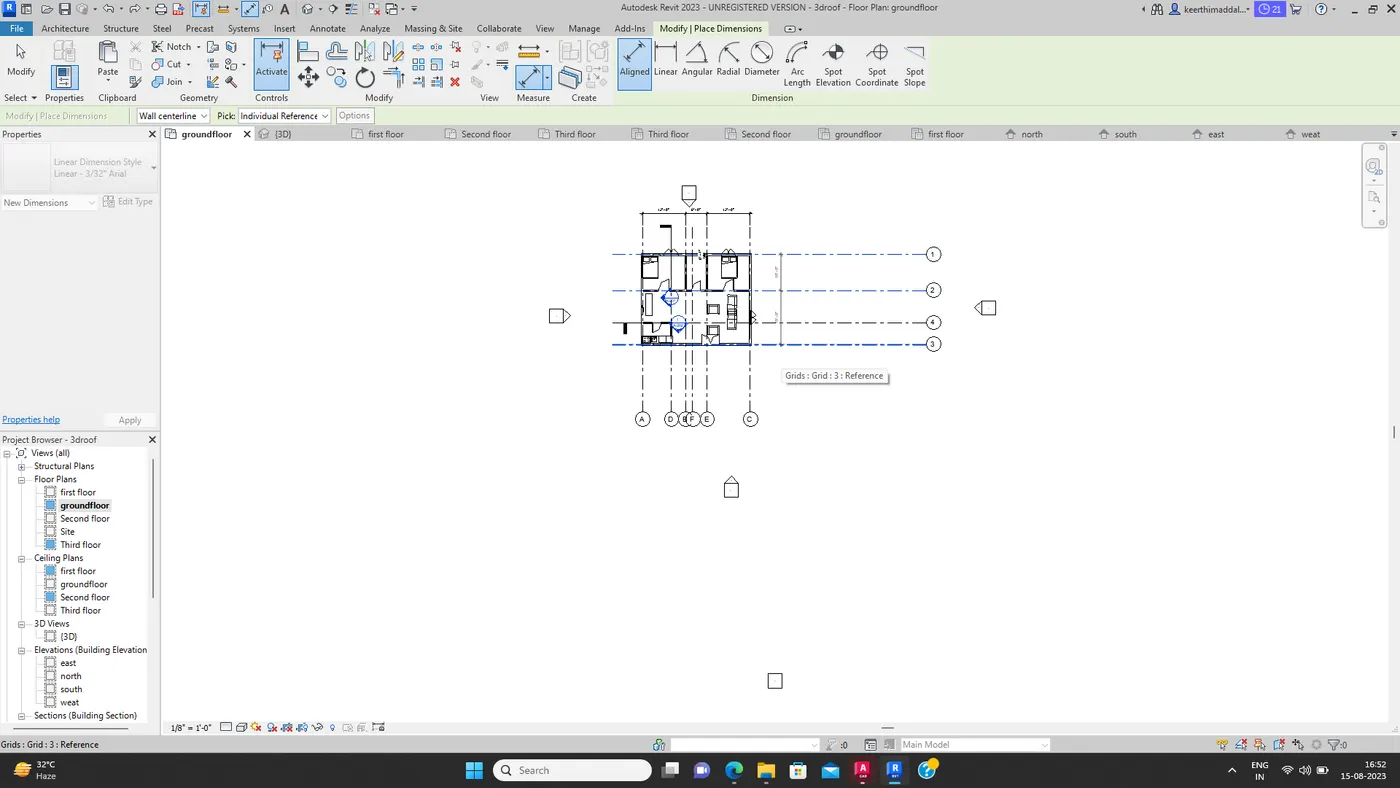

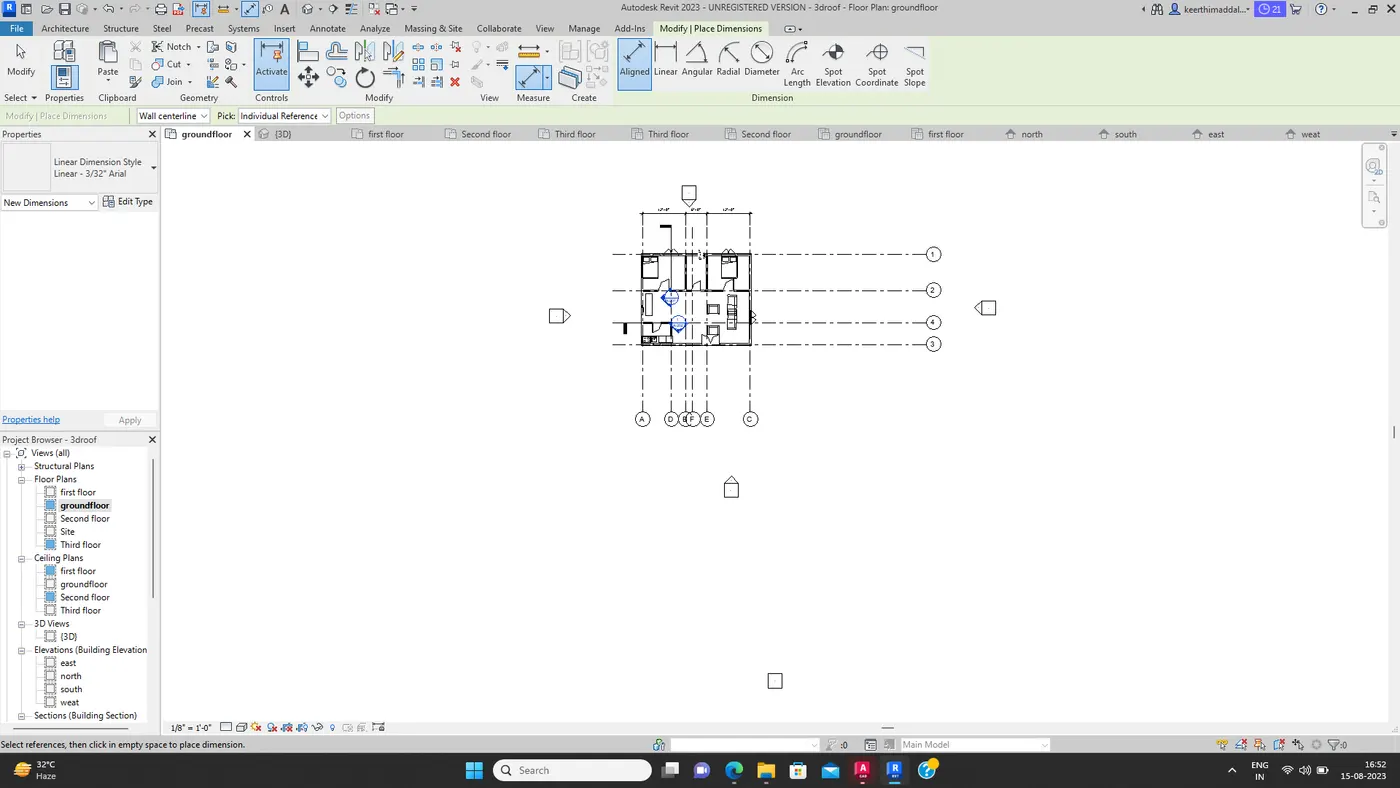

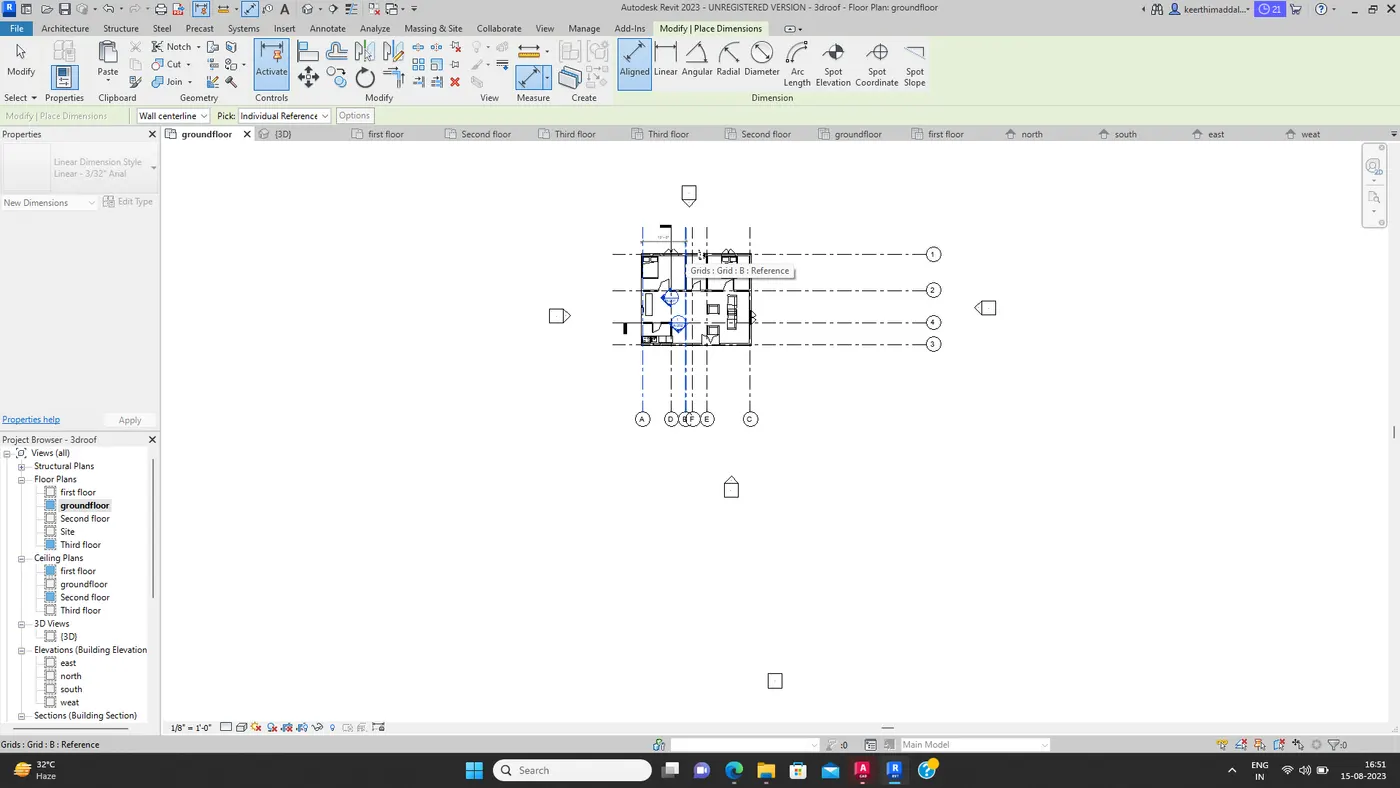

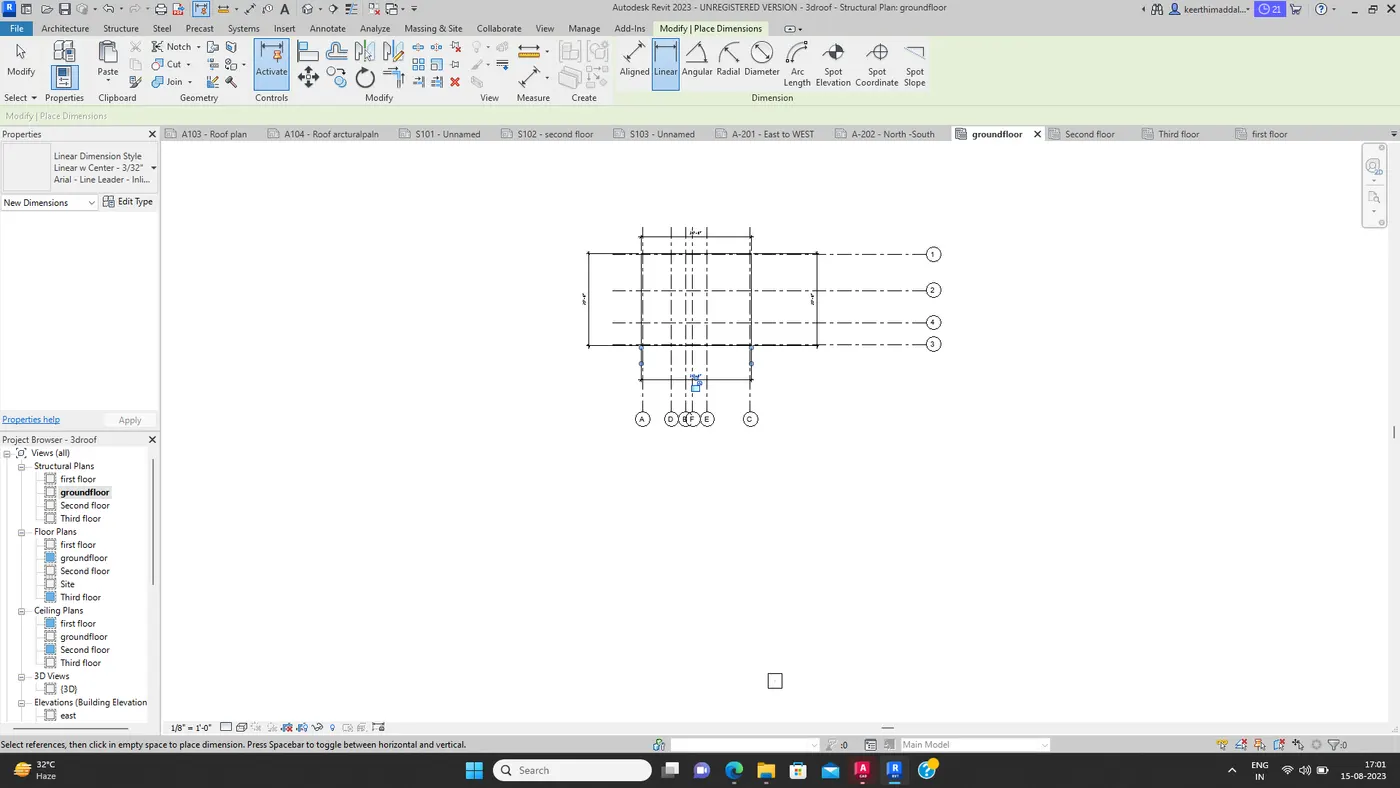

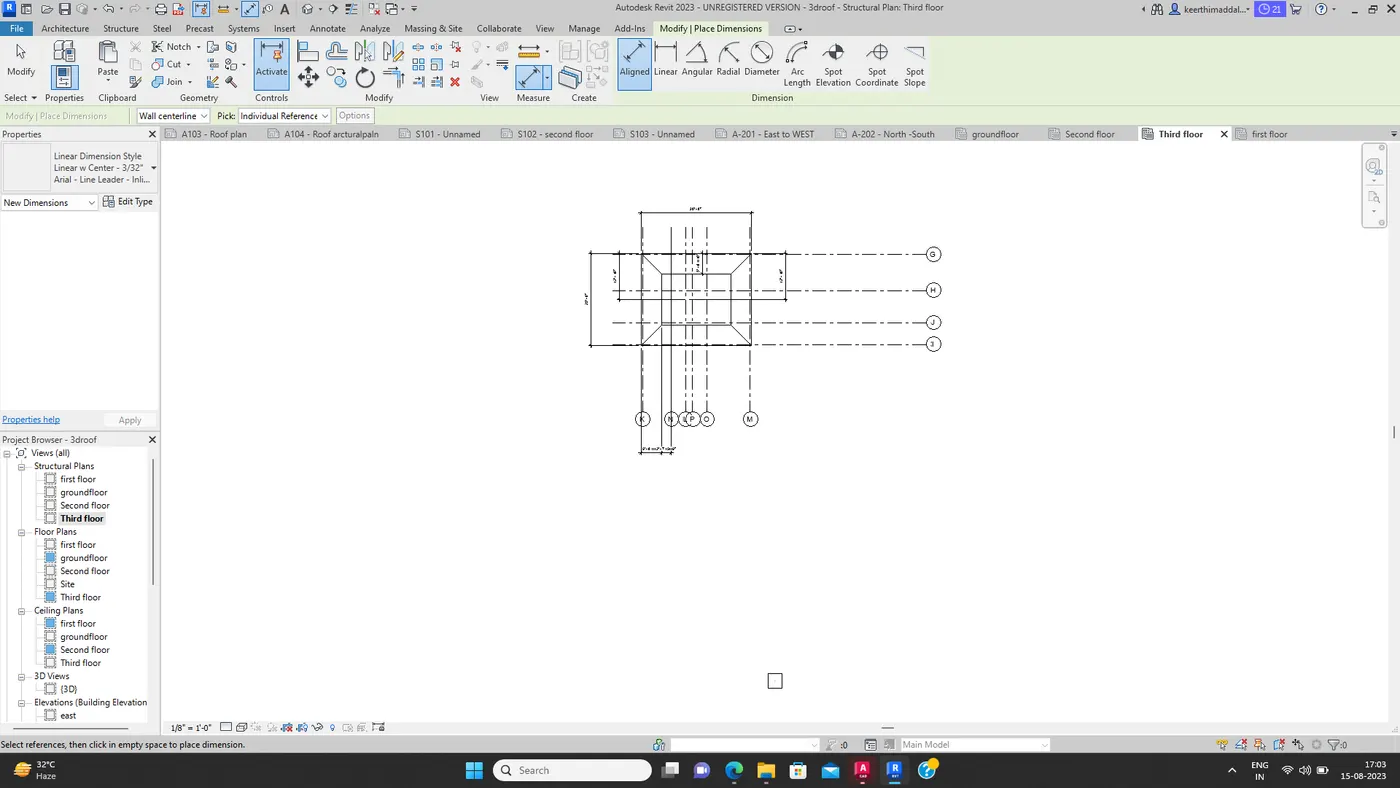

Ans: Go to annotate tab and give dimensions as shown in scrren shot below.
final output
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

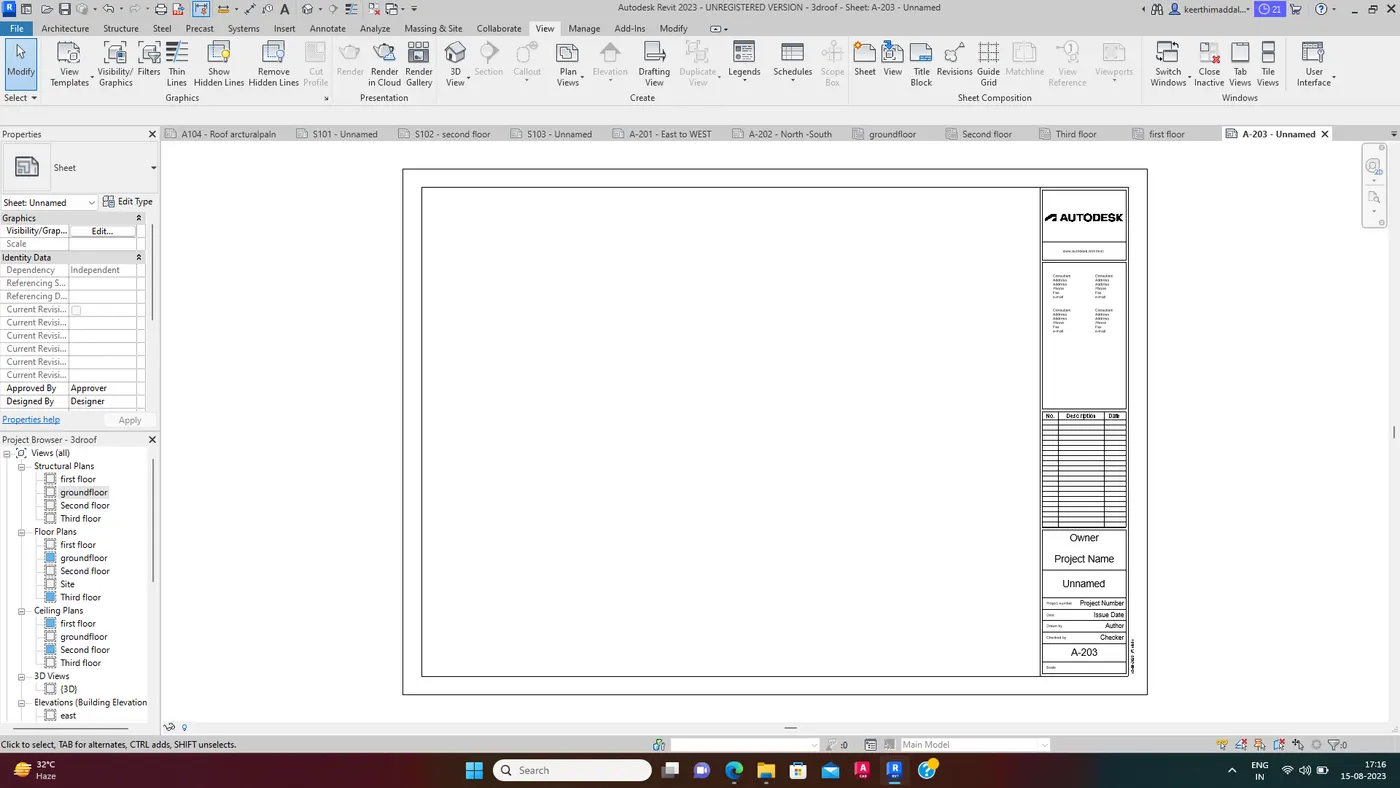

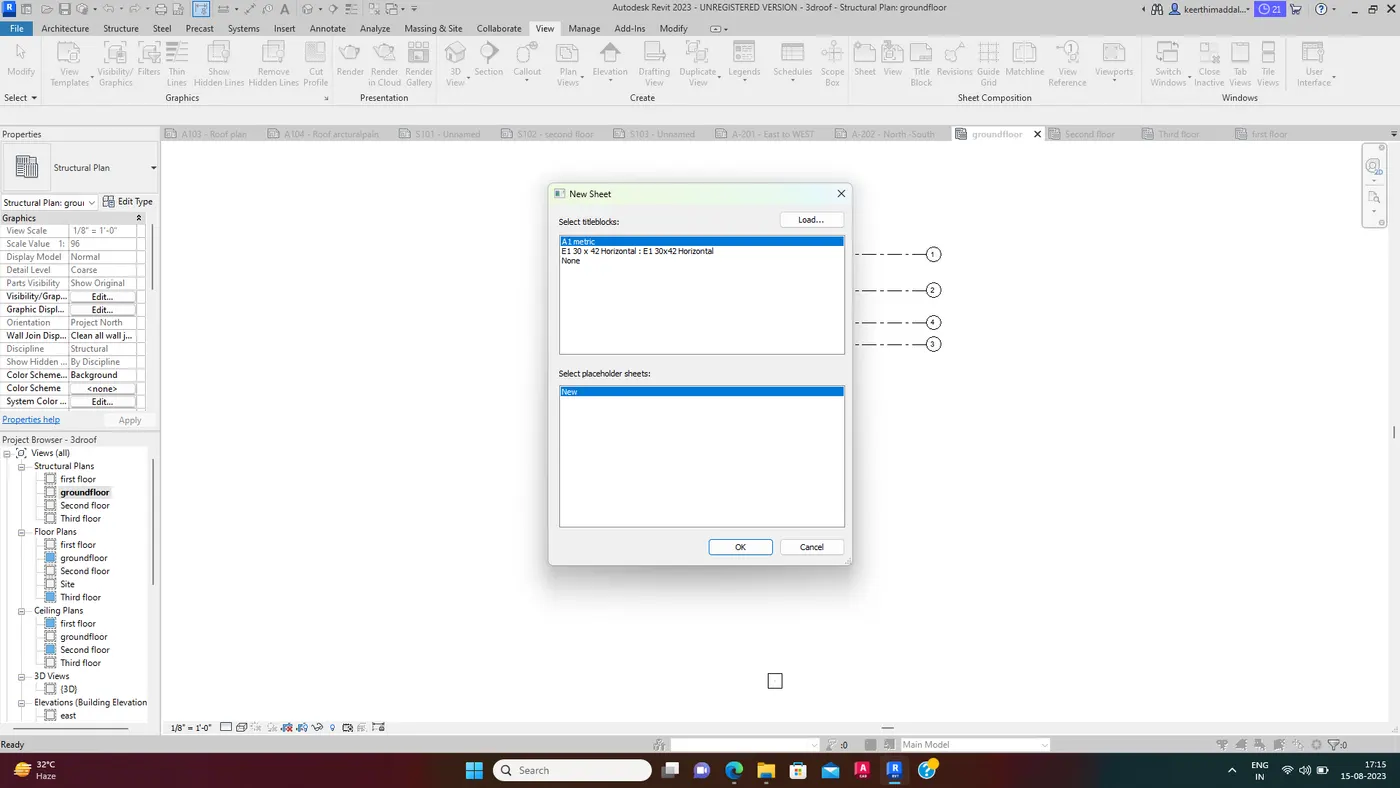

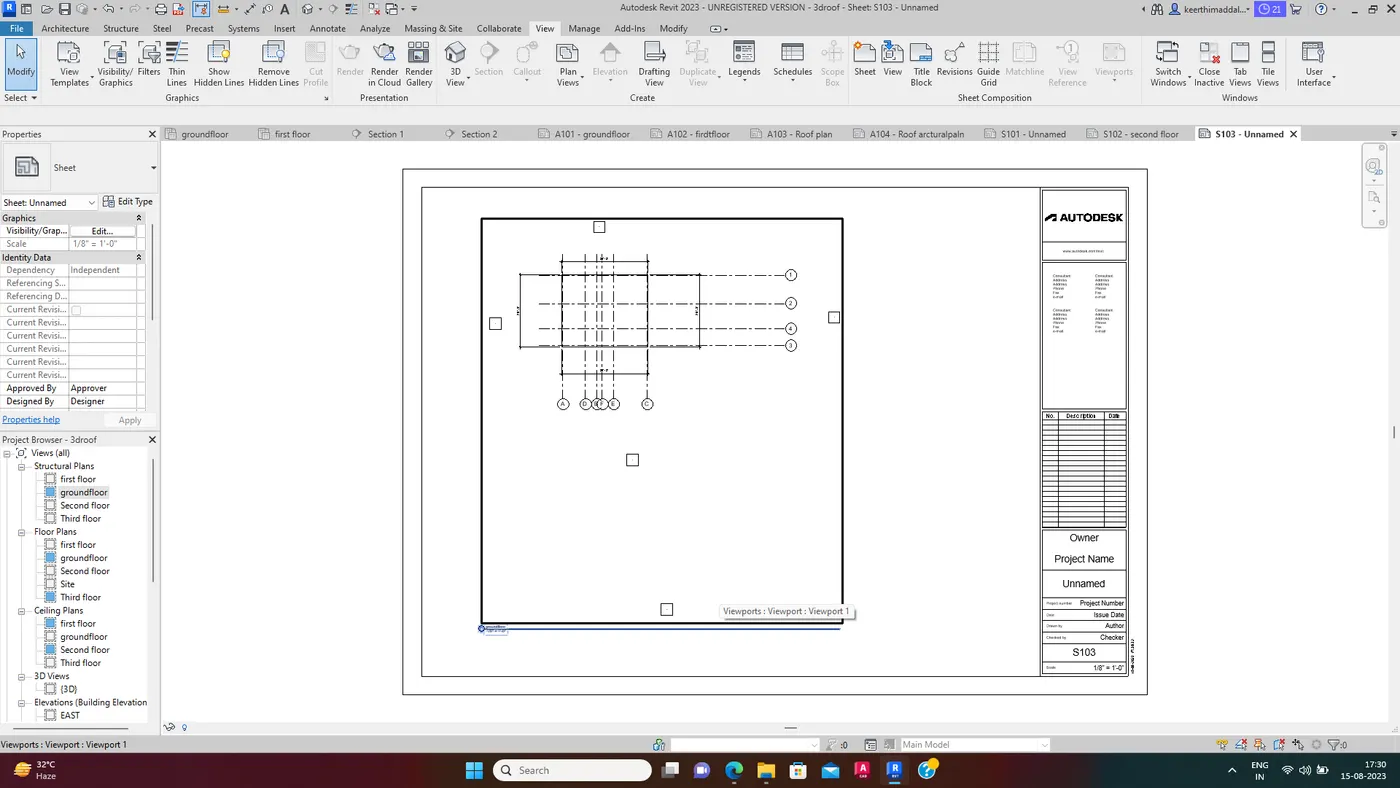

Ans: Go to view tab and click on shhets in riibon and select required sheet and click on ok then appear the sheent asshown in

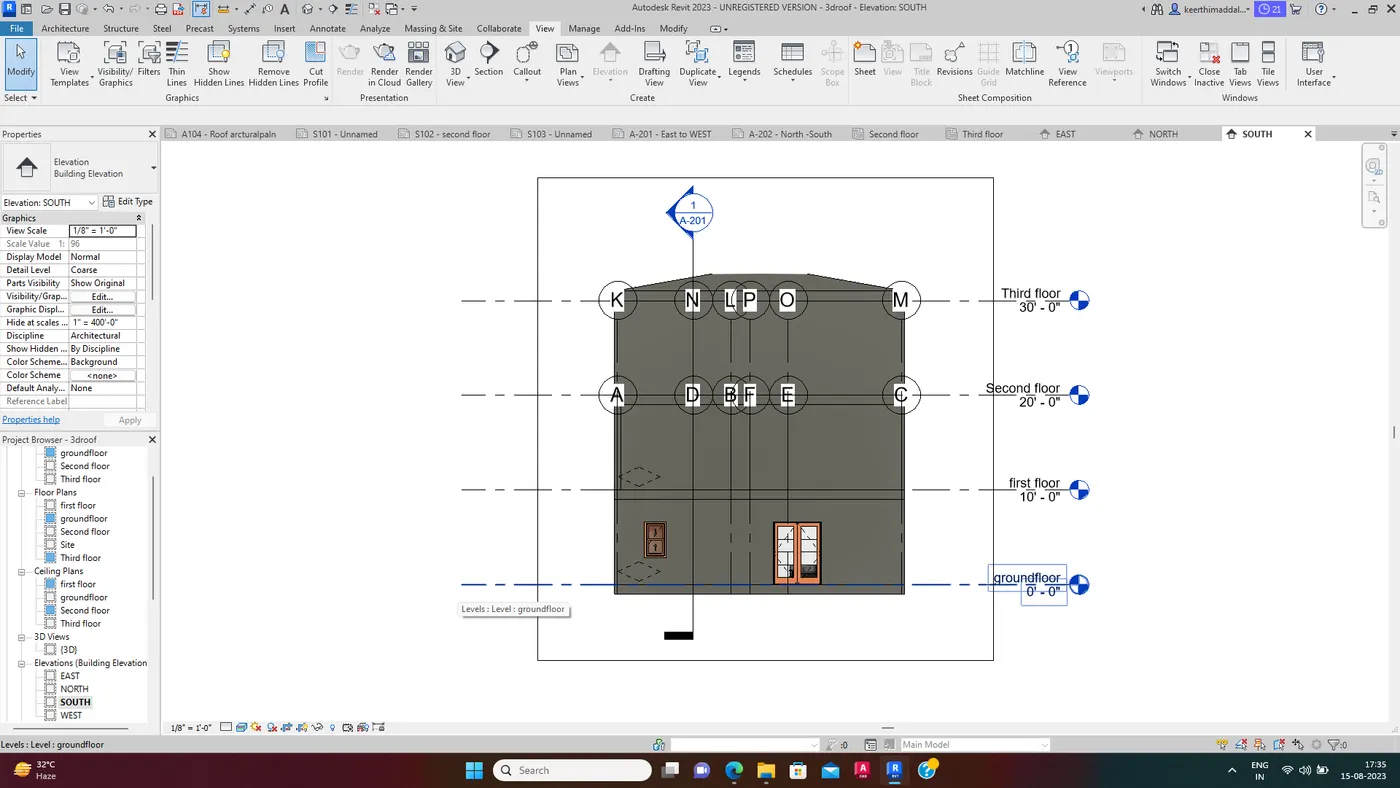

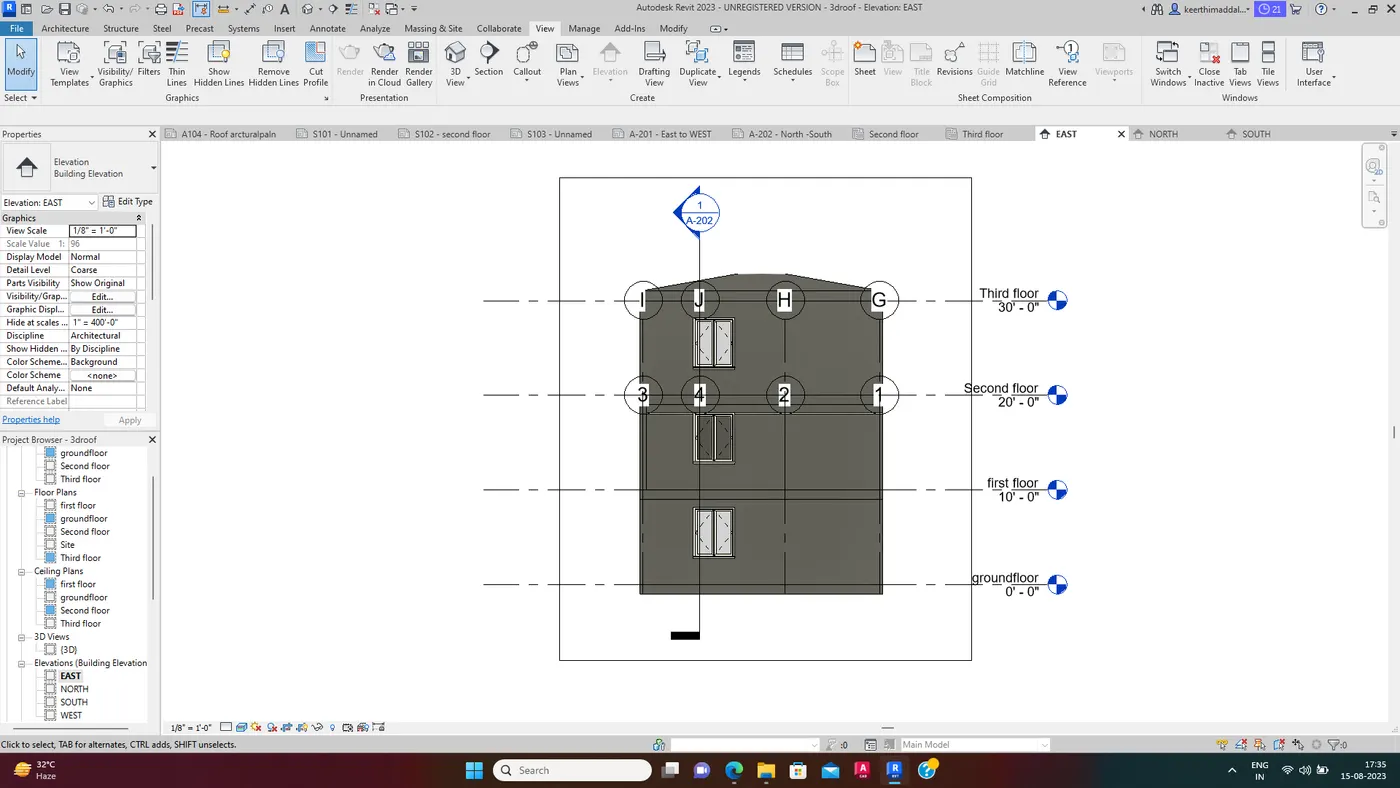

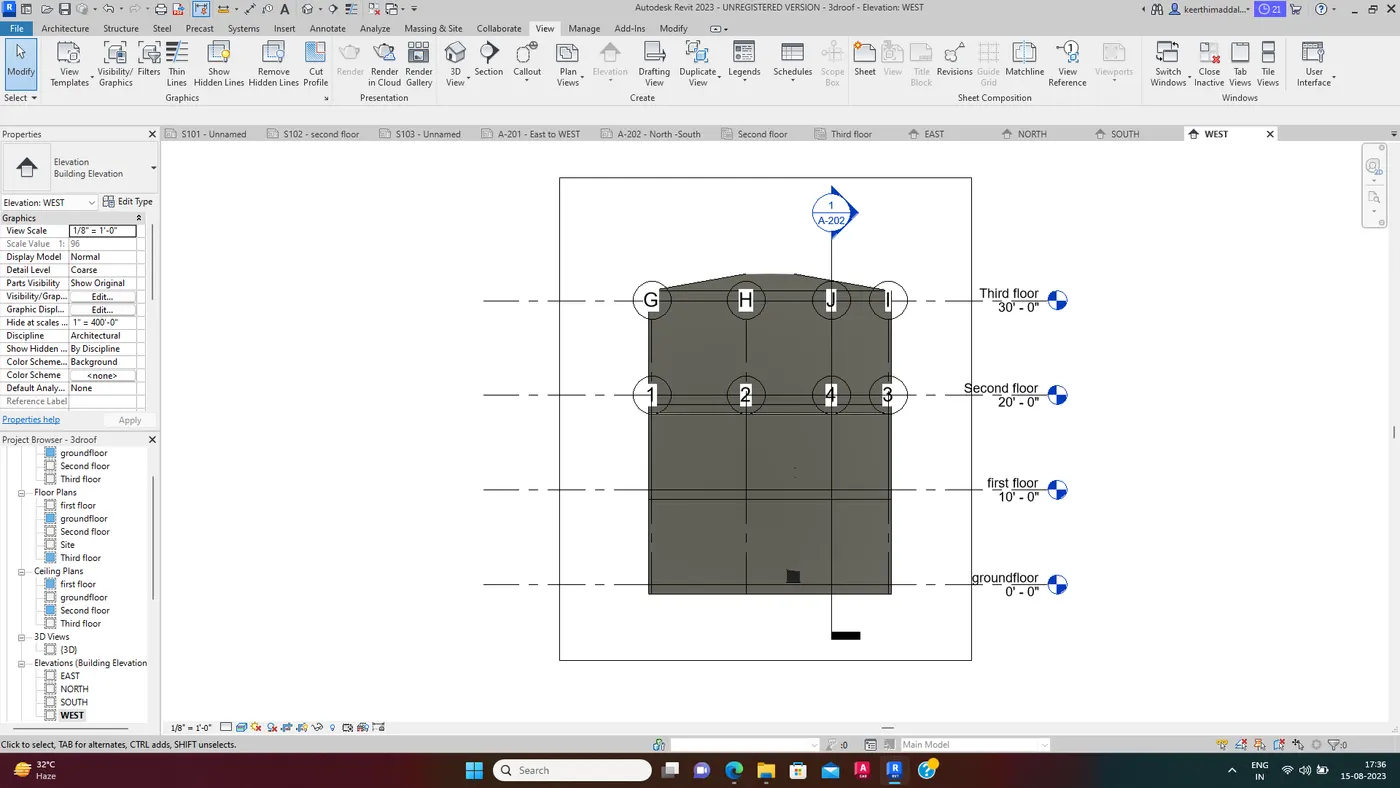

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and WestAns: Detailed explaned as shown in screen shots below

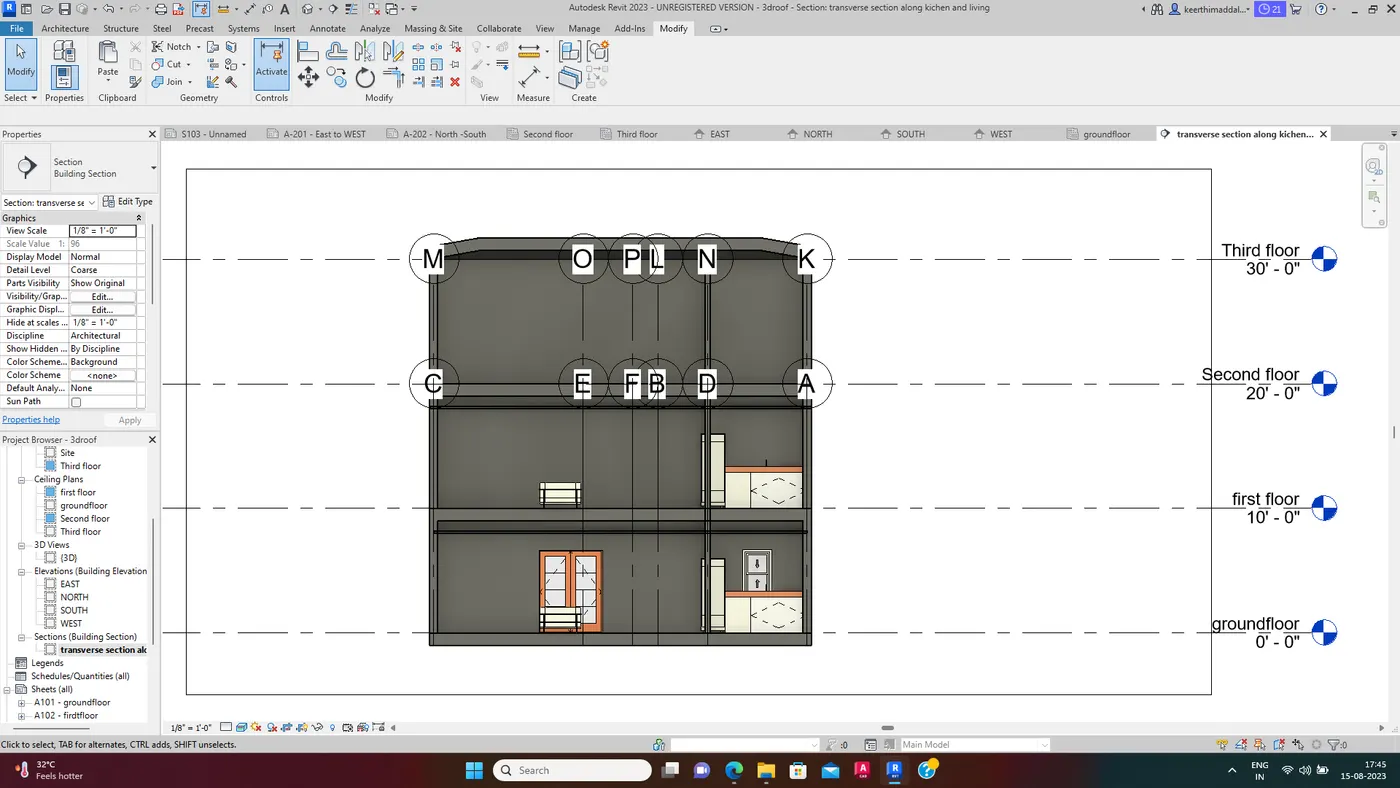

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

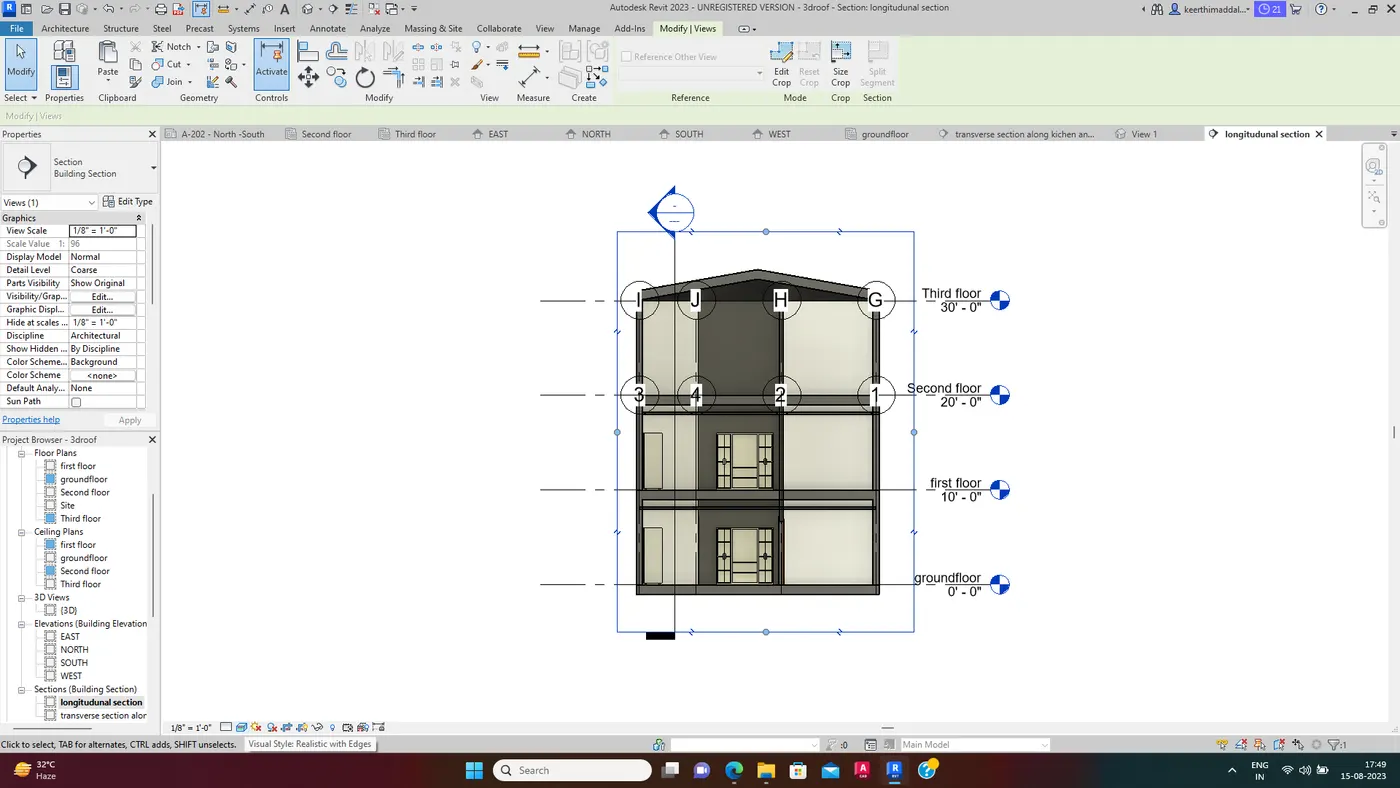

Ans: Go to view Tab and selection seaction mark and draw section as you want as shown in screen shot below.
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Ans :
Aim : to know abow about the sheet setting in revit

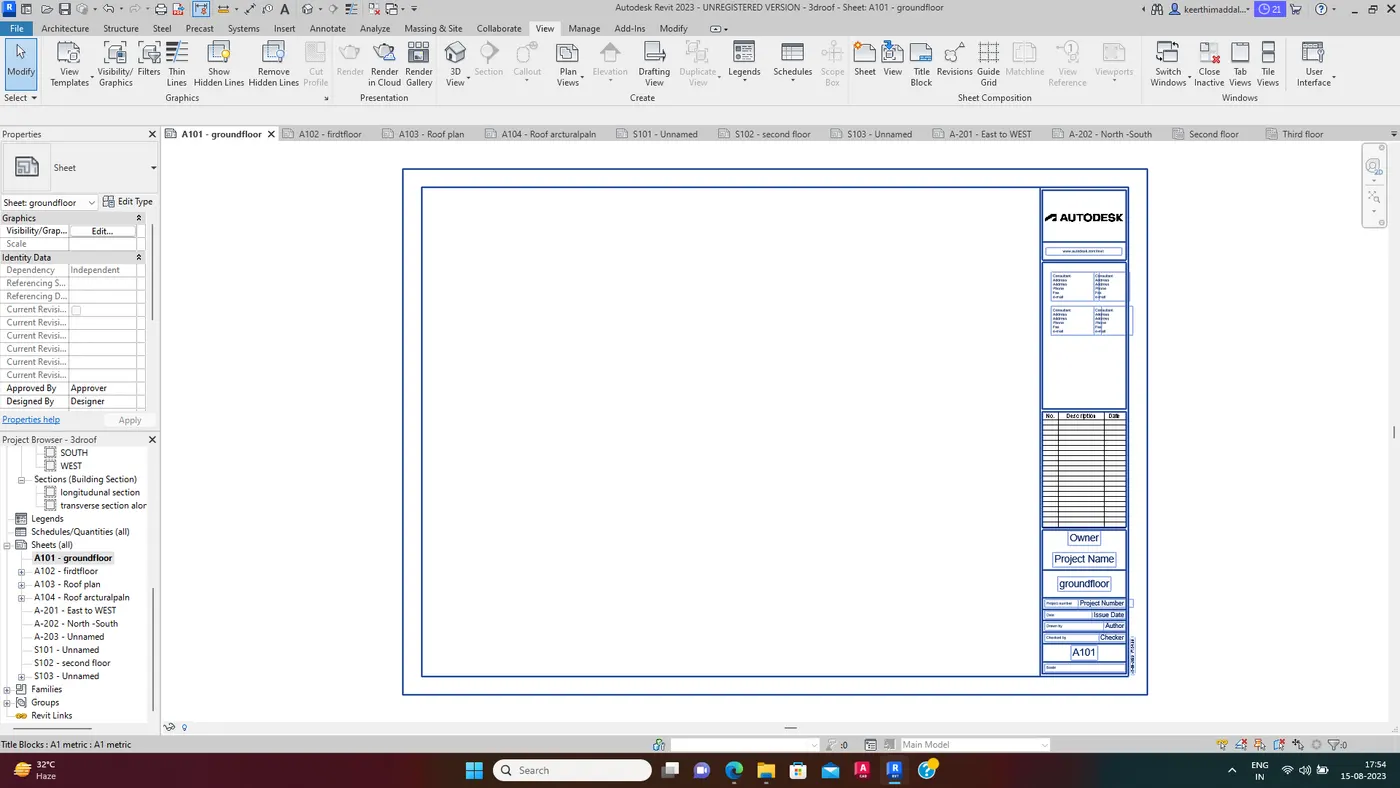

a. A 101- Ground Floor Architecture Plan

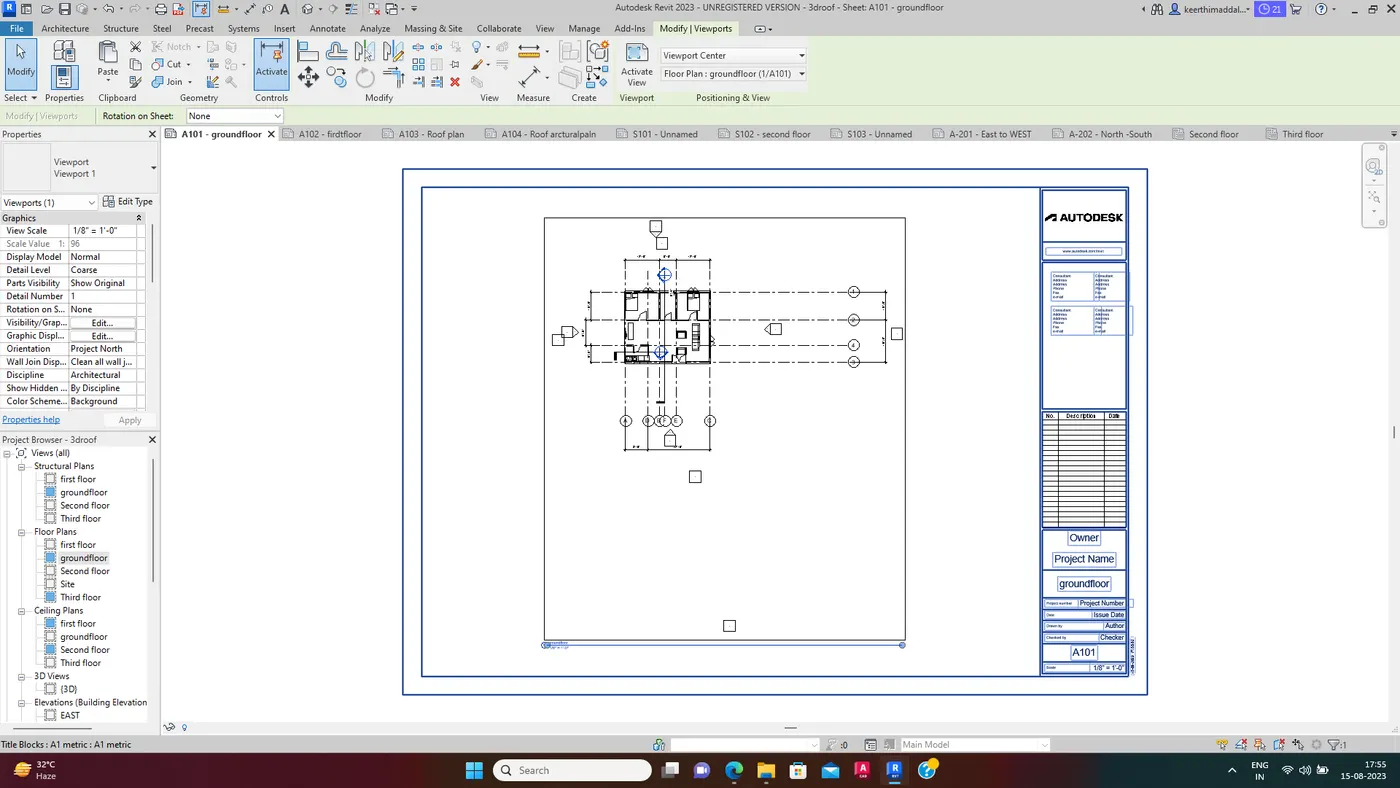

Go to view tab and select sheet icon in ribbon and select the sheet asyou want and click ok
The sheet appears on the revit screen.anad drag the palns as you want in the sheet as shown in screemn shot below.

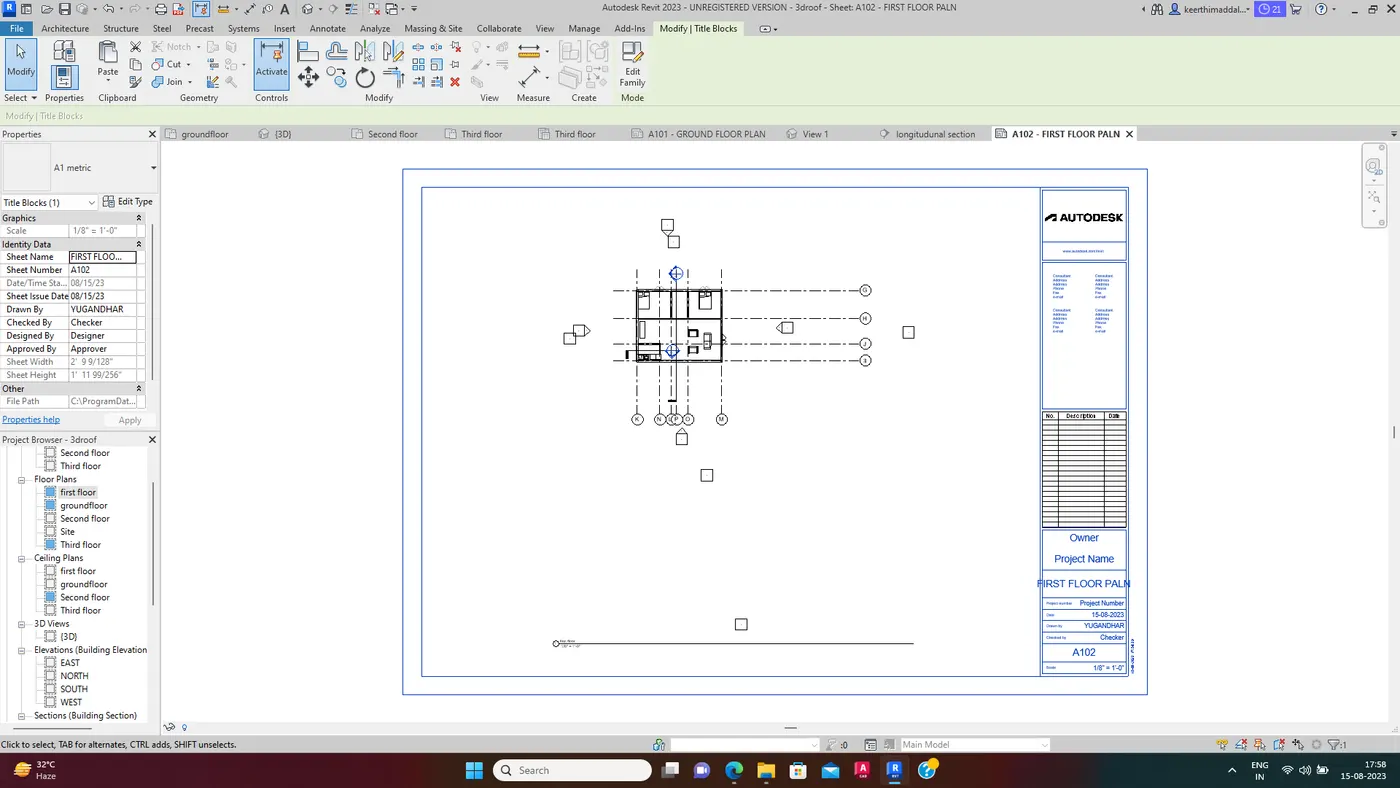

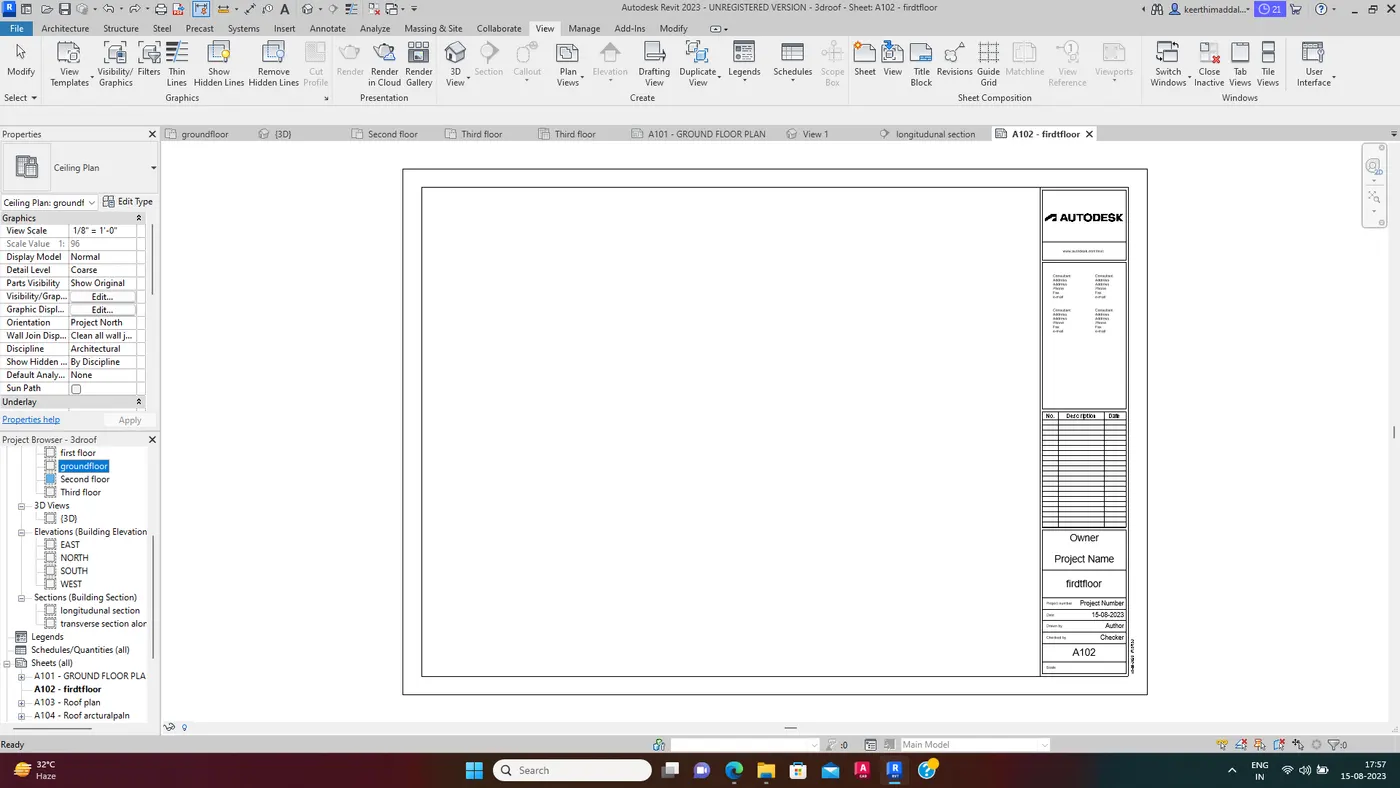

A 102- First Floor Architecture Plan
Steps follow as shown for ground floor sheet athen final final output came like this.
c. A 103- Second floor plan

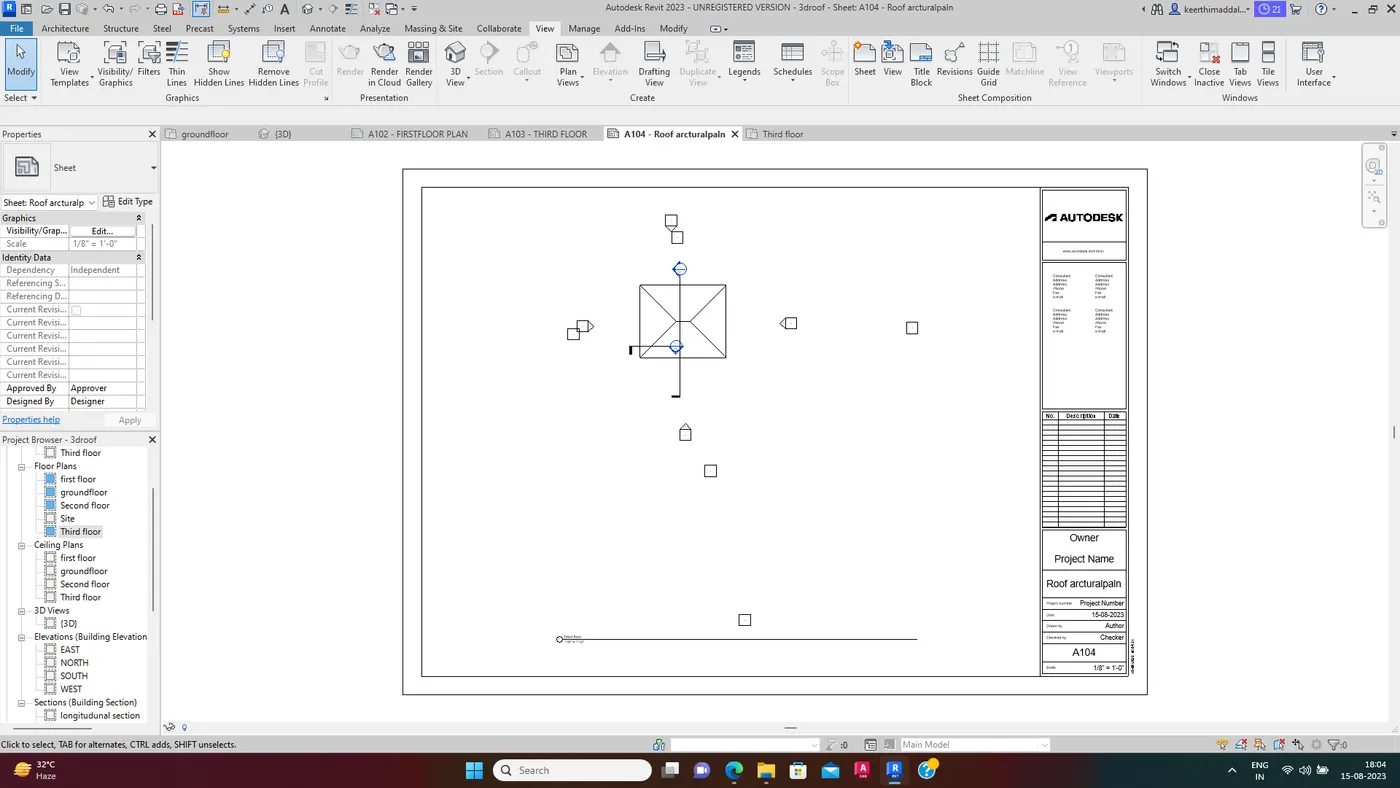

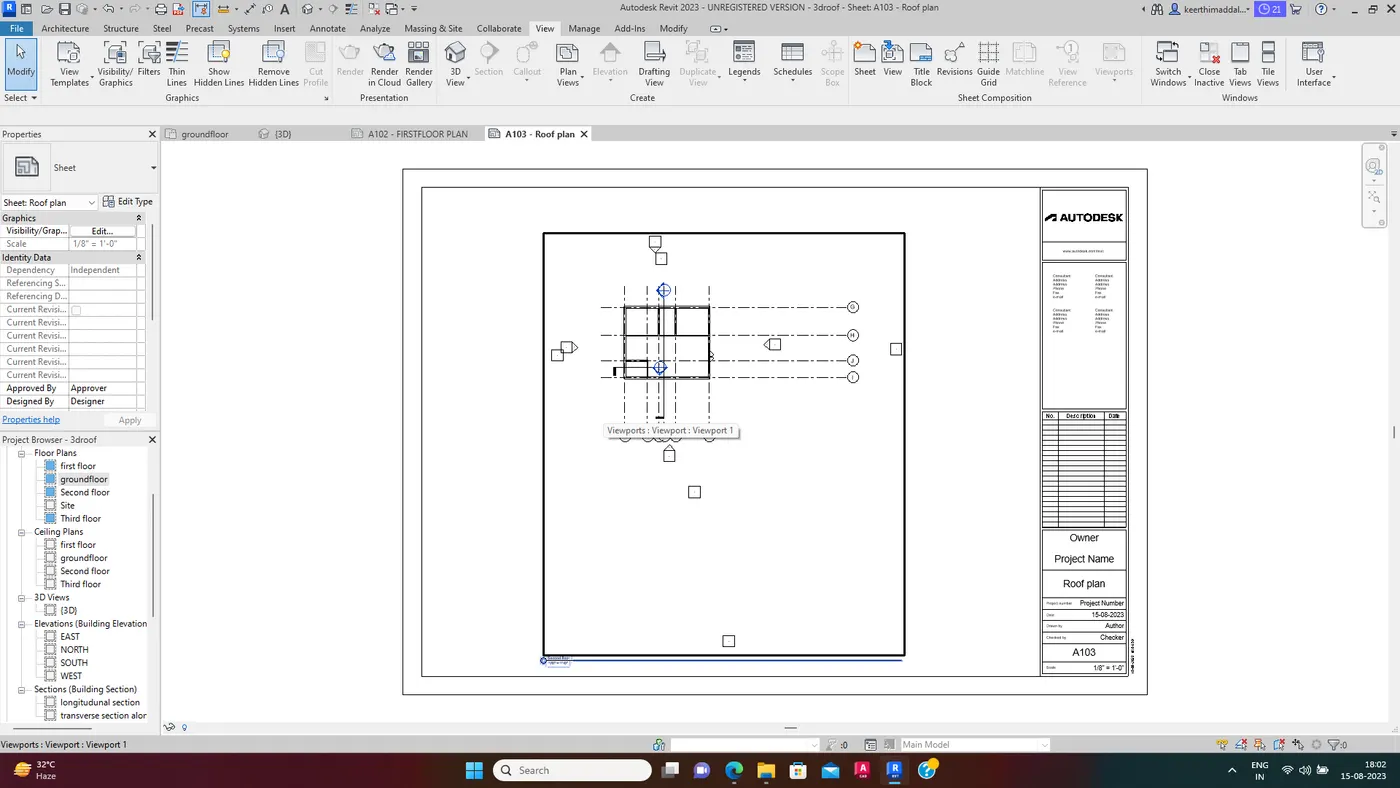

A-104 Roof plan

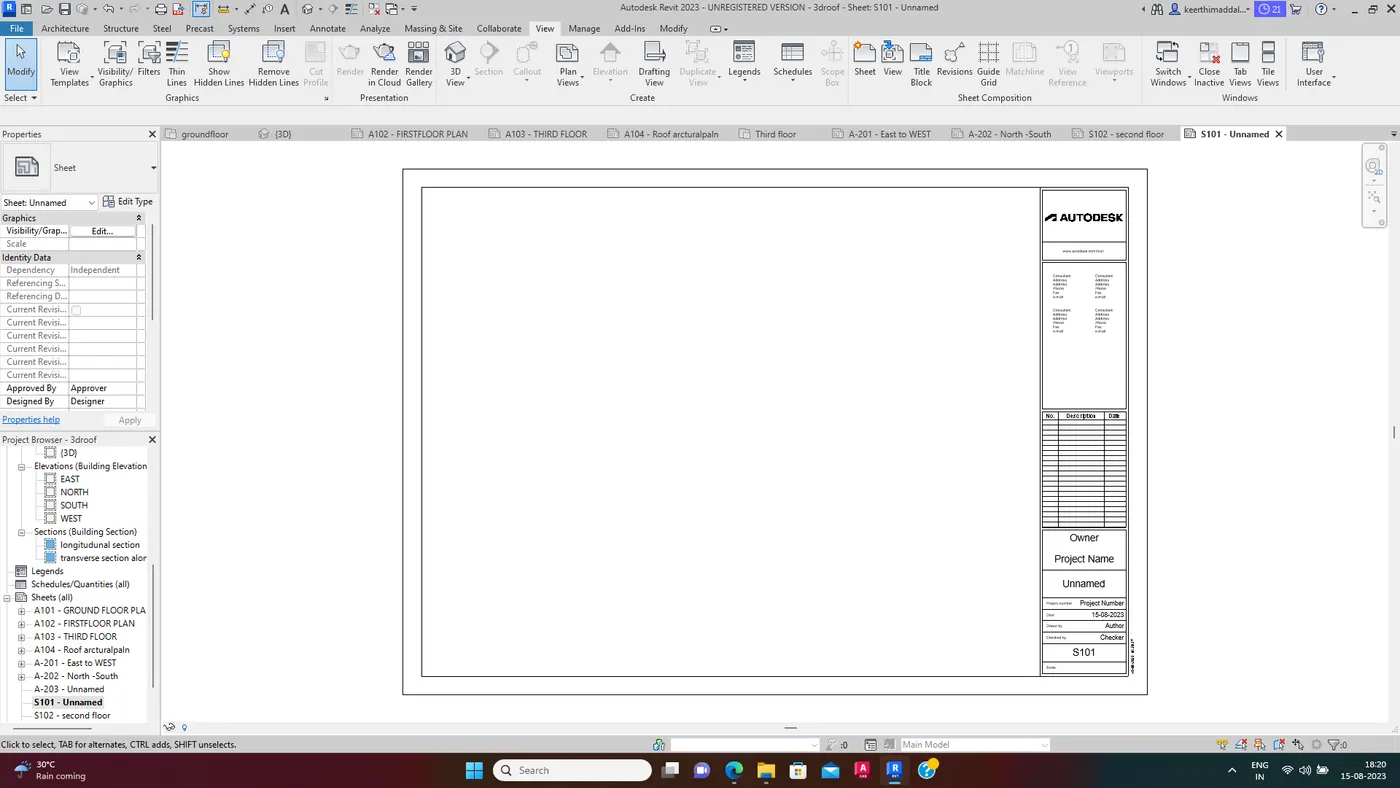

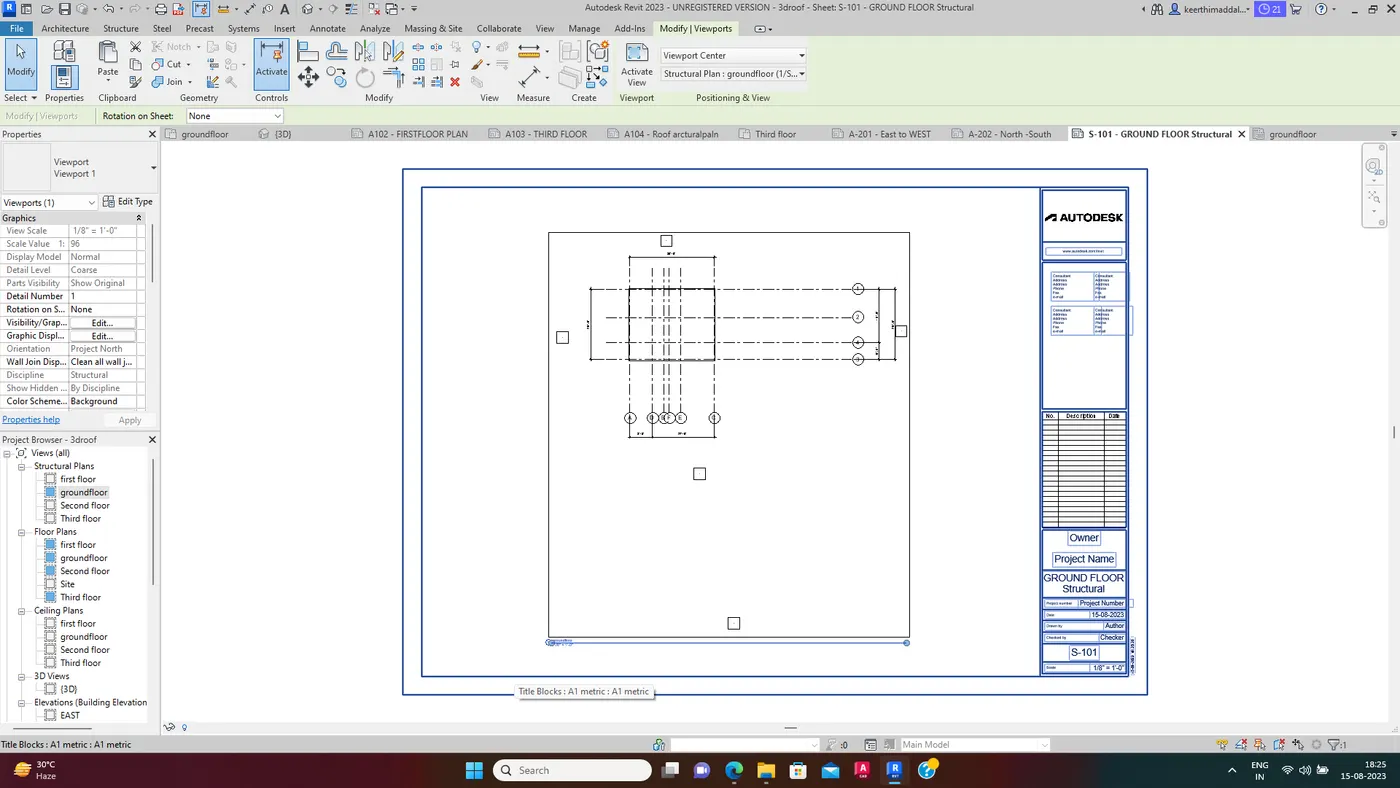

S-101 ground floor structural plan

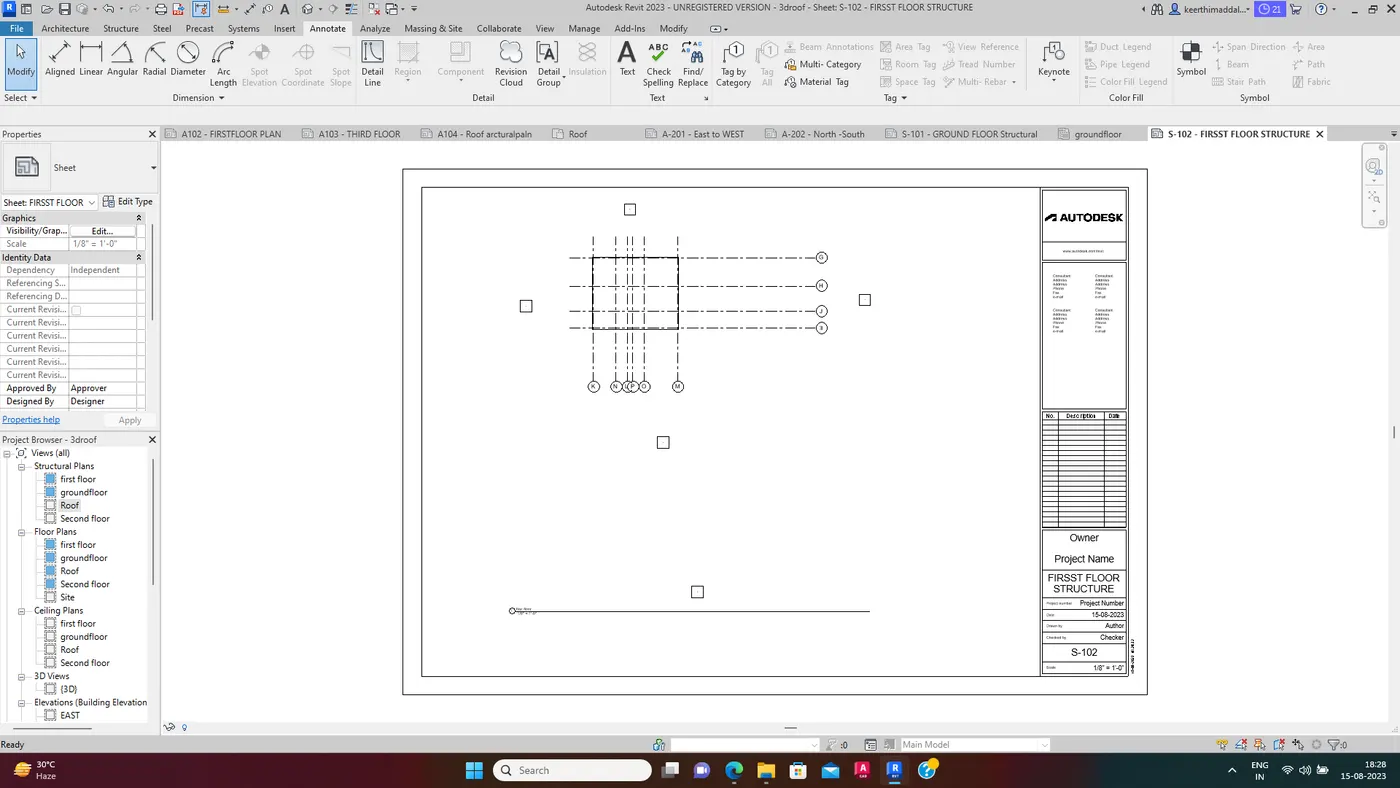

S-102 First floor structural plan

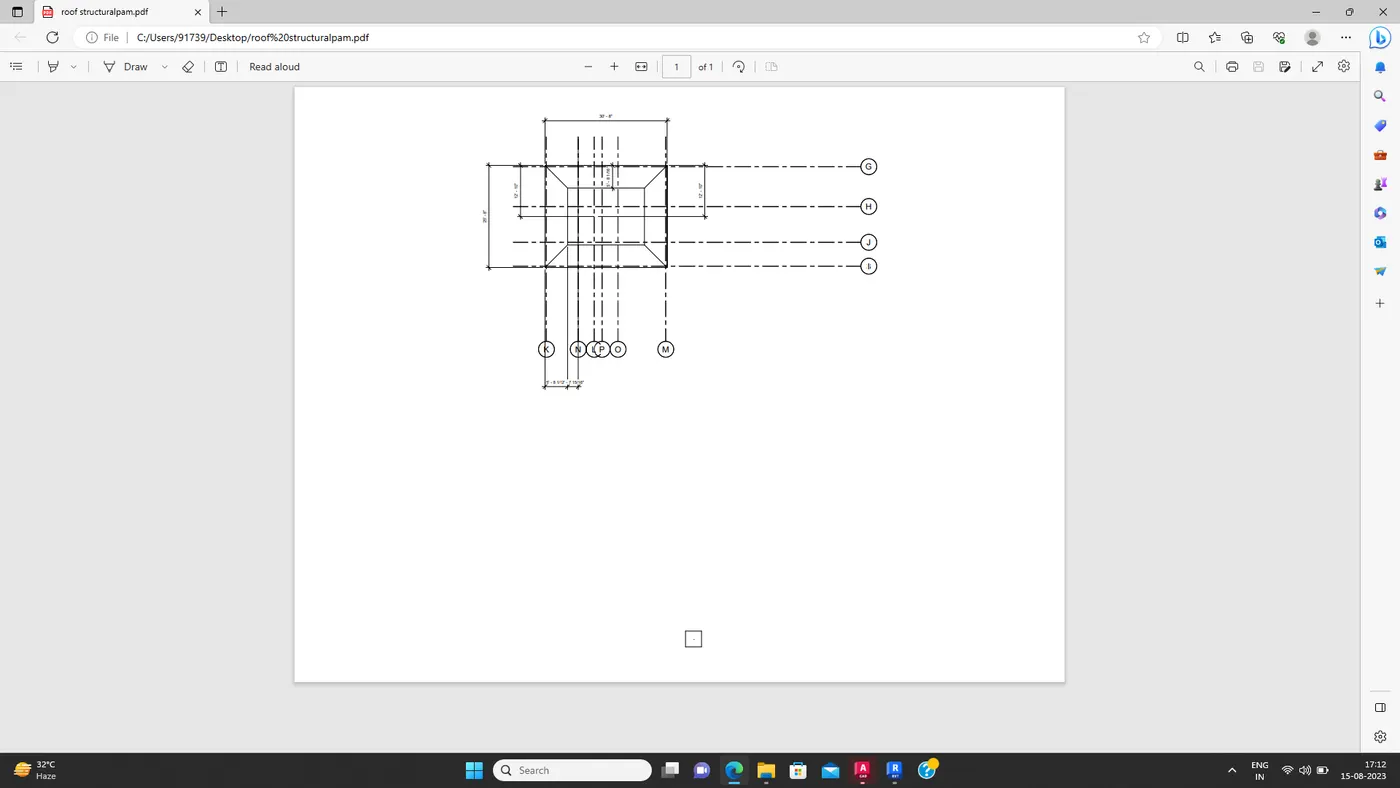

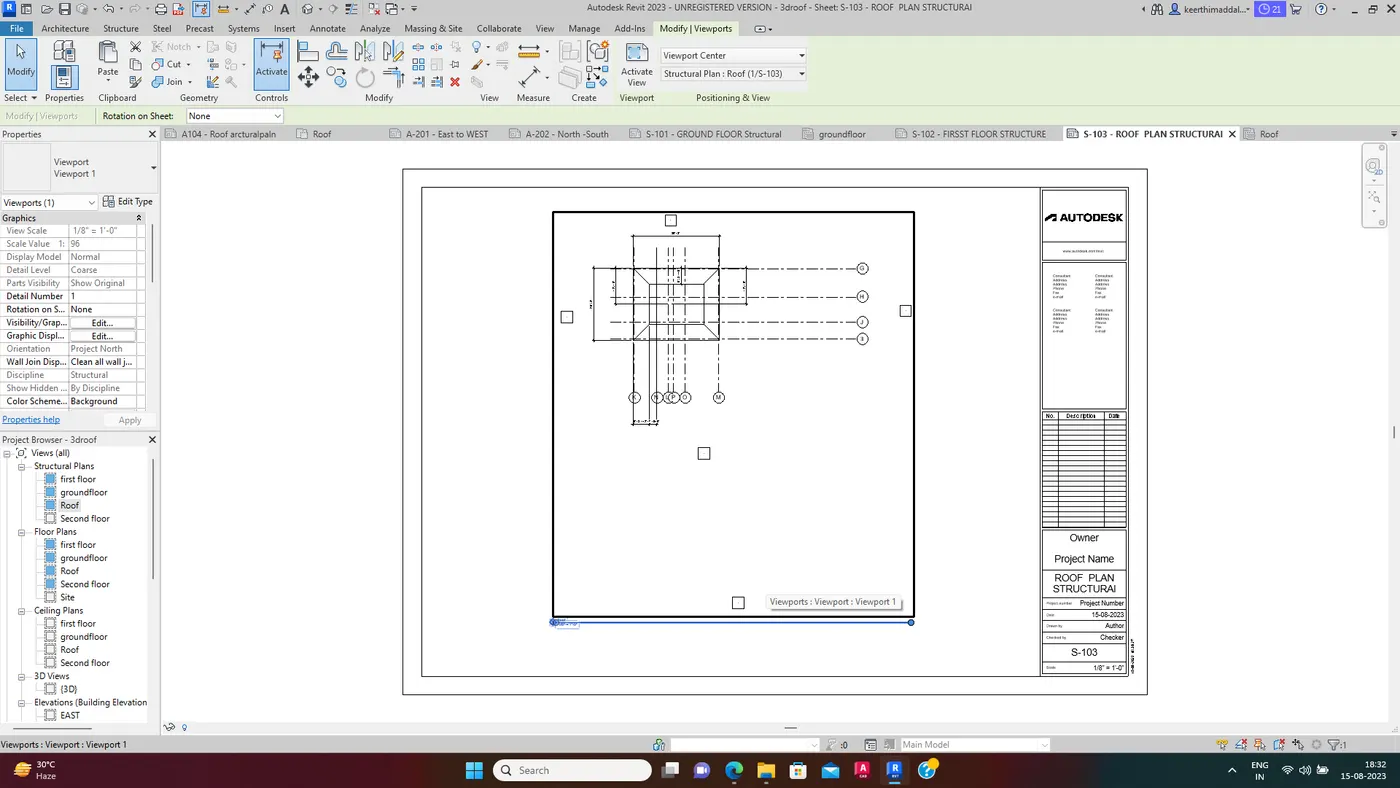

S-103 Roof structural plan

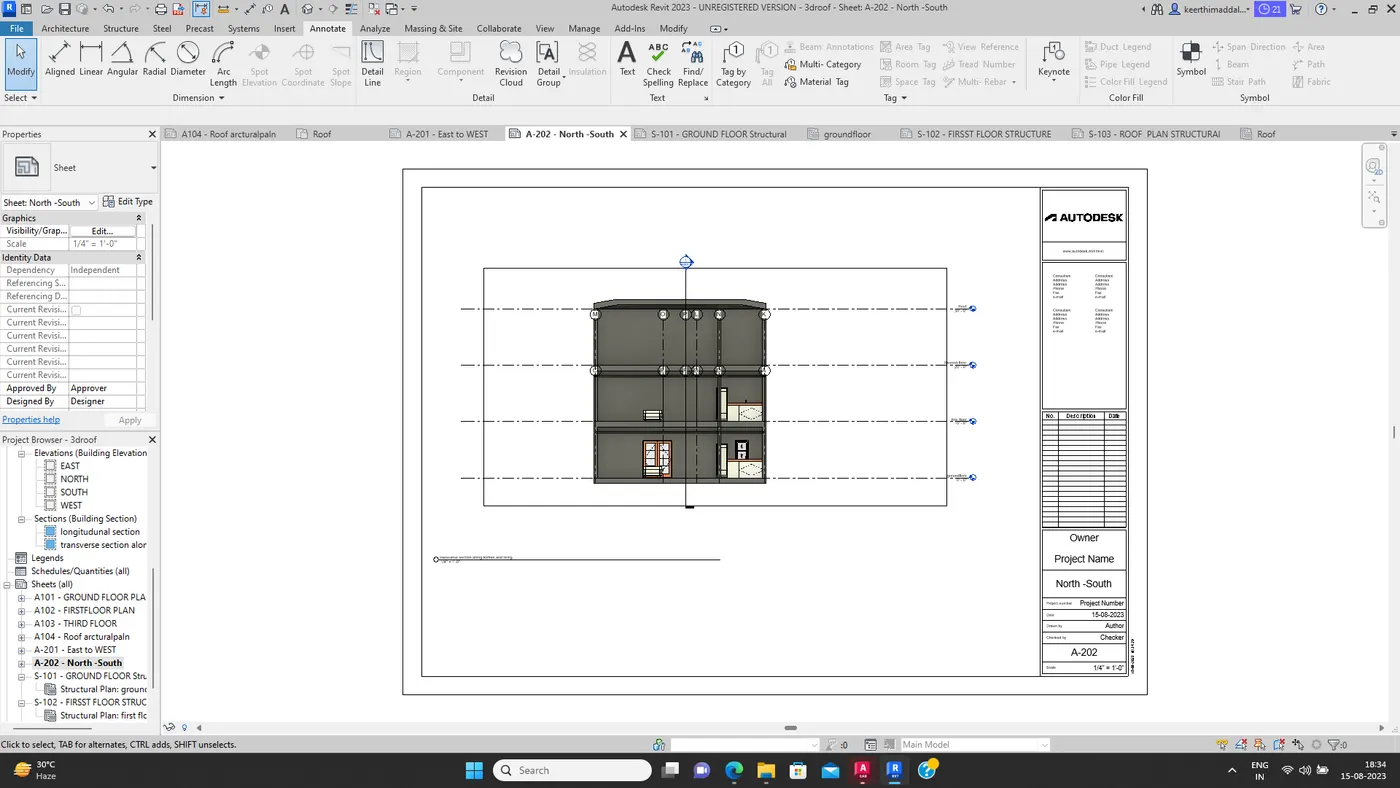

A-202- North-South Elevations

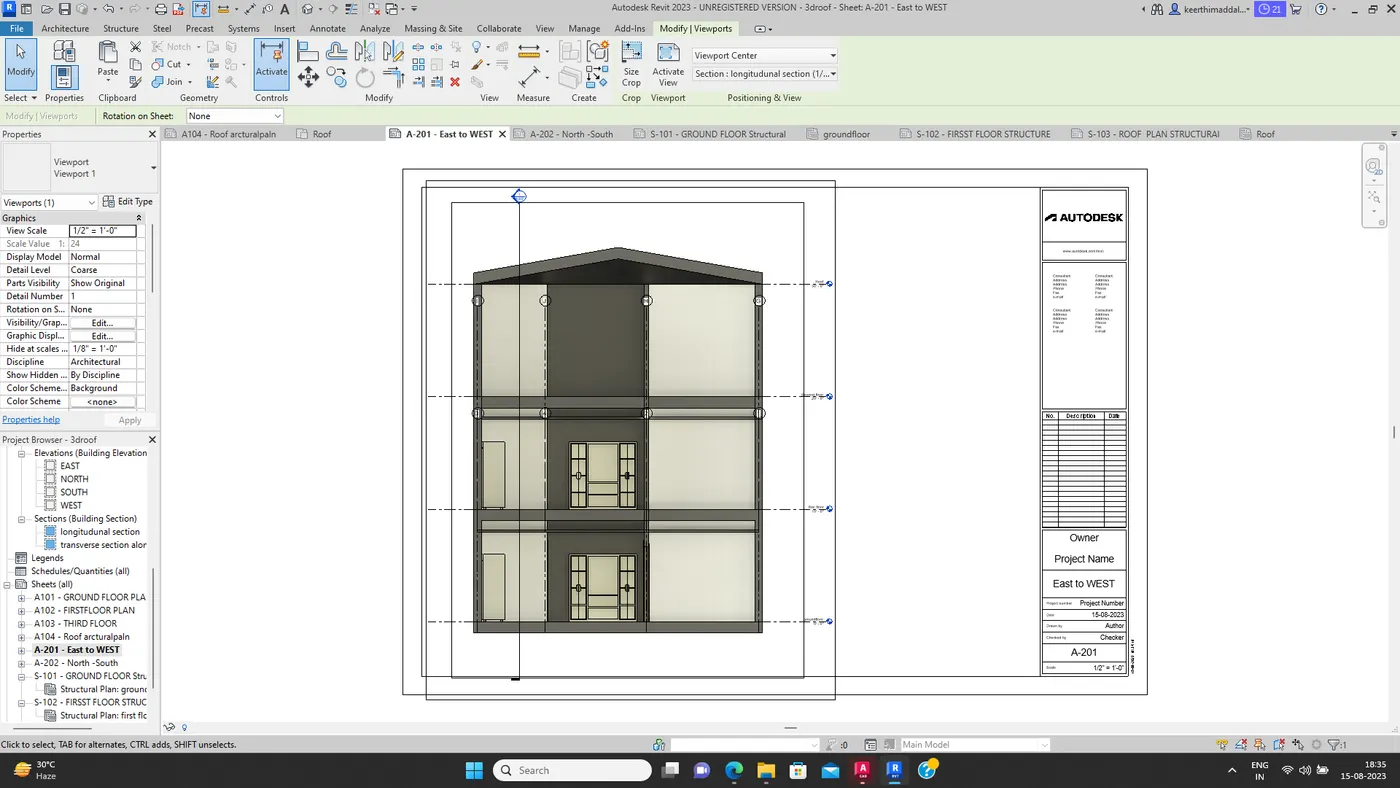

h. A-201- East-West Elevations

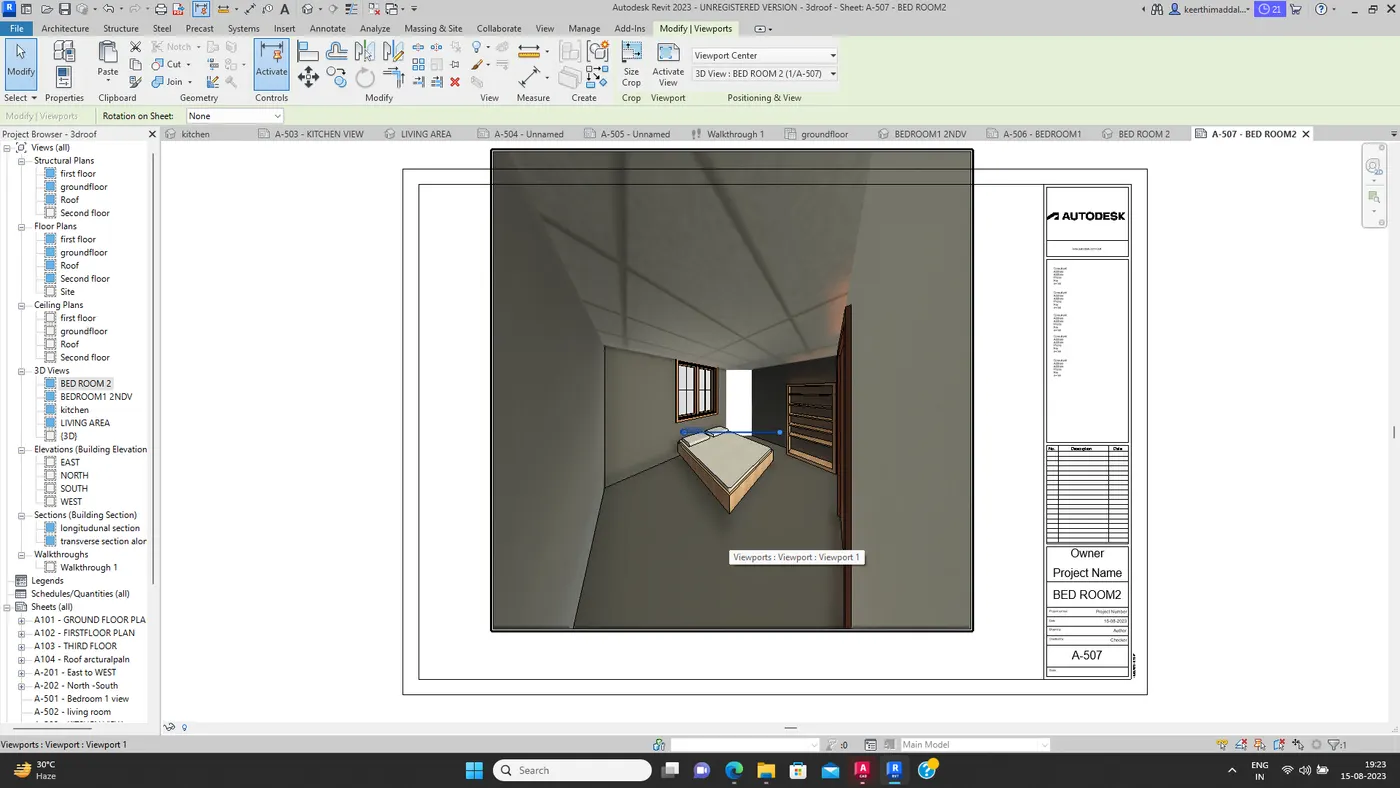

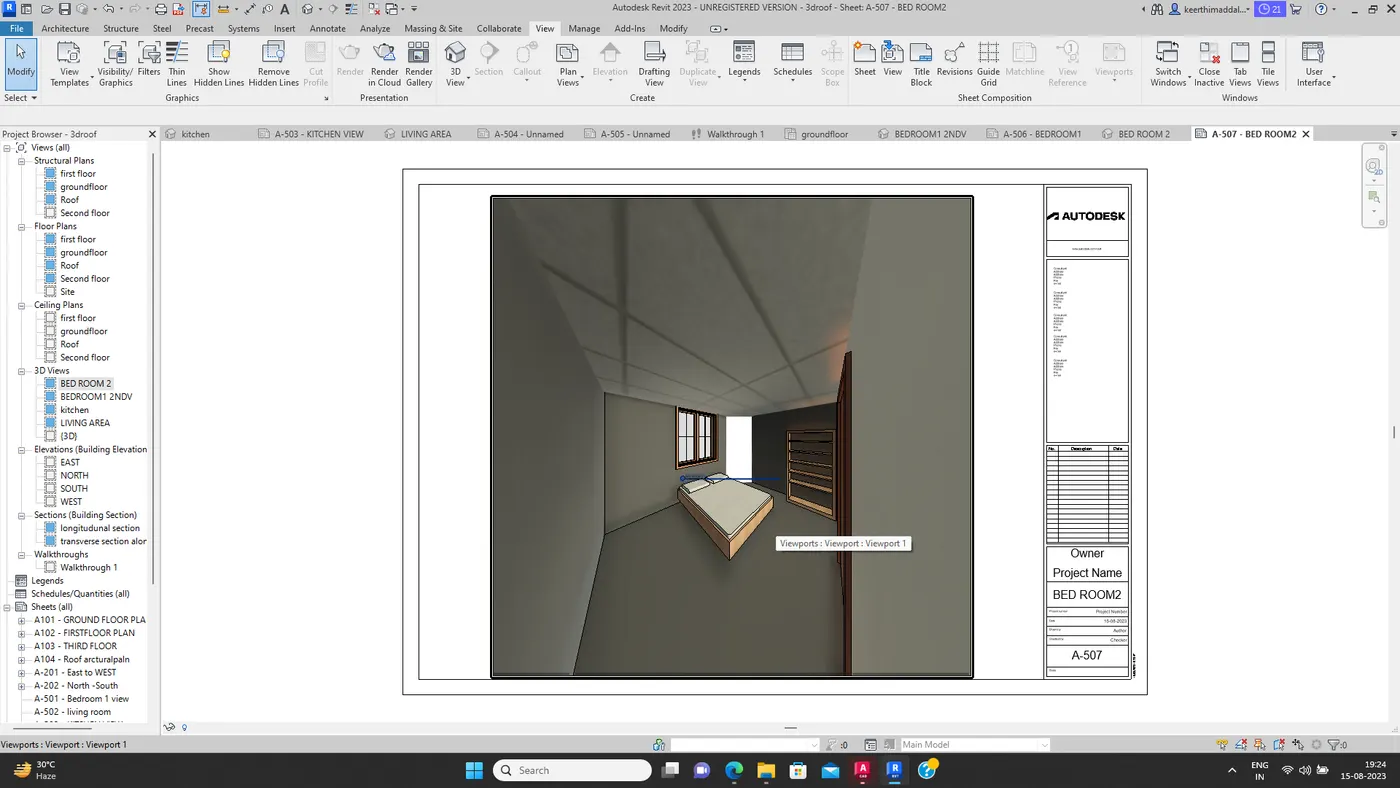

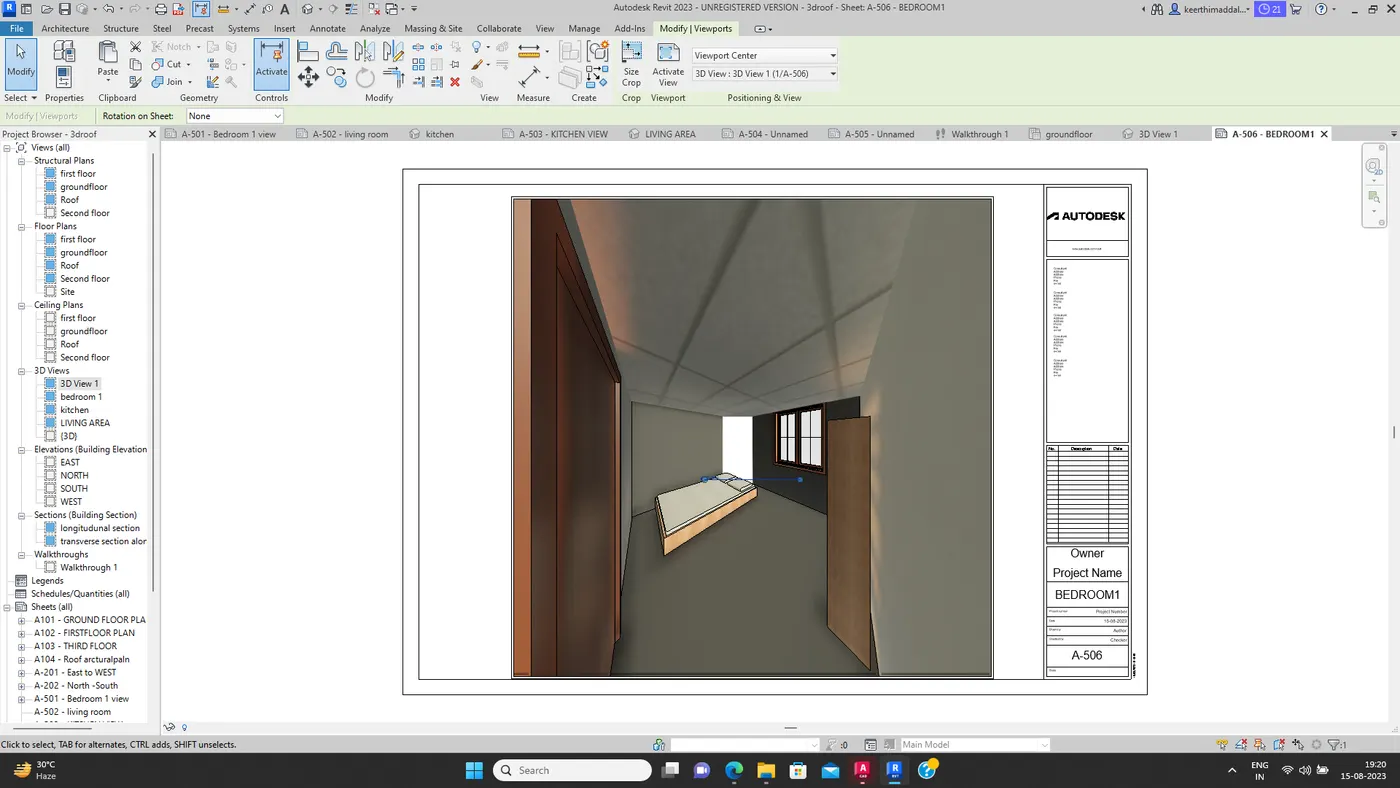

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce sheets as a part of project drafting
Ans:

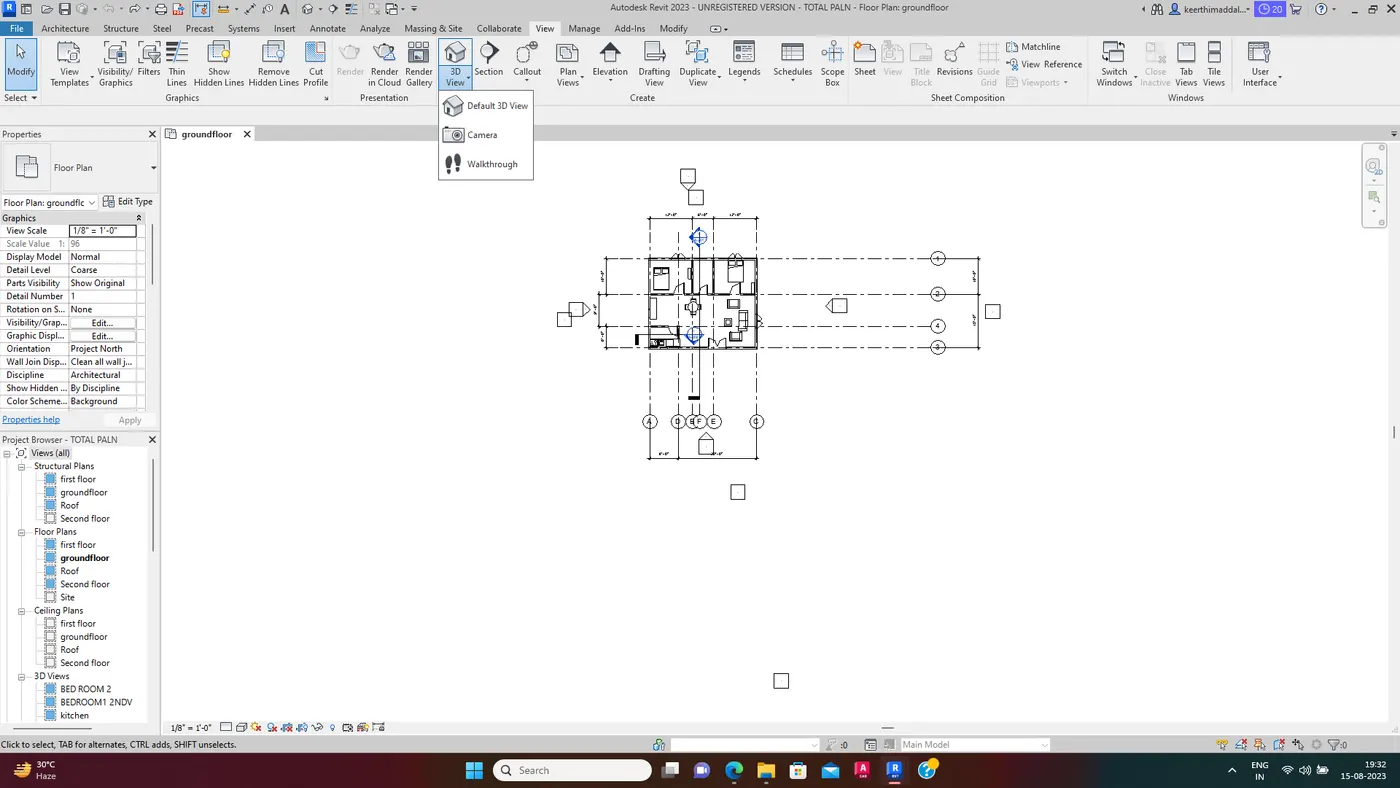

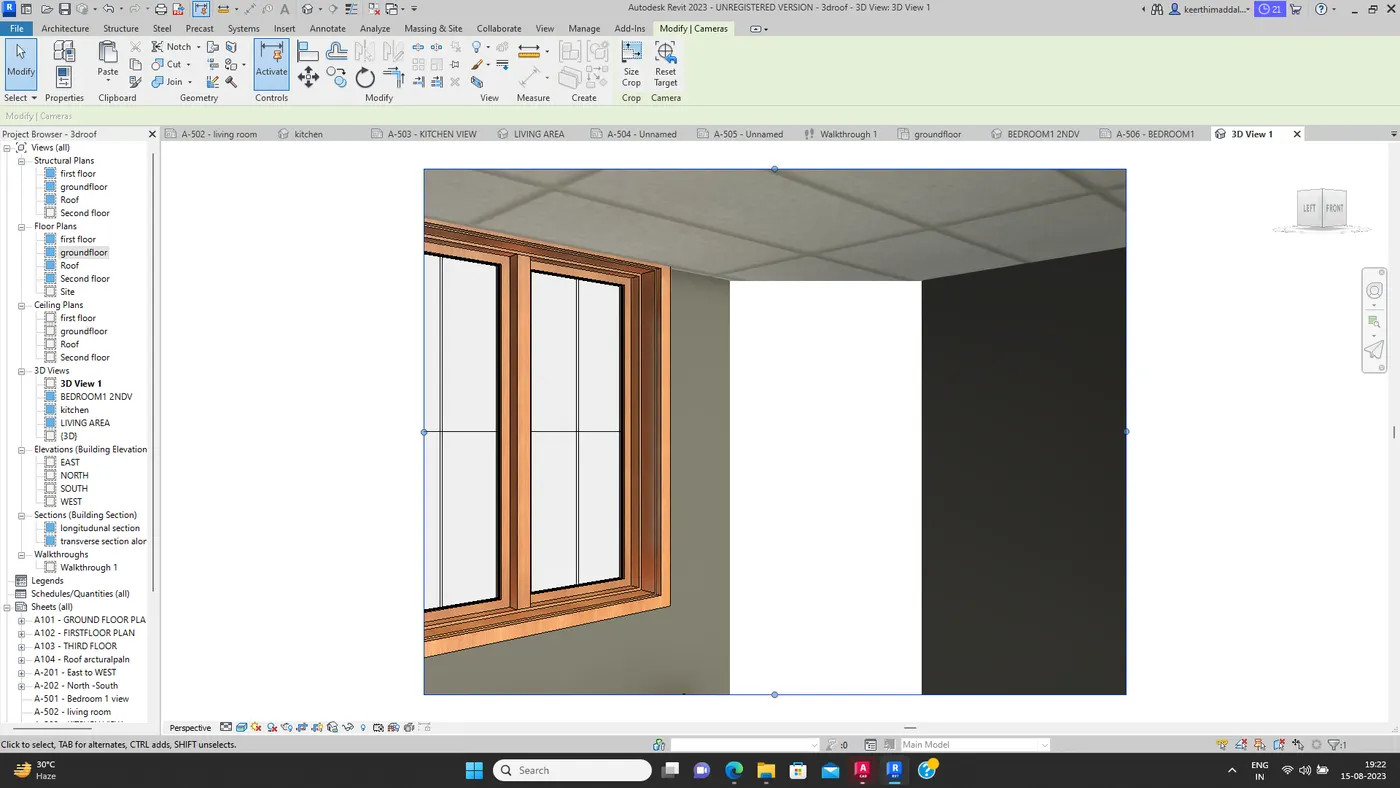

Go to view and select 3d in view and dgoto dropdown and
elect camera and place the camera asyou want as shown in screen shot below.

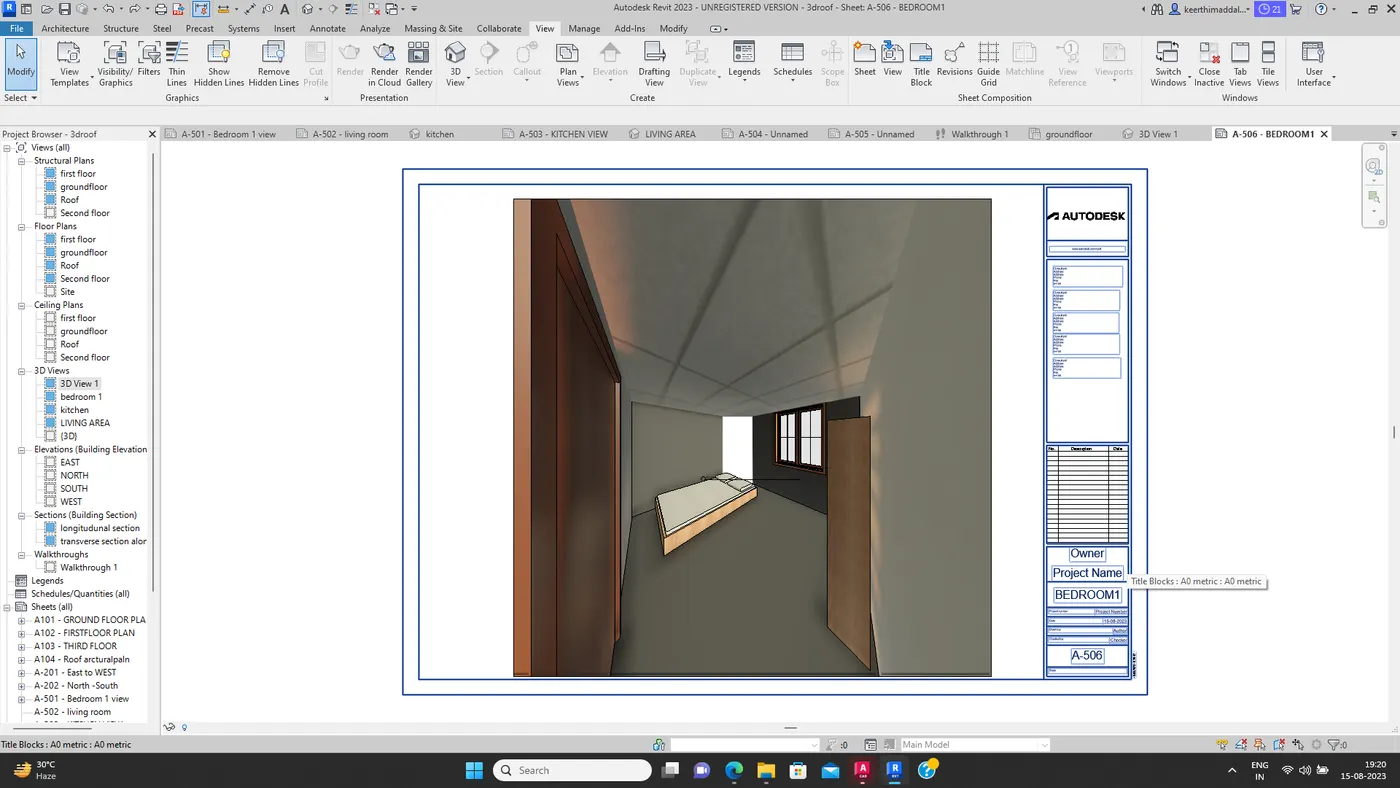

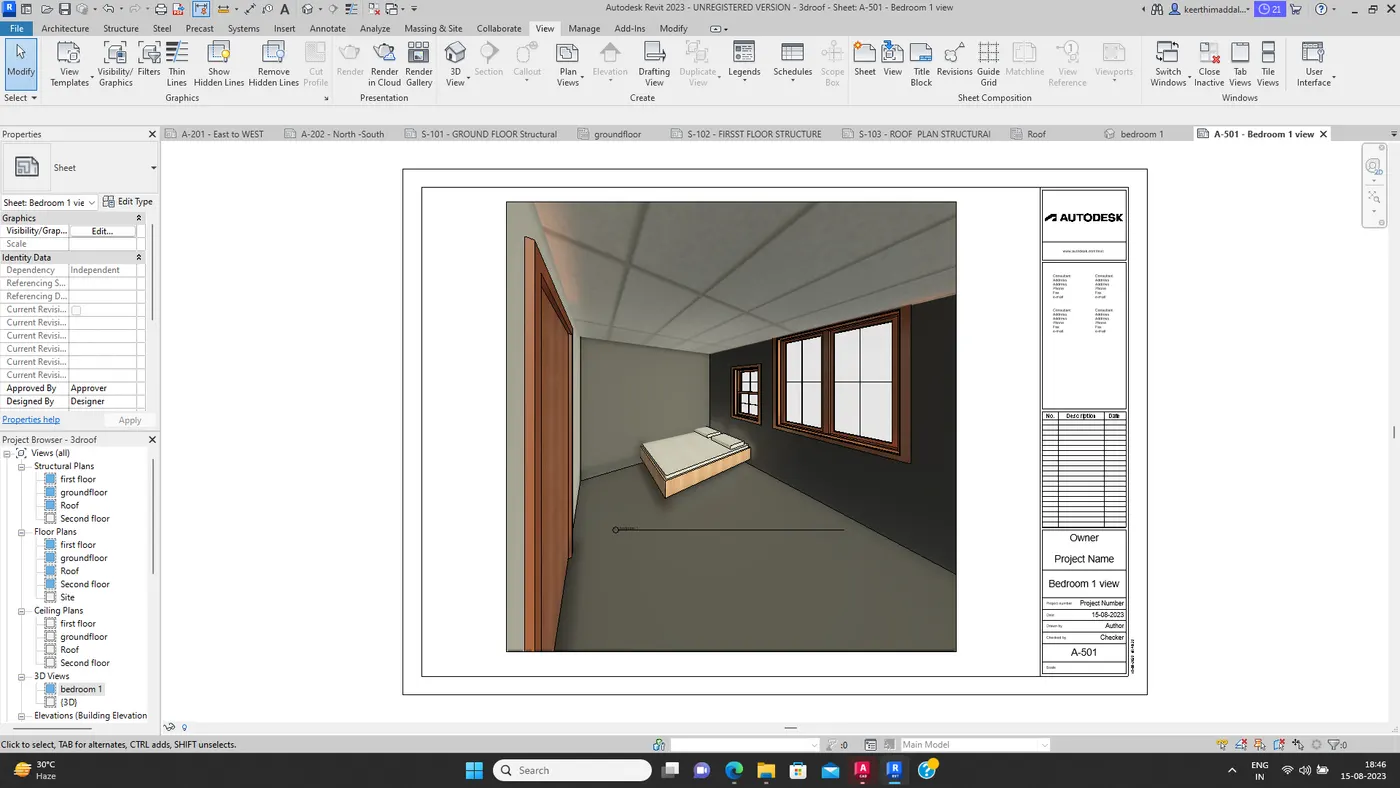

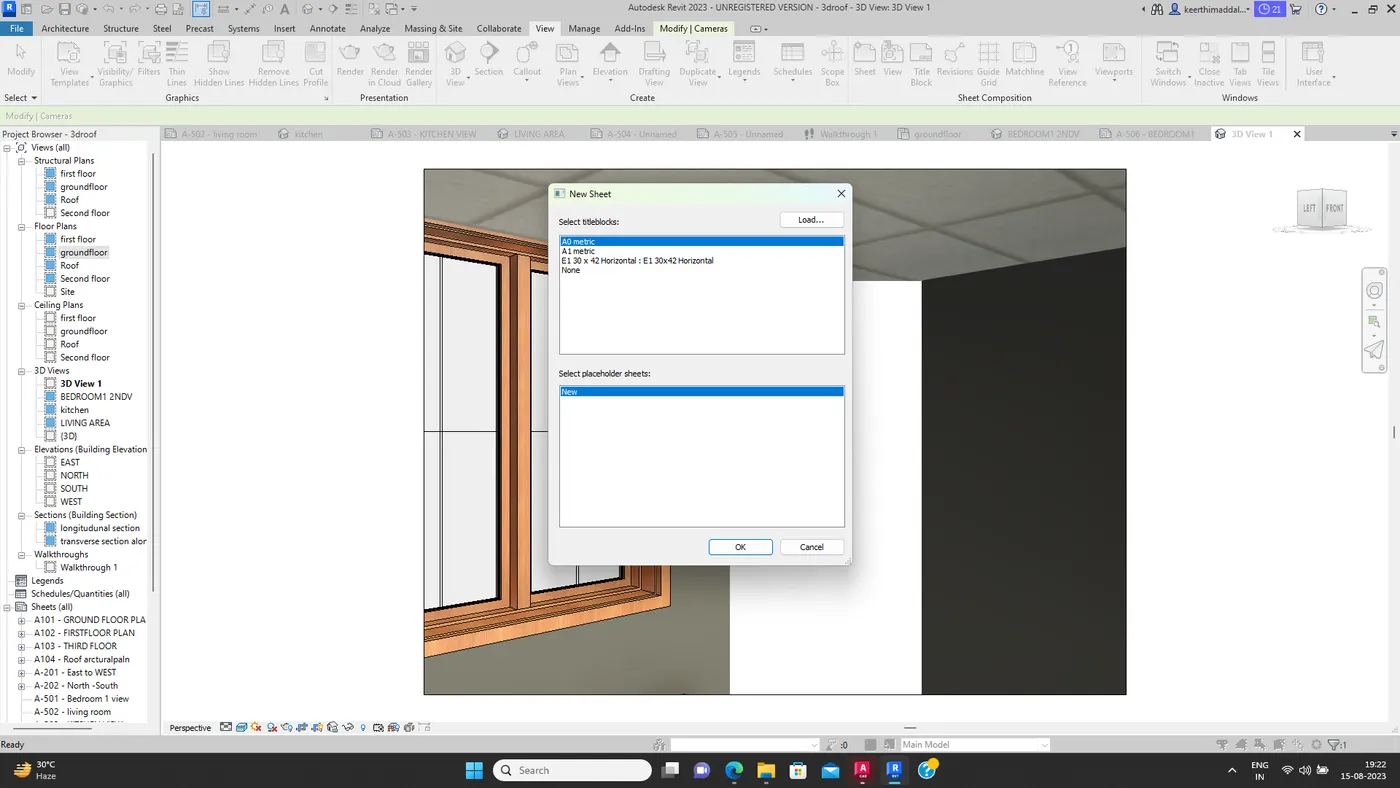

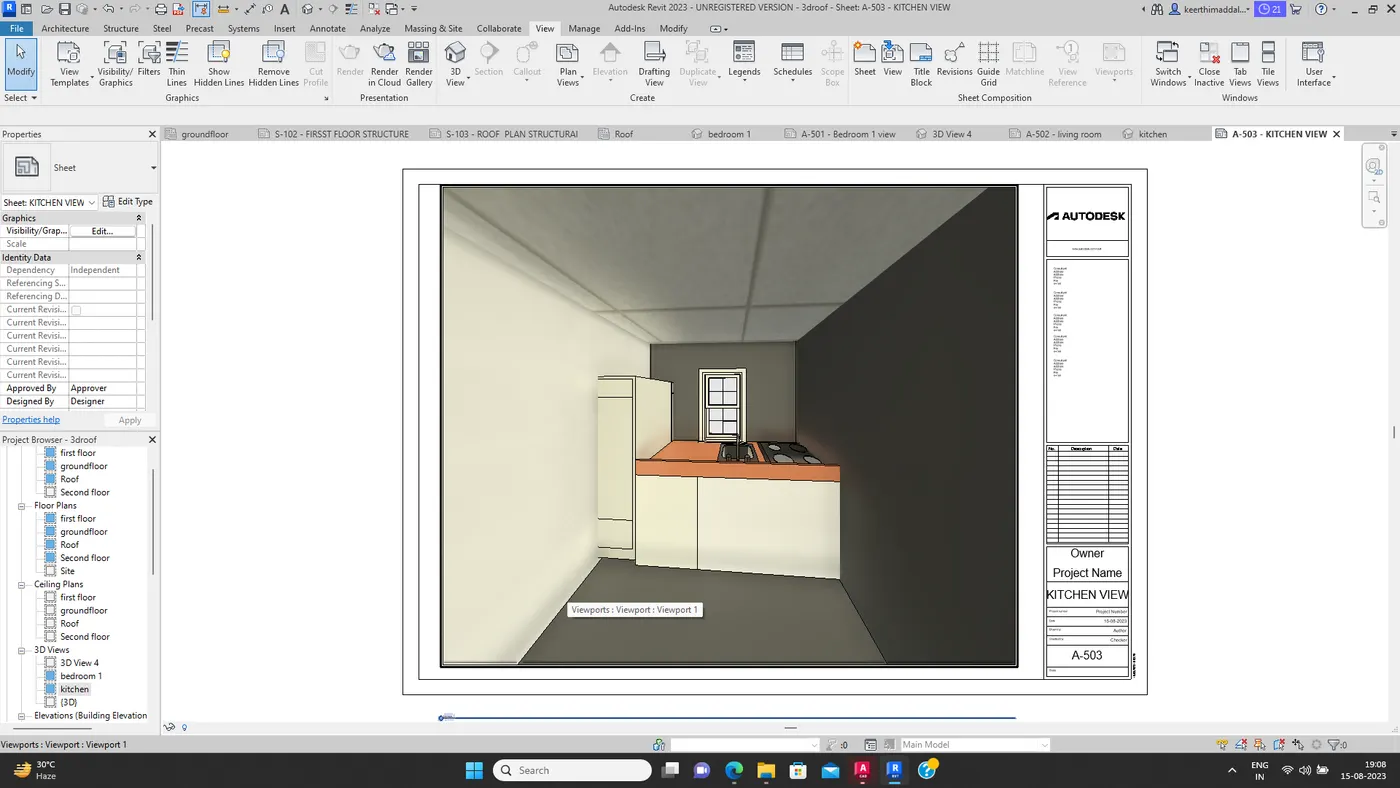

Then goto view and select sheet on riibomn select sheet as you want and place the view as appear in the screen dragging the view from properties browser as shown in cscreen shot below.
