Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

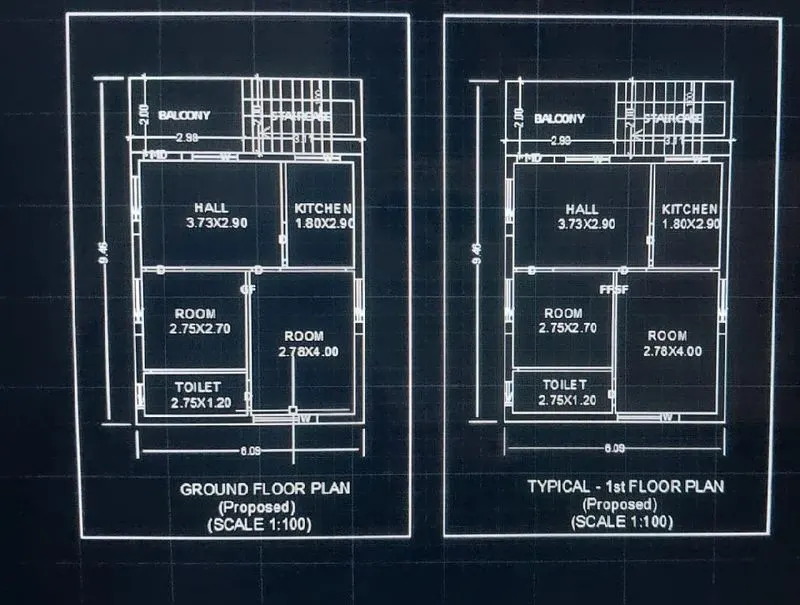

Sketch a G+1 floor residential plan, according to Vaastu Shastra, and list down the names of the structural drawings required to be provided to the site for construction.

Ans. Structural memmbers

Column Size = 0.23 x 0.381 m

Beam Size = 0.23 X 0.30

Wall size = 0.23 m, 0.11m

Slab THickness = 0.125 m

Column= 9 nos = 0.23 X 0.381 X6.6 X 9 X 25 = 130.135 KN

Beam Self weight = Volume of beam x Unit weight of concrete

Beam1 = 2 X 4 X 0.23 X 0.3 X 5.63 x 25 = 77.70 KN

Beam2 = 2 X 3 X 0.23 X 0.30 X 9.6 X 25 = 99.36 KN

Beam 3 = 2 X 2.75 X 0.23 X 0.30 X 25 = 9.4875 KN

Total = 186.5475 KN

Wall Self Weight = Volume of wall X Unit weight of Wall

Wall 1 = 2 X 2 X 6.317 x 0.23 X 2.70 X 20 = 313.82 KN

Wall2 = 2 X 2 X 5.4 X 0.23 X 2.70 X 20 = 268.272 KN

Wall3 = 2 X 5.312 X 0.100 X 2.70 X 20 = 21.248 KN

WAll 4 = 2 X 6.77 X 0.100 X 2.70 X 20 = 73.116 KN

Total = 676.456 KN

Slab Self weight = Volume of Slab X Unit weight of RCC

= 2 X 6.09 x 9.46 X0.100 X 25 = 288 KN

Live laod on building

All room in Building = 2.0 KN/m2

Balcony Live load =3.0 KN /m2

Wind s loads are not considered beacause building height is less thn 10m

Structural Drawings Required for design :

1 Center line drawings

2. Excavation Drawings.

3. Foundations Plans and REinforcement Details.

4. Column Layout and Reinforcement plans.

5. Plinth Beam Layout plan And Reinforcement plans.

6. First floor Beam layout and Reinforment details plans.

7. First FLoor Slab layout and REinforcent details.
