Recent Developments in Lithium-ion Battery Technology

Recent Developments in Lithium-ion Battery Technology

The digital electronic revolution in today's mobile society is driven by Li-ion batteries, which are only used in laptops and mobile devices. The development of commercial Li-ion batteries in the 1990s was made possible by many great scientists and engineers who contributed to years of thorough research. This blog will explore the latest advancements in lithium-ion battery technology and what they mean for the future of energy storage.

Overview of Lithium-ion Batteries

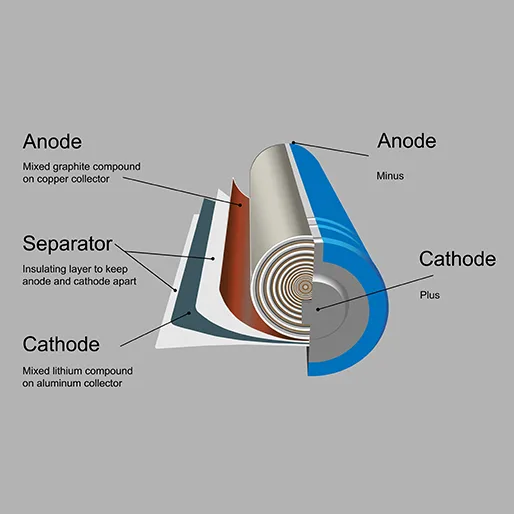

Lithium-ion batteries are rechargeable batteries that have become increasingly popular due to their high energy density, long life, and low self-discharge. Lithium-ion batteries are composed of two electrodes,

• Anode
• Cathode

The electrodes are divided from one another by a separator, often a microporous polymer membrane, which permits the passage of lithium ions but not electrons. The anode usually comprises graphite, while the cathode comprises a lithium-based compound.

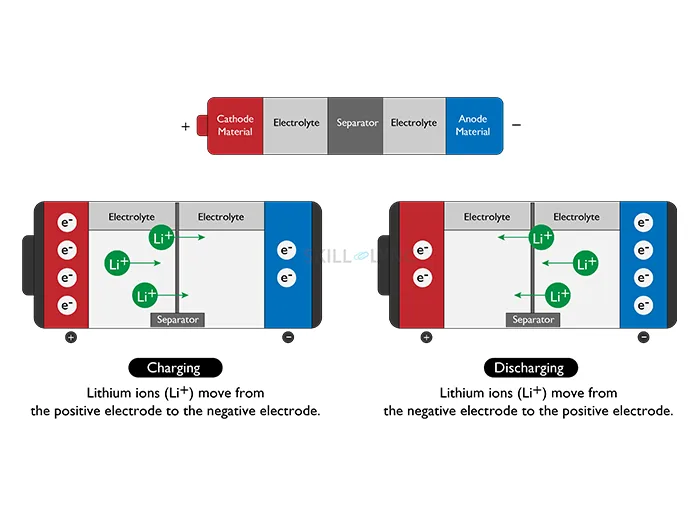

Lithium ions move from the cathode to the anode when the battery is charged. The lithium ions return to the cathode when the battery is discharged. The "shuttle chair" mechanism involves Li ions moving back and forth between the anode and cathodes during charging and discharging.

Advancements in Lithium-ion Battery

Many improvements have been made, and research is constantly ongoing. Below are a few recent developments in the field of Li-ion batteries.

Solid-State Batteries

The most recent developments in lithium-ion battery technology have focused on improving the energy density and safety of the batteries. One of the biggest advancements in lithium-ion battery technology has been the development of solid-state batteries. Lithium-based solid-state batteries are projected to carry far more energy in the same volume and charge much faster than traditional Li-ion batteries.

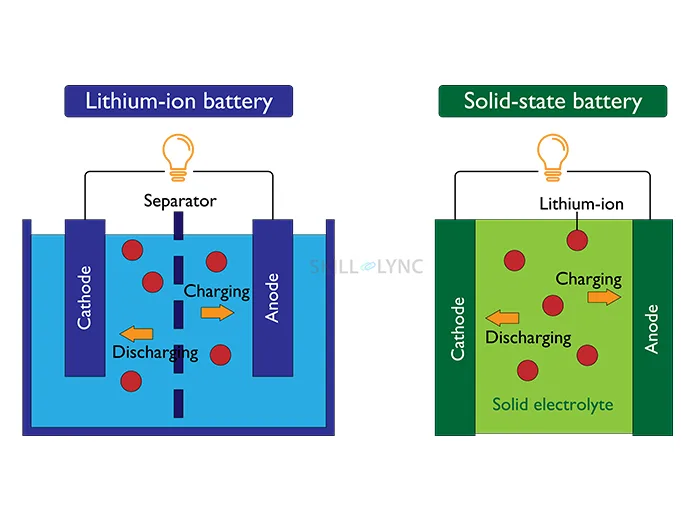

Instead of the liquid electrolytes used in conventional batteries, these batteries use solid-state electrolytes like ceramics or solid polymers. Smaller batteries with higher energy densities, longer life spans, and improved safety profiles may result from the application of this technology.

Cobalt-Based Cathode Material

The cathode, or negative electrode, is the component of batteries that is the subject of the most current research. The battery life of the EV can be increased by using the correct material, which increases energy density. Cobalt and nickel are the materials that show the most promise.

Batteries with high levels of layered nickel at the cathode, such as NMC or nickel manganese cobalt oxide cathodes or nickel cobalt aluminium oxide, NCA, are becoming more popular. A battery with higher nickel content can store more energy, which increases energy density and extends battery life and EV range.

Although Panasonic and Tesla have successfully commercialised such materials, they are inappropriate for use in all applications. In addition to being expensive, cobalt is also contentious to mine in places like the Democratic Republic of the Congo, where most of the world's cobalt is found.

Nanotechnology

Another crucial issue is battery safety. Li-ion batteries frequently use liquid electrolytes, which can overheat and cause the cell to rupture or even catch fire. Safety precautions are currently needed to prevent this, but they take up room inside the battery, increasing its size and the manufacturing process's cost and complexity.

Researchers working on nanotechnology are resolving these problems. Nanostructured materials can significantly increase the surface area for electrolyte materials, and nanoparticles may improve the conductivity of ceramics or gels to the point that they can substitute liquid electrolytes, lowering or eliminating the risk of a short circuit.

Charging Time

Its rate of charge or discharge determines a battery's capacity to be charged and discharged, also called C-rate. At 1 C, the battery completely discharges, releasing the maximum capacity after an hour. It takes 1 - 4 hours to fully charge Li-ion batteries with carbonaceous anodes, frequently seen in personal mobile devices. The Lucid Air's 900-volt electrical architecture is largely responsible for the fast-charging capacity. A 350-kW DC ultra-fast charger would be used to reach the 20 mph rate. The Air will include an onboard 19.2-kW AC charger that can sustain charging rates of 80 miles per hour and DC charging

The Benefits of Lithium-ion Batteries

Lithium-ion batteries are among the most popular rechargeable batteries in consumer electronics today. They offer many advantages over traditional batteries. Here are some of the key benefits of lithium-ion batteries:

1. Longer Life: Lithium-ion batteries have a longer lifespan than traditional batteries, with some lasting up to 10 years or more. This makes them ideal for long-term use in laptops and smartphones.
2. Higher Energy Density: Li-ion batteries can store more energy in a smaller space than other rechargeable batteries because they have a higher energy density. This makes them ideal for powering small, portable devices such as smartphones and tablets.
3. Lower Self-Discharge Rate: These batteries have a lower self-discharge rate than other rechargeable batteries, meaning they retain their charge for longer periods. This makes them ideal for devices requiring long inactivity, such as medical equipment.
4. Low Maintenance: They require little to no maintenance, making them ideal for devices used infrequently or stored for long periods.
5. Environmentally Friendly: They are more environmentally friendly than other rechargeable batteries, as they contain fewer toxic materials and are easier to recycle.

Conclusion
