Wiring harness routing & packaging Rules Week 3 Challenge

Week 3 Challenge Report

Q1. Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Hellarmann Tyton – 21160129

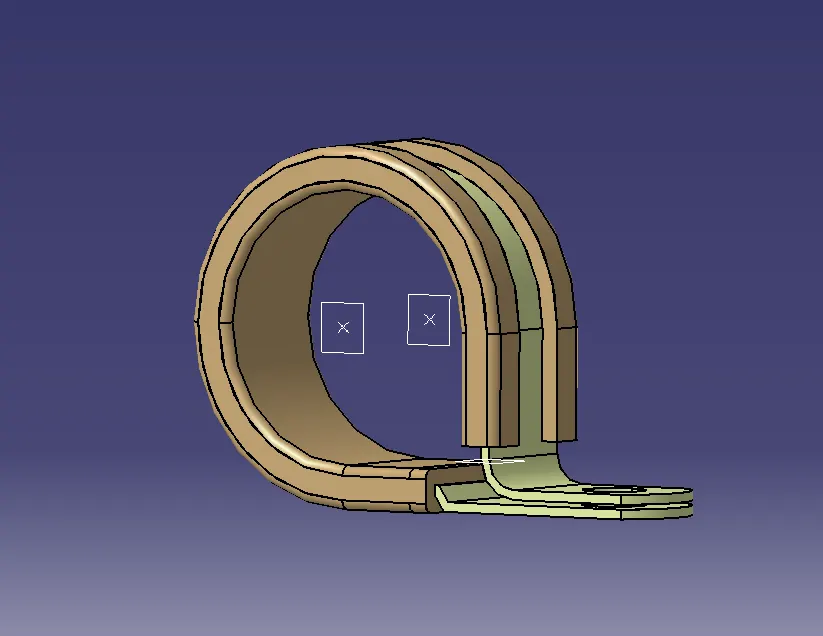

P Clip

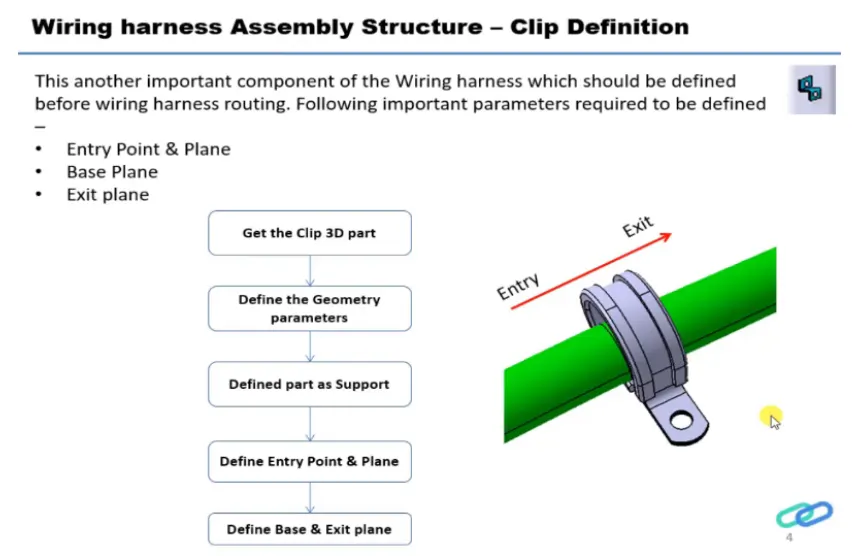

1. Create two points one as entry and another as exit point.

2. create planes at two points and another at base.

3. Switch to Electric part design.

4. Click on support definition - select part - select entry point - select entry plane, exit and base plane.

5. Again, click on support definition - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

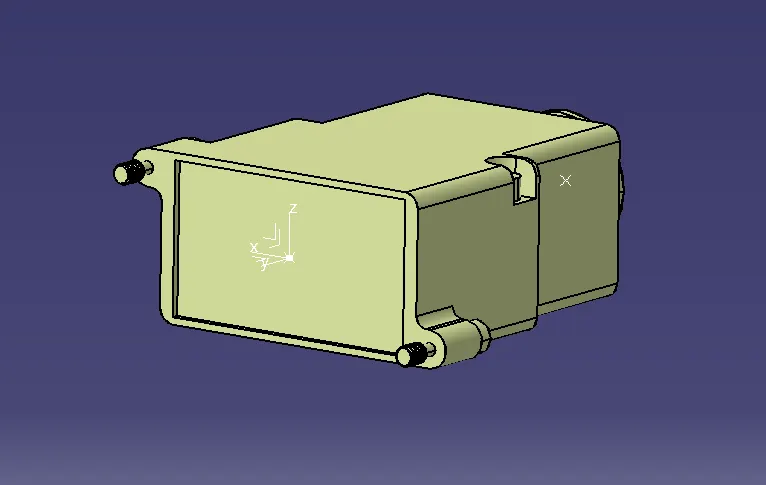

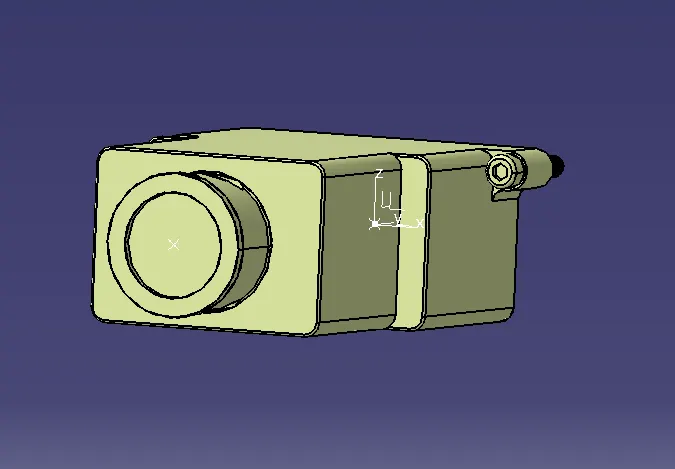

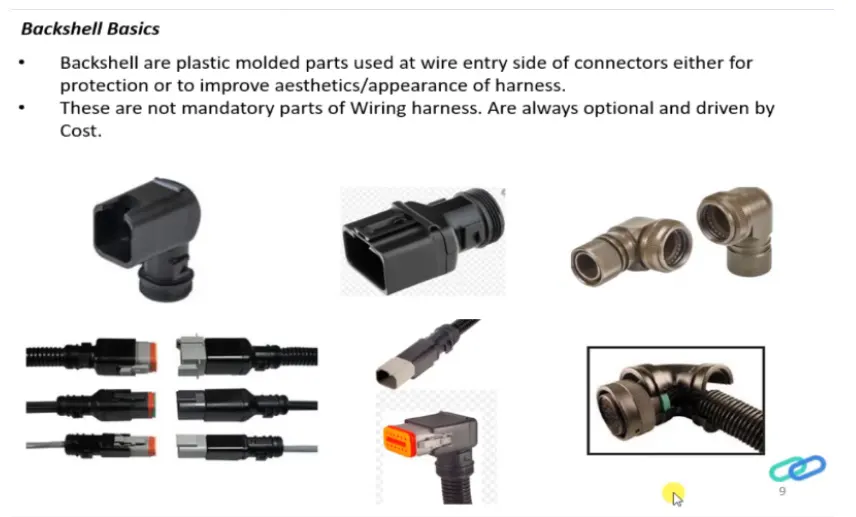

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

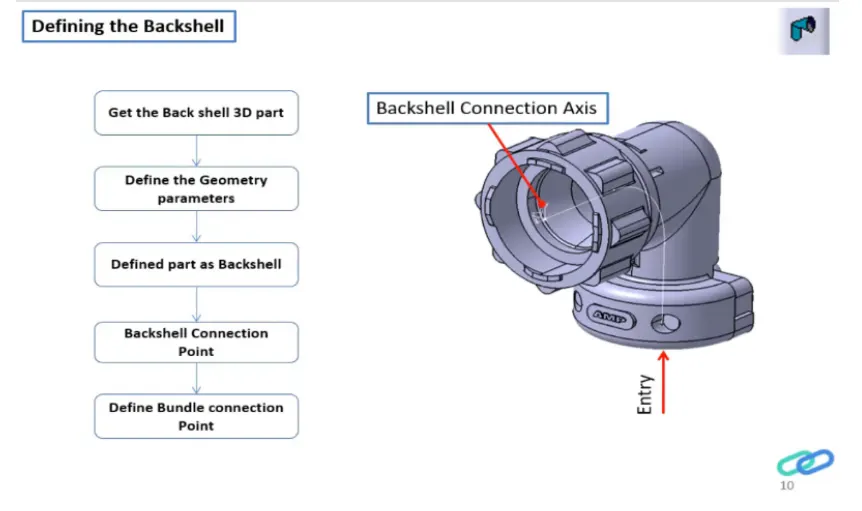

1. create Back shell entry point.

2. create axis system for back shell entry.

3. create bundle connection point.

4. switch to Electrical part design.

5. Define part electrically as back shell.

6. Then define Back shell connection point.

7. Define bundle connection point.

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name ID (mm) OD (mm) Thickness (mm)

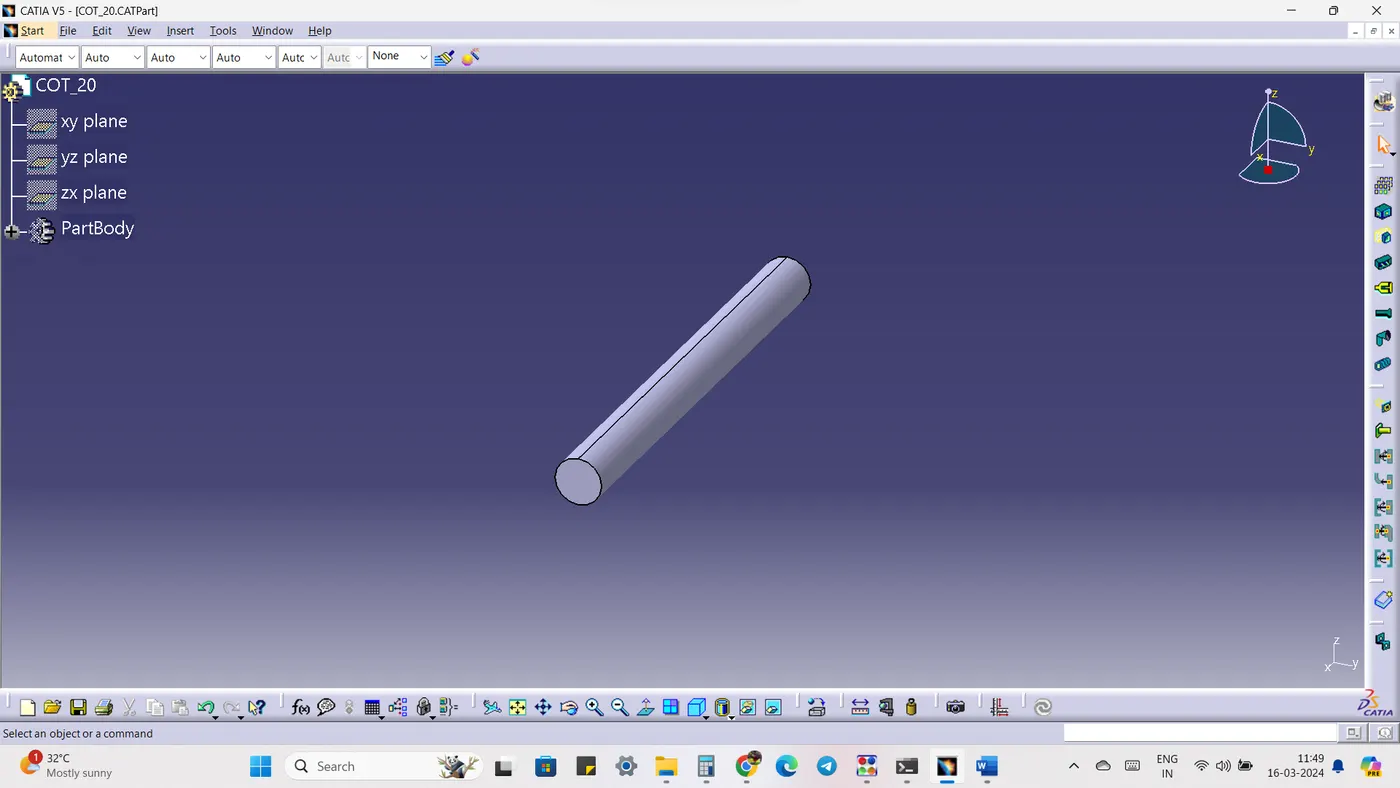

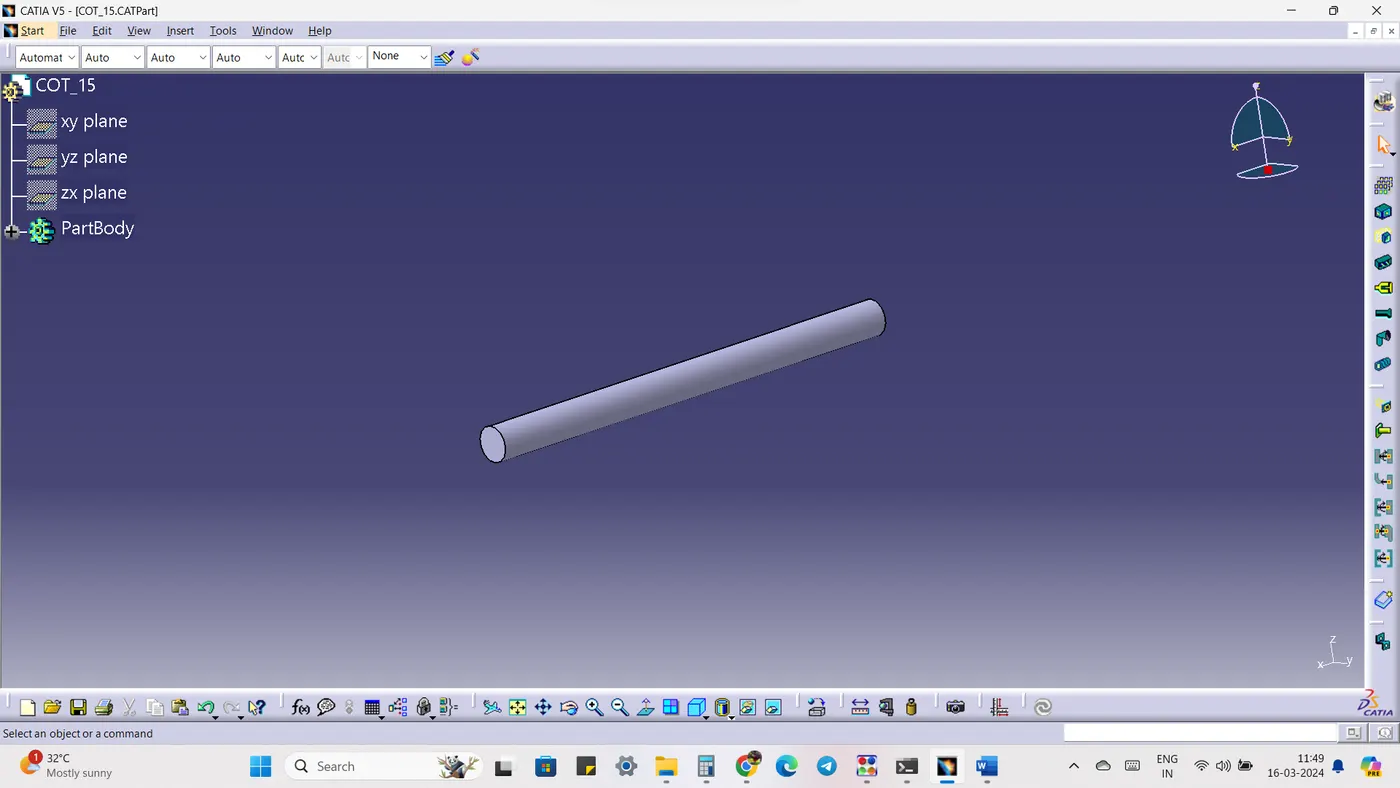

15mm COT 12 15 1.5

20mm COT 17 20 1.5

35mm COT 32 35 1.5

10mm COT 7 10 1.5

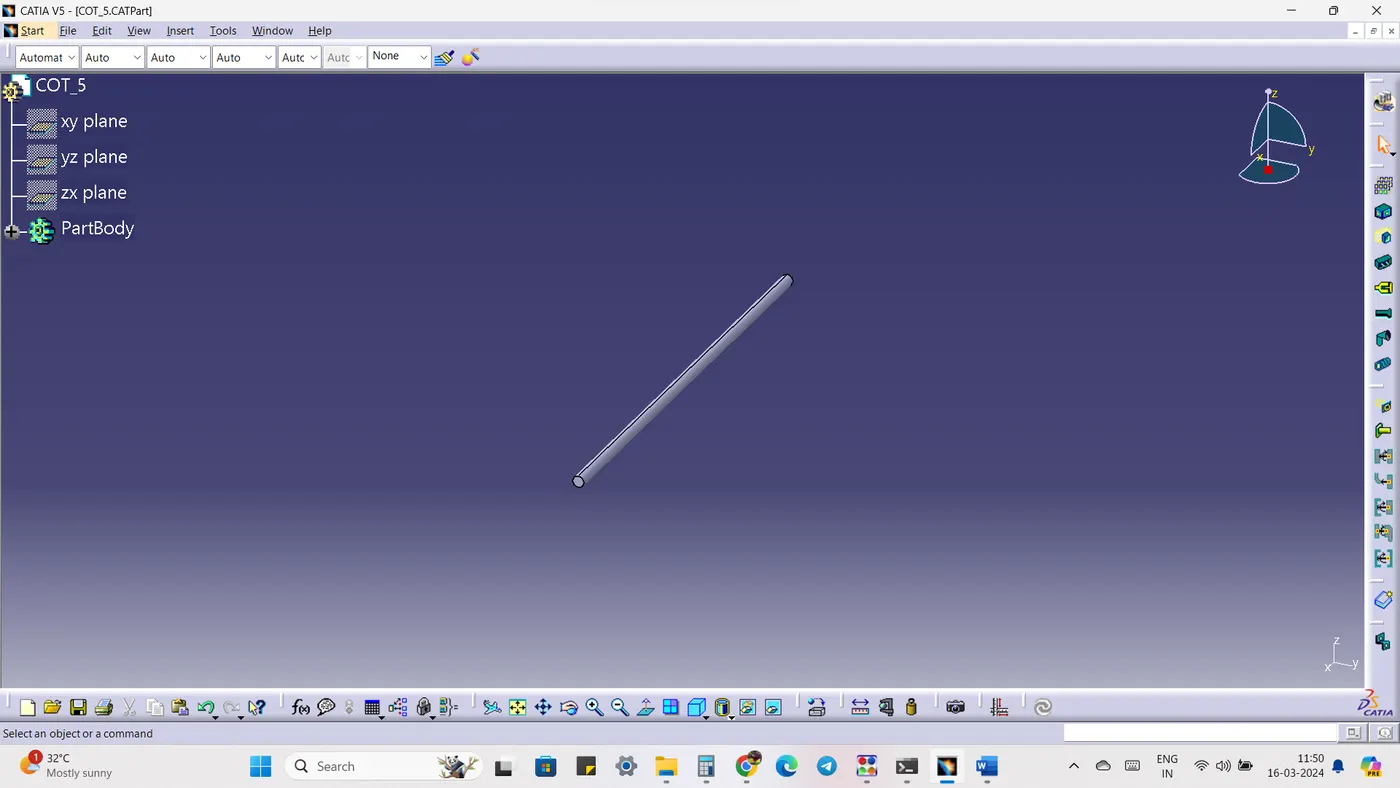

5mm COT 3 5 1

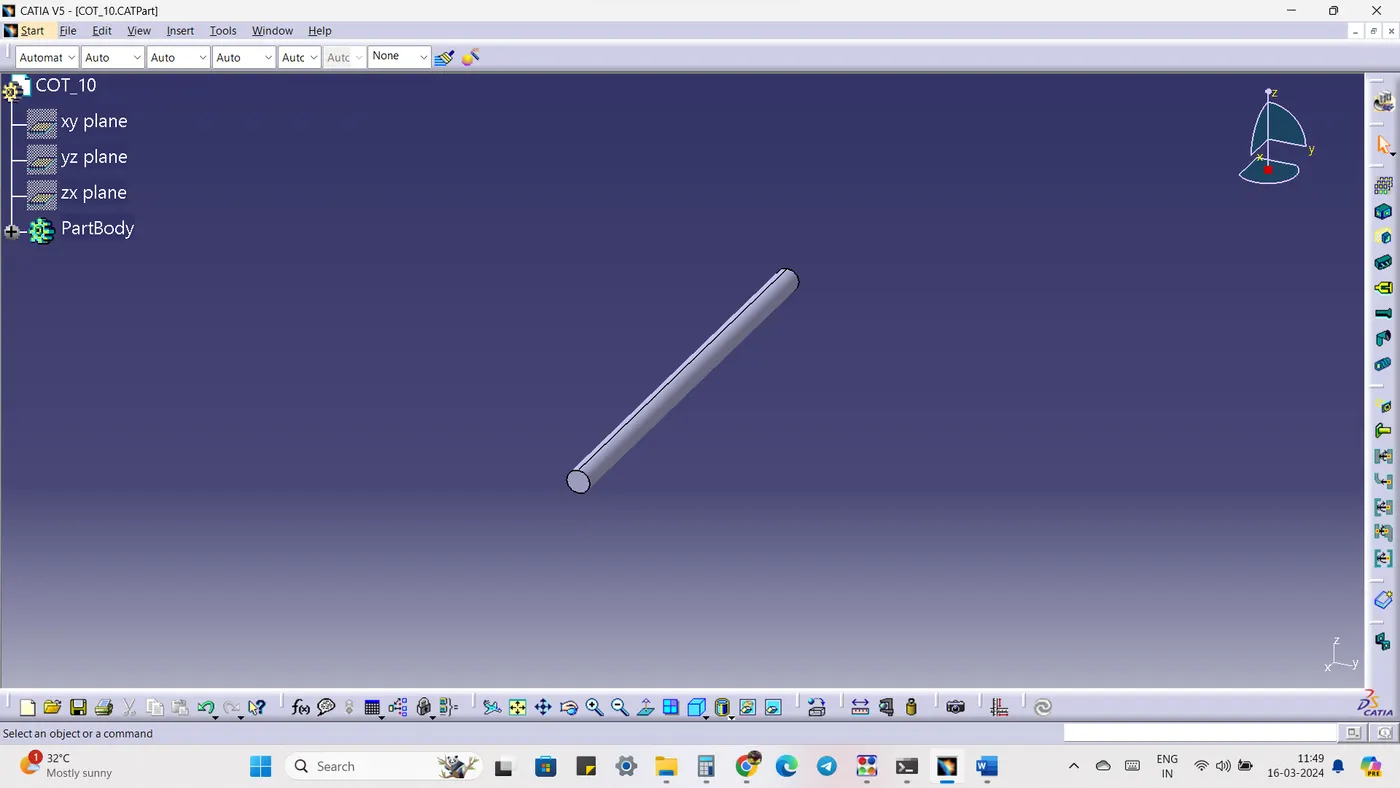

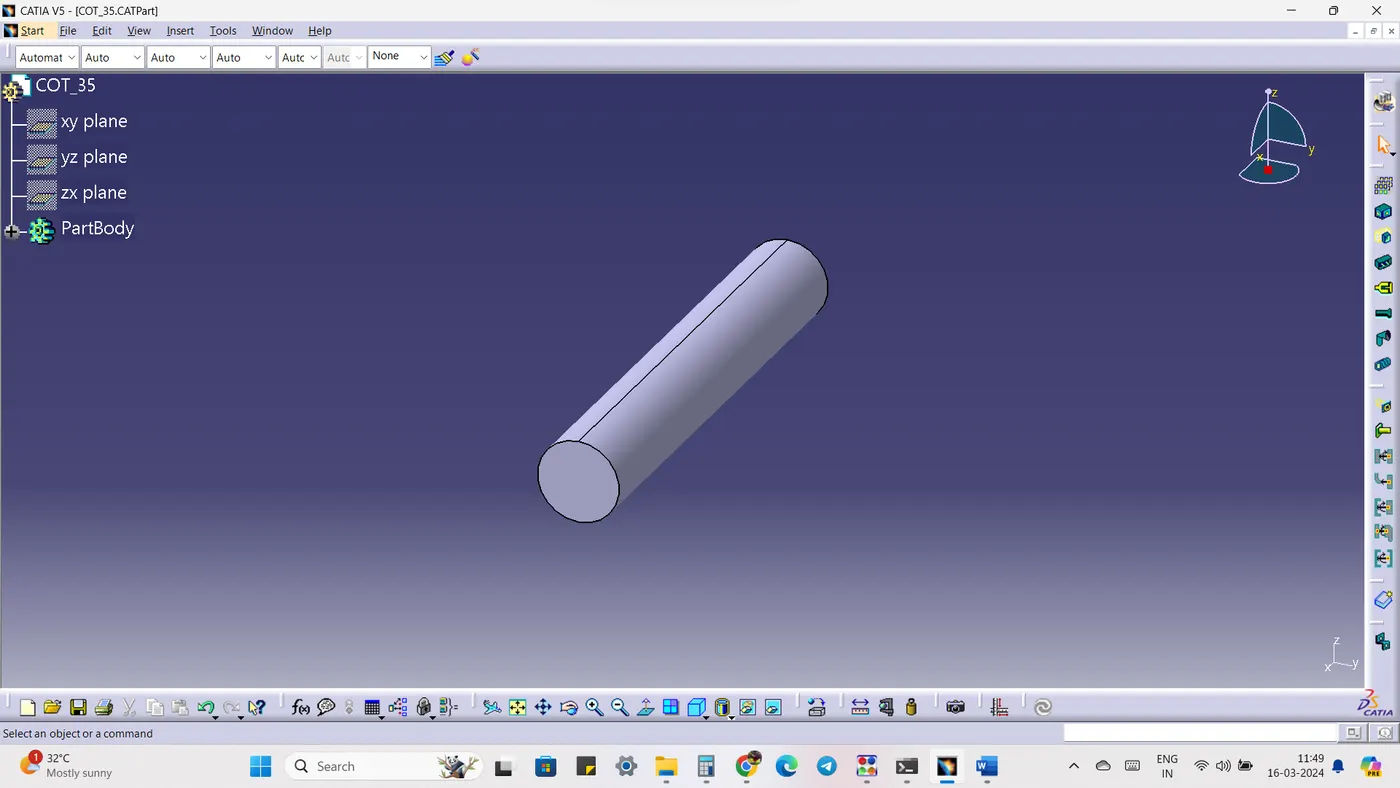

1. Switch to Electrical part design.

2. Select Define protection Part.

3. Click on part (on file name in specification tree)

4. Provide given parameters and bend radius as '1.5 x Outer Dia'.

5. Catalogue Creation:

6. new part - catalogue document - add family - give name - type - select Conduit - save.

7. Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok.
