Wiring harness routing & packaging Rules Week 3 Challenge

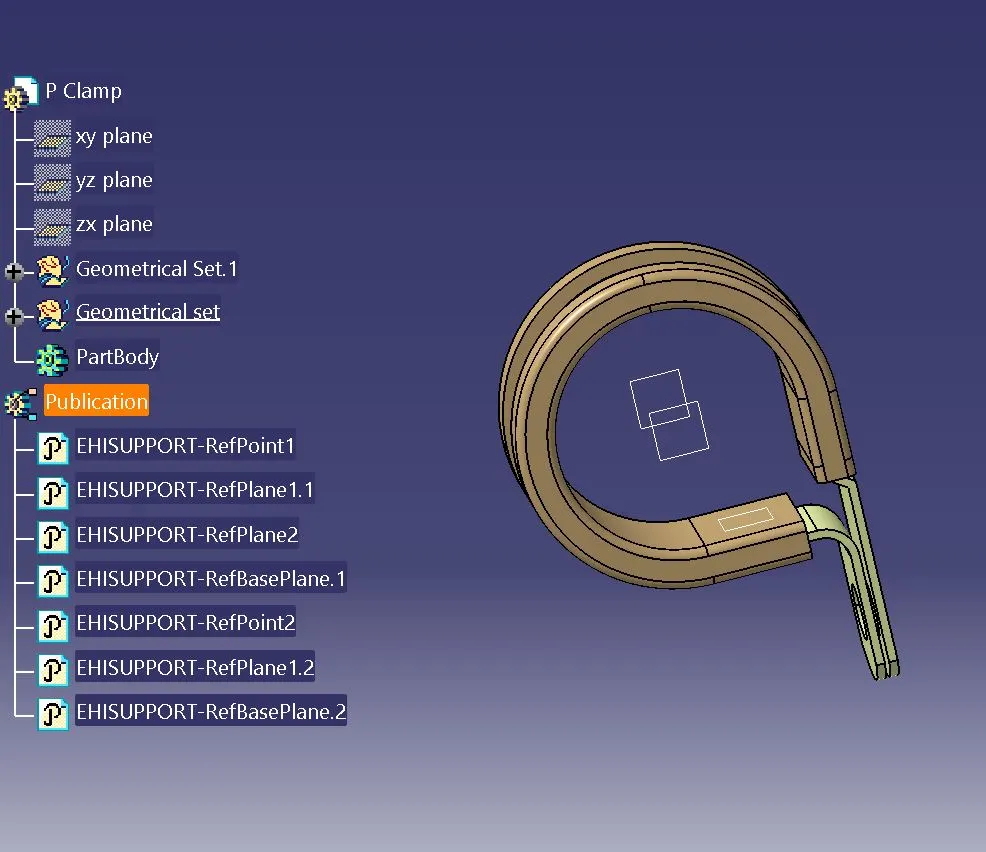

1. P - CLAMP:

1.Define the entry, exit, and base geometries using part workbench

2.Define P Clamp as electrical support using Electrical part design workbench. and then select the entry side as well as the exit side. p clamp is Bidirctional so we have to define 2 times.

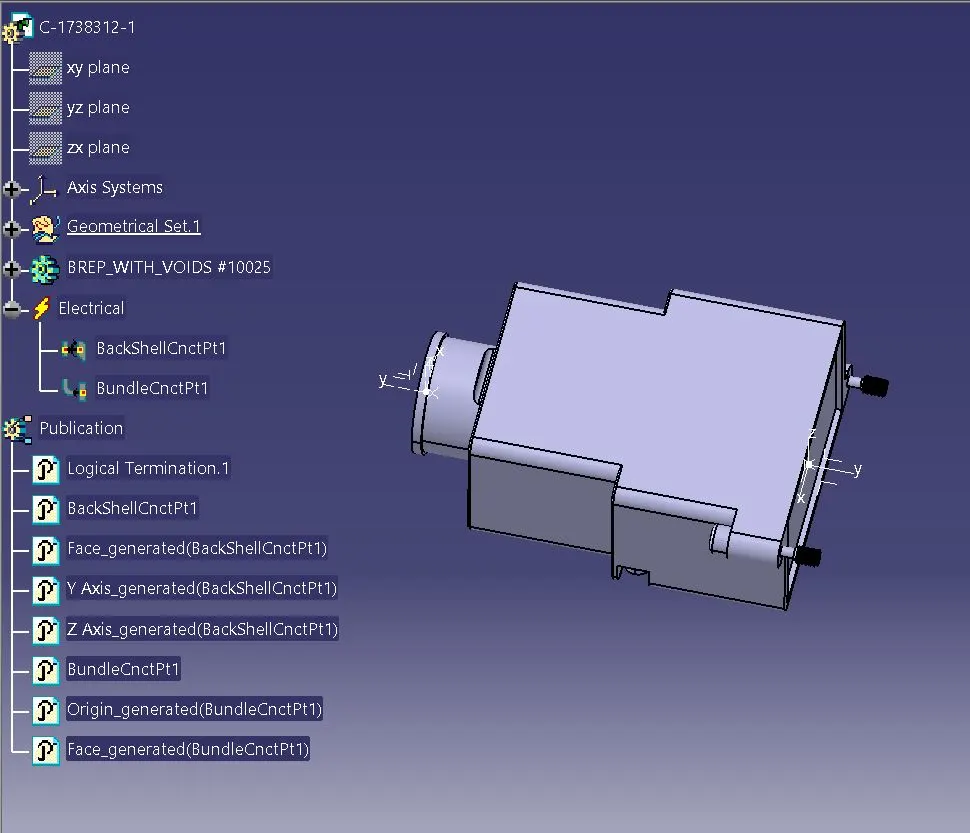

2. BACKSHELL:

1. Create axis system for both sides.

2. Define the part as Backshell. Using Electrical part workbench define Bundle connection and Backshell connection ports.

3. CORRUGATED TUBES:

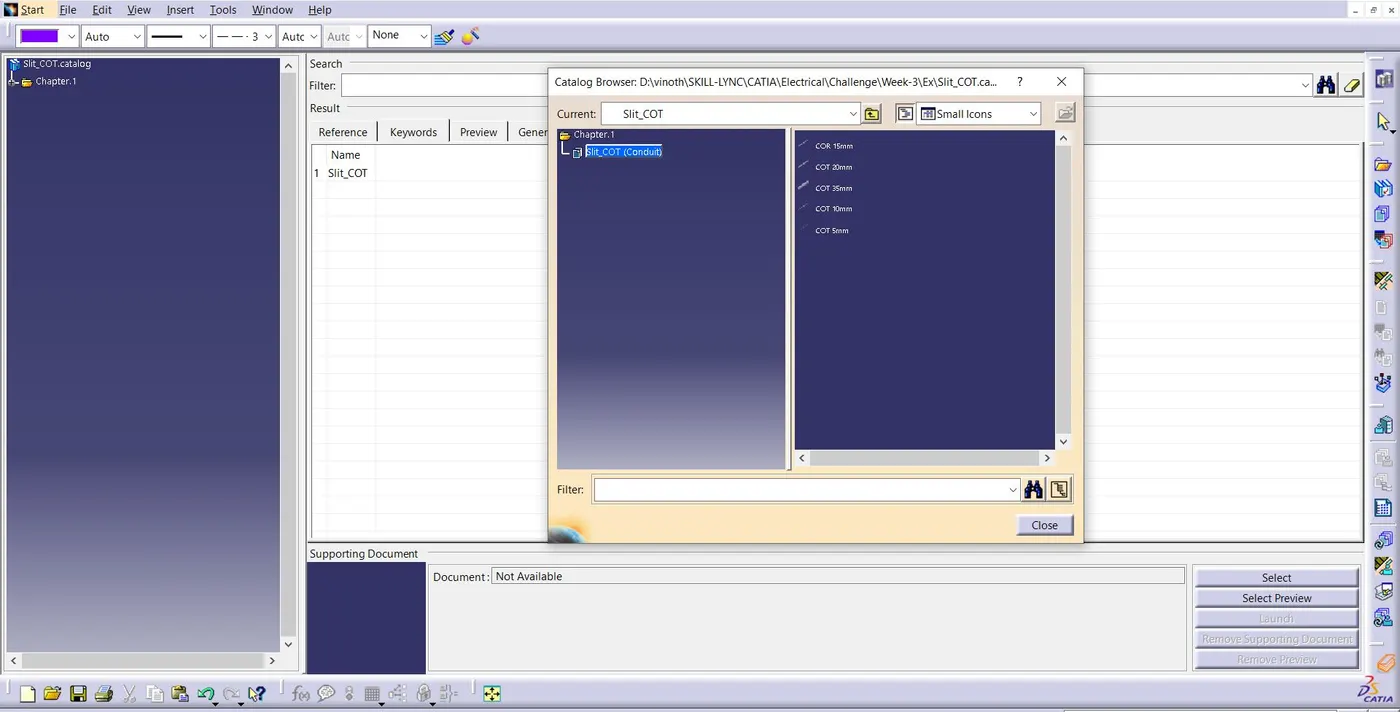

1. Create a catalogue and add Slitt_Cot as family.

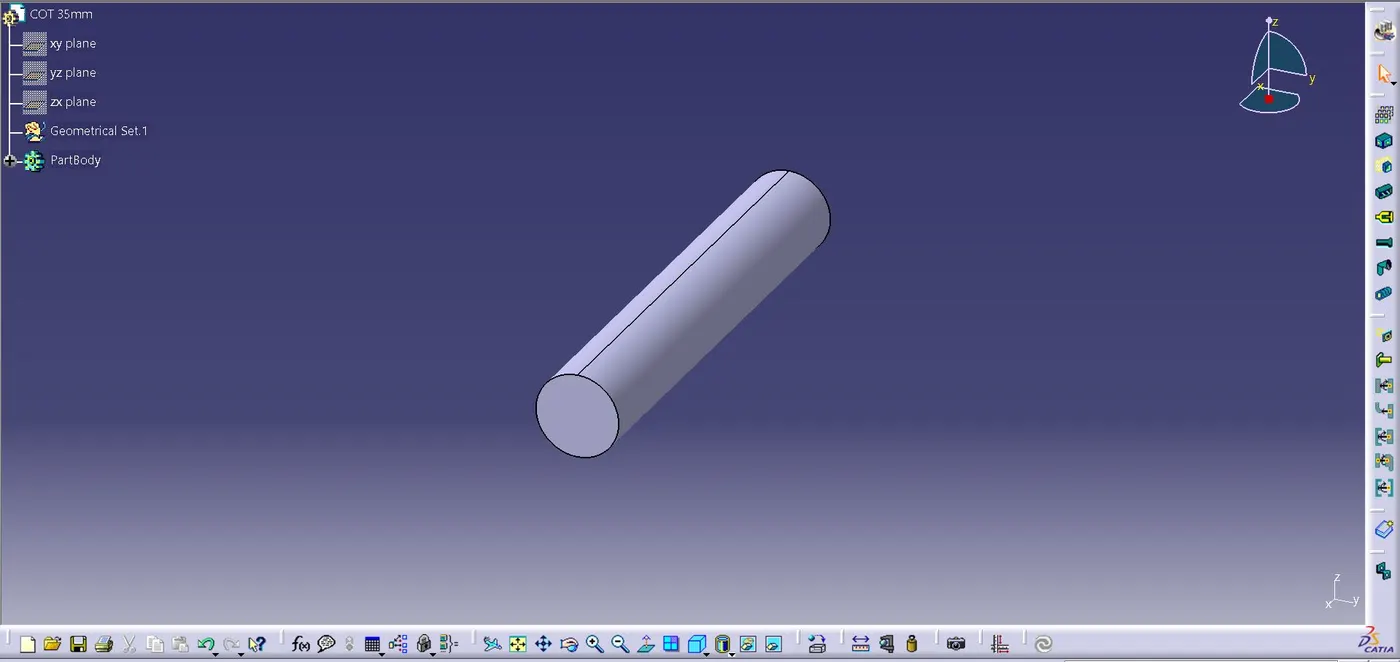

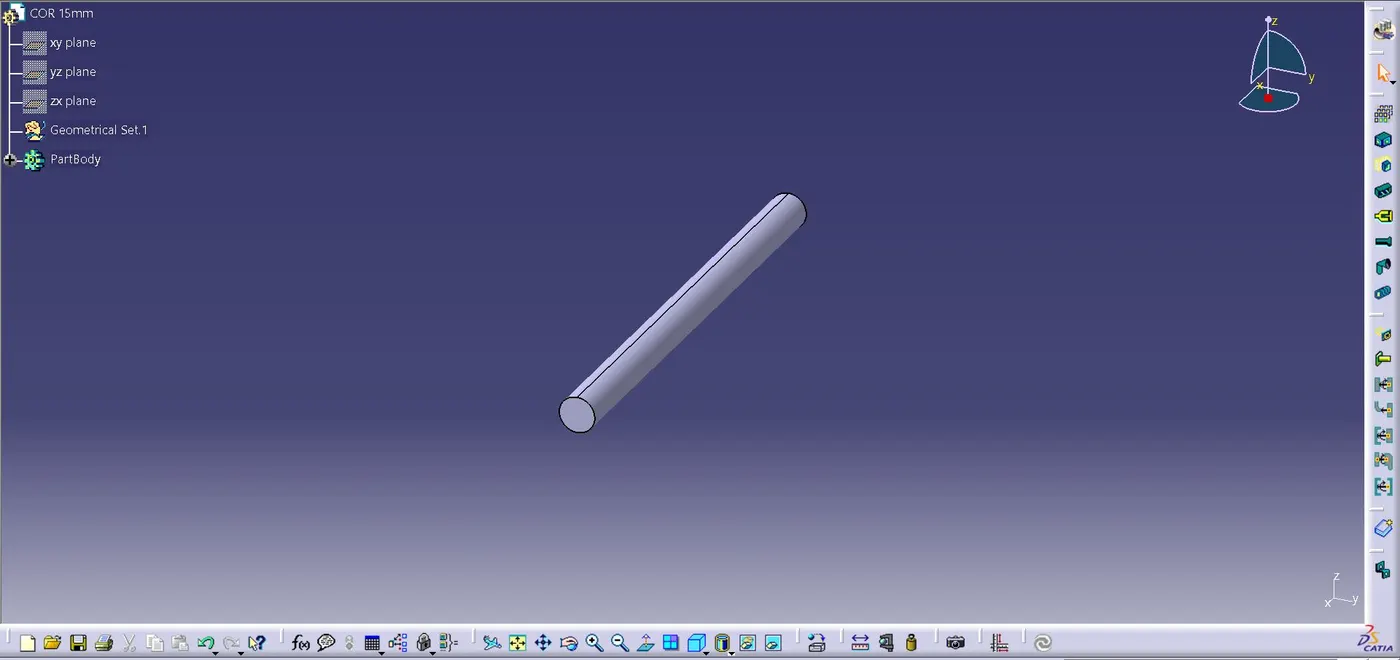

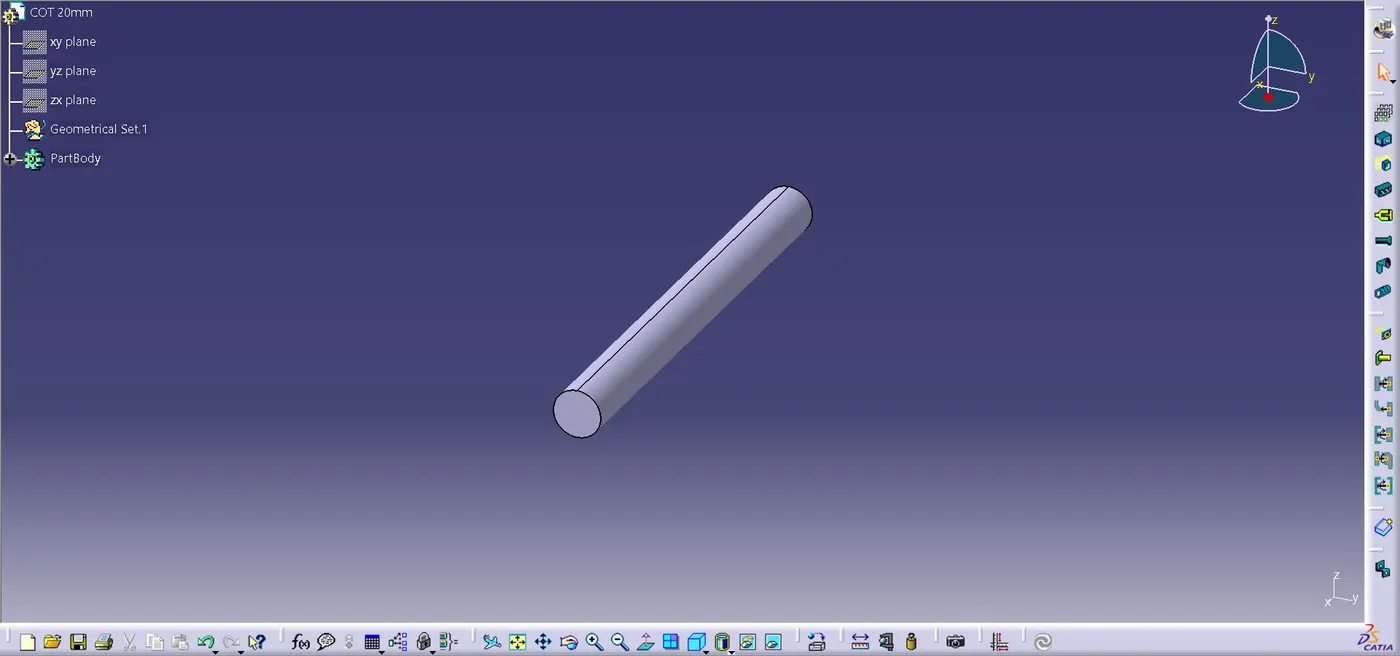

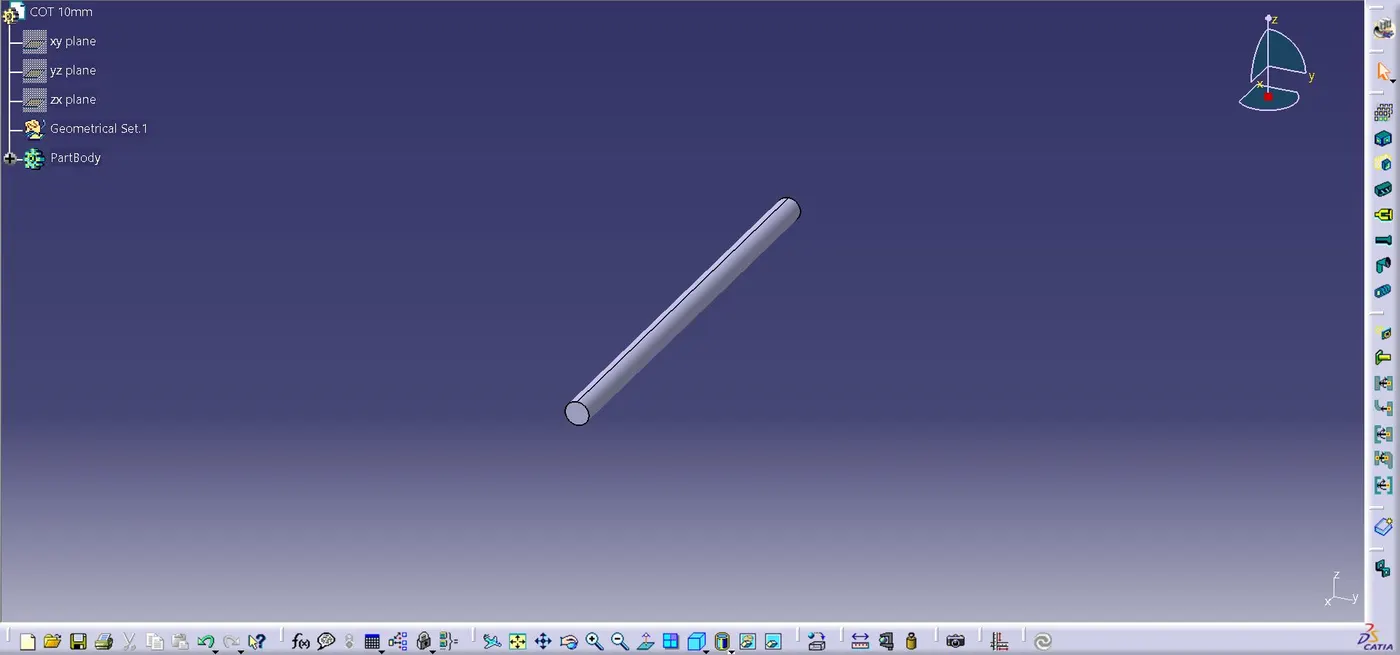

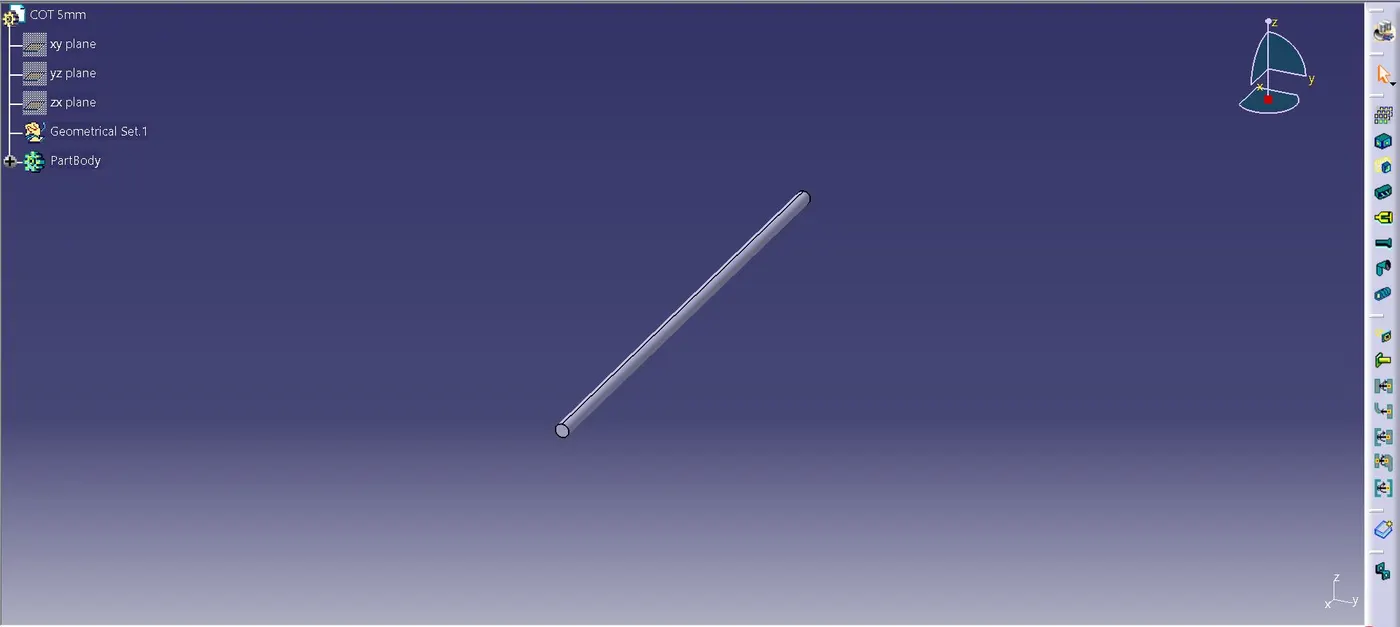

2. Electrical part design workbench, Using protection part tool create a tube (Dimensions are 15,20,35,10,5mm respectively). The bend radius is normally 1.5 times the outside diameter.

3. Add each tube in the catalogue using store device tool.
