Wiring harness routing & packaging Rules Week 3 Challenge

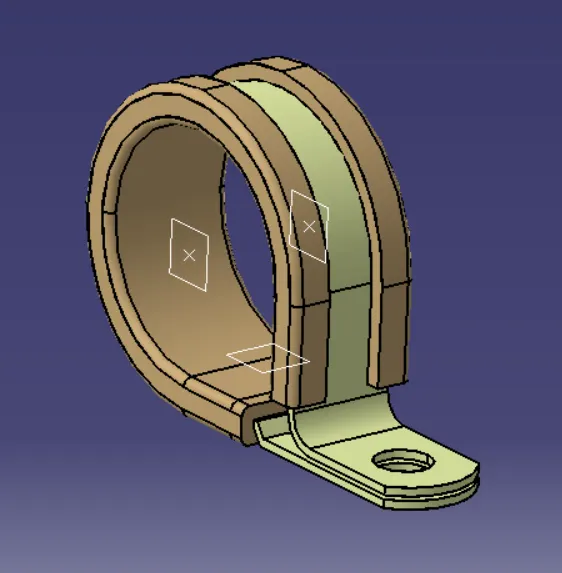

1. P Clamp : P clamp is support part used to hold and mount Wiring harness. It is having Rubber coating on its body. During defining part Support Part, we require to define bundle entry point, Entry plane, Bundle exit point, Exit plane and base plane.

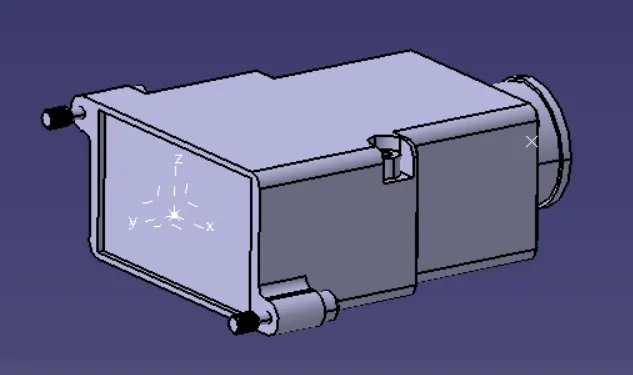

2. Back Shell : Backshell is device is to protect harness at connector end. Its also ensure joint strength and asthestic appearance at connector end. To define back shell we require to definne Backshell connection point and bundle connection point.



3. COT Tube : These are corrogated tubes which are used to protect and provide covering to wiring harness.
