Wiring harness routing & packaging Rules Week 3 Challenge
WEEK-3 CHALLENGE
WIRING HARNESS ROUTING & PACKAGING RULES

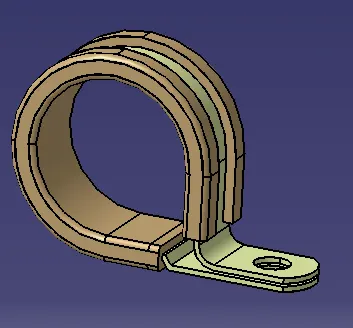

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
PROCESS
- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part design.

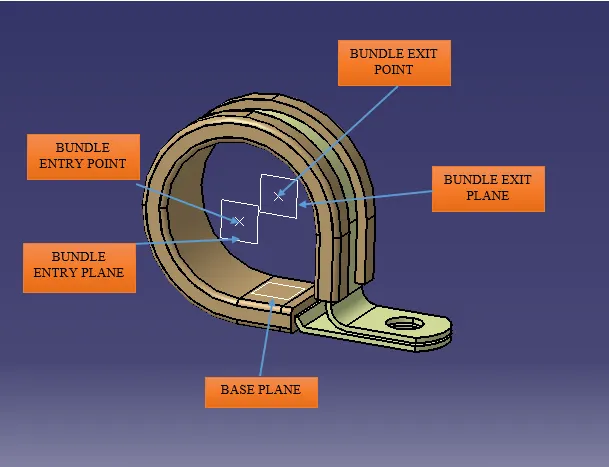

- Click on support definition - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support definition - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

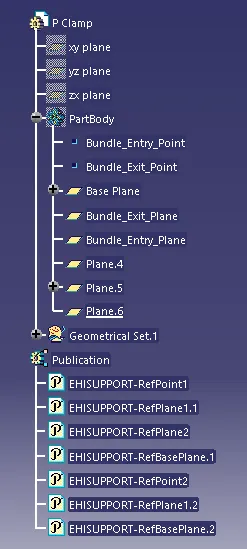

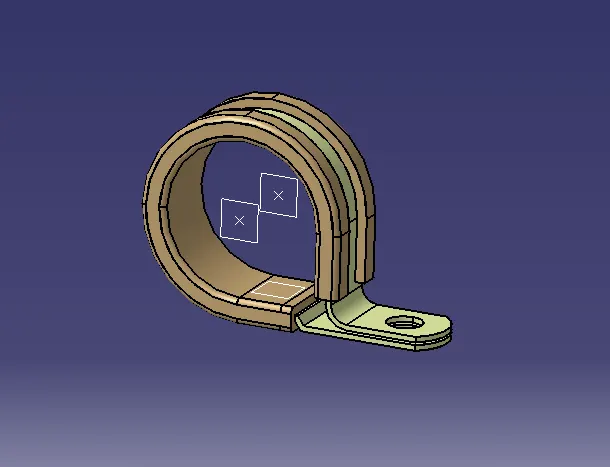

TREE STRUCTURE FOR P-CLAMP

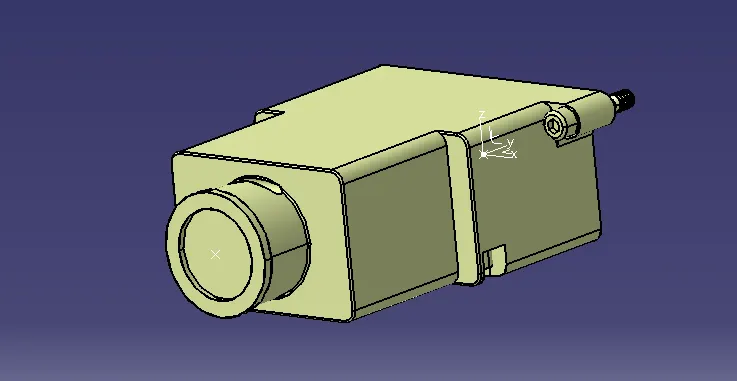

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Process:

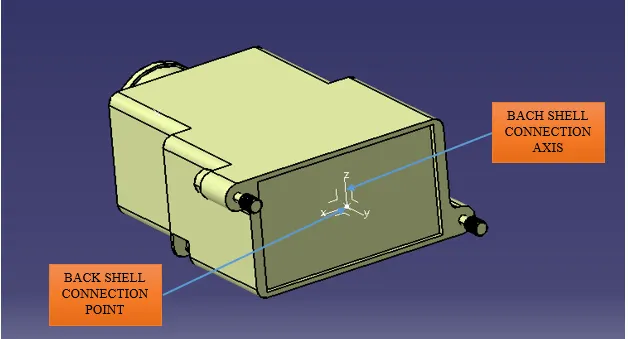

- Create Back shell entry point.
- Create axis system for back shell entry.
- Create bundle connection point.
- Switch to Electrical part design.
- Define part electrically as back shell.

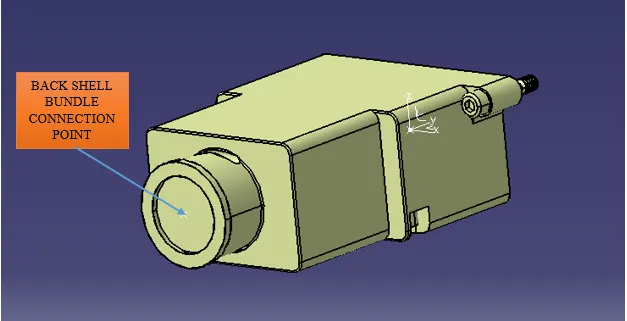

- Then define Back shell connection point.
- Define bundle connection point.

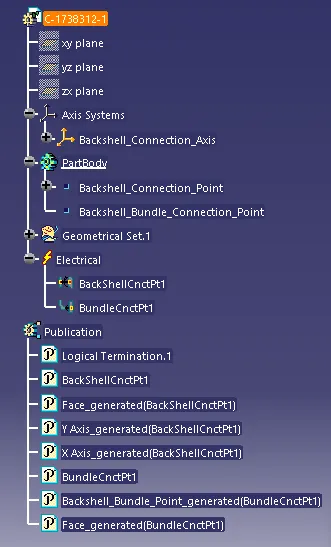

TREE STRUCTURE FOR BACK SHELL
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
NAME |
INNER DIAMETER (mm) |
OUTER DIAMETER (mm) |
THICKNESS (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1.5 |
PROCESS
- Switch to Electrical part design
- Select Define Protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Diameter'.
CATALOG CREATION
- New part - Catalog Document - Add Family - Give Name - Type - Select Conduit - Save.
- Open part to add Catalogue - Store Device Command - Select Catalogue - Family – Slit Cot tube – Ok.

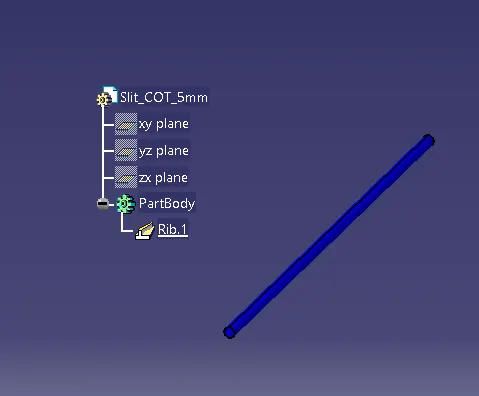

SLIT_COT_5mm

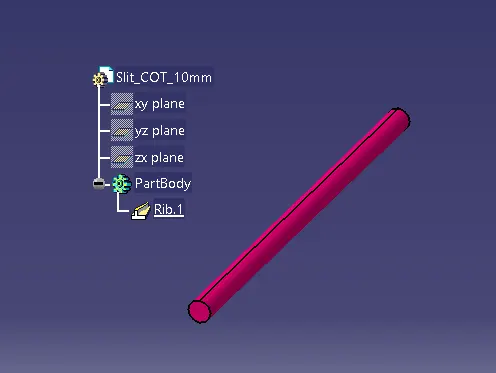

SLIT_COT_10mm

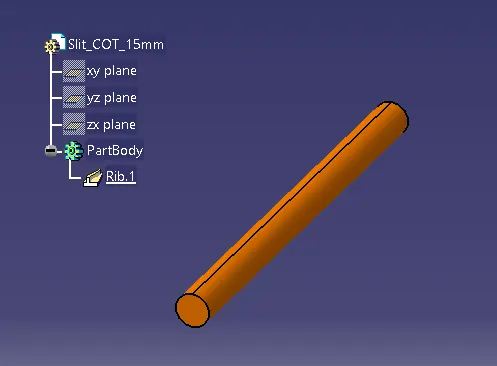

SLIT_COT_15mm

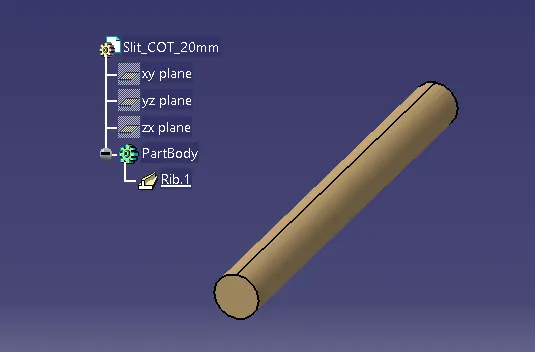

SLIT_COT_20mm

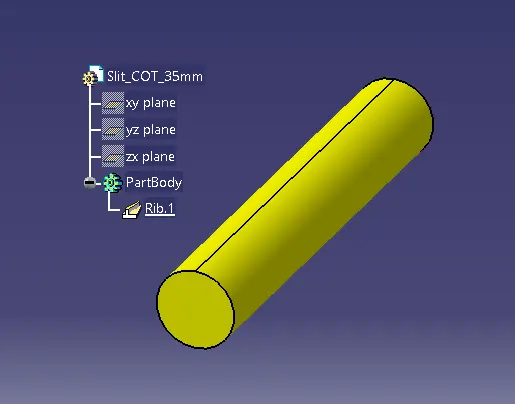

SLIT_COT_35mm
