Wiring harness routing & packaging Rules Week 3 Challenge

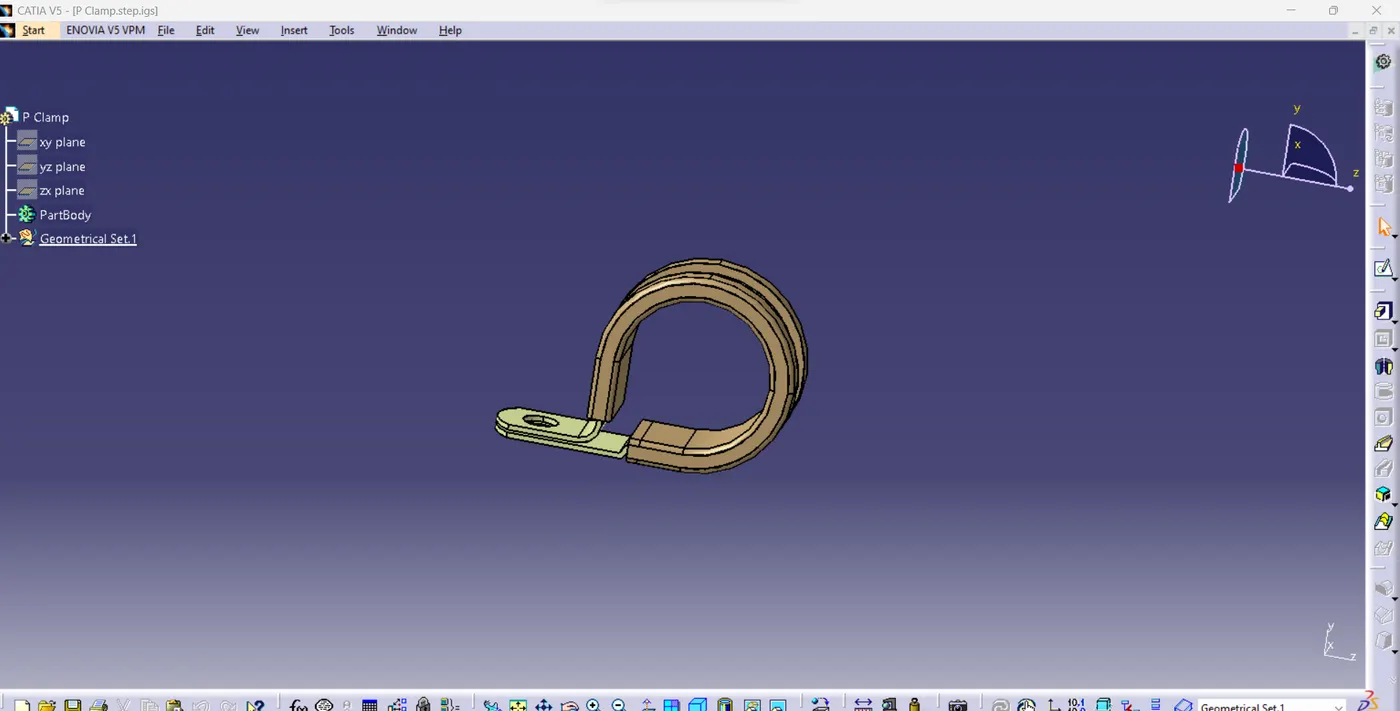

- Need to download the file and open the file in catia sortware.

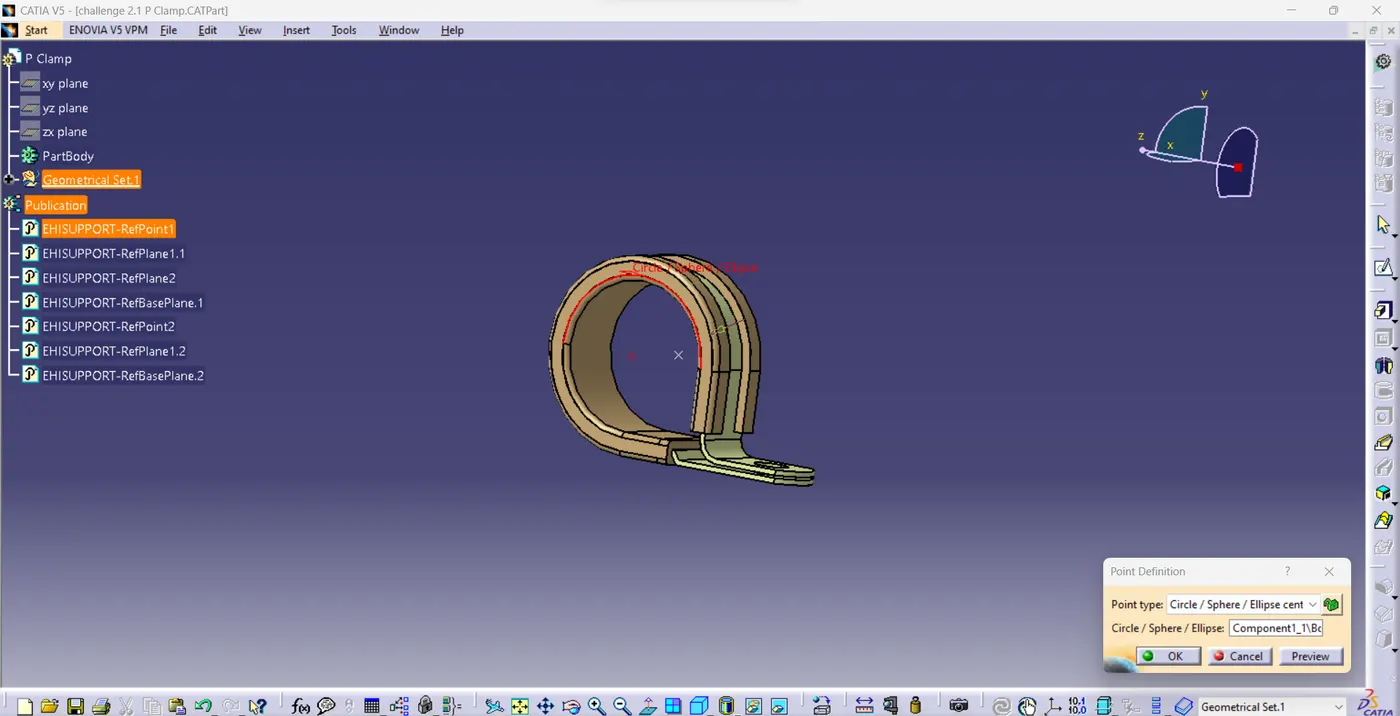

- Need to create point at the both of the P Clamp .

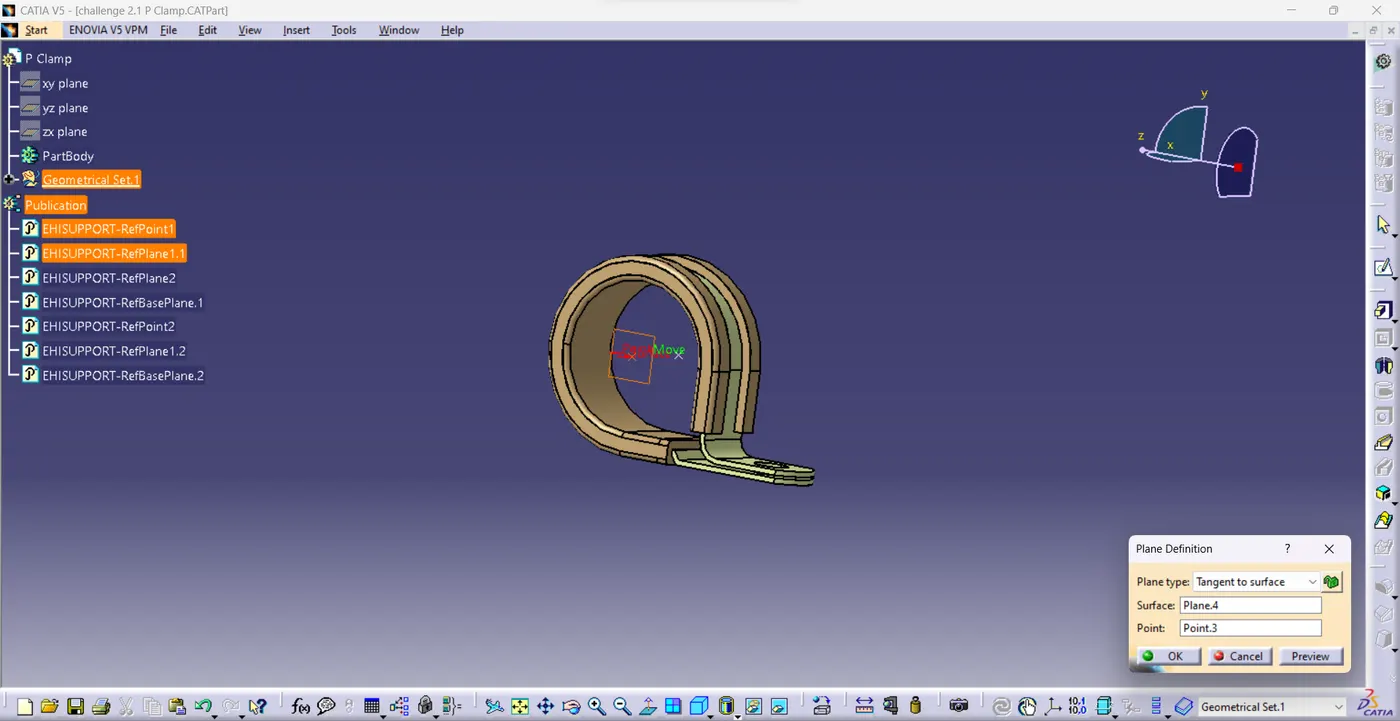

- plane to be created at the center of P Clamp at both side as showing in the above fig.

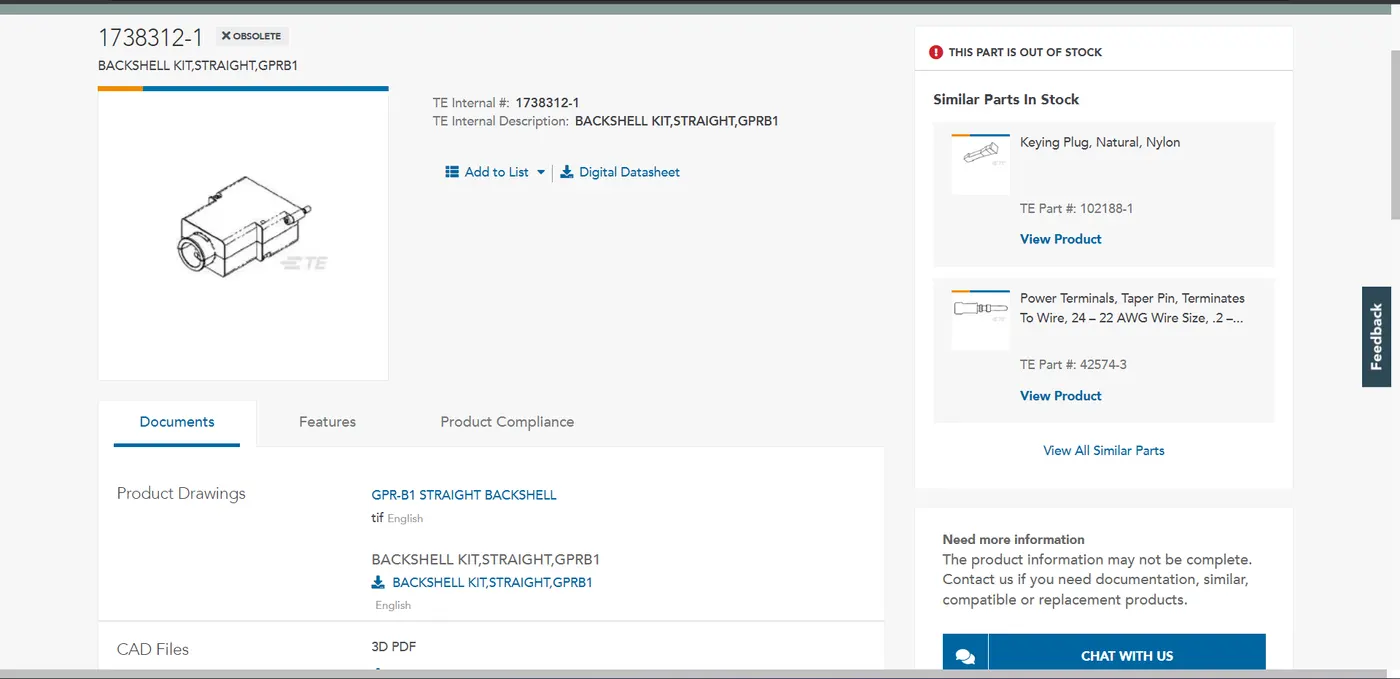

- when u click on the link. it takes to the TE connectivity page as shown the above fig.
- then download the ign files.
- then open the downloaded ign files in the catio.

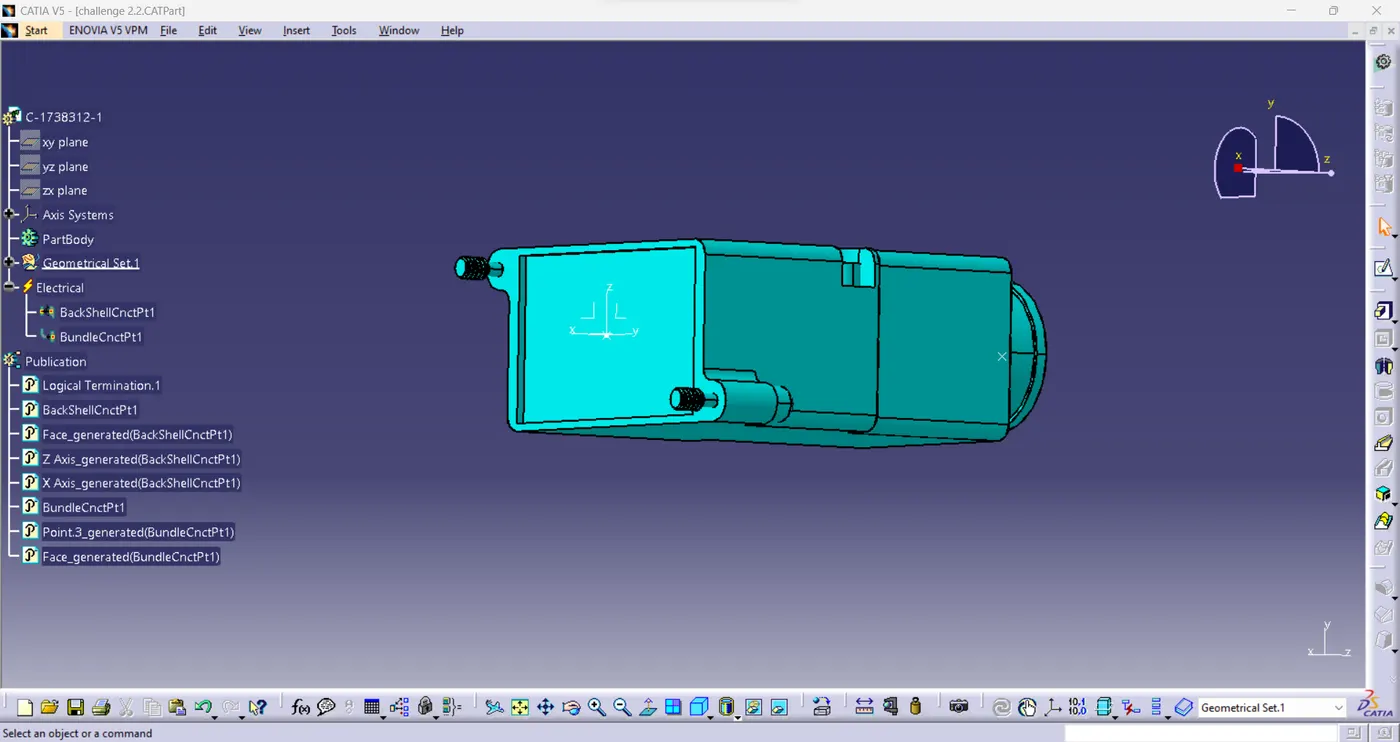

- axis system is create at the back shell connection end as shown in above fig.

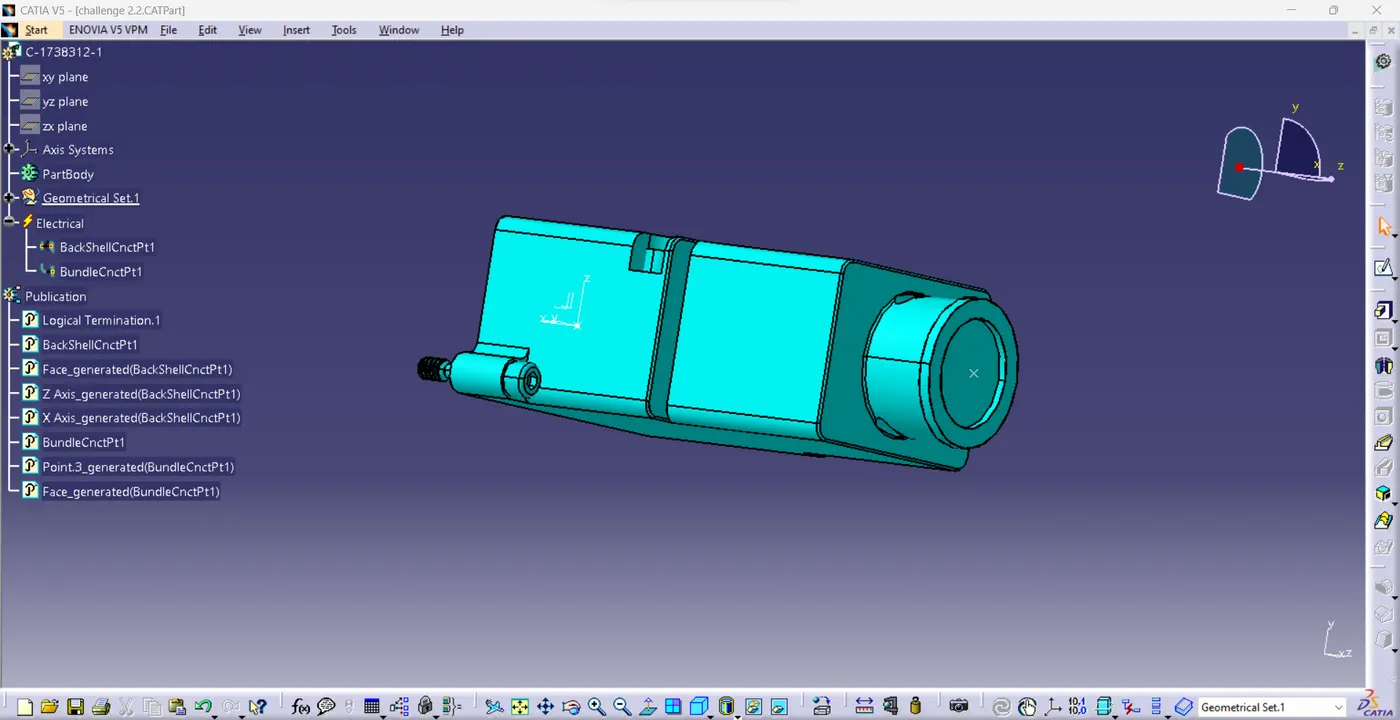

- bundle connection point is to created at another face of the connector.
