Wiring harness routing & packaging Rules Week 3 Challenge

Q 01 :

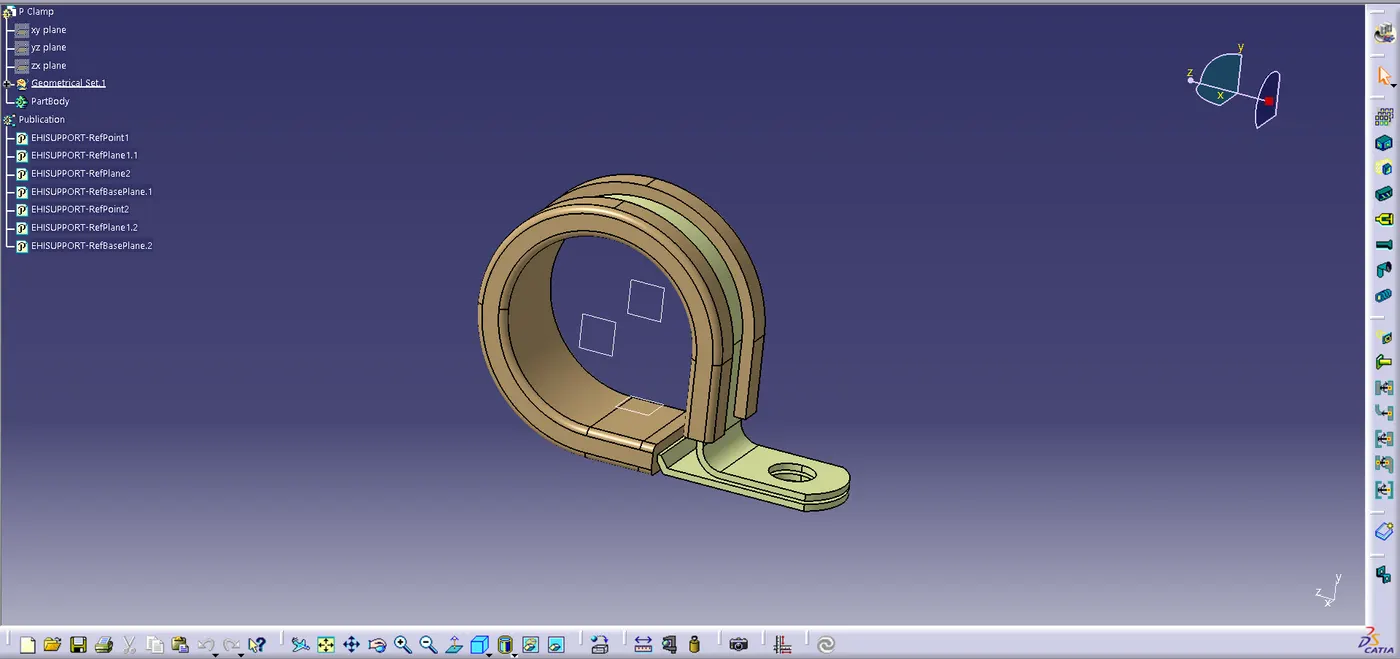

P Clamp

The given clip was downloaded and opened as a part file.

Process:

• Create two points one as entry and another as exit point.
• Create planes at two points and another at base.
• Switch to Electric part desgn.
• Click on support defination - select part - select entry point - select entry plane, exit and base plane.
• Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

Q 02:

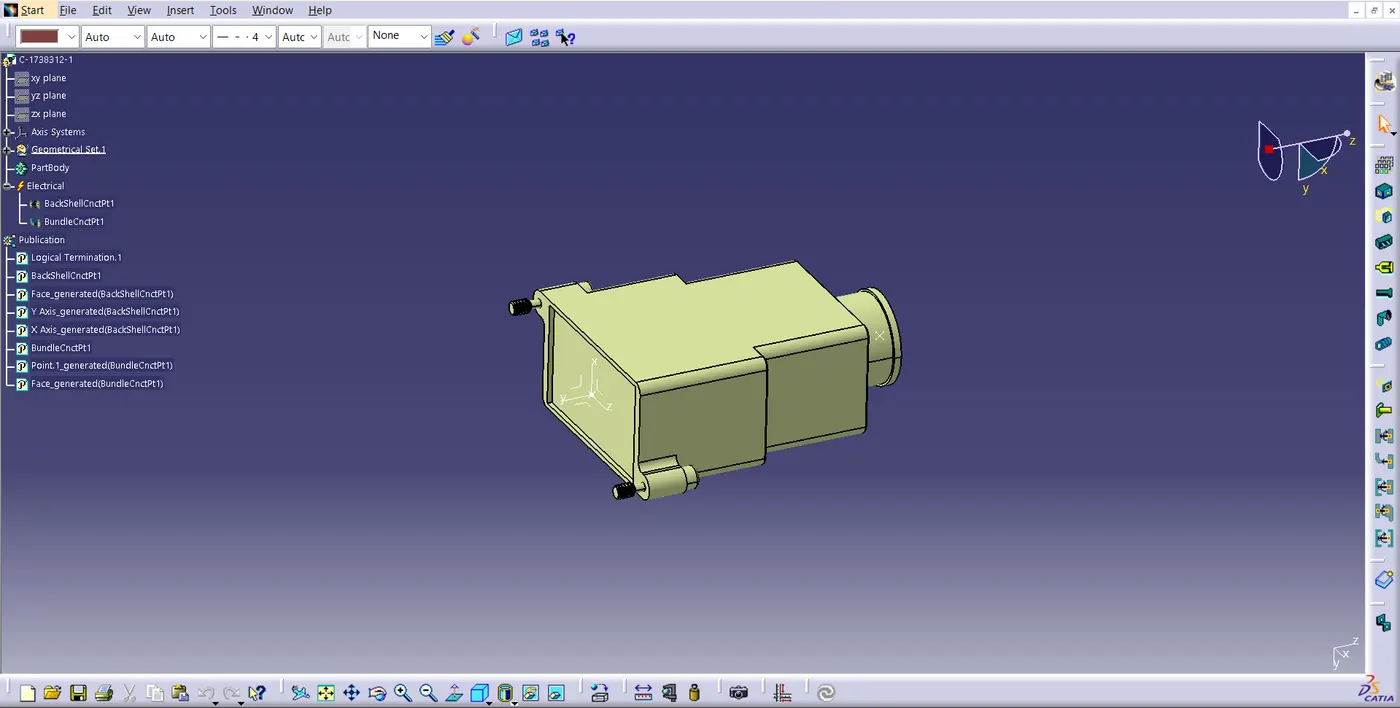

Tyco 1738312-1

The backshell data was downloaded from the website.

Process:

• We define the points in the part workbench.
• An Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.
• Switch to Electrical part design.
• Define part electrically as back shell.
• Then define Back shell connection point.
• Define bundle connection point.

Q 03:

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

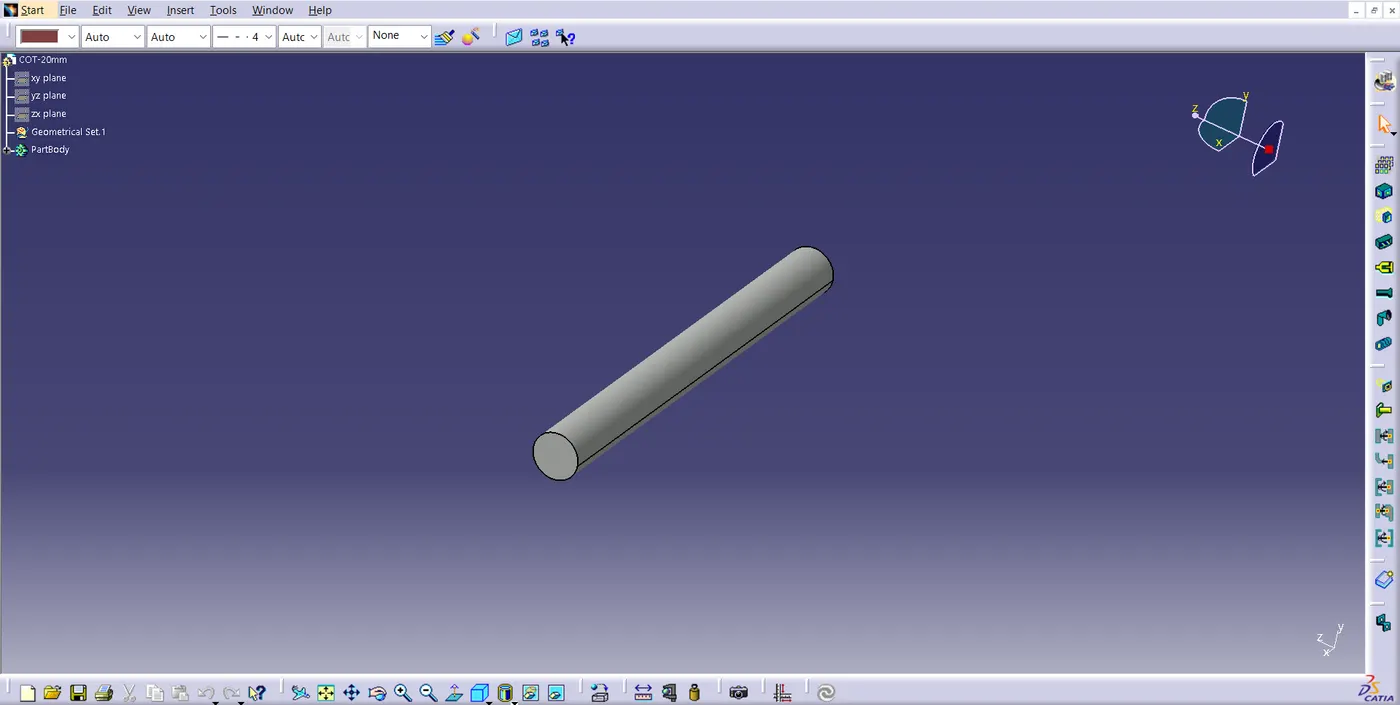

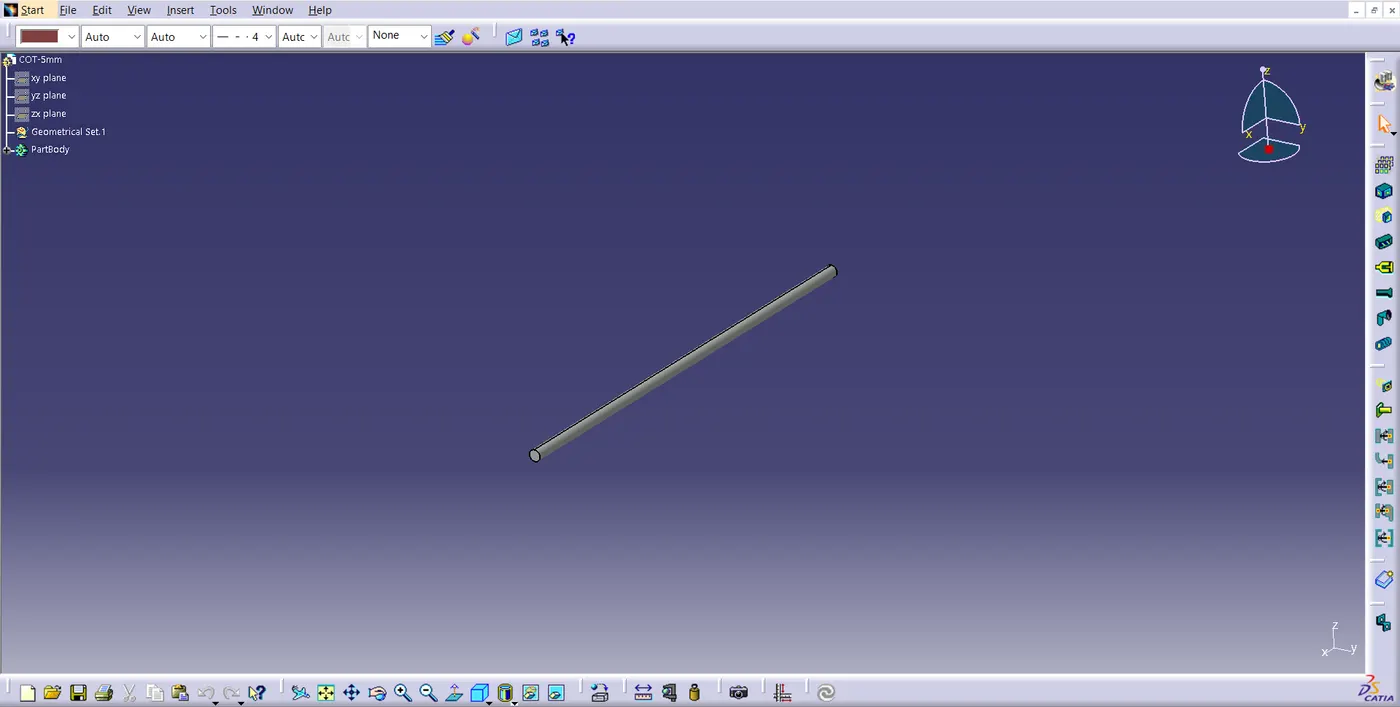

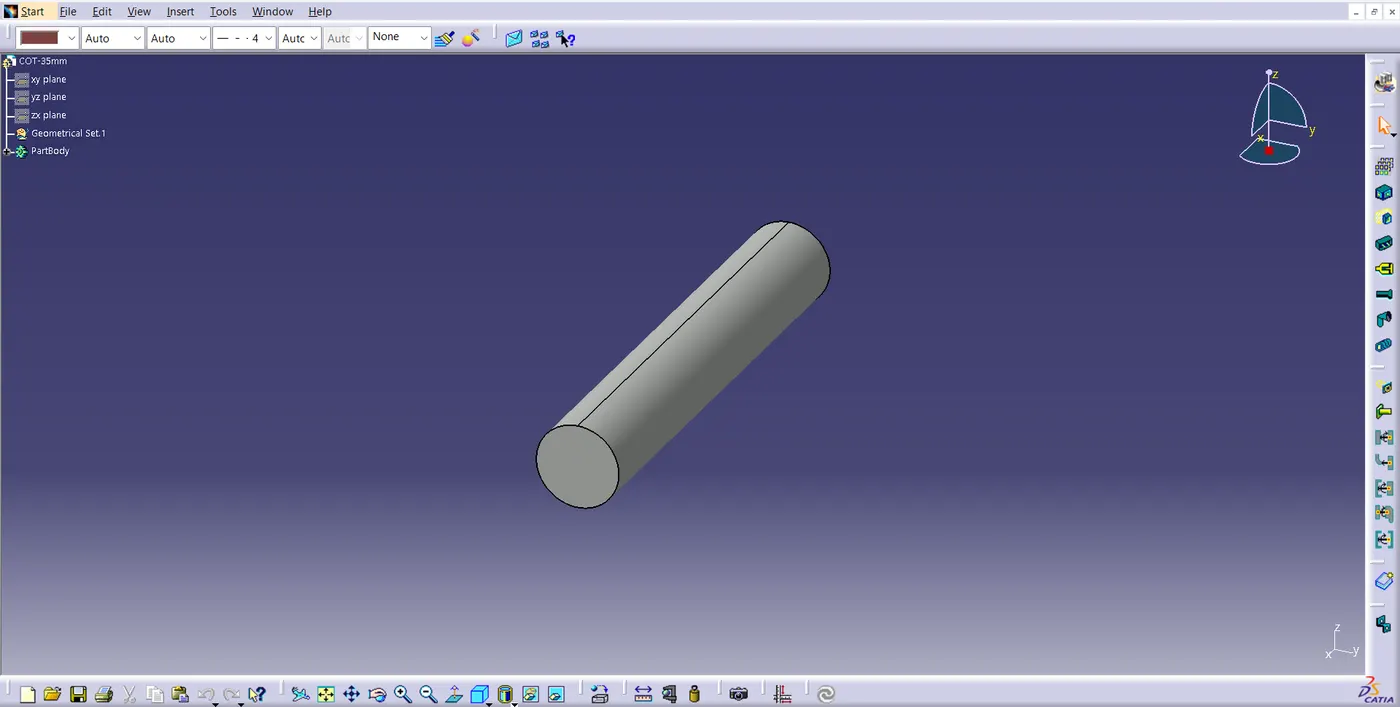

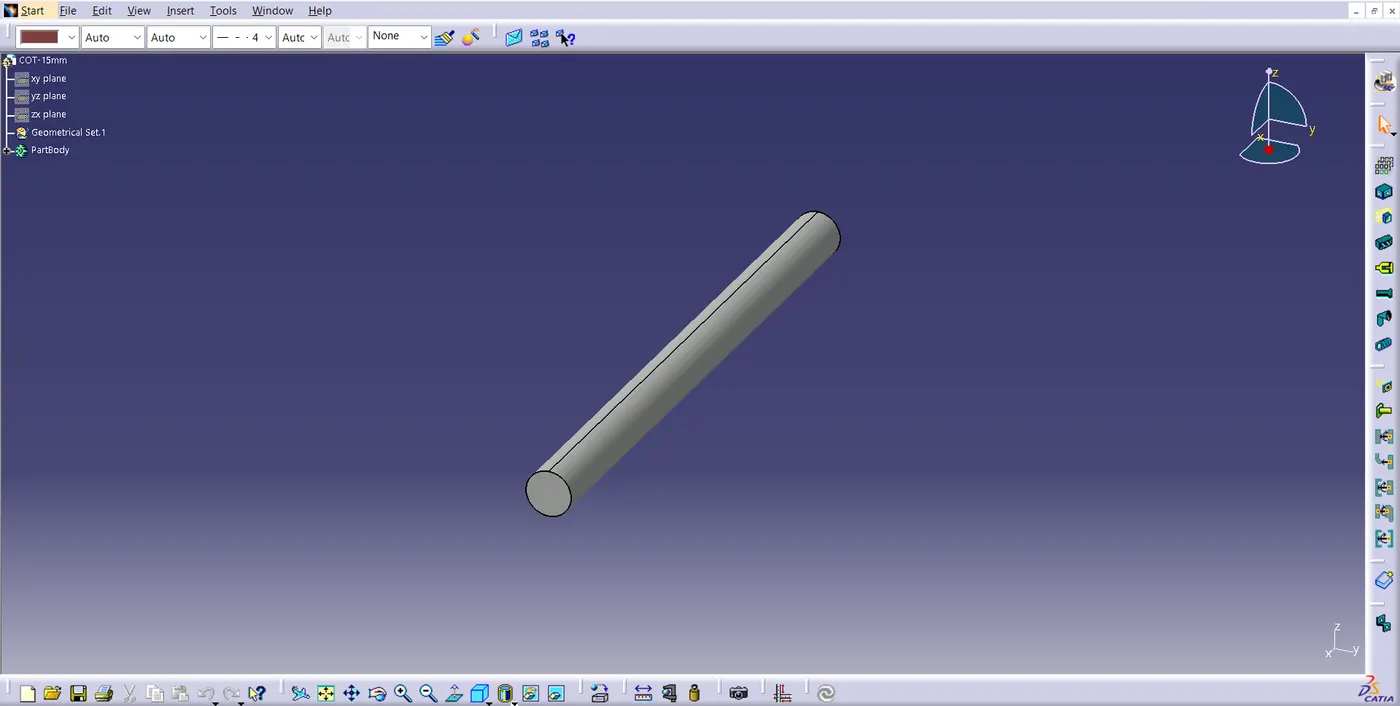

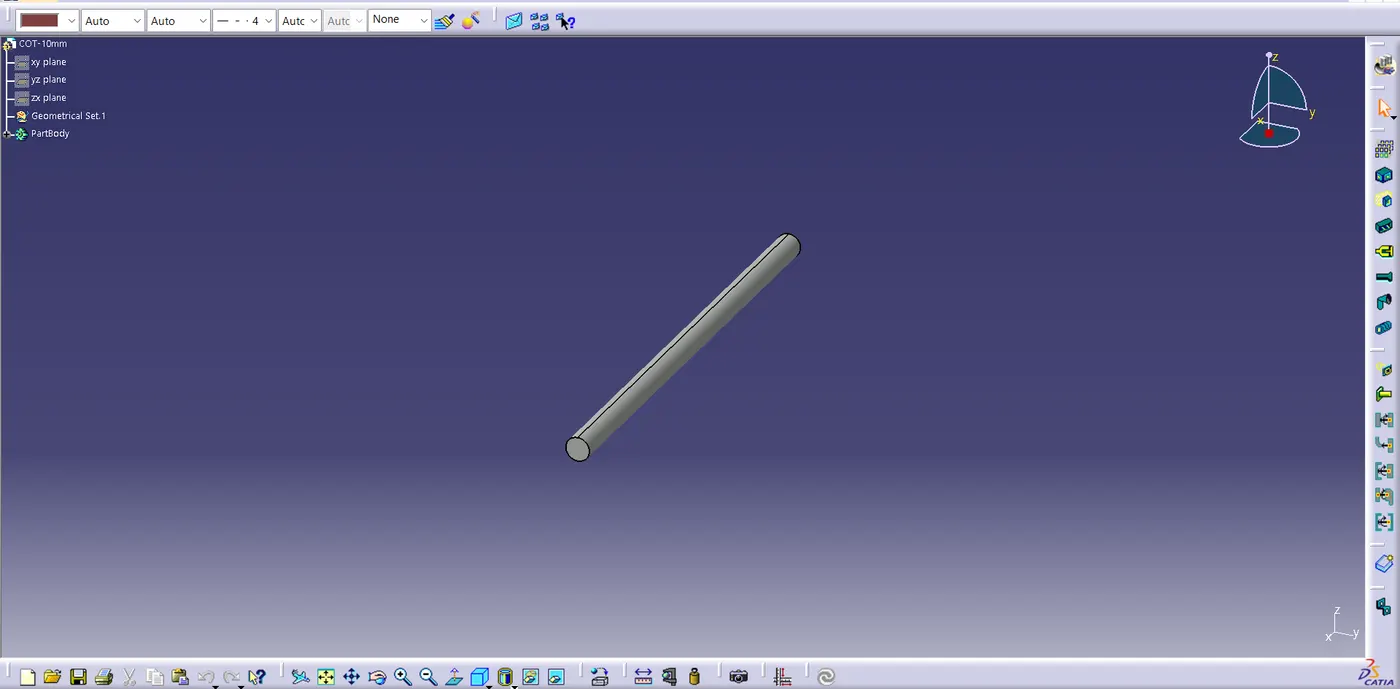

Creating Protection Covering(Corrugated tubes) in above given measurements:

Process:

• We define the cot tubes in the electrical part workbench.
• Switch to Electrical part design
• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.

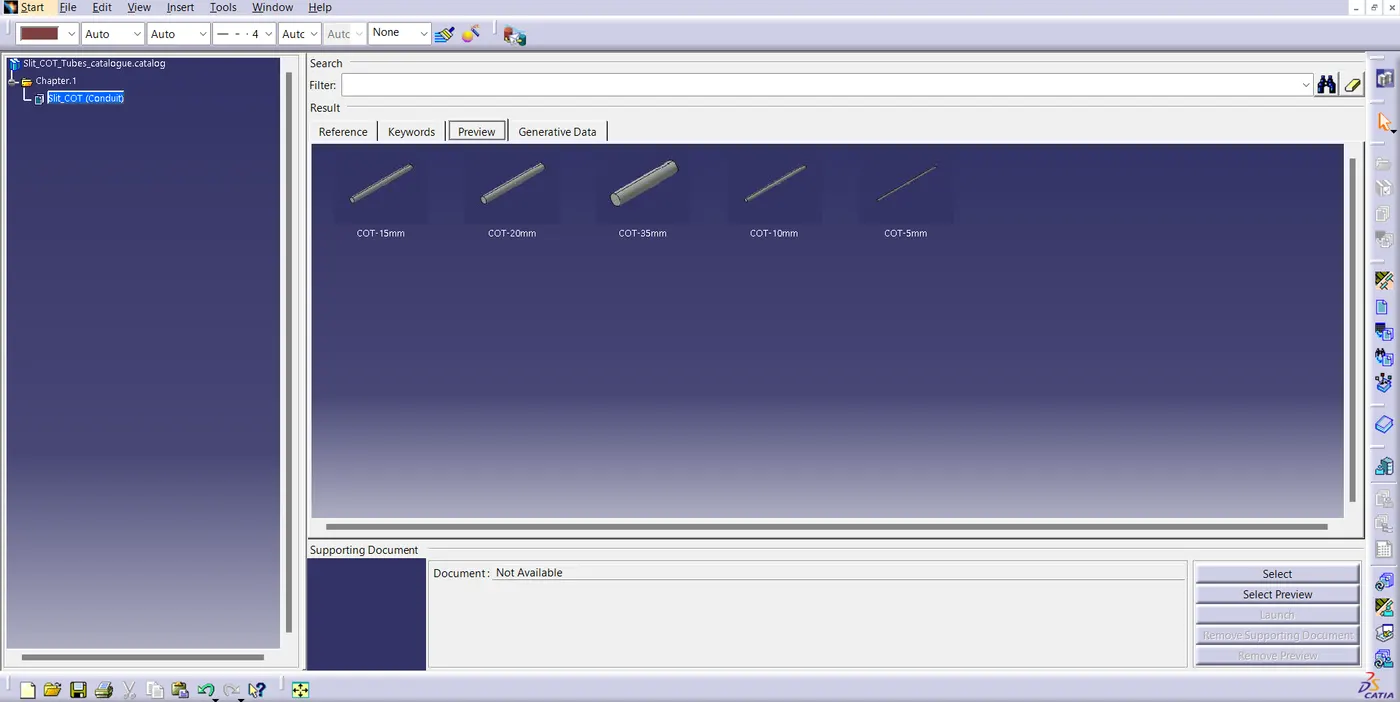

Catalogue Cretation:

• New Part.
• Catalogue document.
• Add family
• Give name as per the user concern and recognisable one.
• Select type which is suitable.
• For protective Covering type should be Conduit.
• Save the Catalogue.
• After that Open the part to add to catalogue.
• Select store device.
• Select the saved catalogue and select the family.
• In this case we named the family as Slit-COT-Tubes.
• Like this for each Cottubes.

.....
