Wiring harness routing & packaging Rules Week 3 Challenge

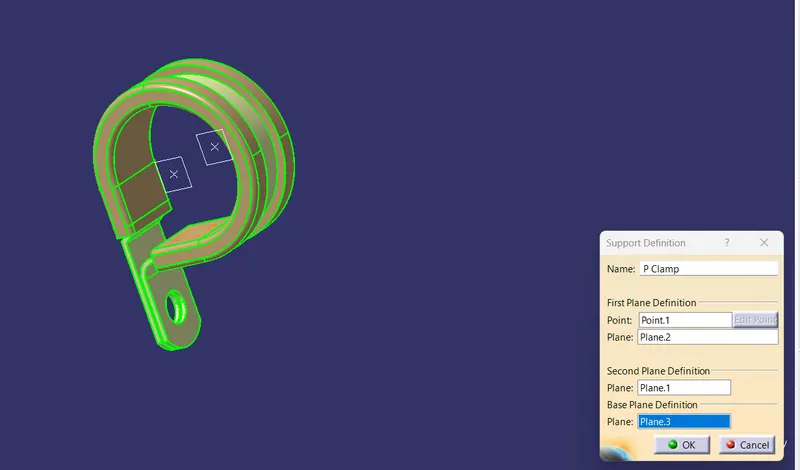

P-Clamp:-

Defining Geometry parameter

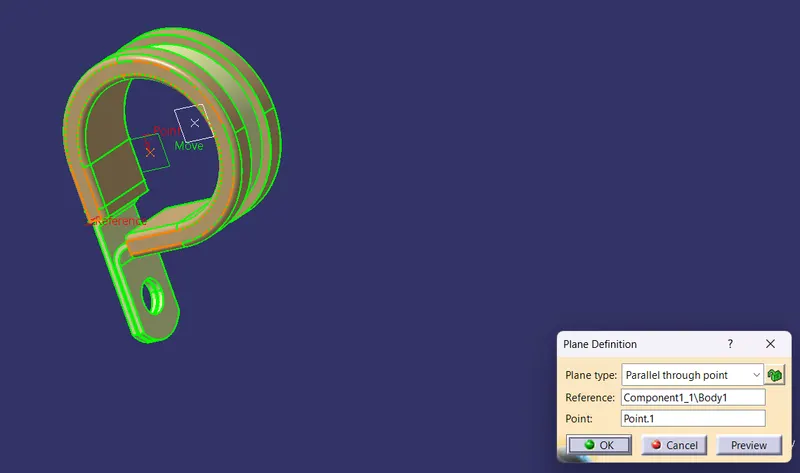

creating Plane-point for the entry side and exit side.

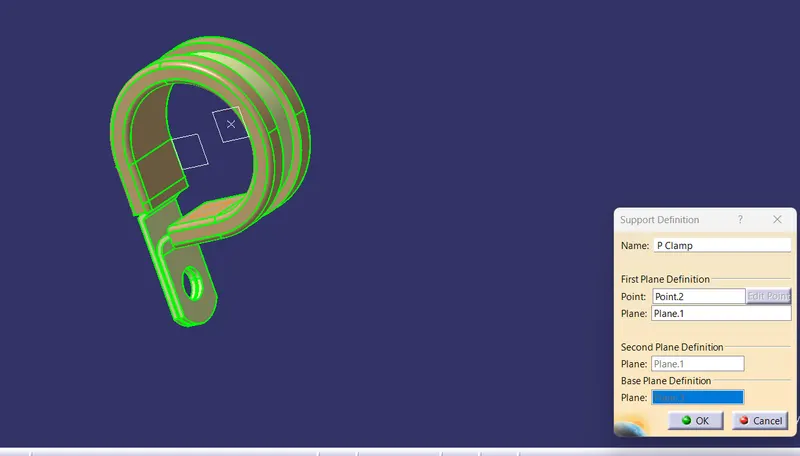

define part as a support

define entry point and plane

define base & Exit plan

this p clamp on any side can be used as an entry or exit

so we have to define both side as entry or exit

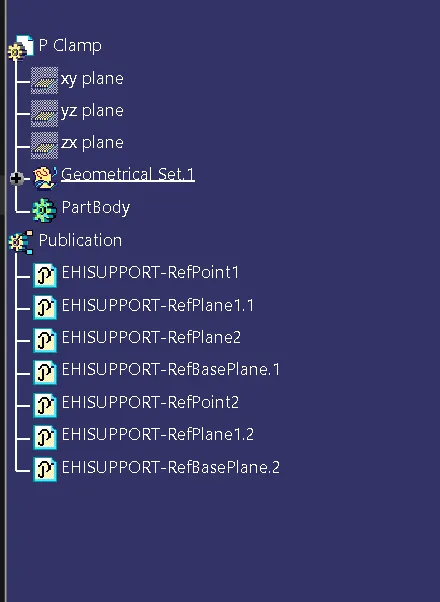

tree

Back shell

defining the geometry parameter

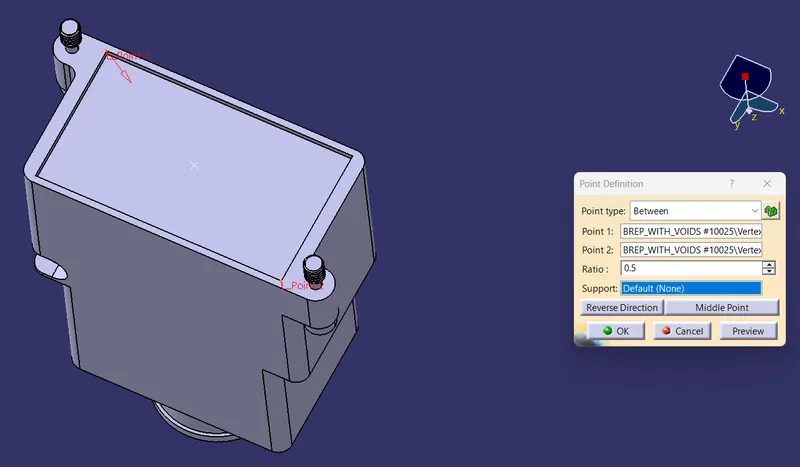

creating point

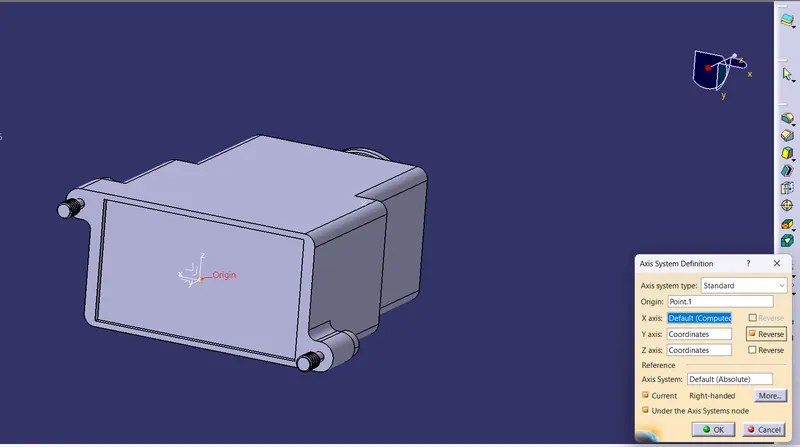

axis system and creating bundle connection point

defining part as a backshell

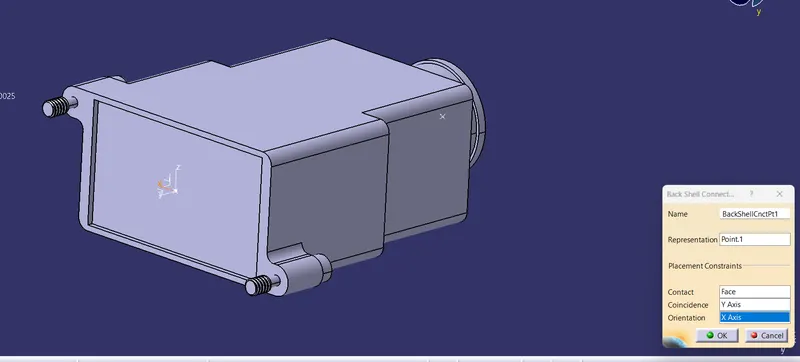

backshell connection point

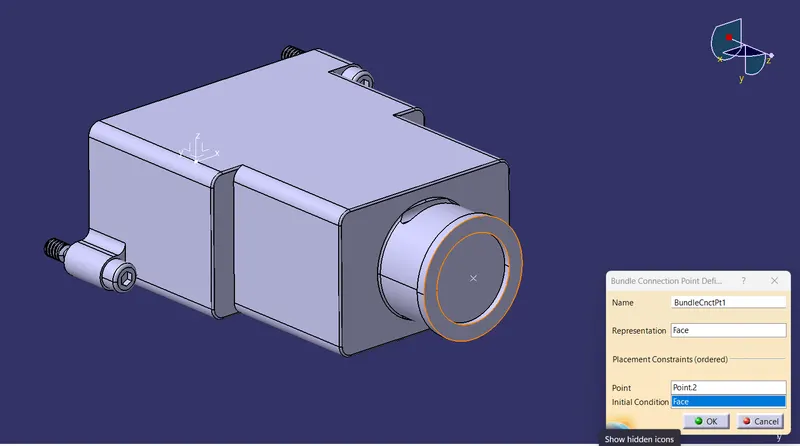

bundle connection point

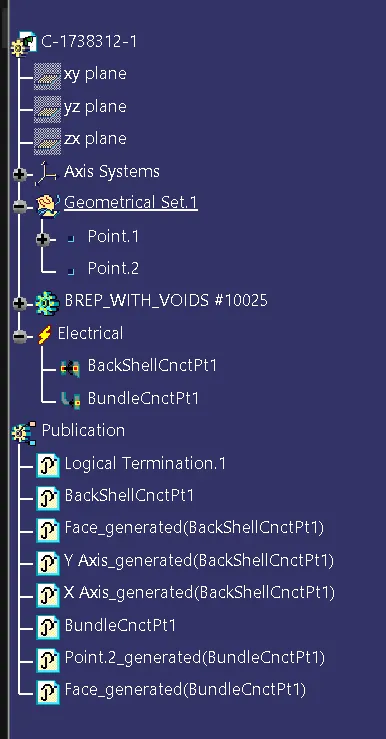

tree

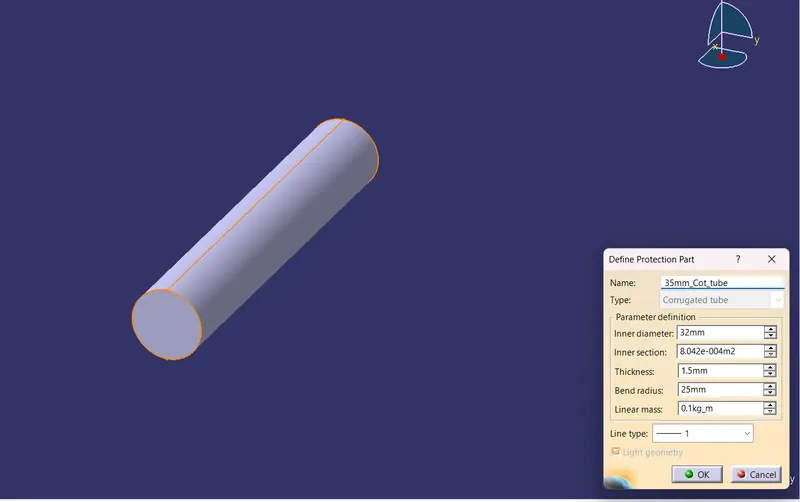

35mm Cot_Tube

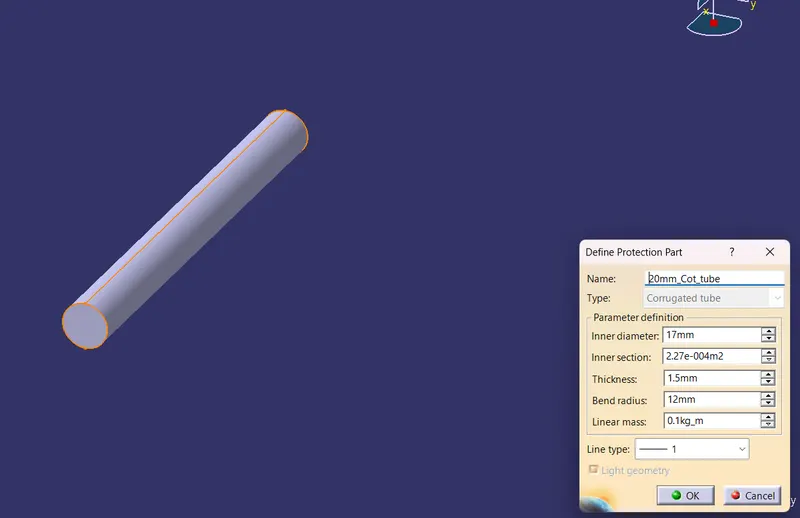

20mm Cot_Tube

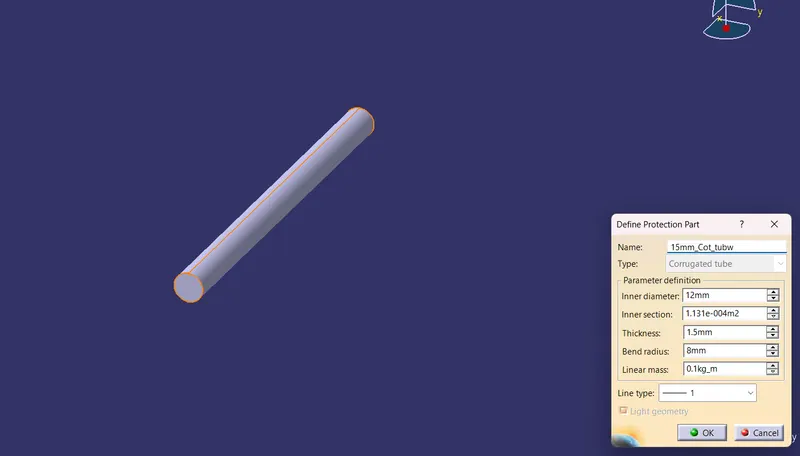

15mm Cot_Tube

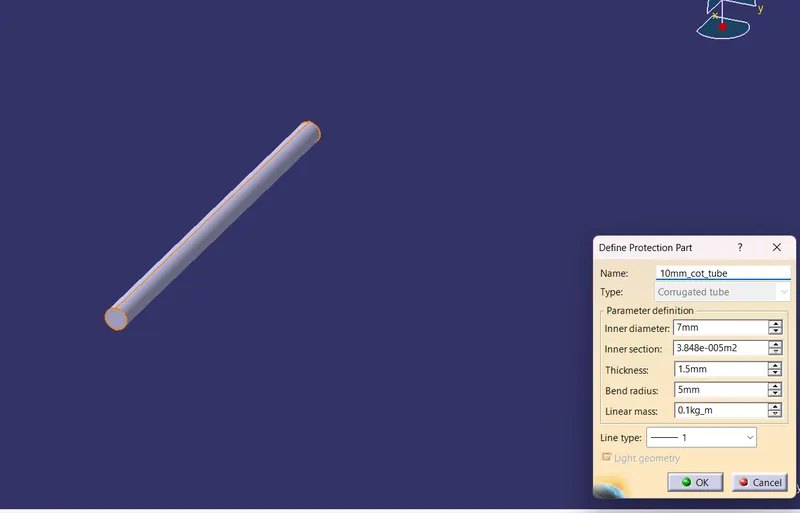

10mm Cot_Tube

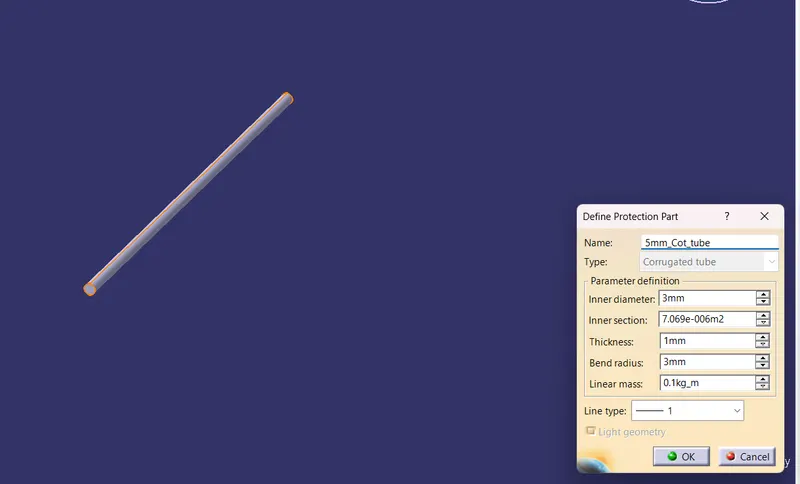

5mm Cot_Tube

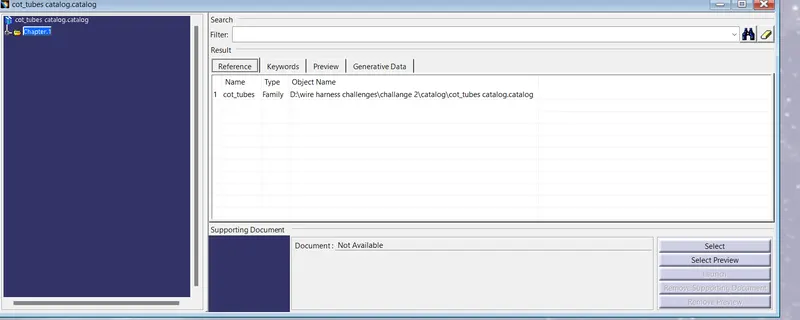

catalog
