Wiring harness routing & packaging Rules Week 3 Challenge

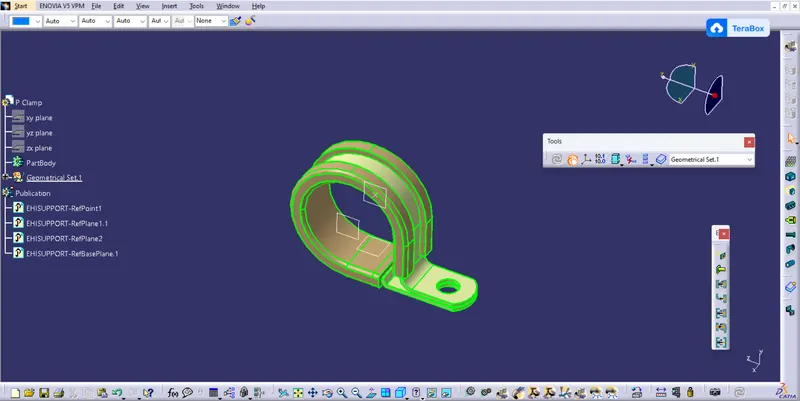

P Clamp

Defining

1. Create a entry and exit point in the given part body

2. Create plane parallel through entry and exit point . Further create a base plane.

3. Switch to electric part design and define as support.

4. Define the ref point, entry point and plane . Define the exit point and plane.

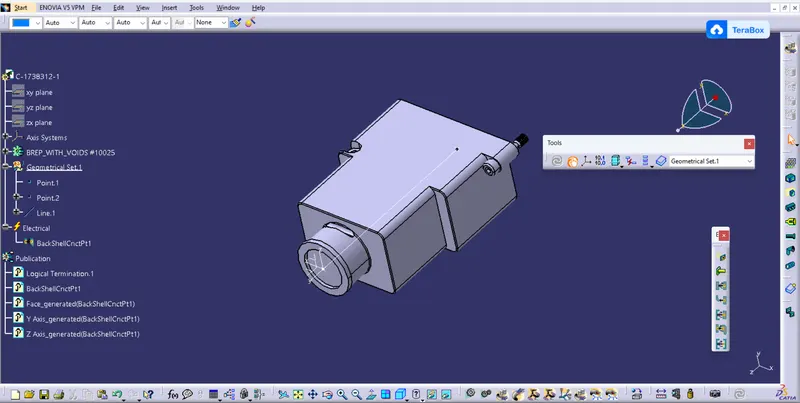

Back shell

Defining

1. Create a entry point and center line through the back shell.

2. Create axis system in the entry point.

3. Switch to electric part design. Define it as backshell.

4. Define the ref point, coincidence and orientation.

COT Tubes

• we define the cot tubes in the electrical part workbench.
• the inner dia & thickness are given as the inputs.

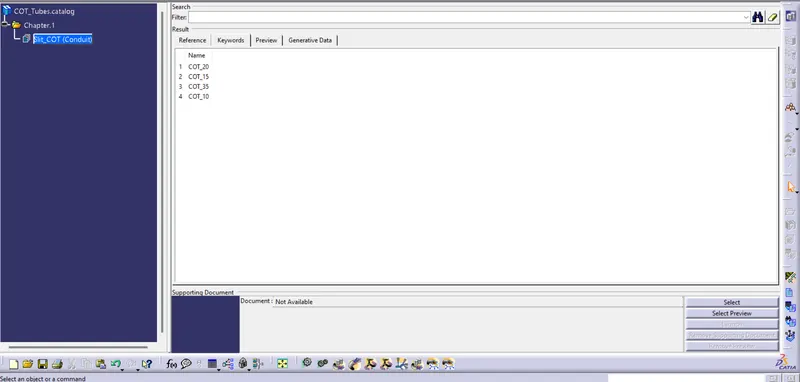

• a catalog was created for the cot tubes.
• all the cot tubes were saved in the catalog.
