Wiring harness routing & packaging Rules Week 3 Challenge

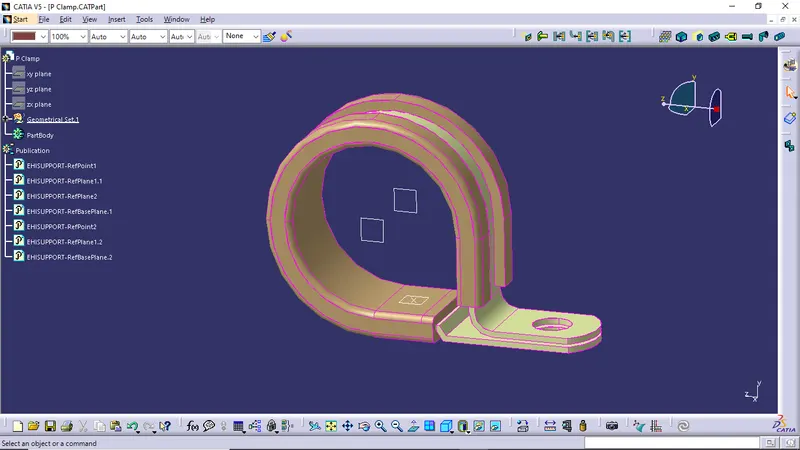

Q1. P Clamp was downloaded from the given lync and the electrical properties were assigned to it from the Electrical Part Design workbench. The P Clamp was assigned as the Electrical Support Structure from both the ends. PFA

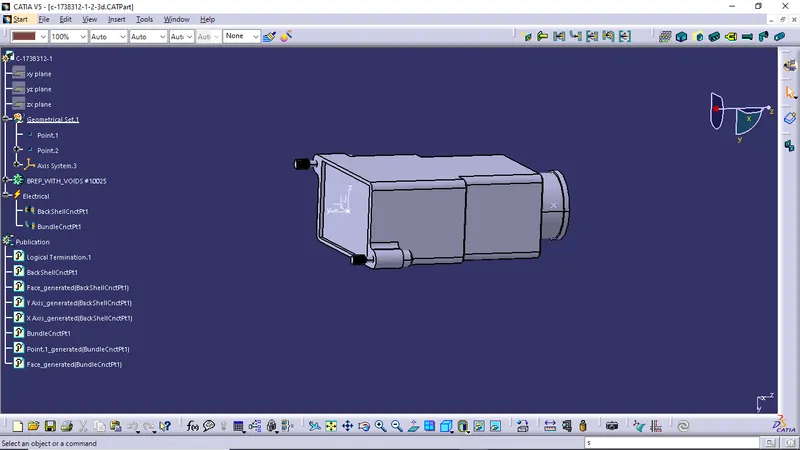

Q2. The backshell part, Tyco 1738312-1 was downloaded from the TE website and the respective electricals properites were assigned to it. The part was defined as a backshell connector.

PFA

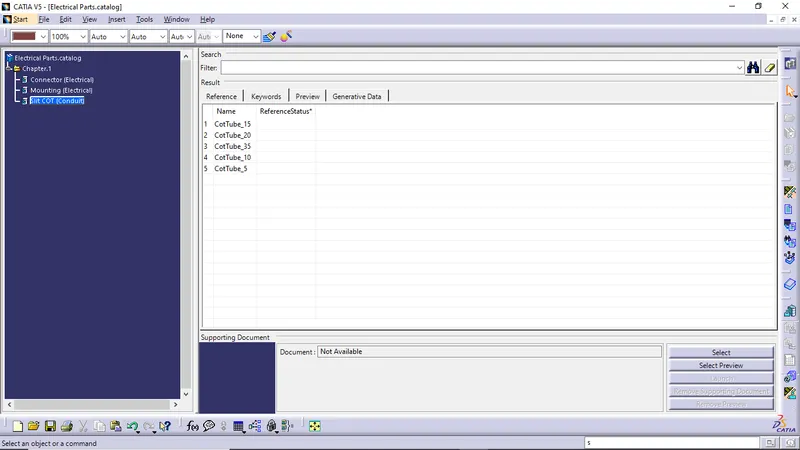

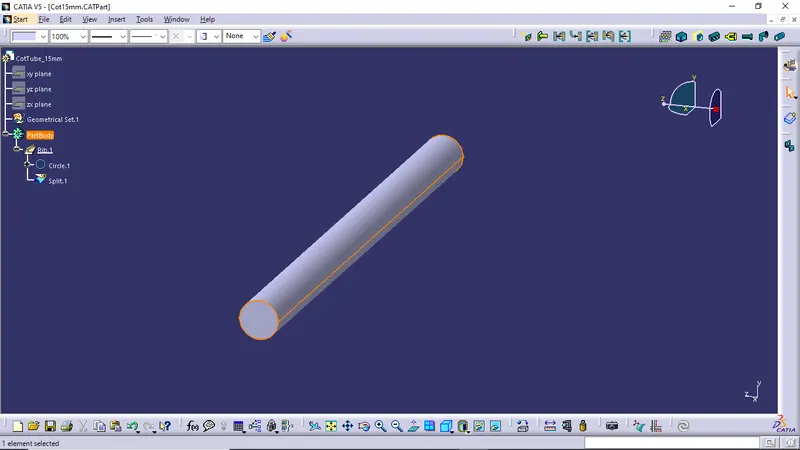

Q3. The COT-Tubes were created using the define protective covering option and the catalogues were made succesfully as a seperate family named Slit-COT in the Electrical Parts Catalogue Document. PFA (One example image for the COT 15mm tube is also attached with the document. All other tubes are uploaded as cat.part files.)
