Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

The above said parts (Connectors and clips) were downloaded from the TE.com website as stps and converted to cat.parts.

• Connector definitions and properties for connector connection points were given for both the male and female connectors.
• The hosuing clip was also defined and cavity connection pount properties were given to it.
• Two catalogues were created,
  • One for the connectors and was named Connector Family
  • Second one for the clips and was names Housing Clips.
• All the above said points can be found in the snips shared below.

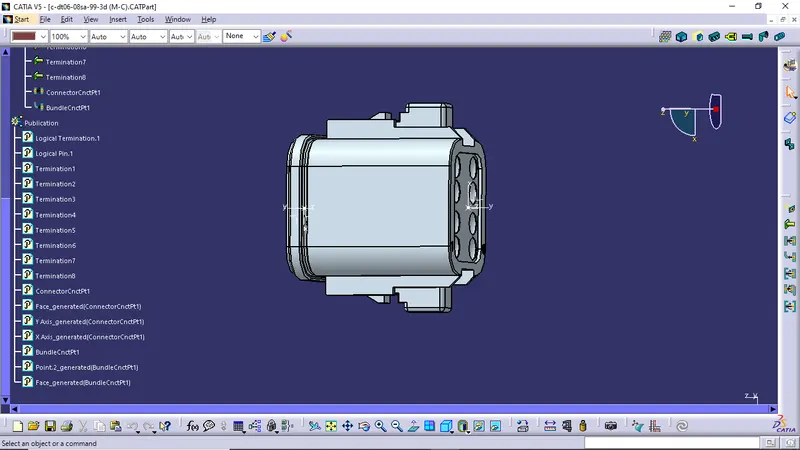

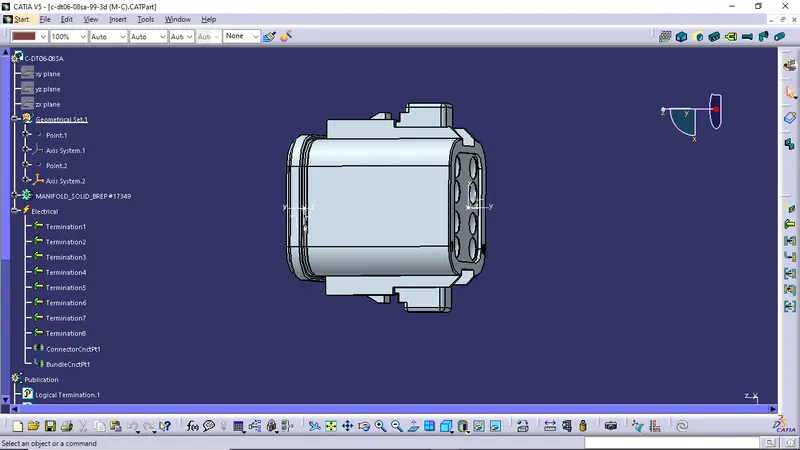

Deutsch DT06 – 08SA (Male - Connector)

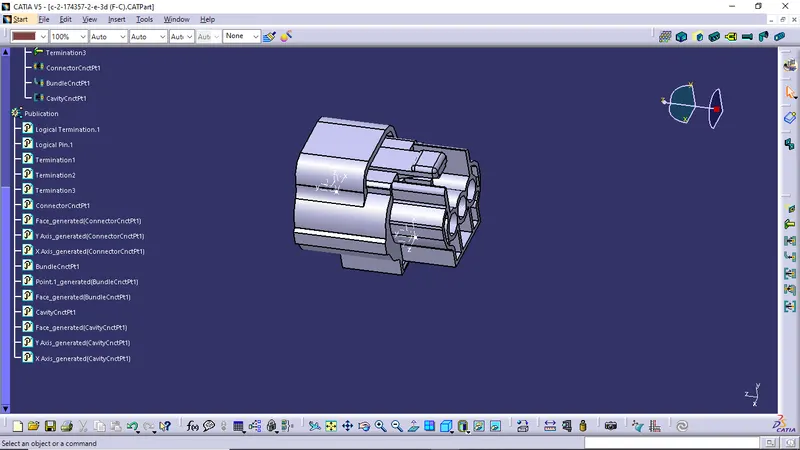

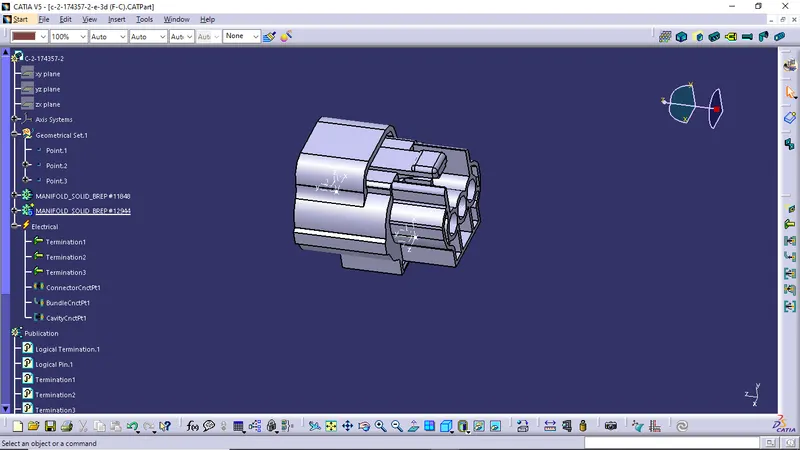

Tyco 174357-2 - Female Connector

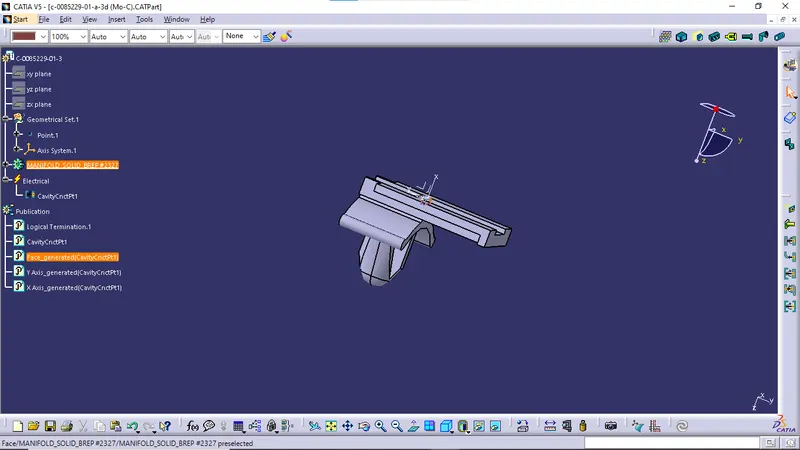

Tyco 85229-1 - Mounting for connector

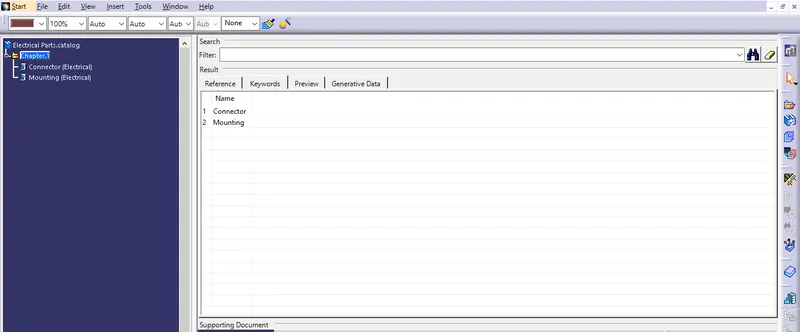

Catalogue
