Wiring harness routing & packaging Rules Week 3 Challenge

ANSWER 1.

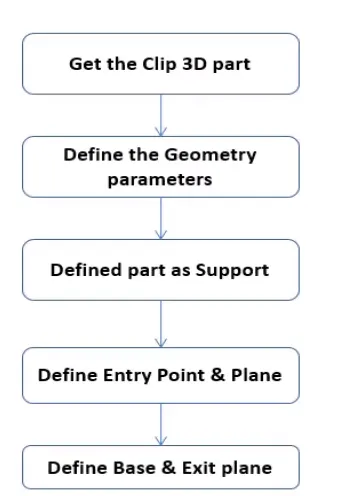

          1. THE GIVEN CLIP DOWNLOADED AND OPEN THE IGS FILE ANS SAVE AS CAT FILE

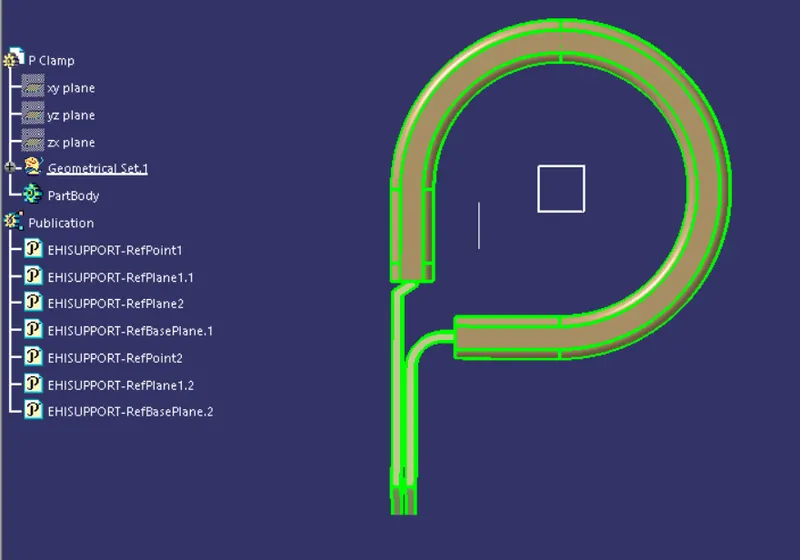

          2. THAN WE DEFINE TWO POINT FOR ENTRY AND EXIT POINTS

          3. THE PLANES HAS TO BE DEFINED AS POINTS

          4. A BASE PLANE HAS TO DEFINE 2 TO 5 MM OFFSET

          5. WE USE DEFINE SUPPORT COMMAND TO TO GIVE ENTRY ANS EXIT POINTS AND PLANES TWISE



ANSWER 2

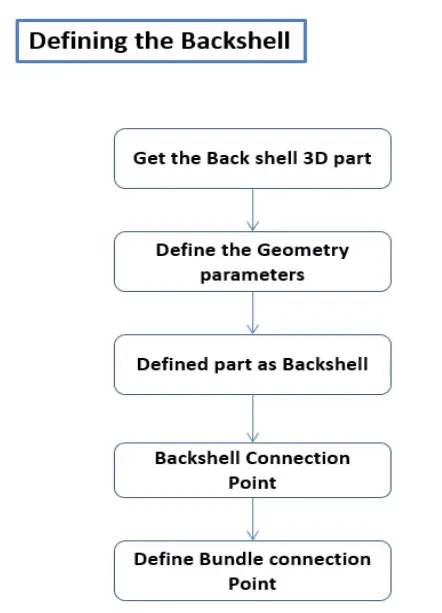

              1. BACKSHELL DATA DOWNLOAD FROM WEBSITE

              2. WE DEFINE POINT IN PART WORKBENCH

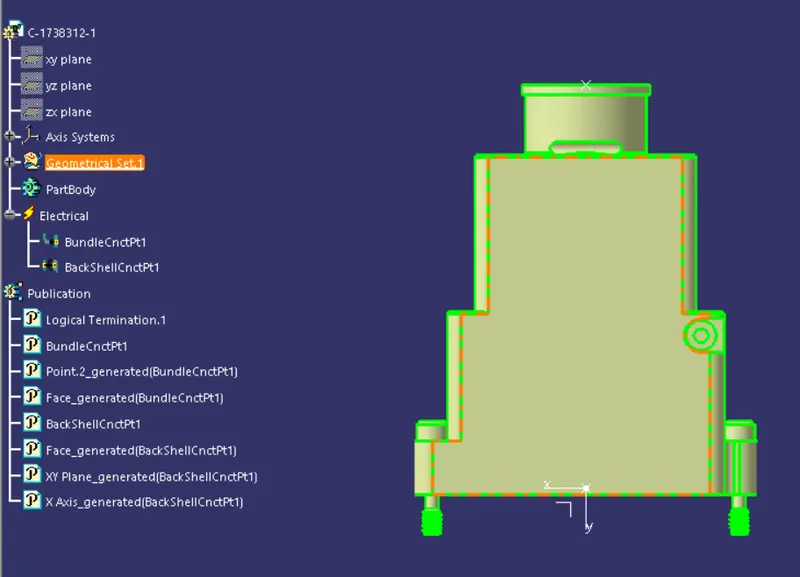

              3.  WE CREATE AXIS SYSTEM IN BACKSHELL CONNECTION POINTS

              4. THE POINT HAS DEFINED AS BACKSHELL CONNECTION POINT AND BACKSHELL BUNDLE POINTS



ANSWER 3.

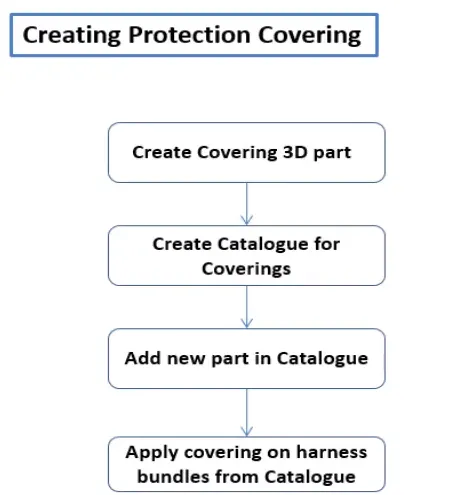

                  1. WE DEFINES COT TUBES IN ELECTRICAL PART WORKBENCH

                  2. INNER DIA AND THE THICKNESS IS GIVEN IN INOUT DATA

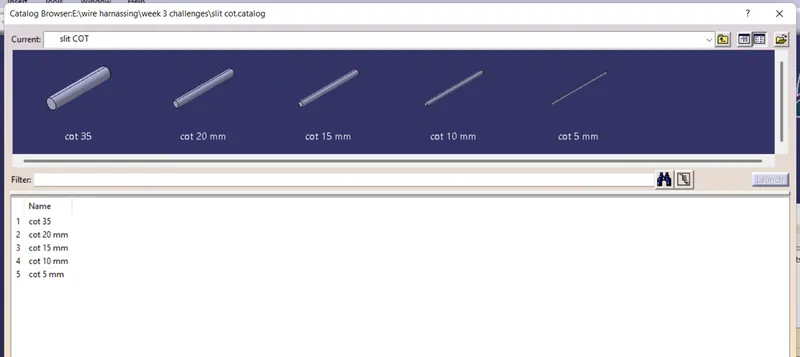

                  3. AT CATLOG (SLIT COT) WAS CREATED FOR TUBES

                  4. AND ALL THE COT TUBES SAVED IN CATLOG
