Wiring harness routing & packaging Rules Week 3 Challenge
DEFINE ELECTRICAL COMPONENTS USING ELECTRICAL PART DESIGN WORKBENCH
PART 01 : P CLAMP

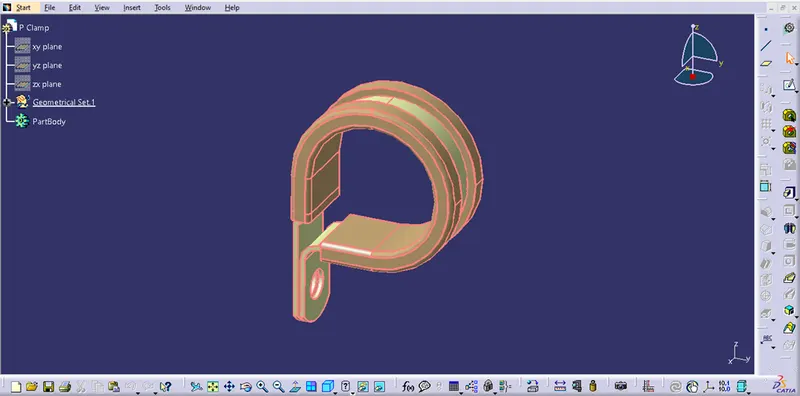

CAD DATA IMPORT
DEFINE GEOMETRICAL PARAMETERS

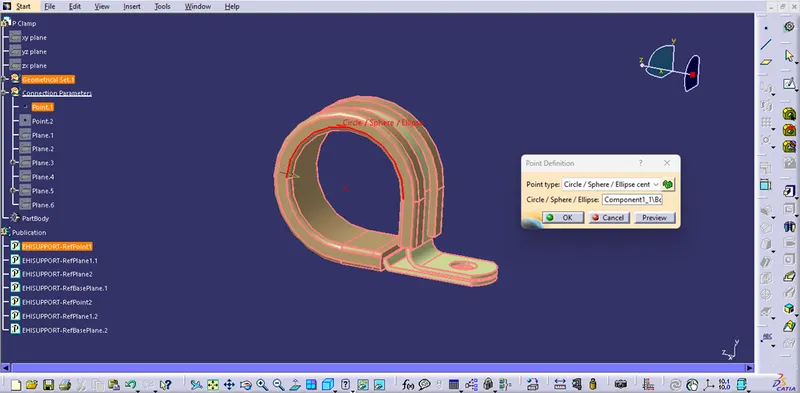

1. ENTRY POINT

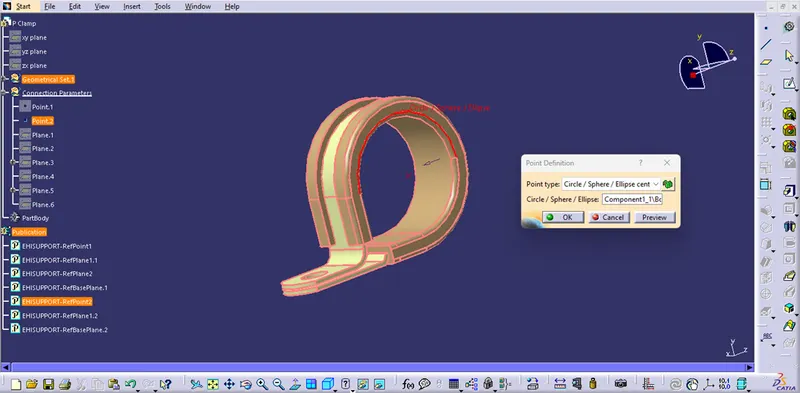

2. EXIT POINT

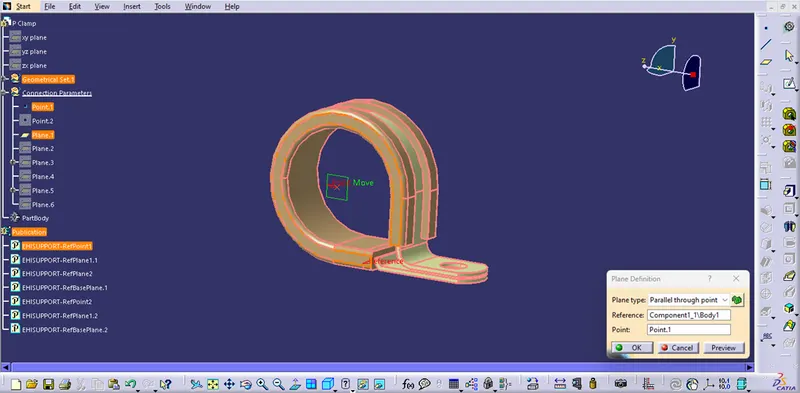

3. ENTRY PLANE

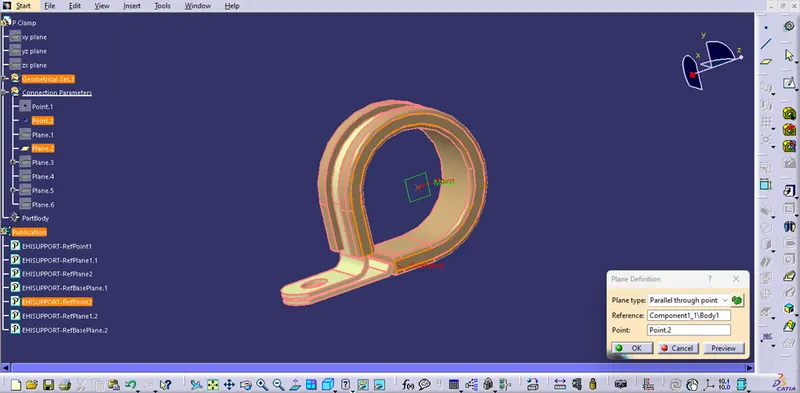

4. EXIT PLANE

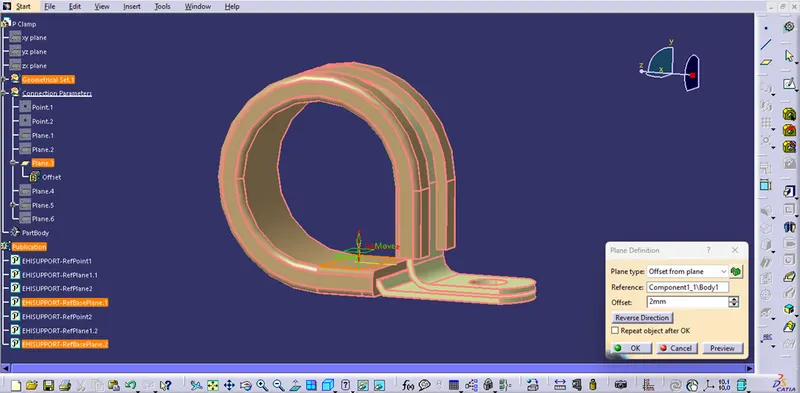

5. BASE PLANE

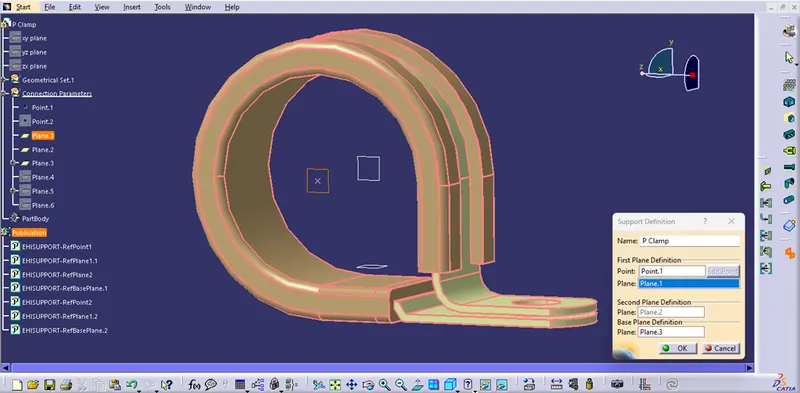

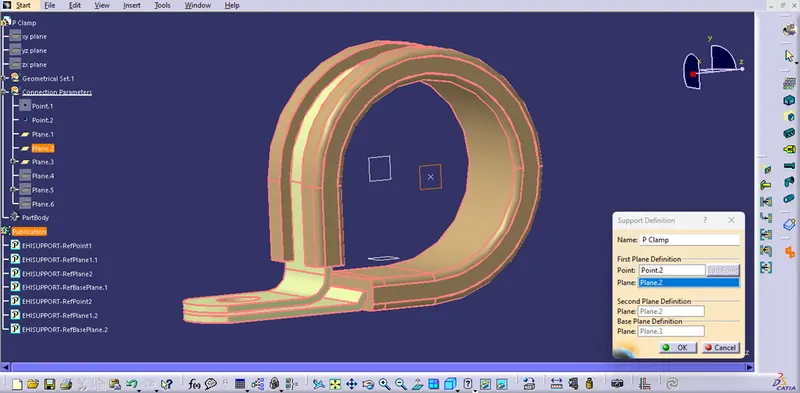

DEFINE PART AS SUPPORT (ELECTRICAL DEVICE)
FIRST ENTRY/EXIT REFERENCE
SECOND ENTRY/EXIT REFERENCE
PART 02 : C-1738312-1 (BACK SHELL)

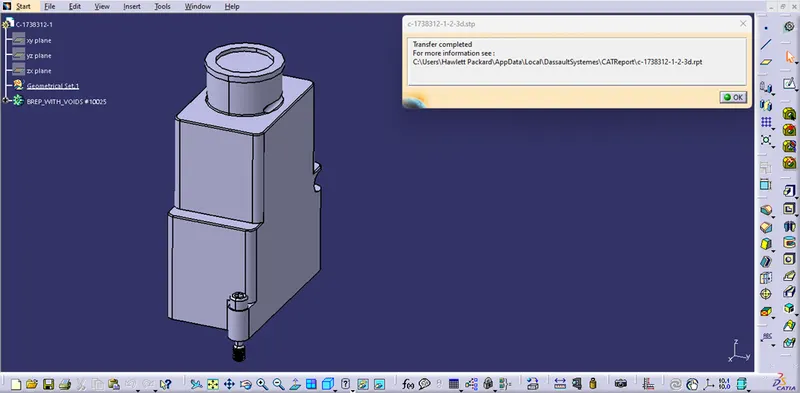

CAD DATA IMPORT
CREATE GEOMETRICAL PARAMETERS

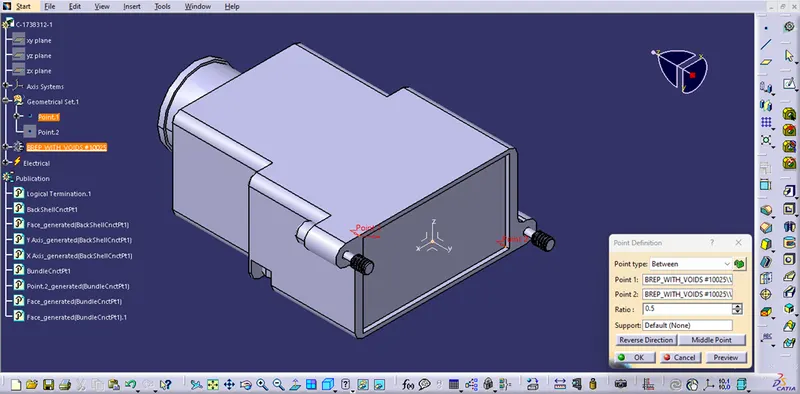

1. CONNECTOR CONNECTION POINT

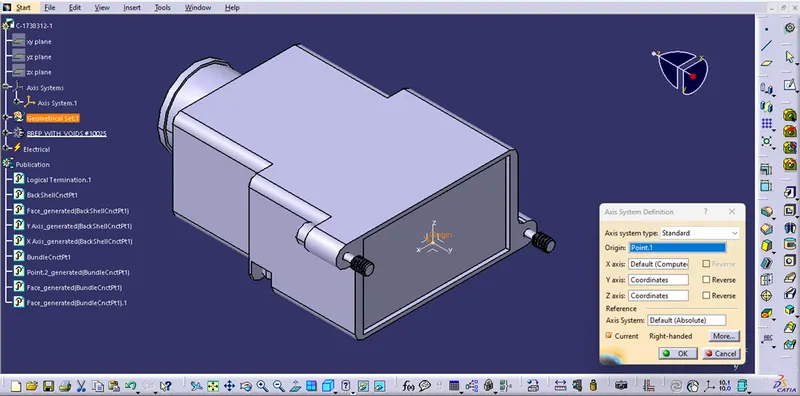

2. CONNECTOR CONNECTIONN AXIS

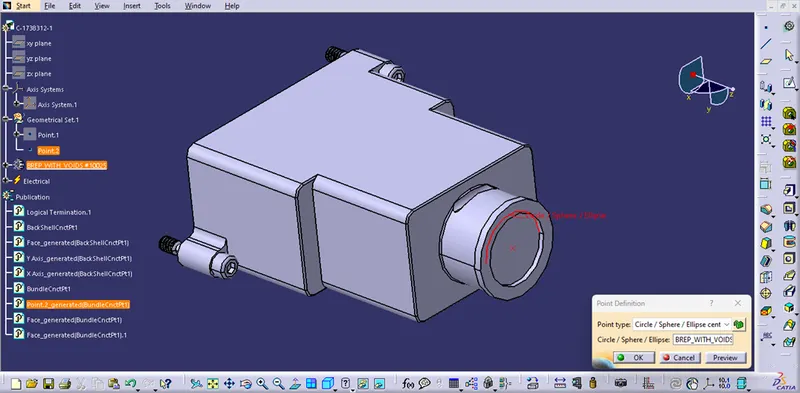

3. BUNDLE CONNECTION POINT

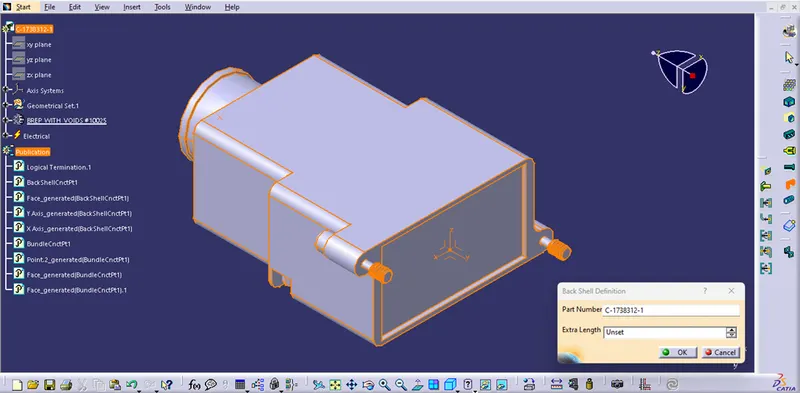

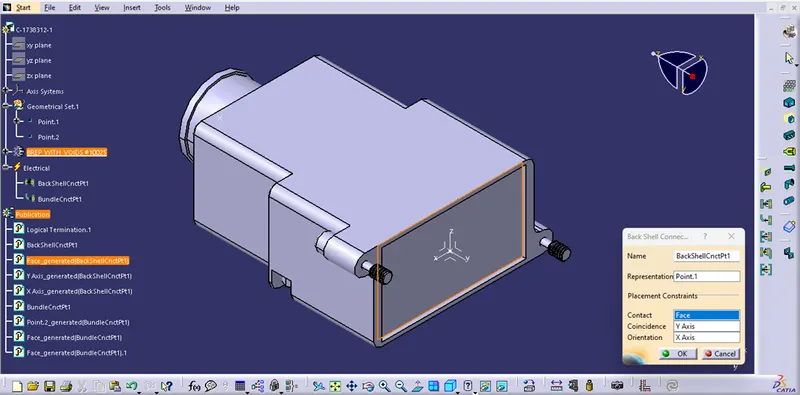

DEFINE PART AS BACK SHELL (ELECTRICAL DEVICE)
DEFINE BACK SHELL CONNECTION POINT

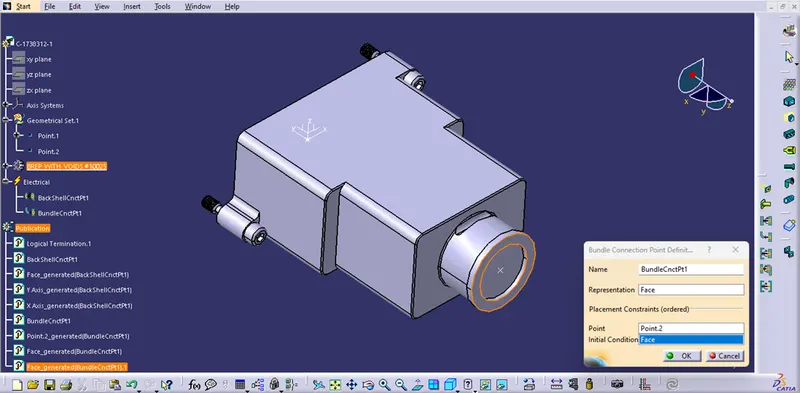

DEFINE BUNDLE CONNECTION POINT
CORRUGATED TUBES

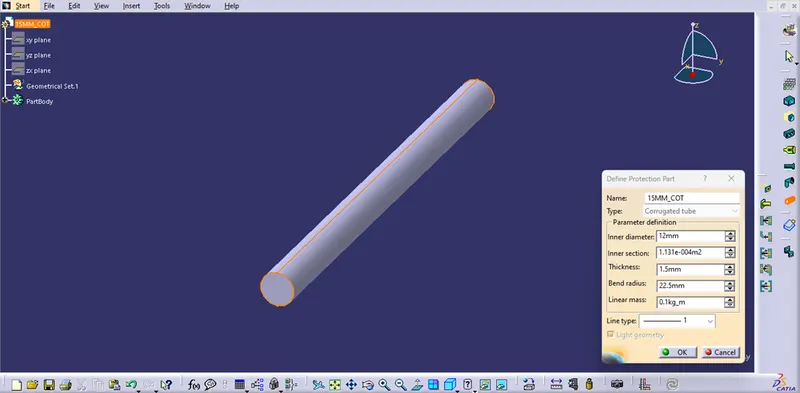

1. 15MM_COT
SPECIFICATIONS
INNER DIAMETER : 12 MM
OUTRE DIAMETER : 15 MM
THICKNESS : 1.5 MM
2. 20MM_COT
SPECIFICATIONS
INNER DIAMETER : 17 MM
OUTRE DIAMETER : 20 MM
THICKNESS : 1.5 MM

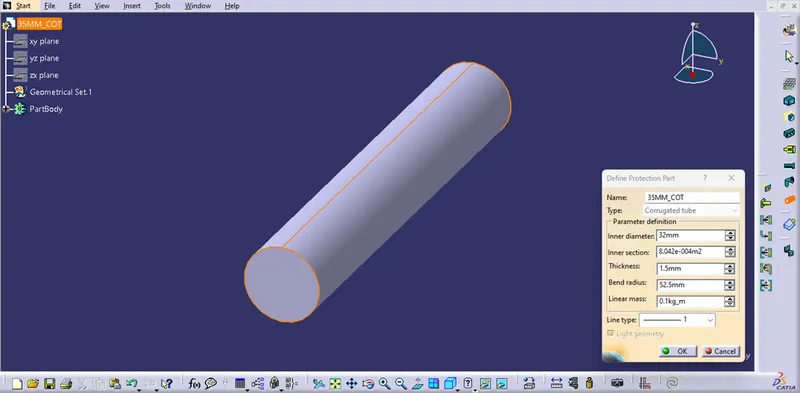

3. 35MM_COT
SPECIFICATIONS
INNER DIAMETER : 32 MM
OUTRE DIAMETER : 35 MM
THICKNESS : 1.5 MM

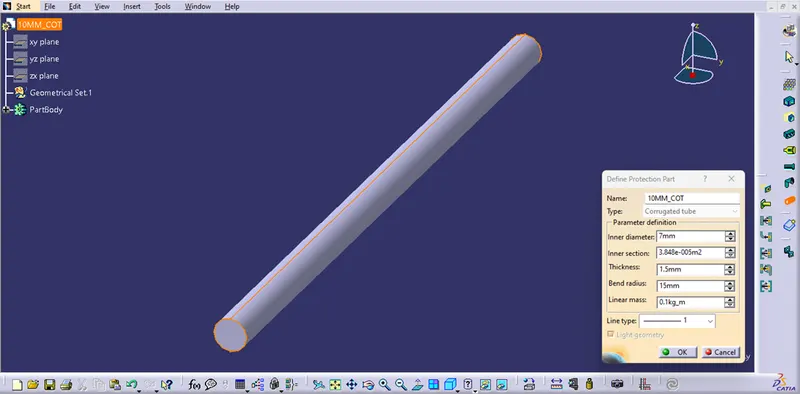

4. 10MM_COT
SPECIFICATIONS
INNER DIAMETER : 7 MM
OUTRE DIAMETER : 10 MM
THICKNESS : 1.5 MM

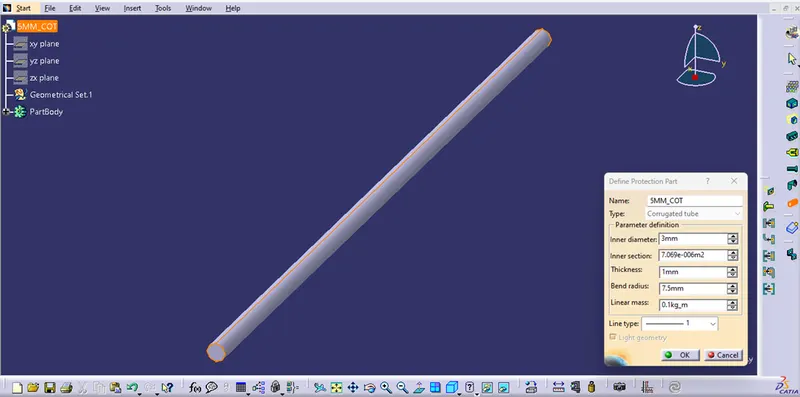

5. 5MM_COT
SPECIFICATIONS
INNER DIAMETER : 3.0 MM
OUTRE DIAMETER : 5.0 MM
THICKNESS : 1.0 MM

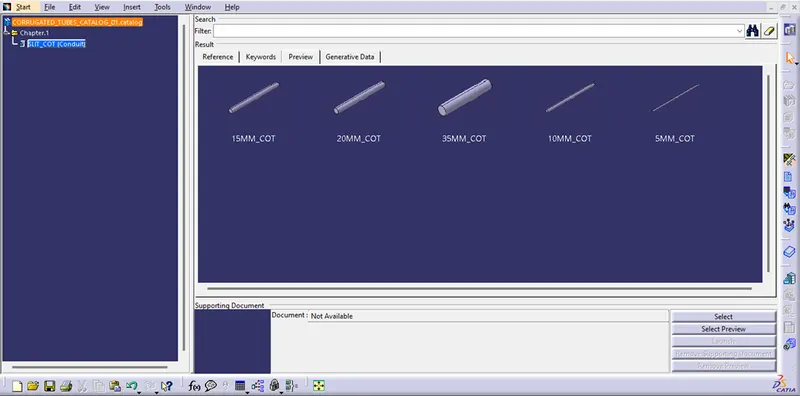

CATALOGUE NAME : CORRUGATED_TUBES_CATALOG_01
FAMILY TYPE : CONDUIT
FAMILY NAME : SLIT_COT
================================================
