Wiring harness routing & packaging Rules Week 3 Challenge

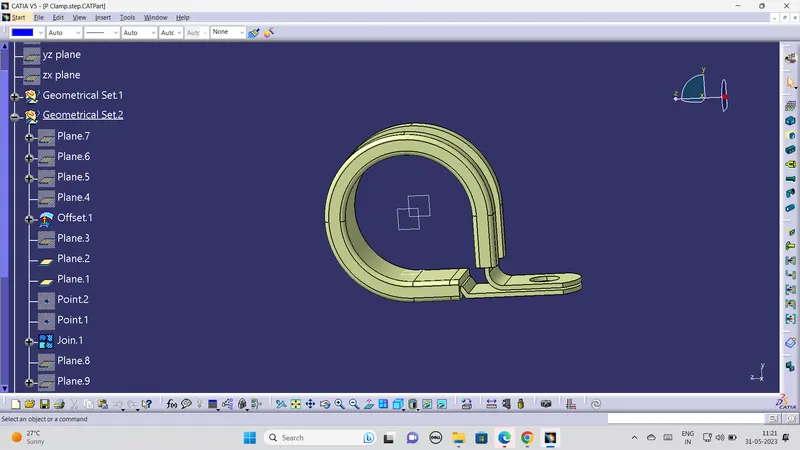

p clamp is used as electrical support part it has two ways of entry and exit .We have define a part as support part and create a point on 2 sides of clamp and create a plane on the 2 points and create 3rd plane on the base plane which is shown on the above image .while definining a support part for the way of entry define a point and plane and opposite plane as exit plane at last we have to select 3rd as a base plane .same way we have to do for alternate way of entry and exit way .

Back shell

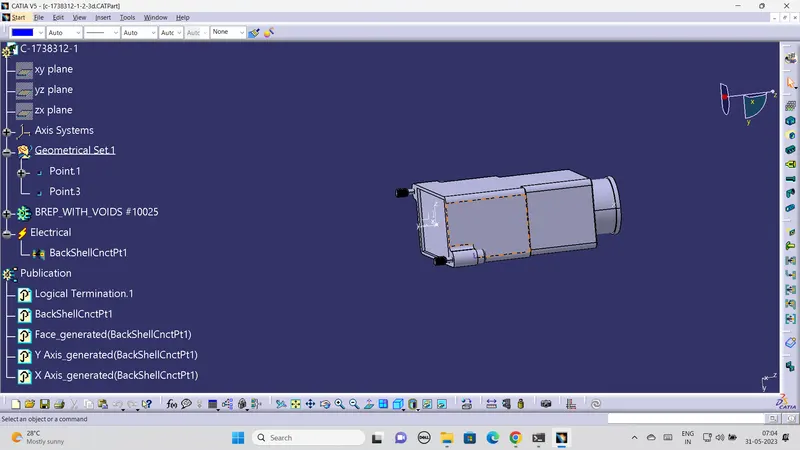

Back shell is act as a extra protection for the wires .1st we have to create a point and axis on the part workbench after switching to electrical part workbench we have to define a part as a back shell.After defining it we have define a back shell connection point for the mating face by representing a point and face of orientation and save a file in catalogue .

Corrugative tubes :

Corrugative tubes are used to protect a bundle of wires fromn sharpe edges and heat .It is also called sleeves and so on .

In catia v5 we have to create cot tubes by these steps

1.Create a new part and named it is a COT_5mm

2.define a protection part and give the recommended internal diameter and outer diameter and thickness

3. select ok

4.Add the completed tube part in “Slit COT” catalogue family

the different dimemnsion of cottubes images are attached below

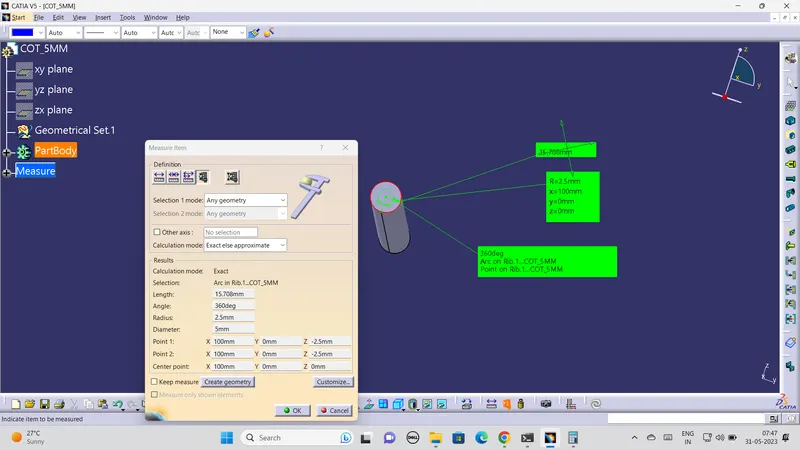

COT 5MM TUBE

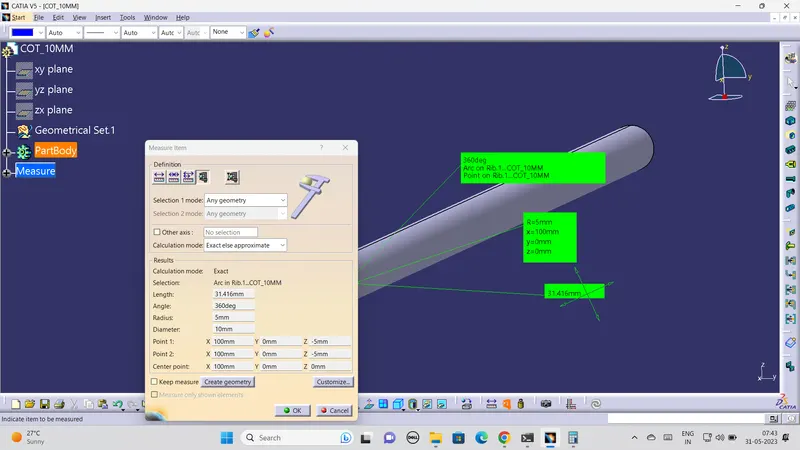

COT 10 MMTUBE :

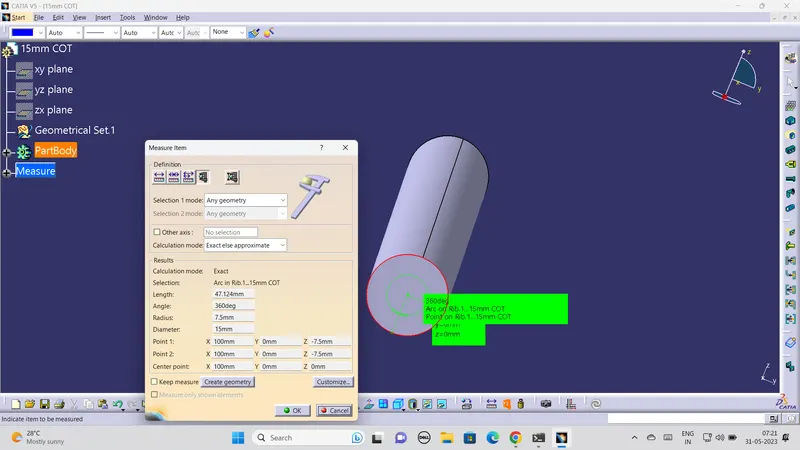

3.Cot 15 mm

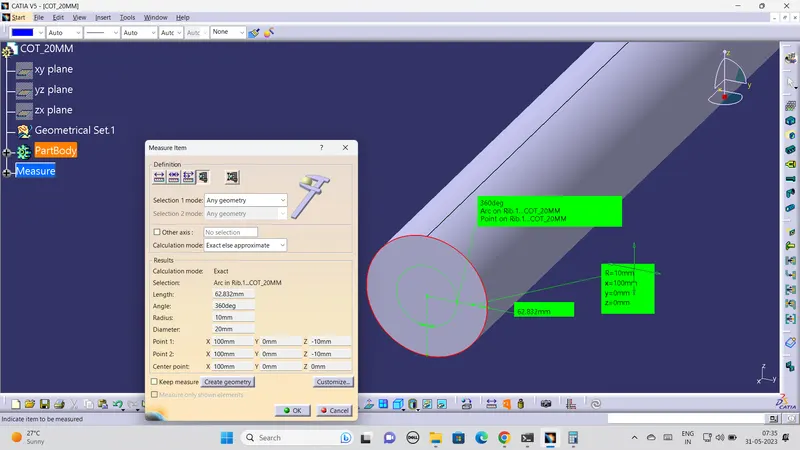

4.Cot 20 mm tube

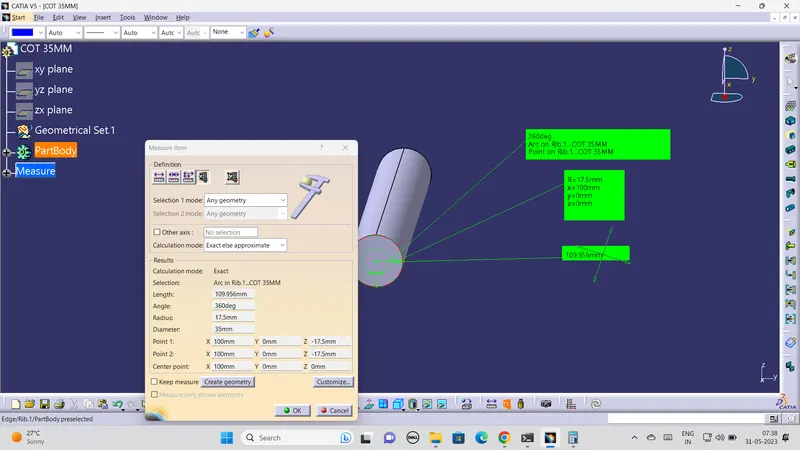

5.Cot 35 mm :
