Wiring harness routing & packaging Rules Week 3 Challenge
1. AIM:
To Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
STEP 1: DOWNLOAD THE GIVEN PART FILE

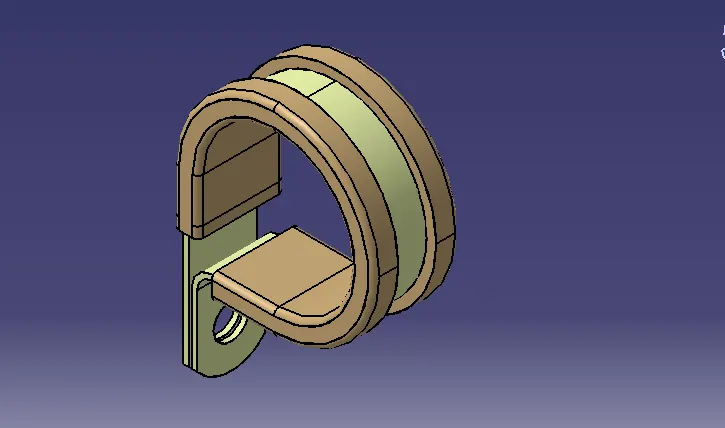

STEP 2: CREATE A GEOMETRICAL PARAMETERS

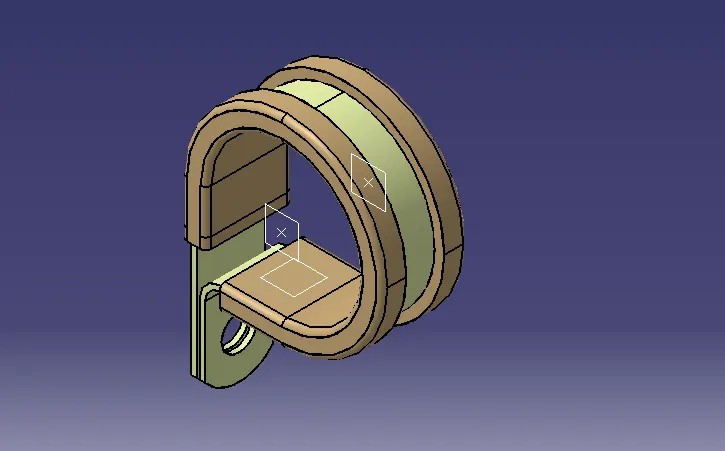

- ENTRY, EXIT AND BASE PLANES WERE CREATED USING POINT AND REFERENCE PLANE OPTIONS IN PART DESIGN.
STEP 3: CREATE A CLIP IN ELECTRIC HARNESS

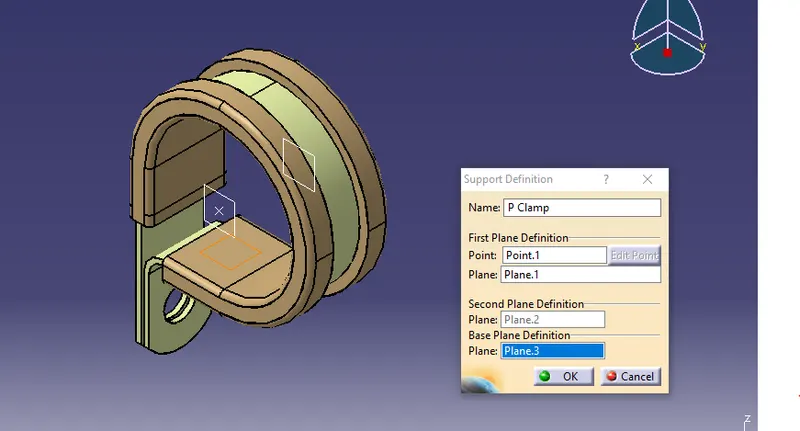

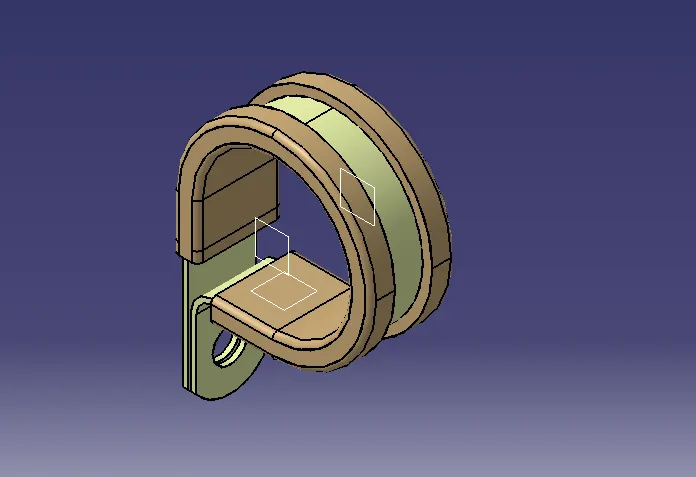

- SWITCH TO ELECTRICAL PART DESIGN, NOW DEFINE CLIP AS "SUPPORT PART" USING THE SUPPORT PART OPTION

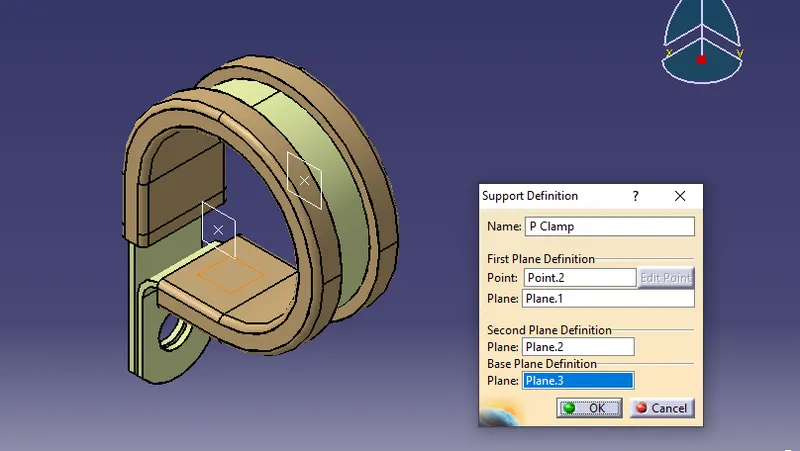

- SELECT THE FIRST POINT AND PLANE AS A ENTRY PLANE AND THE OTHER AS AN EXIT PLANE AND THEN SELECT THE BASE PLANE.
- AGAIN DO THE SAME PROCEDURE BUT THIS TIME OUR FIRST ENTRY PLANE WILL BE MY EXIT AND VICE VERSA.
- NOW CLIP IS READY FOR THE USE IN ELECTRIC HARNESS.

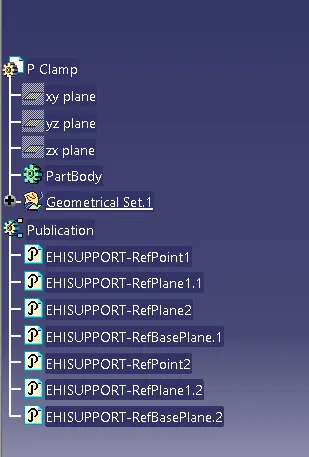

TREE STRUCTURE:
2. AIM :
To Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
STEP 1: DOWNLOAD THE GIVEN PART FILE

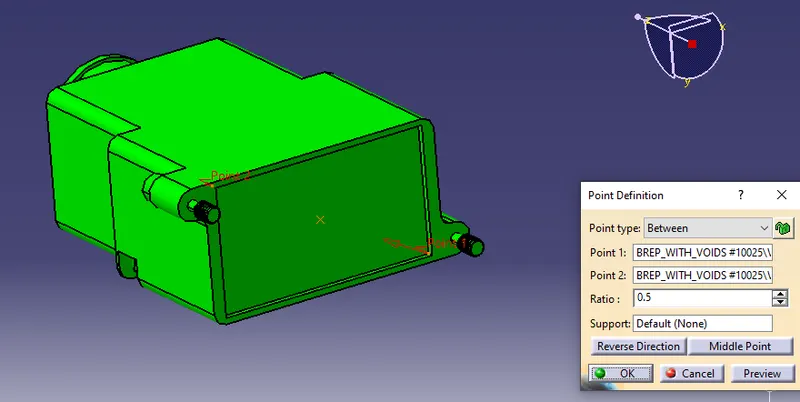

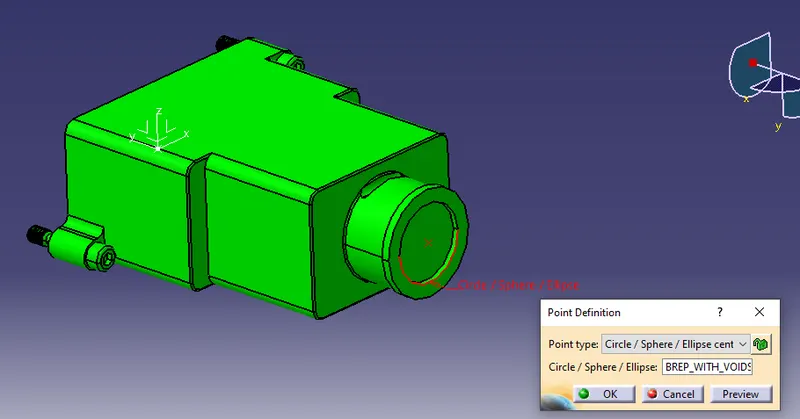

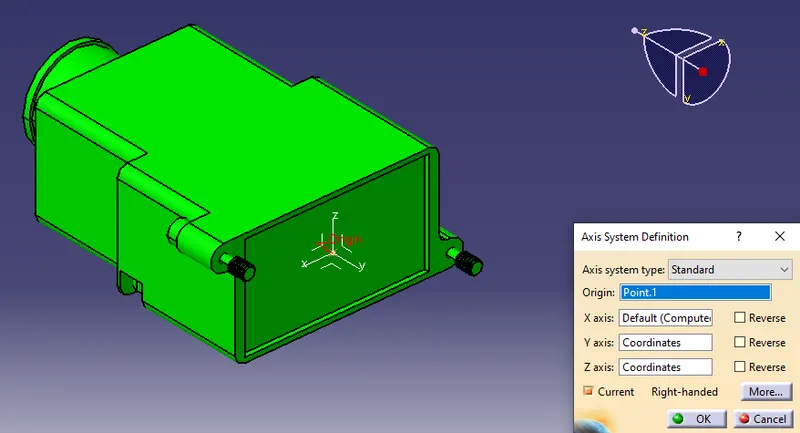

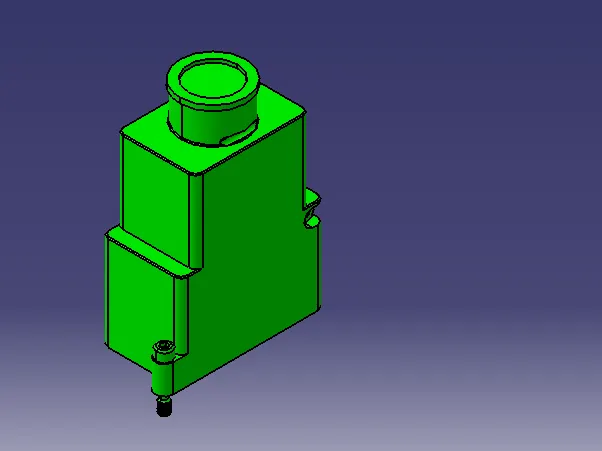

STEP 2: CREATE A GEOMETRICAL PARAMETERS OF POINTS & AXIS SYSTEM
STEP 3 : ELECTRICAL PART DESIGH

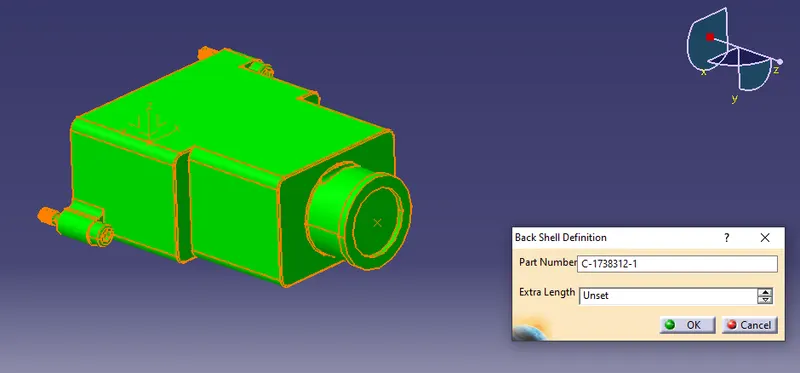

- NOW MOVE TO ELECTRICAL PART DESIGN AND DEFINE THE PART AS A BACKSHELL.

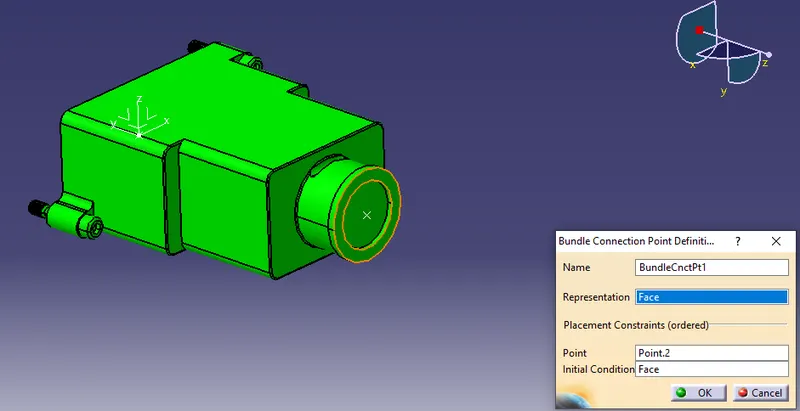

- BUNDLE CONNECTION POINT DEFINITION

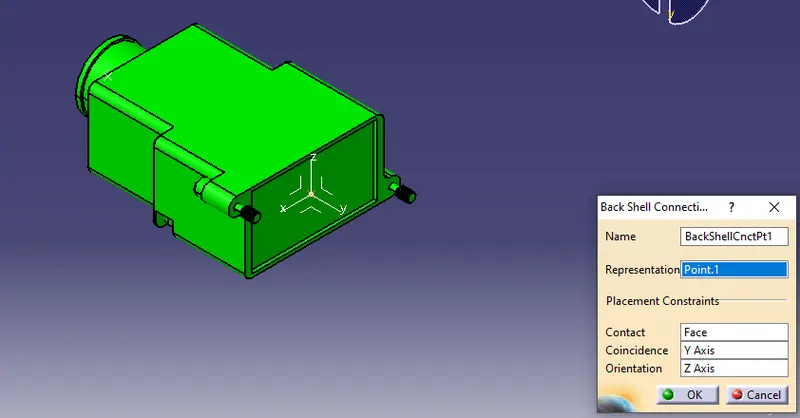

- BACKSHELL CONNECTION POINT DEFENITION

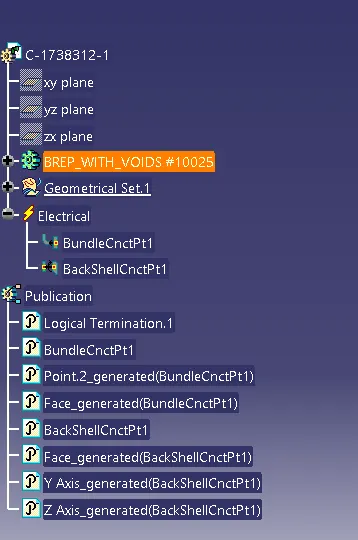

- TREE STRUCTURE
3.AIM:
To Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

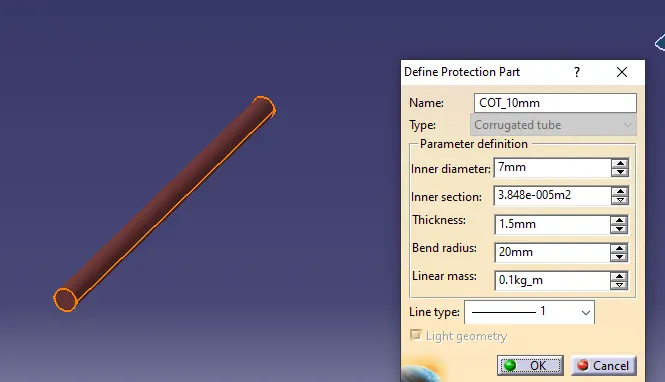

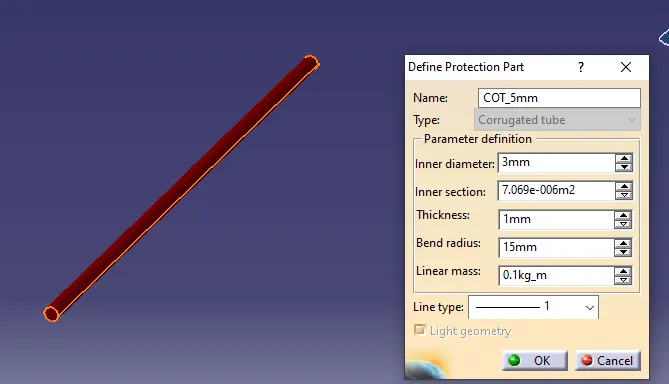

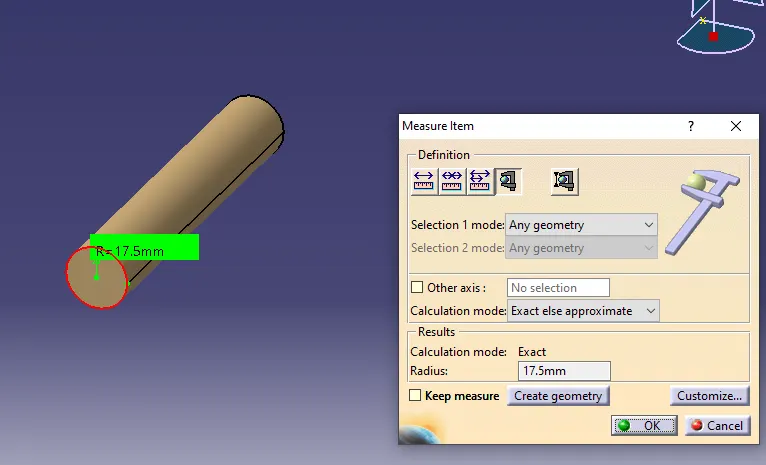

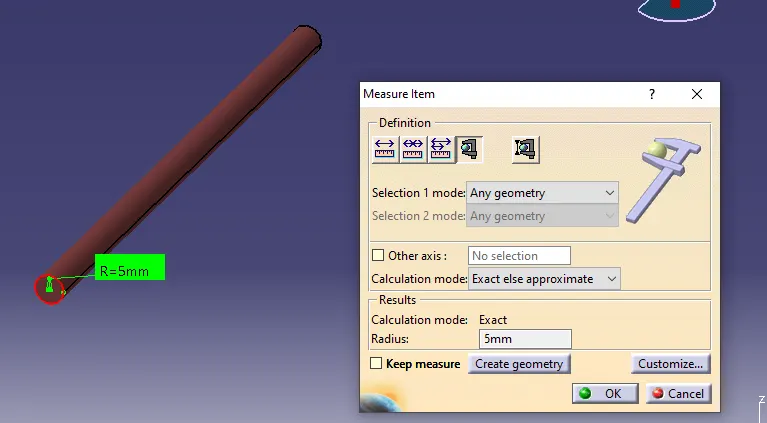

WE CREATE CORRUGATED TUBES USING DEFINE PROTECTIVE PART TOOL IN ELECTRICAL PART DESIGN.

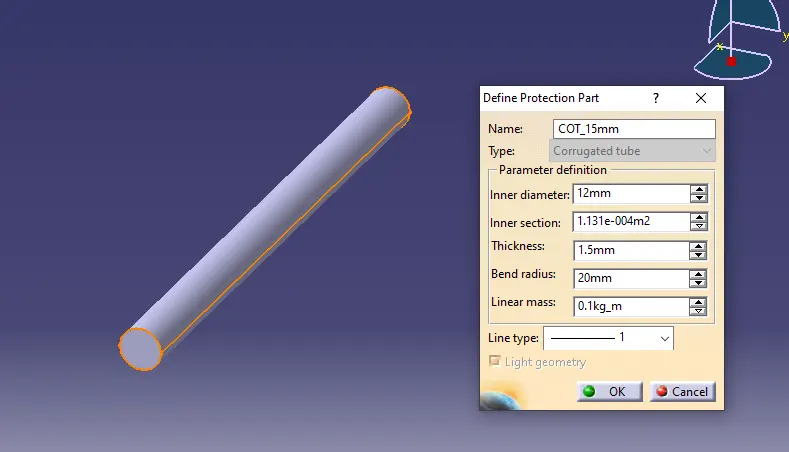

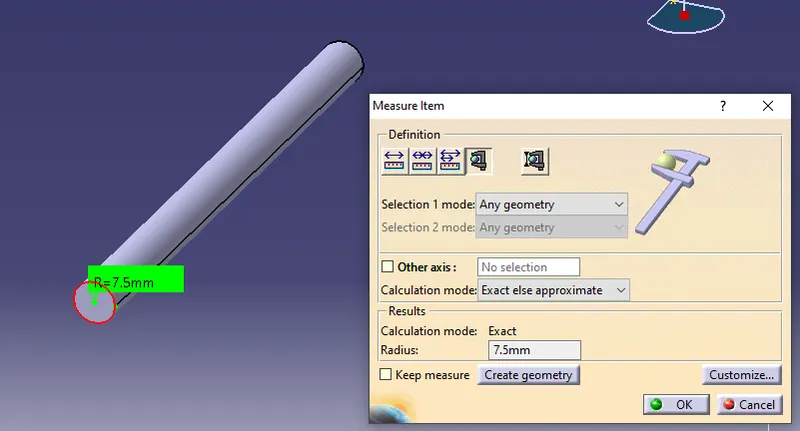

- 15mm COT

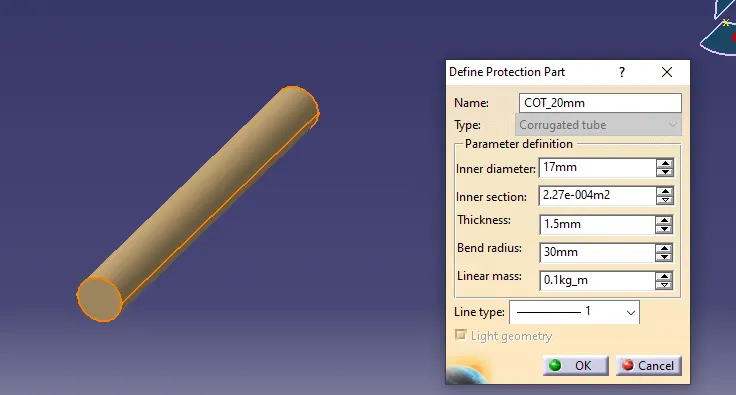

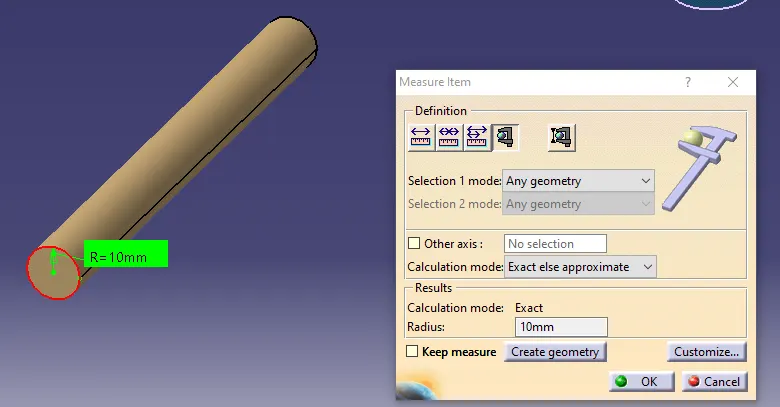

- 20 MM COT

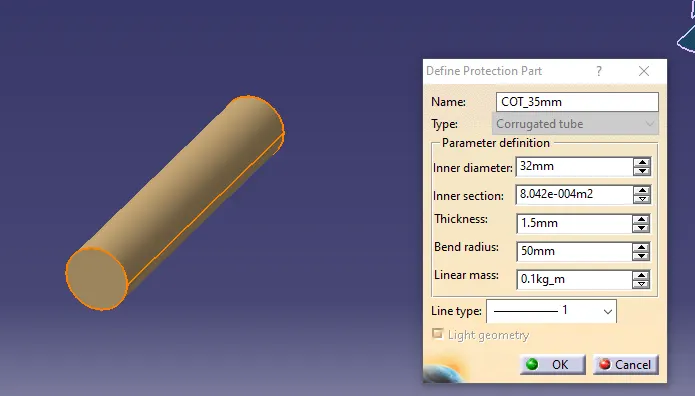

- 35 MM COT
- 4. 10 MM COT.

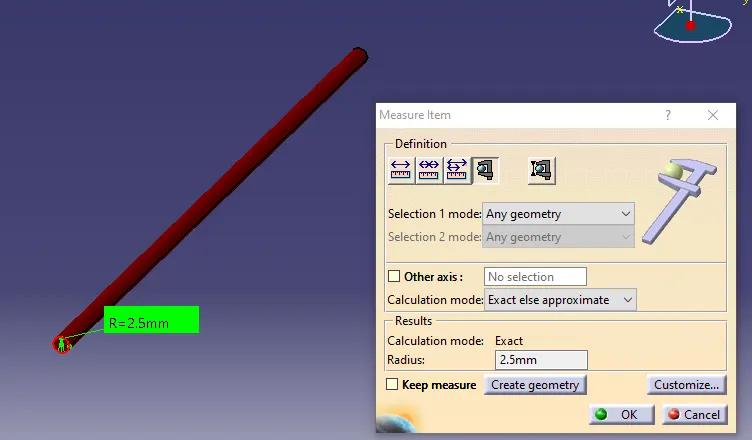

- 5 MM COT

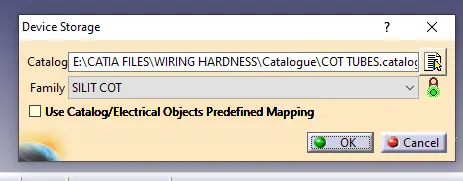

LASTLY, SAVE ALL THE CORRUGATED TUBES IN THE SPECIFIC CATALOGUE.
