Wiring harness routing & packaging Rules Week 3 Challenge
Question 1
Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Aim

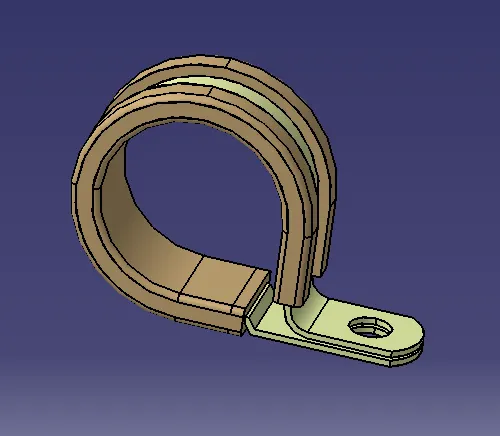

To download P clamp files and efine its Electrical support system using Electrical part design workbench

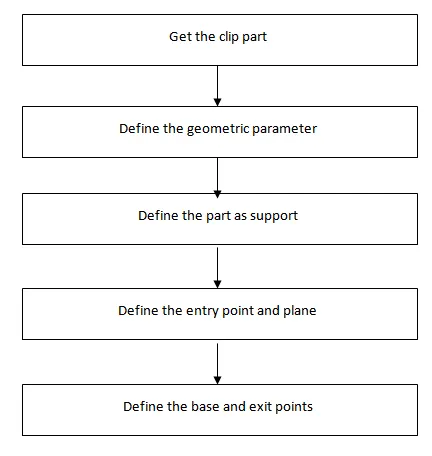

steps to be followed

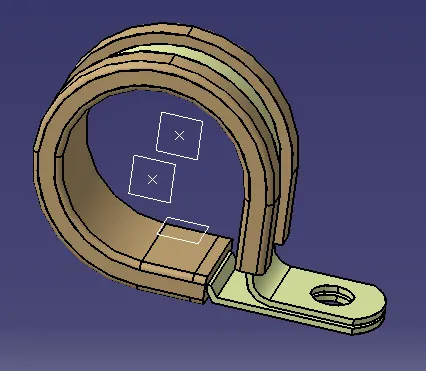

After downloding the required CAD files the entry and exit points and the base plane are defined and planes are defined

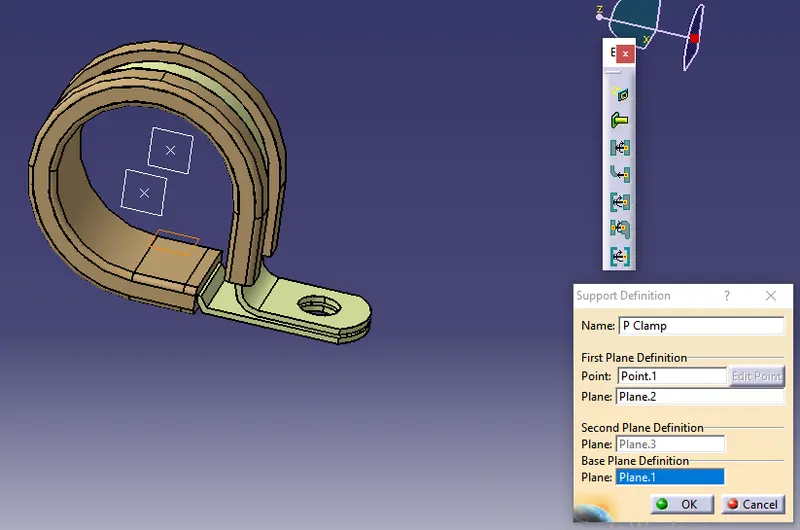

Aften in electrical part workbench we should define it as the support and then the bundle entry and exit points are defined and te electrical parts are defined and the p clamp is defined
Question 2
Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Aim
To download the back shell cad data and define its electrical back shell using electrical part design workbench

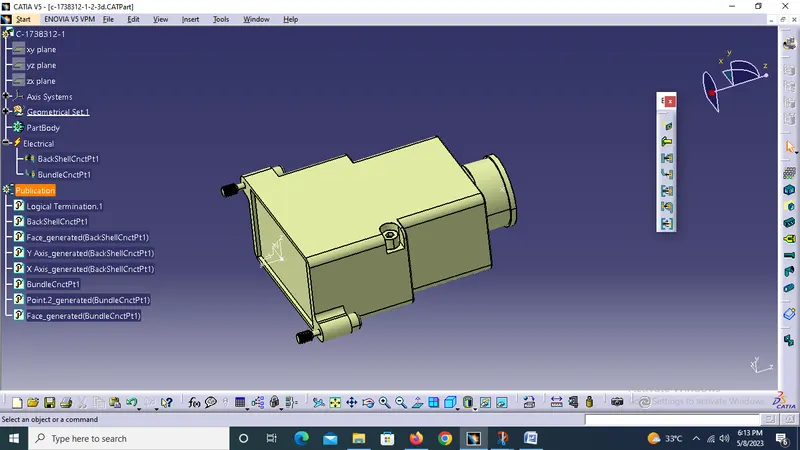

The given cd date the component is identified as 1738312-1 rectangular backshell
the backshell is downloaded and the connector the connector connection points and bundle entry points are deffined
The connector connection point is to have axis system where the X axis is allined as parallect connection mechanism and Y axis is allined parallel to the connection entry point and Z axis is allined to the face of the connector
By entering into Electrical part workbench the conponent is to be defined as the backshell
after defined as the connector the electrical properties are defined the backshell connection points
Question 3
Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

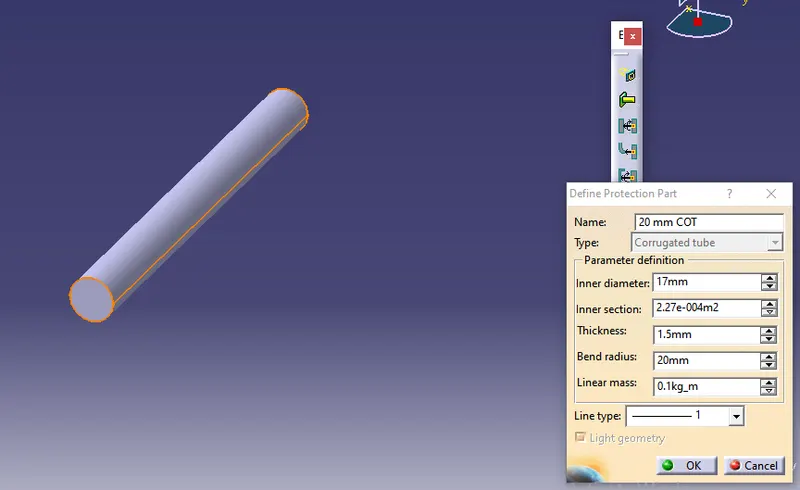

The following corrugated tubes are created in the electrical part workbench ufing command DEFINE PROTECTION part
All parameters are entering according to the data provided and the corrugated tubes are created
The created corrugated tubes are then added to the catalogue by using command store part and all the created corrugated tubes are added in the family
