Wiring harness routing & packaging Rules Week 3 Challenge

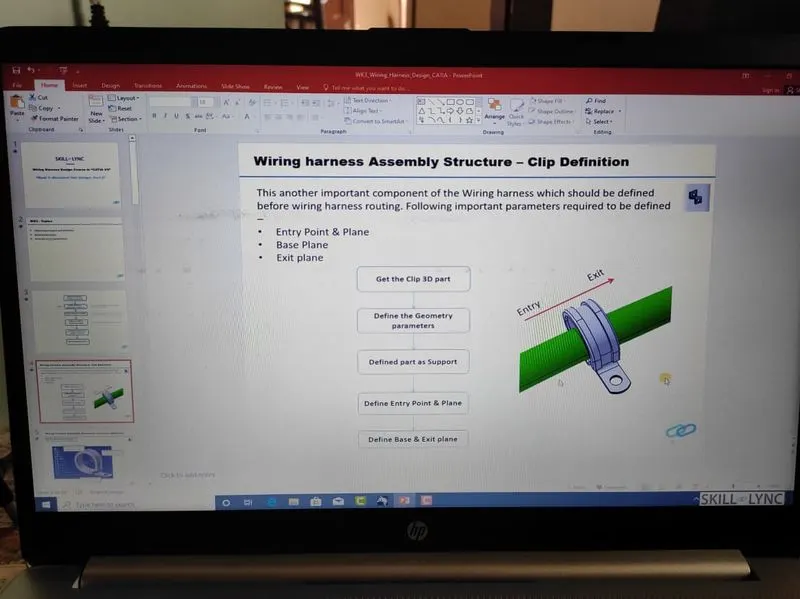

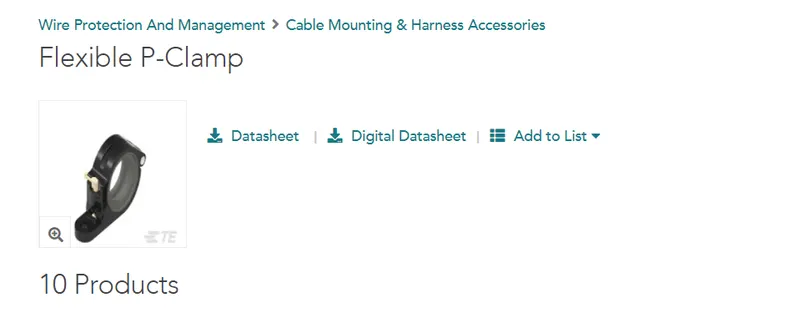

1. P clamp:

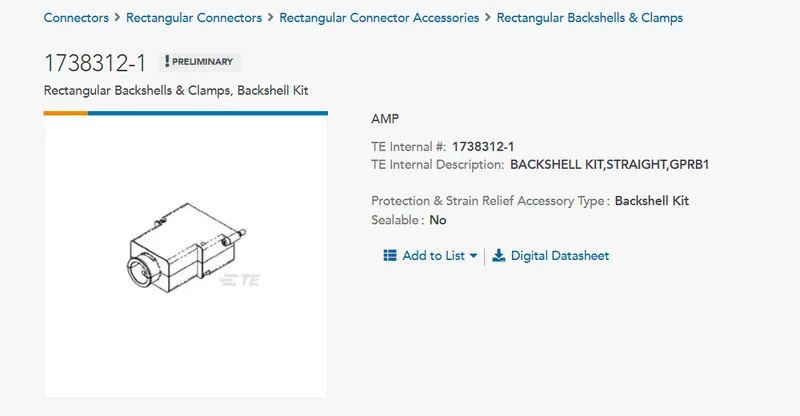

2. Tyco 1738312-1 Back Shell

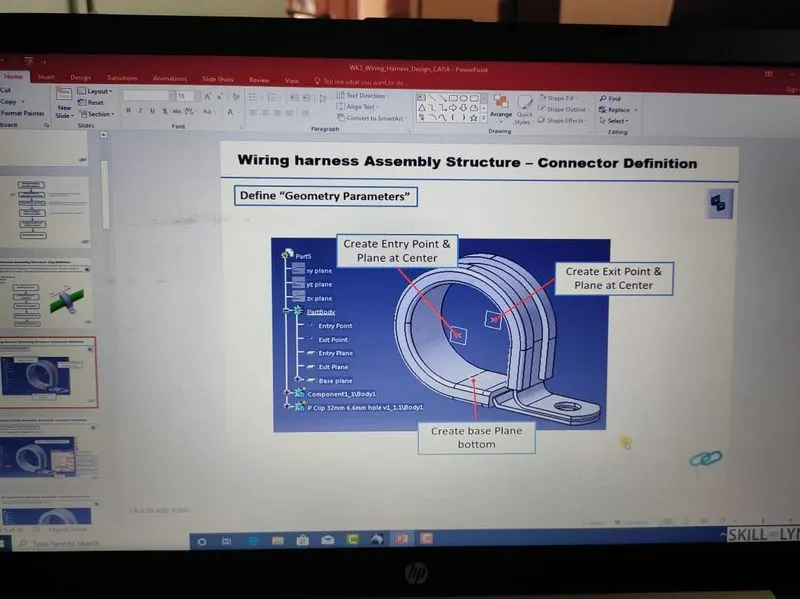

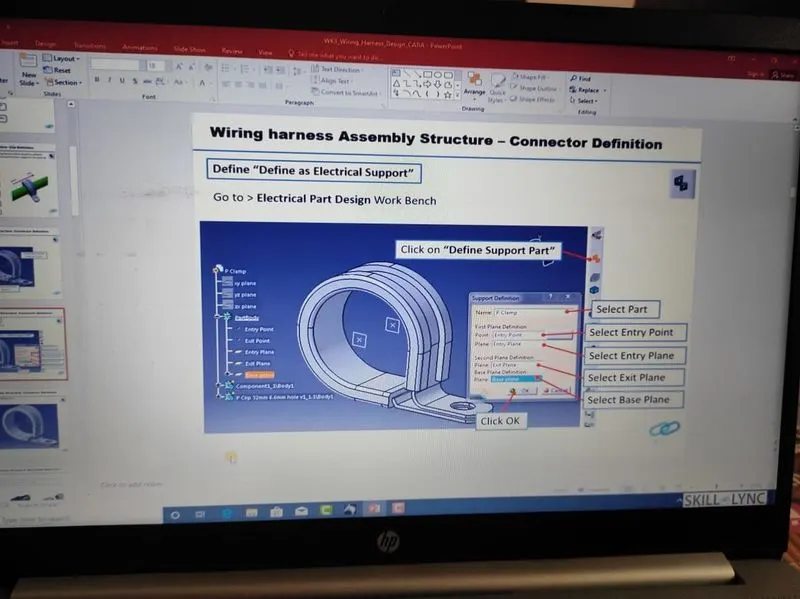

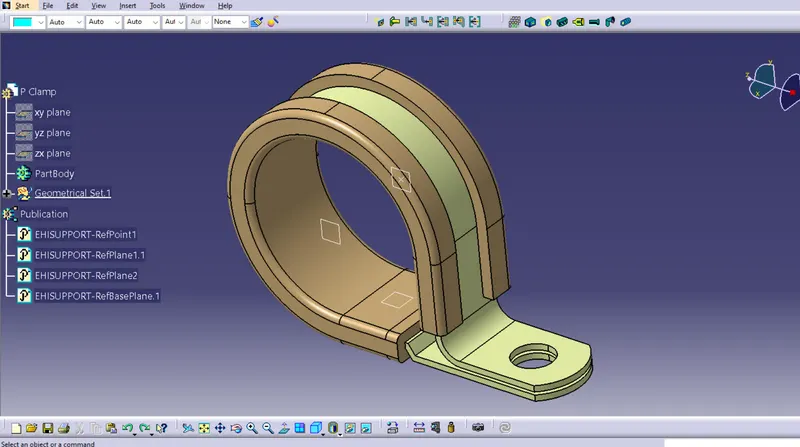

1. P Clamp

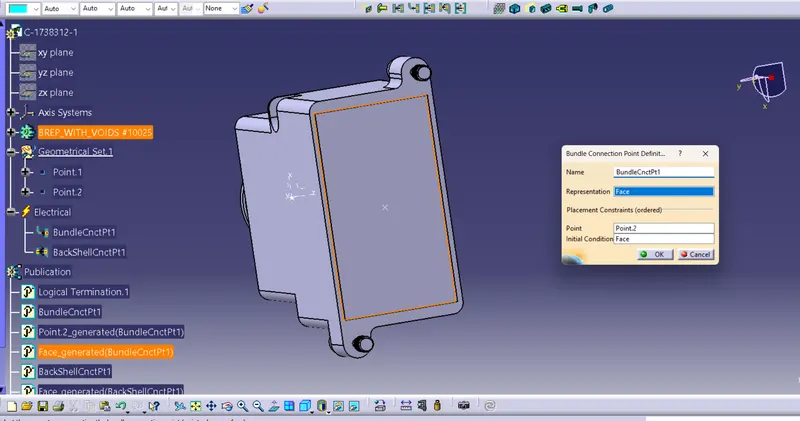

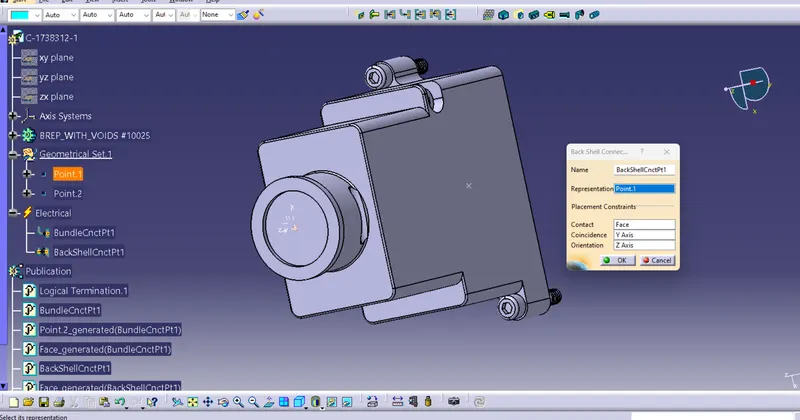

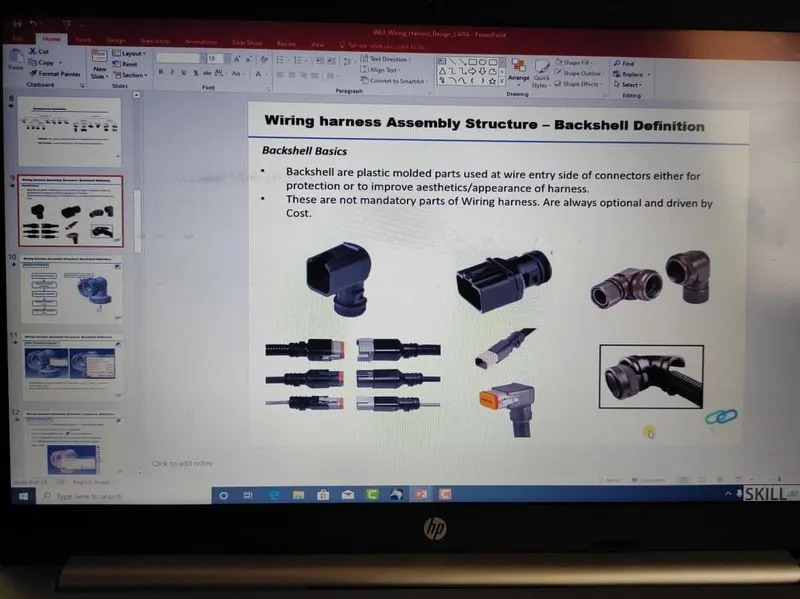

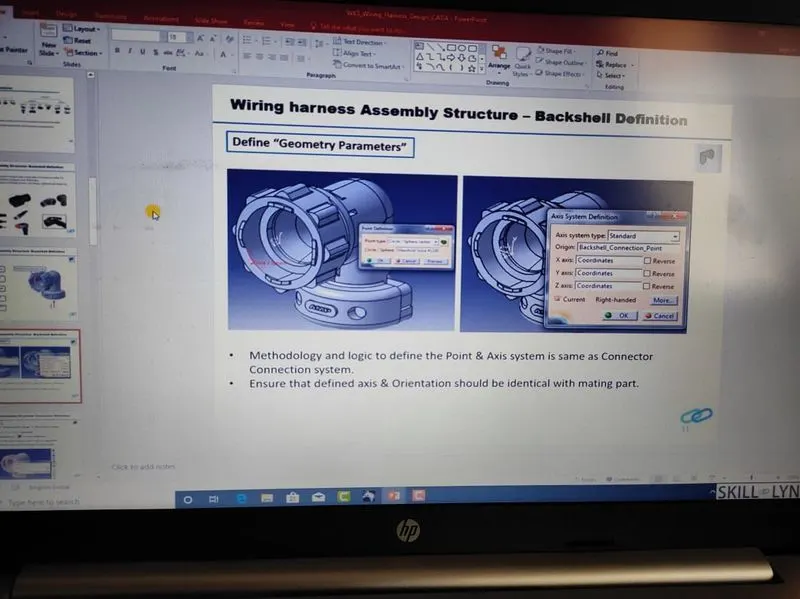

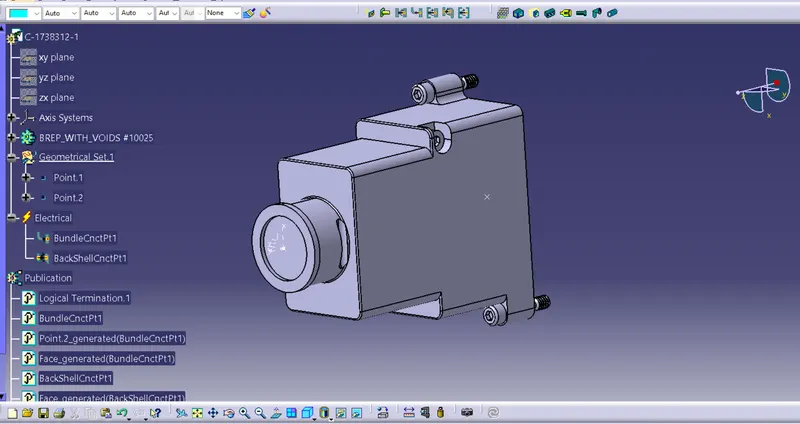

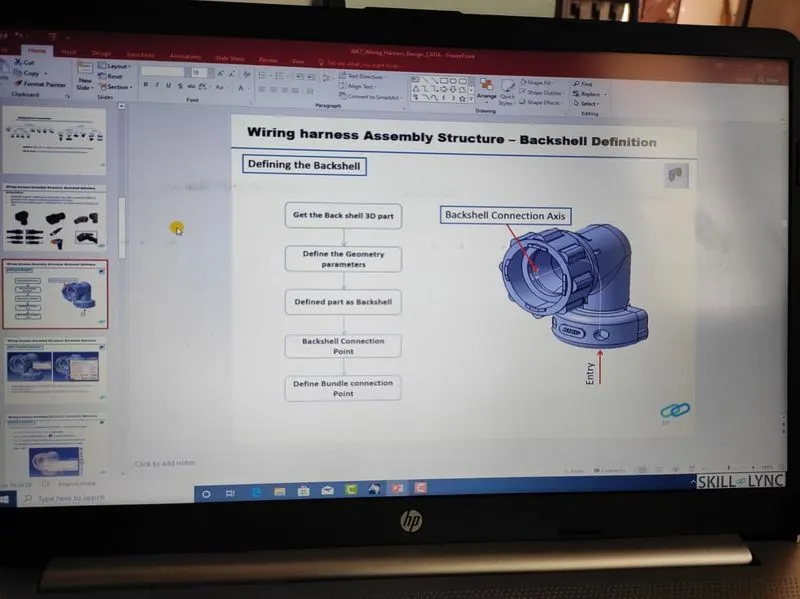

2. Tyco 1738312-1 Back Shell:

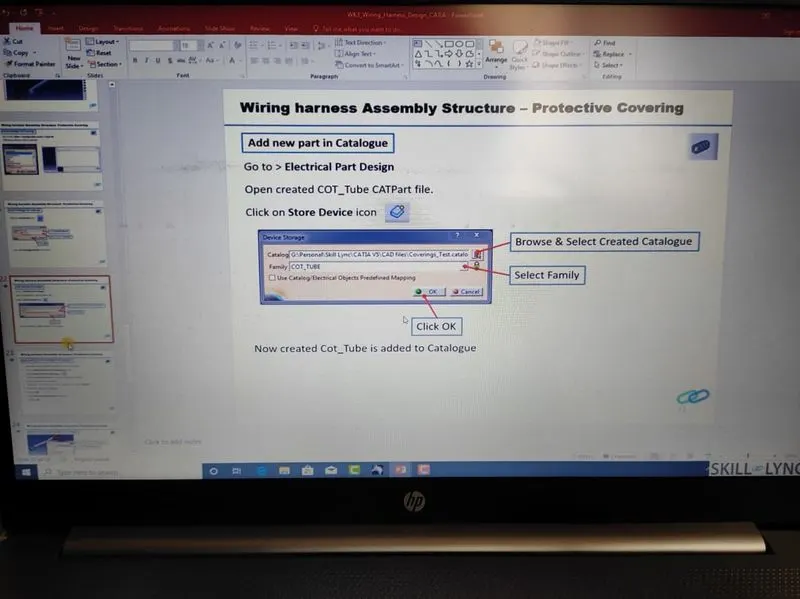

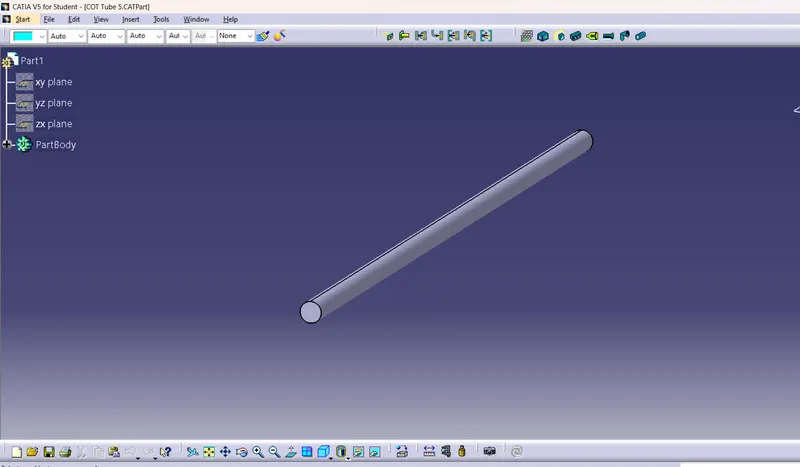

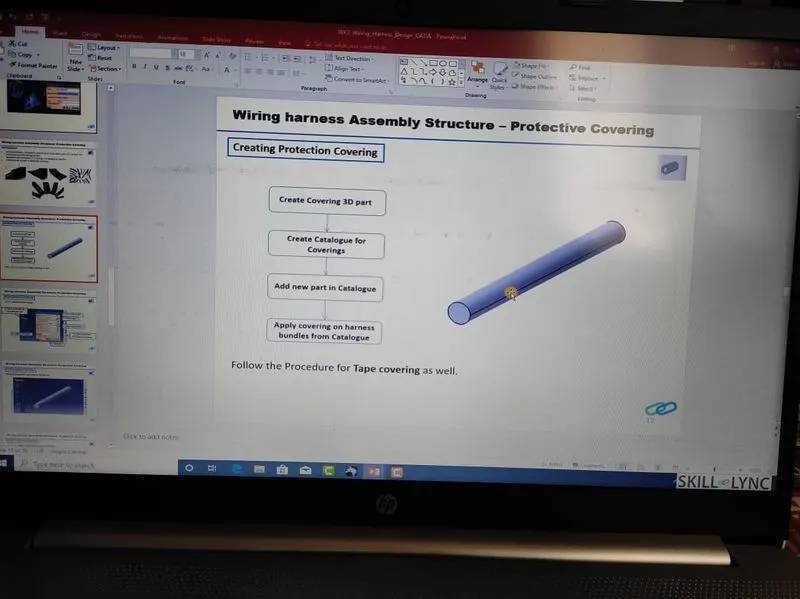

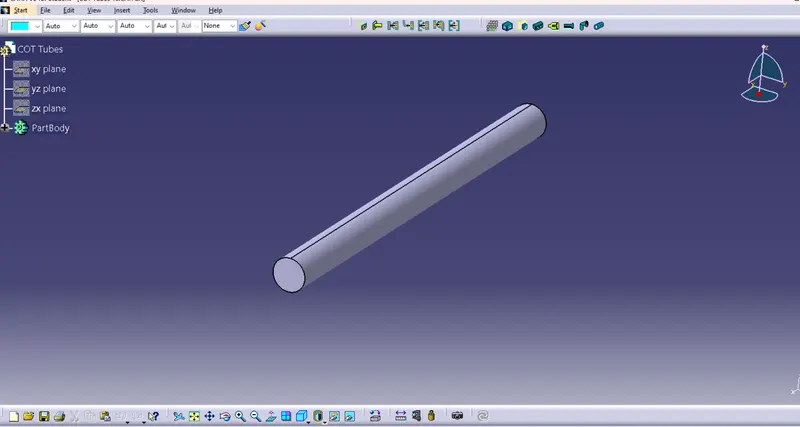

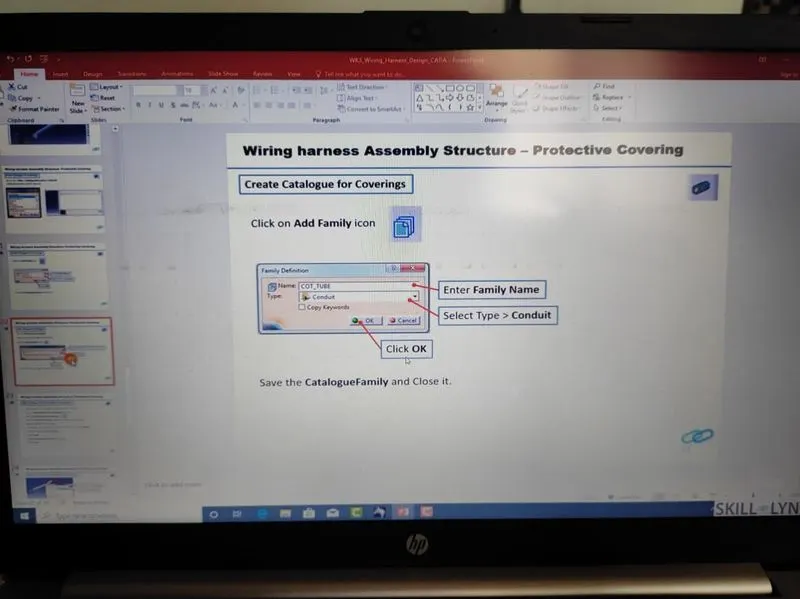

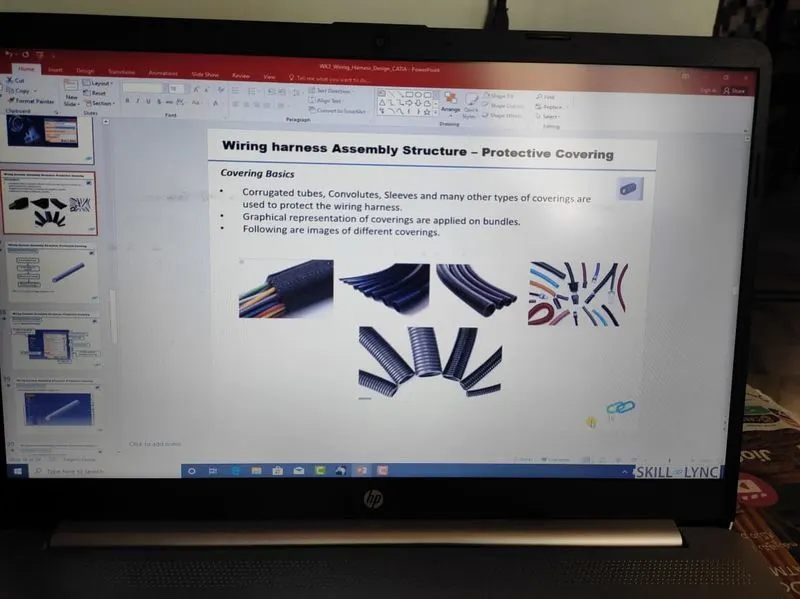

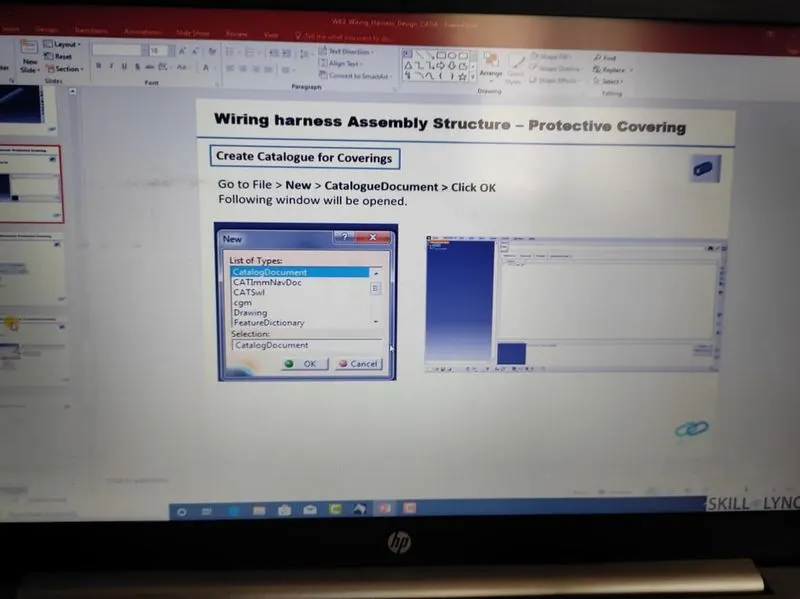

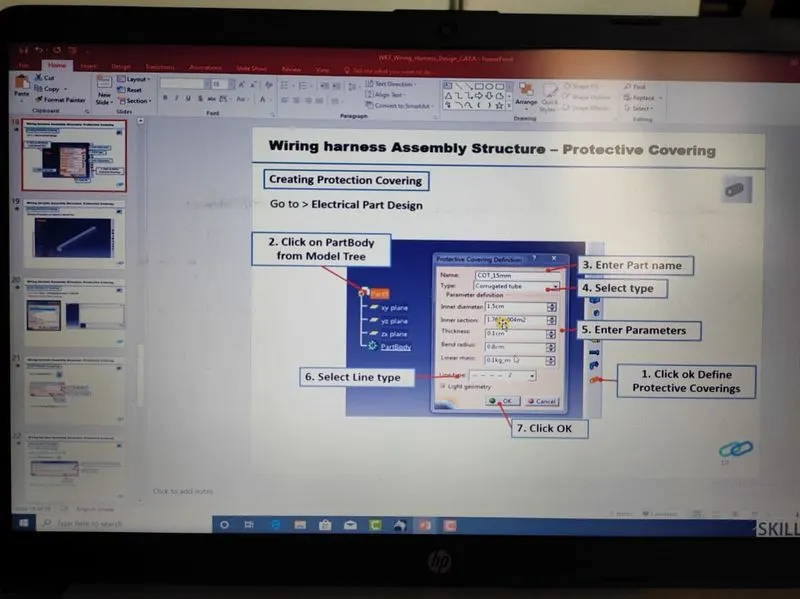

3. Corrugated tubes:

i. 15mm COT   ID-12mm   OD- 15mm   Thickness- 1.5

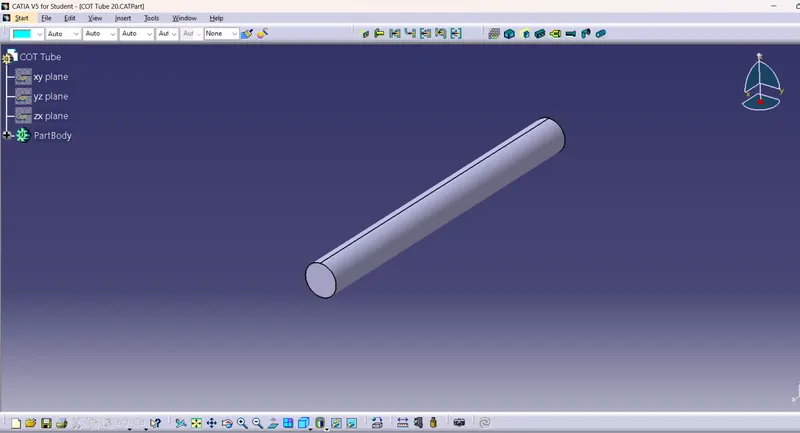

ii. 20mm COT   ID-17mm   OD- 20mm   Thickness- 1.5

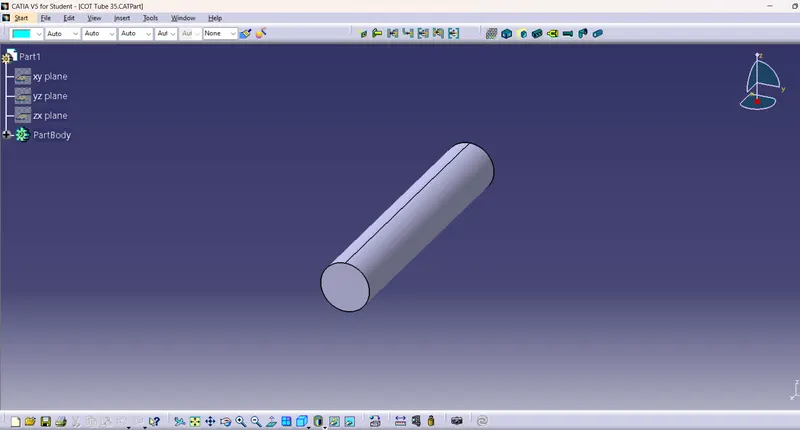

iii. 35mm COT   ID-32mm   OD- 35mm   Thickness- 1.5

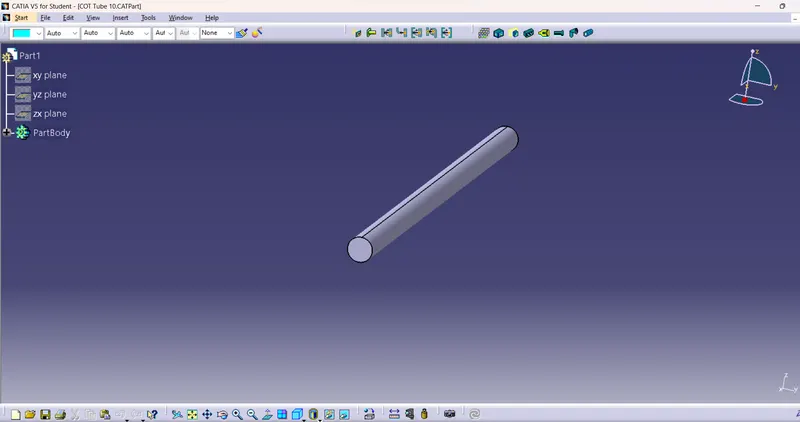

iv. 10mm COT   ID-7mm   OD- 10mm   Thickness- 1.5

i. 5mm COT   ID-3mm   OD- 5mm   Thickness- 1
