Wiring harness routing & packaging Rules Week 3 Challenge
Wiring harness routing & packaging Rules Week 3 Challenge
Download the following cad data & define it as Electrical support using the Electrical Part Design Workbench. Define all the necessary properties.

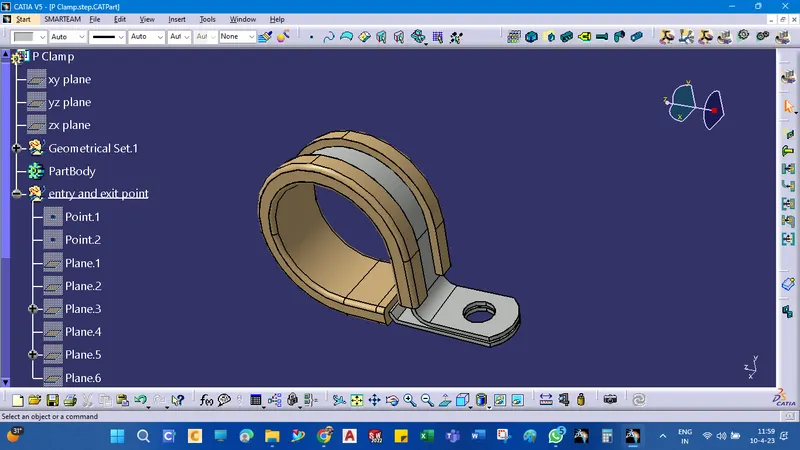

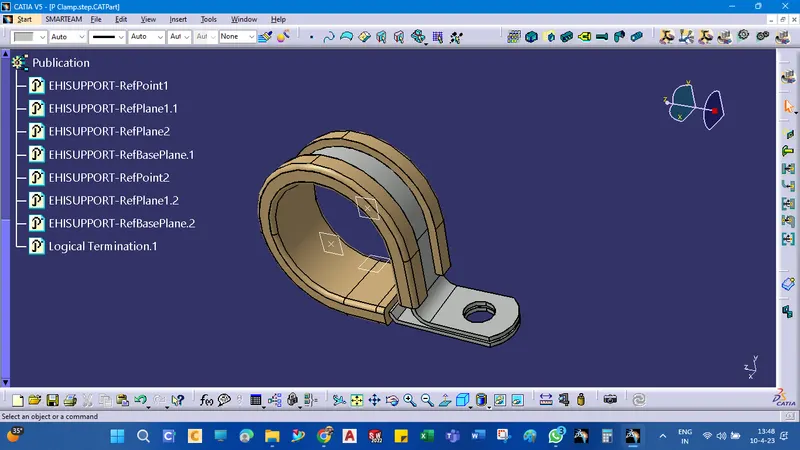

I have downloaded the cad part file from the provided link and made the definition as p-clamp is a support element
The given clip was downloaded and opened as a surface file.

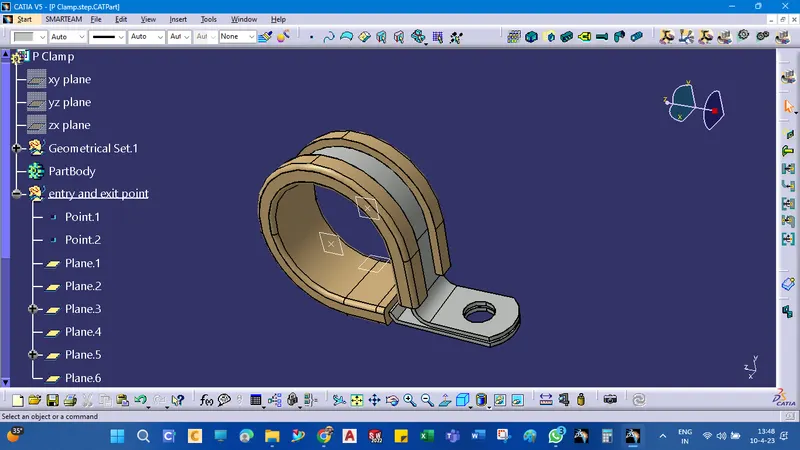

I have created two points that will be used as entry and exit points.
Then a two-plane has to be created at the normal to the points.
A base plane has to be defined at a distance of 2 to 5 mm from the clip.
again we define the exit point at the first definition as the entry point.
hence I have two entry and two exit points.
BACKSHELL CREATIONS
The backshell data was downloaded from the website.
We define the points in the part workbench.

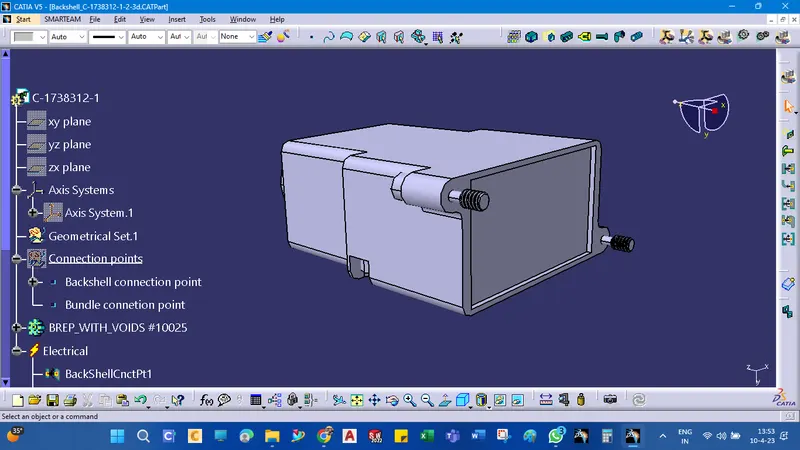

An Axis system with the correct axis orientation is placed at the backshell connection point.
The points have to be defined as the backshell connection and bundle connection points.
created a Backshell entry point.
create an axis system for back shell entry.
create bundle connection point.
switch to Electrical part design.

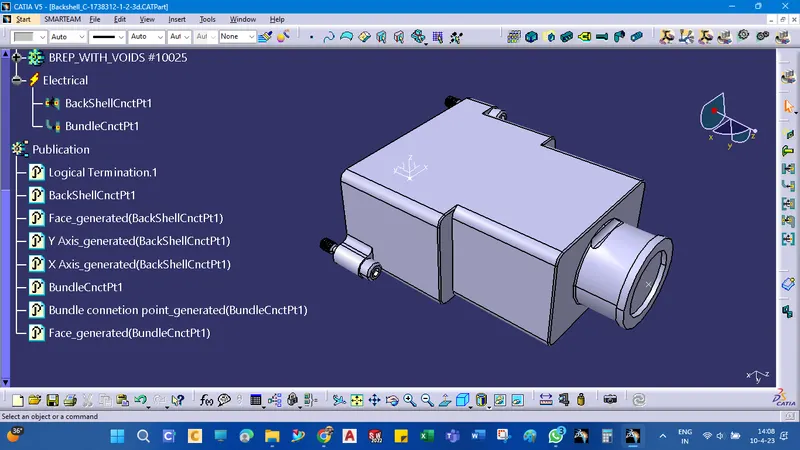

Define part electrical as the backshell.

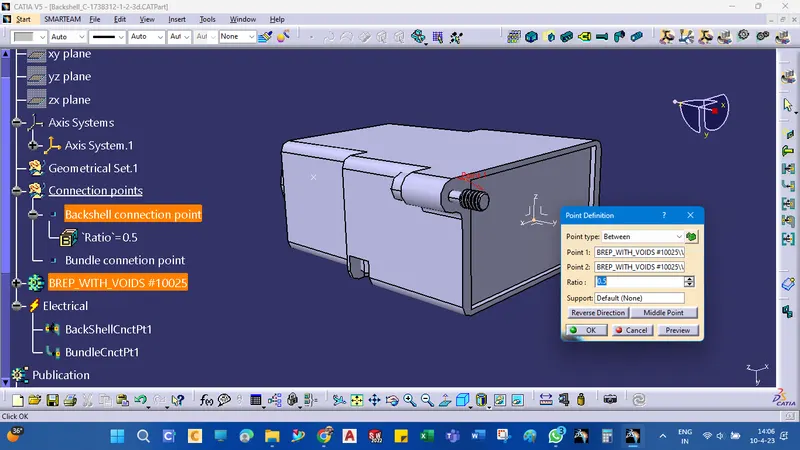

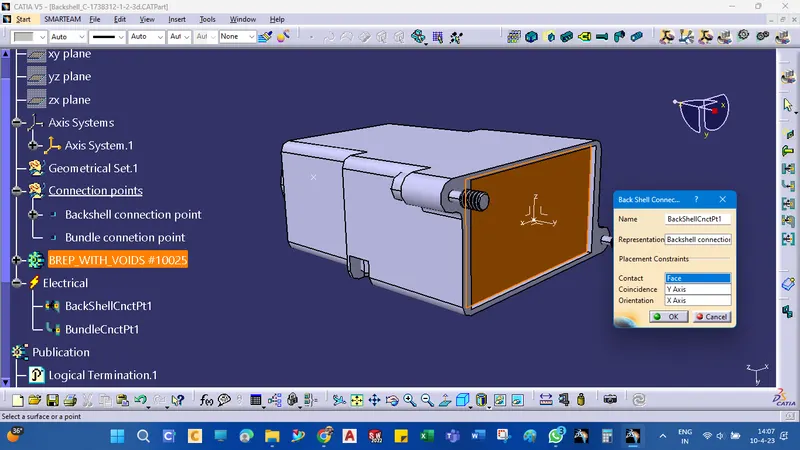

Then define the Backshell connection point.

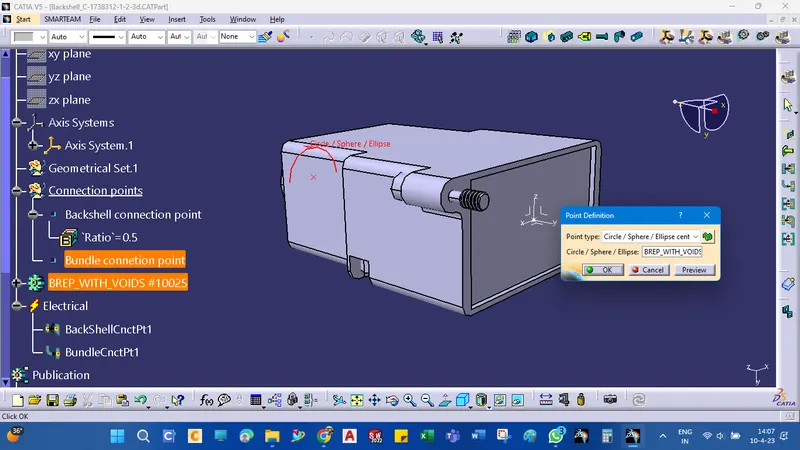

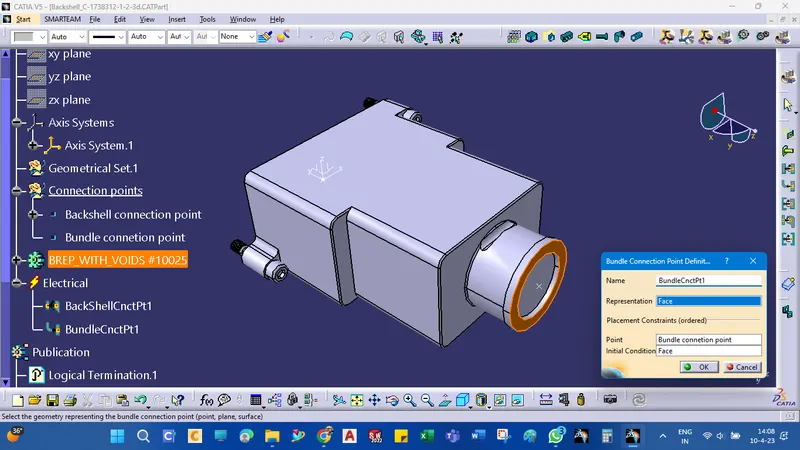

Define bundle connection point.
Create the Following Corrugated tubes & Add them to Catalogue under the “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:

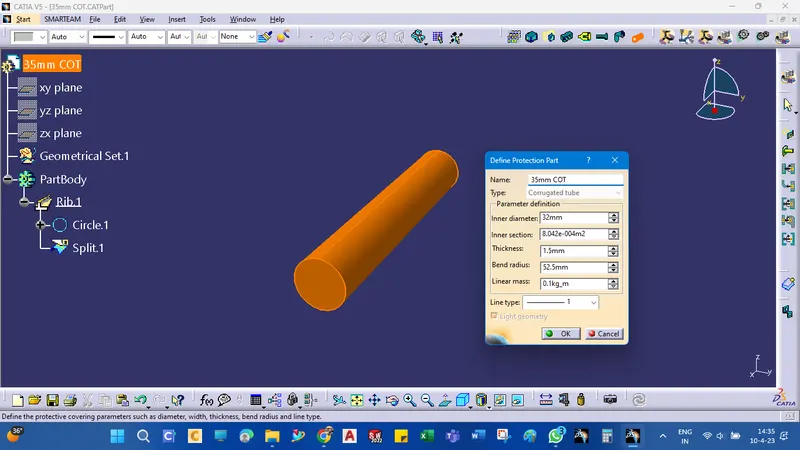

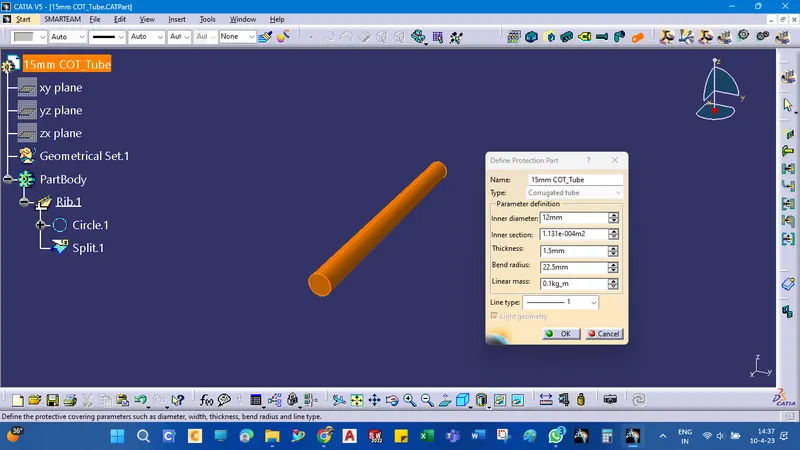

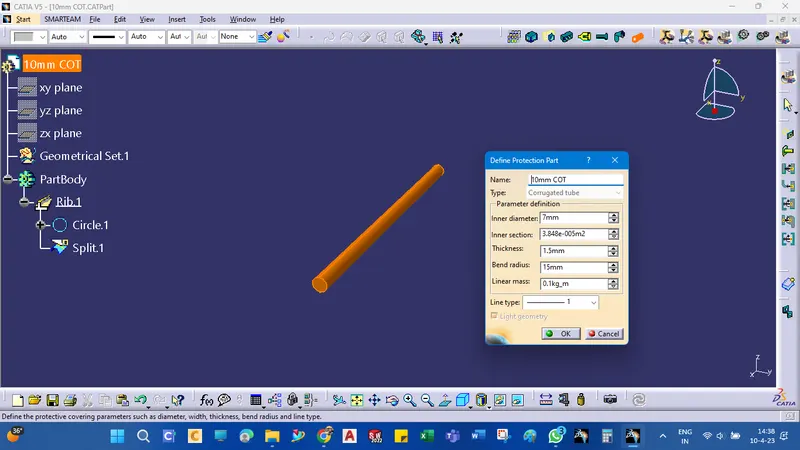

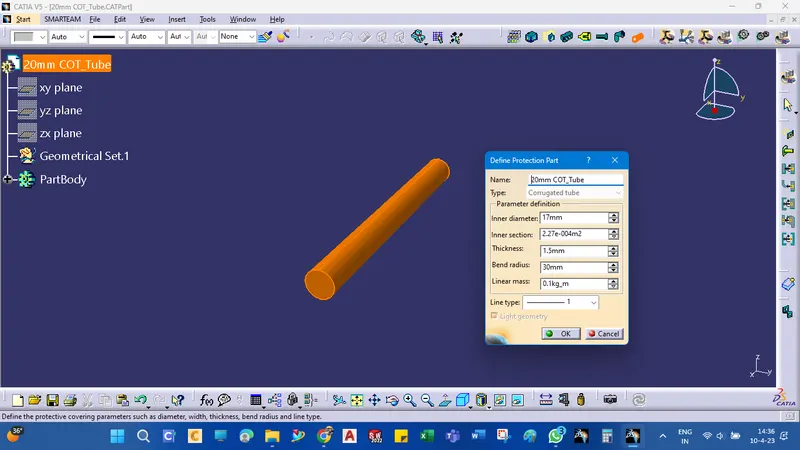

Switch to Electrical part design
Select Define Protector Part
Click on part (on a file name in the specification tree)
Provide given parameters and bend radius as '1.5 x Outer Dia'.

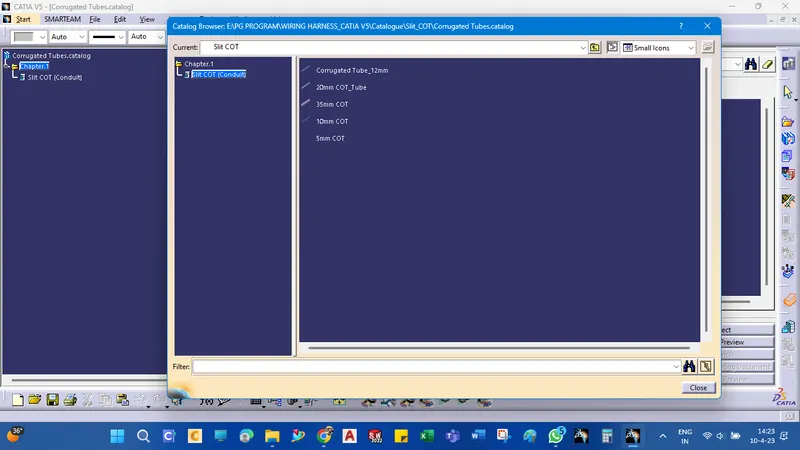

Catalogue Creation:
the new part - catalogue document - add family - give name - type - select Conduit - save.
Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
