Wiring harness routing & packaging Rules Week 3 Challenge
Wiring harness routing & packaging Rules
process:

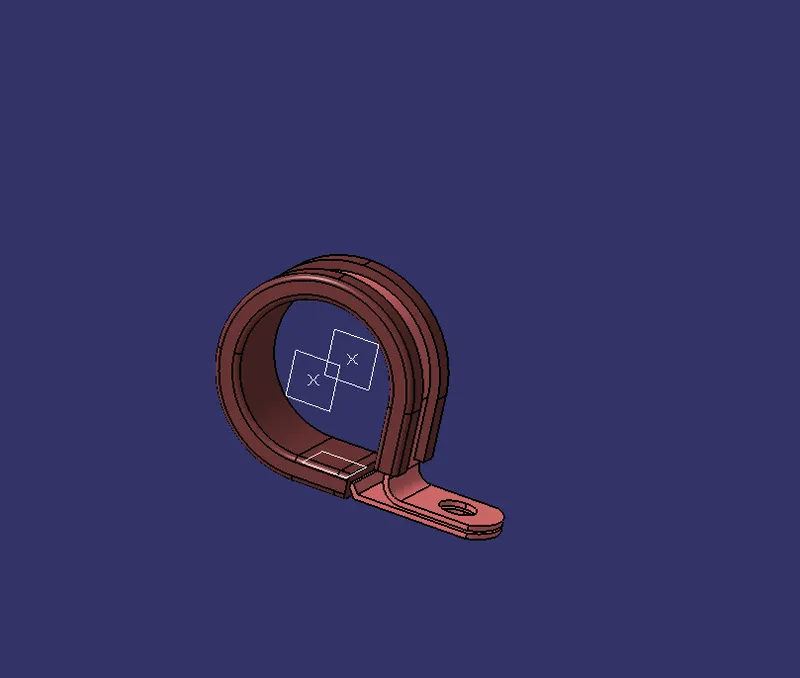

- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

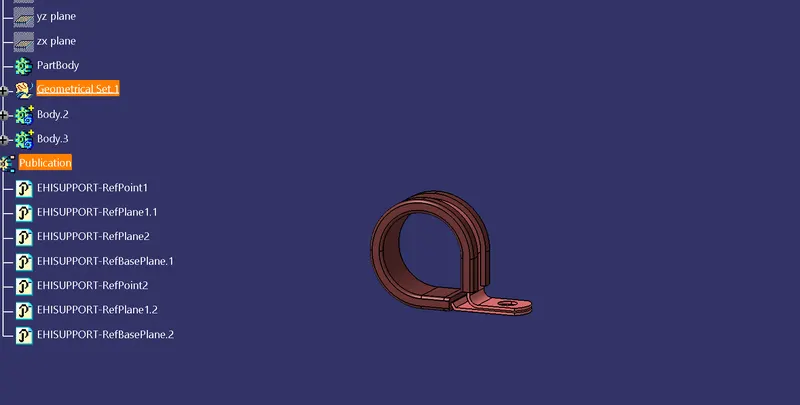

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.
Process:

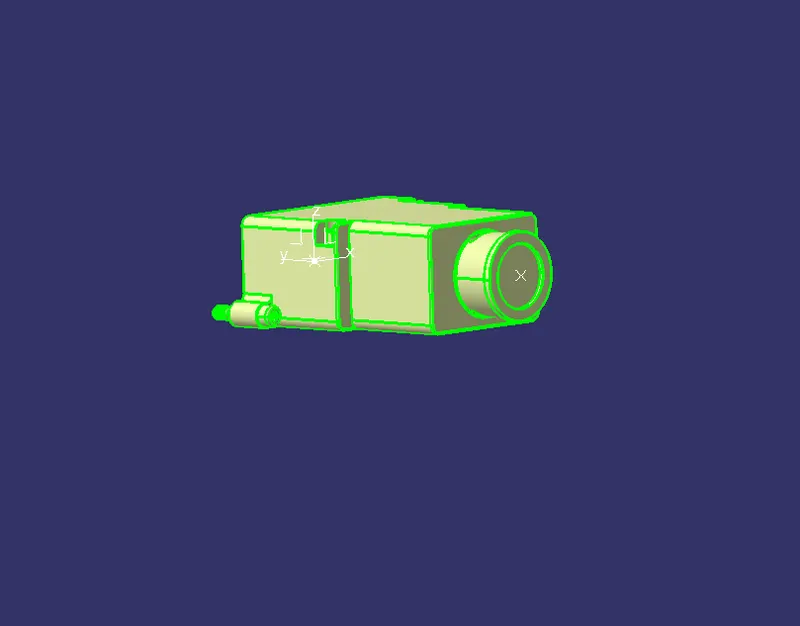

- create Back shell entry point.
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.
- Define part electricaly as back shell.

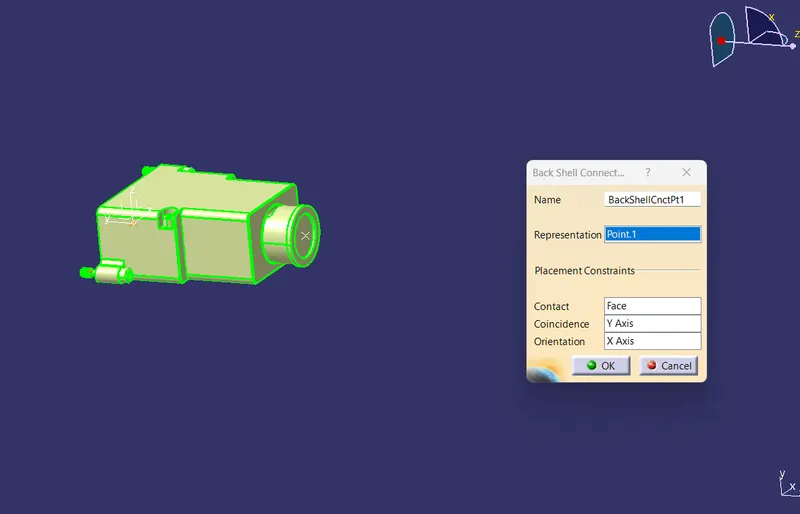

- Then define Back shell connection point.

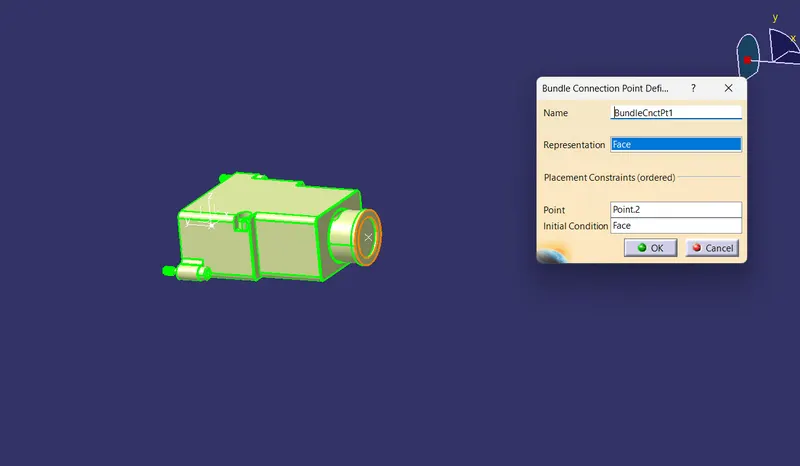

- Define bundle connection point.
Corrugated tubes & Add them in Catalogue under “Slit COT” family
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Solution:-
Creating Protection Covering -
- Create a covering 3D part

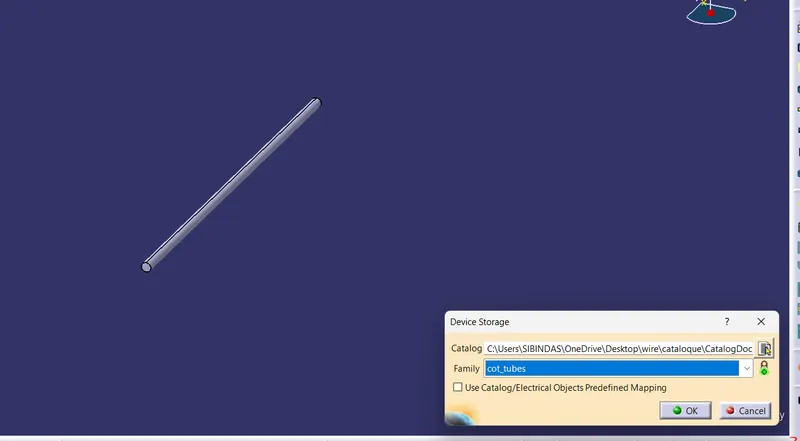

- Create a catalog for coverings
- Add a new part to the catalog
- Apply covering on harness bundles from the catalog
Electrical Part Design Workbench

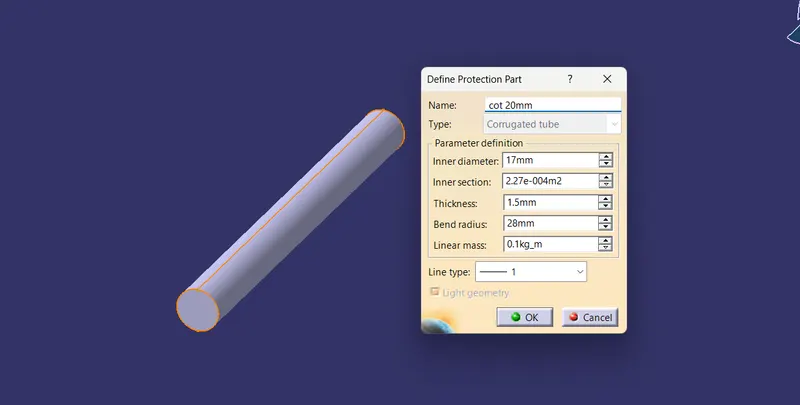

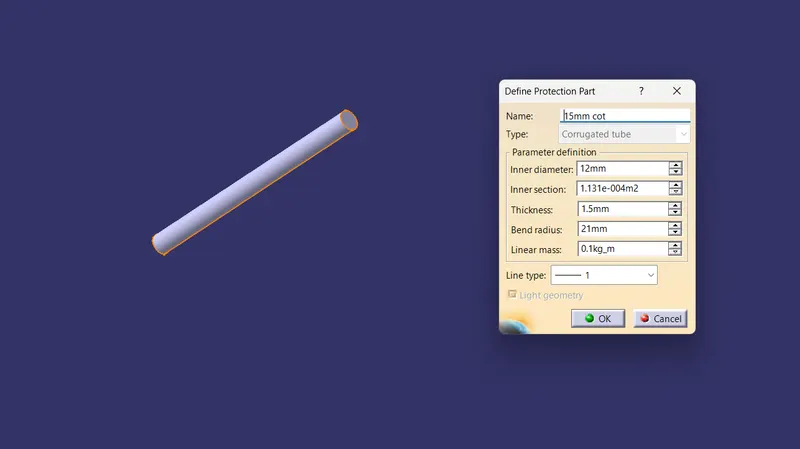

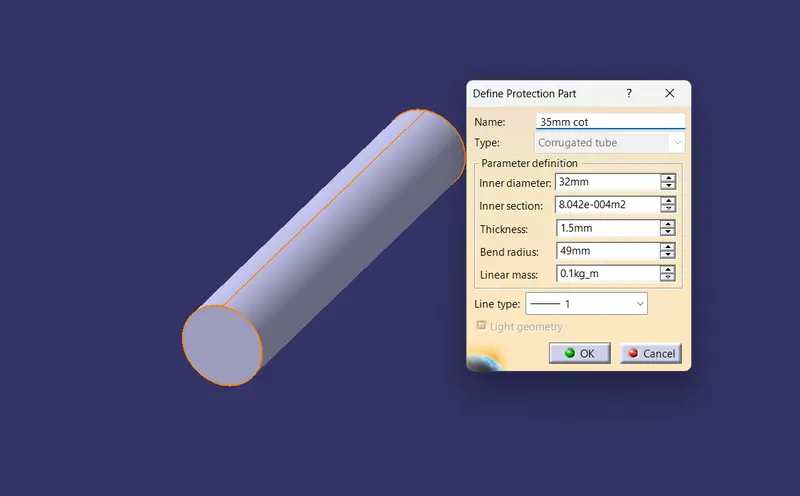

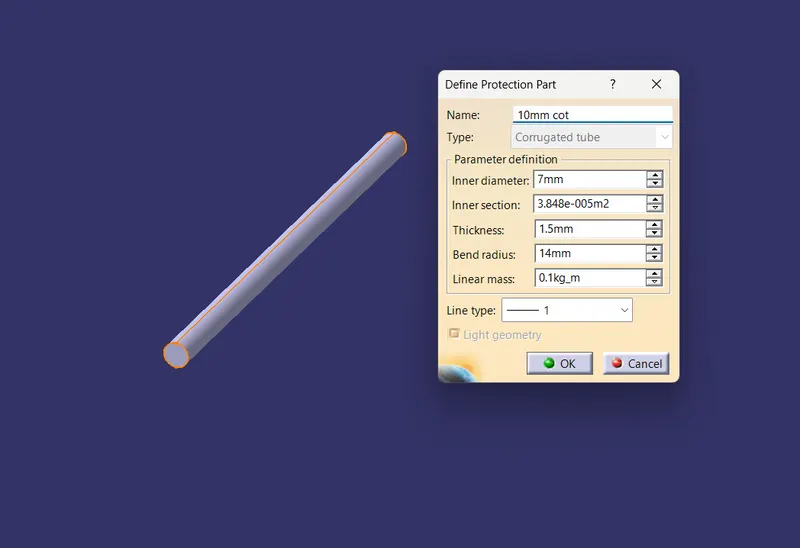

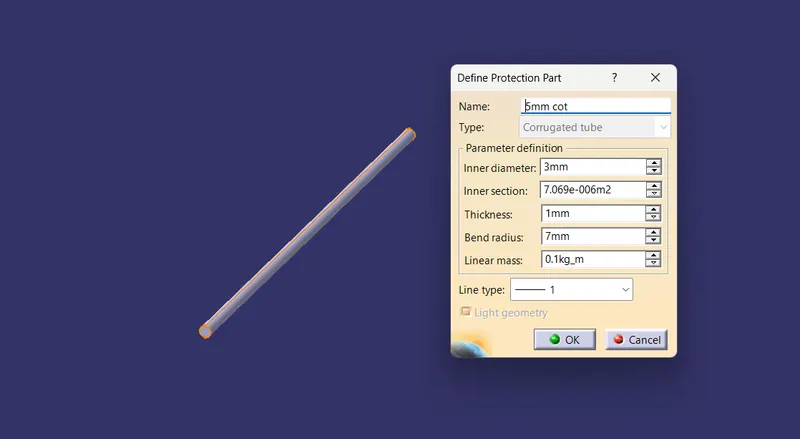

- Define the protection part
Specifying inner diameter, Thickness, and the Bend radius which is 1.4 times the outer diameter.
