Wiring harness routing & packaging Rules Week 3 Challenge

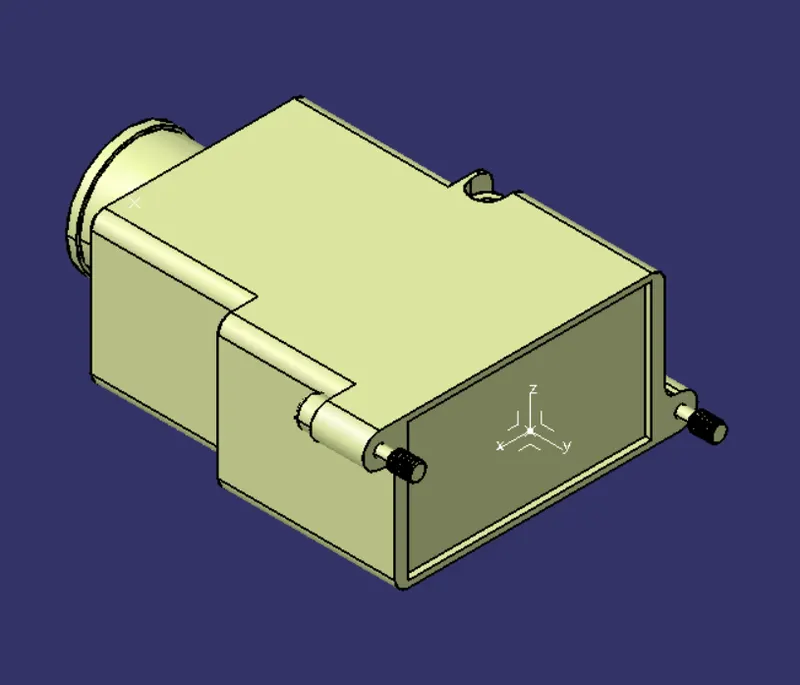

Tyco 1738312-1:

-Create a point.

-Open the electrical Part Design.

-Define as Bundle Connection Point.

-Define as Backshell Connection Point.

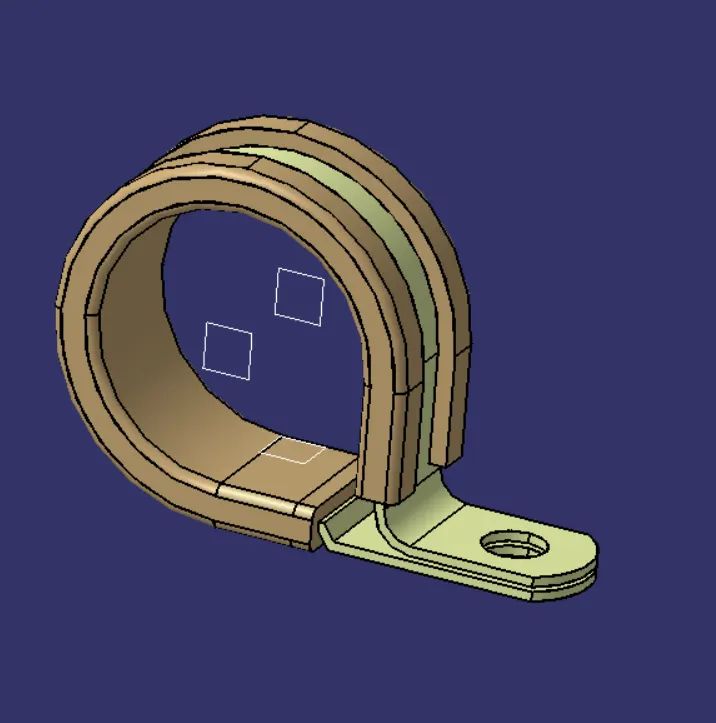

P-Clamp:

-Create two points on the both sides of the P clamp.

-Create a plane on the two points each.

-Also, create a plane and offset plane from the clip.

5mm COT:

Inner Diameter = 3mm

Thickness = 1mm

10mm COT:

Inner diameter = 7mm

Thickness = 1.5mm

15mm COT:

Inner Diameter = 12mm

Thickness = 1.5mm

20mm COT:

Inner Diameter = 17mm

Thickness = 1.5mm

35mm COT:

Inner Diameter = 32mm

Thickness = 1.5mm
