Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Procedure:

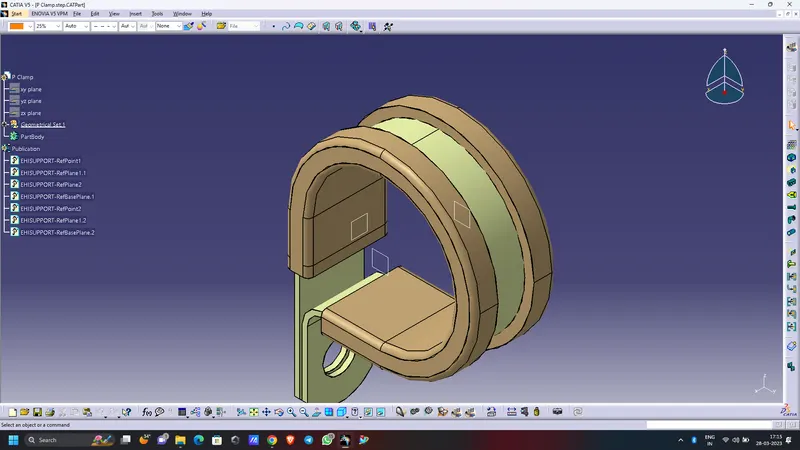

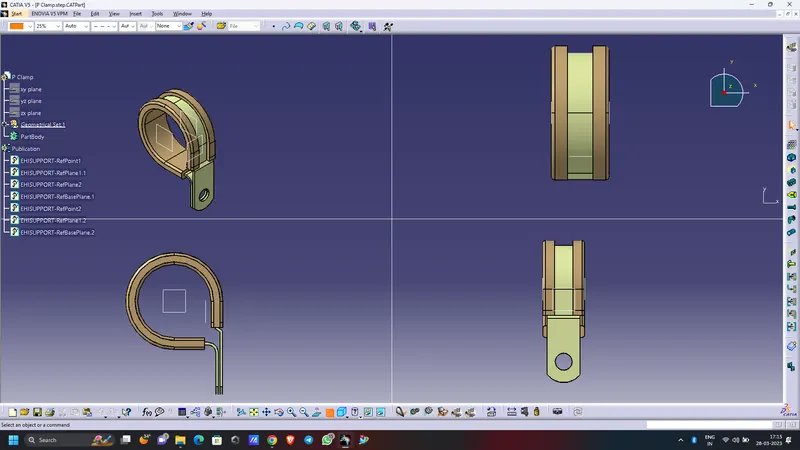

- The given clip was downloaded and opened as a part file
- .I have to define two points that will be used as entry and exit points
- Then a plane has to be defined at the points.
- A base plane has to be defined at a distance of 2 to 3 mm from the clip.
- again we define the exit point at the first definition as the entry point.
hence I have two entry and two exit points.
IMAGES:
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Procedure:

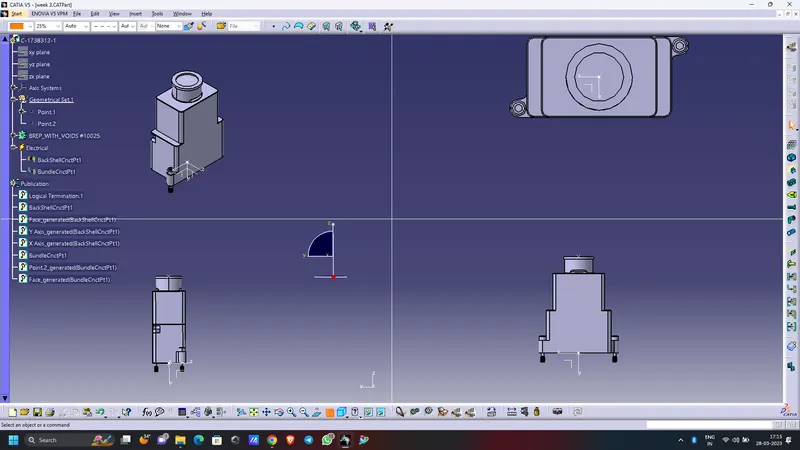

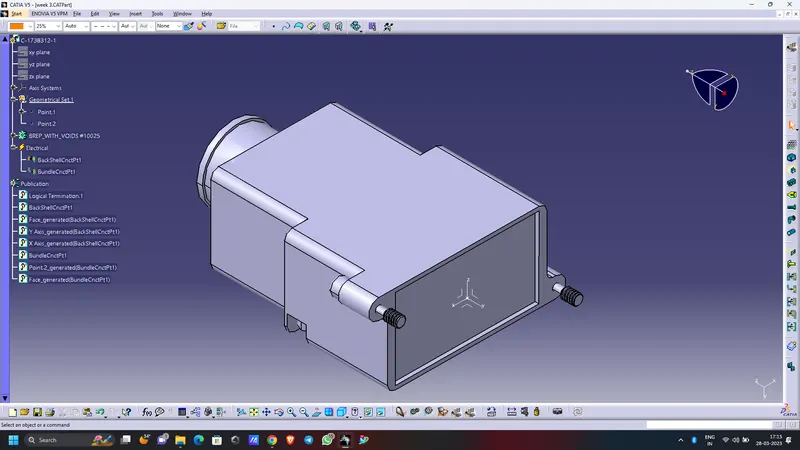

- The backshell data was downloaded from the website.
- We define the points in the part workbench.
- An Axis system with the correct axis orientation is placed at the backshell connection point.
- The points have to be defined as the backshell connection and bundle connection points.
IMAGES:
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Cretation:

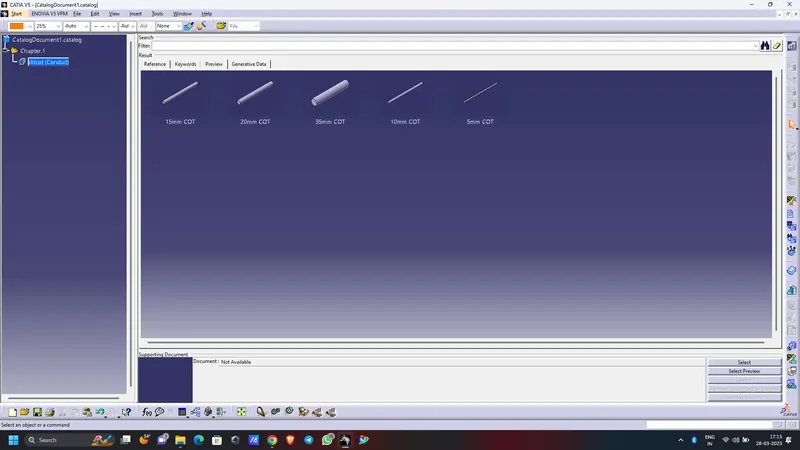

- new part - catalogue document - add family - give name - type - select Conduit - save.
- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
Procedure:
- we define the cot tubes in the electrical part workbench.
- the inner dia & thickness are given as the inputs.
- a catalog was created for the cot tubes.
- all the cot tubes were saved in the catalog.
IMAGES:
