Wiring harness routing & packaging Rules Week 3 Challenge

REPORT ON WIRING HARNESS ROUTING ANSD PACKAGING RULES CHALLENGE WEEK 3:

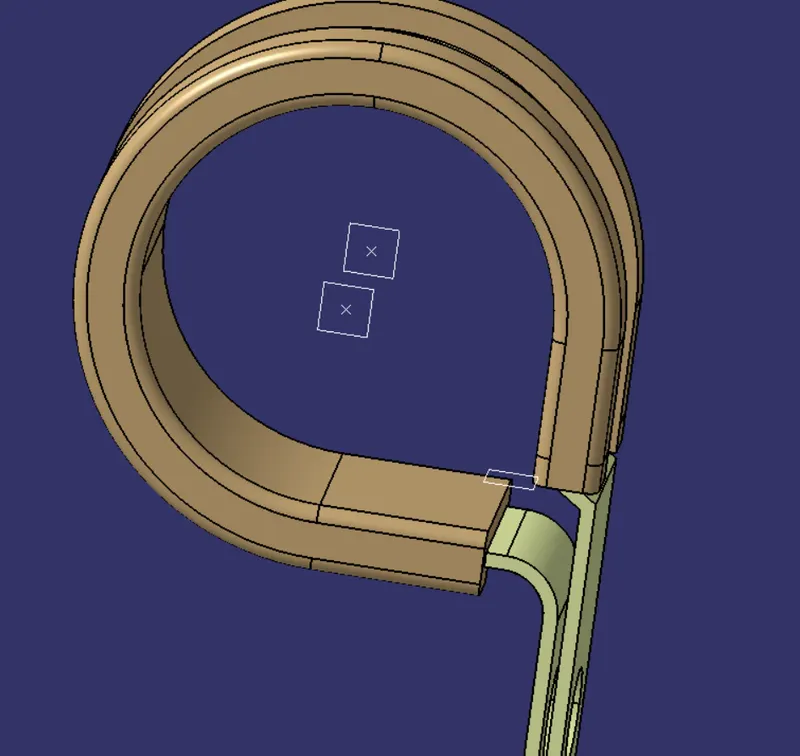

• P CLAMP: This is support device whice is used to bind the bundles. In a P CLAMP there are two entry and exit point I had to defined.

  there I had to download the .igs file then I saved it as a part file, after that I created two points and three planes. Then I did "Define Support Part" command, And I defined the points twice and the plan also, but the base plane is same for the entry and exit. In the above picture shown all the points, part, and the planes.

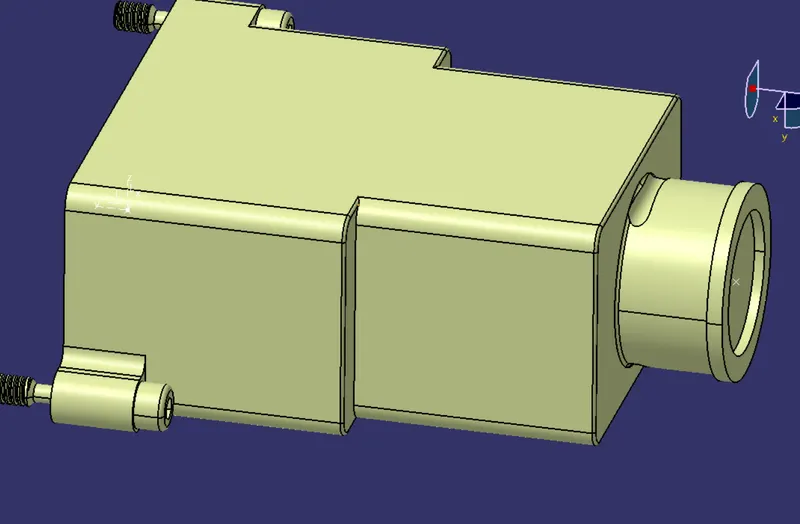

• BACK SHELL: Back Shall I downloaded from the website as .igs formate, then I saved it as a part. After saving as a part I created bundle connection point, and connector connection point and axis. Then I defined the backshell and selected all the parameter.

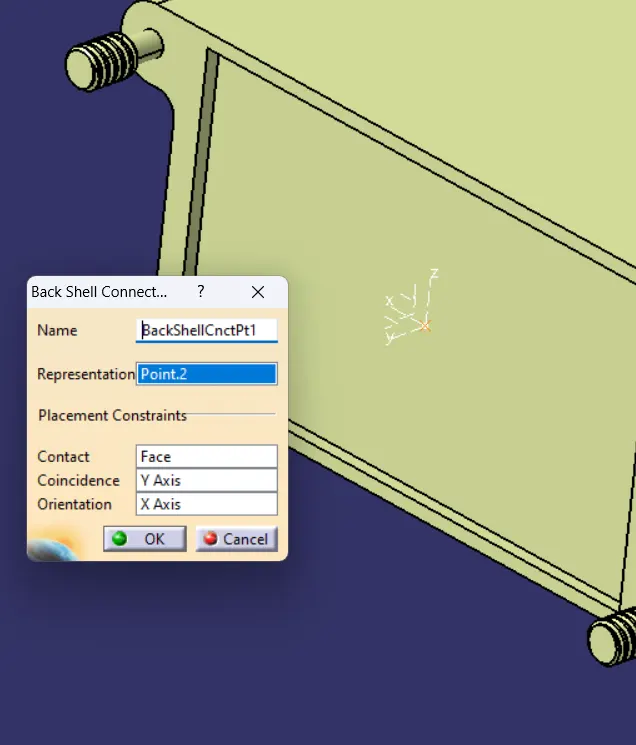

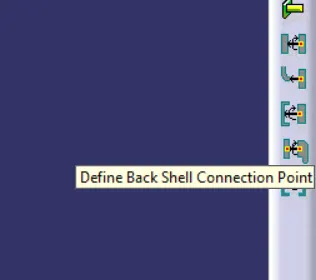

  After that I defined the backshell connection point.

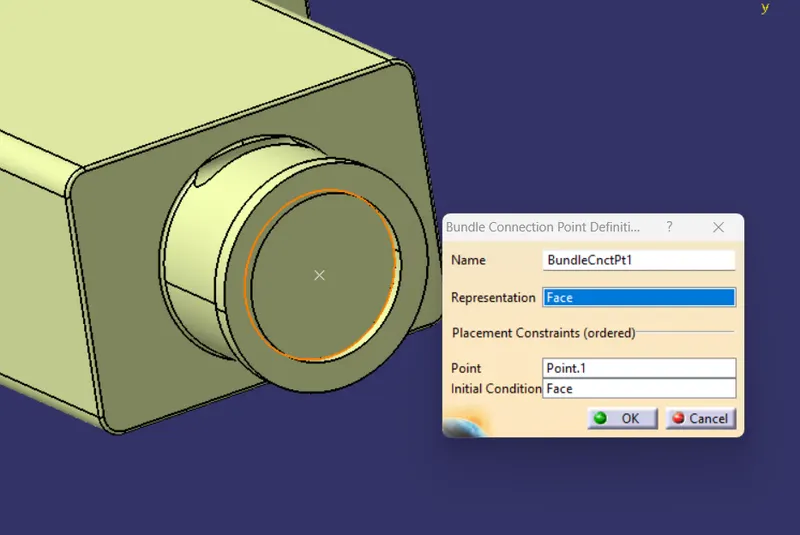

  Then I defined the bundle connection point.

  Then I saved the part.

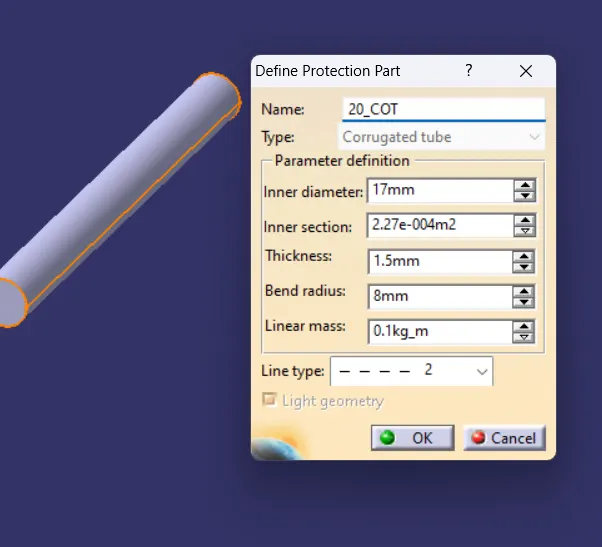

• CORRUGATED TUBE: This is a Protection part, The part used for covering wirings from damages. I created the tubes with appropriate oarameters which are given from the challenge.

  One of the COT Tube.

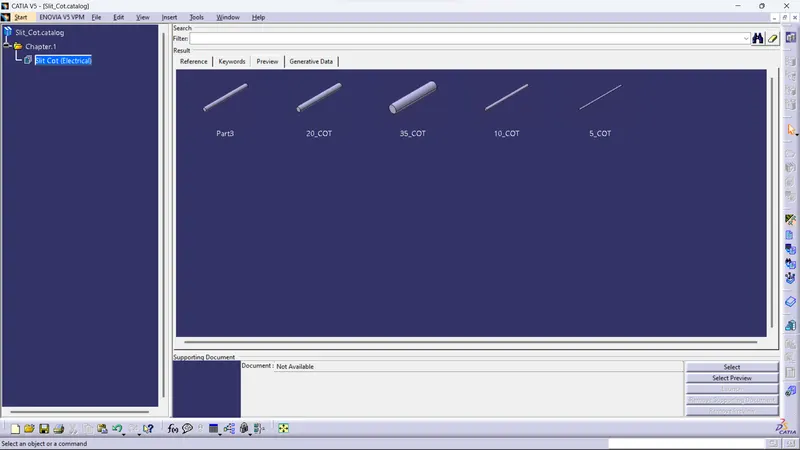

  Then I created a catlog called "Slit_Cot", and I saved all the tubes in the CATLOG.


  And I gave the family as electrical family.
