Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
Get the clip 3D part -> define geometry parameters -> defined part as support -> define entry point and plane -> define base and exit plane

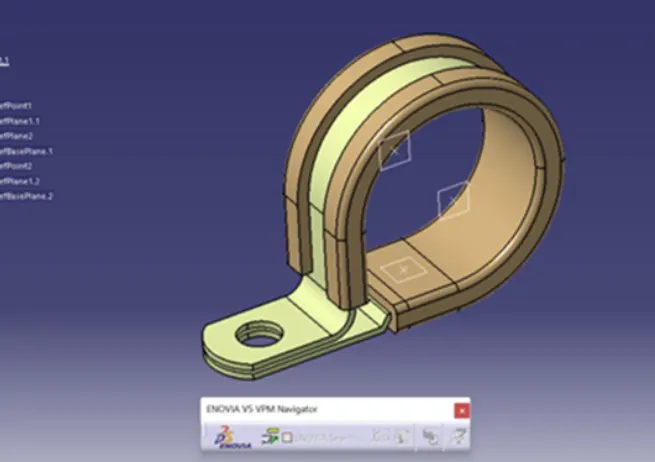

p clamp

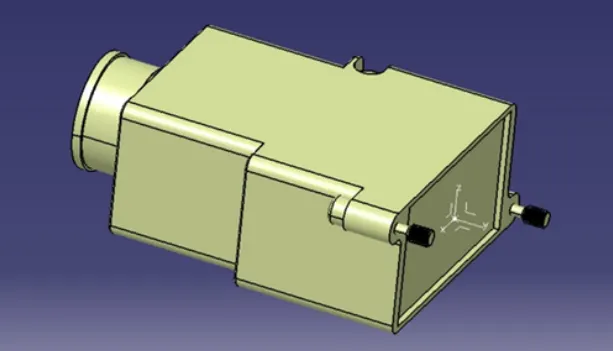

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Get the backshell 3D part -> define geometry parameters -> defined part as backshell -> backshell connection point -> define bundle connection point
TYco
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Create covering 3D part -> create catalouge for coverings -> add new part in catalogue -> apply covering on harness bundles from catalogue

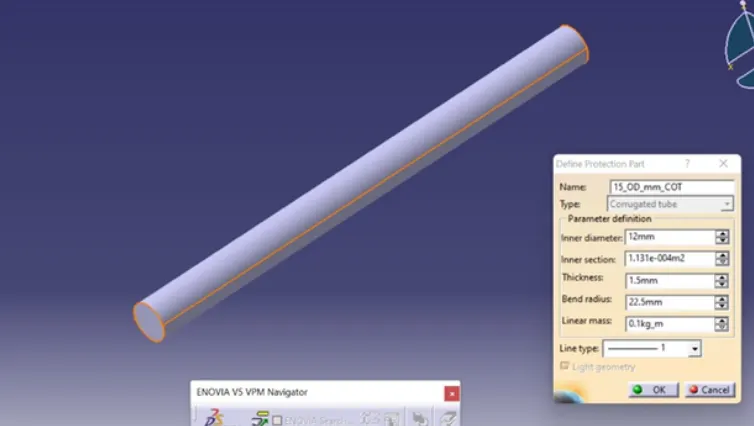

15 mm COT

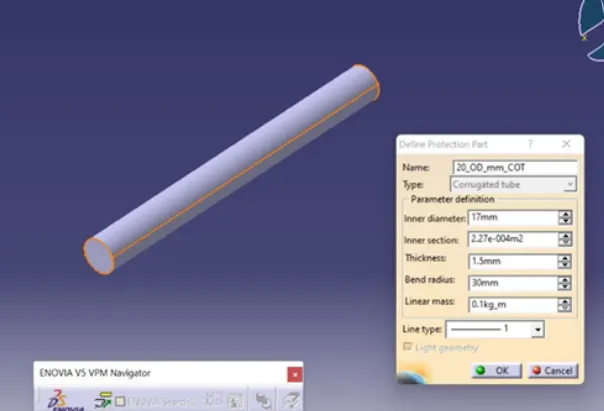

20 MM COT

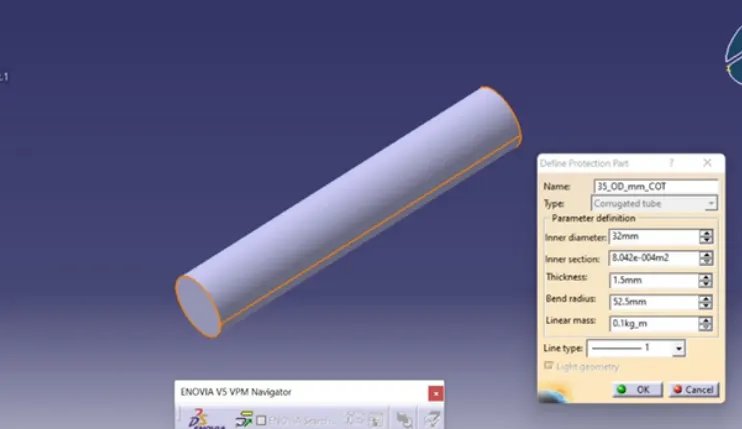

35 MM COT
