Wiring harness routing & packaging Rules Week 3 Challenge

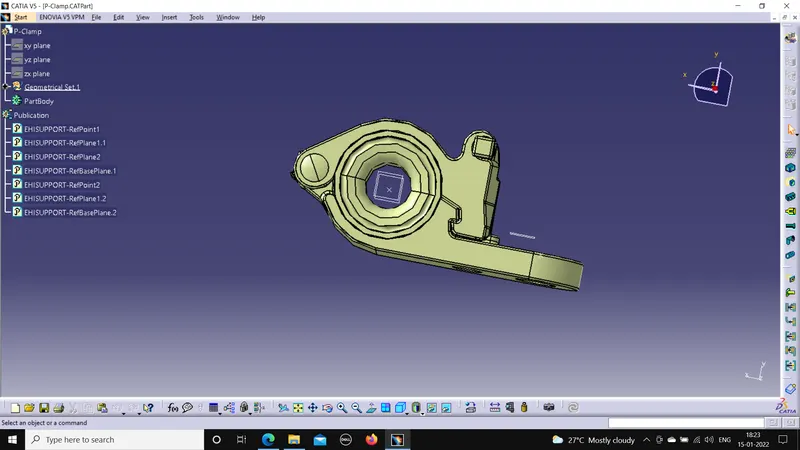

1.P-Clamp downloaded and defined a geometrical parameter with Entry_Exit_Base planes and defined as support part in Electrical part design work bench.

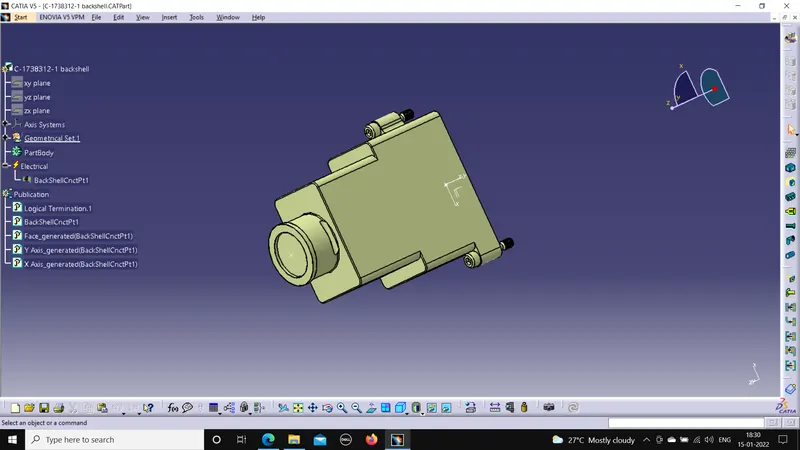

2. Backshell (Tyco 1738312-1) downloaded from TE and defined a geometrical parameter in Part design work bench,analysed wire entry and mating side of backshell whereas Y axis as fitment mating side and defined as electrical backshell in electrical part design workbench and aswell defined backshell connection point and Bundle connection point.
