Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

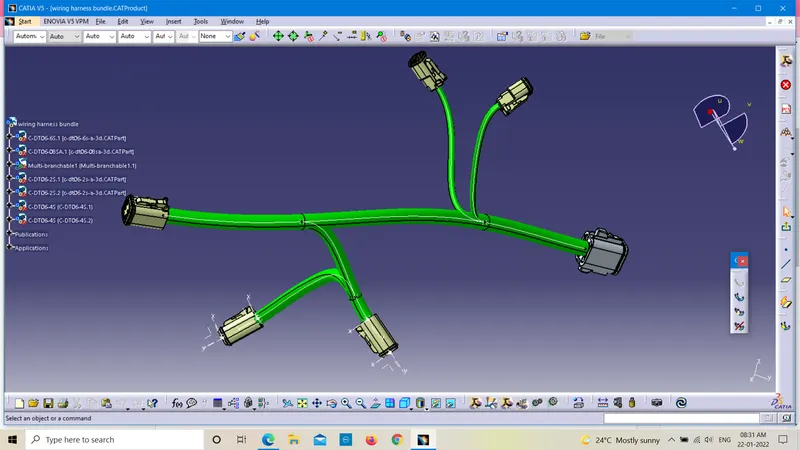

1. Above mentioned connectors are electrically defined and harness routed for all connectors with appropriate bundle size.

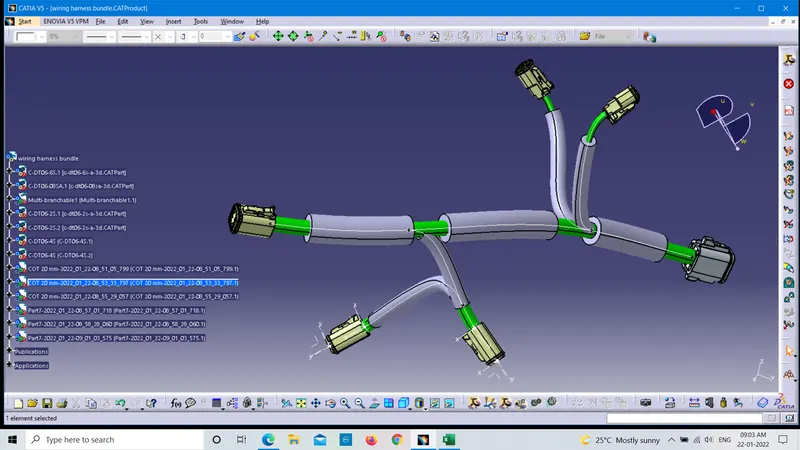

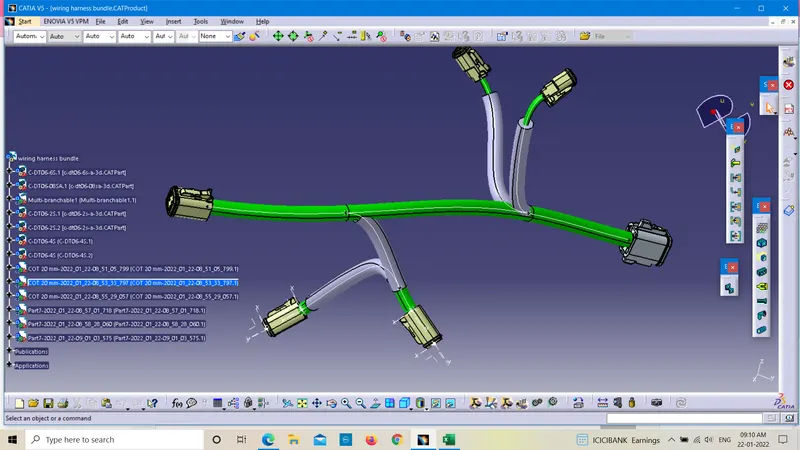

2. Protective coverings COT tube created and added in catalog , then added protective covering with end extremity of 30mm from connector end.

Note : Sorry , cant able to create routing as per specific dimention..and will work again and share the same with correct specification..Let it be as practice challenge and if any mistakes pl.advise.
