Wiring harness routing & packaging Rules Week 3 Challenge
AIM :
- Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
- Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
P CLAMP

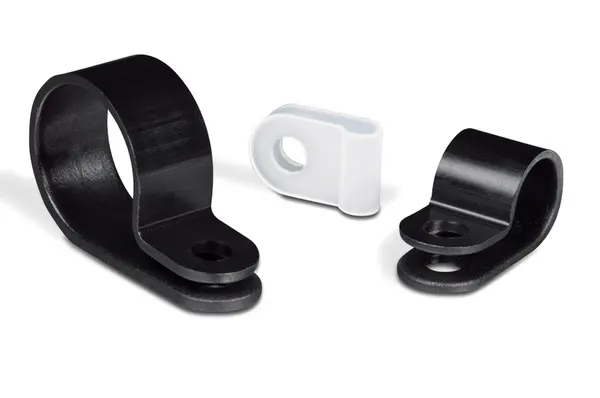

P-clamps lock cables and hoses in place and help ensure that machinery, vehicles and equipment keep running. They bracket wires, cables or hoses together mechanically and are fastened securely to an anchor point – usually with a screw or a bolt.
CORRUGATED TUBES.
Corrugated stainless steel tubing (CSST) is tubing made of stainless steel with corrugation on the inside or outside. CSST is not FAC (Flexible Appliance Connector) tubing. Presently, CSST and FAC tubing both use corrugated stainless steel tubing. In the past, FAC used corrugated brass tubing.
DEFINING P CLAMP
pont and plane on entry side of the wire in p clamp
WIRE EXITING POINT AND PALNE
BOTTOM PLANE
DEFINING THE BACK SHELL
backshell (plural backshells) (mechanical) Part of an electrical conductor or other electrical device, such as a cable clamp or adapter, that is threaded onto the rear connector accessory threads of plug or receptacle connectors to make up the total connector assembly.
A backshell is a mechanical device threaded into the rear of an electrical connector. The more popular backshells are strain relief, cable clamps and adaptors. The SUNBANK brand offers a wide range of standard and customized backshells for the aviation and defense markets.
CONNETION DEFINATION
BUNDLE DEFINATION
CORRUGATED TUBES
Corrugated stainless steel tubing (CSST) is tubing made of stainless steel with corrugation on the inside or outside. CSST is not FAC (Flexible Appliance Connector) tubing. Presently, CSST and FAC tubing both use corrugated stainless steel tubing. In the past, FAC used corrugated brass tubing
15 MM COT
20MM COT
35mm COT
10mm COT
5mm COT
Corrugated tubes & Add them in Catalogue under “Slit COT” family.
