Wiring harness routing & packaging Rules Week 3 Challenge

1. P.Clamp

• First i am download the cad file in the given question link
• As per explanation next created required geometrical parameter in the given connector
• What are the geometrical parameter is first created connection entry point --> then connection Plane in the P.clamp-->exit point in the P.clamp --> exit plane in the P.clamp --> Base plane in the P.clamp-->next define support part in the systam
• Then finally save the changes in the P.clamp and save into the file location

2. Backshell Tyco 1738312-1

• First i am download the cad file in the given question link
• As per explanation next created required geometrical parameter in the given connector
• What are the geometrical parameter is first created connection entry point -->bundel connection point in the Backshell --> next define Backshell part in the systam
• Then finally save the changes in the Backshell and save into the file location

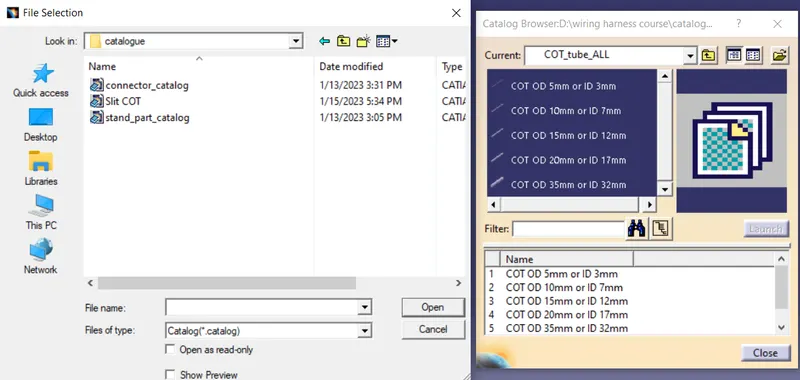

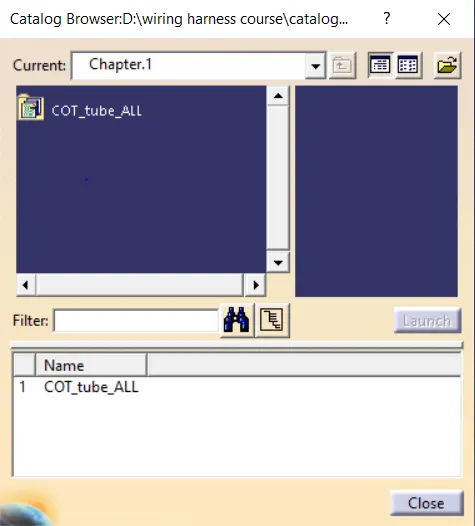

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

As per question created all COT and save the file into the as per question Catalogue name Slit COT

give the image to below
