Wiring harness routing & packaging Rules Week 3 Challenge

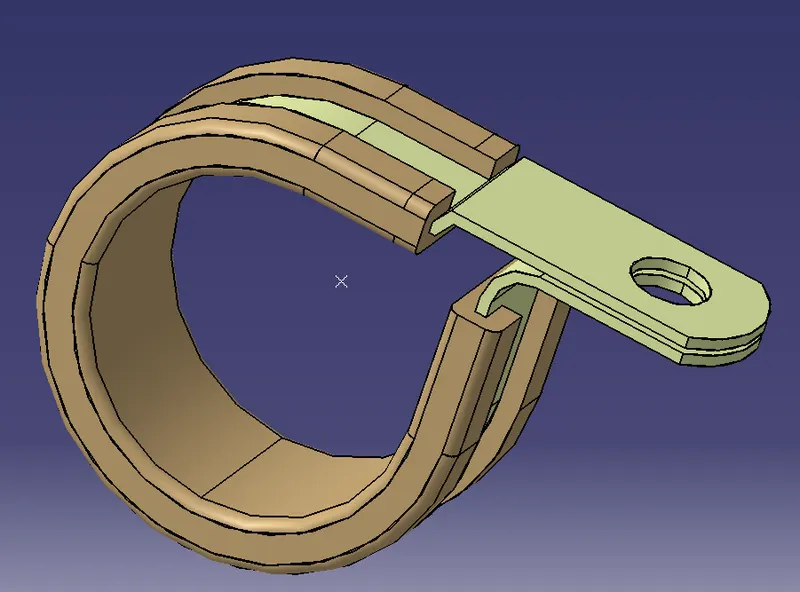

1) Considering the P clamp it is brought into the part design workbench and the points are defined.Then, the Entry Plane,Exit Plane and Base Plane.It is brought into the electrical part design and define it as a support part.Then define the support part path from either faces of the p clamp.Then save the work.

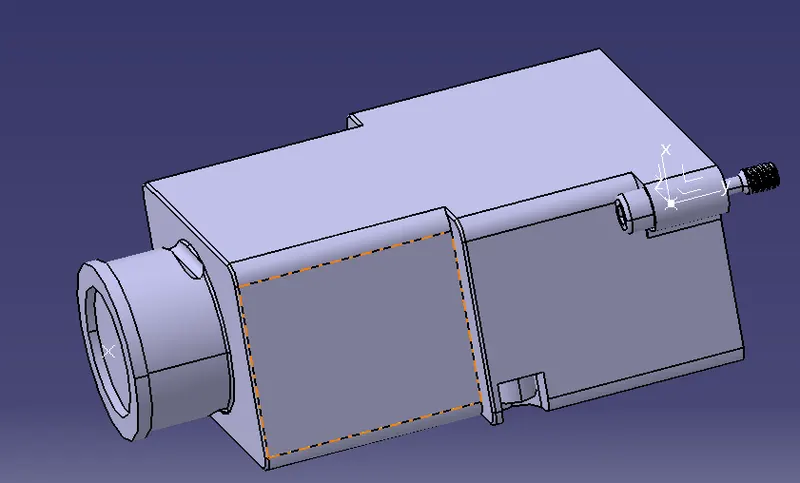

2) Considering the Backshell Tyco 1738312-1.Define the points and axis on in in the part design workbench.Bring it into the electrical part design workbench and define it as a backshell then define bundle connection point and the backshell connection point on its respective sides.Save the work.

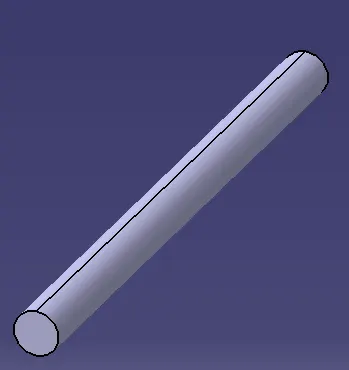

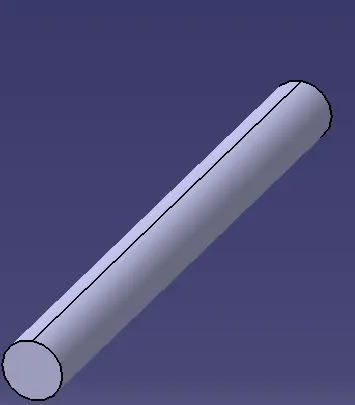

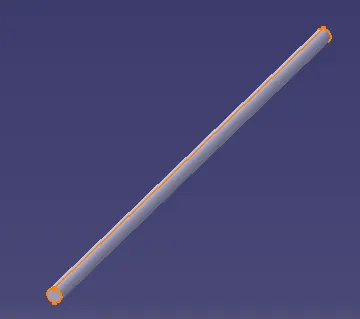

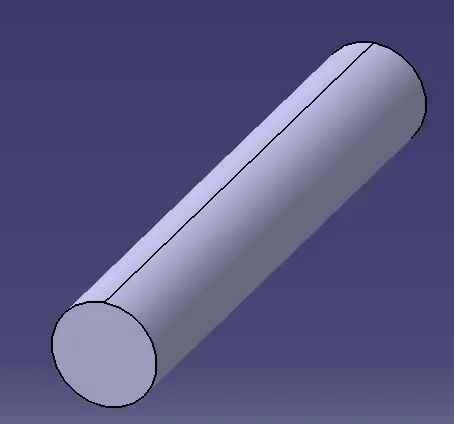

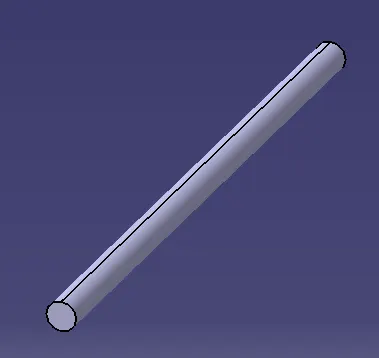

3) Creating Corrugated tubes with the following values provided in the table.At first open a new part file and define it as protection part.Then make the neccesary changes in the inner daimeter values and the thickness values.Then save the data as cataloque parts in the Catia and save them.
