Wiring harness routing & packaging Rules Week 3 Challenge

AIM:

In this challenge we have a 3 objectives to complete this challenge they are

• Question 1 is To Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
• Question 2 is to Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
• Question 3 is to Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Question 1:

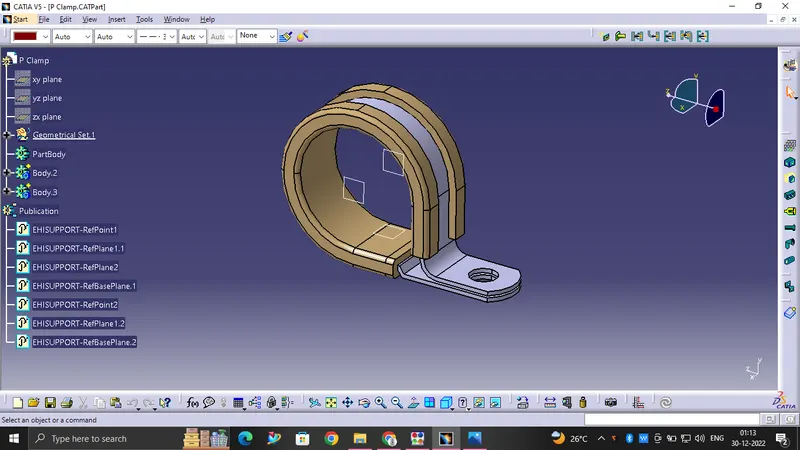

• The given clip was downloaded and opened as a part file.
• Then define two points that will be used as entry and exit points.
• Then a plane has to be defined at the points.
• A base plane has to be defined at a distance of 2 mm from the clip.
• Again we define the exit point at the first definition as the entry point.
• Hence I have two entry and two exit points.

So i will successfully completed the objective 1.

Question 2:

• The backshell data was downloaded from the website.

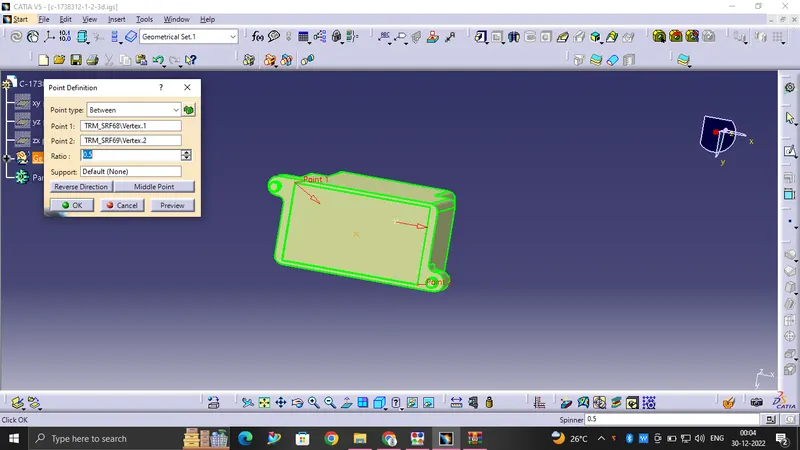

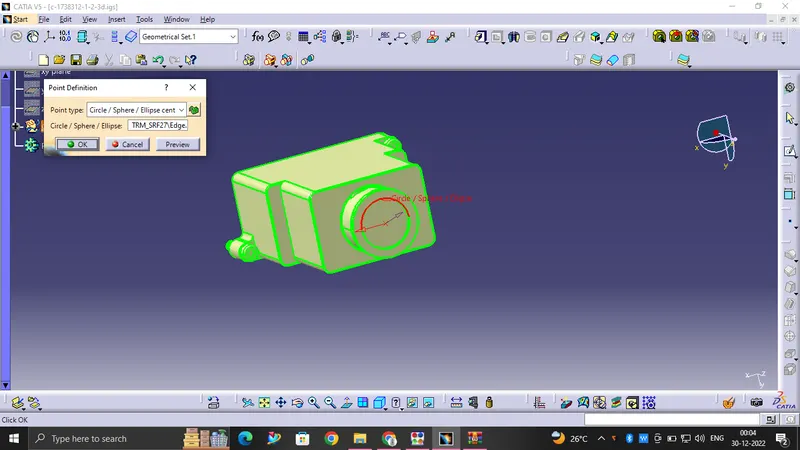

• We define the points in the part workbench.

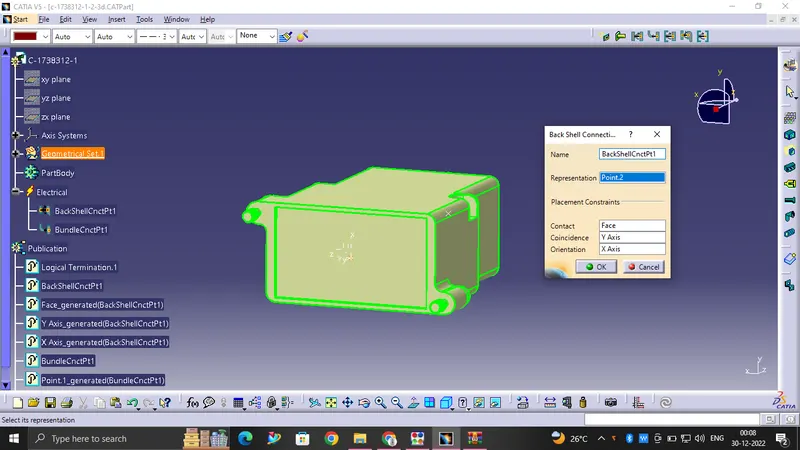

• An Axis system with the correct axis orientation is placed at the backshell connection point.

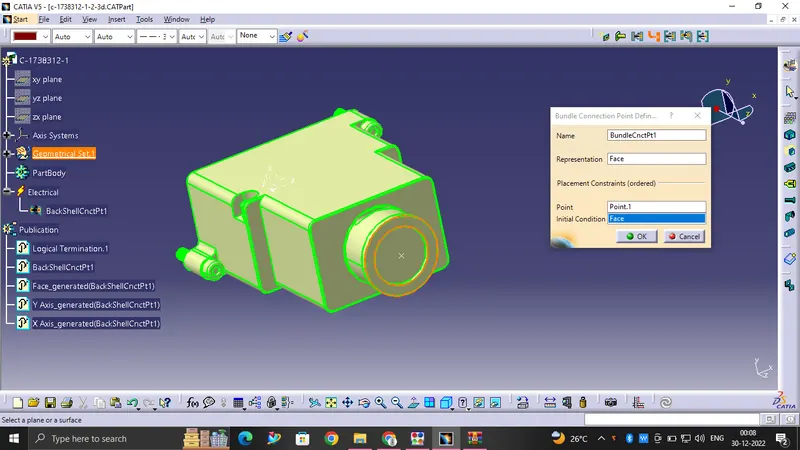

• The points have to be defined as the backshell connection and bundle connection points.

So i will successfully completed the objective 2 also.

Question 3:

Name	ID (mm)	OD (mm)	Thickness (mm)

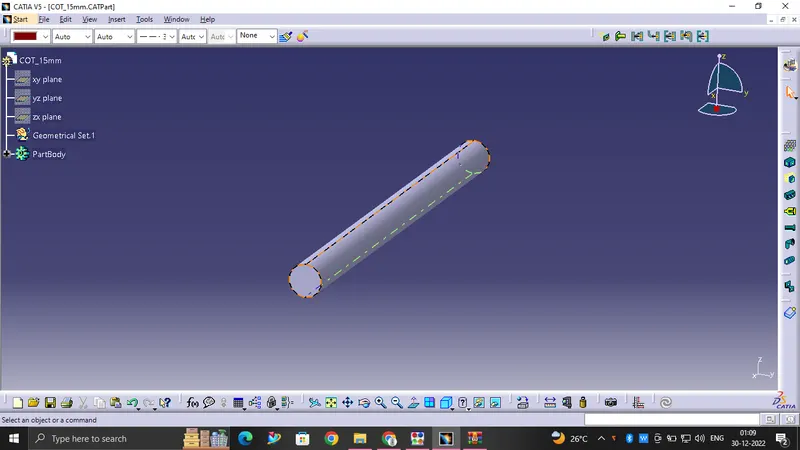

15mm COT	12	15	1.5
20mm COT	17	20	1.5

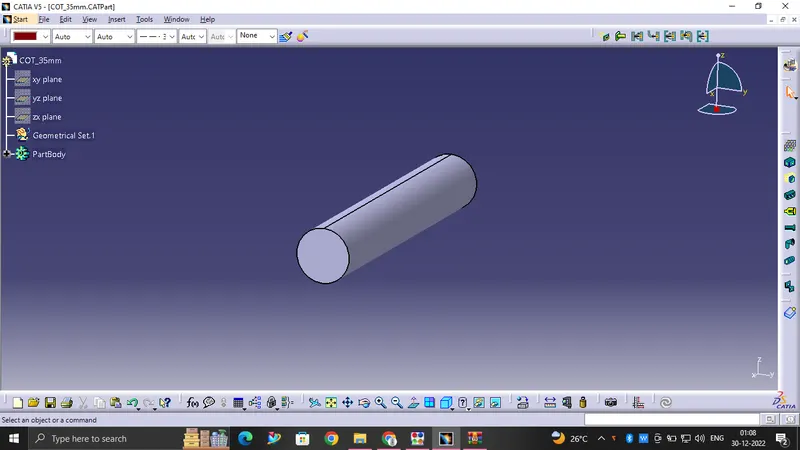

35mm COT	32	35	1.5

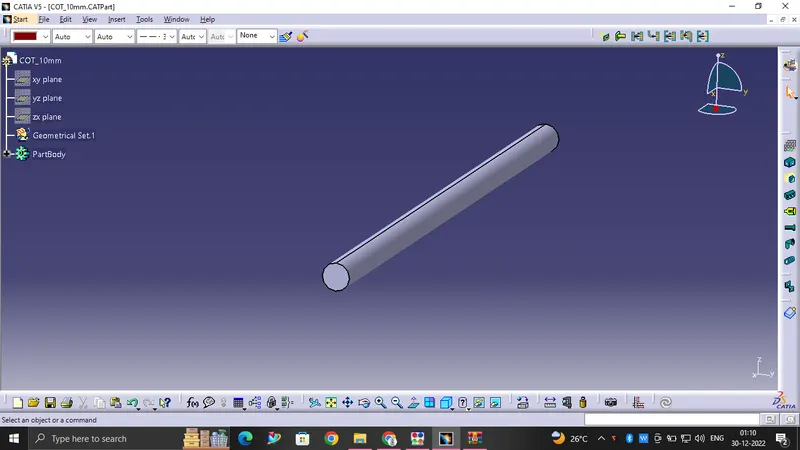

10mm COT	7	10	1.5

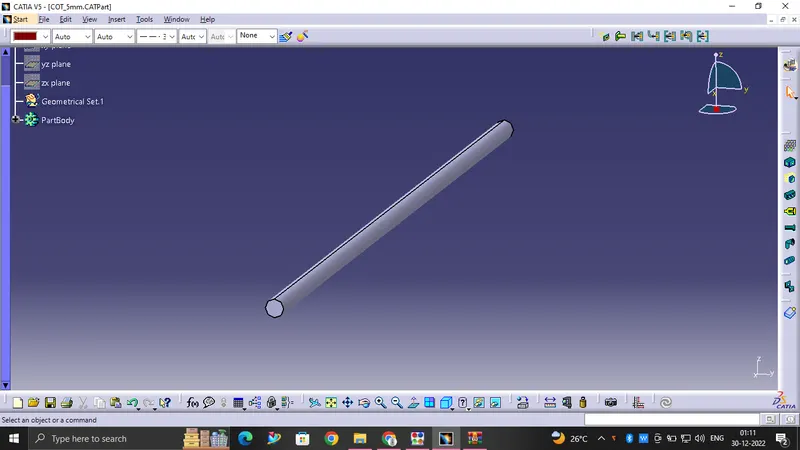

5mm COT	3	5	1

• define the cot tubes in the electrical part workbench.
• the inner dia & thickness are given as the inputs.
• catalog created for the cot tubes.
• cot tubes saved in the catalog.

So finally i will successfully completed the objective 3 also.

Conclusion:

In this challenge we have a 3 objectives to complete this challenge as per the design requirement i  will succesfully done this challenge.
