Wiring harness routing & packaging Rules Week 3 Challenge

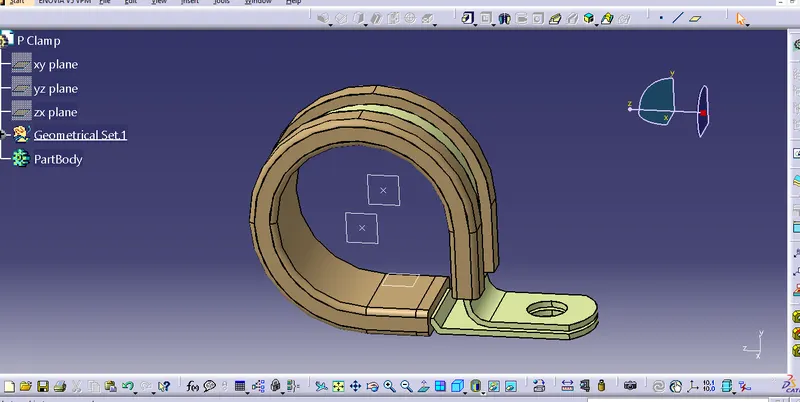

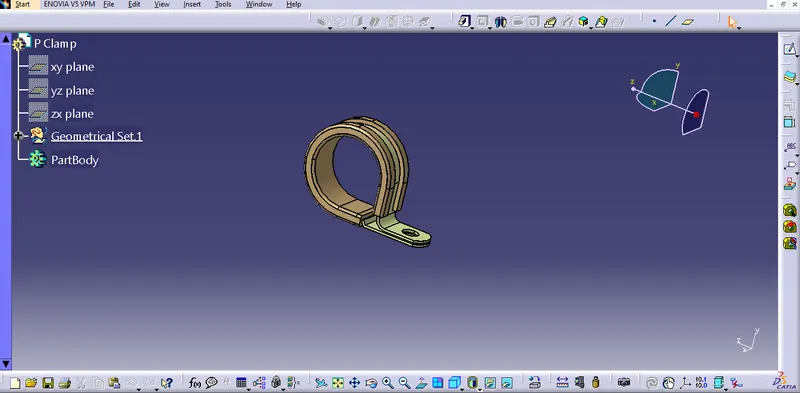

1. P clamp cad in dowloaded.

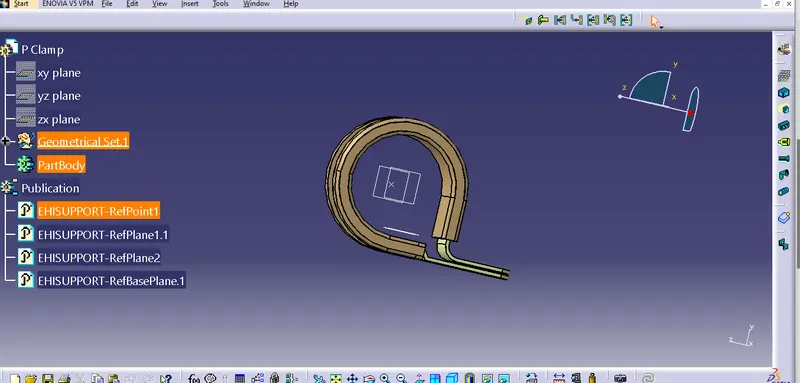

2. P clamp Entry,EXIT Plane creation.
* Download Cad data from the given link and.Define all the necessary properties.

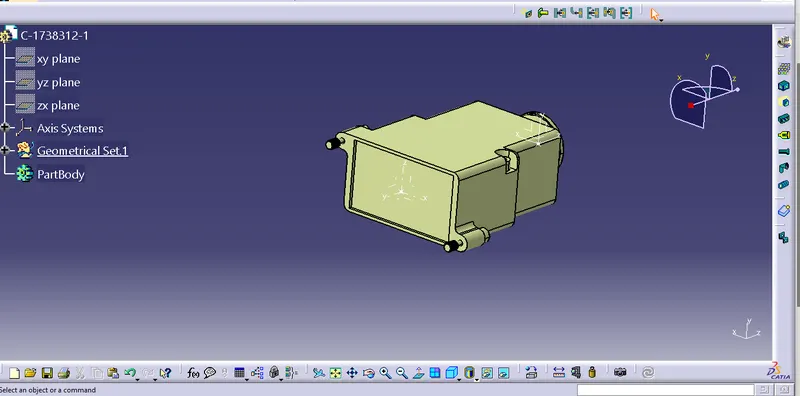

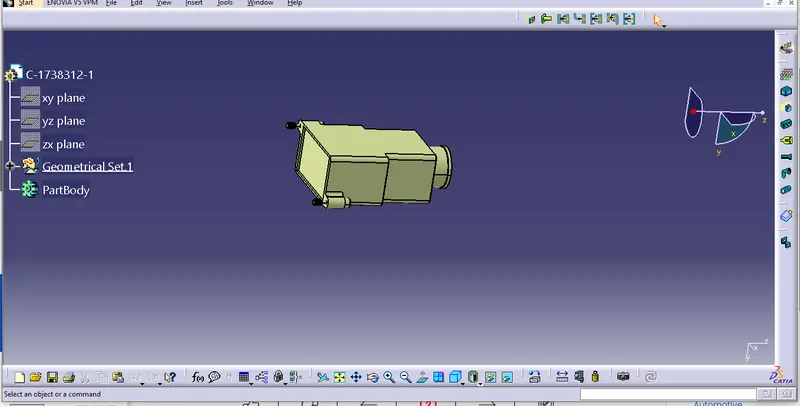

Tyco 1738312-1 ( Back shell dowload from cab data define all parameter realted back shell).
.
2. Definig the back shell aixs point.

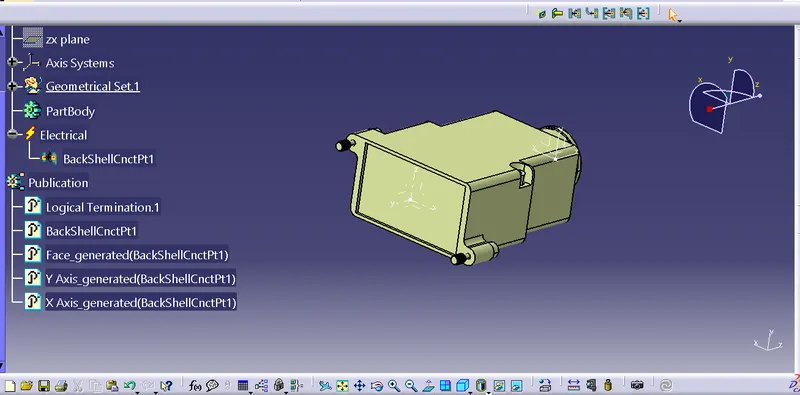

3. Defining the back shell connection point.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
1. Creation of Corrguated tube as given following data.

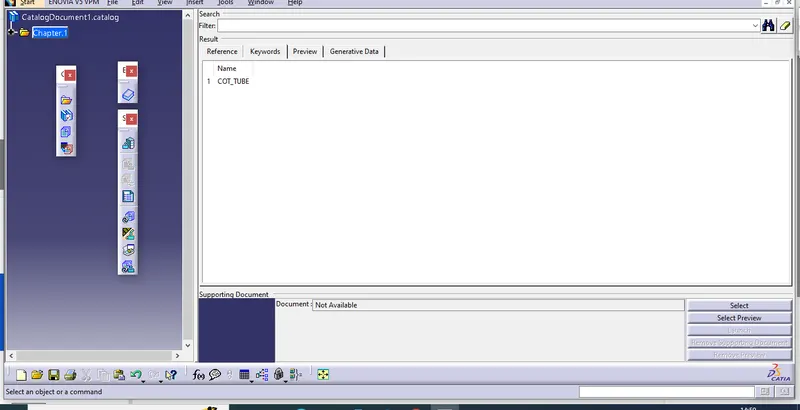

*Catalogue Creation.
2. Corrugated Tube Creation.

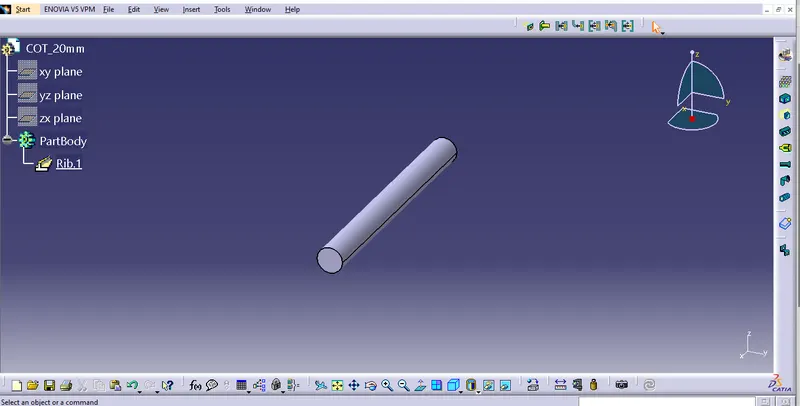

*COT_20mm

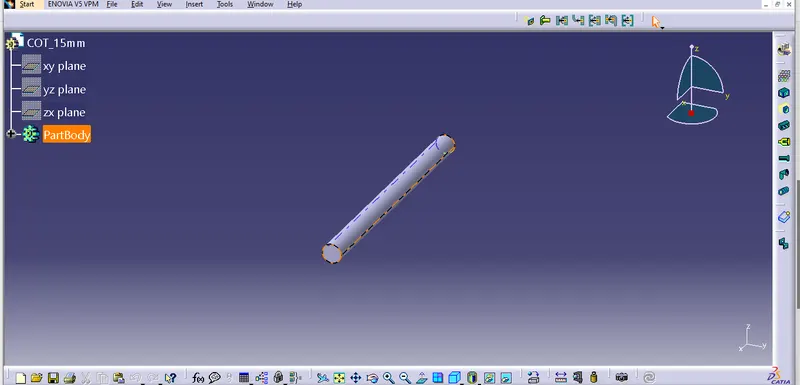

*COT_15mm

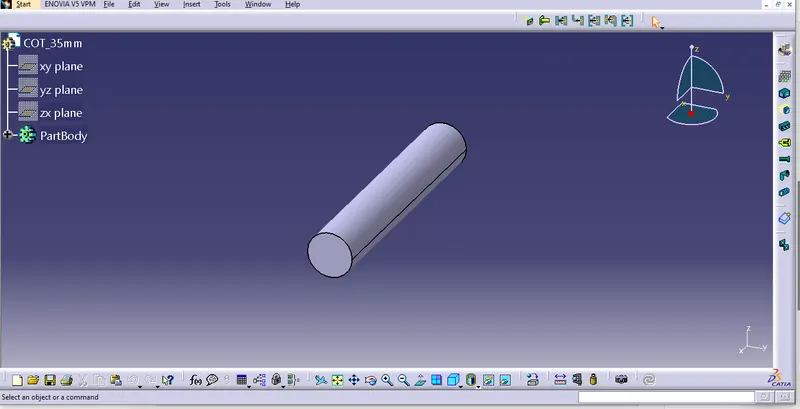

*COT_35mm

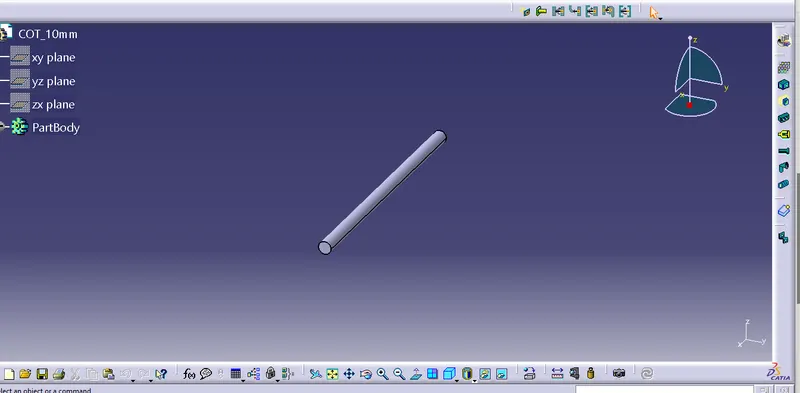

*COT_10mm

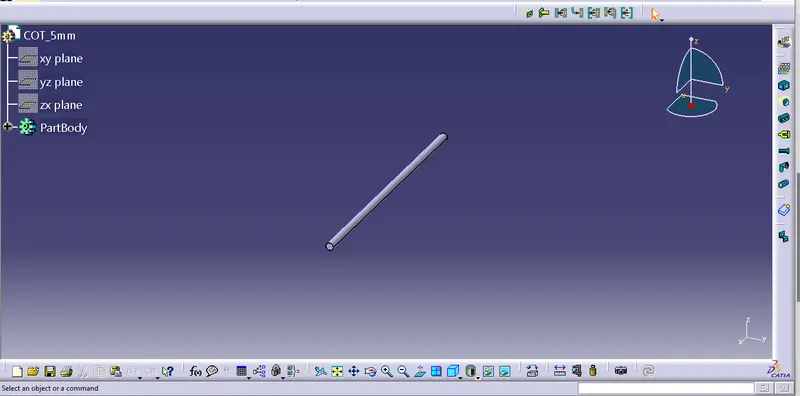

*COT_5mm
