Wiring harness routing & packaging Rules Week 3 Challenge
1. P Clamp:

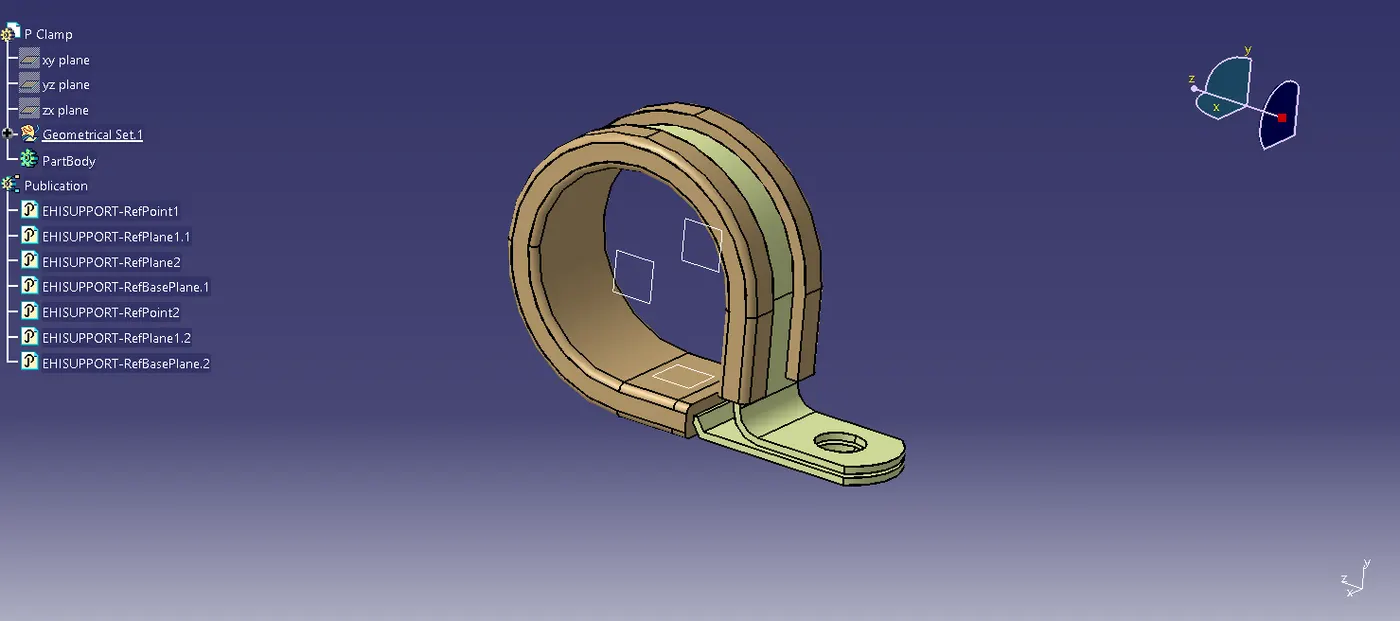

The P Clamp is given by geometric parameters such as entry point and plane, Base plane, exit point and plane using part workbench. It is also defined electrically as the Support part using electrical part design workbench. Then the entry point and plane, base and exit plane are defined. It is also catalogued under support part family.
Tyco-1738312-1 :

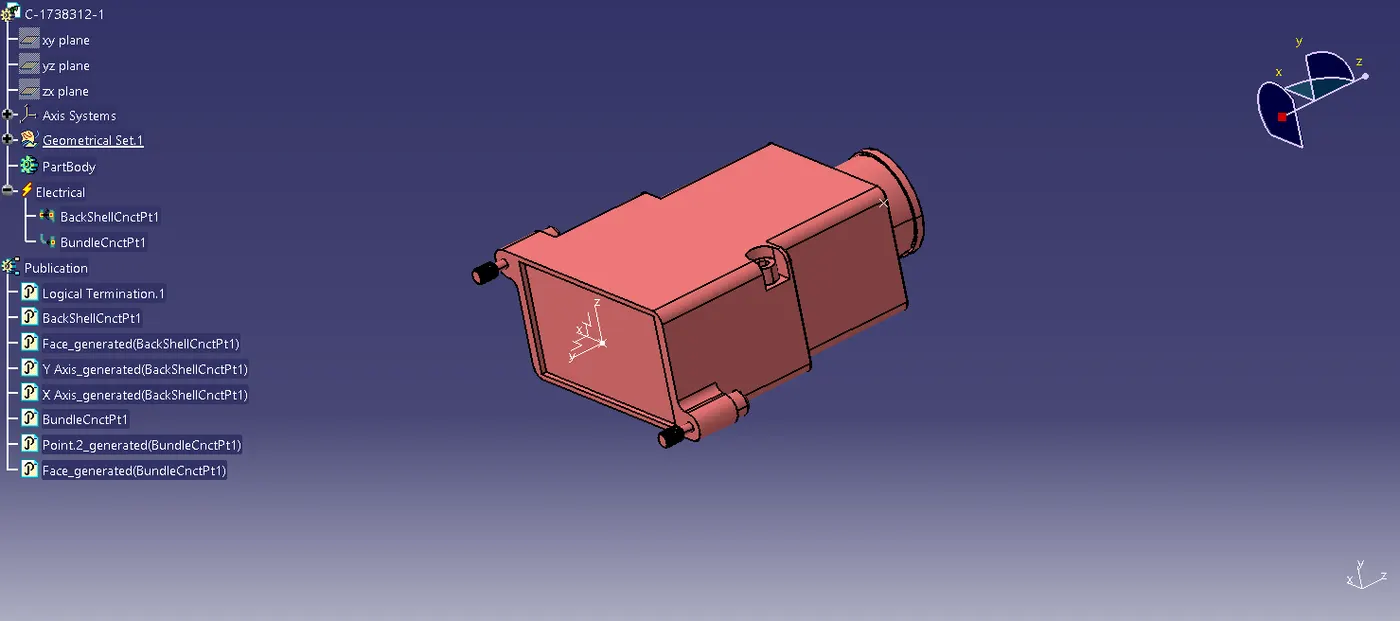

The given part number Tyco-1738312-1 is a back shell. The geometric parameters such as back shell entry point and bundle entry point and axis system is created at the back shell entry point as the X,Y,Z axis are directed along the locking mechanism, mating front face and across the back shell from left to right. It is defined electrically as backshell using electrical part design workbench. The back shell entry point is defiend as Backshell connection point and bundle entry point is defined as bundle connection point. Then the backshell is catalogued.
3. COT tubes:
15mm COT tube:

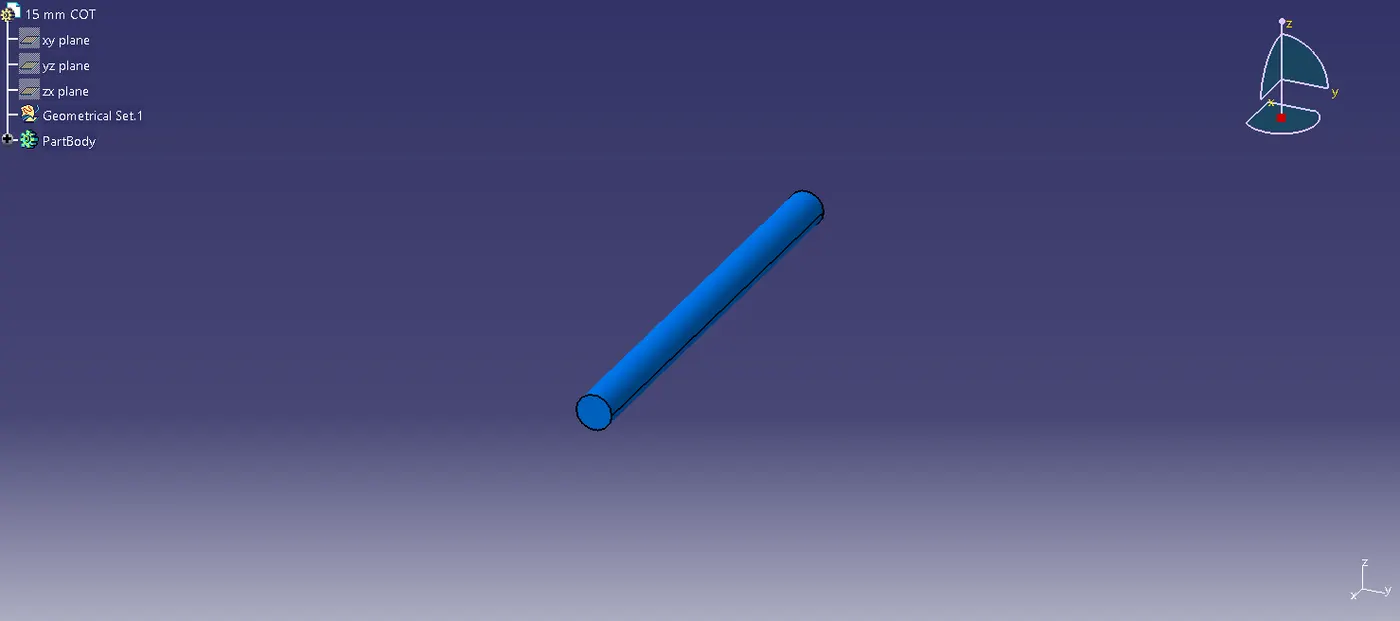

The Corrugated tube is a protection part in the bundle assembly. This COT tube is defined as protection part by using electrical part design workbench. It is of 15mm OD, 12mm ID, thickness of 1.5mm. It is catalogued under 'Slit COT' family.
20 mm COT tube:

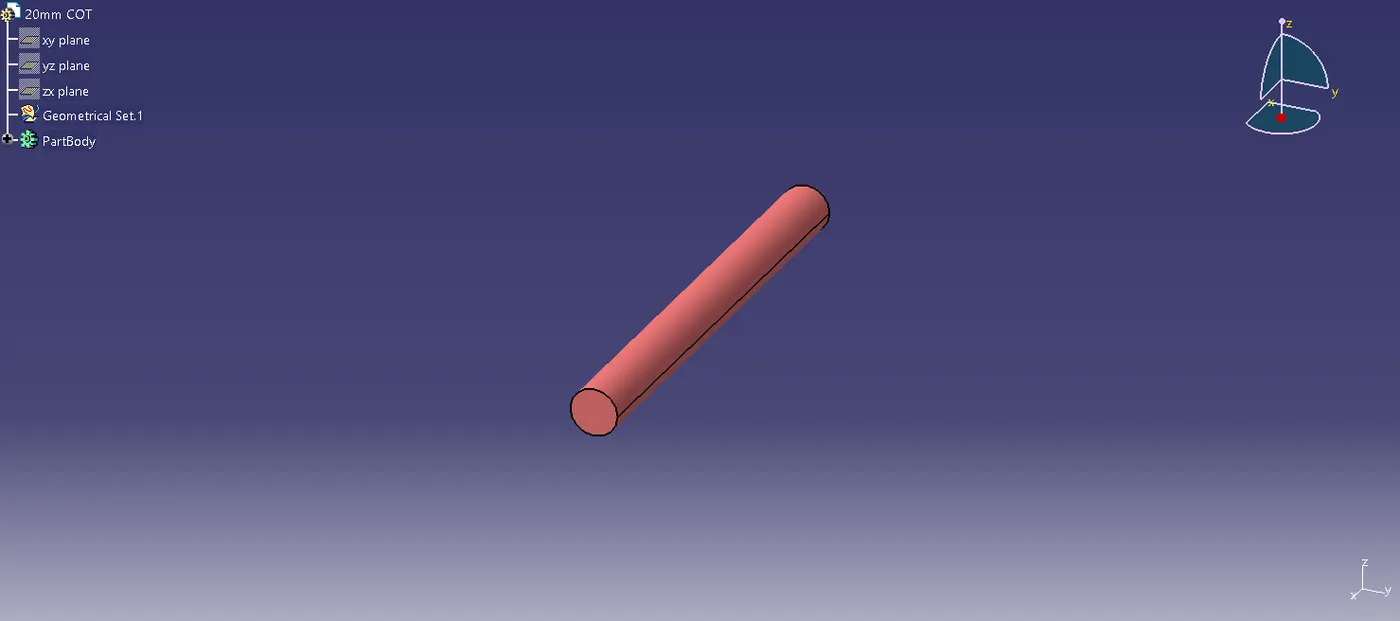

The Corrugated tube is a protection part in the bundle assembly. This COT tube is defined as protection part by using electrical part design workbench. It is of 20mm OD, 17mm ID, thickness of 1.5mm. It is catalogued under 'Slit COT' family.
35mm COT tube:

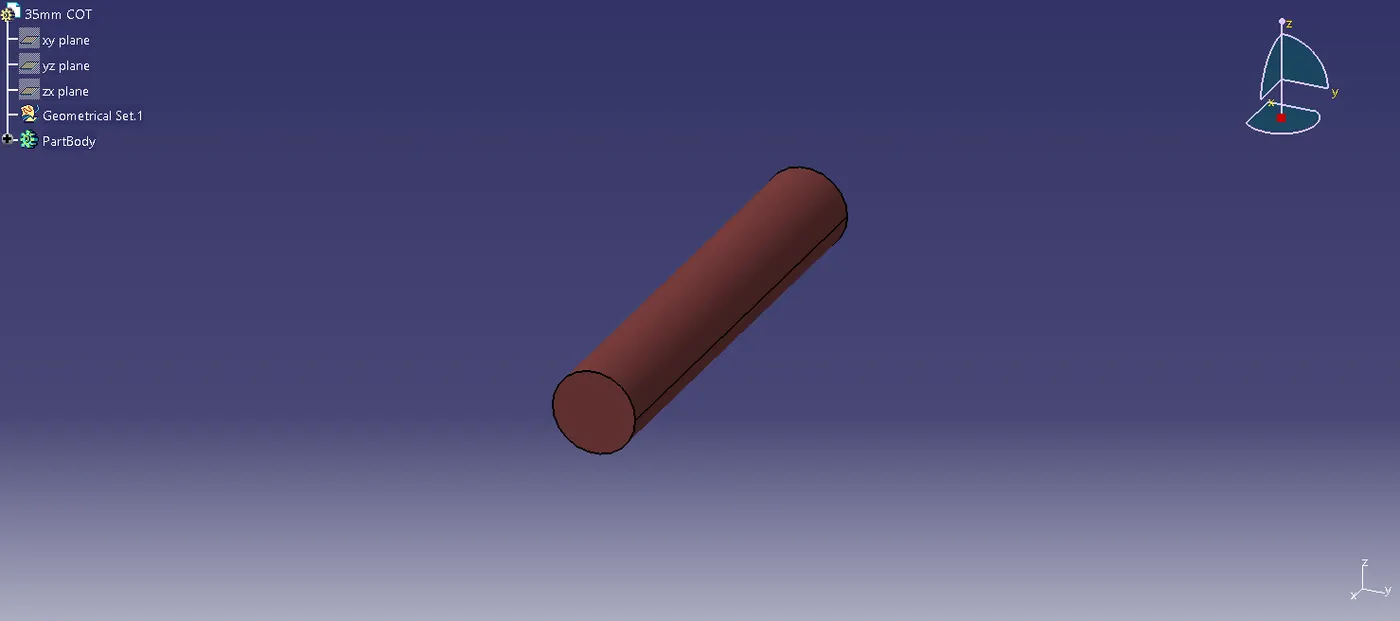

The Corrugated tube is a protection part in the bundle assembly. This COT tube is defined as protection part by using electrical part design workbench. It is of 35mm OD, 32mm ID, thickness of 1.5mm. It is catalogued under 'Slit COT' family.
10mm COT :

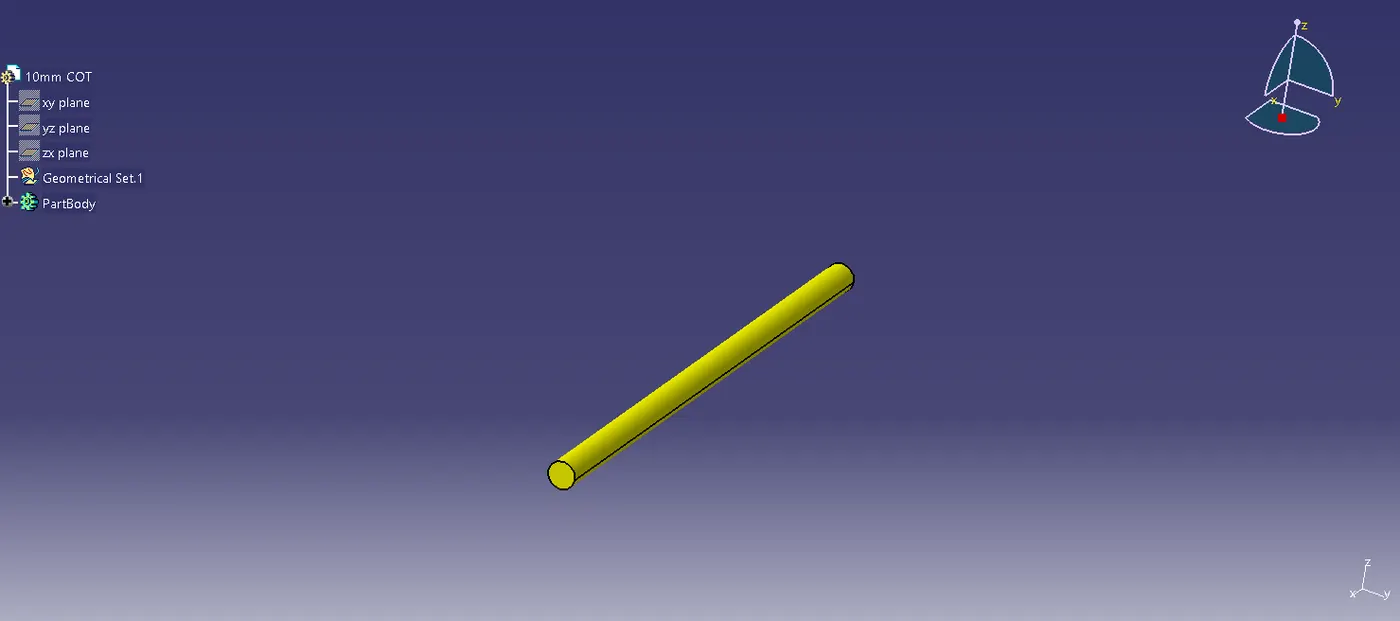

The Corrugated tube is a protection part in the bundle assembly. This COT tube is defined as protection part by using electrical part design workbench. It is of 10mm OD, 7mm ID, thickness of 1.5mm. It is catalogued under 'Slit COT' family.
5mm COT:
The Corrugated tube is a protection part in the bundle assembly. This COT tube is defined as protection part by using electrical part design workbench. It is of 5mm OD, 3mm ID, thickness of 1mm. It is catalogued under 'Slit COT' family.
