Wiring harness routing & packaging Rules Week 3 Challenge
A-1 P clamp
Part design workbench
- define geometric parameter - point (2 point entry & exit), plane (1,2,base 3rd)
Electrical part design workbench
- define p clamp as a support part select point & plane both point 1 by 1.
A-2 Tyco 1738312-1 back shell
Part design workbench
- define geometric parameter- point (point in center connector mating side & bundle entry side)
- axis x,y,z (y- mating,)
Electrical part design workbench
- define part as a back shell
- define back shell connection point & bundle connection point.
A-3 COT - 5,10,15,20,35mm
Electrical part design workbench
- define protection part , click to part body fill required dimension then cot tube will create.

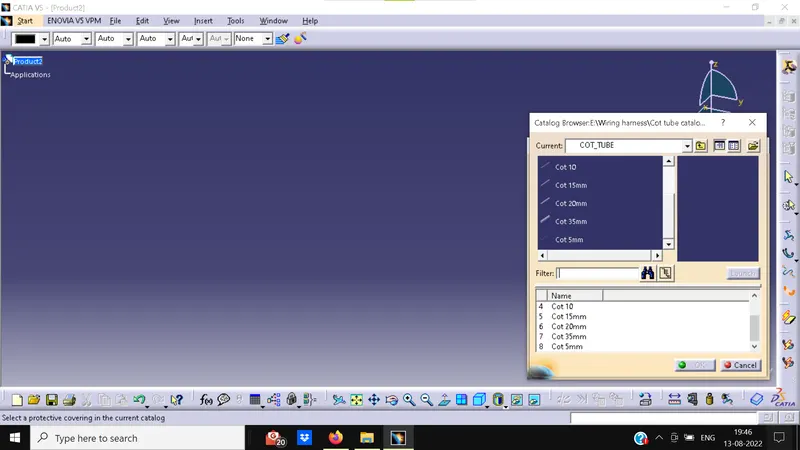

- for add cot tube in cot_tube catalog create cot tube catalog .
- then add our cot tube in cot_tube catalog through store device
