Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

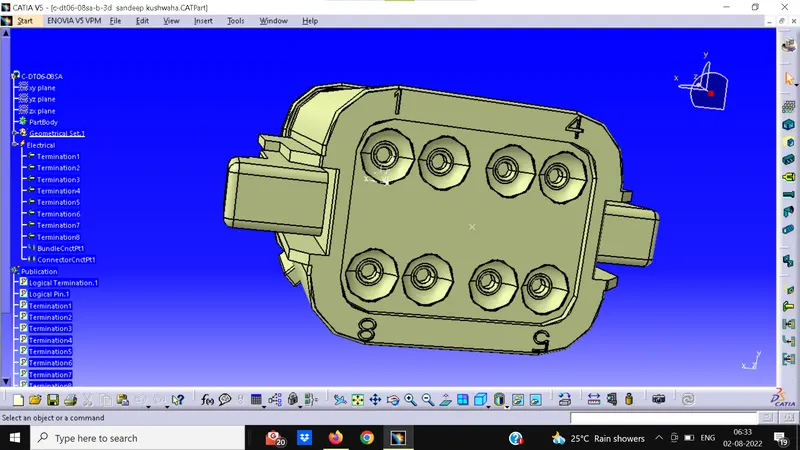

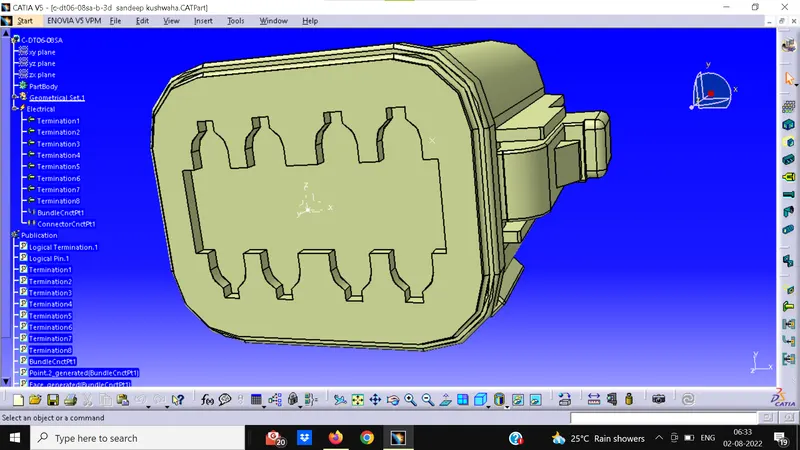

1. Deutsch DT06 – 08SA
workbench- part design
- define geometric parameters point & axis x,y,z
- take middle point at connector mating & bundle connection side
- define axis x- locking side, y- mating side, z- left & right
move to electrical part design workbench
- define as connector 8 termination
- define bundle connection point
- define connector connection point

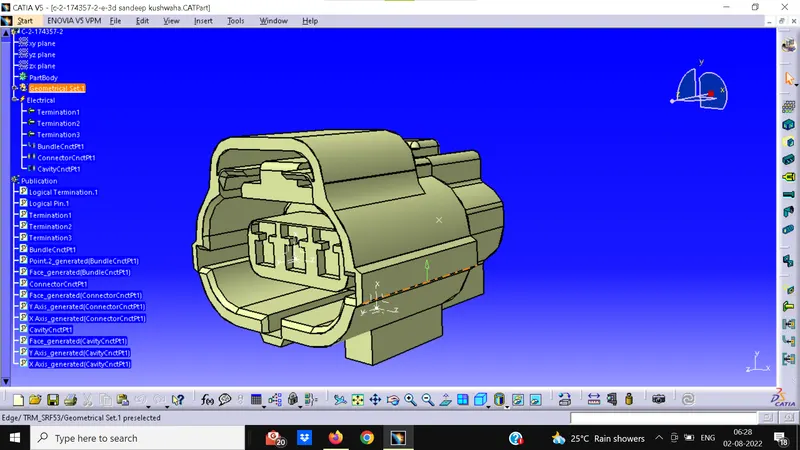

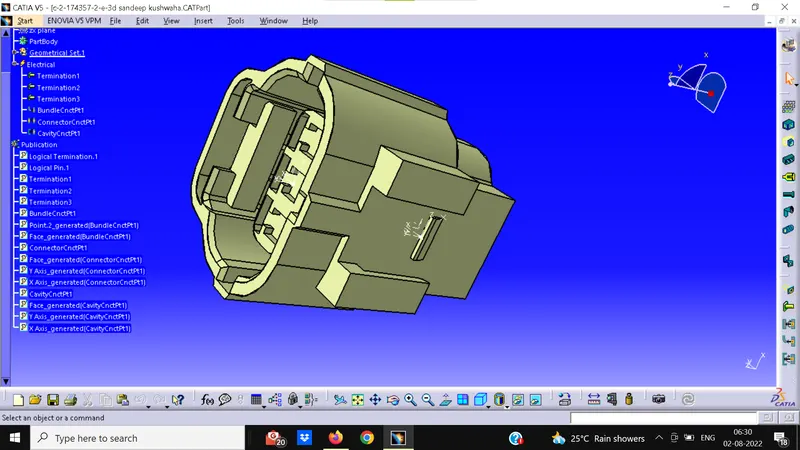

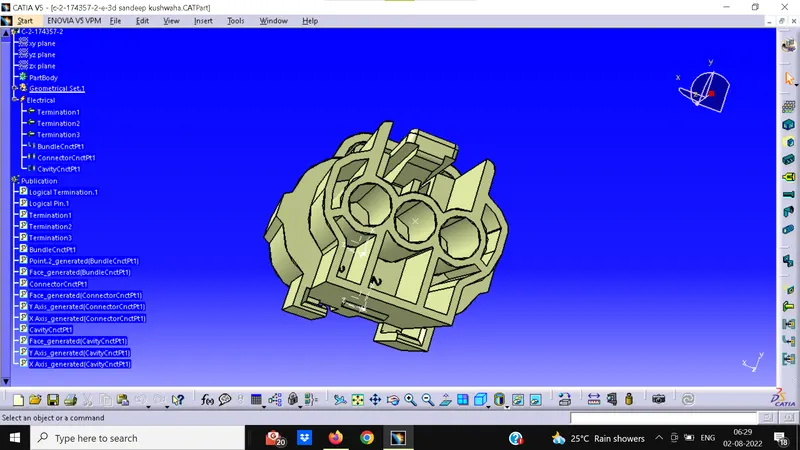

2. Tyco 174357-2
workbench- part design
- define geometric parameters point & axis x,y,z
- take middle point at connector mating,bundle connection & cavity connection side
- define axis x- locking side, y- mating side, z- left & right
move to electrical part design workbench
- define as connector 3 termination
- define bundle connection point
- define connector connection point
- define cavity connection point.

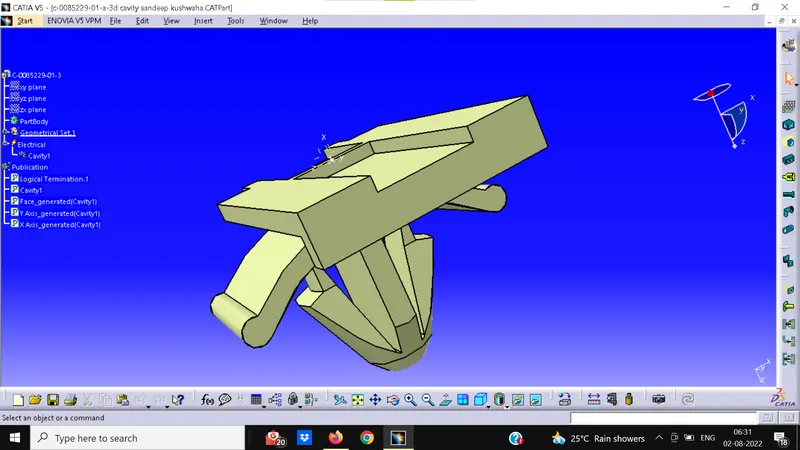

3. Tyco 85229-1
workbench- part design
- define geometric parameters point & axis x,y,z
- take middle point at cavity connection side
- define axis x- locking side, y- mating side, z- left & right
move to electrical part design workbench
- define as mounting equipment
- define cavity
