Wiring harness routing & packaging Rules Week 3 Challenge

1.

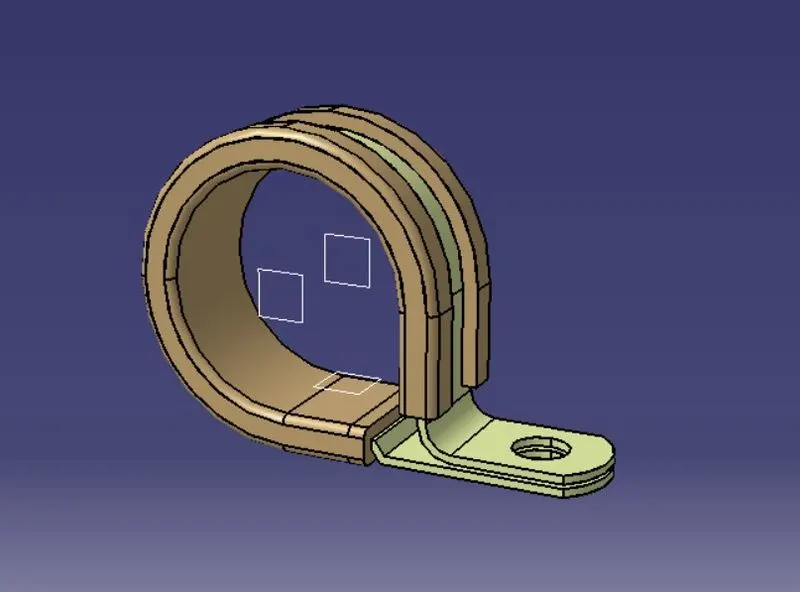

First we can create a entry and exit level point

Entry and exit level side point to be created in circls/elispse

after to create three plane( going to create point definition)

This are entry,exit and base plane side(base to be 2mm)

after to go to the electric part design and go to support

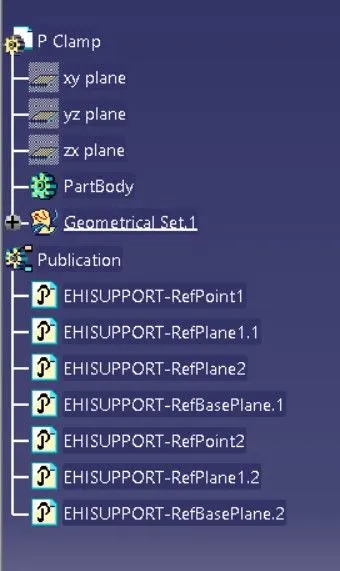

After to create entry point and plane at center, exit point and plane at center and base plane bottom

2.

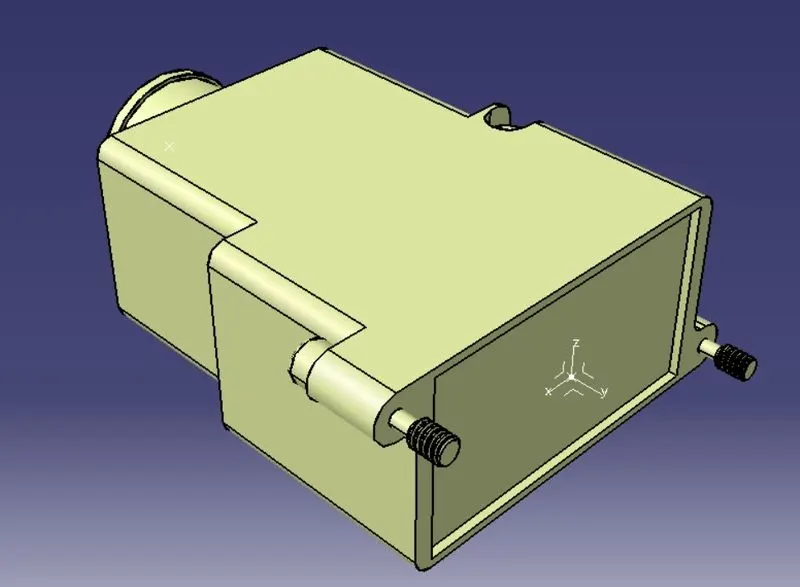

This to Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench

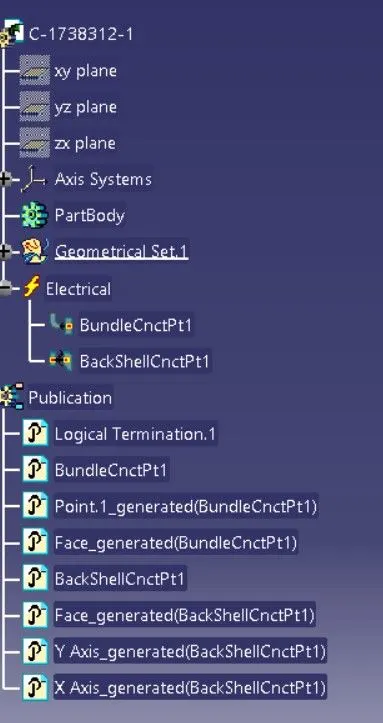

there was to first to create bundle connection point and connector connection point to create a point

after we go to the connector connection point side create axis system. after do the bundle connection point and back shell connection point......

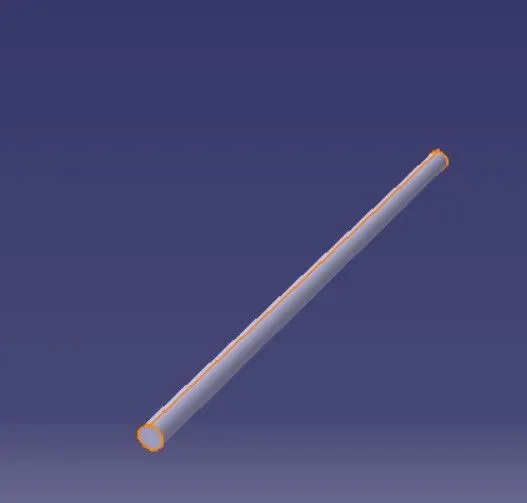

3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Open a new file to go catolog document and add family save

This process to create the 5mm,10mm,35mm,20mm,15mm
