Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

1.First we can create the part design. After to import the file and create a middle point.

2. To created the middle point in bundle connection side and connector connection side

3. we can do the axis system both side

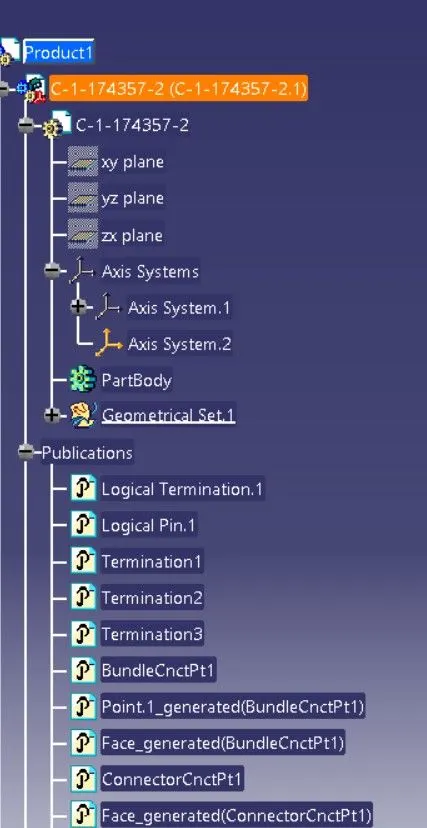

4. And we can go with the electrical part design. connector bottom also created axis system

5. Find the bundle connection point, connector connection point, and cavity connection point

6. After to add the clip clip bottom side also created middle point and axis system

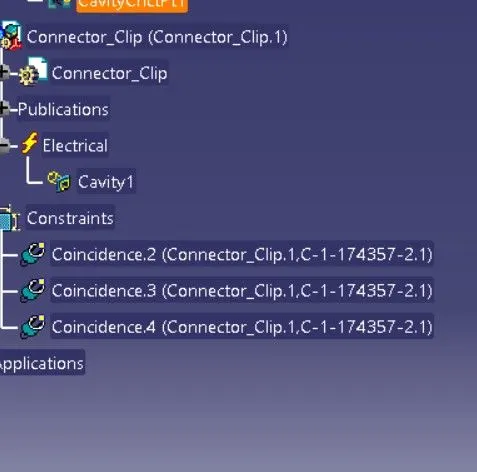

we can go to the electrical part design. and create cavity connection. After find the coincidence
