Wiring harness routing & packaging Rules Week 3 Challenge

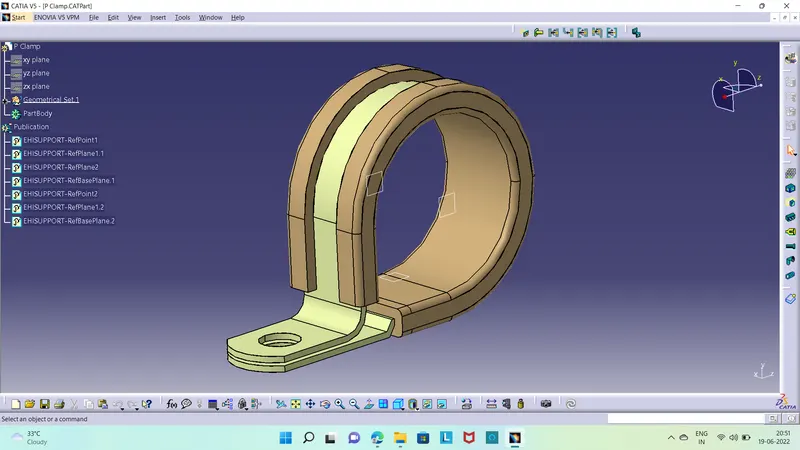

First of all by going into part design we will define 2 points in PCLAMP

1. Bundle Entry Point

2.Bundle Exit Point

then after this we will define 3 plane- bundle entry,bundle exit and support plane.

Then go to electric part assembly go to support toolbar,define entry plane in both direction untill it is defined in both direction

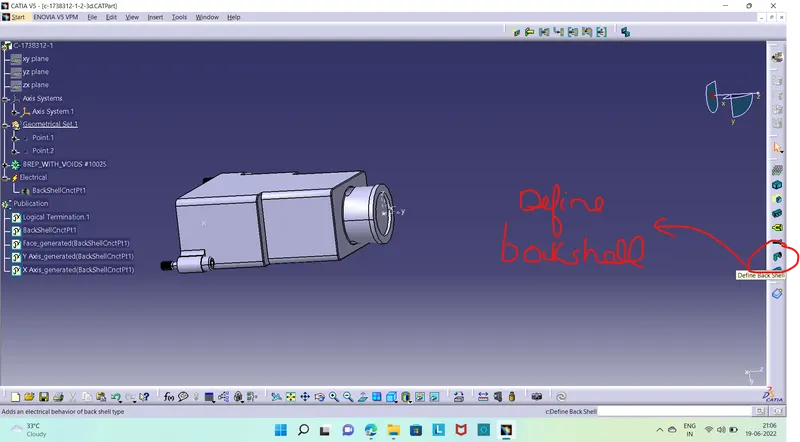

Similary do this with backshell

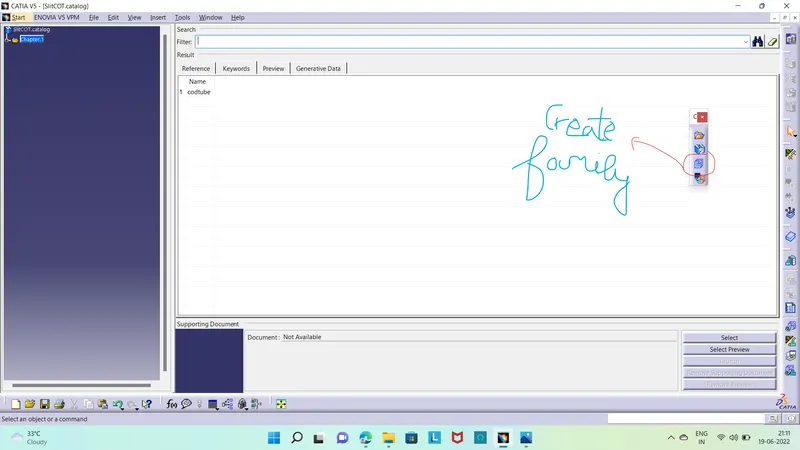

PRODUCT CATALOGUE

File-New-Catalogue document-

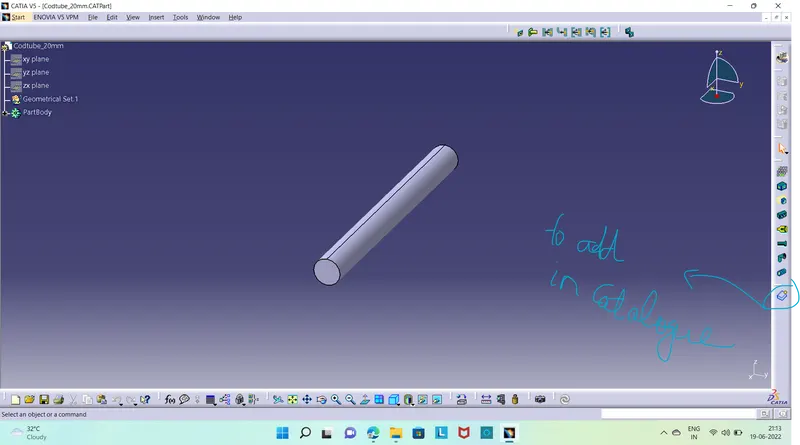

Then go to electric part design use the icon below
