Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

HARNESS FLATTENING PROCEDURE

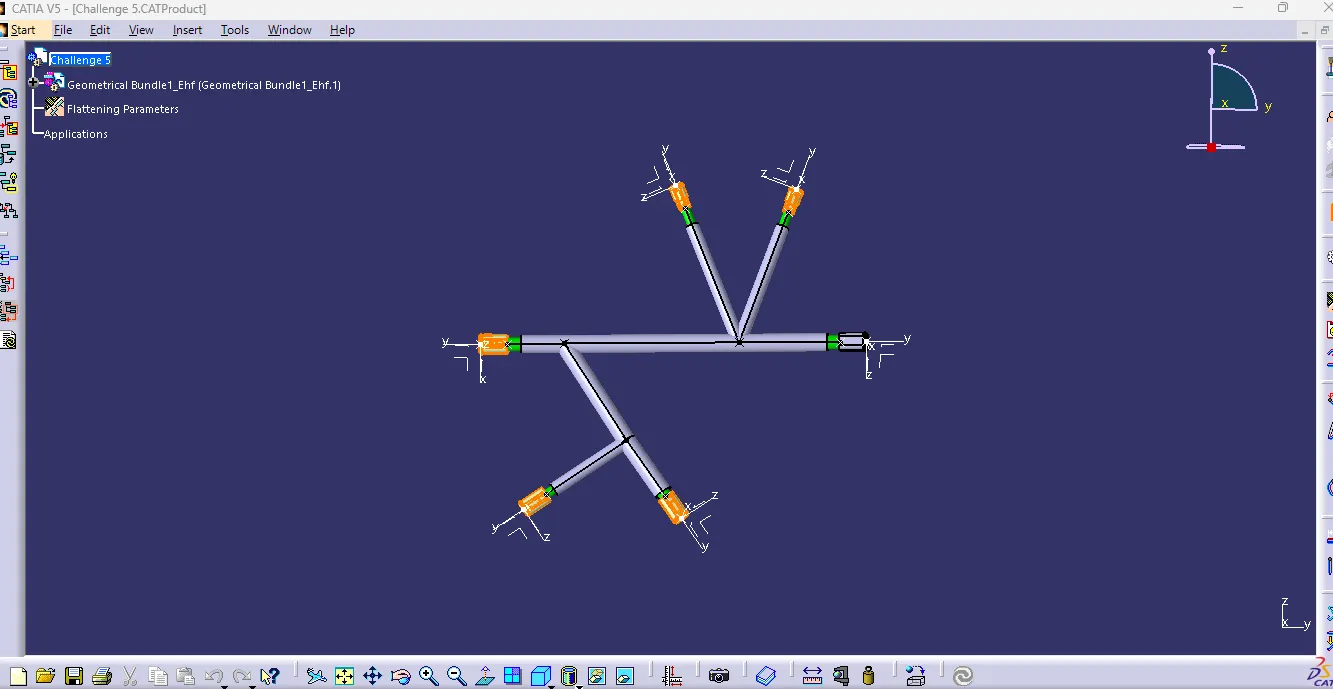

First, we navigate to the harness flattening workbench to establish the necessary flattening parameters. Next, employing the "Extract" command, we transfer the harness assembly to the flattening workbench. Subsequently, we select an appropriate plane and proceed to flatten the harness assembly accordingly. During this process, bundle segments undergo rotation to meet specified angles, after which the harness assembly is drafted. To ensure visibility in the 3D drawings, flattening parameters are meticulously defined to showcase both the bundle and the corrugated tubes.

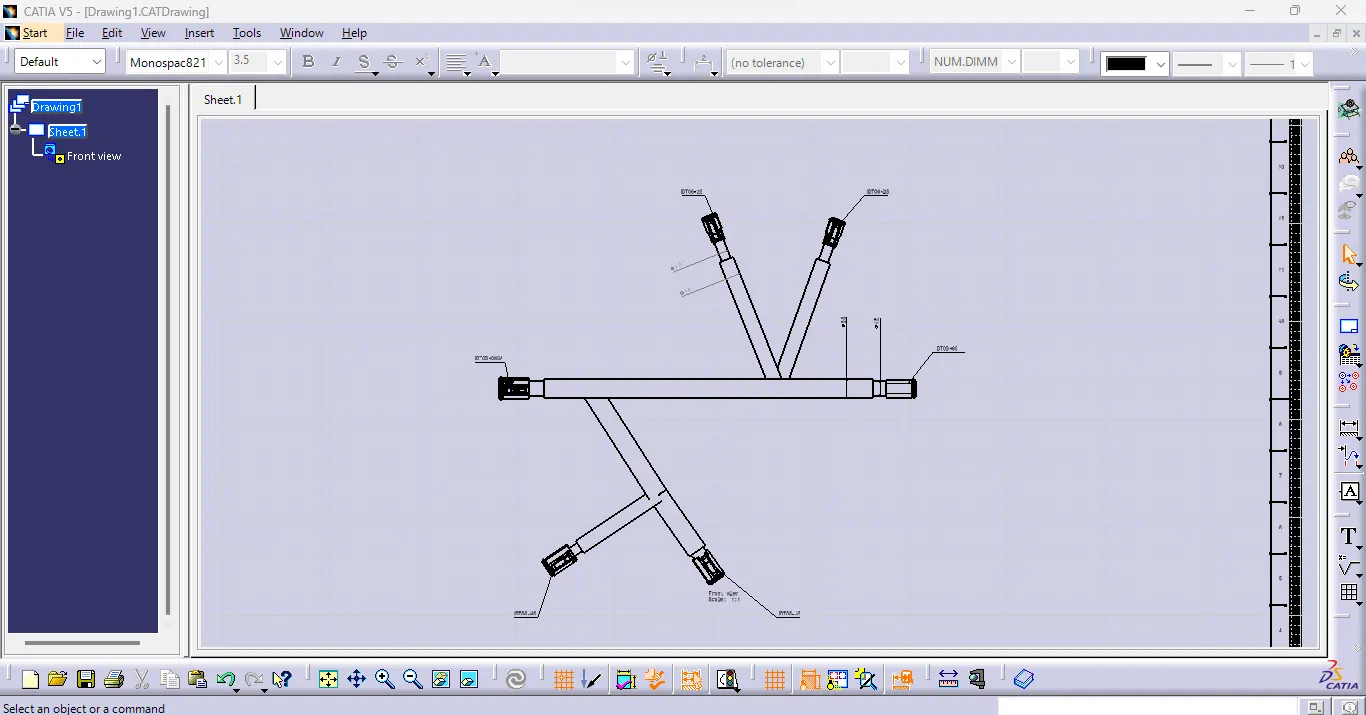

DRAWING SHEET
