Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM

TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

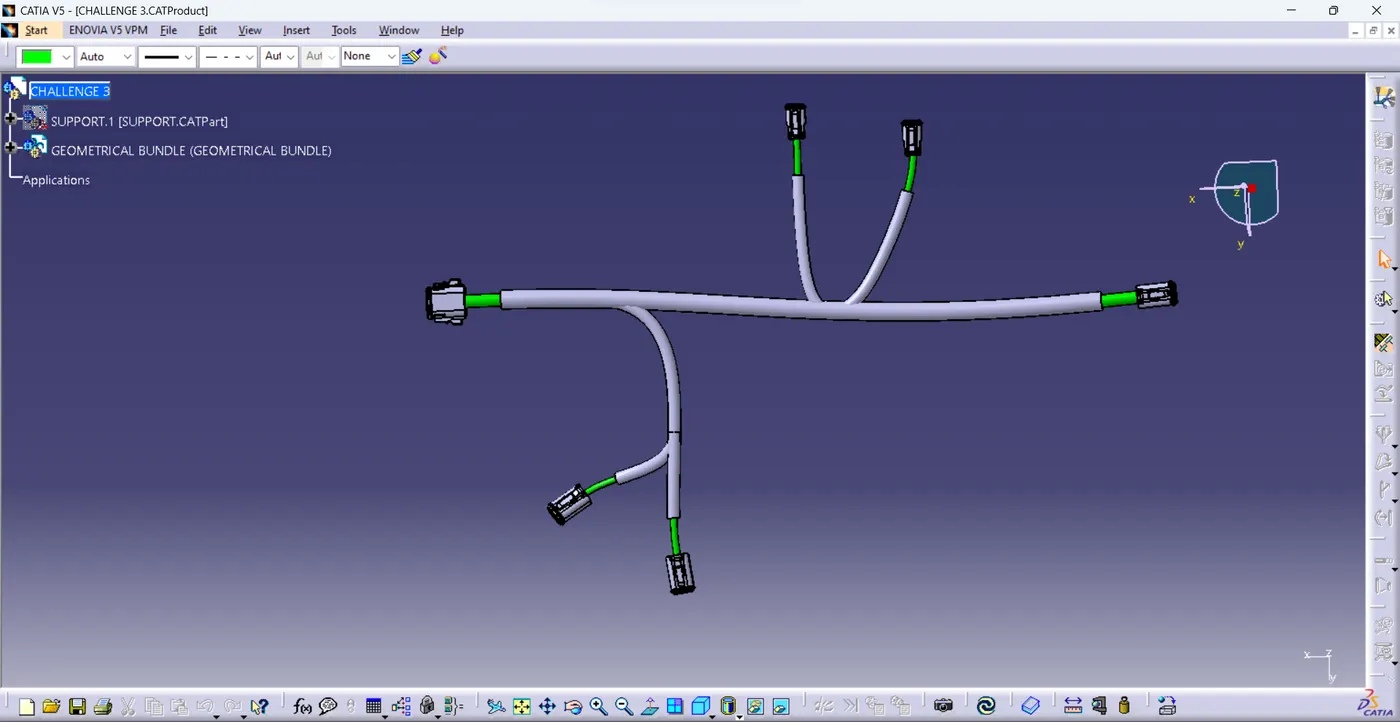

FINAL PRODUCT

FLATTENING PROCEDURE

1) OPEN THE FLATTENING WORK BENCH AND DEFINE THE FLATTENING PARAMETERS.

2) EXCTRACT THE HARNESS ASSEMBLY FOR OPENING THE ASSMBLY IN THE FLATTENING WORK BENCH.

3) THEN USE THE FLATTEN COMMAND AND SELECT THE SUITABLE PLANE/SURFACE FOR THE FLATTEN THE HARNESS.

4) USE THE ROTATE/ROLL SUCH COMMANDS TO GET THE PROPER ALIGNMENT.

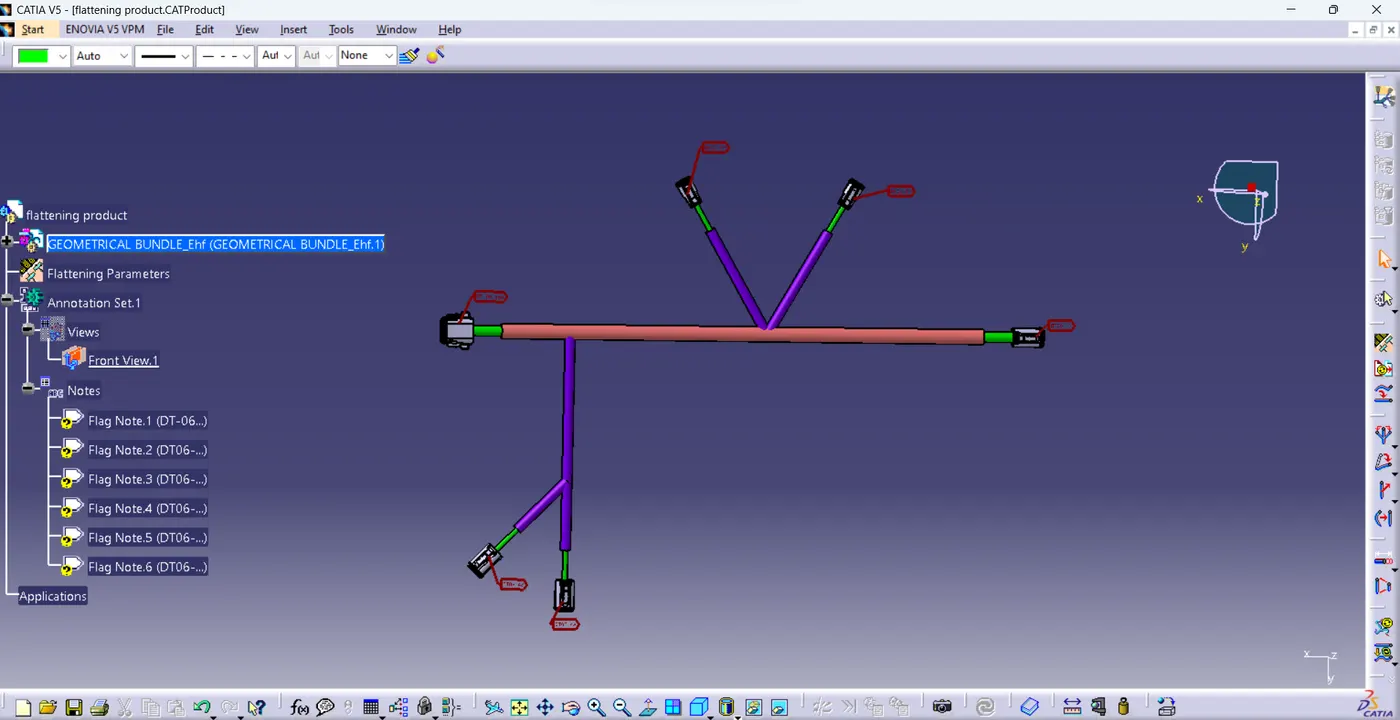

FLATTENED PRODUCT

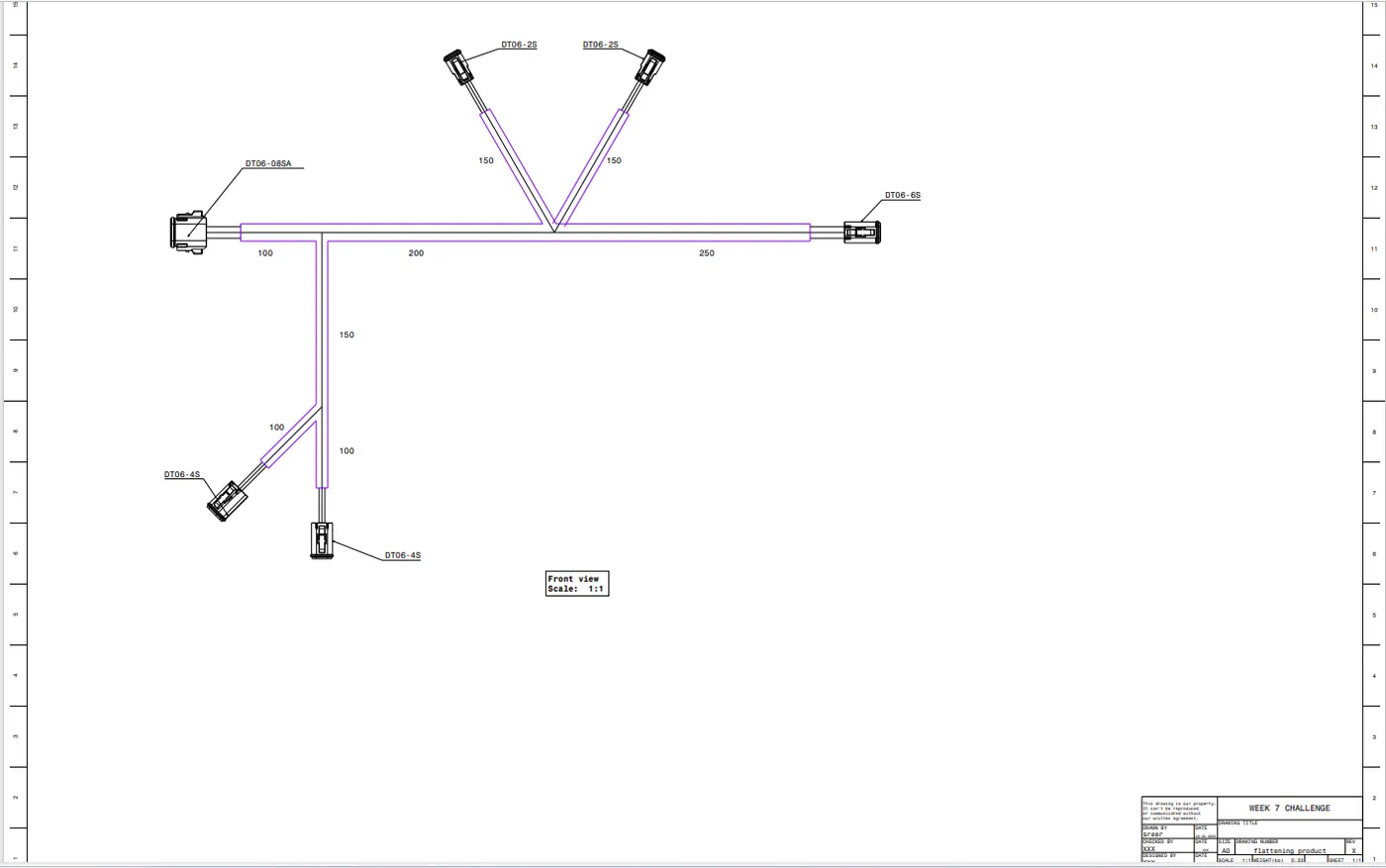

DRAFTING OF FLATTENED HARNESS
